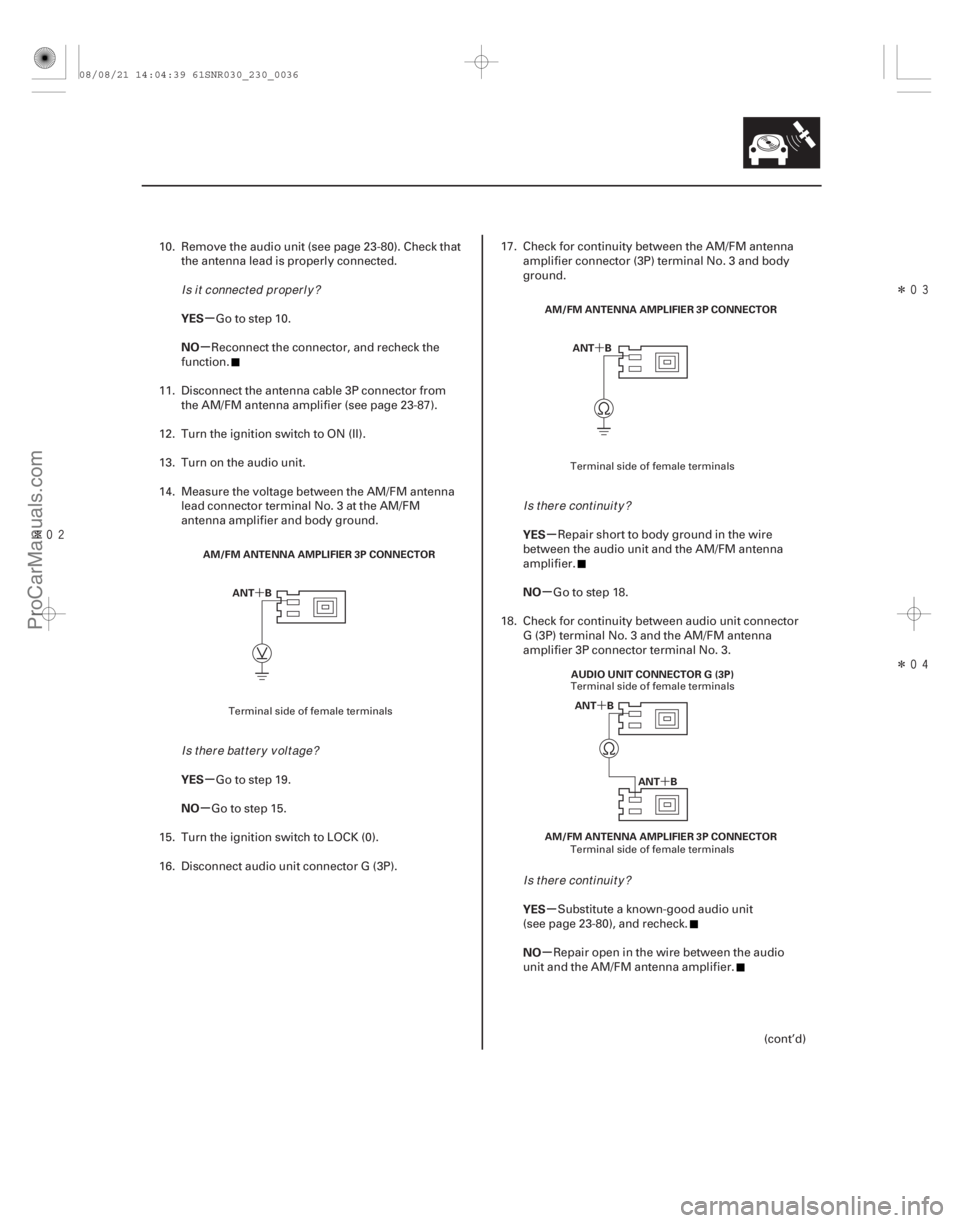

Page 2313 of 2893

ÎÎ
Î
´´
´ ´
µ
µ
µ
µ µ
µ
µ
µ
YES
NO
YES
NO
YES
NO
YES
NO
23-33
AM/FM ANTENNA AMPLIFIER 3P CONNECTOR
ANT B AM/FM ANTENNA AMPLIFIER 3P CONNECTOR
ANT B
AUDIO UNIT CONNECTOR G (3P)
AM/FM ANTENNA AMPLIFIER 3P CONNECTOR ANT B
ANT B
10. Remove the audio unit (see page 23-80). Check thatthe antenna lead is properly connected.
Go to step 10.
Reconnect the connector, and recheck the
function.
11. Disconnect the antenna cable 3P connector from the AM/FM antenna amplifier (see page 23-87).
12. Turn the ignition switch to ON (II).
13. Turn on the audio unit.
14. Measure the voltage between the AM/FM antenna lead connector terminal No. 3 at the AM/FM
antenna amplifier and body ground.
Go to step 19.
Go to step 15.
15. Turn the ignition switch to LOCK (0).
16. Disconnect audio unit connector G (3P). 17. Check for continuity between the AM/FM antenna
amplifier connector (3P) terminal No. 3 and body
ground.
Repair short to body ground in the wire
between the audio unit and the AM/FM antenna
amplifier.
Go to step 18.
18. Check for continuity between audio unit connector G (3P) terminal No. 3 and the AM/FM antenna
amplifier 3P connector terminal No. 3.
Substitute a known-good audio unit
(see page 23-80), and recheck.
Repair open in the wire between the audio
unit and the AM/FM antenna amplifier.
(cont’d)
Terminal side of female terminals Terminal side of female terminals
Terminal side of female terminals
Terminal side of female terminals
I s i t connect ed pr oper l y ?
Is there battery voltage? Is there continuity?
Is there continuity?
08/08/21 14:04:39 61SNR030_230_0036
ProCarManuals.com
DYNOMITE -2009-

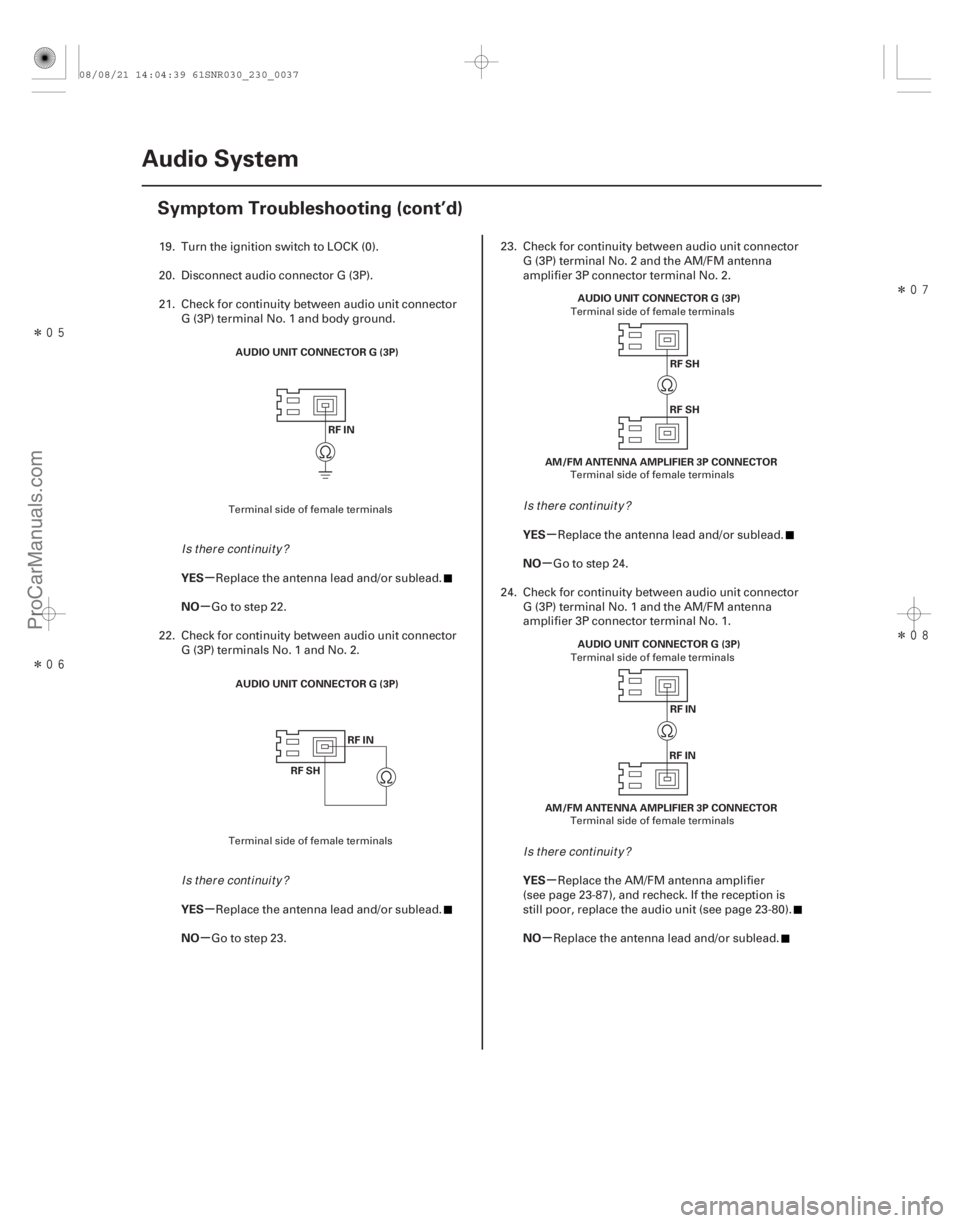

Page 2314 of 2893

Î
ÎÎ
Î
µ
µ
µ
µ µ
µ
µ
µ
YES
NO
YES
NO YES
NO
YES
NO
23-34Audio System
Symptom Troubleshooting (cont’d)
AUDIO UNIT CONNECTOR G (3P)
RF IN
AUDIO UNIT CONNECTOR G (3P) RF IN
RF SH AUDIO UNIT CONNECTOR G (3P)
AM/FM ANTENNA AMPLIFIER 3P CONNECTOR RF SH
RF SH
AUDIO UNIT CONNECTOR G (3P)
AM/FM ANTENNA AMPLIFIER 3P CONNECTOR RF IN
RF IN
19. Turn the ignition switch to LOCK (0).
20. Disconnect audio connector G (3P).
21. Check for continuity between audio unit connector G (3P) terminal No. 1 and body ground.
Replace the antenna lead and/or sublead.
Go to step 22.
22. Check for continuity between audio unit connector G (3P) terminals No. 1 and No. 2.
Replace the antenna lead and/or sublead.
Go to step 23. 23. Check for continuity between audio unit connector
G (3P) terminal No. 2 and the AM/FM antenna
amplifier 3P connector terminal No. 2.
Replace the antenna lead and/or sublead.
Go to step 24.
24. Check for continuity between audio unit connector G (3P) terminal No. 1 and the AM/FM antenna
amplifier 3P connector terminal No. 1.
Replace the AM/FM antenna amplifier
(see page 23-87), and recheck. If the reception is
still poor, replace the audio unit (see page 23-80).
Replace the antenna lead and/or sublead.
Terminal side of female terminals
Terminal side of female terminals Terminal side of female terminals
Terminal side of female terminals
Terminal side of female terminals
Terminal side of female terminals
Is there continuity?
Is there continuity? Is there continuity?
Is there continuity?
08/08/21 14:04:39 61SNR030_230_0037
ProCarManuals.com
DYNOMITE -2009-
Page 2315 of 2893

Î
(#'#
)
´
µ
µ
µ
µ
µ
µ µ
µ
Audio unit power switch will not turn on (No
information display and no sound) (with
navigation)
YES
NO
YES
NO
YES
NO YES
NO
23-35
NAVIGATION UNIT CONNECTOR A (17P)
BBACKUP(WHT)
ACC RADIO (PUR)NOTE:
Check the vehicle battery condition first.
Check the connectors for poor connections or loose terminals.
1. Turn the ignition switch to ON (II).
2. Push the power switch ON to see if the navigation unit turns ON.
Intermittent failure, the system is OK at this
time.
Go to step 3.
3. Turn the ignition switch to LOCK (0).
4. Check the No. 23 (10 A) fuse in the under-hood fuse/relay box and No. 35 (7.5 A) fuse in the under-
dash fuse/relay box.
Go to step 5.
Replace the fuse(s), and recheck.
5. Remove the navigation unit (see page 23-155). Check that the navigation unit is properly
connected.
NOTE: Eject all the discs before removing the navigation unit to prevent damaging the CD player’s load
mechanism.
Remove the PC card before removing the navigation unit.
Go to step 6.
Reconnect the connector, and recheck the
function.
6. Disconnect navigation unit connector A (17P)
7. Turn the ignition switch to ON (II). 8. Measure the voltage between body ground and
navigation unit connector A (17P) terminals No. 14
and No. 17 individually.
Go to step 9.
Repair open in the wire(s) between the No. 23
(10 A) fuse in the under-hood fuse/relay box and
the No. 35 (7.5 A) in the under-dash fuse/relay box
and the navigation unit.
9. Turn the ignition switch to LOCK (0).
10. Reconnect navigation unit connector A (17P).
(cont’d)
Wire side of female terminals
Does t he nav i gat i on uni t d i spl ay oper at e pr oper l y ,and d oes t he aud i o sound nor mal ?
Ar e t he f uses OK ?
I s i t connect ed pr oper l y ? I s t her e bat t er y v ol t age on bot h t er mi nal s?
08/08/21 14:04:39 61SNR030_230_0038
ProCarManuals.com
DYNOMITE -2009-
Page 2316 of 2893

Î
(#'#
)
µ
µ µ
µ
µ
µ
µ
µ
YES
NO
YES
NO
YES
NO
YES
NO
Audio unit power switch will not turn on (No
information display and no sound) (without
navigation)
23-3623-36Audio System
Symptom Troubleshooting (cont’d)
RADIO GND (BLK)
NAVIGATION UNIT CONNECTOR A (17P)
11. Turn the ignition switch to ON (II).
12. Measure the voltage between navigation unit
connector A (17P) terminal No. 9 and body ground.
Replace the navigation unit (see page 23-155).
Repair open in the wire between navigation
unit connector A (17P) terminal No. 19 and body
ground (G 505). NOTE:
Check the vehicle battery condition first.
Check the connectors for poor connections or loose terminals.
1. Turn the ignition switch to ON (II).
2. Push the power switch ON to see if audio unit turns ON.
Intermittent failure, the system is OK at this
time.
Go to step 3.
3. Turn the ignition switch to LOCK (0).
4. Check the No. 23 (10 A) fuse in the under-hood fuse/relay box and the No. 35 (7.5 A) fuse in the
under-dash fuse/relay box.
Go to step 5.
Replace the fuse(s), and recheck.
5. Remove the audio unit (see page 23-80). Check that the audio unit is properly connected.
NOTE: Eject all the discs before removing the audio
unit to prevent damaging the CD player’s load
mechanism.
Go to step 6.
Reconnect the connector, and recheck the
function.
Wire side of female terminals
I s t her e l ess t han 0.1 V on bot h t er mi nal s? Does t he aud i o uni t oper at e pr oper l y , and d oes t he
aud i o sound nor mal ?
Ar e t he f uses OK ?I s i t connect ed pr oper l y ?
08/08/21 14:04:40 61SNR030_230_0039
ProCarManuals.com
DYNOMITE -2009-
Page 2317 of 2893

ÎÎ
´
µ
µ µ
µ
YES
NO YES
NO
23-37
AUDIO UNIT CONNECTOR A (17P)
BBACKUP(WHT)
ACC RADIO (PUR) AUDIO UNIT CONNECTOR A (17P)
RADIO GND (BLK)
6. Disconnect audio unit connector A (17P).
7. Turn the ignition switch to ON (II).
8. Measure the voltage between audio unit connectorA (17P) terminal No. 14 and body ground, and
between terminal No. 17 and body ground.
Go to step 9.
Repair open in the wire(s) between the No. 23
(10 A) fuse in the under-hood fuse/relay box and
the No. 35 (7.5 A) in the under-dash fuse/relay box
and the audio unit.
9. Turn the ignition swtich to LOCK (0).
10. Reconnect audio unit connector A (17P).
11. Turn the ignition switch to ON (II). 12. Measure the voltage between audio unit connector
A (17P) terminal No. 9 and body ground.
Replace the audio unit (see page 23-80).
Repair open in the wire between audio unit
connector A (17P) terminal No. 9 and body ground
(G505) (see page 22-32).
Wire side of female terminals Wire side of female terminals
Is there battery voltage on the both terminals?
Is t her e l ess t han 0.1 V ?
08/08/21 14:04:40 61SNR030_230_0040
ProCarManuals.com
DYNOMITE -2009-

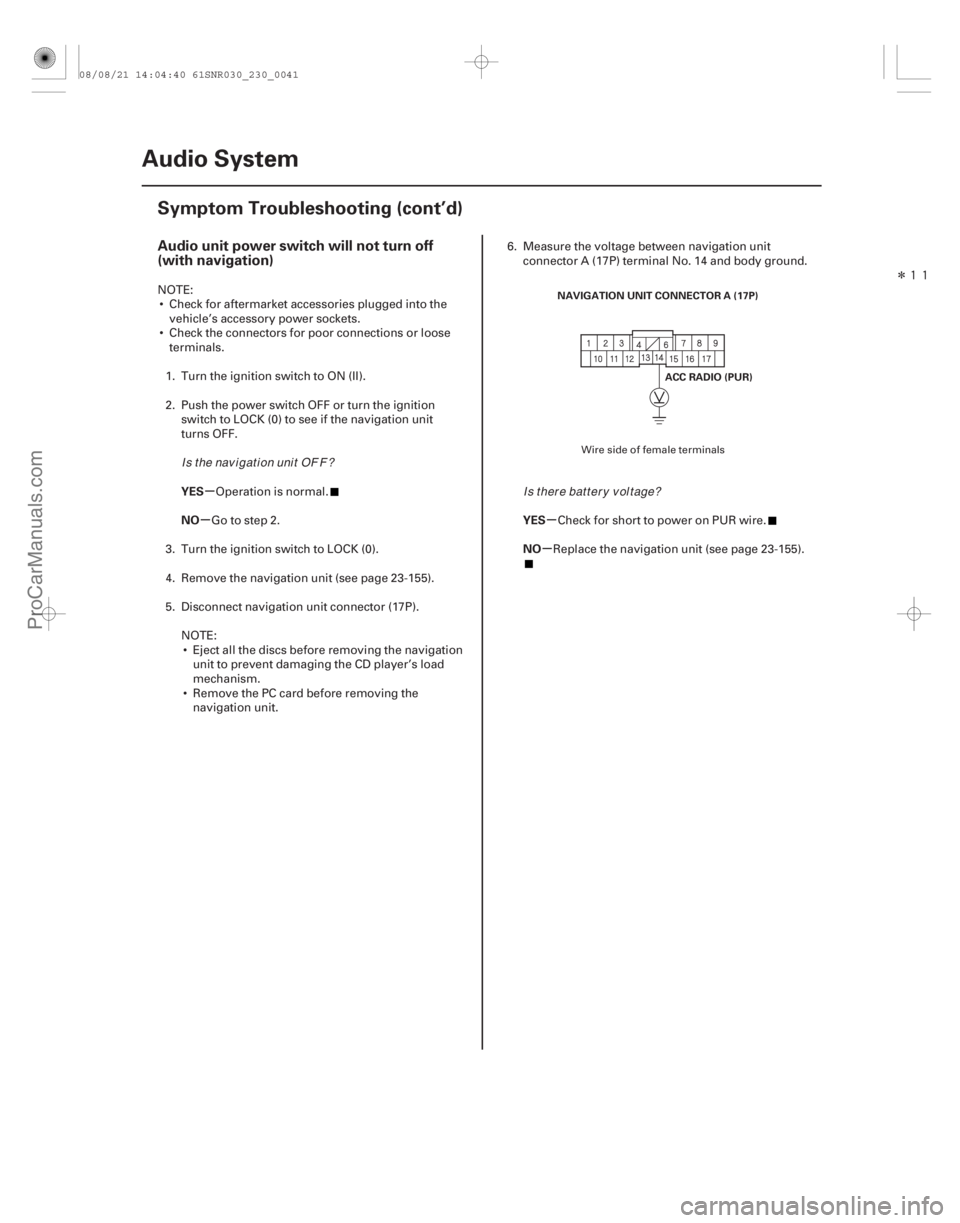

Page 2318 of 2893

Î
(#'#
)
µ
µµ µ
Audio unit power switch will not turn off
(with navigation)
YES
NO YESNO
23-38Audio System
Symptom Troubleshooting (cont’d)
ACC RADIO (PUR)
NAVIGATION UNIT CONNECTOR A (17P)
NOTE:
Check for aftermarket accessories plugged into the vehicle’s accessory power sockets.
Check the connectors for poor connections or loose terminals.
1. Turn the ignition switch to ON (II).
2. Push the power switch OFF or turn the ignition switch to LOCK (0) to see if the navigation unit
turns OFF.
Operation is normal.
Go to step 2.
3. Turn the ignition switch to LOCK (0).
4. Remove the navigation unit (see page 23-155).
5. Disconnect navigation unit connector (17P). NOTE: Eject all the discs before removing the navigation unit to prevent damaging the CD player’s load
mechanism.
Remove the PC card before removing the navigation unit. 6. Measure the voltage between navigation unit
connector A (17P) terminal No. 14 and body ground.
Check for short to power on PUR wire.
Replace the navigation unit (see page 23-155).
Wire side of female terminals
I s t he nav i gat i on uni t OF F ? Is there battery voltage?
08/08/21 14:04:40 61SNR030_230_0041
ProCarManuals.com
DYNOMITE -2009-

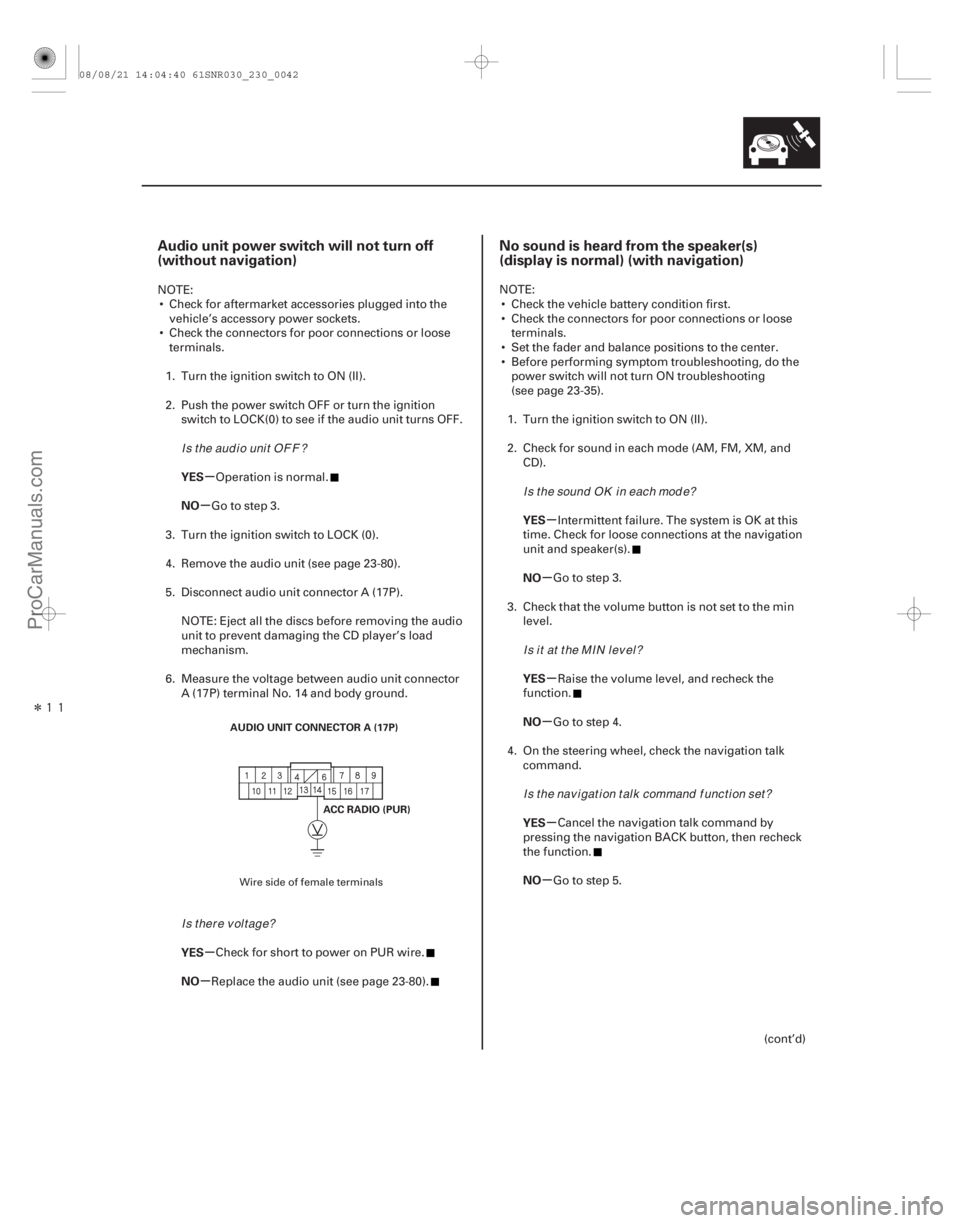

Page 2319 of 2893

Î
(#'#
)
(#'#
)
µ
µ
µ
µ µ
µ
µ
µ
µ
µ
Audio unit power switch will not turn off
(without navigation) No sound is heard from the speaker(s)
(display is normal) (with navigation)
YES
NO
YES
NO YES
NO
YES
NO
YES
NO
23-3923-39
AUDIO UNIT CONNECTOR A (17P)
ACC RADIO (PUR)
NOTE: Check for aftermarket accessories plugged into the vehicle’s accessory power sockets.
Check the connectors for poor connections or loose terminals.
1. Turn the ignition switch to ON (II).
2. Push the power switch OFF or turn the ignition switch to LOCK(0) to see if the audio unit turns OFF.
Operation is normal.
Go to step 3.
3. Turn the ignition switch to LOCK (0).
4. Remove the audio unit (see page 23-80).
5. Disconnect audio unit connector A (17P). NOTE: Eject all the discs before removing the audio
unit to prevent damaging the CD player’s load
mechanism.
6. Measure the voltage between audio unit connector A (17P) terminal No. 14 and body ground.
Check for short to power on PUR wire.
Replace the audio unit (see page 23-80). NOTE:
Check the vehicle battery condition first.
Check the connectors for poor connections or loose terminals.
Set the fader and balance positions to the center.
Before performing symptom troubleshooting, do the power switch will not turn ON troubleshooting
(see page 23-35).
1. Turn the ignition switch to ON (II).
2. Check for sound in each mode (AM, FM, XM, and CD).
Intermittent failure. The system is OK at this
time. Check for loose connections at the navigation
unit and speaker(s).
Go to step 3.
3. Check that the volume button is not set to the min level.
Raise the volume level, and recheck the
function.
Go to step 4.
4. On the steering wheel, check the navigation talk command.
Cancel the navigation talk command by
pressing the navigation BACK button, then recheck
the function.
Go to step 5.
(cont’d)
Wire side of female terminals
Is the aud io unit OF F ?
Is there voltage? I s t he sound OK i n each mod e?
Is it at the MIN level?I s t he nav i gat i on t al k command f unct i on set ?
08/08/21 14:04:40 61SNR030_230_0042
ProCarManuals.com
DYNOMITE -2009-

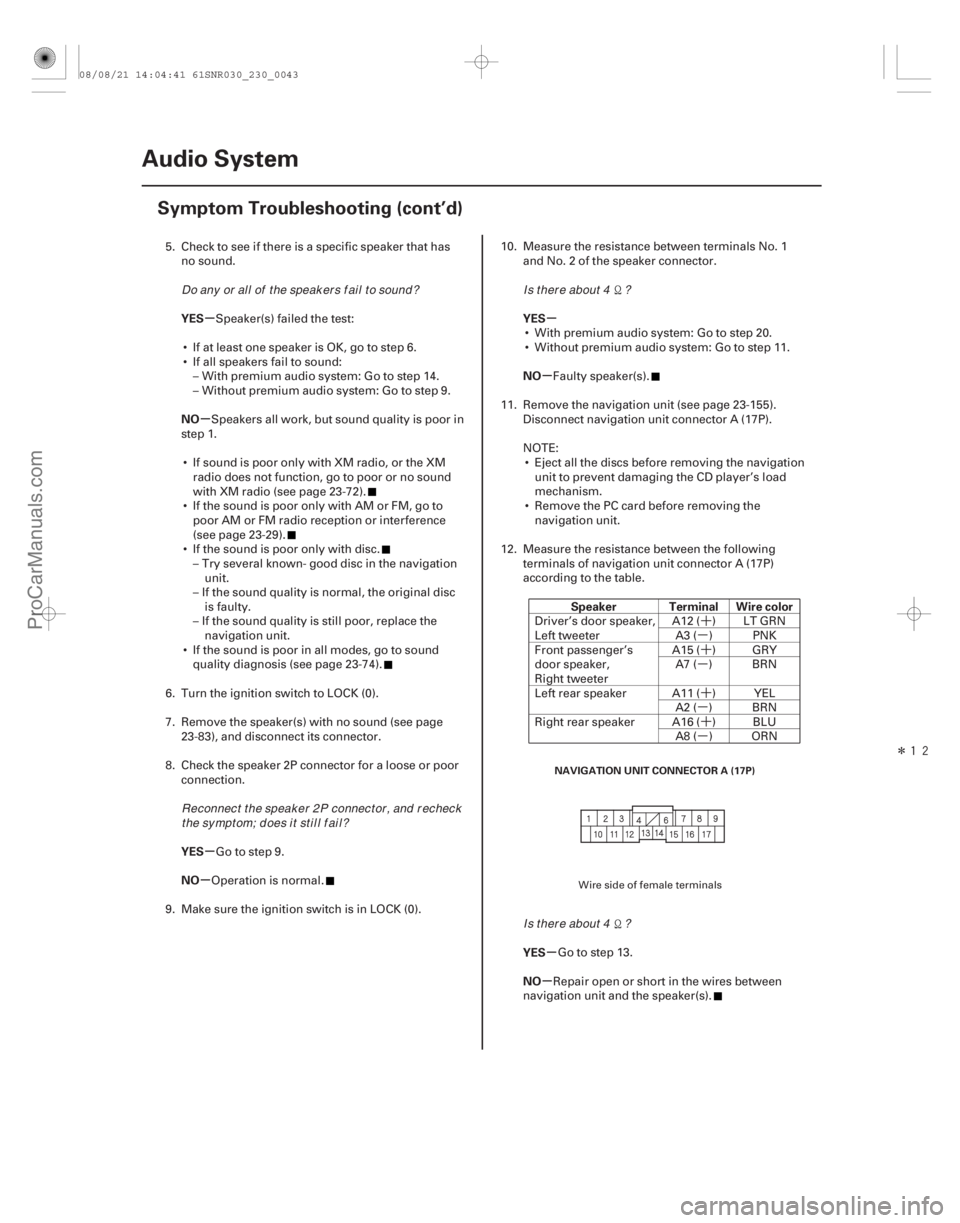

Page 2320 of 2893

´
µ ´
µ
´
µ ´
µ
Î
µ
µ
µ
µ µ
µ
µ
µ
YES
NO
YES
NO
YES
NO
Speaker Terminal Wire color
YES
NO
23-40 Audio System
Symptom Troubleshooting (cont’d)
NAVIGATION UNIT CONNECTOR A (17P)
5. Check to see if there is a specific speaker that has
no sound.
Speaker(s) failed the test:
If at least one speaker is OK, go to step 6.
If all speakers fail to sound: – With premium audio system: Go to step 14.
– Without premium audio system: Go to step 9.
Speakers all work, but sound quality is poor in
step 1.
If sound is poor only with XM radio, or the XM radio does not function, go to poor or no sound
with XM radio (see page 23-72).
If the sound is poor only with AM or FM, go to poor AM or FM radio reception or interference
(see page 23-29).
If the sound is poor only with disc. – Try several known- good disc in the navigation
unit.
– If the sound quality is normal, the original disc is faulty.
– If the sound quality is still poor, replace the navigation unit.
If the sound is poor in all modes, go to sound quality diagnosis (see page 23-74).
6. Turn the ignition switch to LOCK (0).
7. Remove the speaker(s) with no sound (see page 23-83), and disconnect its connector.
8. Check the speaker 2P connector for a loose or poor connection.
Go to step 9.
Operation is normal.
9. Make sure the ignition switch is in LOCK (0). 10. Measure the resistance between terminals No. 1
and No. 2 of the speaker connector.
With premium audio system: Go to step 20.
Without premium audio system: Go to step 11. Faulty speaker(s).
11. Remove the navigation unit (see page 23-155). Disconnect navigation unit connector A (17P).
NOTE: Eject all the discs before removing the navigation unit to prevent damaging the CD player’s load
mechanism.
Remove the PC card before removing the navigation unit.
12. Measure the resistance between the following terminals of navigation unit connector A (17P)
accordingtothetable.
Driver’s door speaker,
Left tweeter A12 ( ) LT GRN
A3 ( ) PNK
Front passenger’s
door speaker,
Right tweeter A15 ( ) GRY
A7 ( ) BRN
Left rear speaker A11 ( ) YEL A2 ( ) BRN
Right rear speaker A16 ( ) BLU A8 ( ) ORN
Go to step 13.
Repair open or short in the wires between
navigation unit and the speaker(s).
Wire side of female terminals
Do any or al l of t he speak er s f ai l t o sound ?
Reconnect t he speak er 2P connect or , and r echeckthe symptom; does it still f ail? Is t her e about 4 ?
Is t her e about 4 ?
08/08/21 14:04:41 61SNR030_230_0043
ProCarManuals.com
DYNOMITE -2009-
