20-4Doors
Component Location Index - Front Door (cont’d)
GLASS RUN CHANNEL
GLASS
SPACER
OUTER HANDLE
PROTECTOR DOOR CYLINDER (Driver’s)
RETAINER
INNER HANDLE
INNER HANDLE CAP
LATCH CABLE
LATCH
LATCH PROTECTOR
STRIKER
INNER HANDLE CABLE
CENTER LOWER CHANNEL
REGULATOR OUTER HANDLE
Replacement, page 20-14
Adjustment, page 20-28
Replacement, page 20-12
Adjustment,
page 20-31 Replacement,
page 20-14 Replacement,
page 20-9
08/08/21 14:58:53 61SNR030_200_0006
ProCarManuals.com
DYNOMITE -2009-
Page 1674 of 2893
Î
(#'
)
20-5
Component Location Index - Rear Door
DOOR ROOF OUTER TRIM DOOR CENTER OUTER TRIM
DOOR HINGE
DOOR CHECKER HINGE
DOOR PANEL
POWER WINDOW SWITCH
SWITCH PANEL
ARMREST DOOR WEATHERSTRIP
PLASTIC COVER
DOOR GLASS
INNER WEATHERSTRIP
DOOR GLASS OUTER WEATHERSTRIP
(cont’d)
Position Adjustment, page 20-29
Removal/Installation,page 20-17
Replacement, page 20-27 Replacement, page 20-26
08/08/21 14:58:54 61SNR030_200_0007
ProCarManuals.com
DYNOMITE -2009-
Page 1675 of 2893
Î
20-6Doors
Component Location Index - Rear Door (cont’d)
QUARTER GLASS
QUARTER SEAL
GLASSGLASS RUN CHANNEL
REGULATOR OUTER HANDLE
LATCH
STRIKER REAR LOWER CHANNEL
INNER HANDLE CABLEINNER HANDLE CAPINNER HANDLE
LATCH CABLE
OUTER HANDLE
PROTECTOR
LATCH PROTECTOR Replacement, page 20-23
Replacement, page 20-23
Adjustment, page 20-28
Replacement, page 20-23 Replacement,page 20-19
Replacement, page 20-21
Adjustment, page 20-21
08/08/21 14:58:56 61SNR030_200_0008
ProCarManuals.com
DYNOMITE -2009-
Page 1676 of 2893

Î
(#'
)
Special Tools Required
20-7
Front Door Panel Removal/Installation
A
B
C
Fastener Locations :Screw,1 :Clip,1
AFa
stener Location
: Clip, 1
A
B
C
D
B
E
A
Fastener Location :Screw,1
KTC trim tool set SOJATP2014
NOTE: Use the appropriate tool from the KTC trim tool
s
et to avoid damage when removing components.
1. Raise the glass fully.
2. Pry out on the rear portion of the inner handle cap (A) with the appropriate trim tool, then release the
hooks (B, C).
3. Remove the screw and the clip securing the inner handle (A). 4
. Remove the power window switch panel (A).
–1 Pry up on the rear edge of the switch panel with the appropriate trim tool, then release the
rear clip.
–2 Pull out along the edge of the panel to release all of the hooks (B).
–3 Pull the switch panel rearward to release the front hook (C).
–4 Disconnect the power mirror switch connector (D) (driver’s) and the power window switch
connector (E).
5. Remove the screw. (cont’d)
08/08/21 14:58:57 61SNR030_200_0009
ProCarManuals.com
DYNOMITE -2009-
Page 1677 of 2893

20-8
Doors
Front Door Panel Removal/Installation (cont’d)
Fastener Locations
A
D
E
F G
A
:Clip,6
B:Clip,1 C
BB B BCB
B
B
A
C
C
A
C
B
A B
C
D
F
EG
F
6. Remove the door panel (A) with as little bending as
possible to avoid creasing or breaking it.
–1 Start at the bottom edge of the door panel, release the clips (B, C) that are just above the
marks (D) on the edge of the panel with a
commercially available trim pad remover.
–2 Detach the upper clips.
–3 Starting at the rear, pull the door panel upward.
NOTE: The inner handle cable (E) and the latch
cable (F) are connected to the inner handle (G).
Do not pull the door panel up too far, or these
cables will be damaged.
7. While holding the door panel (A) away from the door remove the inner handle (B) from the door
panel by releasing the hooks (C). 8. Remove the door panel (A) while pu
lling the inner
handle (B) out through the hole in the door panel,
and disconnect the courtesy light subharness
connector (C).
9. If necessary, disconnect the inner handle cable (A) and the latch cable (B) from the inner handle (C),
then remove the handle.
–1 Detach the inner handle cable fastener (D), then disconnect the inner handle cable from
the cable fastener (E).
–2 Detach the latch cable fastener (F) with a flat- tip screwdriver, then disconnect the latch cable
from the cable fastener (G).
NOTE: If the cable fasteners are damaged or
stress-whitened, replace them with new ones.
08/08/21 14:58:58 61SNR030_200_0010
ProCarManuals.com
DYNOMITE -2009-
Page 1678 of 2893
(#'
)
20-920-9
Front Door Outer Handle
Replacement
A B
62 mm (2.44 in.)
A
B C
B
A
10. Install the door panel in the r everse order of
removal, and note these items:
If the clips are damaged or stress-whitened, replace them with new ones.
Replace any damaged cable fasteners with new ones.
The latch cable (A) should be fixed to the cable fastener (B) with the latch in lock position.
Make sure the connectors are plugged in properly, and the cables are connected securely.
Make sure the window and power door lock operate properly. NOTE: Put on gloves to protect your hands.
1. Raise the glass fully.
2. Remove the door panel and inner handle (see page 20-7).
3. Disconnect the power door lock actuator connector (A).
4. Remove the plug caps (B), then remove the plastic cover (C), as needed.
5. Detach the rod fastener (A).
(cont’d)
08/08/21 14:58:59 61SNR030_200_0011
ProCarManuals.com
DYNOMITE -2009-
Page 1679 of 2893
(#'
)
20-920-9
Front Door Outer Handle
Replacement
A B
62 mm (2.44 in.)
A
B C
B
A
10. Install the door panel in the r everse order of
removal, and note these items:
If the clips are damaged or stress-whitened, replace them with new ones.
Replace any damaged cable fasteners with new ones.
The latch cable (A) should be fixed to the cable fastener (B) with the latch in lock position.
Make sure the connectors are plugged in properly, and the cables are connected securely.
Make sure the window and power door lock operate properly. NOTE: Put on gloves to protect your hands.
1. Raise the glass fully.
2. Remove the door panel and inner handle (see page 20-7).
3. Disconnect the power door lock actuator connector (A).
4. Remove the plug caps (B), then remove the plastic cover (C), as needed.
5. Detach the rod fastener (A).
(cont’d)
08/08/21 14:58:59 61SNR030_200_0011
ProCarManuals.com
DYNOMITE -2009-
Page 1680 of 2893
20-10Doors

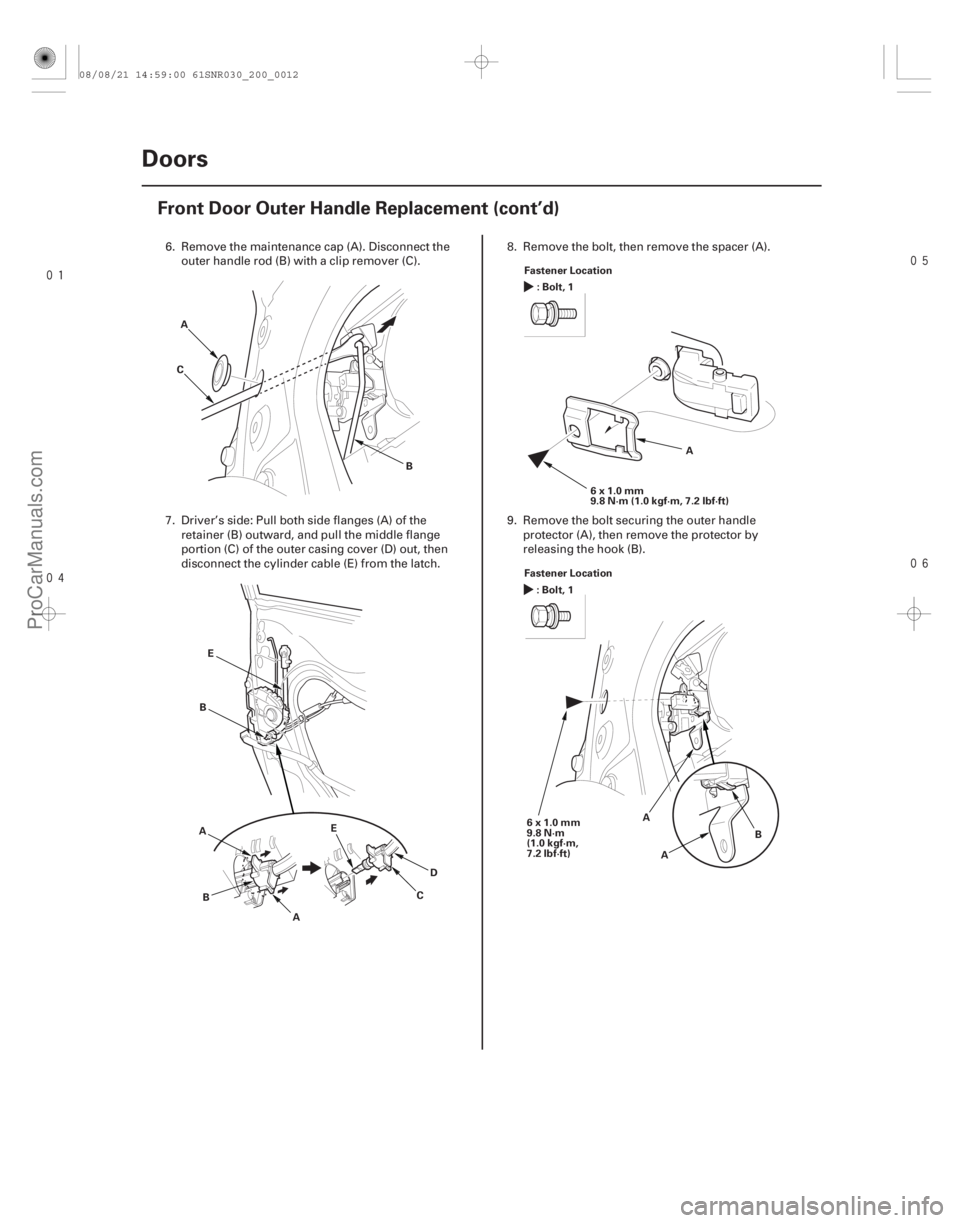

Front Door Outer Handle Replacement (cont’d)
A
B
C
AB CD
E
E
B
A A
6x1.0mm
9.8 N·m (1.0 kgf·m, 7.2 lbf·ft)
Fastener Location
:Bolt,1
A B
A
6x1.0mm
9.8 N·m
(1.0 kgf·m,
7.2 lbf·ft)
Fastener Location
:Bolt,1
6. Remove the maintenance cap (A). Disconnect the outer handle rod (B) with a clip remover (C).
7. Driver’s side: Pull both side flanges (A) of the retainer (B) outward, and pull the middle flange
portion (C) of the outer casing cover (D) out, then
disconnect the cylinder cable (E) from the latch. 8. Remove the bolt, then remove the spacer (A).
9. Remove the bolt securing the outer handle
protector (A), then remove the protector by
releasing the hook (B).
08/08/21 14:59:00 61SNR030_200_0012
