Page 1969 of 2893

ACURA CSX 2006 Service Repair Manual
(#

)

(#

)
21-8721-87

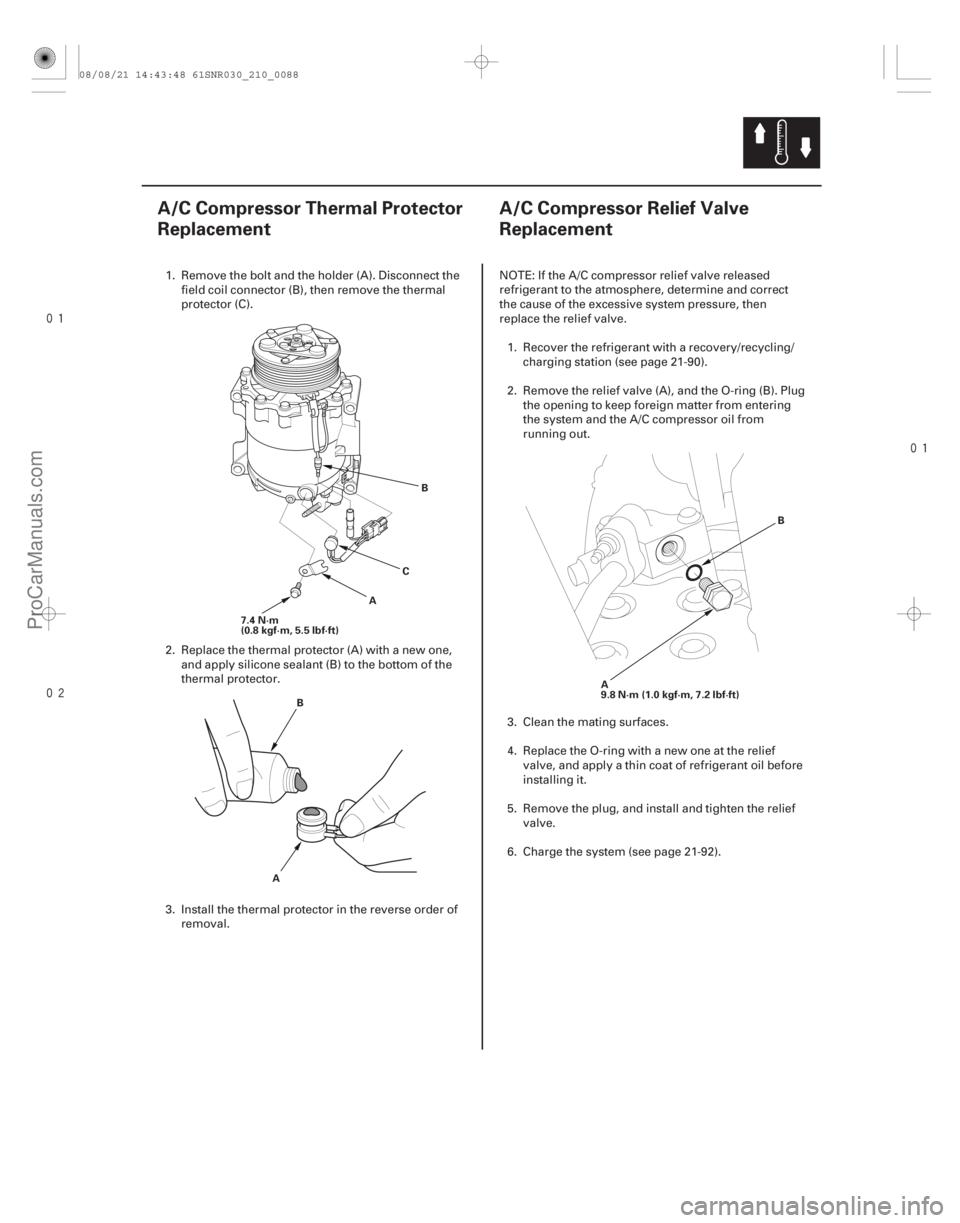

A/C Compressor Thermal Protector
Replacement A/C Compressor Relief Valve

Page 1970 of 2893

ACURA CSX 2006 Service Repair Manual

(#

)
21-88 Climate Control

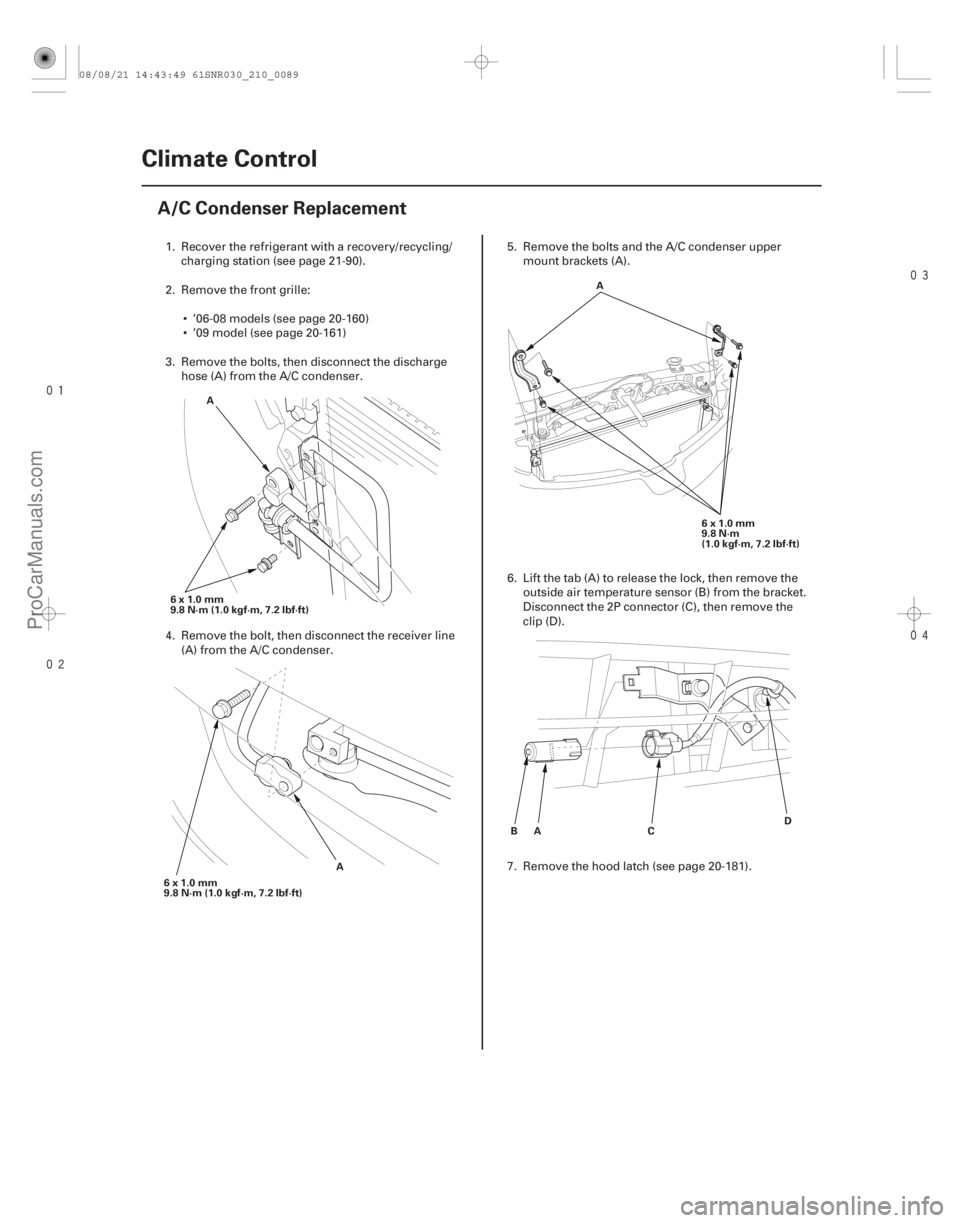

A/C Condenser Replacement
6x1.0mm
9.8 N·m (1.0 kgf·m, 7.2 lbf·ft)
A
6x1.0mm
9.8 N·m (1.0 kgf·m, 7.2 lbf

Page 1971 of 2893

ACURA CSX 2006 Service Repair Manual
(#

)
21-8921-89

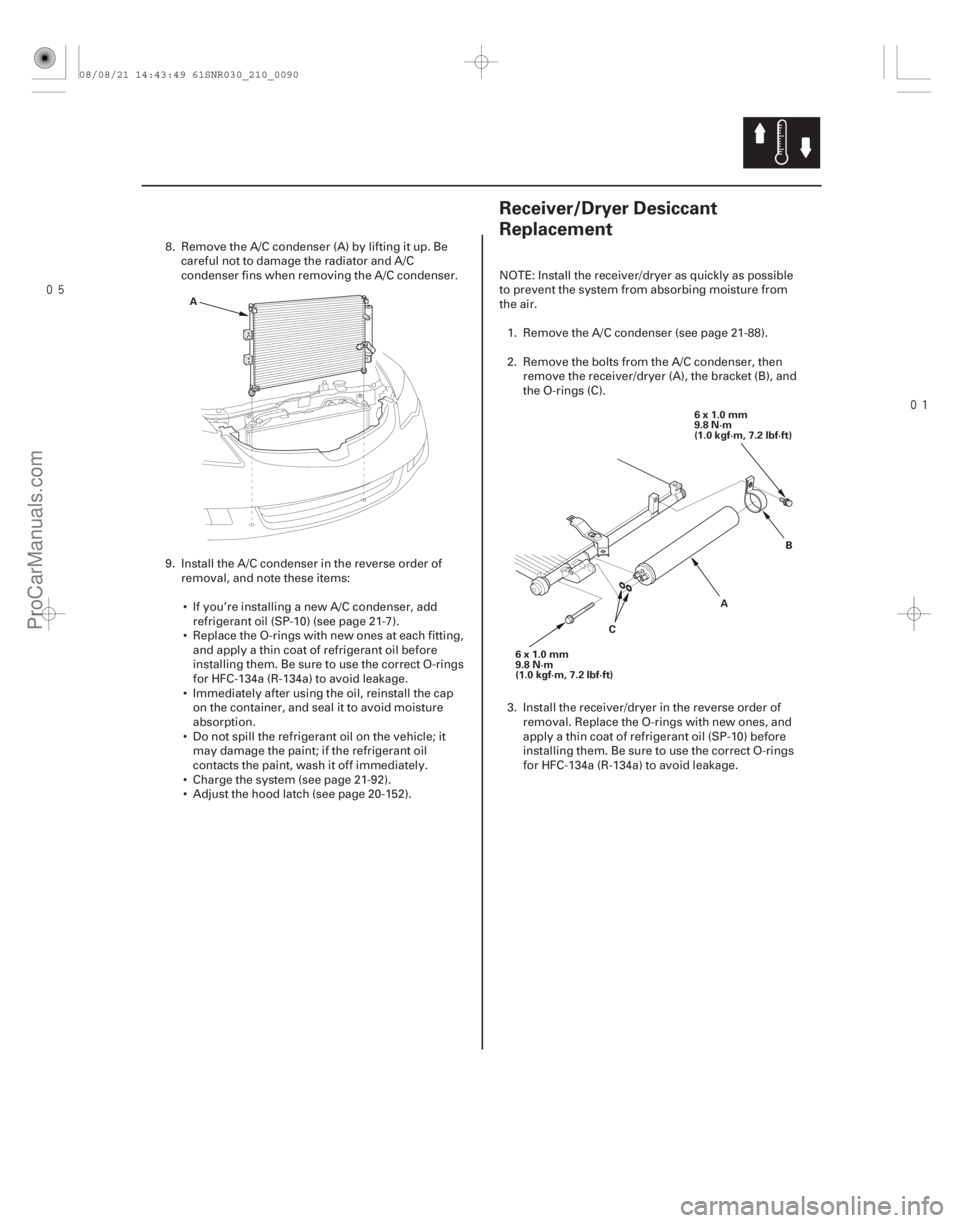

Receiver/Dryer Desiccant
Replacement
A 6x1.0mm
9.8 N·m
(1.0 kgf·m, 7.2 lbf·ft)
6x1.0mm
9.8 N·m
(1.0 kgf·m, 7.2 lbf·ft) A
B

Page 1972 of 2893

ACURA CSX 2006 Service Repair Manual
(#

)
21-8921-89
Receiver/Dryer Desiccant
Replacement
A 6x1.0mm
9.8 N·m
(1.0 kgf·m, 7.2 lbf·ft)
6x1.0mm
9.8 N·m
(1.0 kgf·m, 7.2 lbf·ft) A
B

Page 1973 of 2893

ACURA CSX 2006 Service Repair Manual
(#

)

21-90Climate Control

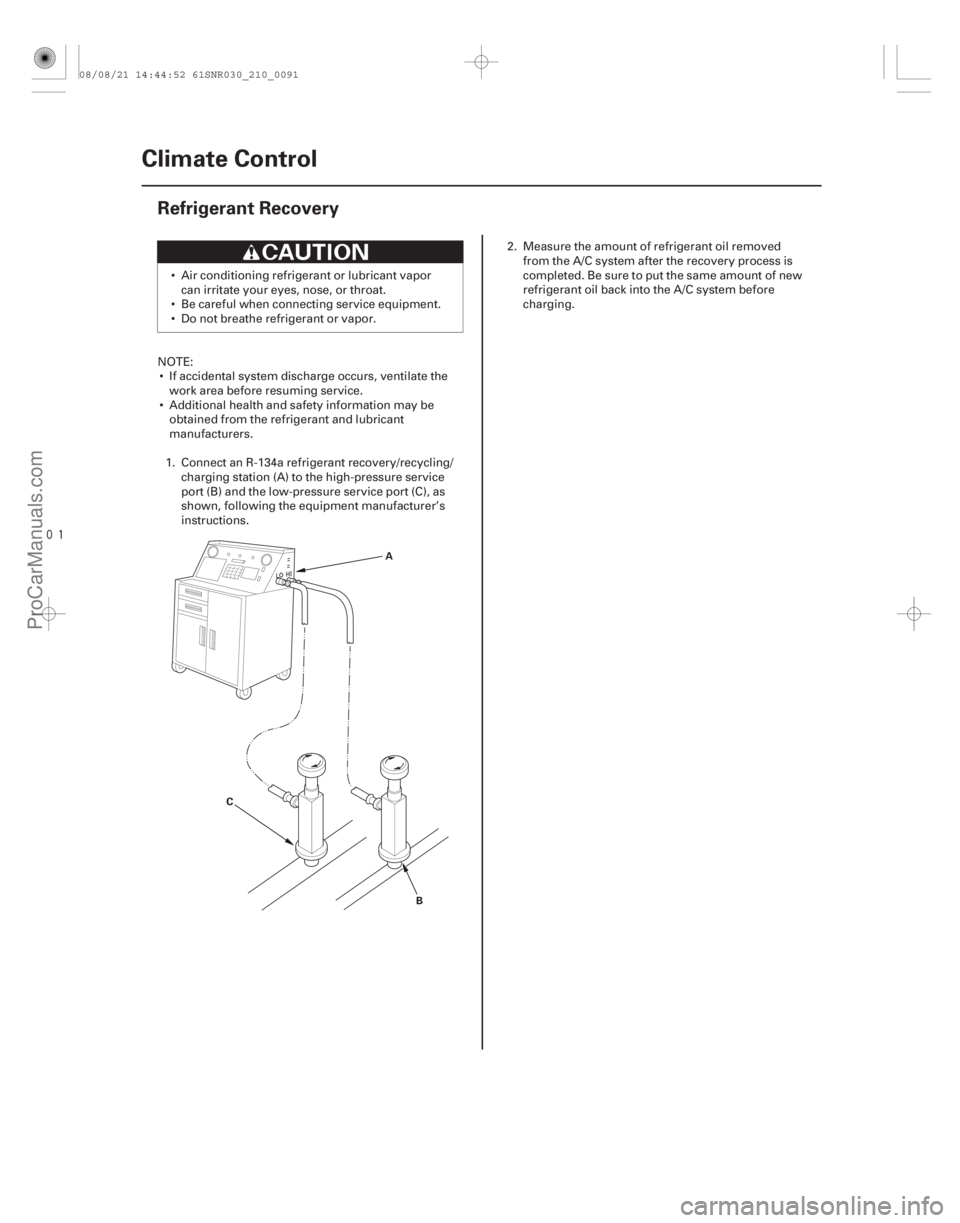

Refrigerant Recovery
A
C B
Air conditioning refrigerant or lubricant vaporcan irritate your eyes, nose, or throat.
Be ca

Page 1974 of 2893

ACURA CSX 2006 Service Repair Manual µ
µ Î
(#

)

21-91

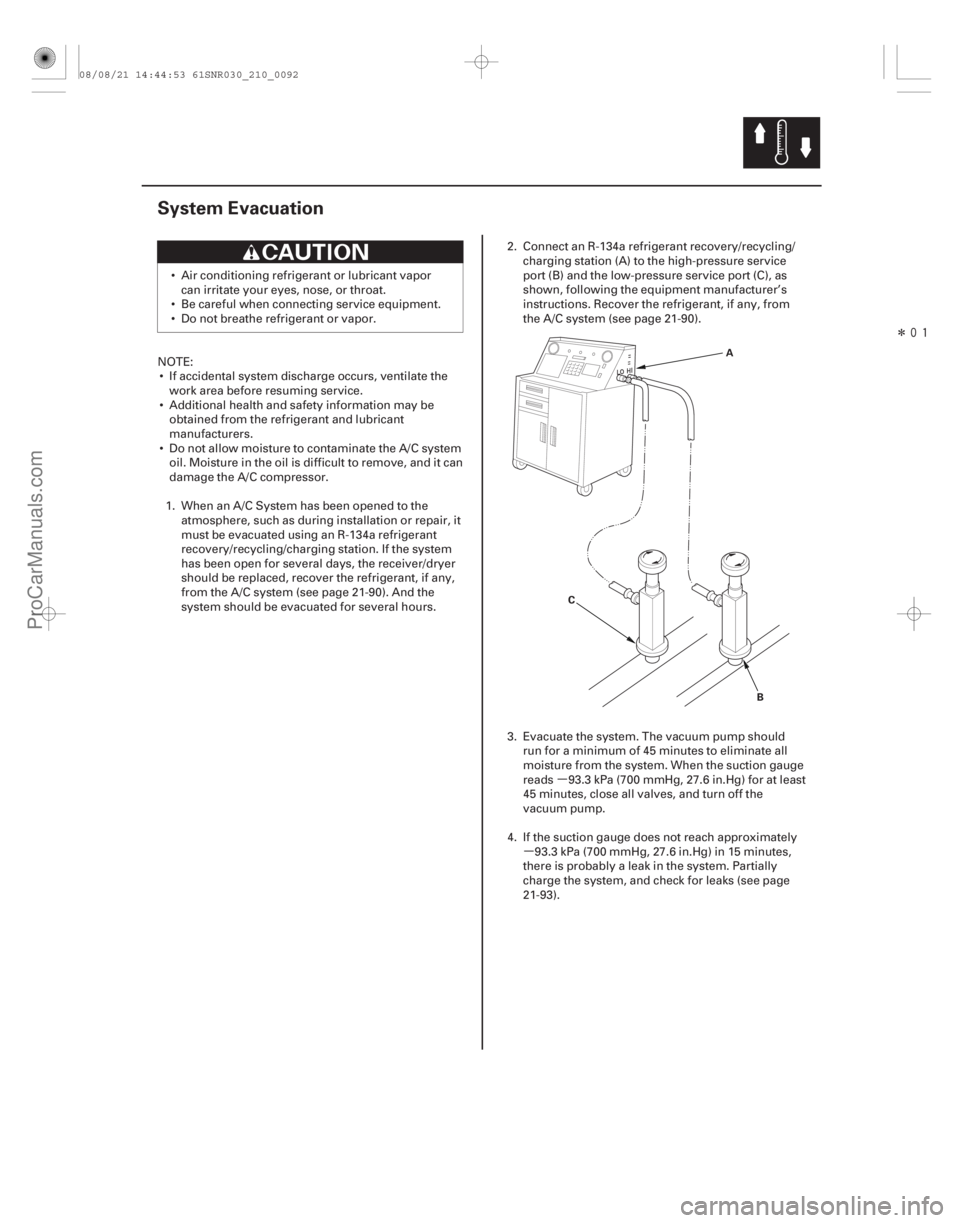

System Evacuation
A
C B
Air conditioning refrigerant or lubricant vaporcan irritate your eyes, nose, or throat.
Be careful

Page 1975 of 2893

ACURA CSX 2006 Service Repair Manual µ
Î
(#

)Refrigerant Capacity:
400 to 450 g
0.40 to 0.45 kg
0.9 to 1.0 lbs
14.1 to 15.9 oz
21-92
Climate Control

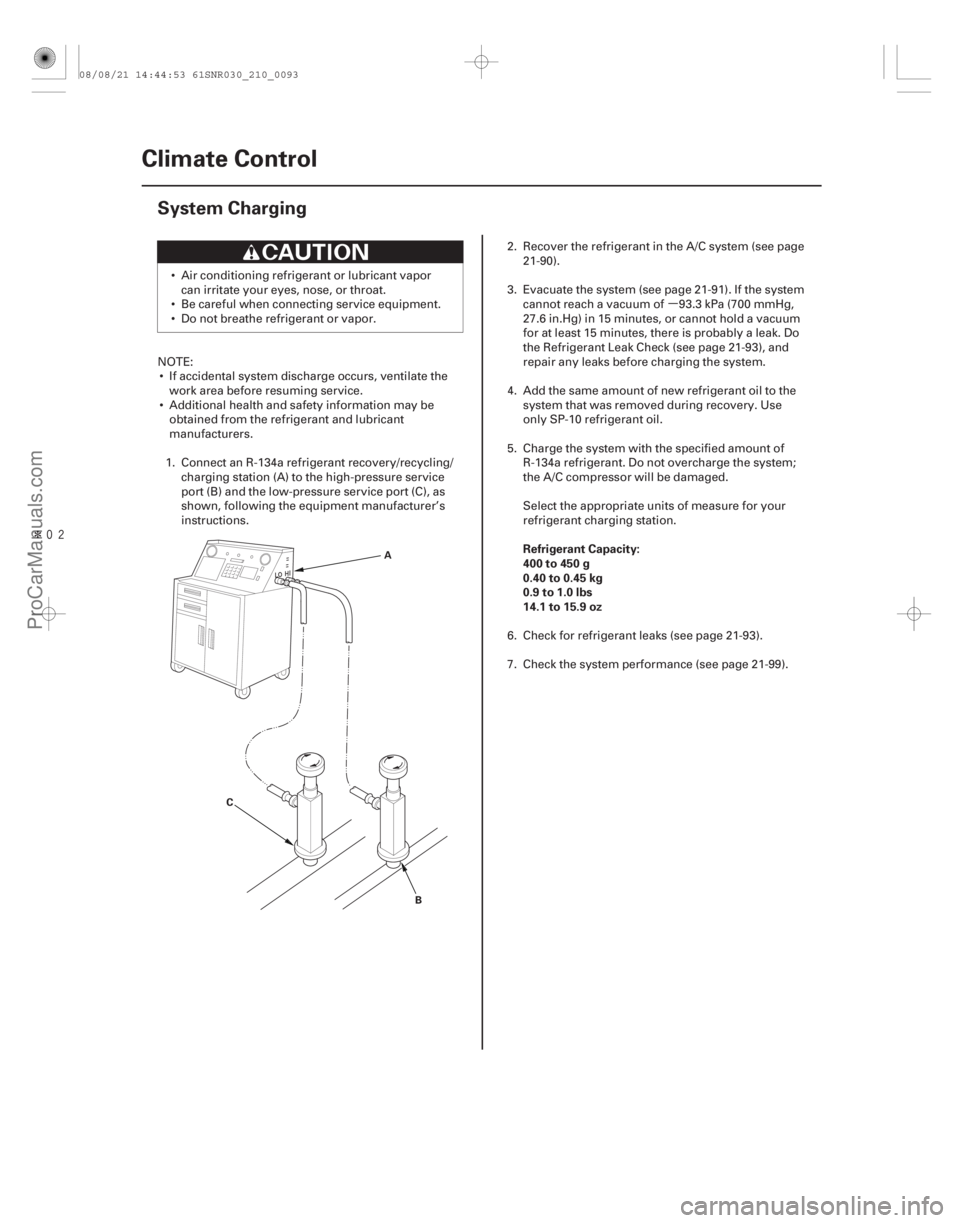

System Charging
A
C B
Air condit

Page 1976 of 2893

ACURA CSX 2006 Service Repair Manual (#

")
Special Tools Required
Leak Detector Usage Tips (Refer to the
Operator’s Manual for complete operating
instructions)
21-93
Refrigerant Leak Check

(#'

")
Special Tools Required
Leak Detector Usage Tips (Refer to the
Operator’s Manual for complete operating
instructions)
21-93
Refrigerant Leak Check
Leak detector YGK-H-10PM
Leak detector HLD-100
Leak detector TIFZX-1, or commercially available
OPTIMAX Jr. A/C Leak Detection Kit (TRP124893)
These tools are available through the Honda Tool and
Equipment Program; call
888-424-6857
Air conditioning refrigerant or lubricant vapor can irritate your eyes, nose, or throat.
Be careful when connecting service equipment.
Do not breathe refrigerant or vapor.
NOTE: If accidental system discharge occurs, ventilate the work area before resuming service.
Additional health and safety information may be obtained from the refrigerant and lubricant
manufacturers.
Check the system for leaks using an R-134a refrigerant leak detector with an accuracy of 14 g
(0.5 oz) per year or better. Position the vehicle in a wind-free work area. This will
aid in detecting small leaks.
When using the leak detector for the first time, allow it to warm up for 2 minutes with the probe in a clean
atmosphere. This lets the temperature sensor in the
detector stabilize.
The calibration check should be done in the ‘‘Search 2’’ mode. Once that is done, the other check
modes do not need calibrating.
When leak checking through the HVAC module drain hose, avoid drawing water into the probe. Water can
damage the internal pump and sensor.
Avoid creasing the flexible probe extension. Creases can restrict air flow and give false readings.
Because the detector recalibrates itself for ambient gases, it may be necessary to move the detector
away from the leak to clear the sensor. Once the
sensor has cleared, recheck the suspected leak.
When removing the clear probe tip, be careful not to lose the flow ball.
R-134a is heavier than air; always check below and to the sides of all potential leak sources.
Halogen leak detectors are sensitive to chemicals: windshield washing solutions, solvents/cleaners, and
some vehicle adhesives. Keep these chemicals out of
the area when doing leak detection.
(cont’d)
