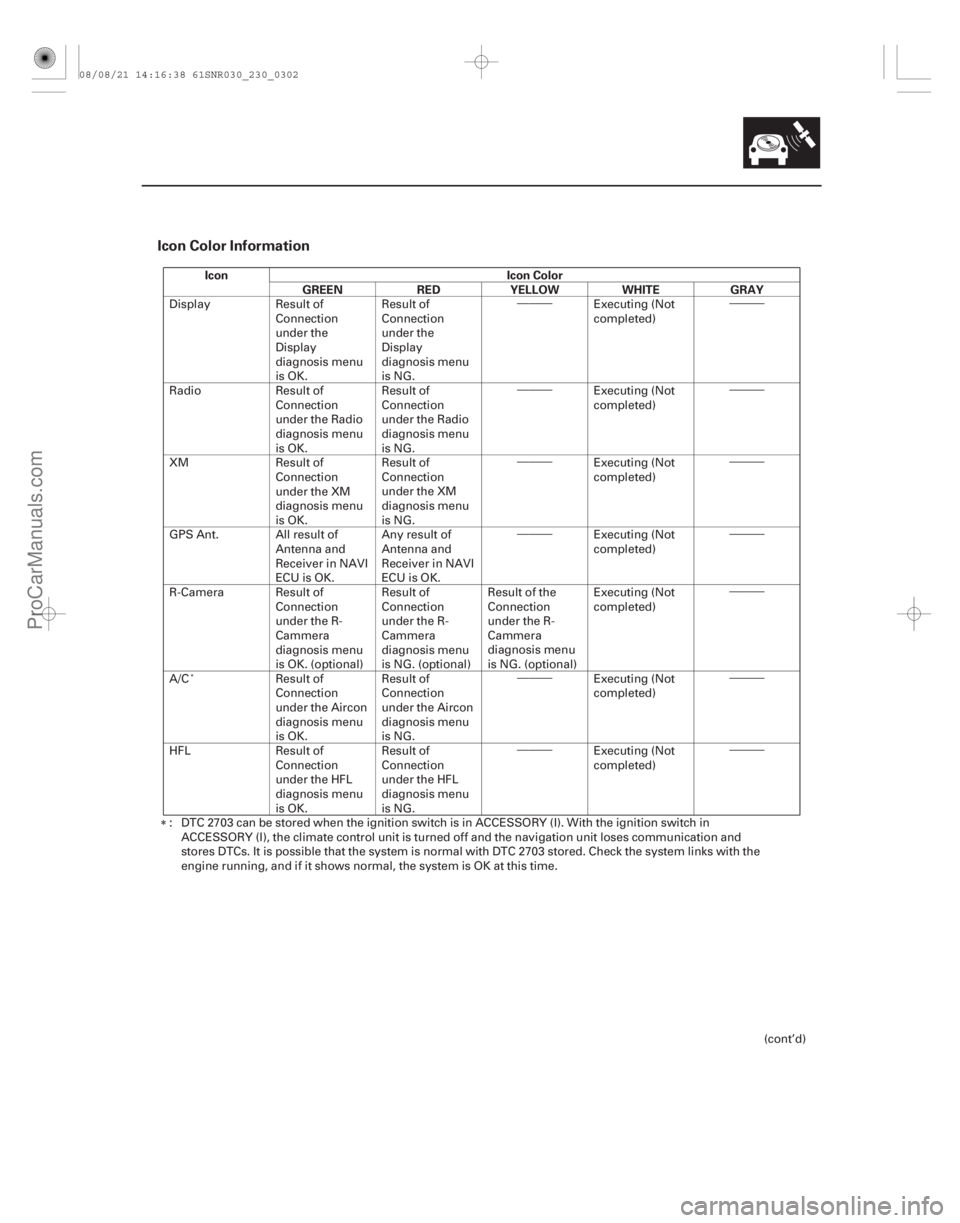

Page 2585 of 2893

••••••
••• •••
••• •••
••• ••• •••
••• •••
••• •••
Icon Color Information
Icon Icon Color
GREEN REDYELLOW WHITEGRAY
23-299
DisplayResult of
Connection
under the
Display
diagnosis menu
is OK. Result of
Connection
under the
Display
diagnosis menu
is NG. Executing (Not
completed)
Radio Result of
Connection
under the Radio
diagnosis menu
is OK. Result of
Connection
under the Radio
diagnosis menu
is NG. Executing (Not
completed)
XM Result of
Connection
under the XM
diagnosis menu
is OK. Result of
Connection
under the XM
diagnosis menu
is NG. Executing (Not
completed)
GPS Ant. All result of Antenna and
Receiver in NAVI
ECU is OK.Any result of
Antenna and
Receiver in NAVI
ECU is OK. Executing (Not
completed)
R-Camera Result of Connection
under the R-
Cammera
diagnosis menu
is OK. (optional)Result of
Connection
under the R-
Cammera
diagnosis menu
is NG. (optional)Result of the
Connection
under the R-
Cammera
diagnosis menu
is NG. (optional)Executing (Not
completed)
A/C Result of
Connection
under the Aircon
diagnosis menu
is OK. Result of
Connection
under the Aircon
diagnosis menu
is NG. Executing (Not
completed)
HFL Result of
Connection
under the HFL
diagnosis menu
is OK. Result of
Connection
under the HFL
diagnosis menu
is NG. Executing (Not
completed)
: DTC 2703 can be stored when the ignition switch is in ACCESSORY (I). With the ignition switch in ACCESSORY (I), the climate control unit is turned off and the navigation unit loses communication and
stores DTCs. It is possible that the system is normal with DTC 2703 stored. Check the system links with the
engine running, and if it shows normal, the system is OK at this time.
(cont’d)
08/08/21 14:16:38 61SNR030_230_0302
ProCarManuals.com
DYNOMITE -2009-

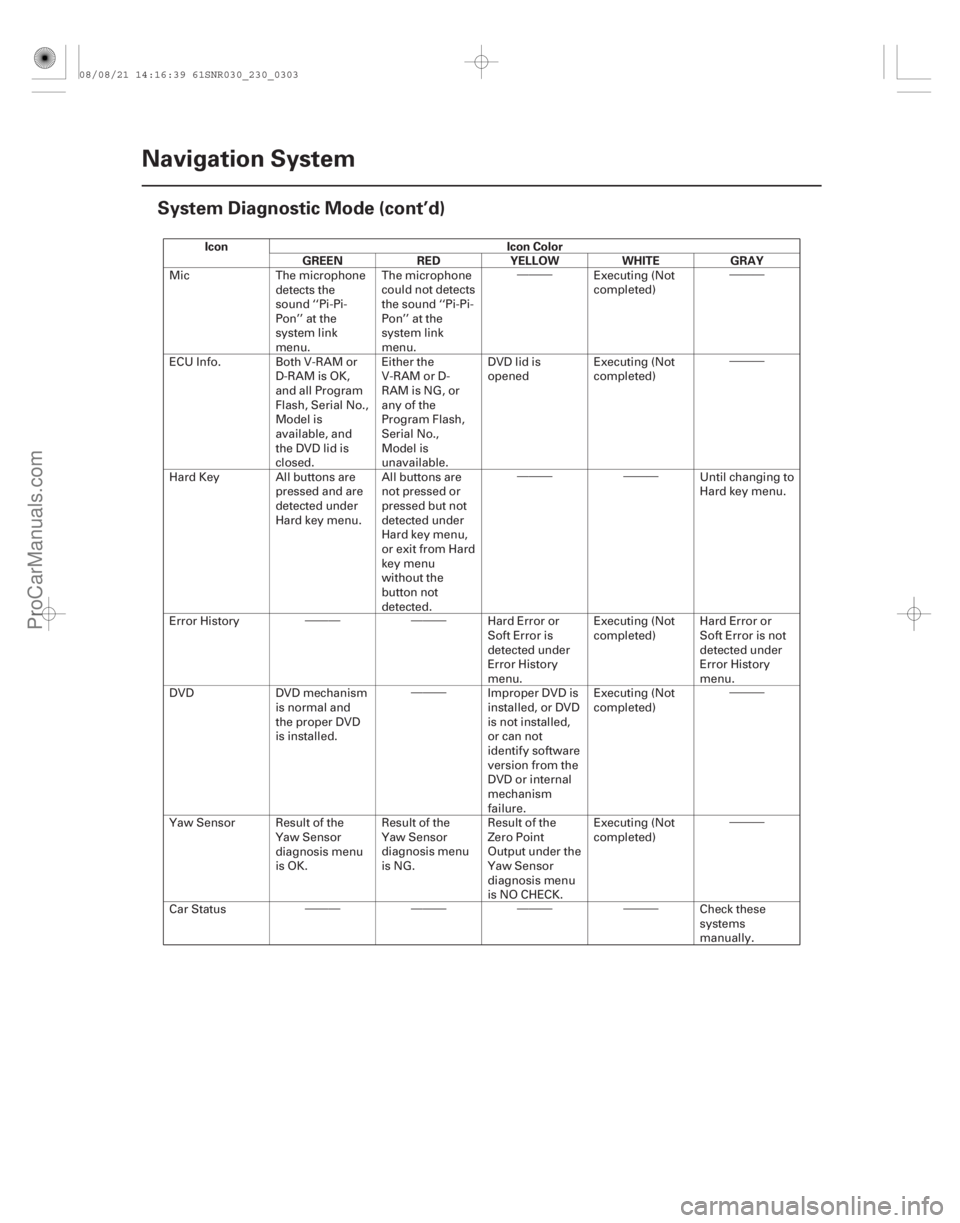

Page 2586 of 2893

••••••
•••
••• •••
••• ••• ••• •••
•••
••• ••• ••• •••
Icon Icon Color
GREEN RED YELLOW WHITE GRAY
23-300Navigation System
System Diagnostic Mode (cont’d)
Mic
The microphone
detects the
sound ‘‘Pi-Pi-
Pon’’ at the
system link
menu. The microphone
could not detects
the sound ‘‘Pi-Pi-
Pon’’ at the
system link
menu. Executing (Not
completed)
ECU Info. Both V-RAM or D-RAM is OK,
and all Program
Flash, Serial No.,
Model is
available, and
the DVD lid is
closed.Either the
V-RAM or D-
RAM is NG, or
any of the
Program Flash,
Serial No.,
Model is
unavailable.DVD lid is
opened
Executing (Not
completed)
Hard Key All buttons are pressed and are
detected under
Hard key menu.All buttons are
not pressed or
pressed but not
detected under
Hard key menu,
or exit from Hard
key menu
without the
button not
detected. Until changing to
Hard key menu.
Error History Hard Error or
Soft Error is
detected under
Error History
menu. Executing (Not
completed)
Hard Error or
Soft Error is not
detected under
Error History
menu.
DVD DVD mechanism
is normal and
the proper DVD
is installed. Improper DVD is
installed, or DVD
is not installed,
or can not
identify software
version from the
DVD or internal
mechanism
failure.Executing (Not
completed)
Yaw Sensor Result of the Yaw Sensor
diagnosis menu
is OK.Result of the
Yaw Sensor
diagnosis menu
is NG.Result of the
Zero Point
Output under the
Yaw Sensor
diagnosis menu
is NO CHECK.Executing (Not
completed)
Car Status Check these
systems
manually.
08/08/21 14:16:39 61SNR030_230_0303
ProCarManuals.com
DYNOMITE -2009-
Page 2587 of 2893

µ
Î
Î
Factory diagnostic screen In Line DiagDetailed Information & Settings
23-301
In Line Diag
123
456
789
0 Return
Navi ECU
Display XXXXCorrect PIN
GPS Antenna
RR Camera RadioXM
HFL A/C
Exit Diag
Start Diag
BACK
Delete Done
KA
Select Diagnosis Items
Self- Diagnosis Mode
Detail Information & Setting
(Navi will check internal function. connections, etc.
Perform this test with vehicle stopped and engine running.)
(Individual Diagnostic screens to confirma specific diagnostic screen.)
NOTE: If the vehicle left the factory in the factory
diagnostic mode, or if the navigation unit is replaced
you will see this screen every time you turn on the
ignition.
When a navigation unit is powered up for the first time
at the factory or after replacement with a new or
remanufactured navigation unit, the factory diagnosis
screen (In Line Diag) appears. Normally the factory
does the steps necessary to verify proper operation and
terminate the factory diagnostic.
Until the proper confirmation sequence is done, the
screen appears every time the vehicle is started.
Follow the steps below to prevent the screen from
showingupinthefuture:
Press and hold the buttons (MENU, MAP/GUIDE, and CANCEL) for about 3 seconds. The Select Diagnosis
items screen appears.
Press and hold the MAP/GUIDE button for 5 10 seconds. A screen with a Complete button,
appears.
Press complete, then Return, and then shut the key off for 5 seconds. Do not disconnect the battery
during this period as the unit is saving the setting to
the SRAM memory. The In Line Diag should not
appear again.
Restart the vehicle, and confirm normal operation by completing the TQI of the Navigation System Service
Bulletin. These section allows you to run a specific diagnostic
and allows additional setting choices for some screens
that are not shown when selecting an icon from the
System Links screen.
When you select the menu item Detail Information &
Setting menu, the main diagnosis menu is displayed.
(cont’d)
08/08/21 14:16:39 61SNR030_230_0304
ProCarManuals.com
DYNOMITE -2009-

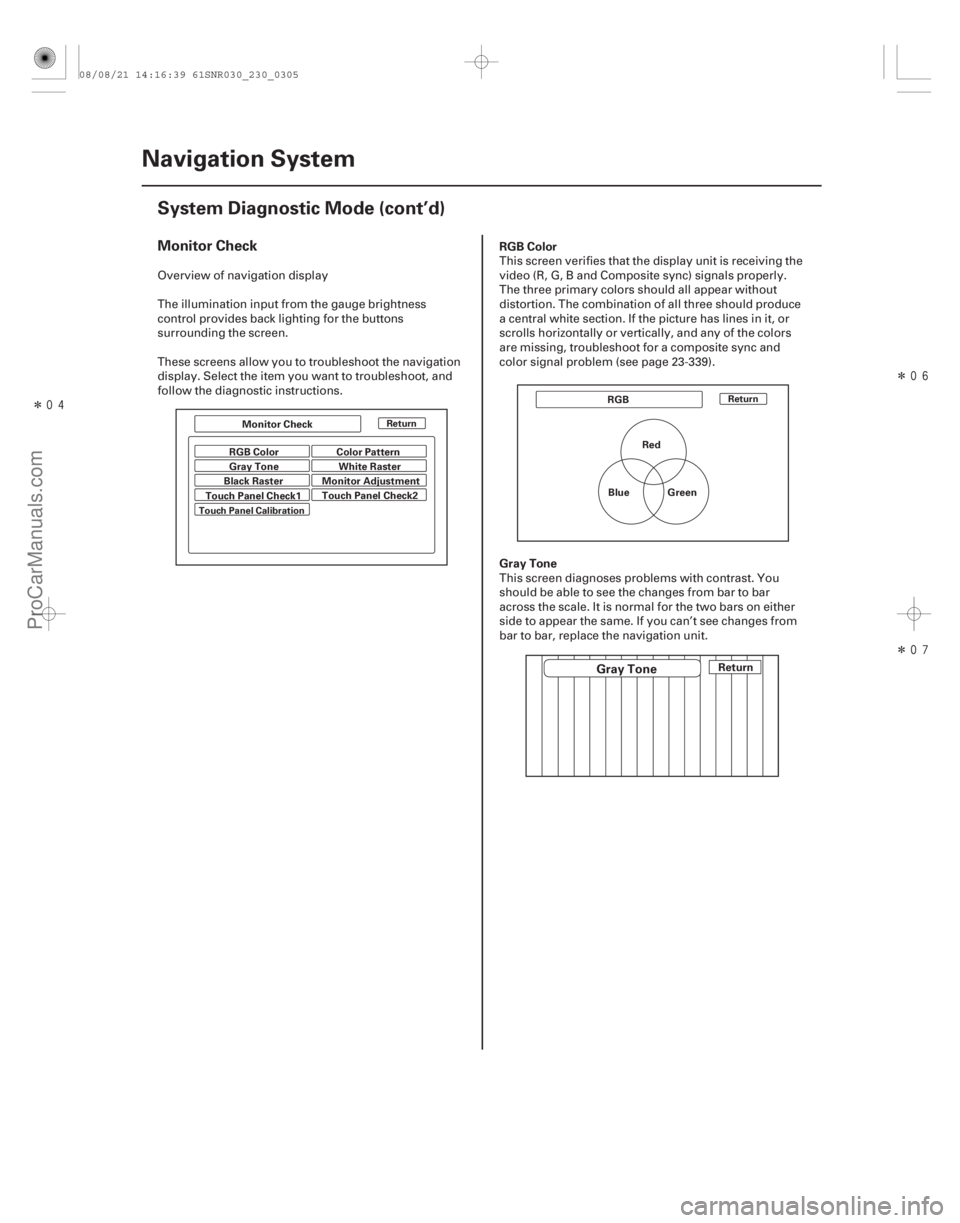

Page 2588 of 2893

ÎÎ
Î
Monitor CheckRGB Color
Gray Tone
23-302Navigation System
System Diagnostic Mode (cont’d)
Return
Touch Panel Calibration ReturnMonitor Check
RGB Color
Gray Tone Color Pattern
White Raster
Monitor Adjustment
Black Raster
Touch Panel Check1 Touch Panel Check2 RGB
Red
Green
Blue
Gray ToneReturn
Overview of navigation display
The illumination input from the gauge brightness
control provides back lighting for the buttons
surrounding the screen.
These screens allow you to troubleshoot the navigation
display. Select the item you want to troubleshoot, and
follow the diagnostic instructions. This screen verifies that the display unit is receiving the
video (R, G, B and Composite sync) signals properly.
The three primary colors should all appear without
distortion. The combination of all three should produce
a central white section. If the picture has lines in it, or
scrolls horizontally or vertically, and any of the colors
are missing, troubleshoot for a composite sync and
color signal problem (see page 23-339).
This screen diagnoses problems with contrast. You
should be able to see the changes from bar to bar
across the scale. It is normal for the two bars on either
side to appear the same. If you can’t see changes from
bar to bar, replace the navigation unit.
08/08/21 14:16:39 61SNR030_230_0305
ProCarManuals.com
DYNOMITE -2009-

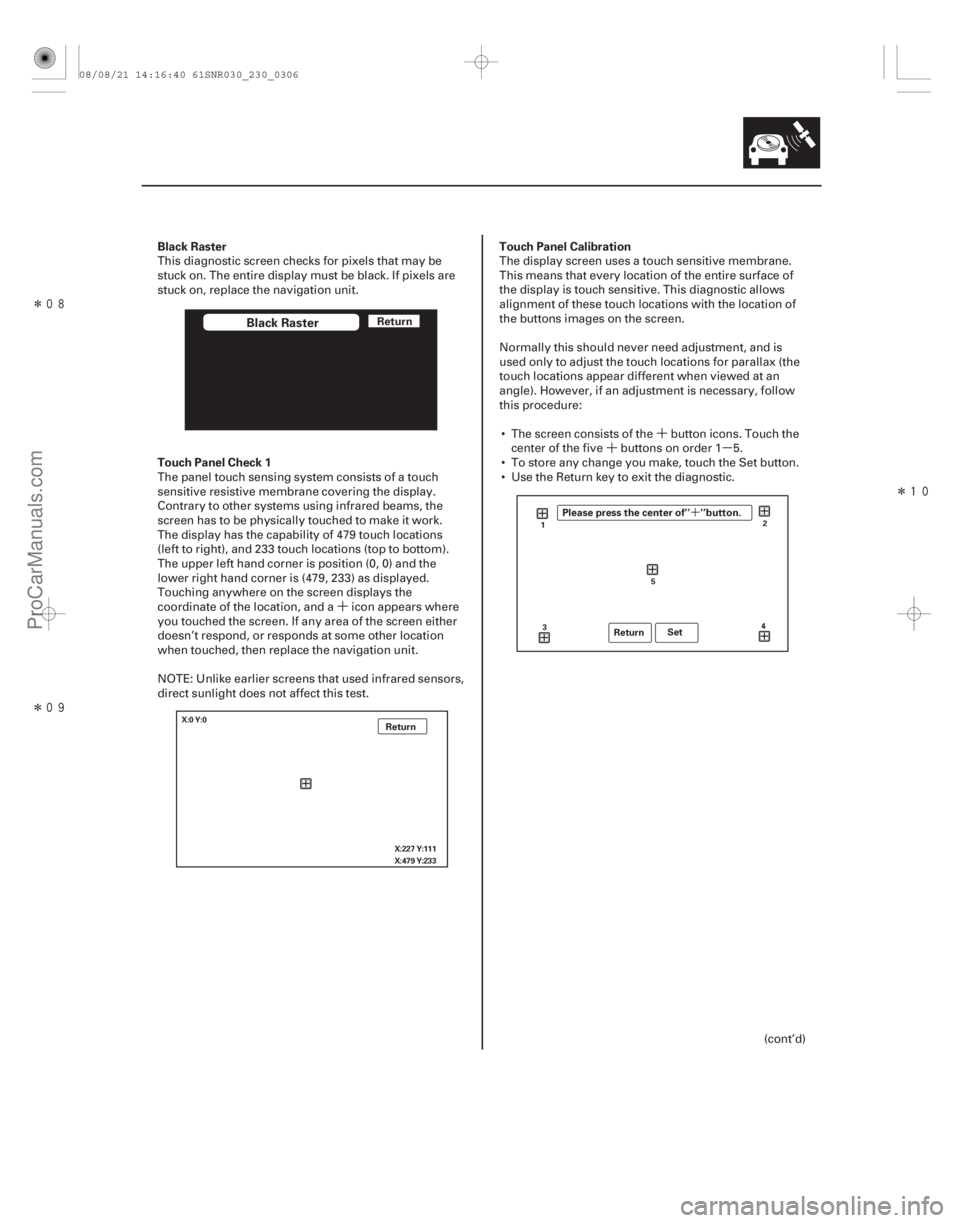

Page 2589 of 2893

´´
´µ
Î
Î Î
´
Black Raster
Touch Panel Check 1Touch Panel Calibration
23-303
Black RasterReturn
Return
Return
SetX:0 Y:0
X:227 Y:111
X:479 Y:2331
2
3 4
5
Please press the center of’’ ’’button.
This diagnostic screen checks for pixels that may be
stuck on. The entire display must be black. If pixels are
stuck on, replace the navigation unit.
The panel touch sensing system consists of a touch
sensitive resistive membrane covering the display.
Contrary to other systems using infrared beams, the
screen has to be physically touched to make it work.
The display has the capability of 479 touch locations
(left to right), and 233 touch locations (top to bottom).
The upper left hand corner is position (0, 0) and the
lower right hand corner is (479, 233) as displayed.
Touching anywhere on the screen displays the
coordinate of the location, and a icon appears where
you touched the screen. If any area of the screen either
doesn’t respond, or responds at some other location
when touched, then replace the navigation unit.
NOTE: Unlike earlier screens that used infrared sensors,
direct sunlight does not affect this test. The display screen uses a touch sensitive membrane.
This means that every location of the entire surface of
the display is touch sensitive. This diagnostic allows
alignment of these touch locations with the location of
the buttons images on the screen.
Normally this should n
ever need adjustment, and is
used only to adjust the touch locations for parallax (the
touch locations appear different when viewed at an
angle). However, if an adjustment is necessary, follow
this procedure:
The screen consists of the button icons. Touch the center of the five buttons on order 1 5.
To store any change you make, touch the Set button.
Use the Return key to exit the diagnostic.
(cont’d)
08/08/21 14:16:40 61SNR030_230_0306
ProCarManuals.com
DYNOMITE -2009-

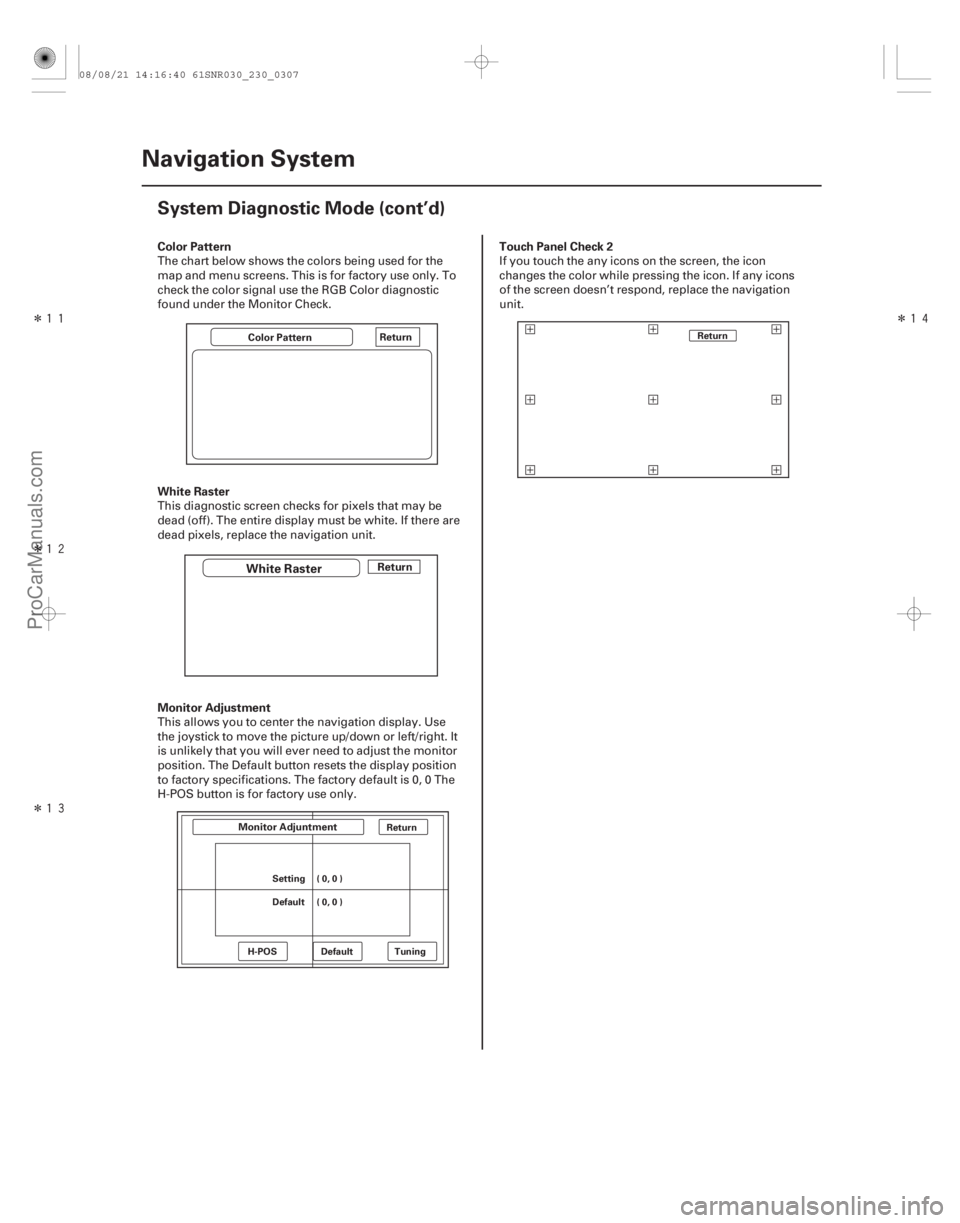

Page 2590 of 2893

Î
Î
Î
Î
Color Pattern
White Raster
Monitor Adjustment Touch Panel Check 2
23-304Navigation System
System Diagnostic Mode (cont’d)
Color Pattern
Return
Monitor Adjuntment
White RasterReturn
Return Tuning
Default
(0,0)
Default (0,0)
Setting
H-POS Return
The chart below shows the colors being used for the
map and menu screens. This is for factory use only. To
check the color signal use the RGB Color diagnostic
found under the Monitor Check.
This diagnostic screen checks for pixels that may be
dead (off). The entire display must be white. If there are
dead pixels, replace the navigation unit.
This allows you to center the navigation display. Use
the joystick to move the picture up/down or left/right. It
is unlikely that you will ever need to adjust the monitor
position. The Default button resets the display position
to factory specifications. The factory default is 0, 0 The
H-POS button is for factory use only.
If you touch the any icons on the screen, the icon
changes the color while pressing the icon. If any icons
of the screen doesn’t respond, replace the navigation
unit.
08/08/21 14:16:40 61SNR030_230_0307
ProCarManuals.com
DYNOMITE -2009-
Page 2591 of 2893

Î
Î
Î

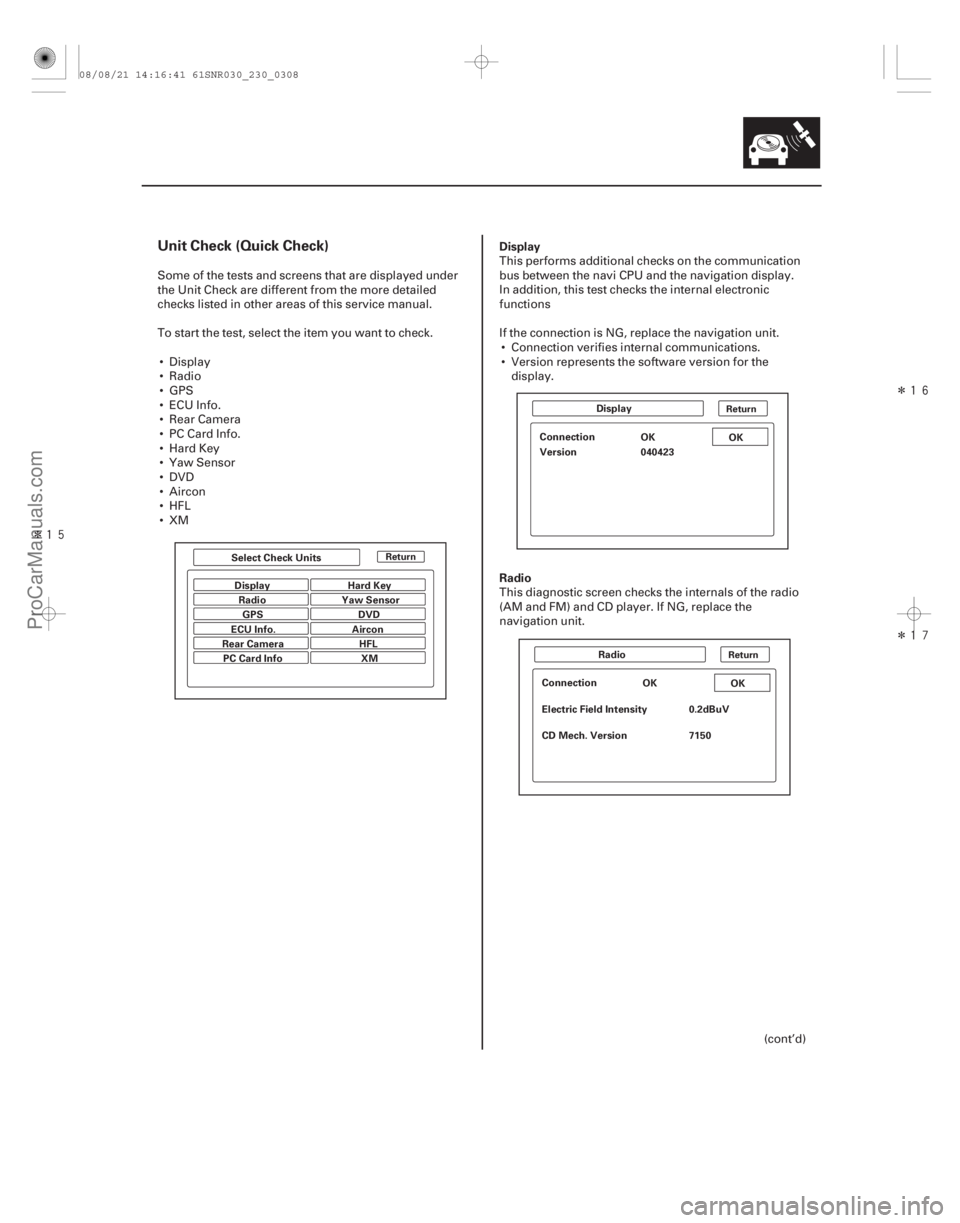

Unit Check (Quick Check)Display
Radio
23-305
ReturnReturn
ReturnSelect Check Units Display Radio Hard Key
Yaw Sensor DVD
GPS
ECU Info.
Rear Camera
PC Card Info Aircon
HFL
XM Display
OK
OK
Connection
Version
040423
Radio OK
Connection
OK
0.2dBuV
Electric Field Intensity
7150
CD Mech. Version
Some of the tests and screens that are displayed under
the Unit Check are different from the more detailed
checks listed in other areas of this service manual.
To start the test, select the item you want to check.
Display
Radio
GPS
ECUInfo.
Rear Camera
PC Card Info.
Hard Key
Yaw Sensor
DVD
Aircon
HFL
XM This performs additional checks on the communication
bus between the navi CPU and the navigation display.
In addition, this test checks the internal electronic
functions
If the connection is NG, replace the navigation unit.
Connection verifies internal communications.
Version represents the software version for the display.
This diagnostic screen checks the internals of the radio
(AM and FM) and CD player. If NG, replace the
navigation unit.
(cont’d)
08/08/21 14:16:41 61SNR030_230_0308
ProCarManuals.com
DYNOMITE -2009-
Page 2592 of 2893

Î
Î
GPS ECU Info.

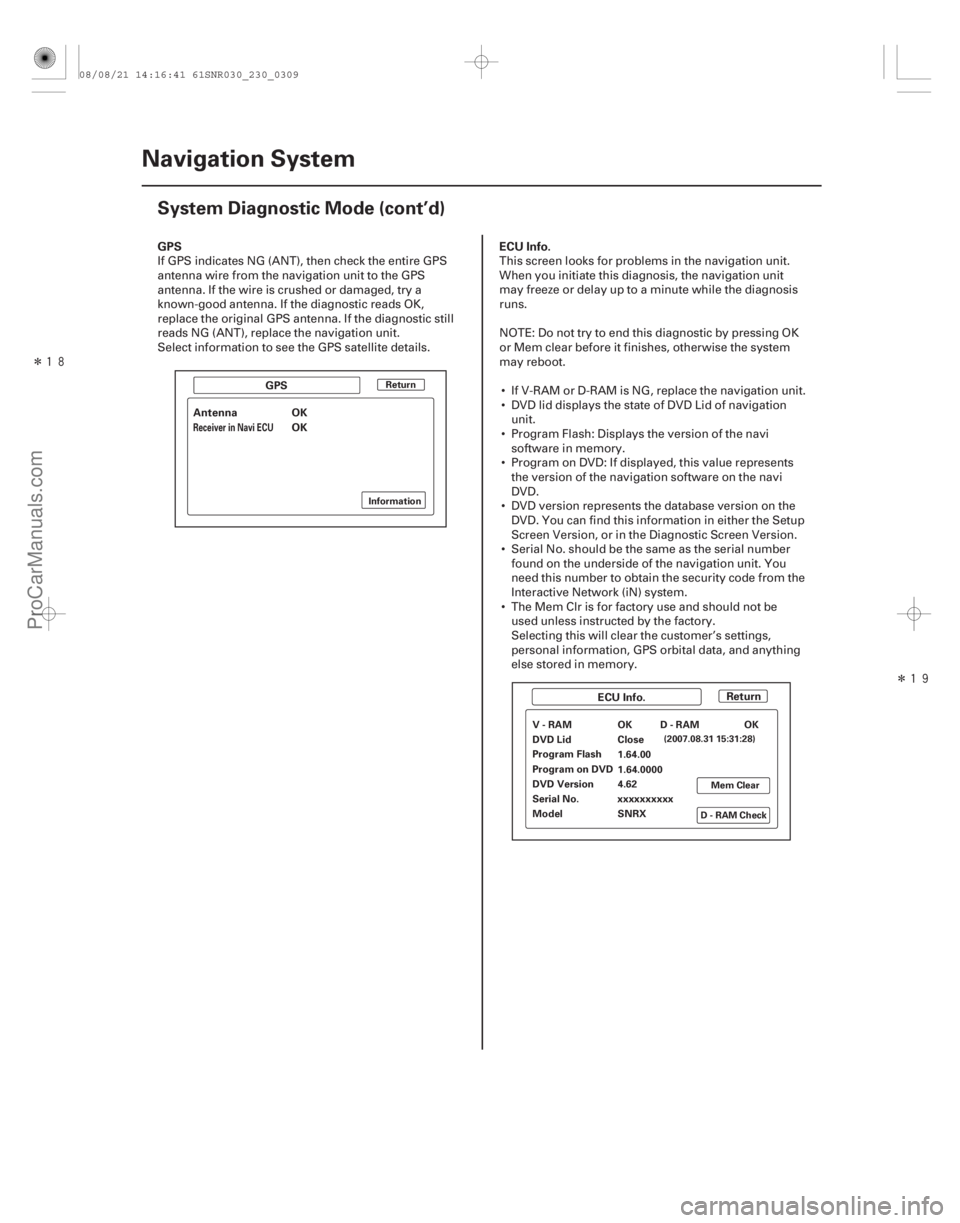

23-306 Navigation System
System Diagnostic Mode (cont’d)
Return
Information
D-RAMCheckMem Clear
(2007.08.31 15:31:28)
Antenna OK
OK
GPS
ECU Info.Return
Receiver in Navi ECU
V-RAM OK
DVD Lid Close
Program Flash
1.64.00
Program on DVD 1.64.0000
DVD Version 4.62
Serial No. xxxxxxxxxx
Model SNRX D-RAM OK
If GPS indicates NG (ANT), then check the entire GPS
antenna wire from the navigation unit to the GPS
antenna. If the wire is crushed or damaged, try a
known-good antenna. If the diagnostic reads OK,
replace the original GPS antenna. If the diagnostic still
reads NG (ANT), replace the navigation unit.
Select information to see the GPS satellite details.
This screen looks for problems in the navigation unit.
When you initiate this diagnosis, the navigation unit
may freeze or delay up to a minute while the diagnosis
runs.
NOTE: Do not try to end this diagnostic by pressing OK
or Mem clear before it finishes, otherwise the system
may reboot.
If V-RAM or D-RAM is NG, replace the navigation unit.
DVD lid displays the state of DVD Lid of navigation unit.
Program Flash: Displays the version of the navi software in memory.
Program on DVD: If displayed, this value represents the version of the navigation software on the navi
DVD.
DVD version represents the database version on the DVD. You can find this information in either the Setup
Screen Version, or in the Diagnostic Screen Version.
Serial No. should be the same as the serial number found on the underside of the navigation unit. You
need this number to obtain the security code from the
Interactive Network (iN) system.
The Mem Clr is for factory use and should not be used unless instructed by the factory.
Selecting this will clear the customer’s settings,
personal information, GPS orbital data, and anything
else stored in memory.
08/08/21 14:16:41 61SNR030_230_0309
ProCarManuals.com
DYNOMITE -2009-
