Center anchor bolt installation
Front
Rear
Out of Vehicle
Retractor
24-924-9
Inspection
CENTER ANCHOR
BOLT
WASHER
TOOTHED
LOCK WASHER
CENTER ANCHOR
’06 model
CENTER ANCHOR
BOLT
WASHER
TOOTHED
LOCK WASHER
CENTER ANCHOR
’07-09 models Left side: 10 °
Right side: 13 °
40 ° 40 °
40 °
40 °
15 °
15 °
15 °
15 °
A Inside Front
40 °
40 °40 °
40 °
15 ° 15 °
15 °
15 °
A Inside Front
7. Install the seat belt and buckles in the reverse order
of removal, and note these items:
If the threads on a retractor mounting ET screw are worn out, use an oversized selftapping ET
screw (P/N 90133-SZ4-003) made specifically for
this application.
Apply medium strength liquid thread lock to the center anchor bolt before reinstallation.
Tighten the bolt by hand first, then tighten to the specified torque.
Check that the retractor locking mechanism functions as described (see page 24-9).
Assemble the washers on the center anchor bolt as shown.
Before installing the center anchor bolt, make sure there are no twists or kinks in the center belt.
Make sure the rear center emergency locking retractor (ELR) is pointing straight forward. For front seat belt retractor with seat belt tensioner,
review the SRS component locations (see page 24-11)
and the precautions and procedures (see page 24-13)
before doing repairs or service.
1. Before installing the retractor, check that the seat belt can be pulled out freely.
2. Make sure that the seat belt does not lock when the retractor (A) is leaned slowly up to 15 ° from the
mounted position. The seat belt should lock when
the retractor is leaned over 40 °. Do not attempt to
disassemble the retractor.
(cont’d)
08/08/21 13:54:10 61SNR030_240_0009
ProCarManuals.com
DYNOMITE -2009-
Page 2690 of 2893

Rear center
In-vehicle
24-10Seat Belts
Inspection (cont’d)
40 °
40 °40 °
40 °
15 ° 15 °
15 °
15 °
A Inside Front
3. Replace the seat belt with a new assembly if there
is any abnormality. Do not disassemble any part of
the seat belt for any reason. 1. Check that the seat belt is not twisted or caught on
anything.
2. After installing the anchors, check for free movement on the anchor bolts. If necessary,
remove the anchor bolts and check that the
washers and other parts are not damaged or
improperly installed.
3. Check the seat belts for damage or discoloration. Clean with a shop towel if necessary. Use only
soap and water to clean the seat belts.
NOTE: Dirt build-up in the loops of the upper
anchors can cause the seat belts to retract slowly.
Wipe the inside of the loops with a clean cloth
dampened in isopropyl alcohol.
4. Check that the seat belt does not lock when pulled out slowly. The seat belt is designed to lock only
during a sudden stop or impact.
5. Make sure that the seat belt will retract automatically when released.
6. For front passenger’s seat belt and all rear seat belts, check the seat belt retractor locking
mechanism automatic locking retractor (ALR). This
function is for securing child seats.
–1 Pull the seat belt all the way out to engage the ALR. The seat belt should retract with a
ratcheting sound, but not extend. This is
normal.
–2 To disengage the ALR, release the seat belt and allow it to fully retract, then pull the seat belt
out part-way. The seat belt should retract and
extend normally.
7. Replace the seat belt with a new assembly if there is any abnormality. Do not disassemble any part of
the seat belt for any reason.
08/08/21 13:54:10 61SNR030_240_0010
ProCarManuals.com
DYNOMITE -2009-
Page 2691 of 2893

Î
(#')
24-11
SRS
Component Location Index
SRS INDICATOR
SIDE AIRBAG
CUTOFF INDICATOR
CABLE REEL
DRIVER’S AIRBAG
FRONT PASSENGER’S AIRBAG
PASSENGER’S AIRBAG CUTOFF INDICATOR
SRS UNIT OPDS SENSOR/SEAT-BACK
FRONT PASSENGER’S
SIDE AIRBAG
FRONT PASSENGER’S
SEAT BELT TENSIONER RIGHT SIDE
IMPACT SENSOR
(FIRST)
ODS UNIT
FRONT PASSENGER’S WEIGHT SENSORS
DRIVER’S SEAT BELT TENSIONER
LEFT SIDE IMPACT SENSOR (FIRST)
DRIVER’S SEAT POSITION SENSOR
DRIVER’S SIDE AIRBAG
DATA LINK
CONNECTOR (DLC) MEMORY ERASE
SIGNAL (MES)
CONNECTOR (2P)
(YELLOW)
FRONT PASSENGER’S SEAT BELT
BUCKLE TENSIONER
DRIVER’S SEAT BELT BUCKLE TENSIONER
(cont’d)
Troubleshooting, page 24-181
Troubleshooting, page 24-183
Replacement, page 24-200
Replacement, page 24-188
Disposal, page 24-196
Replacement, page 24-189
Disposal, page 24-196
Troubleshooting, page 24-184
Bulb Test/Replacement, page 24-212
Replacement, page 24-203 Replacement, page 20-122
Replacement,page 24-191
Disposal, page 24-196
Replacement, page 24-4
Disposal,
page 24-196 Replacement,
page 24-204
Initialization, page 24-26
Calibration, page 24-27
Operation Check, page 24-28
Replacement, page 24-209
Replacement, page 24-207
Replacement, page 24-4
Disposal, page 24-196
Replacement, page 24-204
Operation Check, page 24-29
Replacement, page 24-211
Replacement, page 24-188
Disposal, page 24-196Replacement, page 24-6
Replacement, page 24-6
08/08/21 13:54:16 61SNR030_240_0011
ProCarManuals.com
DYNOMITE -2009-

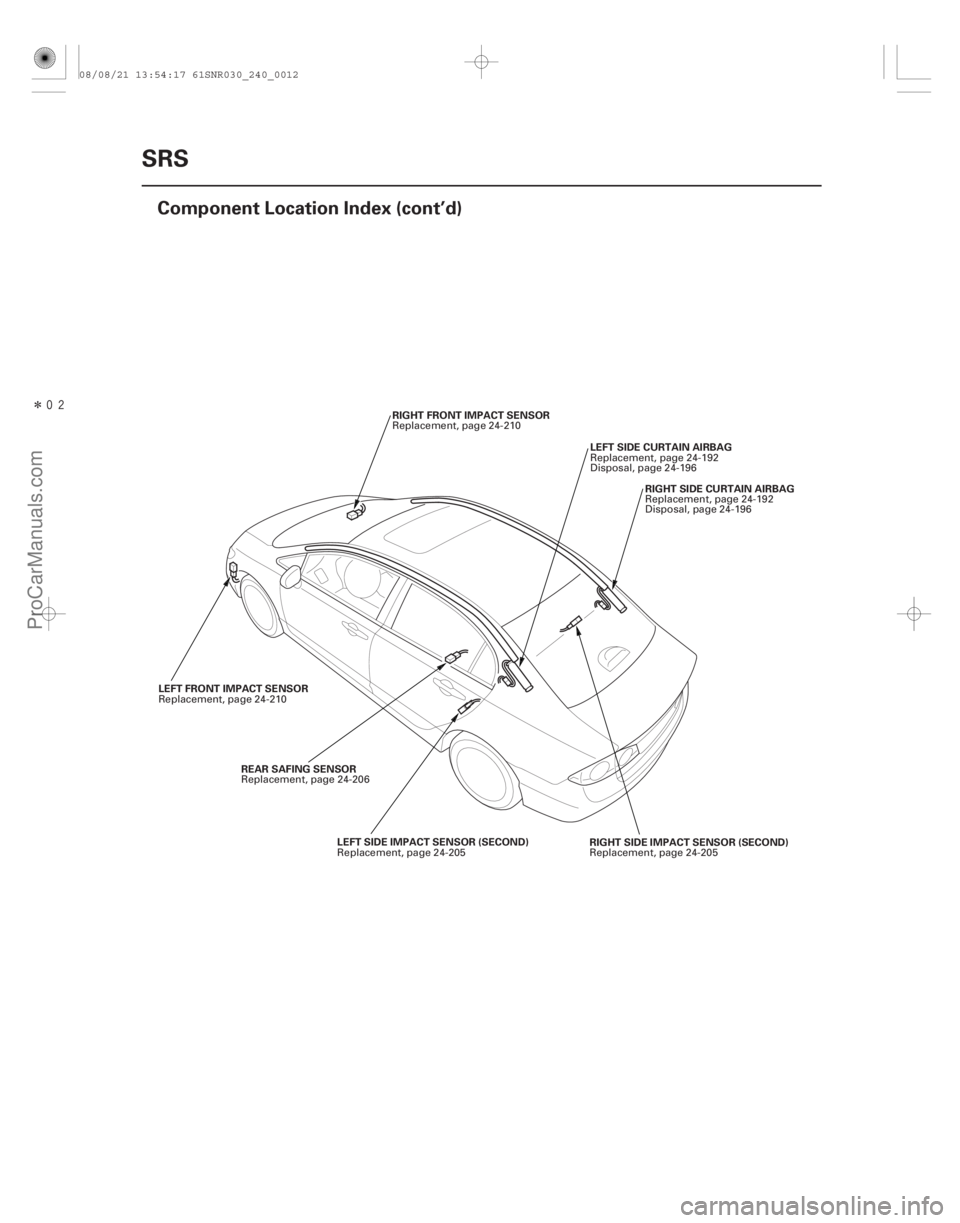

Page 2692 of 2893
Î
24-12SRS
Component Location Index (cont’d)
RIGHT FRONT IMPACT SENSOR
LEFT SIDE CURTAIN AIRBAG
RIGHT SIDE CURTAIN AIRBAG
REAR SAFING SENSOR RIGHT SIDE IMPACT SENSOR (SECOND)
LEFT SIDE IMPACT SENSOR (SECOND)
LEFT FRONT IMPACT SENSOR Replacement, page 24-210
Replacement, page 24-192
Disposal, page 24-196Replacement, page 24-192
Disposal, page 24-196
Replacement, page 24-206 Replacement, page 24-205
Replacement, page 24-205
Replacement, page 24-210
08/08/21 13:54:17 61SNR030_240_0012
ProCarManuals.com
DYNOMITE -2009-
Page 2693 of 2893

(#')
General PrecautionsSteering-related Precautions
Cable Reel Alignment
24-13
Precautions and Procedures
NOTE: Some systems store data in memory that is lost
when the battery is disconnected. Before disconnecting
the battery, refer to Battery Terminal Disconnection and
Reconnection (see page 22-68).
Please read the following precautions carefully before
servicing the airbag system. If the instructions
described in this manual are not properly followed, or
the airbags could accidentally deploy and cause
damage or injuries. Except when doing electrical inspections, always turn the ignition switch to LOCK (0), disconnect the
negative cable from the battery, then wait at least
3 minutes before starting work.
NOTE: The SRS memory is not cleared even if the
ignition switch is turned to LOCK (0), or the battery
cables are disconnected from the battery.
Use replacement parts which are manufactured to the same standards and quality as the original parts. Do
not install used SRS parts. Use only new parts when
making SRS repairs.
Carefully inspect any SRS part before you install it. Do not install any part that shows signs of being
dropped or improperly handled, such as dents, cracks
or deformation.
Before disconnecting the SRS unit connectors, always disconnect the appropriate SRS parts
connectors. Use only a digital multimeter to check the system. If it
is not a Honda multimeter, make sure its output is
10 mA (0.01 A) or less when switched to the lowest
value in the ohmmeter range. A tester with a higher
output could cause accidental deployment and
possible injury.
Do not put objects on the front passenger’s airbag.
The original audio and navigation system have a coded theft protection circuit. Make sure you have the
anti-theft codes for the audio system or navigation
system (if equipped), then write down the audio
presets before disconnecting the negative cable from
the battery.
Before returning the vehicle to the client, enter the anti-theft codes for the audio system or navigation
system (if equipped), then enter the audio presets; set
the clock.
Misalignment of the cable reel could cause an open in the wiring, making the SRS system, remote steering
wheel controls, or the horn inoperative. Center the
cable reel whenever you do the following (see step 6
on page 24-202).
– Installation of the steering wheel
– Installation of the cable reel
– Installation of the steering column
– Other steering-related adjustment or installation
Do not disassemble the cable reel.
Do not apply grease to the cable reel.
If the cable reel shows any signs of damage, replace it with a new one. For example, if the cable reel does
not rotate smoothly, replace it.
(cont’d)
08/08/21 13:54:18 61SNR030_240_0013
ProCarManuals.com
DYNOMITE -2009-

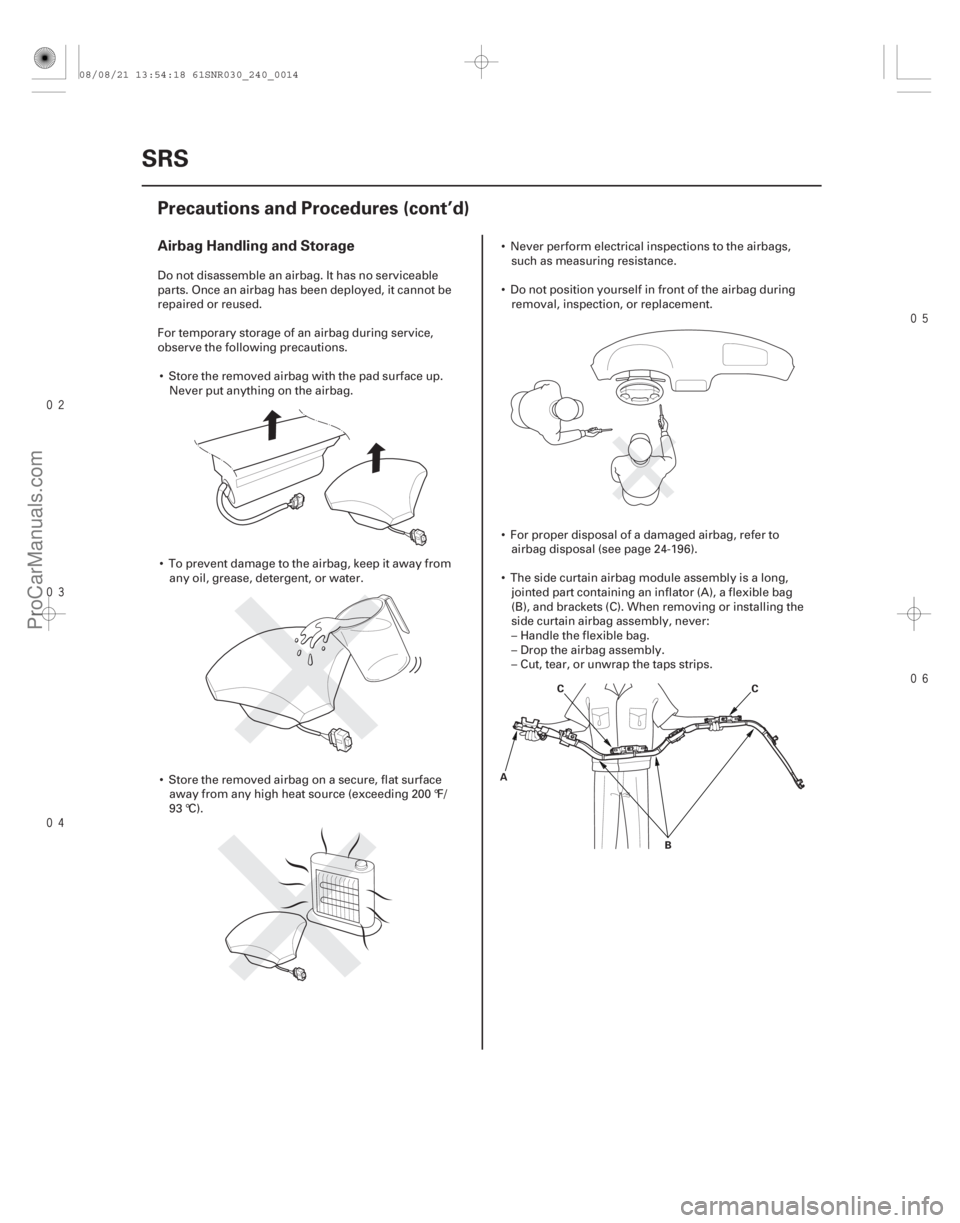

Page 2694 of 2893

Airbag Handling and Storage
24-14
SRS
Precautions and Procedures (cont’d)
A
C
BC
Do not disassemble an airbag. It has no serviceable
parts. Once an airbag has been deployed, it cannot be
repaired or reused.
For temporary storage of an airbag during service,
observe the following precautions.
Store the removed airbag with the pad surface up. Never put anything on the airbag.
To prevent damage to the airbag, keep it away from any oil, grease, detergent, or water.
Store the removed airbag on a secure, flat surface away from any high heat source (exceeding 200 °F/
93 °C). Never perform electrical inspections to the airbags,
such as measuring resistance.
Do not position yourself in front of the airbag during removal, inspection, or replacement.
For proper disposal of a damaged airbag, refer to airbag disposal (see page 24-196).
The side curtain airbag module assembly is a long, jointed part containing an inflator (A), a flexible bag
(B), and brackets (C). When removing or installing the
side curtain airbag assembly, never:
– Handle the flexible bag.
– Drop the airbag assembly.
– Cut, tear, or unwrap the taps strips.
08/08/21 13:54:18 61SNR030_240_0014
ProCarManuals.com
DYNOMITE -2009-

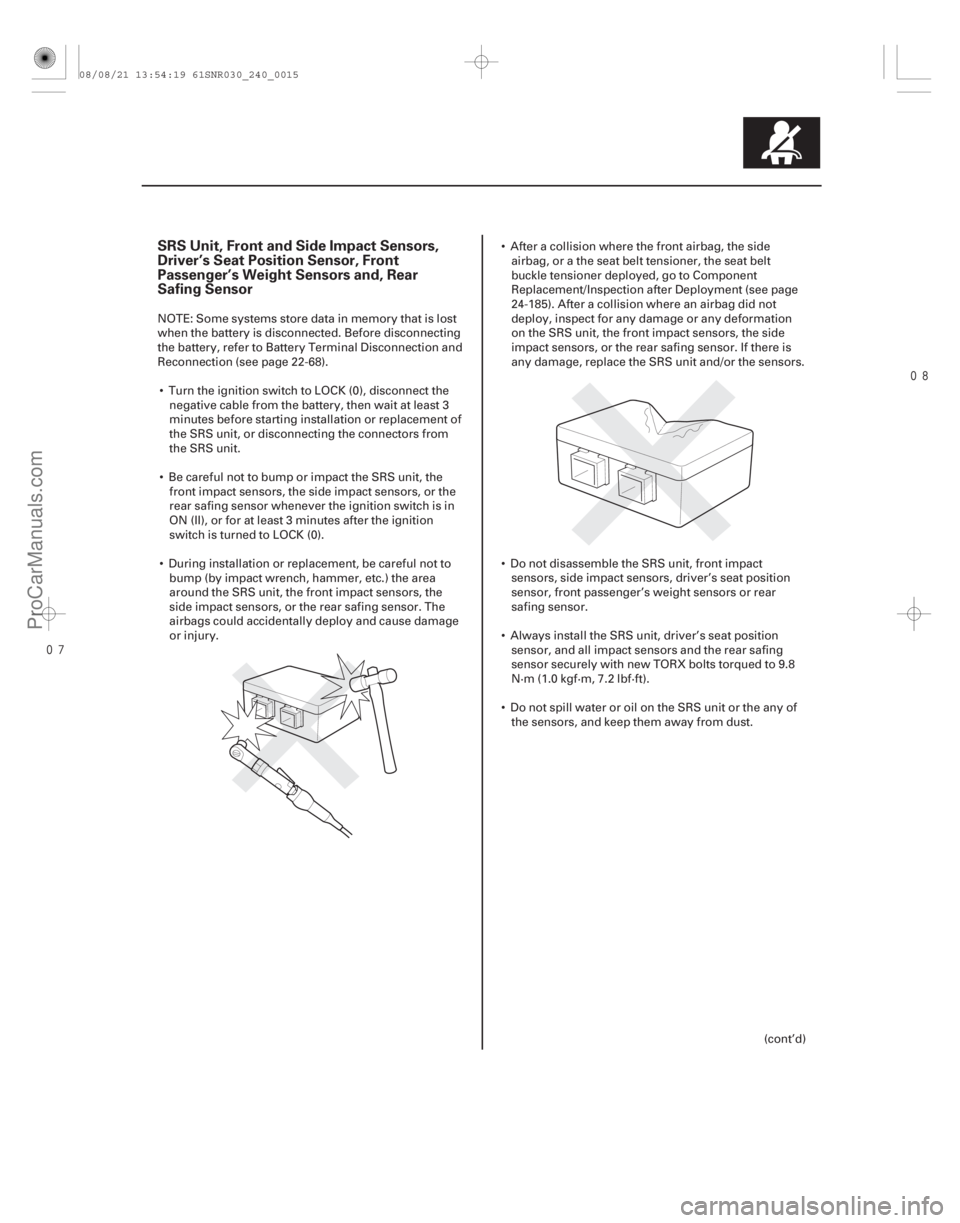

Page 2695 of 2893

SRS Unit, Front and Side Impact Sensors,
Driver’s Seat Position Sensor, Front
Passenger’s Weight Sensors and, Rear
Safing Sensor
24-15
NOTE: Some systems store data in memory that is lost
when the battery is disconnected. Before disconnecting
the battery, refer to Battery Terminal Disconnection and
Reconnection (see page 22-68).
Turn the ignition switch to LOCK (0), disconnect the negative cable from the battery, then wait at least 3
minutes before starting installation or replacement of
the SRS unit, or disconnecting the connectors from
the SRS unit.
Be careful not to bump or impact the SRS unit, the front impact sensors, the side impact sensors, or the
rear safing sensor whenever the ignition switch is in
ON (II), or for at least 3 minutes after the ignition
switch is turned to LOCK (0).
During installation or replacement, be careful not to bump (by impact wrench, hammer, etc.) the area
around the SRS unit, the front impact sensors, the
side impact sensors, or the rear safing sensor. The
airbags could accidentally deploy and cause damage
or injury. After a collision where the front airbag, the side
airbag, or a the seat belt tensioner, the seat belt
buckle tensioner deployed, go to Component
Replacement/Inspection after Deployment (see page
24-185). After a collision where an airbag did not
deploy, inspect for any damage or any deformation
on the SRS unit, the front impact sensors, the side
impact sensors, or the rear safing sensor. If there is
any damage, replace the SRS unit and/or the sensors.
Do not disassemble the SRS unit, front impact sensors, side impact sensors, driver’s seat position
sensor, front passenger’s weight sensors or rear
safing sensor.
Always install the SRS unit, driver’s seat position sensor, and all impact sensors and the rear safing
sensor securely with new TORX bolts torqued to 9.8
N·m (1.0 kgf·m, 7.2 lbf·ft).
Do not spill water or oil on the SRS unit or the any of the sensors, and keep them away from dust.
(cont’d)
08/08/21 13:54:19 61SNR030_240_0015
ProCarManuals.com
DYNOMITE -2009-

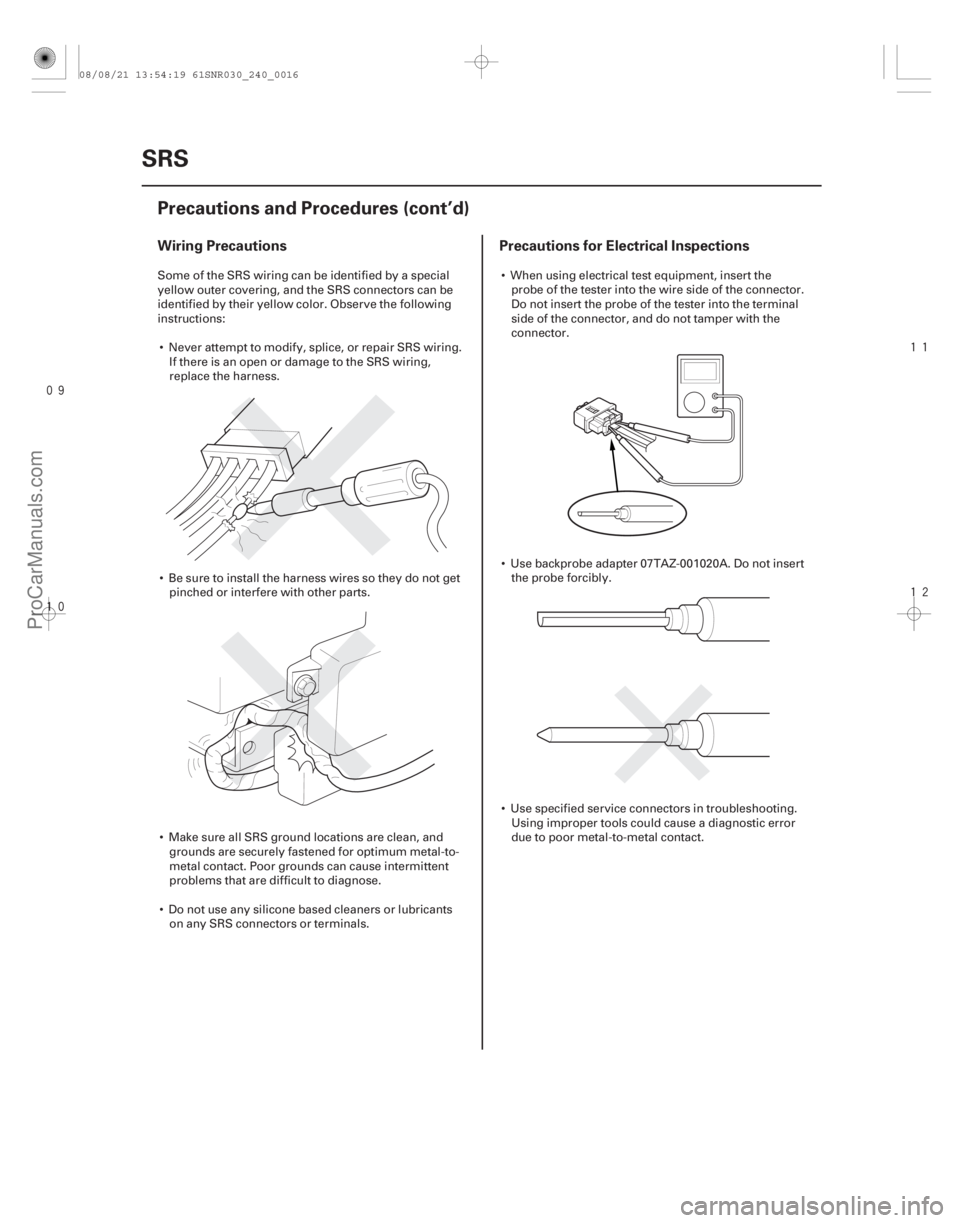

Page 2696 of 2893

Wiring Precautions
Precautions for Electrical Inspections
24-16SRS
Precautions and Procedures (cont’d)
Some of the SRS wiring can be identified by a special
yellow outer covering, and the SRS connectors can be
identified by their yellow color. Observe the following
instructions:
Never attempt to modify, splice, or repair SRS wiring. If there is an open or damage to the SRS wiring,
replace the harness.
Be sure to install the harness wires so they do not get pinched or interfere with other parts.
Make sure all SRS ground locations are clean, and grounds are securely fastened for optimum metal-to-
metal contact. Poor grounds can cause intermittent
problems that are difficult to diagnose.
Do not use any silicone based cleaners or lubricants on any SRS connectors or terminals. When using electrical test equipment, insert the
probe of the tester into the wire side of the connector.
Do not insert the probe of the tester into the terminal
side of the connector, and do not tamper with the
connector.
Use backprobe adapter 07TAZ-001020A. Do not insert the probe forcibly.
Use specified service connectors in troubleshooting. Using improper tools could cause a diagnostic error
due to poor metal-to-metal contact.
08/08/21 13:54:19 61SNR030_240_0016
ProCarManuals.com
DYNOMITE -2009-
