Page 1161 of 2893

14-245
B
6x1.0mm
12 N·m
(1.2 kgf·m, 8.7 lbf·ft) A
6x1.0mm
12 N·m
(1.2 kgf·m, 8.7 lbf·ft)
6x1.0mm
12 N·m
(1.2 kgf·m, 8.7 lbf·ft)6x1.0mm
9.8 N·m
(1.0 kgf·m,
7.2 lbf·ft)
D
6x1.0mm
14 N·m
(1.4 kgf·m,
10 lbf·ft)A
B
C
E
F
VSB02C000016
A
B
C
17. Attach the torque converter to the drive plate with the eight bolts (A). Rotate the crankshaft pulley as
necessary to tighten the bolts to 1/2 of the specified
torque, then to the final torque, in a crisscross
pattern. After tightening the last bolt, check that the
crankshaft rotate freely.
18. Install the torque converter cover (B). 19. Install the control lever (A) over the selector control
shaft (B).
20. Secure the control lever with a new lock washer (C) and the lock bolt (D), then bend the lock tab of the
lock washer against the bolt head.
21. Install the shift cable cover (E), and install the shift cable holder (F) on the shift cable cover.
22. Set the front subframe adapter (VSB02C000016) to the front subframe by looping the strap (A) over the
front of the front subframe, then secure the strap
with the stop (B), then tighten the wing nut (C).
(cont’d)
08/08/21 14:48:45 61SNR030_140_0247
ProCarManuals.com
DYNOMITE -2009-
Page 1162 of 2893
14-246Automatic Transmission
Transmission Installation (cont’d)
14x1.5mm
103 N·m
(10.5kgf·m,75.9lbf·ft)
14x1.5mm
103 N·m
(10.5 kgf·m, 75.9 lbf·ft)
A BCC
B A 14x1.5mm
88 N·m (9.0 kgf·m, 65 lbf·ft)
C
10x1.25mm
54 N·m
(5.5 kgf·m,
40 lbf·ft) A
B
10x1.25mm
59 N·m
(6.0 kgf·m,
43 lbf·ft)

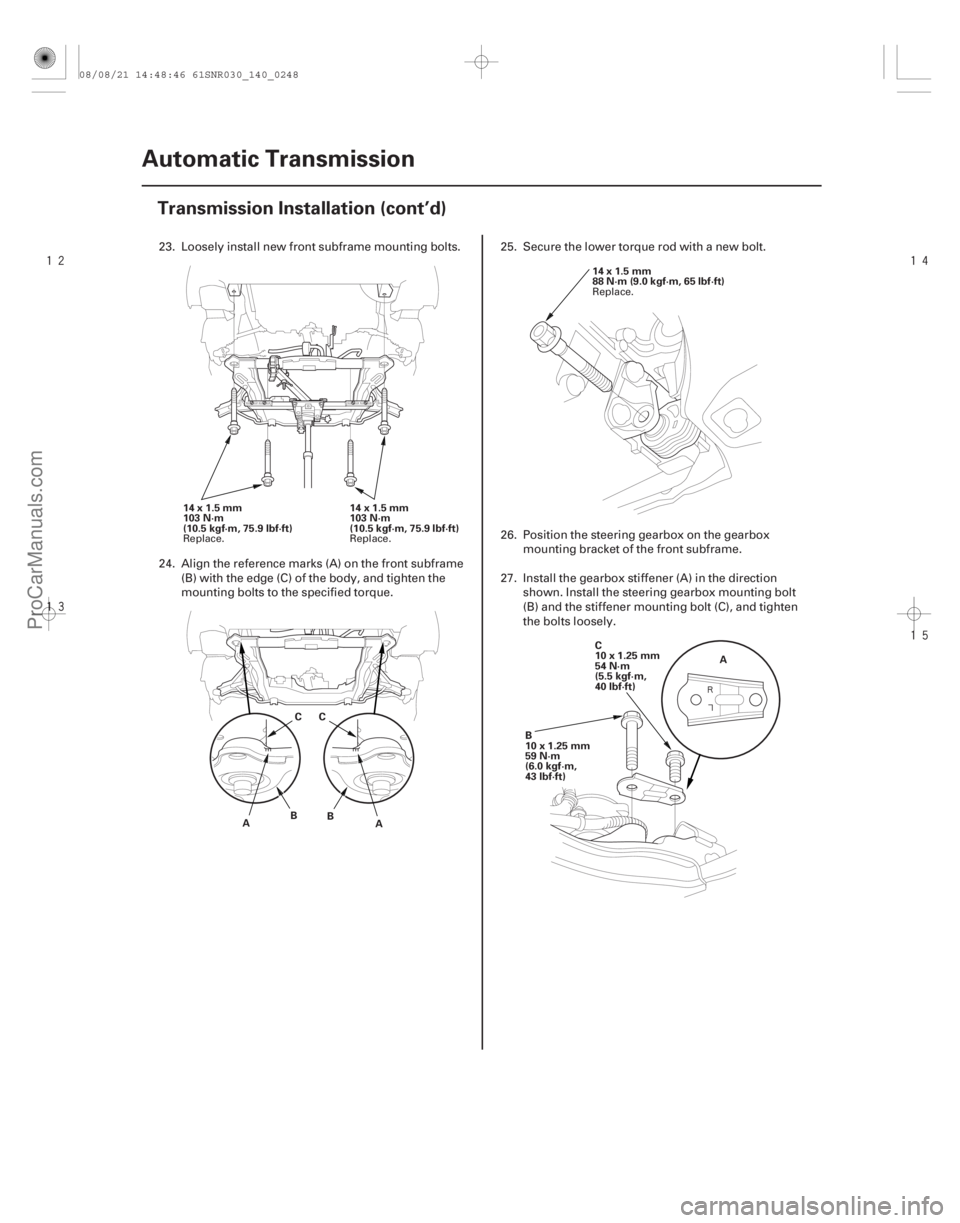

23. Loosely install new front subframe mounting bolts.
24. Align the reference marks (A) on the front subframe (B) with the edge (C) of the body, and tighten the
mounting bolts to the specified torque. 25. Secure the lower torque rod with a new bolt.
26. Position the steering gearbox on the gearbox
mounting bracket of the front subframe.
27. Install the gearbox stiffener (A) in the direction shown. Install the steering gearbox mounting bolt
(B) and the stiffener mounting bolt (C), and tighten
the bolts loosely.
Replace. Replace. Replace.
08/08/21 14:48:46 61SNR030_140_0248
ProCarManuals.com
DYNOMITE -2009-
Page 1163 of 2893
14-247
A
C
10x1.25mm
54 N·m
(5.5 kgf·m, 40 lbf·ft)
B
10x1.25mm
59N·m(6.0kgf·m,43lbf·ft)
A
10x1.25mm
38 N·m (3.9 kgf·m, 28 lbf·ft) A6x1.0mm
9.8 N·m
(1.0 kgf·m, 7.2 lbf·ft)
12x1.25mm
64 N·m
(6.5 kgf·m, 47 lbf·ft)
12x1.25mm
64N·m(6.5kgf·m,47lbf·ft)

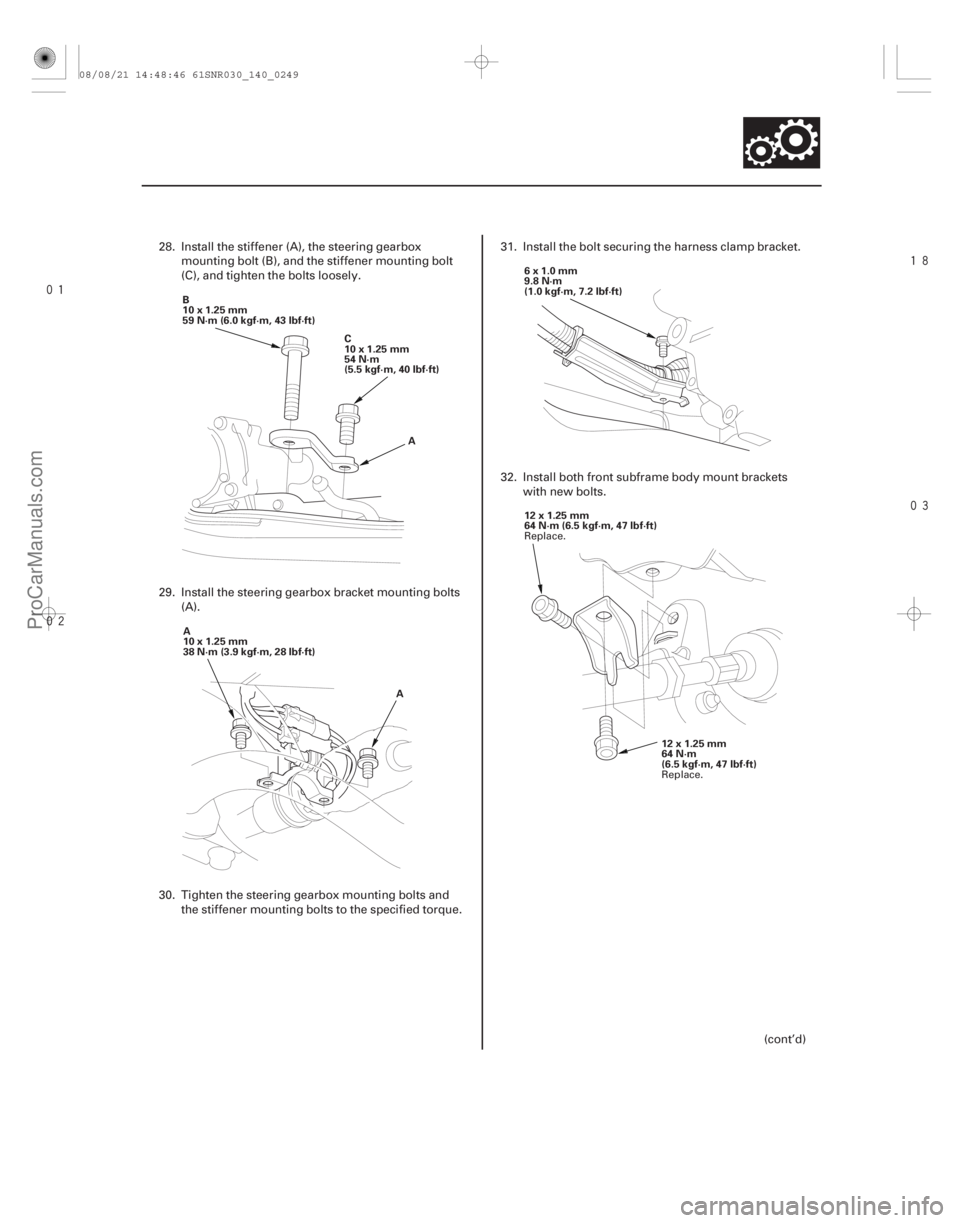

28. Install the stiffener (A), the steering gearbox
mounting bolt (B), and the stiffener mounting bolt
(C), and tighten the bolts loosely.
29. Install the steering gearbox bracket mounting bolts (A).
30. Tighten the steering gearbox mounting bolts and the stiffener mounting bolts to the specified torque. 31. Install the bolt securing the harness clamp bracket.
32. Install both front subframe body mount brackets
with new bolts.
(cont’d)
Replace.
Replace.
08/08/21 14:48:46 61SNR030_140_0249
ProCarManuals.com
DYNOMITE -2009-
Page 1164 of 2893
14-248Automatic Transmission
Transmission Installation (cont’d)
E
12x1.25mm
59 N·m
(6.0 kgf·m, 43 lbf·ft)
D
12x1.25mm
59N·m(6.0kgf·m,43lbf·ft)C
12x1.25mm
59 N·m
(6.0 kgf·m, 43 lbf·ft)
A
B A
B C
B A
07AAK-SNAA120
8x1.25mm
26 N·m (2.7 kgf·m, 20 lbf·ft)

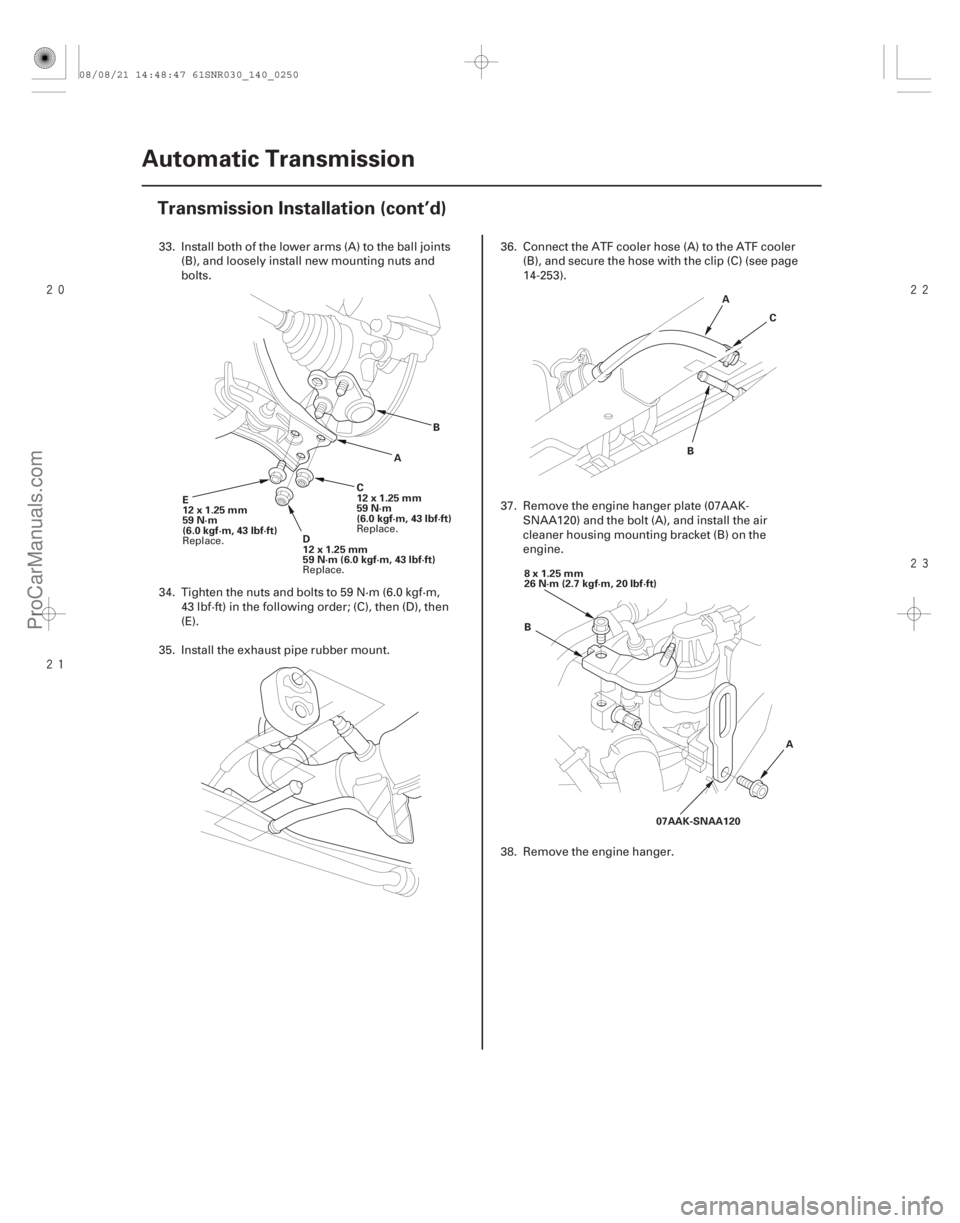

33. Install both of the lower arms (A) to the ball joints
(B), and loosely install new mounting nuts and
bolts.
34. Tighten the nuts and bolts to 59 N·m (6.0 kgf·m, 43 lbf·ft) in the following order; (C), then (D), then
(E).
35. Install the exhaust pipe rubber mount. 36. Connect the ATF cooler hose (A) to the ATF cooler
(B), and secure the hose with the clip (C) (see page
14-253).
37. Remove the engine hanger plate (07AAK- SNAA120) and the bolt (A), and install the air
cleaner housing mounting bracket (B) on the
engine.
38. Remove the engine hanger.
Replace. Replace.Replace.
08/08/21 14:48:47 61SNR030_140_0250
ProCarManuals.com
DYNOMITE -2009-
Page 1165 of 2893
14-249
A
B
AB
C
C
A
B
6x1.0mm
12 N·m (1.2 kgf·m, 8.7 lbf·ft) A
B C
A B
C
D E
D E

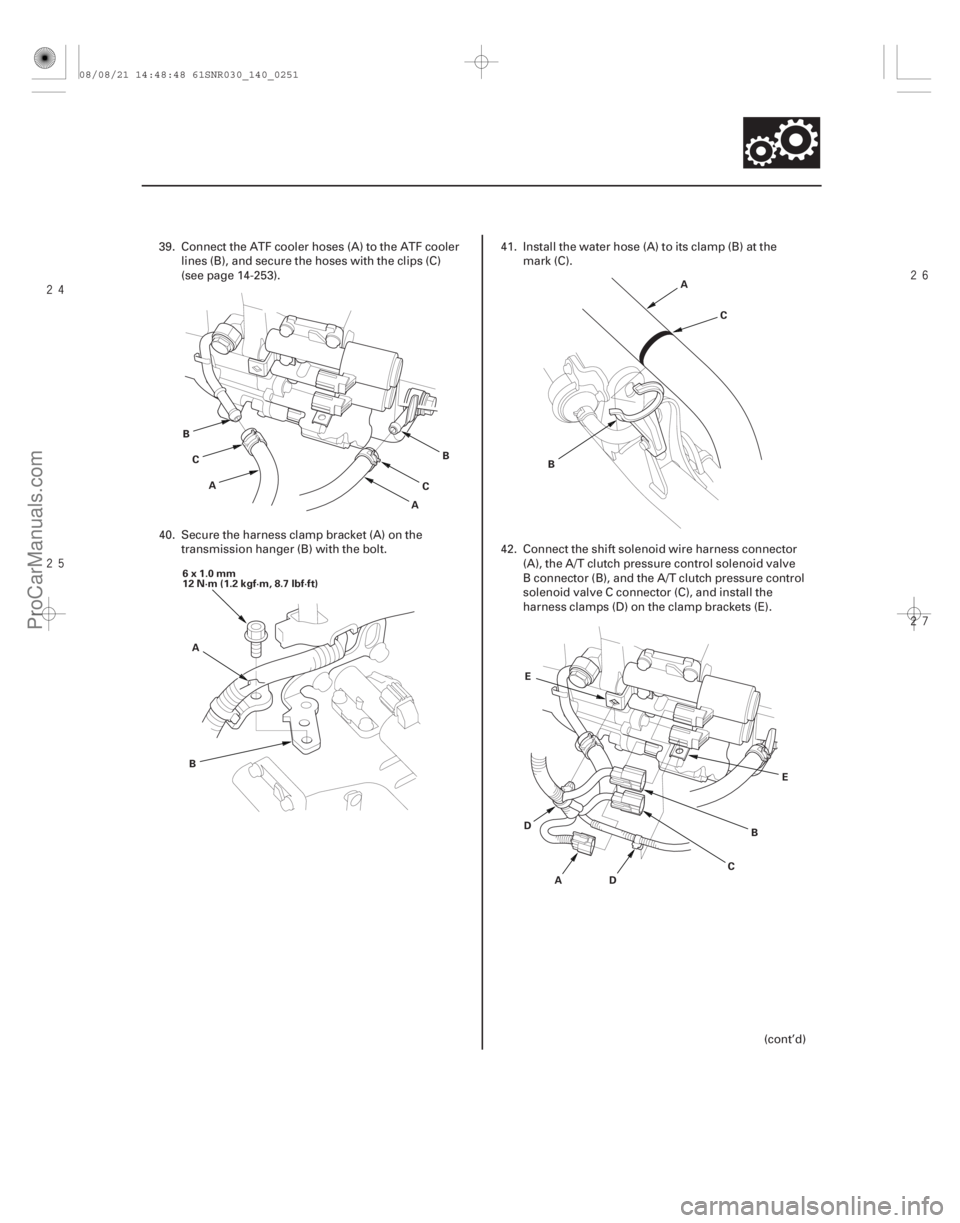

39. Connect the ATF cooler hoses (A) to the ATF cooler
lines (B), and secure the hoses with the clips (C)
(see page 14-253).
40. Secure the harness clamp bracket (A) on the transmission hanger (B) with the bolt. 41. Install the water hose (A) to its clamp (B) at the
mark (C).
42. Connect the shift solenoid wire harness connector (A), the A/T clutch pressure control solenoid valve
B connector (B), and the A/T clutch pressure control
solenoid valve C connector (C), and install the
harness clamps (D) on the clamp brackets (E).
(cont’d)
08/08/21 14:48:48 61SNR030_140_0251
ProCarManuals.com
DYNOMITE -2009-
Page 1166 of 2893
14-250Automatic Transmission
Transmission Installation (cont’d)
E
F
A
B
C
D
G A
B
C
DD
A
B

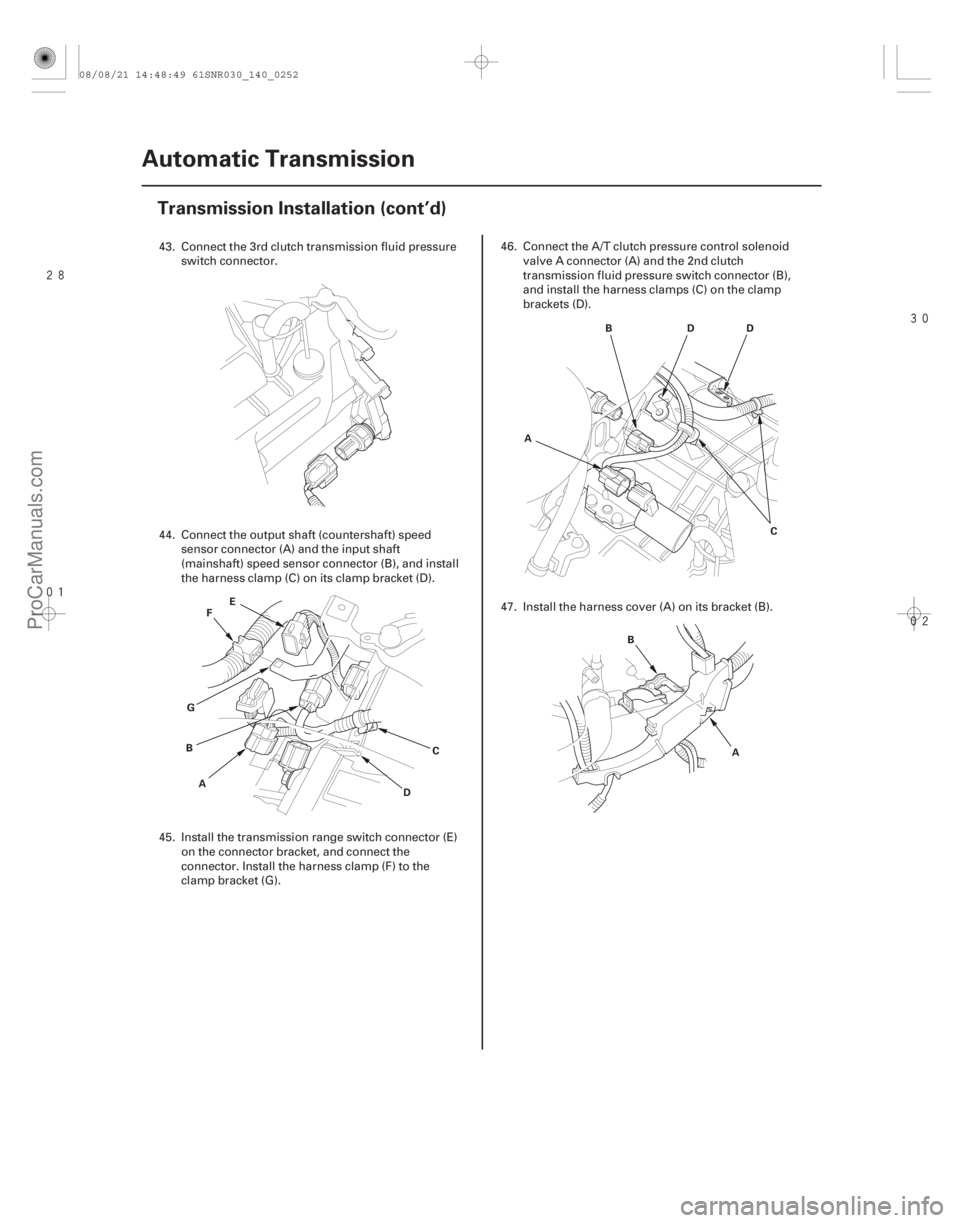

43. Connect the 3rd clutch transmission fluid pressure
switch connector.
44. Connect the output shaft (countershaft) speed sensor connector (A) and the input shaft
(mainshaft) speed sensor connector (B), and install
the harness clamp (C) on its clamp bracket (D).
45. Install the transmission range switch connector (E) on the connector bracket, and connect the
connector. Install the harness clamp (F) to the
clamp bracket (G). 46. Connect the A/T clutch pressure control solenoid
valve A connector (A) and the 2nd clutch
transmission fluid pressure switch connector (B),
and install the harness clamps (C) on the clamp
brackets (D).
47. Install the harness cover (A) on its bracket (B).
08/08/21 14:48:49 61SNR030_140_0252
ProCarManuals.com
DYNOMITE -2009-
Page 1167 of 2893
14-251
A
12x1.25mm
64 N·m
(6.5 kgf·m,
47 lbf·ft)
A
12x1.25mm
74 N·m
(7.5 kgf·m, 54 lbf·ft) B
12x1.25mm
74N·m(7.5kgf·m,54lbf·ft) A
14x1.5mm
93 N·m (9.5 kgf·m, 69 lbf·ft)

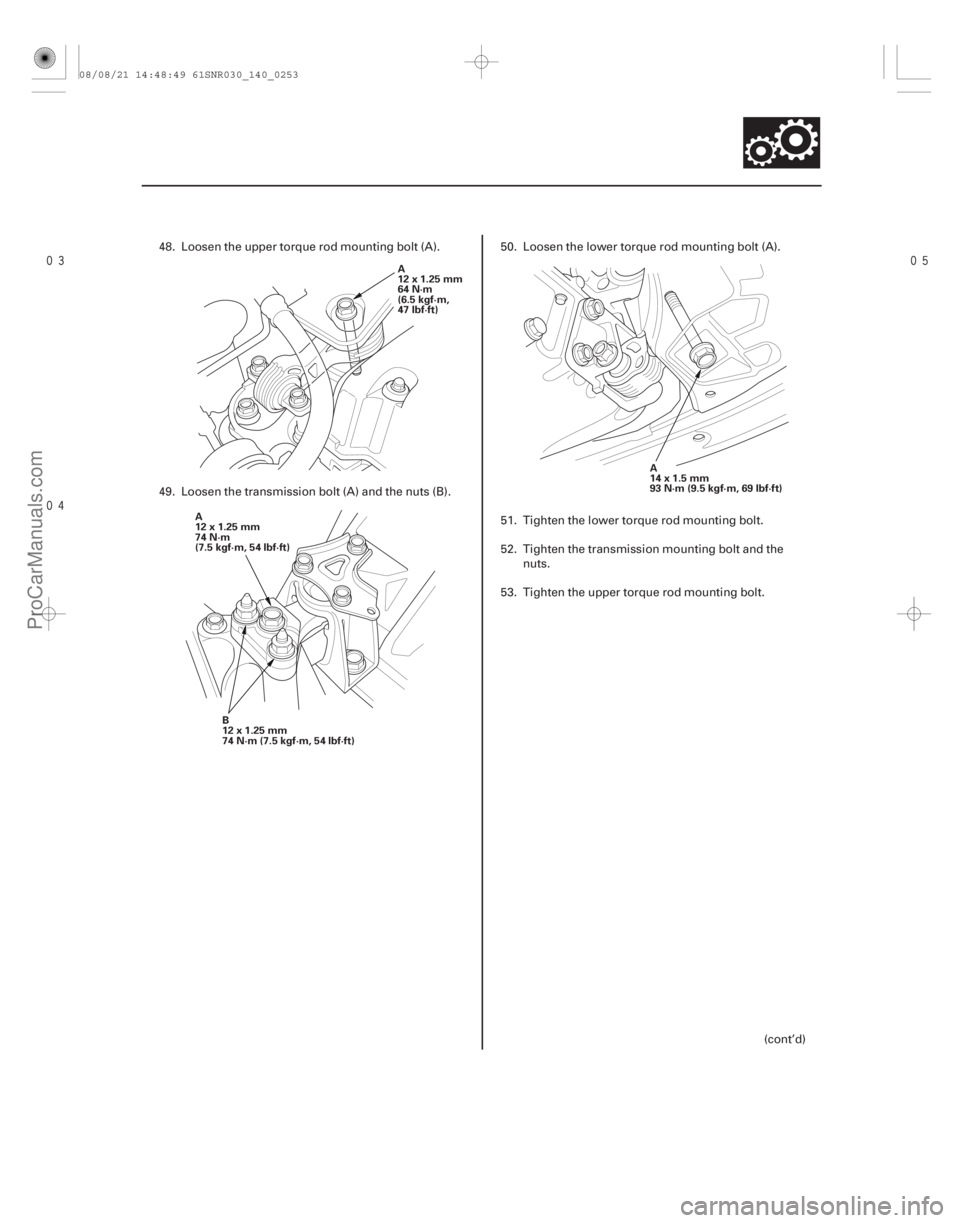

48. Loosen the upper torque rod mounting bolt (A).
49. Loosen the transmission bolt (A) and the nuts (B).
50. Loosen the lower torque rod mounting bolt (A).
51. Tighten the lower torque rod mounting bolt.
52. Tighten the transmission mounting bolt and the
nuts.
53. Tighten the upper torque rod mounting bolt.
(cont’d)
08/08/21 14:48:49 61SNR030_140_0253
ProCarManuals.com
DYNOMITE -2009-
Page 1168 of 2893

14-252Automatic Transmission
Transmission Installation (cont’d)
54. Refill the transmission with ATF (see step 5 on page
14-232).
55. Install the battery tray, the battery base, and the resonator.
56. Install the air cleaner assembly (see page 11-345) and the intake air duct (see page 11-348).
57. Install the front grille cover (see page 20-163).
58. Install the under-cowl lower panel and the cowl cover (see page 20-163).
59. Do the battery installation procedure (see page 22-69).
60. Install the front wheels.
61. Set the parking brake. Start the engine, and shift the transmission through all positions three times.
62. Check the shift lever operation, the A/T gear position indicator operation, and the shift cable
adjustment.
63. Check and adjust the front wheel alignment (see page 18-5).
64. Install the splash shield.
65. Start the engine with the shift lever in P or N, and warm it up to normal operating temperature (the
radiator fan comes on). Turn off the engine, and
check the ATF level (see page 14-231).
66. Road-test the vehicle (see page 14-208).
08/08/21 14:48:50 61SNR030_140_0254
