ACURA CSX 2006 Service Repair Manual

(#)
Tips and Precautions
Before Troubleshooting
Handling Connectors
22-3
General Troubleshooting Information
A A A
A
1. Check applicab

Page 1994 of 2893

ACURA CSX 2006 Service Repair Manual

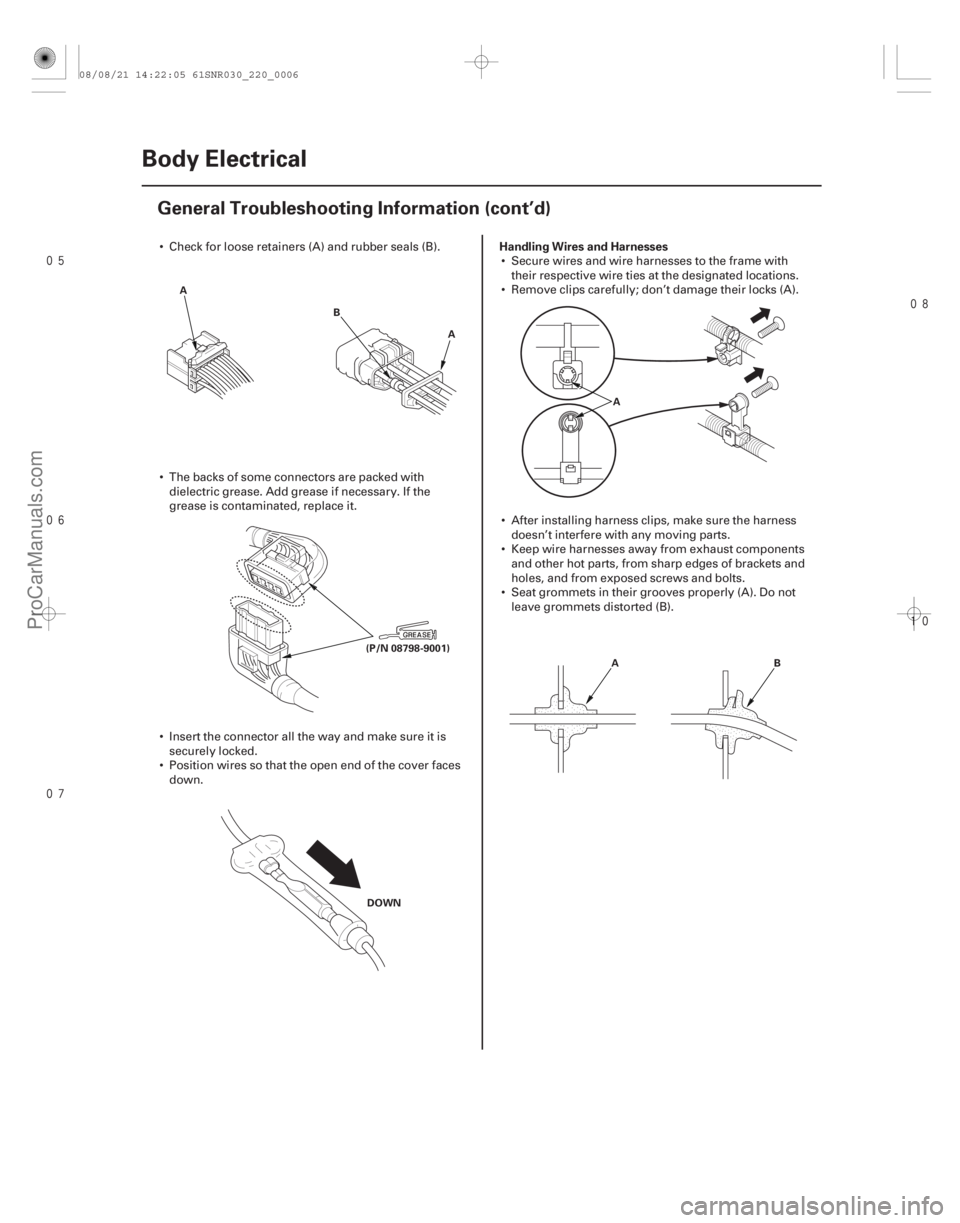

Handling Wires and Harnesses
22-4 Body Electrical
General Troubleshooting Information (cont’d)
A
BA
(P/N 08798-9001) DOWN A
AB
Check for loose retainers (A) and rubber seal

Page 1995 of 2893

ACURA CSX 2006 Service Repair Manual

Testing and Repairs
Five-step Troubleshooting
22-5
Do not use wires or harnesses with broken insulation.
Replace them or repair them by wrapping the break
with electrical tape.
Never atte

Testing and Repairs
Five-step Troubleshooting
22-5
Do not use wires or harnesses with broken insulation.
Replace them or repair them by wrapping the break
with electrical tape.
Never attempt to modify, splice, or repair SRS wiring. If there is an open or damage is SRS wiring or
terminals, replace the harness.
After installing parts, make sure that no wires are pinched under them.
When using electrical test equipment, follow the manufacturer’s instructions and those described in
this manual.
If possible, insert the probe of the tester from the wire side (except waterproof connector).
Use back probe adaptor 07TAZ-001020A.
Refer to the instructions in the Honda Terminal Kit for identification and replacement of connector terminals. 1. Verify The Complaint:
Turn on all the components in the problem circuit
to verify the client complaint. Note the symptoms.
Do not begin disassembly or testing until you have
narrowed down the problem area.
2. Analyze The Schematic: Look up the schematic for the problem circuit.
Determine how the circuit is supposed to work by
tracing the current paths from the power feed
through the circuit components to ground. If
several circuits fail at the same time, the fuse or a
ground is a likely cause.
Based on the symptoms and your understanding of
the circuit operation, identify one or more possible
causes of the problem.
3. Isolate The Problem By Testing The Circuit: Make circuit tests to check the diagnosis you made
in step 2. Keep in mind that a logical, simple
procedure is the key to efficient troubleshooting.
Test for the most likely cause of failure first. Try to
make tests at points that are easily accessible.
4. Fix The Problem: Once the specific problem is identified, make the
repair. Be sure to use proper tools and safe
procedures.
5. Make Sure The Circuit Works: Turn on all components in the repaired circuit in all
modes to make sure you’ve fixed the entire
problem. If the problem was a blown fuse, be sure
to test all of the circuits on the fuse. Make sure no
new problems turn up and the original problem
does not recur.
(cont’d)
08/08/21 14:22:05 61SNR030_220_0007
ProCarManuals.com
DYNOMITE -2009-

Page 1996 of 2893

ACURA CSX 2006 Service Repair Manual

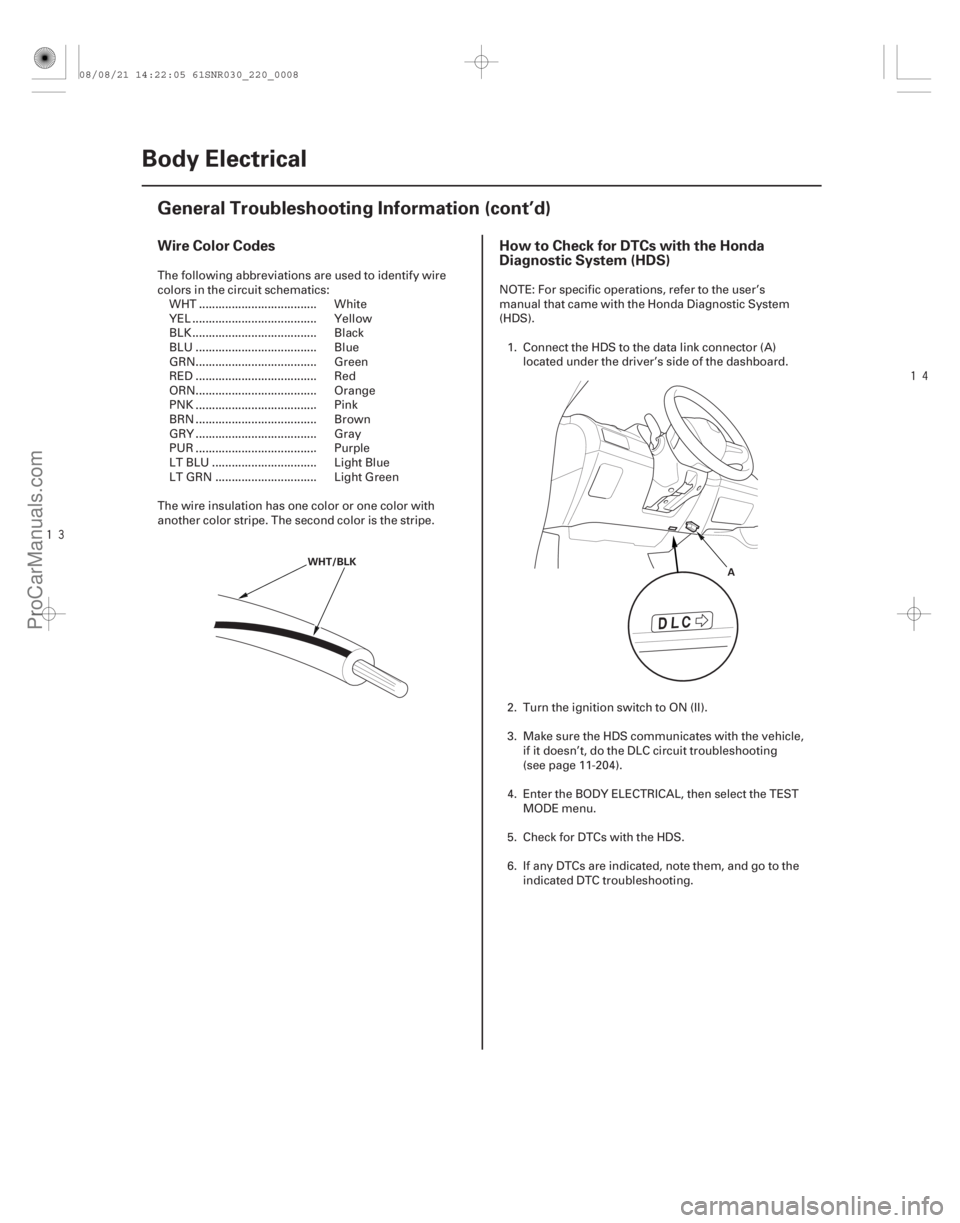

Wire Color Codes
How to Check for DTCs with the Honda
Diagnostic System (HDS)
22-6 Body Electrical
General Troubleshooting Information (cont’d)
WHT/BLK
A
The following abbreviations are use

Wire Color Codes
How to Check for DTCs with the Honda
Diagnostic System (HDS)
22-6 Body Electrical
General Troubleshooting Information (cont’d)
WHT/BLK
A
The following abbreviations are used to identify wire
colors in the circuit schematics:
...................................
.....................................
..................................... ....................................
....................................
....................................
....................................
....................................
....................................
....................................
.................................... .............................................................
...................................
.....................................
..................................... ....................................
....................................
....................................
....................................
....................................
....................................
....................................
.................................... .............................................................
WHT . White
YEL . Yellow
BLK . Black
BLU . Blue
GRN . Green
RED . Red
ORN . Orange
PNK . Pink
BRN . Brown
GRY . Gray
PUR . Purple
LT BLU . Light Blue
LT GRN . Light Green
The wire insulation has one color or one color with
another color stripe. The second color is the stripe. NOTE: For specific operations, refer to the user’s
manual that came with the Honda Diagnostic System
(HDS).
1. Connect the HDS to the data link connector (A) located under the driver’s side of the dashboard.
2. Turn the ignition switch to ON (II).
3. Make sure the HDS communicates with the vehicle, if it doesn’t, do the DLC circuit troubleshooting
(see page 11-204).
4. Enter the BODY ELECTRICAL, then select the TEST MODE menu.
5. Check for DTCs with the HDS.
6. If any DTCs are indicated, note them, and go to the indicated DTC troubleshooting.
08/08/21 14:22:05 61SNR030_220_0008
ProCarManuals.com
DYNOMITE -2009-

Page 1997 of 2893

ACURA CSX 2006 Service Repair Manual Î
(#)

22-7
Relay and Control Unit Locations
Engine Compartment
ABS MODULATOR-CONTROL UNIT
(’06-07 Touring and Premium models) or
VSA MODULATOR-CON

Page 1998 of 2893

ACURA CSX 2006 Service Repair Manual Î(#)
22-8Relay and Control Unit Locations
Dashboard
GAUGE CONTROL
MODULE (TACH)
GAUGE CONTROL MODULE
(SPEEDO)
POWER WINDOW RELAY PGM-FI MAIN RELAY

Page 1999 of 2893

ACURA CSX 2006 Service Repair Manual Î
22-9
SRS UNIT
CLIMATE CONTROL UNIT
IMMOBILIZER-KEYLESS
CONTROL UNIT
(With built-in receiver)
EPS CONTROL UNIT
AUDIO UNIT or
NAVIGATION UNIT
TPMS CONTROL UNIT
(’08-09 models)
08/08/21 14:22:0

Page 2000 of 2893

ACURA CSX 2006 Service Repair Manual Î(#)
22-10Relay and Control Unit Locations
Roof and Floor
STEREO AMPLIFIER
(’08-09 TYPE S model)
MOONROOF CONTROL
UNIT/MOTER
USB ADAPTER
(’09 m
