ACURA CSX 2006 Service Repair Manual    20-46Glass Front Corner Glass Replacement (cont’d) A B B A B 12. Set the front corner glass (A) to the front corner trim (B) quickly. Be careful not to touch the adhesive. 13. Hold the fron

Page 1722 of 2893

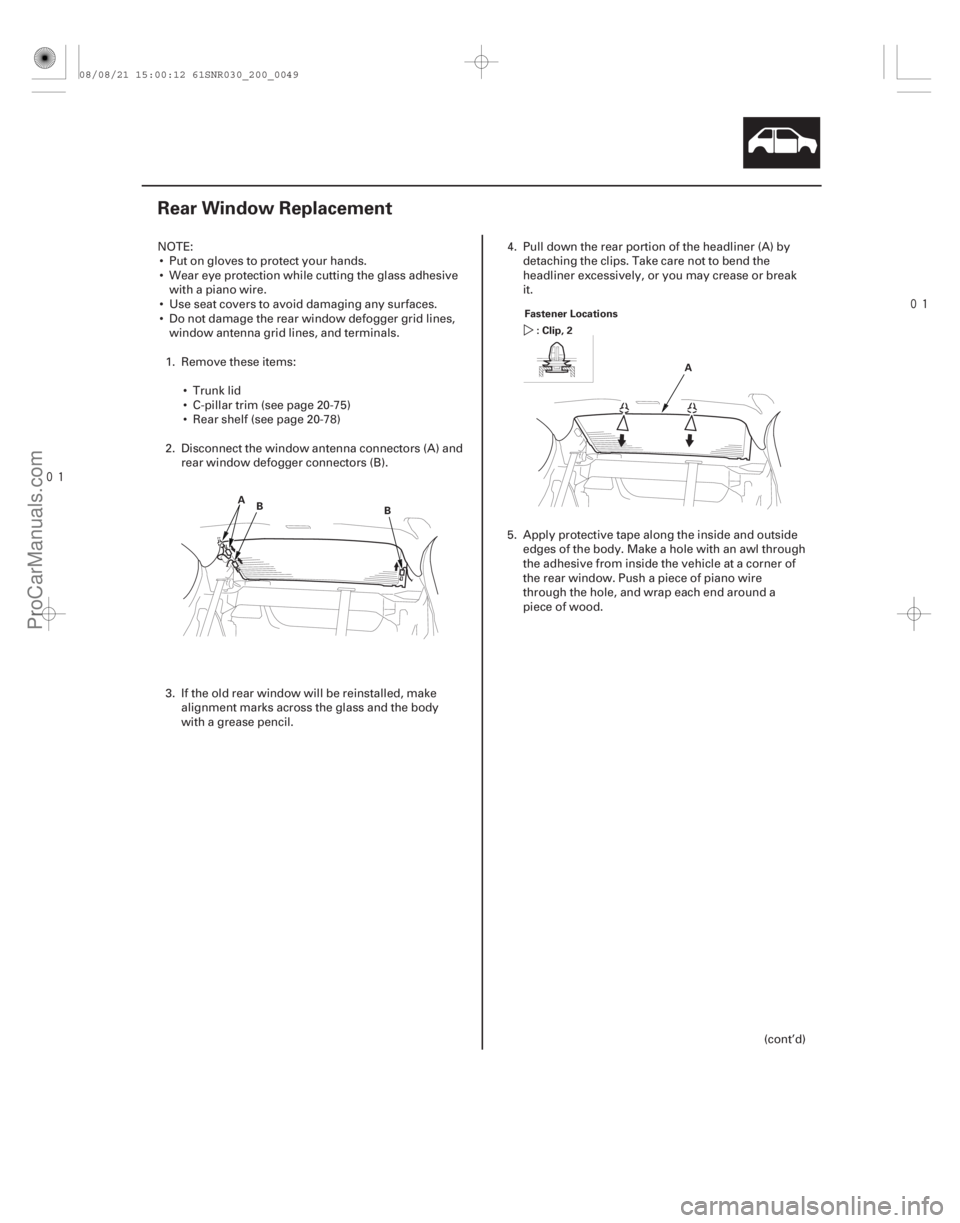

ACURA CSX 2006 Service Repair Manual     (#        )  20-47 Rear Window Replacement A B B A Fastener Locations :Clip,2 NOTE: Put on gloves to protect your hands.  Wear eye protection while cut

Page 1723 of 2893

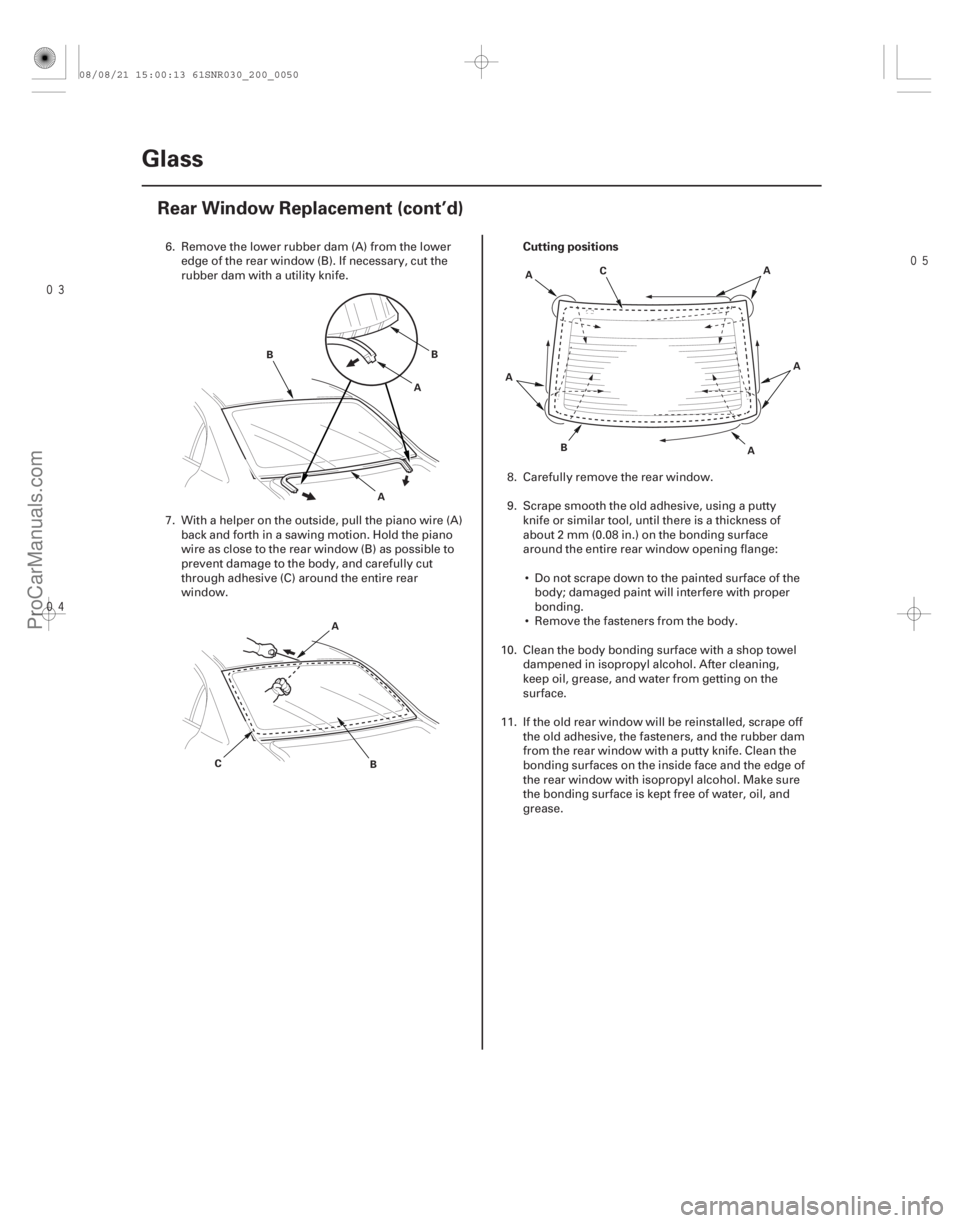

ACURA CSX 2006 Service Repair Manual      Cutting positions 20-48 Glass Rear Window Replacement (cont’d) A B AB A B C A B C A A AA 6. Remove the lower rubber dam (A) from the lower edge of the rear window (B). If necessary, cu

Page 1724 of 2893

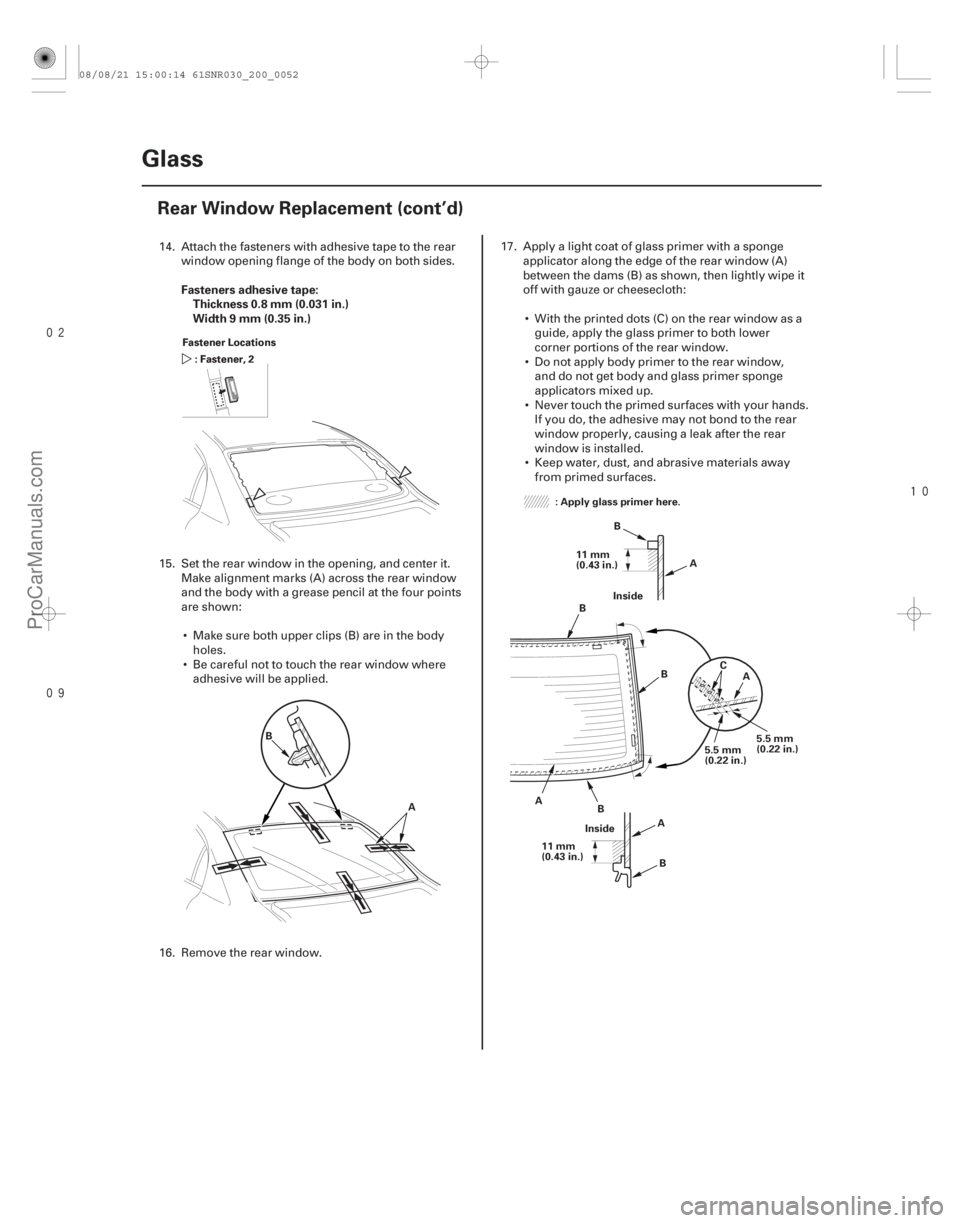

ACURA CSX 2006 Service Repair Manual    Rubber dam adhesive tape: Thickness 0.2 mm (0.008 in.) Width 4 mm (0.16 in.) Rubber dams adhesive tape:Thickness 0.16 mm (0.006 in.) Width 5 mm (0.2 in.) Clips adhesive tape: Thickness 0.4 mm

Page 1725 of 2893

ACURA CSX 2006 Service Repair Manual      Fasteners adhesive tape: Thickness 0.8 mm (0.031 in.) Width 9 mm (0.35 in.) 20-50Glass Rear Window Replacement (cont’d) Fastener Locations : Fastener, 2 Fastener Locations : Fastener,

Page 1726 of 2893

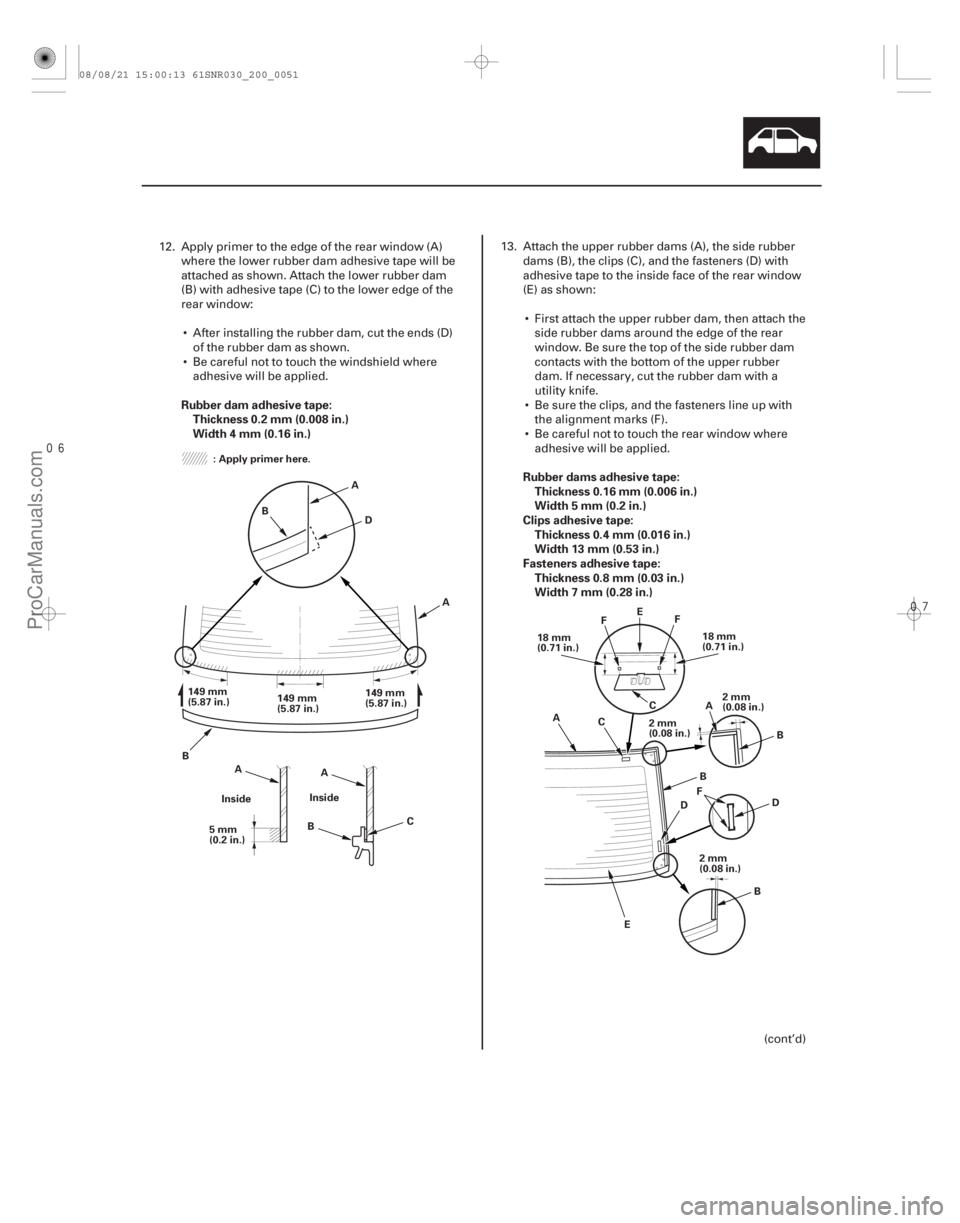

ACURA CSX 2006 Service Repair Manual      20-51 : Apply body primer to exposed point as shown. 16 mm (0.63 in.) 16 mm (0.63 in.) 16 mm (0.63 in.) 12 mm (0.47 in.) 7 mm (0.28 in.) A Inside 12 mm (0.47 in.) 7 mm (0.28 in.) A B C D

Page 1727 of 2893

ACURA CSX 2006 Service Repair Manual 20-52Glass Rear Window Replacement (cont’d) 21. Hold the rear window with suction cups over the opening, align it with the alignment marks you made in step 15, and set it down on the adhesive. Light

Page 1728 of 2893

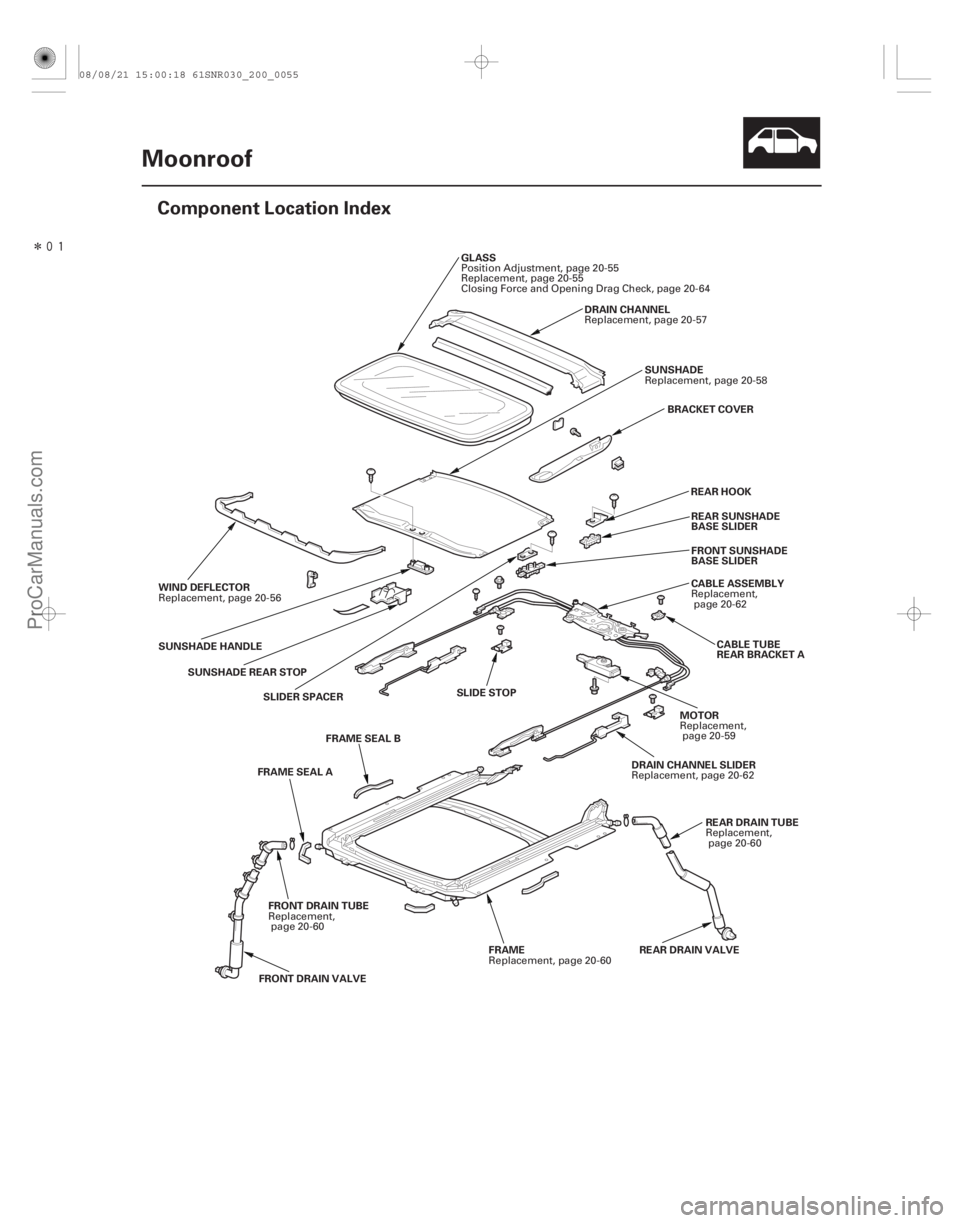

ACURA CSX 2006 Service Repair Manual Î  (#        )  20-53 Moonroof Component Location Index BRACKET COVER FRAME SEAL A SLIDE STOP FRONT DRAIN VALVE REAR DRAIN VALVECABLE TUBE REAR BRACKET A GLAS
