Page 1249 of 2893

ACURA CSX 2006 Service Repair Manual        (#       )  Special Tools Required 14-325 Idler Gear/Idler Gear Shaft Replacement 07749-0010000 07746-0010100 A B 07749-0010000 07746-0010100A

Page 1250 of 2893

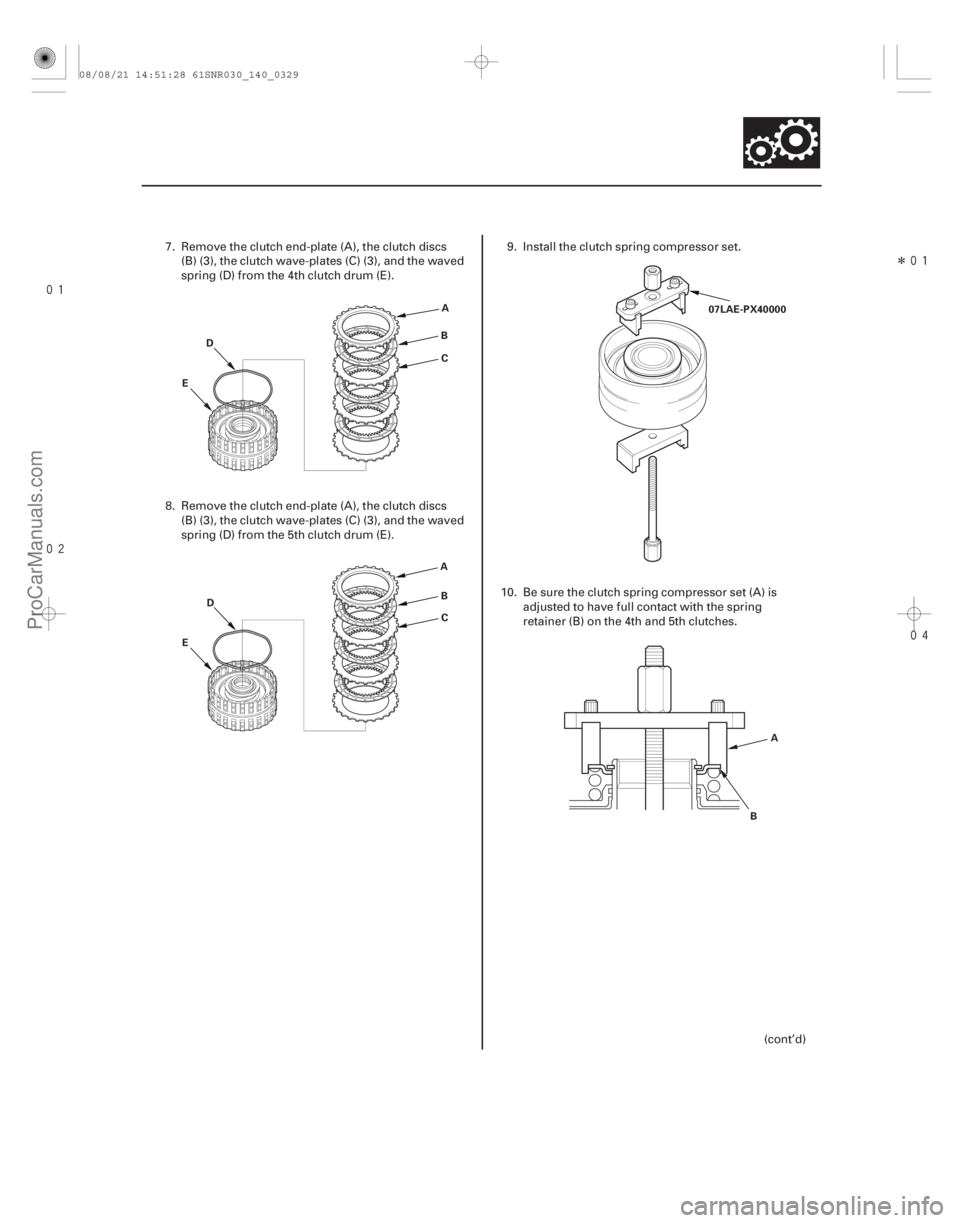

ACURA CSX 2006 Service Repair Manual        (#         !)  Special Tools Required 14-326 Shafts and Clutches Clutch Disassembly B A C E D B A C F E D B A C D F E Clutch spring compressor se

Page 1251 of 2893

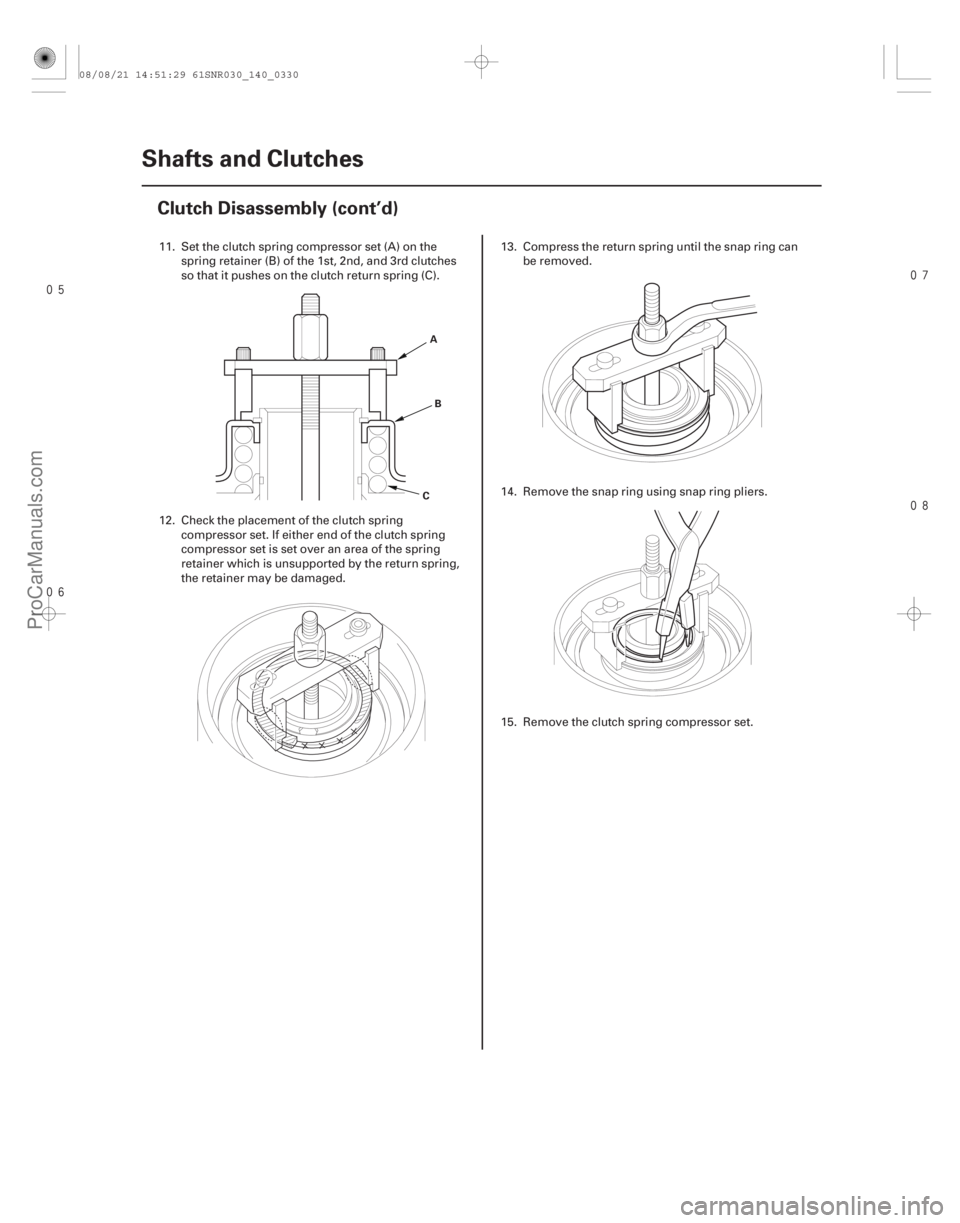

ACURA CSX 2006 Service Repair Manual    Î    14-327 E A B C D AB E C D 07LAE-PX40000 A B 7. Remove the clutch end-plate (A), the clutch discs (B) (3), the clutch wave-plates (C) (3), and the waved spring (D) from the 4th cl

Page 1252 of 2893

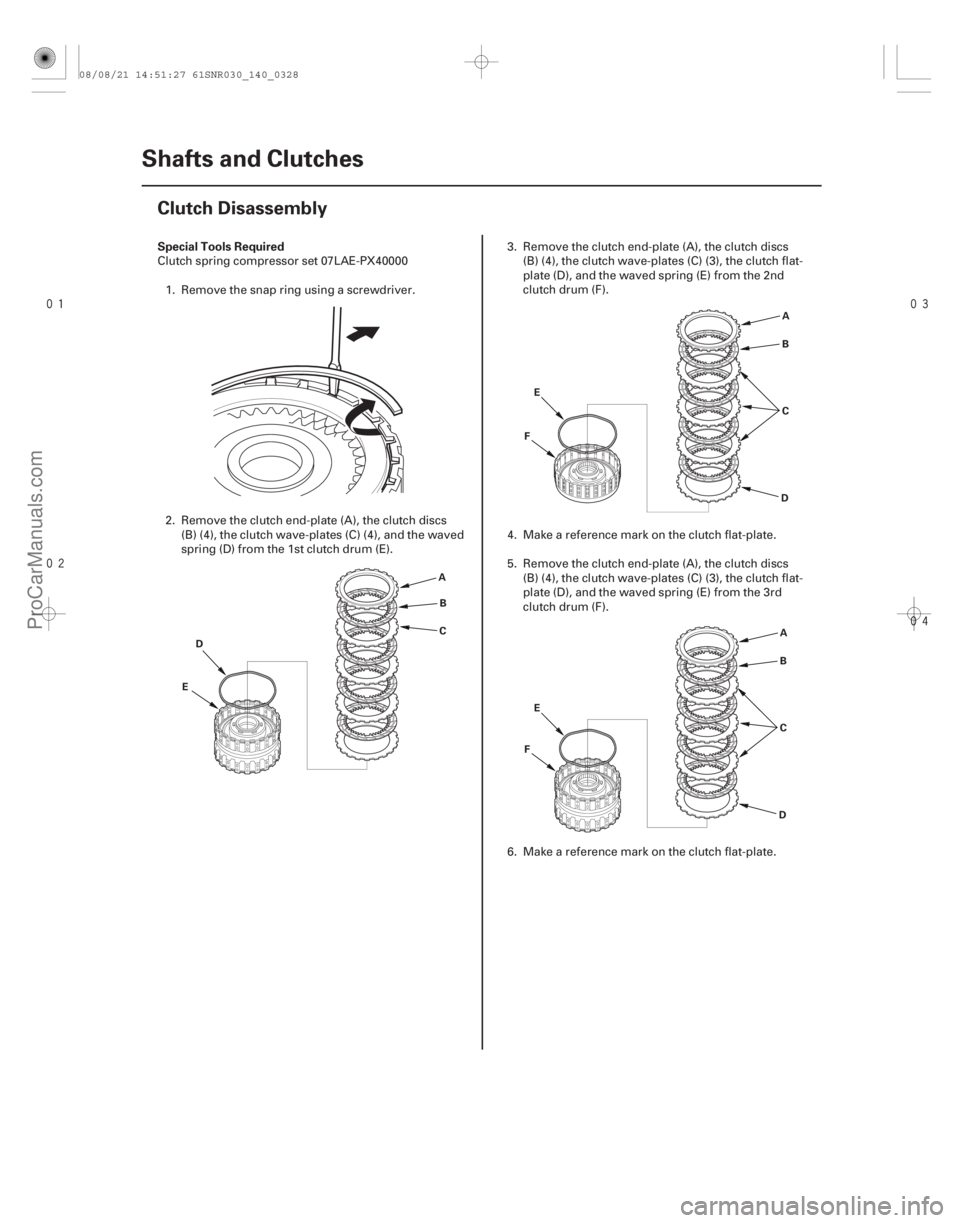

ACURA CSX 2006 Service Repair Manual        14-328Shafts and Clutches Clutch Disassembly (cont’d) A B C 11. Set the clutch spring compressor set (A) on the spring retainer (B) of the 1st, 2nd, and 3rd clutches so that it pu

Page 1253 of 2893

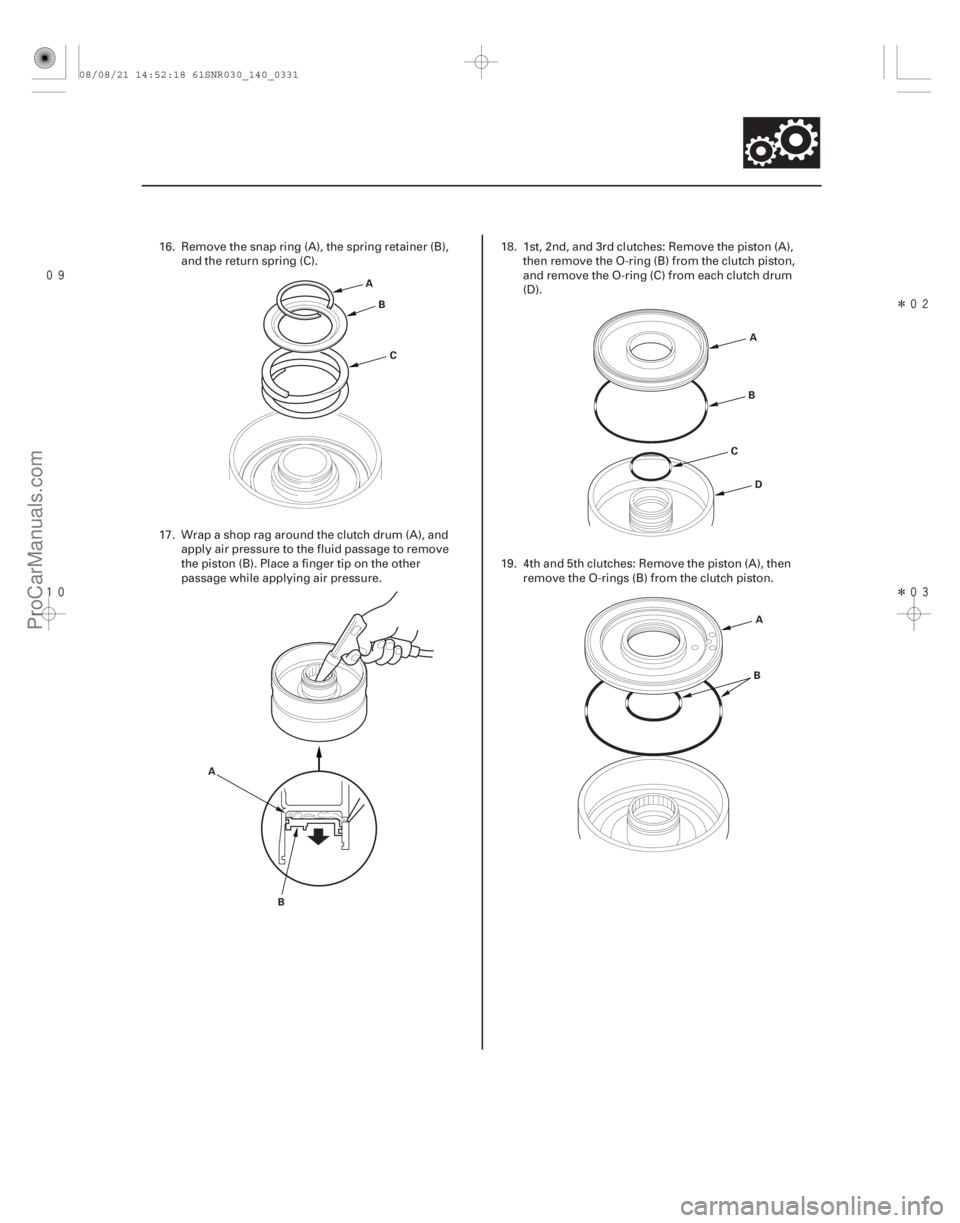

ACURA CSX 2006 Service Repair Manual     Î  Î  14-329 A B C A B D B C A BA 16. Remove the snap ring (A), the spring retainer (B), and the return spring (C). 17. Wrap a shop rag around the clutch drum (A), and apply air pre

Page 1254 of 2893

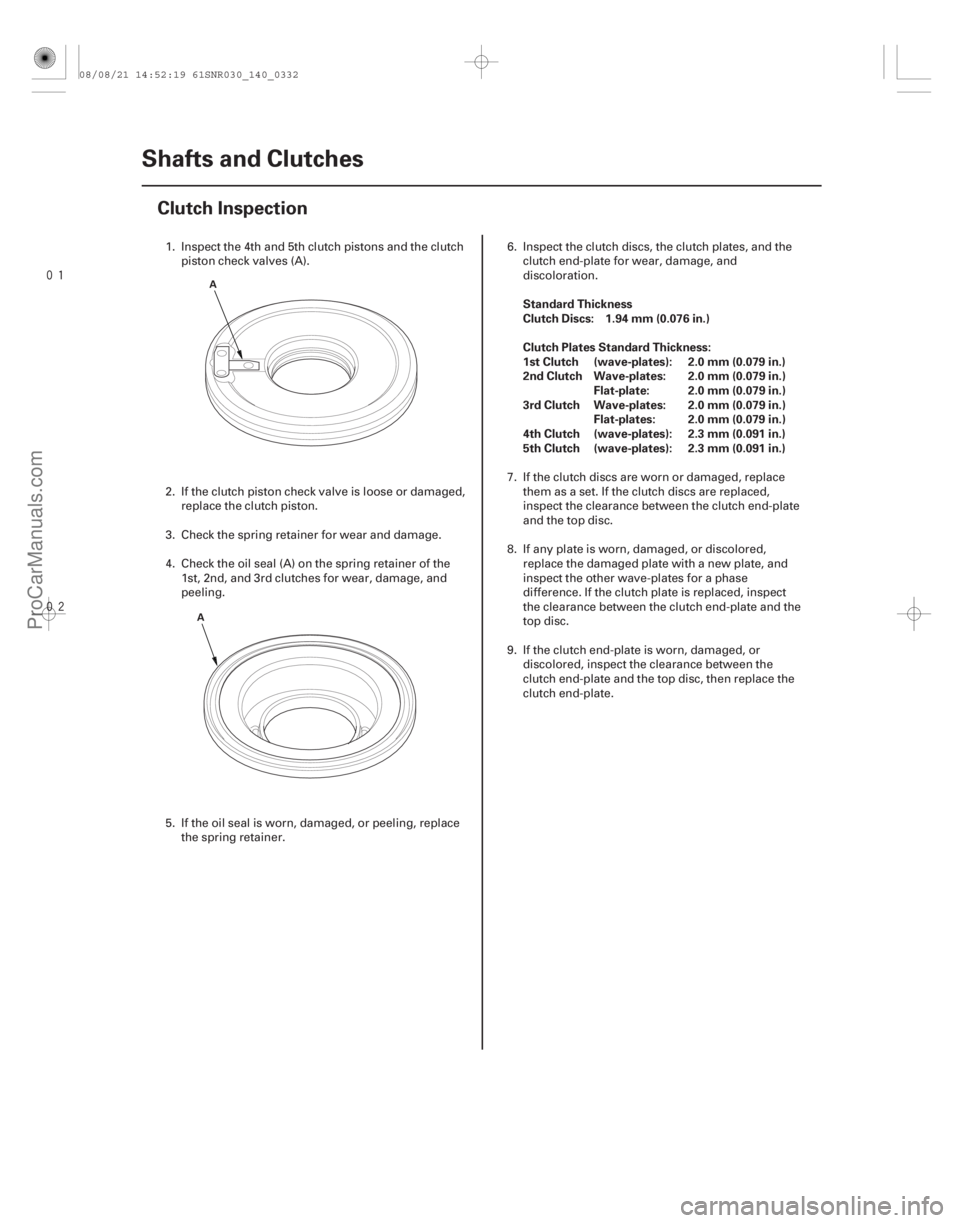

ACURA CSX 2006 Service Repair Manual    (#         ")  Standard Thickness Clutch Discs: 1.94 mm (0.076 in.) Clutch Plates Standard Thickness: 1st Clutch (wave-plates): 2.0 mm (0.079 in.) 2nd Clutc

Page 1255 of 2893

ACURA CSX 2006 Service Repair Manual   (#       ")  µµ Standard: 0.07 0.20 mm (0.003 0.008 in.) 14-331 Clutch Wave-plate Phase Difference Inspection A D E B C F G H I 1. Place the clutch wave-p

Page 1256 of 2893

ACURA CSX 2006 Service Repair Manual        (#        ")  Special Tools Required 14-332 Shafts and Clutches Clutch Clearance Inspection C B D A EA D E B C F G A D E B C F G Clutch compress
