Page 1417 of 2893

(#'
)
µµ
Front and rear wheel radial runout:
Standard: 0 0.7 mm (0 0.03 in.)
Service limit: 1.5 mm (0.06 in.) Special Tools Required
Front
18-1018-10Front and Rear Suspension
Wheel Runout Inspection (cont’d) Wheel Bolt Replacement
Press
A
B
C C
4. Reset the dial gauge to the position shown, and
measure the radial runout.
5. If the wheel runout is not within the specification, check the wheel bearing end play (see page 18-9),
and make sure the mating surfaces on the brake
disc and the inside of the wheel are clean.
6. If the bearing end play is within the specification but the wheel runout is more than the service limit,
replace the wheel. Ball joint remover, 28 mm 07MAC-SL0A202
Do not use a hammer or impact tools (pneumaticor electric) to remove and install the wheel bolts.
Be careful not to damage the threads of the wheel bolts.
1. Remove the front hub (see page 18-15).
2. Separate the wheel bolt (A) from the hub (B) using a hydraulic press. Support the hub with hydraulic
press attachments (C) or equivalent tools.
NOTE: Before installing the new wheel bolt, clean
the mating surfaces, on the bolt and the hub.
3. Insert the new wheel bolt into the hub while aligning the splined surfaces on the hub hole with
the wheel bolt.
NOTE: Degrease all around the wheel bolt.
Make sure the wheel bolt is installed vertically in relation to the hub disc surface.
4. Install the wheel bolt using a hydraulic press until the wheel bolt shoulder is fully seated.
5. Install the front hub (see page 18-15). NOTE: If you cannot tighten the wheel nut to the
specified torque value when installing the wheel,
replace the front hub as an assembly.
08/08/21 14:56:47 61SNR030_180_0010
ProCarManuals.com
DYNOMITE -2009-
Page 1418 of 2893

(#'
)
µµ
Front and rear wheel radial runout:
Standard: 0 0.7 mm (0 0.03 in.)
Service limit: 1.5 mm (0.06 in.) Special Tools Required
Front
18-1018-10Front and Rear Suspension
Wheel Runout Inspection (cont’d) Wheel Bolt Replacement
Press
A
B
C C
4. Reset the dial gauge to the position shown, and
measure the radial runout.
5. If the wheel runout is not within the specification, check the wheel bearing end play (see page 18-9),
and make sure the mating surfaces on the brake
disc and the inside of the wheel are clean.
6. If the bearing end play is within the specification but the wheel runout is more than the service limit,
replace the wheel. Ball joint remover, 28 mm 07MAC-SL0A202
Do not use a hammer or impact tools (pneumaticor electric) to remove and install the wheel bolts.
Be careful not to damage the threads of the wheel bolts.
1. Remove the front hub (see page 18-15).
2. Separate the wheel bolt (A) from the hub (B) using a hydraulic press. Support the hub with hydraulic
press attachments (C) or equivalent tools.
NOTE: Before installing the new wheel bolt, clean
the mating surfaces, on the bolt and the hub.
3. Insert the new wheel bolt into the hub while aligning the splined surfaces on the hub hole with
the wheel bolt.
NOTE: Degrease all around the wheel bolt.
Make sure the wheel bolt is installed vertically in relation to the hub disc surface.
4. Install the wheel bolt using a hydraulic press until the wheel bolt shoulder is fully seated.
5. Install the front hub (see page 18-15). NOTE: If you cannot tighten the wheel nut to the
specified torque value when installing the wheel,
replace the front hub as an assembly.
08/08/21 14:56:47 61SNR030_180_0010
ProCarManuals.com
DYNOMITE -2009-
Page 1419 of 2893

µ
µ

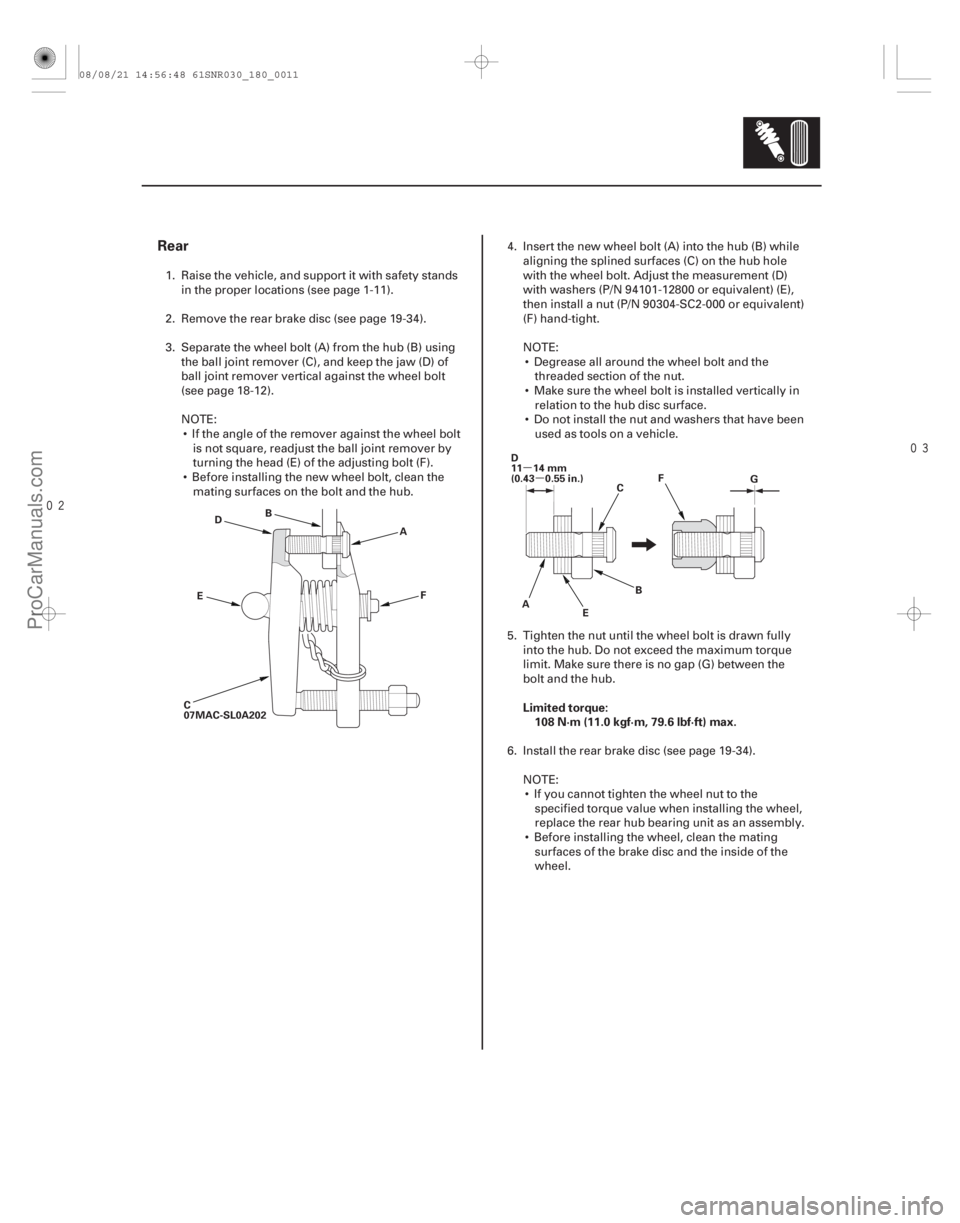

Rear
Limited torque:
108 N·m (11.0 kgf·m, 79.6 lbf·ft) max.
18-11
A
B
D
F
E
C
07MAC-SL0A202 A
B
C
E G
F
D
11 14 mm
(0.43 0.55 in.)
1. Raise the vehicle, and support it with safety stands
in the proper locations (see page 1-11).
2. Remove the rear brake disc (see page 19-34).
3. Separate the wheel bolt (A) from the hub (B) using the ball joint remover (C), and keep the jaw (D) of
ball joint remover vertical against the wheel bolt
(see page 18-12).
NOTE: If the angle of the remover against the wheel bolt is not square, readjust the ball joint remover by
turning the head (E) of the adjusting bolt (F).
Before installing the new wheel bolt, clean the mating surfaces on the bolt and the hub. 4. Insert the new wheel bolt (A) into the hub (B) while
aligning the splined surfaces (C) on the hub hole
with the wheel bolt. Adjust the measurement (D)
with washers (P/N 94101-12800 or equivalent) (E),
then install a nut (P/N 90304-SC2-000 or equivalent)
(F) hand-tight.
NOTE: Degrease all around the wheel bolt and the threaded section of the nut.
Make sure the wheel bolt is installed vertically in relation to the hub disc surface.
Do not install the nut and washers that have been used as tools on a vehicle.
5. Tighten the nut until the wheel bolt is drawn fully into the hub. Do not exceed the maximum torque
limit. Make sure there is no gap (G) between the
bolt and the hub.
6. Install the rear brake disc (see page 19-34). NOTE: If you cannot tighten the wheel nut to the specified torque value when installing the wheel,
replace the rear hub bearing unit as an assembly.
Before installing the wheel, clean the mating surfaces of the brake disc and the inside of the
wheel.
08/08/21 14:56:48 61SNR030_180_0011
ProCarManuals.com
DYNOMITE -2009-
Page 1420 of 2893

Î
Î
(#'
)
Special Tools Required
18-12
Front and Rear Suspension

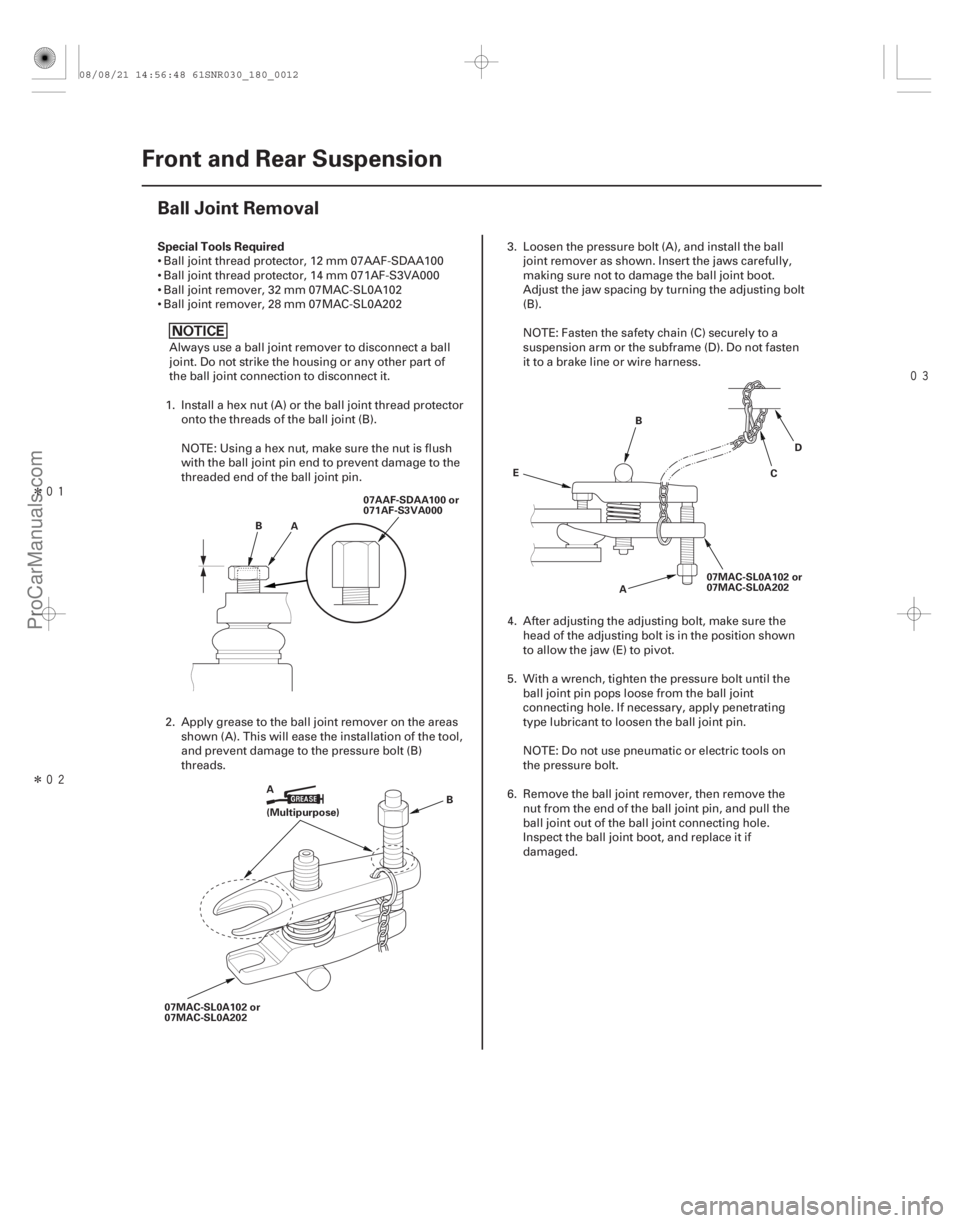

Ball Joint Removal
B
A 07AAF-SDAA100 or
071AF-S3VA000
A B
07MAC-SL0A102 or
07MAC-SL0A202 (Multipurpose) C
D
B
07MAC-SL0A102 or
07MAC-SL0A202
A
E
Ball joint thread protector, 12 mm 07AAF-SDAA100
Ball joint thread protector, 14 mm 071AF-S3VA000
Ball joint remover, 32 mm 07MAC-SL0A102
Ball joint remover, 28 mm 07MAC-SL0A202
Always use a ball joint remover to disconnect a ball
joint. Do not strike the housing or any other part of
the ball joint connection to disconnect it.
1. Install a hex nut (A) or the ball joint thread protector onto the threads of the ball joint (B).
NOTE: Using a hex nut, make sure the nut is flush
with the ball joint pin end to prevent damage to the
threaded end of the ball joint pin.
2. Apply grease to the ball joint remover on the areas shown (A). This will ease the installation of the tool,
and prevent damage to the pressure bolt (B)
threads. 3. Loosen the pressure bolt (A), and install the ball
joint remover as shown. Insert the jaws carefully,
making sure not to damage the ball joint boot.
Adjust the jaw spacing by turning the adjusting bolt
(B).
NOTE: Fasten the safety chain (C) securely to a
suspension arm or the subframe (D). Do not fasten
it to a brake line or wire harness.
4. After adjusting the adjusting bolt, make sure the head of the adjusting bolt is in the position shown
to allow the jaw (E) to pivot.
5. With a wrench, tighten the pressure bolt until the ball joint pin pops loose from the ball joint
connecting hole. If necessary, apply penetrating
type lubricant to loosen the ball joint pin.
NOTE: Do not use pneumatic or electric tools on
the pressure bolt.
6. Remove the ball joint remover, then remove the nut from the end of the ball joint pin, and pull the
ball joint out of the ball joint connecting hole.
Inspect the ball joint boot, and replace it if
damaged.
08/08/21 14:56:48 61SNR030_180_0012
ProCarManuals.com
DYNOMITE -2009-
Page 1421 of 2893

Î
Î
(#'
)
Special Tools Required
18-13

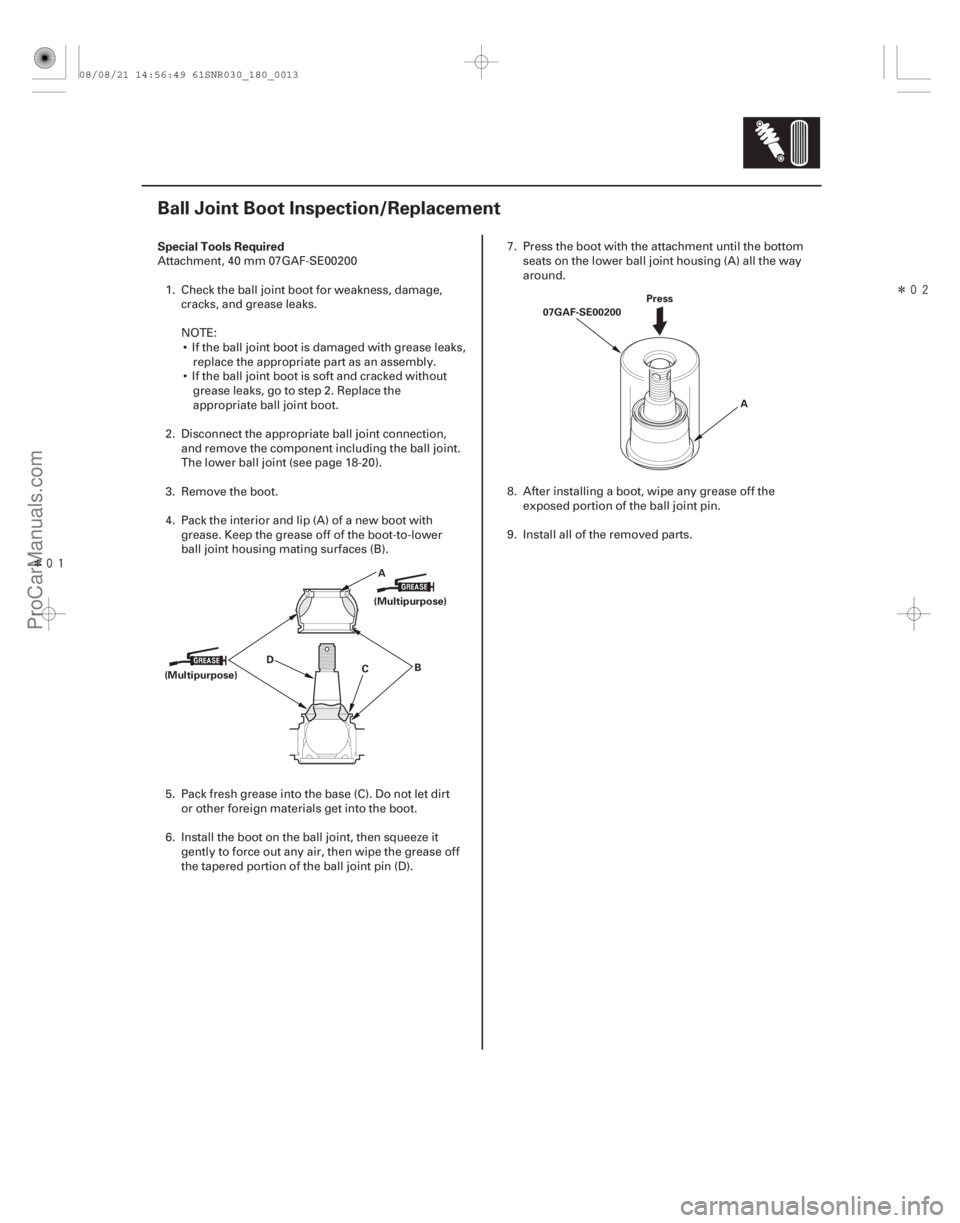

Ball Joint Boot Inspection/Replacement
A
B
C
D (Multipurpose)
(Multipurpose) A
07GAF-SE00200
Press
Attachment, 40 mm 07GAF-SE00200
1. Check the ball joint boot for weakness, damage, cracks, and grease leaks.
NOTE: If the ball joint boot is damaged with grease leaks, replace the appropriate part as an assembly.
If the ball joint boot is soft and cracked without grease leaks, go to step 2. Replace the
appropriate ball joint boot.
2. Disconnect the appropriate ball joint connection, and remove the component including the ball joint.
The lower ball joint (see page 18-20).
3. Remove the boot.
4. Pack the interior and lip (A) of a new boot with grease. Keep the grease off of the boot-to-lower
ball joint housing mating surfaces (B).
5. Pack fresh grease into the base (C). Do not let dirt or other foreign materials get into the boot.
6. Install the boot on the ball joint, then squeeze it gently to force out any air, then wipe the grease off
the tapered portion of the ball joint pin (D). 7. Press the boot with the attachment until the bottom
seats on the lower ball joint housing (A) all the way
around.
8. After installing a boot, wipe any grease off the
exposed portion of the ball joint pin.
9. Install all of the removed parts.
08/08/21 14:56:49 61SNR030_180_0013
ProCarManuals.com
DYNOMITE -2009-
Page 1422 of 2893
Î
(#'
)

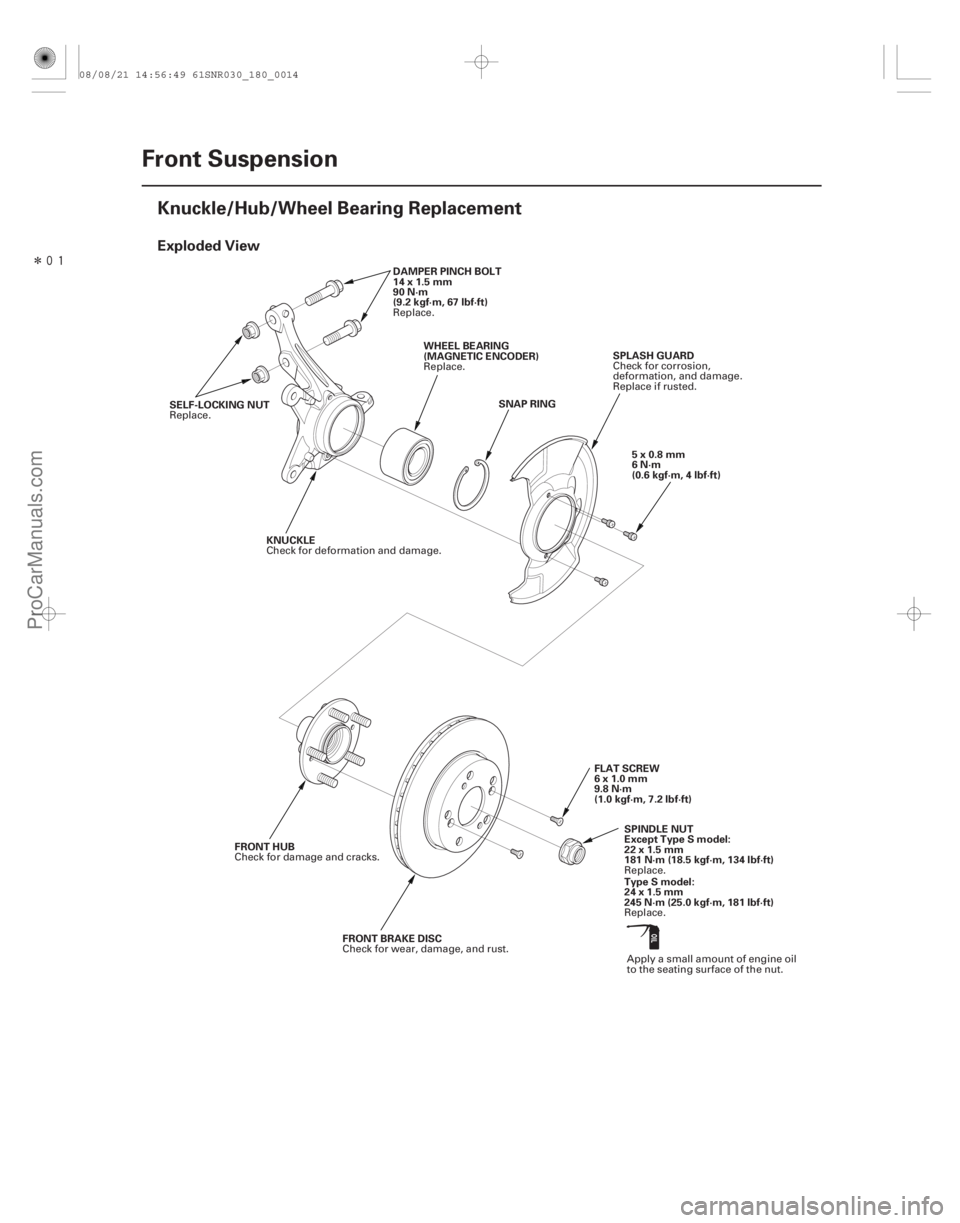

Exploded View
18-14Front Suspension
Knuckle/Hub/Wheel Bearing Replacement
SNAP RING
SELF-LOCKING NUT DAMPER PINCH BOLT
14x1.5mm
90 N·m
(9.2 kgf·m, 67 lbf·ft)
WHEEL BEARING
(MAGNETIC ENCODER) SPLASH GUARD
KNUCKLE
FLAT SCREW
6x1.0mm
9.8 N·m
(1.0 kgf·m, 7.2 lbf·ft)
FRONT HUB
FRONT BRAKE DISC SPINDLE NUT
Except Type S model:
22 x 1.5 mm
181 N·m (18.5 kgf·m, 134 lbf·ft)5x0.8mm
6N·m
(0.6 kgf·m, 4 lbf·ft)
Type S model:
24 x 1.5 mm
245 N·m (25.0 kgf·m, 181 lbf·ft)
Replace.
Replace.
Replace. Check for corrosion,
deformation, and damage.
Replace if rusted.
Check for deformation and damage.
Apply a small amount of engine oil
to the seating surface of the nut.
Check for damage and cracks.
Check for wear, damage, and rust. Replace.
Replace.
08/08/21 14:56:49 61SNR030_180_0014
ProCarManuals.com
DYNOMITE -2009-
Page 1423 of 2893

Special Tools Required
Knuckle/Hub Replacement
18-15
A
108 N·m
(11.0 kgf·m,
79.6 lbf·ft)
B
12x1.25mm
108 N·m (11.0 kgf·m, 79.6 lbf·ft) A
8x1.25mm
22 N·m
(2.2 kgf·m,
16 lbf·ft)
C
6x1.0mm
9.8 N·m (1.0 kgf·m, 7.2 lbf·ft)
A B
Ball joint thread protector, 12 mm 07AAF-SDAA100
Ball joint remover, 28 mm 07MAC-SL0A202
Ball joint thread protector, 14 mm 071AF-S3VA000
Ball joint remover, 32 mm 07MAC-SL0A102
Hub dis/assembly tool, 40 mm 07GAF-SE00100
Hub dis/assembly tool, 42 mm 07GAF-SD40100
Driver handle 07749-0010000
Attachment, 62 x 68 mm 07746-0010500
Attachment,70x90mm07GAD-SD40101
Support base 07965-SD90100
1. Raise the front of the vehicle, and support it with safety stands in the proper locations (see page
1-11).
2. Remove the wheel nuts (A) and front wheel. 3. Remove the brake hose mounting bolt (A) from the
damper.
4. Remove the brake caliper bracket mounting bolts (B), then remove the caliper assembly (C) from the
knuckle. To prevent damage to the caliper
assembly or the brake hose, use a short piece of
wire to hang the caliper assembly from the
undercarriage. Do not twist the brake hose
excessively.
5. Remove the wheel speed sensor (A) from the knuckle (B). Do not disconnect the wheel speed
sensor connector.
(cont’d)
08/08/21 14:56:50 61SNR030_180_0015
ProCarManuals.com
DYNOMITE -2009-
Page 1424 of 2893

Î
18-16Front Suspension

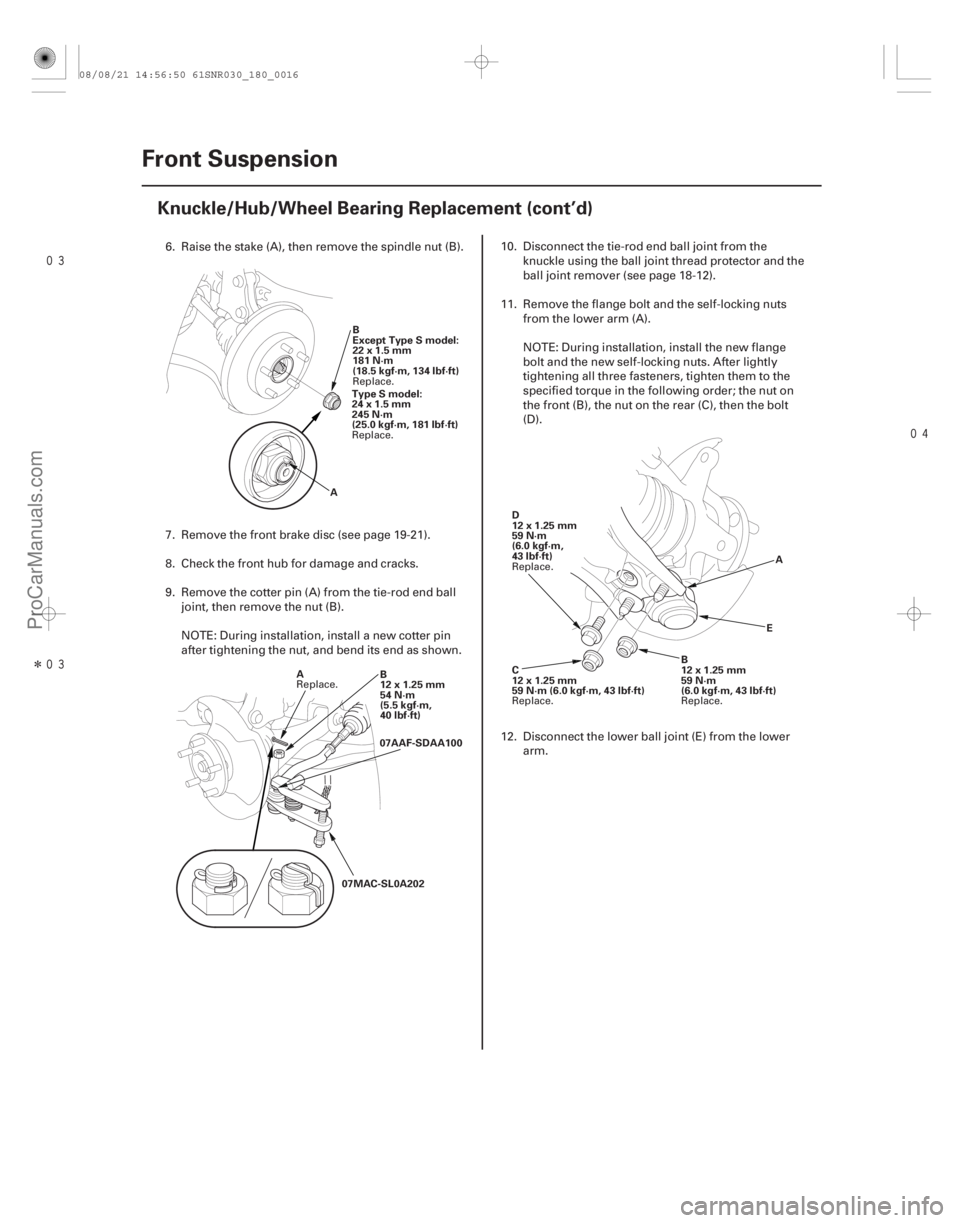

Knuckle/Hub/Wheel Bearing Replacement (cont’d)
A
B
Except Type S model:
22x1.5mm
181 N·m
(18.5 kgf·m, 134 lbf·ft)
Type S model:
24x1.5mm
245 N·m
(25.0 kgf·m, 181 lbf·ft)
B
12x1.25mm
54 N·m
(5.5 kgf·m,
40 lbf·ft)
A
07MAC-SL0A20207AAF-SDAA100 D
12x1.25mm
59 N·m
(6.0 kgf·m,
43 lbf·ft)
B
12x1.25mm
59 N·m
(6.0 kgf·m, 43 lbf·ft)
C
12x1.25mm
59 N·m (6.0 kgf·m, 43 lbf·ft) A
E
6. Raise the stake (A), then remove the spindle nut (B).
7. Remove the front brake disc (see page 19-21).
8. Check the front hub for damage and cracks.
9. Remove the cotter pin (A) from the tie-rod end ball joint, then remove the nut (B).
NOTE: During installation, install a new cotter pin
after tightening the nut, and bend its end as shown. 10. Disconnect the tie-rod end ball joint from the
knuckle using the ball joint thread protector and the
ball joint remover (see page 18-12).
11. Remove the flange bolt and the self-locking nuts from the lower arm (A).
NOTE: During installation, install the new flange
bolt and the new self-locking nuts. After lightly
tightening all three fasteners, tighten them to the
specified torque in the following order; the nut on
the front (B), the nut on the rear (C), then the bolt
(D).
12. Disconnect the lower ball joint (E) from the lower arm.
Replace.
Replace.
Replace. Replace.
Replace.
Replace.
08/08/21 14:56:50 61SNR030_180_0016
ProCarManuals.com
DYNOMITE -2009-
