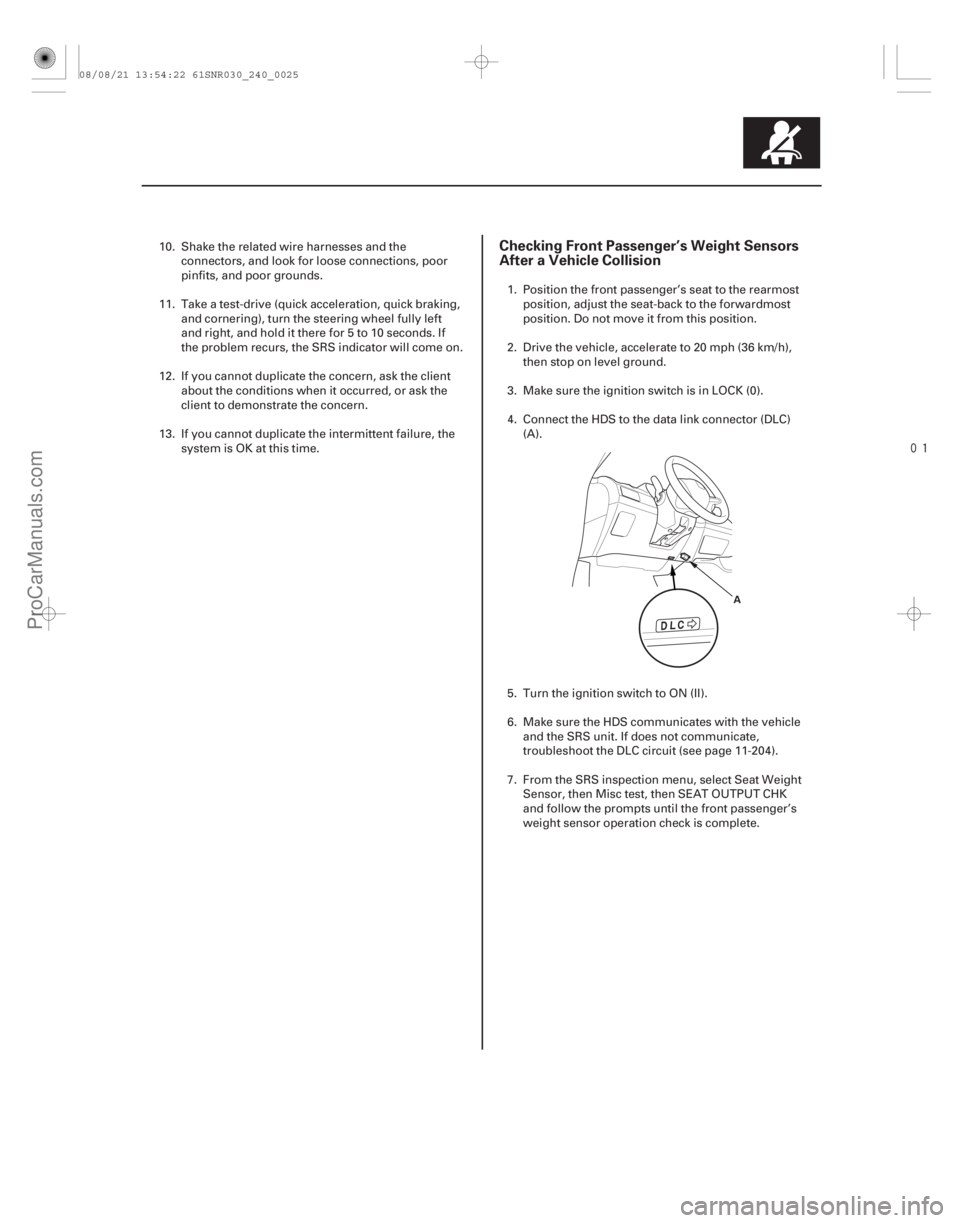

Page 2705 of 2893

ACURA CSX 2006 Service Repair Manual
Checking Front Passenger’s Weight Sensors
After a Vehicle Collision
24-25
A
10. Shake the related wire harnesses and theconnectors, and look for loose connections, poor
pinfits, and poor ground

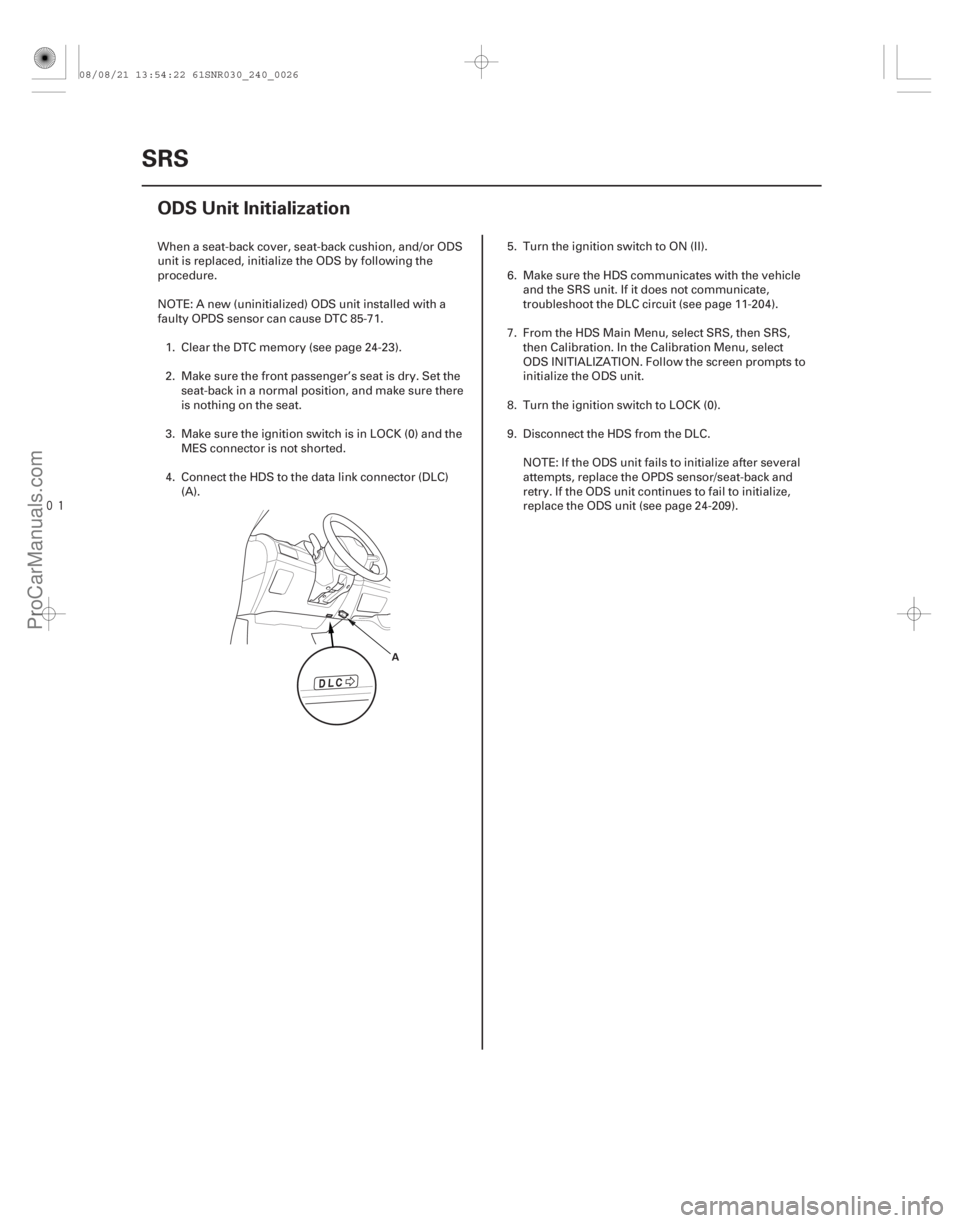

Page 2706 of 2893

ACURA CSX 2006 Service Repair Manual
(#
)
24-26SRS
ODS Unit Initialization
A
When a seat-back cover, seat-back cushion, and/or ODS
unit is replaced, initialize the ODS by following the
pr

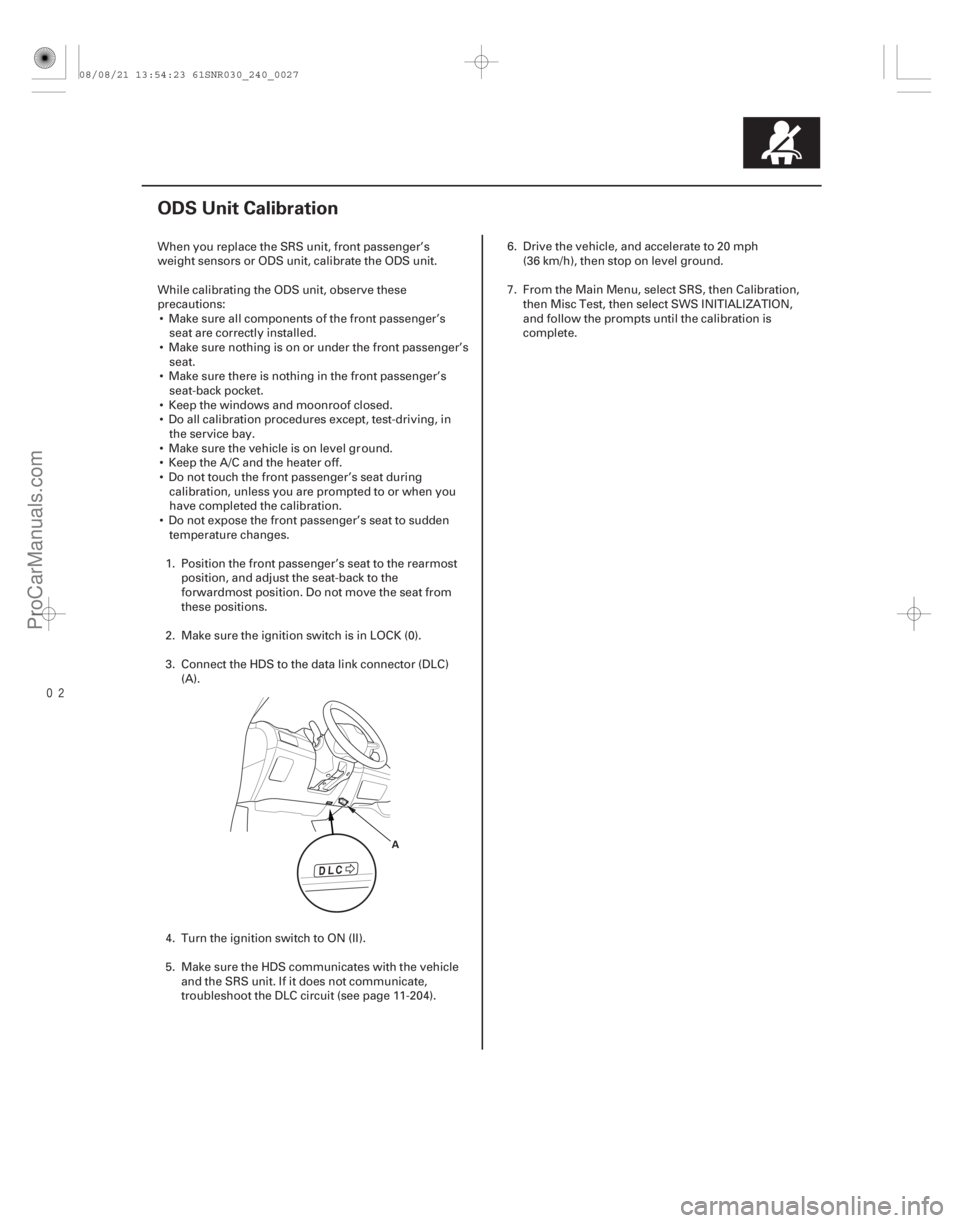

Page 2707 of 2893

ACURA CSX 2006 Service Repair Manual (#
)
24-27
ODS Unit Calibration
A
When you replace the SRS unit, front passenger’s
weight sensors or ODS unit, calibrate the ODS unit.
While calibra

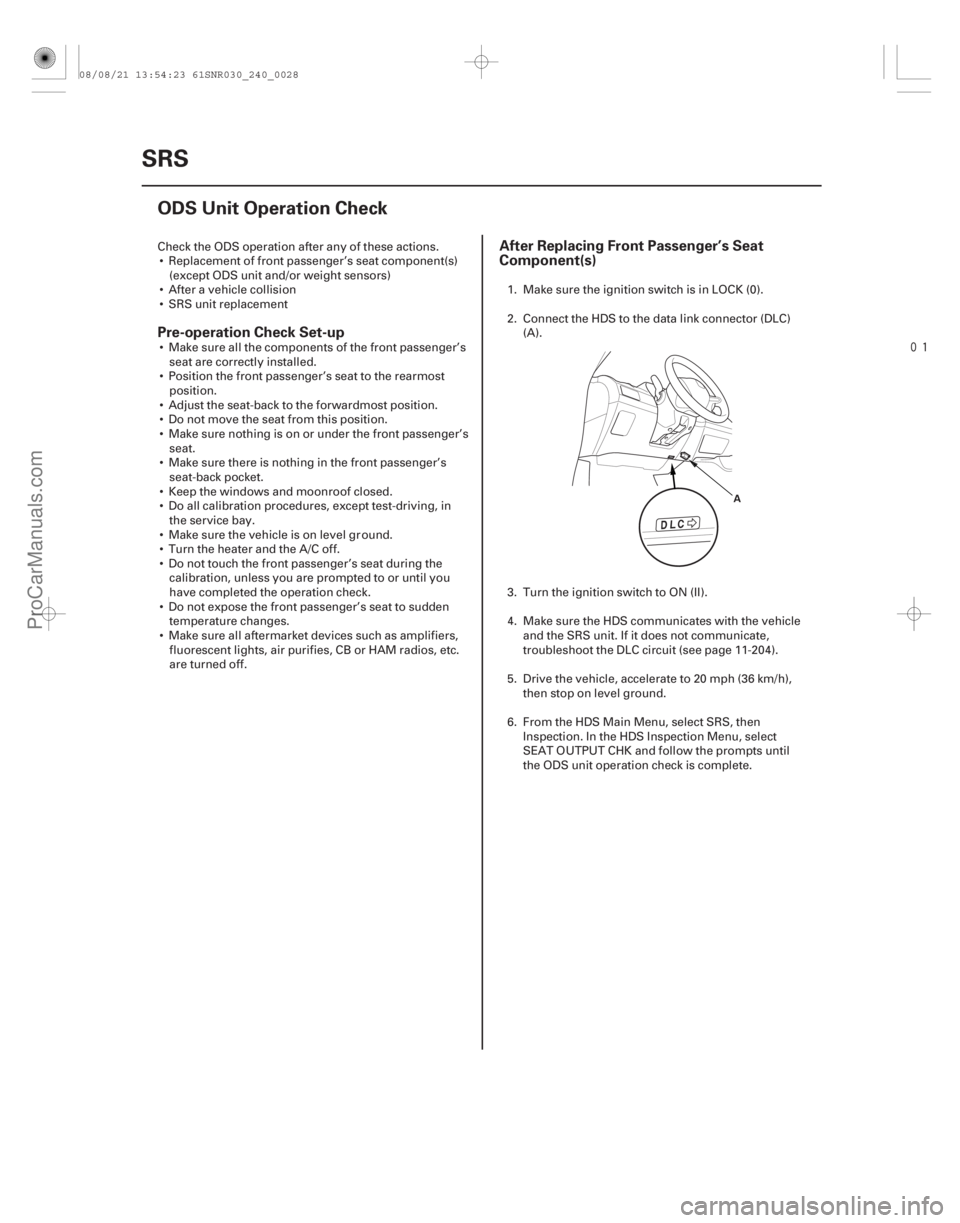

Page 2708 of 2893

ACURA CSX 2006 Service Repair Manual
(#
")
Pre-operation Check Set-up After Replacing Front Passenger’s Seat
Component(s)
24-28SRS
ODS Unit Operation Check
A
Check the ODS operation aft

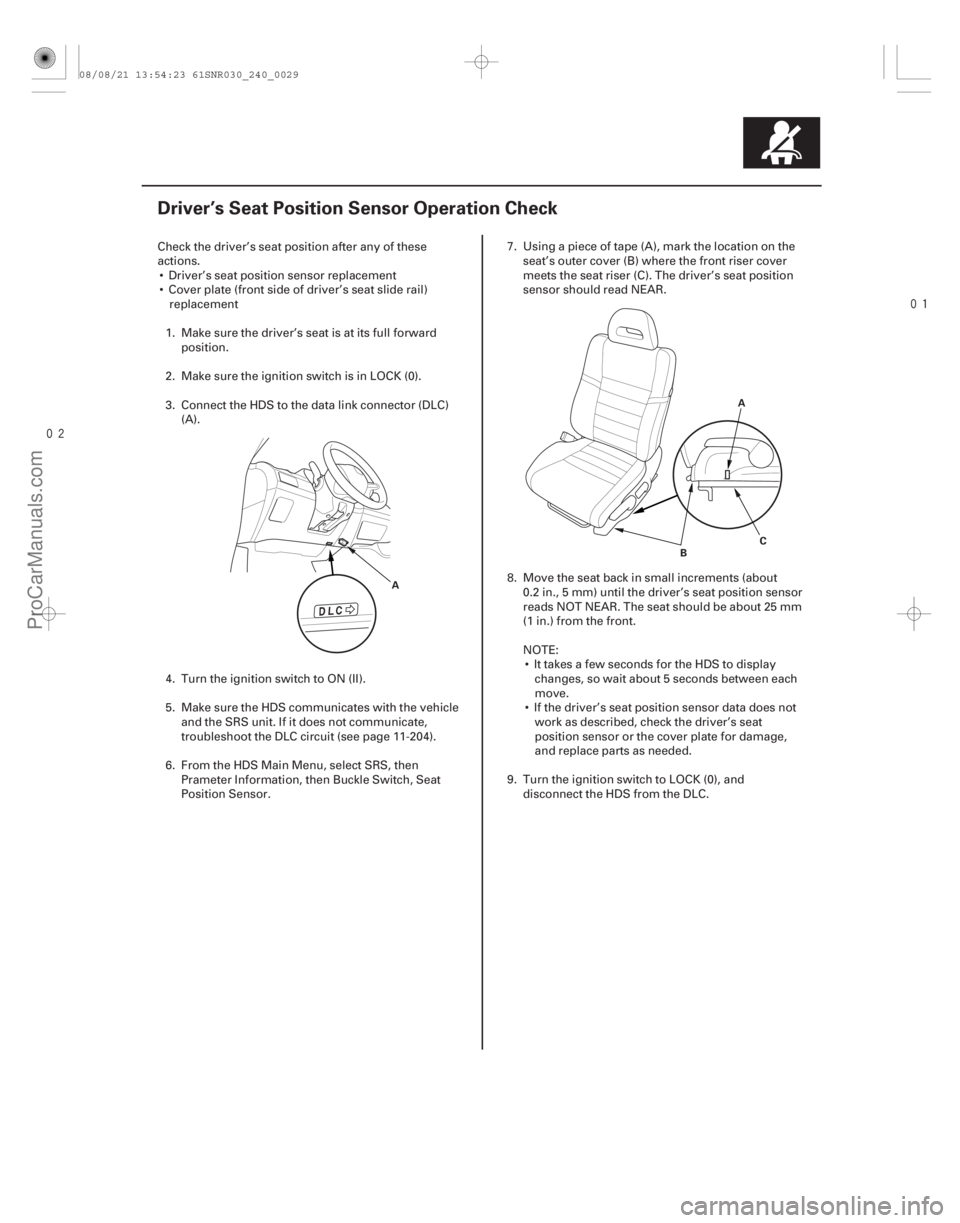

Page 2709 of 2893

ACURA CSX 2006 Service Repair Manual
(#")
24-29
Driver’s Seat Position Sensor Operation Check
A A
B C
Check the driver’s seat position after any of these
actions.
Driver’s se

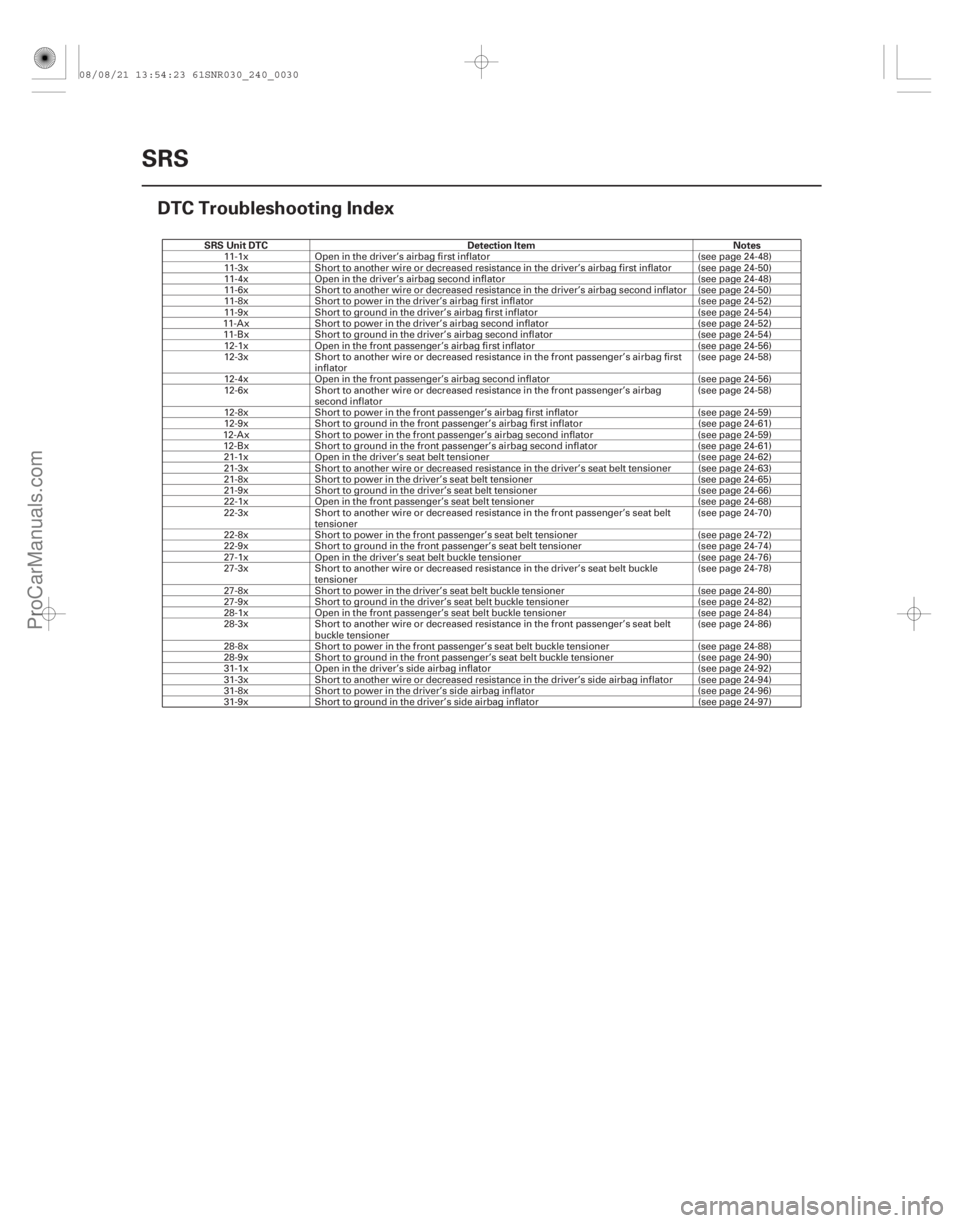

Page 2710 of 2893

ACURA CSX 2006 Service Repair Manual (#)
SRS Unit DTCDetection Item Notes
24-30SRS
DTC Troubleshooting Index
11-1x
Open in the driver’s airbag first inflator (see page 24-48)
11-3x Short t

(#')
SRS Unit DTCDetection Item Notes
24-30SRS
DTC Troubleshooting Index
11-1x
Open in the driver’s airbag first inflator (see page 24-48)
11-3x Short to another wire or decreased resistance in the driver’s airbag first inflator (see page 24-50)
11-4x Open in the driver’s airbag second inflator (see page 24-48)
11-6x Short to another wire or decreased resistance in the driver’s airbag second inflator (see page 24-50)
11-8x Short to power in the driver’s airbag first inflator (see page 24-52)
11-9x Short to ground in the driver’s airbag first inflator (see page 24-54)
11-Ax Short to power in the driver’s airbag second inflator (see page 24-52)
11-Bx Short to ground in the driver’s airbag second inflator (see page 24-54)
12-1x Open in the front passenger’s airbag first inflator (see page 24-56)
12-3x Short to another wire or decreased resistance in the front passenger’s airbag first
inflator (see page 24-58)
12-4x Open in the front passenger’s airbag second inflator (see page 24-56)
12-6x Short to another wire or decreased resistance in the front passenger’s airbag
second inflator (see page 24-58)
12-8x Short to power in the front passenger’s airbag first inflator (see page 24-59)
12-9x Short to ground in the front passenger’s airbag first inflator (see page 24-61)
12-Ax Short to power in the front passenger’s airbag second inflator (see page 24-59)
12-Bx Short to ground in the front passenger’s airbag second inflator (see page 24-61)
21-1x Open in the driver’s seat belt tensioner (see page 24-62)
21-3x Short to another wire or decreased resistance in the driver’s seat belt tensioner (see page 24-63)
21-8x Short to power in the driver’s seat belt tensioner (see page 24-65)
21-9x Short to ground in the driver’s seat belt tensioner (see page 24-66)
22-1x Open in the front passenger’s seat belt tensioner (see page 24-68)
22-3x Short to another wire or decreased resistance in the front passenger’s seat belt
tensioner (see page 24-70)
22-8x Short to power in the front passenger’s seat belt tensioner (see page 24-72)
22-9x Short to ground in the front passenger’s seat belt tensioner (see page 24-74)
27-1x Open in the driver’s seat belt buckle tensioner (see page 24-76)
27-3x Short to another wire or decreased resistance in the driver’s seat belt buckle
tensioner (see page 24-78)
27-8x Short to power in the driver’s seat belt buckle tensioner (see page 24-80)
27-9x Short to ground in the driver’s seat belt buckle tensioner (see page 24-82)
28-1x Open in the front passenger’s seat belt buckle tensioner (see page 24-84)
28-3x Short to another wire or decreased resistance in the front passenger’s seat belt
buckle tensioner (see page 24-86)
28-8x Short to power in the front passenger’s seat belt buckle tensioner (see page 24-88)
28-9x Short to ground in the front passenger’s seat belt buckle tensioner (see page 24-90)
31-1x Open in the driver’s side airbag inflator (see page 24-92)
31-3x Short to another wire or decreased resistance in the driver’s side airbag inflator (see page 24-94)
31-8x Short to power in the driver’s side airbag inflator (see page 24-96)
31-9x Short to ground in the driver’s side airbag inflator (see page 24-97)
08/08/21 13:54:23 61SNR030_240_0030
ProCarManuals.com
DYNOMITE -2009-

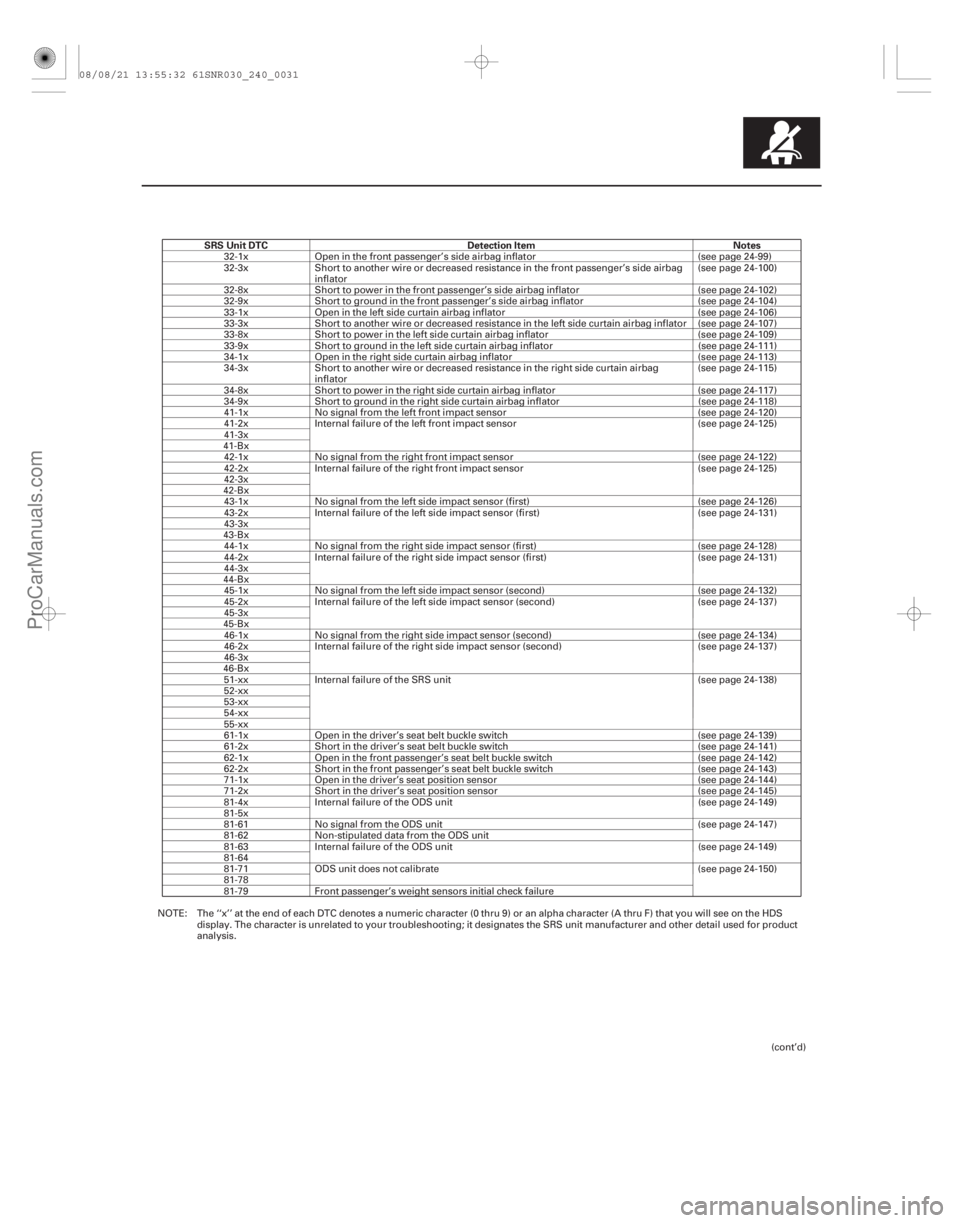

Page 2711 of 2893

ACURA CSX 2006 Service Repair Manual SRS Unit DTCDetection Item Notes
24-31
32-1xOpen in the front passenger’s side airbag inflator (see page 24-99)
32-3x Short to another wire or decreased resistance in the front passenger’s side ai

SRS Unit DTCDetection Item Notes
24-31
32-1xOpen in the front passenger’s side airbag inflator (see page 24-99)
32-3x Short to another wire or decreased resistance in the front passenger’s side airbag
inflator (see page 24-100)
32-8x Short to power in the front passenger’s side airbag inflator (see page 24-102)
32-9x Short to ground in the front passenger’s side airbag inflator (see page 24-104)
33-1x Open in the left side curtain airbag inflator (see page 24-106)
33-3x Short to another wire or decreased resistance in the left side curtain airbag inflator (see page 24-107)
33-8x Short to power in the left side curtain airbag inflator (see page 24-109)
33-9x Short to ground in the left side curtain airbag inflator (see page 24-111)
34-1x Open in the right side curtain airbag inflator (see page 24-113)
34-3x Short to another wire or decreased resistance in the right side curtain airbag
inflator (see page 24-115)
34-8x Short to power in the right side curtain airbag inflator (see page 24-117)
34-9x Short to ground in the right side curtain airbag inflator (see page 24-118)
41-1x No signal from the left front impact sensor (see page 24-120)
41-2x Internal failure of the left front impact sensor (see page 24-125)
41-3x
41-Bx 42-1x No signal from the right front impact sensor (see page 24-122)
42-2x Internal failure of the right front impact sensor (see page 24-125)
42-3x
42-Bx 43-1x No signal from the left side impact sensor (first) (see page 24-126)
43-2x Internal failure of the left side impact sensor (first) (see page 24-131)
43-3x
43-Bx 44-1x No signal from the right side impact sensor (first) (see page 24-128)
44-2x Internal failure of the right side impact sensor (first) (see page 24-131)
44-3x
44-Bx 45-1x No signal from the left side impact sensor (second) (see page 24-132)
45-2x Internal failure of the left side impact sensor (second) (see page 24-137)
45-3x
45-Bx 46-1x No signal from the right side impact sensor (second) (see page 24-134)
46-2x Internal failure of the right side impact sensor (second) (see page 24-137)
46-3x
46-Bx 51-xx Internal failure of the SRS unit (see page 24-138)
52-xx
53-xx
54-xx
55-xx
61-1x Open in the driver’s seat belt buckle switch (see page 24-139)
61-2x Short in the driver’s seat belt buckle switch (see page 24-141)
62-1x Open in the front passenger’s seat belt buckle switch (see page 24-142)
62-2x Short in the front passenger’s seat belt buckle switch (see page 24-143)
71-1x Open in the driver’s seat position sensor (see page 24-144)
71-2x Short in the driver’s seat position sensor (see page 24-145)
81-4x Internal failure of the ODS unit (see page 24-149)
81-5x
81-61 No signal from the ODS unit (see page 24-147)
81-62 Non-stipulated data from the ODS unit
81-63 Internal failure of the ODS unit (see page 24-149)
81-64
81-71 ODS unit does not calibrate (see page 24-150)
81-78
81-79 Front passenger’s weight sensors initial check failure
NOTE: The ‘‘x’’ at the end of each DTC denotes a numeric character (0 thru 9) or an alpha character (A thru F) that you will see on the HDS display. The character is unrelated to your troubleshooting; it designates the SRS unit manufacturer and other detail used for product
analysis.
(cont’d)
08/08/21 13:55:32 61SNR030_240_0031
ProCarManuals.com
DYNOMITE -2009-

Page 2712 of 2893

ACURA CSX 2006 Service Repair Manual SRS Unit DTCDetection Item Notes
24-32SRS
DTC Troubleshooting Index (cont’d)
82-14
No signal from the front passenger’s weight sensor (front inner side) (see page 24-151)
82-15 Internal failure of

SRS Unit DTCDetection Item Notes
24-32SRS
DTC Troubleshooting Index (cont’d)
82-14
No signal from the front passenger’s weight sensor (front inner side) (see page 24-151)
82-15 Internal failure of the front passenger’s weight sensor (front inner side) (see page 24-155)
82-16 No signal from the front passenger’s weight sensor (rear inner side) (see page 24-156)
82-17 Internal failure of the front passenger’s weight sensor (rear inner side) (see page 24-155)
83-24 No signal from the front passenger’s weight sensor (front outer side) (see page 24-159)
82-25 Internal failure of the front passenger’s weight sensor (front outer side) (see page 24-155)
83-26 No signal from the front passenger’s weight sensor (rear outer side) (see page 24-163)
82-27 Internal failure of the front passenger’s weight sensor (rear outer side) (see page 24-155)
85-4x Internal failure of the ODS unit (see page 24-166)
85-5x
85-61 No signal from the ODS unit (see page 24-147)
85-62 Non-stipulated data from the ODS unit
85-63 Internal failure of the ODS unit (see page 24-166)
85-64
85-71 ODS unit not initialize (see page 24-167)
85-78
85-79 OPDS sensor initial check failure
86-1x Faulty OPDS seat-back sensor (see page 24-168)
86-2x Faulty OPDS seat support sensor
92-1x Open in the passenger’s airbag cutoff indicator (see page 24-169)
92-2x Open or short to ground in the passenger’s airbag cutoff indicator (see page 24-170)
A1-1x Faulty power supply (VA line) (see page 24-171)
A2-1x Faulty power supply (VB line) (see page 24-173)
B2-1x No signal from the rear safing sensor (see page 24-174)
B2-17 Internal failure of the rear safing sensor (see page 24-177)
B2-8x
B2-9x
B2-Ax B2-Bx Ex-11 Control operation recorded (see page 24-138)
Fx-11 Airbags and/or tensioners deployment recorded (see page 24-139)
NOTE: The ‘‘x’’ at the end of each DTC denotes a numeric character (0 thru 9) or an alpha character (A thru F) that you will see on the HDS display. The character is unrelated to your troubleshooting; it designates the SRS unit manufacturer and other detail used for product
analysis.
08/08/21 13:55:32 61SNR030_240_0032
ProCarManuals.com
DYNOMITE -2009-
