Page 2025 of 2893

ACURA CSX 2006 Service Repair Manual Climate Control UnitDTC Description DTC typePage
HandsFreeLink Control Unit DTC Description DTC typePage
Immobilizer-Keyless Control Unit DTC Description DTC typePage
22-79
B1200 Communication bus lin

Climate Control UnitDTC Description DTC typePage
HandsFreeLink Control Unit DTC Description DTC typePage
Immobilizer-Keyless Control Unit DTC Description DTC typePage
22-79
B1200 Communication bus line error (BUS-OFF) Loss of
communication (see page 22-107)
B1202 Climate control unit internal error ( EEPROM error)Internal error (see page 21-28)
B1205 Climate control unit lost communication with the gauge control module (VSP/NE message) Loss of
communication(see page 21-28)
B1206 Climate control unit lost communication with the gauge control module (ECT message) Loss of
communication(see page 21-28)
B1207 Climate control unit lost communication with the gauge control module (ILLUMI message) Loss of
communication(see page 21-28)
B1220 Recirculation control motor circuit short Signal error (see page 21-29)
B1225 In-car temperature sensor circuit open Signal error (see page 21-31)
B1226 In-car temperature sensor circuit short Signal error (see page 21-32)
B1227 Outside air temperature sensor circuit open Signal error (see page 21-33)
B1228 Outside air temperature sensor circuit short Signal error (see page 21-34)
B1229 Sunlight sensor circuit open Signal error (see page 21-35)
B1230 Sunlight sensor circuit short Signal error (see page 21-36)
B1231 Evaporator temperature sensor circuit open Signal error (see page 21-37)
B1232 Evaporator temperature sensor circuit short Signal error (see page 21-39)
B1233 Air mix control motor circuit open Signal error (see page 21-40)
B1234 Air mix control motor circuit short Signal error (see page 21-41)
B1235 Air mix control motor stuck Signal error (see page 21-42)
B1239 Mode control motor circuit open or short Signal error (see page 21-44)
B1240 Mode control motor, linkage, door malfunctionSignal error (see page 21-46)
B1241 Blower motor circuit malfunction Signal error (see page 21-47)
B2983 Recirculation control motor, linkage, door malfunctionSignal error (see page 21-51)
B2986 Recirculation control motor circuit open Signal error (see page 21-52)
B1750 Communication bus line error (BUS-OFF) Loss of
communication (see page 22-107)
B1775 Microphone input/output short to power/open Signal error (see page 23-376)
B1776 Microphone input/output short to ground/open Signal error (see page 23-377)
B1779 HFL switch (HFL talk/HFL back buttons) circuit open/short Signal error (see page 23-379)
B1780 HFL switch (HFL talk/HFL back buttons) circuit short Signal error (see page 23-381)
B1792 HandsFreeLink control unit internal error Internal error (see page 23-382)
B1900 Communication bus line error (BUS-OFF) Loss of
communication (see page 22-108)
B1905 Immobilizer-keyless control unit lost communication with the MICU (DRLOCKSW message) Loss of
communication(see page 22-317)
B1906 Immobilizer-keyless control unit lost communication with the gauge control module (A/T message) Loss of
communication(see page 22-318)
B1925 Ignition key switch signal error Signal error (see page 22-319)
08/08/21 14:24:08 61SNR030_220_0081
ProCarManuals.com
DYNOMITE -2009-

Page 2026 of 2893

ACURA CSX 2006 Service Repair Manual Î
(#)

µµ
µ
Body Controller Area Network (B-CAN) and Fast Controller Area Network (F-CAN)
22-80 Multiplex Integrated Control System
System Desc

Page 2027 of 2893

ACURA CSX 2006 Service Repair Manual

µµ

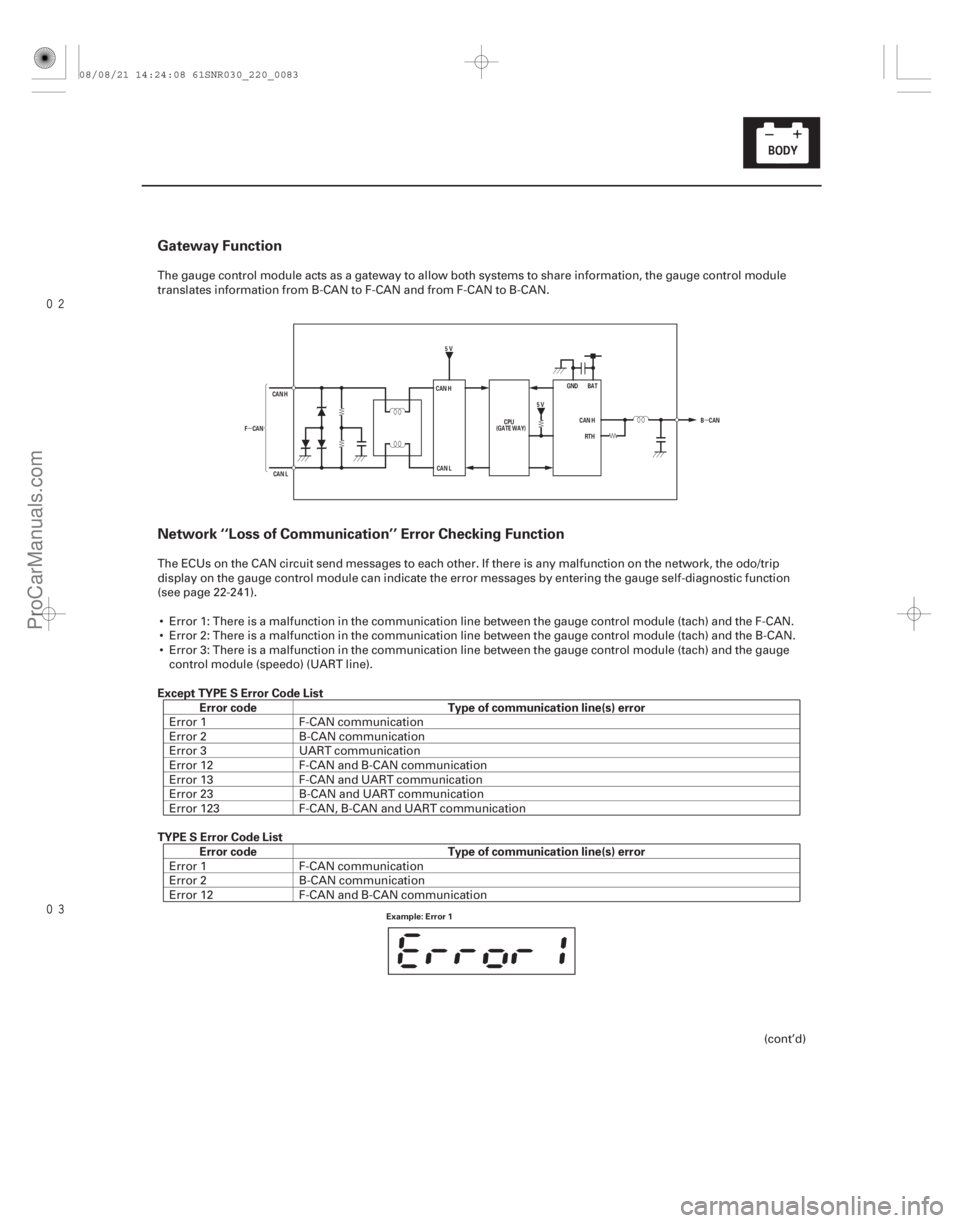

Gateway Function
Network ‘‘Loss of Communication’’ Error Checking Function
Except TYPE S Error Code List
Error code Type of communication line(s) error
TYPE S Error Code List

Page 2028 of 2893

ACURA CSX 2006 Service Repair Manual MICU Control Functions Index
SystemFunction
22-82Multiplex Integrated Control System
System Description (cont’d)
The MICU (built into the under-dash fuse/relay box) is one of the B-CAN components. T

Page 2029 of 2893

ACURA CSX 2006 Service Repair Manual Î

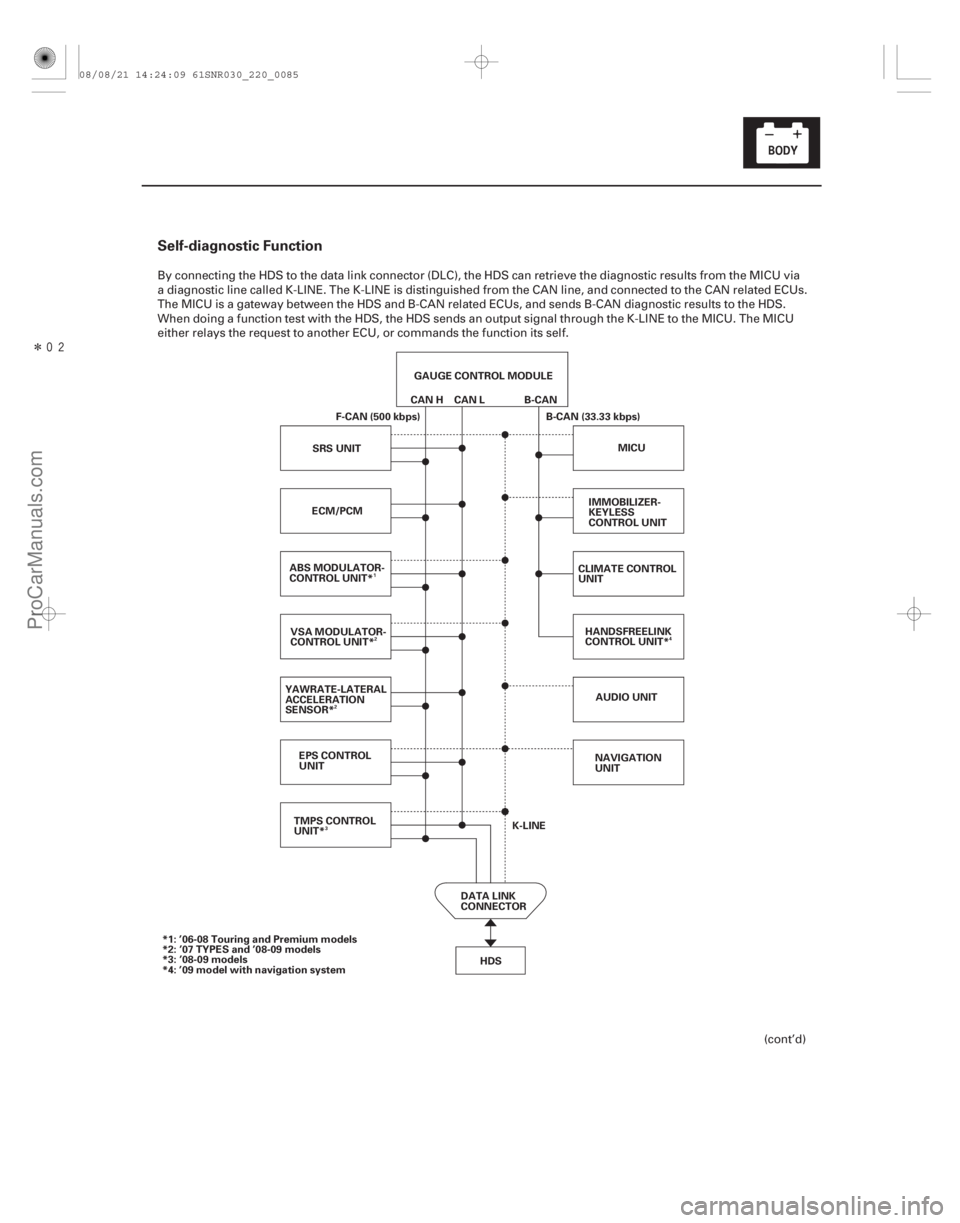

Self-diagnostic Function
22-83
GAUGE CONTROL MODULE
CAN H CAN L B-CAN
B-CAN (33.33 kbps)
F-CAN (500 kbps)
SRS UNIT MICU
ECM/PCM
ABS MODULATOR-
CONTROL UNIT* IMMOBILIZER-
KEYLESS
CONTROL UNIT
K

Page 2030 of 2893

ACURA CSX 2006 Service Repair Manual Wake-up and Sleep Function
Fail-safe Function
Hardware Fail-safe Control
Software Fail-safe Control
Fail-safe function
22-84Multiplex Integrated Control System
System Description (cont’d)
The multip

Wake-up and Sleep Function
Fail-safe Function
Hardware Fail-safe Control
Software Fail-safe Control
Fail-safe function
22-84Multiplex Integrated Control System
System Description (cont’d)
The multiplex integrated control system has wake-up and sleep functions to decrease parasitic draw on the battery
when the ignition switch in LOCK (0).
In the sleep mode, the MICU stops functioning (communication and CPU control) when it is not necessary for the system to operate.
As soon as any operation is requested (for example, a door is unlocked), the related control unit in the sleep mode
immediately wakes up and begins to function.
When the ignition switch is turned to LOCK (0), and the driver’s door is opened, then closed, there is a delay of about 40 seconds before the control unit goes from the wake-up mode to the sleep mode.
The sleep mode will not function if any door is opened or if a key is in the ignition.
The draw is reduced from 200 mA to less than 35 mA when in the sleep mode.
NOTE: Sleep and Wake-up Mode Test (see page 22-99).
To prevent improper operation, the MICU has a fail-safe function. In the fail-safe mode, the output signal is fixed when
any part of the system malfunctions (for example, a faulty control unit or communication line).
Each control unit has a hardware fail-safe function that fixes the output signal when there is a CPU malfunction, and a
software fail-safe function that ignores the signal from a malfunctioning control unit , which allows the system to
operate normally.
When a CPU problem or a abnormal power supply voltage is detected, the MICU moves to the hardware fail-safe
mode, and each system output load is set to the pre-programmed fail-safe value.
When any of the data from the B-CAN circuit cannot be received within a specified time, or an unusual combination of
the data is recognized, the MICU moves to the software fail-safe mode. The data that cannot be received is forced to a
pre-programmed value.
08/08/21 14:24:09 61SNR030_220_0086
ProCarManuals.com
DYNOMITE -2009-

Page 2031 of 2893

ACURA CSX 2006 Service Repair Manual Power Supply Voltage Monitoring Function
Entry Lights Control System
Lighting System (Headlights, Parking Lights, Fog Lights, Side Marker Lights, License Plate
Lights, and Taillights)
Daytime Running

Power Supply Voltage Monitoring Function
Entry Lights Control System
Lighting System (Headlights, Parking Lights, Fog Lights, Side Marker Lights, License Plate
Lights, and Taillights)
Daytime Running Lights
Turn Signal/Hazard Warning Lights
Door Lock Response Operation
Power Window Key-off Operation
InputOutput
Input Output
Input Output
Input Output
Input Output
Input Output
Input Output
22-85
The MICU monitors the power supply voltage (back-up voltage). If the voltage goes below 10 V, the MICU sends a MICU message and will not
store DTCs.
MICU Battery voltage MICU : MICU internal circuit
The MICU controls the ceiling light ON/OFF and dimming based upon input signals from each switch. MICU IG1 power supply Ignition key switch
Driver’s door switch
Front passenger’s door switch
Left rear door switch
Right rear door switch
Driver’s door lock knob switch (LOCK) Interior light
B-CAN Keyless LOCK signal
The MICU contains the relay circuits for the headlight high/low beams and taillights, and controls the lighting system ON/OFF based upon input
signals from the combination light switch. MICU Headlight OFF switch Headlight ON switch
Fog light switch
Dimmer switch
Combination light switch (parking lights, side marker lights,
license plate lights, and taillights)
Passing switch Headlights (low beam)
Headlights (high beam)
Parking lights
Fog lights
Side marker lights
License plate lights
Taillights
The MICU controls the exterior lights as a daytime running lights based upon input signals from each switch. MICU Headlight OFF switch Headlight ON switch
Dimmer switch
Combination light switch (parking lights, side marker lights,
license plate lights, and taillights)
Passing switch Headlights (low beam)
Headlights (high beam)
Parking lights
Slide marker lights
License plate lights
Taillights
B-CAN Transmission range switch (P position)
The MICU controls the turn signal/hazard warning lights based upon input signals from the turn signal and hazard warning switches. MICU IG1 power supply Turn signal switch (left/right)
Hazard warning switch Turn signal lights (left/right)
The MICU controls the door lock actuators based upon B-CAN signals. B-CAN Door lock signals Door lock actuator (LOCK/UNLOCK) Driver’s door lock actuator (UNLOCK)
Trunk lid release actuator
The MICU controls the power windows key-off operation based upon input signals from each switch. MICU IG1 power supply Ignition key switch
Driver’s door switch
Front passenger’s door switch Power window key-off timer
(cont’d)
08/08/21 14:24:09 61SNR030_220_0087
ProCarManuals.com
DYNOMITE -2009-

Page 2032 of 2893

ACURA CSX 2006 Service Repair Manual Power Door Locks (Vehicle Speed Sense)
Power Door Locks (Normally LOCK/UNLOCK Operation)
Keyless Entry System
Keyless PANIC
InputOutput
Input Output
Input Output
Input Output
22-86Multiplex Integrated

Power Door Locks (Vehicle Speed Sense)
Power Door Locks (Normally LOCK/UNLOCK Operation)
Keyless Entry System
Keyless PANIC
InputOutput
Input Output
Input Output
Input Output
22-86Multiplex Integrated Control System
System Description (cont’d)
The MICU controls the door lock actuators based upon B-CAN signals and input signals from each switch.
MICU IG1 power supply Driver’s door switch
Front passenger’s door switch
Left rear door switch
Right rear door switch
Trunk lid latch switch
Driver’s door lock knob switch (UNLOCK)
Front passenger’s door lock knob switch (UNLOCK)
Left rear door lock knob switch (UNLOCK)
Right rear door lock knob switch (UNLOCK)
Transmission range switch (P position) Door lock (LOCK)
B-CAN Vehicle speed pulse Engine RPM
The MICU controls the door lock actuators based upon input signals from each switch. MICU IG1 power supply Ignition key switch
Driver’s door switch
Front passenger’s door switch
Left rear door switch
Right rear door switch
Trunk lid latch switch
Driver’s door lock knob switch (LOCK)
Driver’s door lock switch (LOCK/UNLOCK)
Driver’s door key cylinder switch (UNLOCK)
Front passenger’s door lock switch (LOCK/UNLOCK) Door lock actuators (LOCK/UNLOCK)
The MICU controls the door lock actuators based upon B-CAN signals and input signals from each switch. MICU IG1 power supply Ignition key switch
Driver’s door switch
Front passenger’s door switch
Left rear door switch
Right rear door switch
Trunk lid latch switch
Driver’s door lock knob switch (LOCK/UNLOCK)
Driver’s door lock switch (LOCK/UNLOCK)
Driver’s door key cylinder switch (UNLOCK)
Front passenger’s door lock switch (LOCK/UNLOCK)
Transmission range switch (P position) Door lock actuator (LOCK/UNLOCK)
Driver’s door lock actuator (UNLOCK)
Trunk lid release actuator
B-CAN Keyless LOCK signal
The MICU controls the keyless PANIC based upon B-CAN signals. B-CAN Keyless PANIC signal (action, headlight low, parking light and horn) Headlights (low beam)
Parking lights
Side marker lights
License plate lights
Taillights
Horn
08/08/21 14:24:09 61SNR030_220_0088
