Passenger’s airbag cutoff indicator stays on
or comes on suddenly
YES
NO YES
NO
YES
NO
24-184SRS
Symptom Troubleshooting (c

(#')
µ
µ µ
µ
µ
µ
Passenger’s airbag cutoff indicator stays on
or comes on suddenly
YES
NO YES
NO
YES
NO
24-184SRS
Symptom Troubleshooting (cont’d)
NOTE: Under the following conditions, the passenger’s
airbag cutoff indicator stays on or comes on suddenly.
No one is sitting the front passenger’s seat, but there is an object on the seat more than 5 kg (11 lbs).
The seat belt is buckled, but no one is sitting on the front passenger’s seat.
Someone who is less than 30 kg (66 lbs) is sitting on the front passenger’s seat.
Someone who is more than 30 kg (66 lbs) but is supporting some of their body weight on their legs,
feet, arms, or hands.
1. Check for these items, then recheck the passenger’s airbag cutoff indicator.
The front passenger’s seat is/was installed correctly.
Nothing is/was on the front passenger’s seat.
Nothing is/was under the front passenger’s seat.
Nothing is/was in the front passenger’s seat-back pocket.
Whoever was sitting on the passenger’s seat was sitting in the proper sitting position.
Go to step 2.
Troubleshooting is complete.
2. Connect the HDS to the data link connector (DLC) (see page 24-22).
3. Turn the ignition switch to ON (II).
4. Make sure the HDS communicates with the vehicle and the SRS unit. If it does not communicate,
troubleshoot the DLC circuit (see page 11- 204).5. Select the INSPECTION menu on the HDS, then
select AFTER REPLACING FRONT PASSENGER’S
SEAT COMPONENT(S), and follow the prompts.
Go to step 6.
Troubleshooting is complete.
6. Select the INSPECTION menu on the HDS, then select AFTER A VEHICLE COLLISION, and follow
the prompts.
Replace the SRS unit (see page 24-203). If the
problem is still present, replace the ODS unit
(see page 24-209), and then if the problem is still
present, replace the passenger’s weight sensors
(see page 24-207).
Troubleshooting is complete.
Does the passenger’s airbag cutof f indicator stayon? Does t he passenger ’ s ai r bag cut of f i nd i cat or st ay
on?
Does t he passenger ’ s ai r bag cut of f i nd i cat or st ayon?
08/08/21 14:01:53 61SNR030_240_0184
ProCarManuals.com
DYNOMITE -2009-

Page 2866 of 2893

ACURA CSX 2006 Service Repair Manual (#")
24-185
Component Replacement/Inspection After Deployment
NOTE: Before doing any SRS repairs, check the SRS DTCs (see page 24-22) for the less obviou

Page 2867 of 2893

ACURA CSX 2006 Service Repair Manual

A-Pillar Trim
B-Pillar Trim C-Pillar Trim
24-186SRS

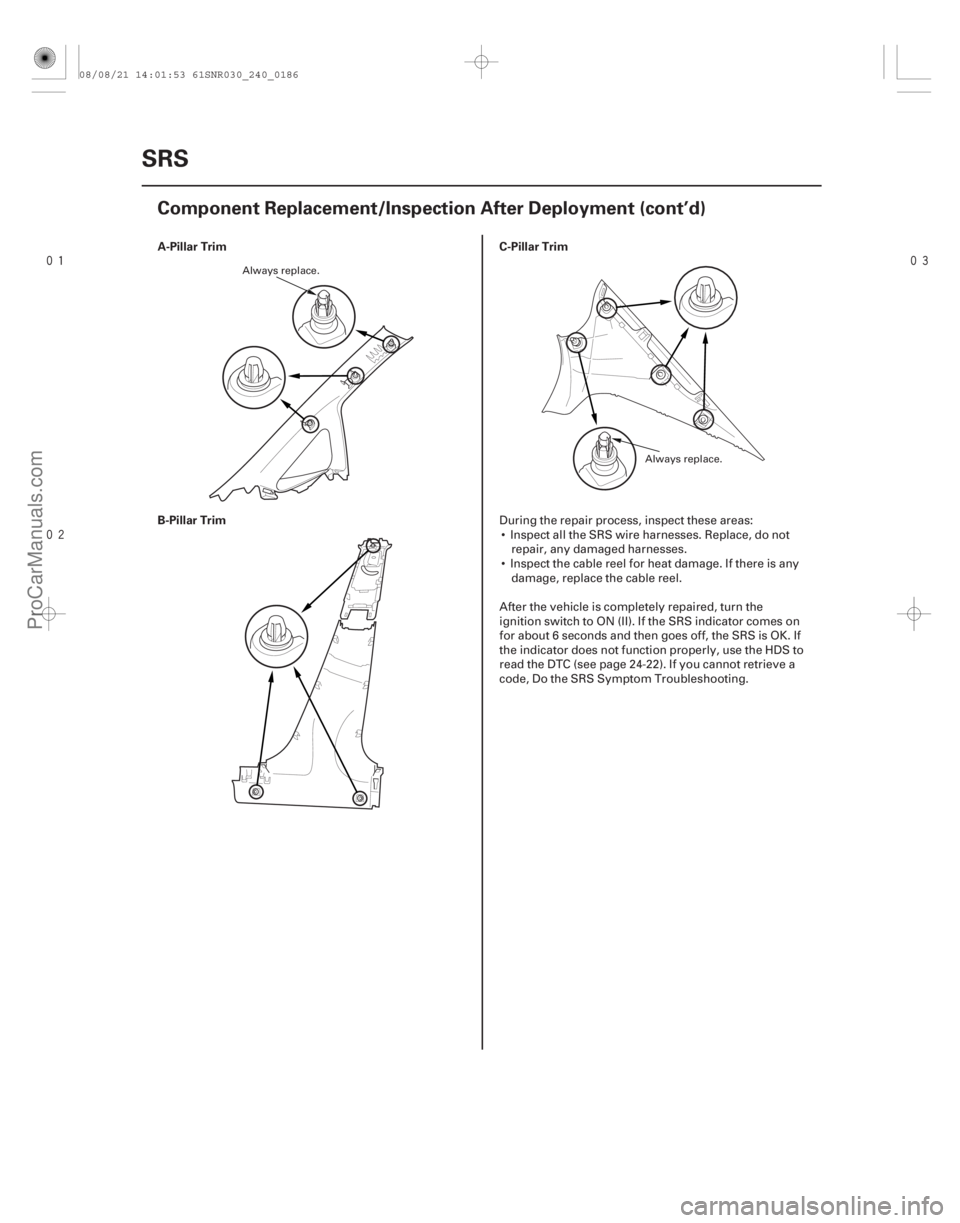

Component Replacement/Inspection After Deployment (cont’d)
During the repair process, inspect these areas:
Inspect all the SRS wir

Page 2868 of 2893

ACURA CSX 2006 Service Repair Manual Î
ÎÎ
Î

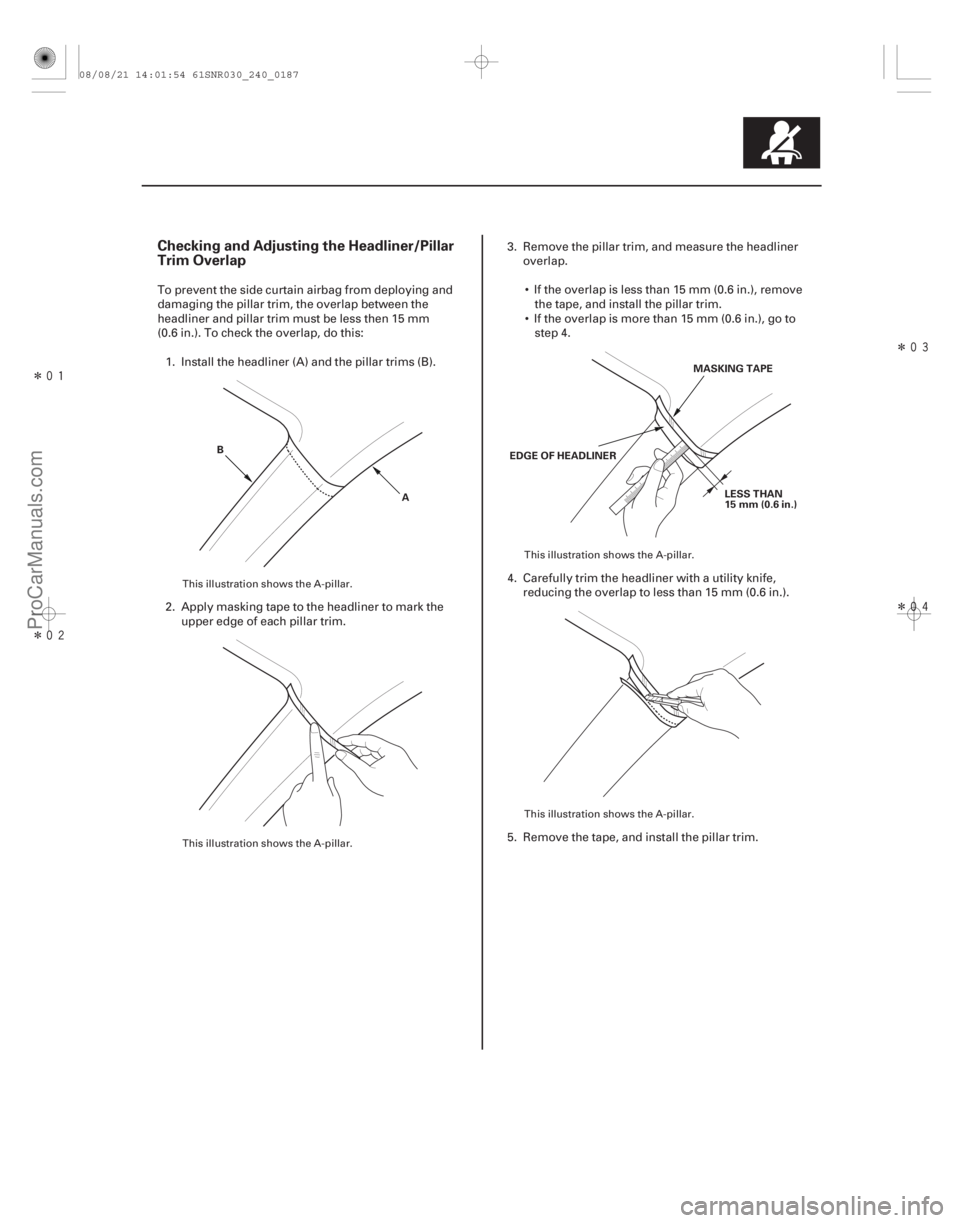

Checking and Adjusting the Headliner/Pillar
Trim Overlap
24-187
A
B
EDGE OF HEADLINER
LESS THAN
15 mm (0.6 in.)
MASKING TAPE
To prevent the side curtain airbag from depl

Page 2869 of 2893

ACURA CSX 2006 Service Repair Manual Î

Î
(#
)
Removal Installation
24-188SRS

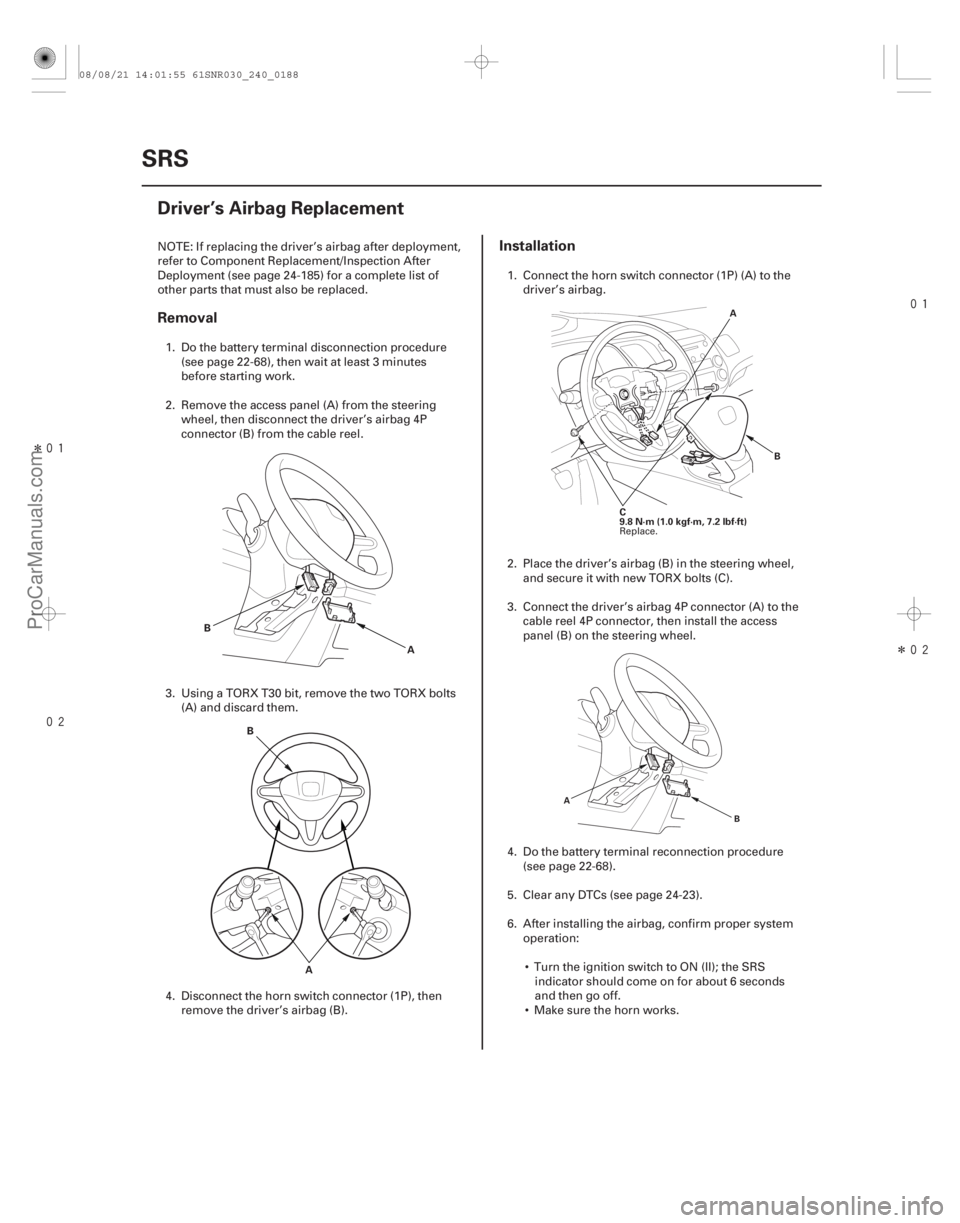

Driver’s Airbag Replacement
A
B
A
B
C
9.8 N·m (1.0 kgf·m, 7.2 lbf·ft)
A
B
A B
NOTE: If r

Page 2870 of 2893

ACURA CSX 2006 Service Repair Manual

(#
)
Removal
24-189

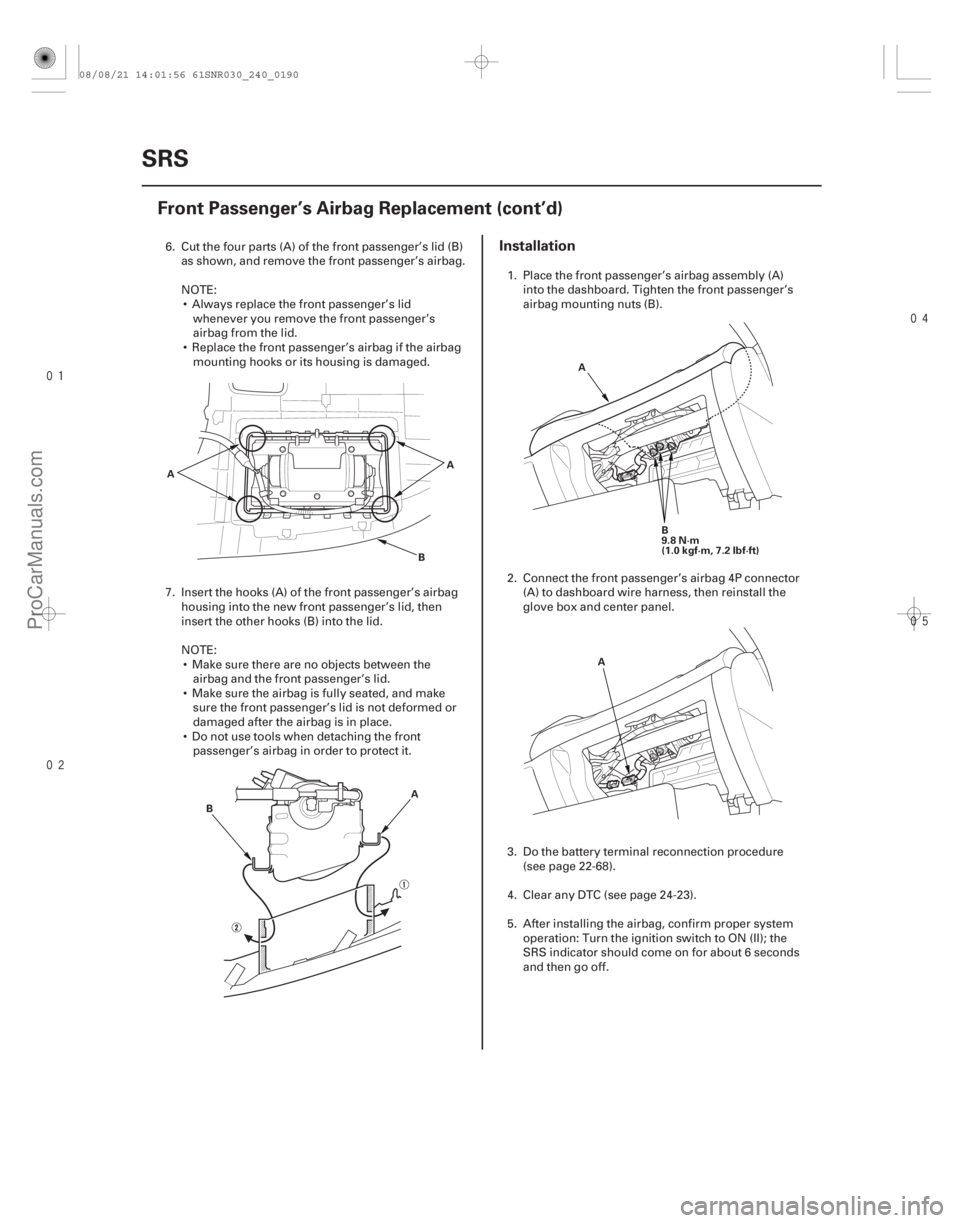

Front Passenger’s Airbag Replacement
A A
B
CC
NOTE: If replacing the front passenger’s airbag after
deployment, refe

Page 2871 of 2893

ACURA CSX 2006 Service Repair Manual

Installation
24-190SRS
Front Passenger’s Airbag Replacement (cont’d)
A
A
B
A
B B
9.8 N·m
(1.0 kgf·m, 7.2 lbf·ft)
A
A
6. Cut the four parts (A) of the front passenger’s lid

Page 2872 of 2893

ACURA CSX 2006 Service Repair Manual
Î
(#
)
Removal Installation
24-191

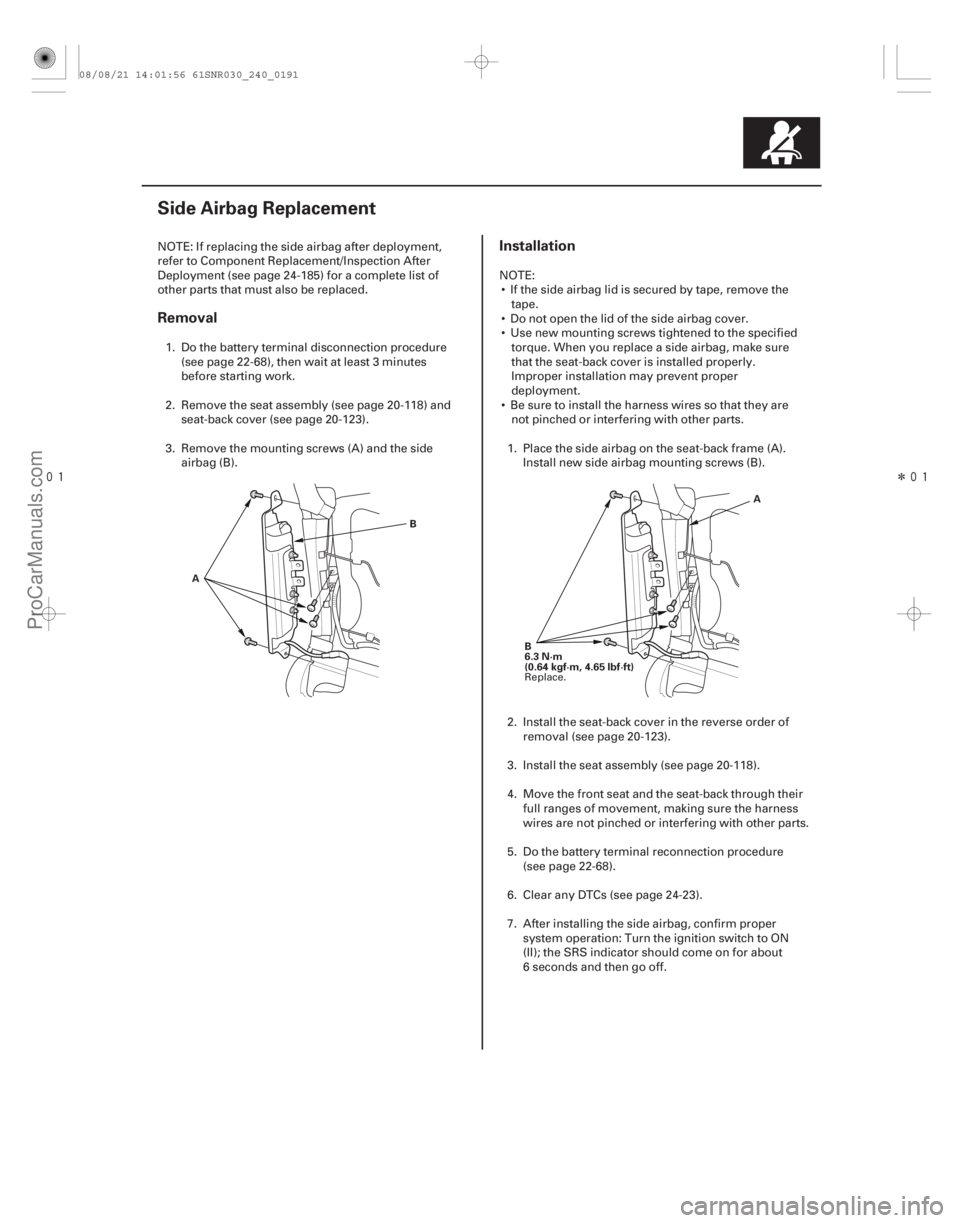

Side Airbag Replacement
AB
A
B
6.3 N·m
(0.64 kgf·m, 4.65 lbf·ft)
NOTE: If replacing the side airbag after
