ACURA CSX 2006 Service Repair Manual ÎÎ
Î

Save Users Memory
23-150Navigation System
System Diagnostic Mode (cont’d)
Return
EXPORT
IMPORT
Save Users Memory
Return
Yes No
Return
Yes NoSave Users Memory Export User Dat

ÎÎ
Î

Save Users Memory
23-150Navigation System
System Diagnostic Mode (cont’d)
Return
EXPORT
IMPORT
Save Users Memory
Return
Yes No
Return
Yes NoSave Users Memory Export User Data

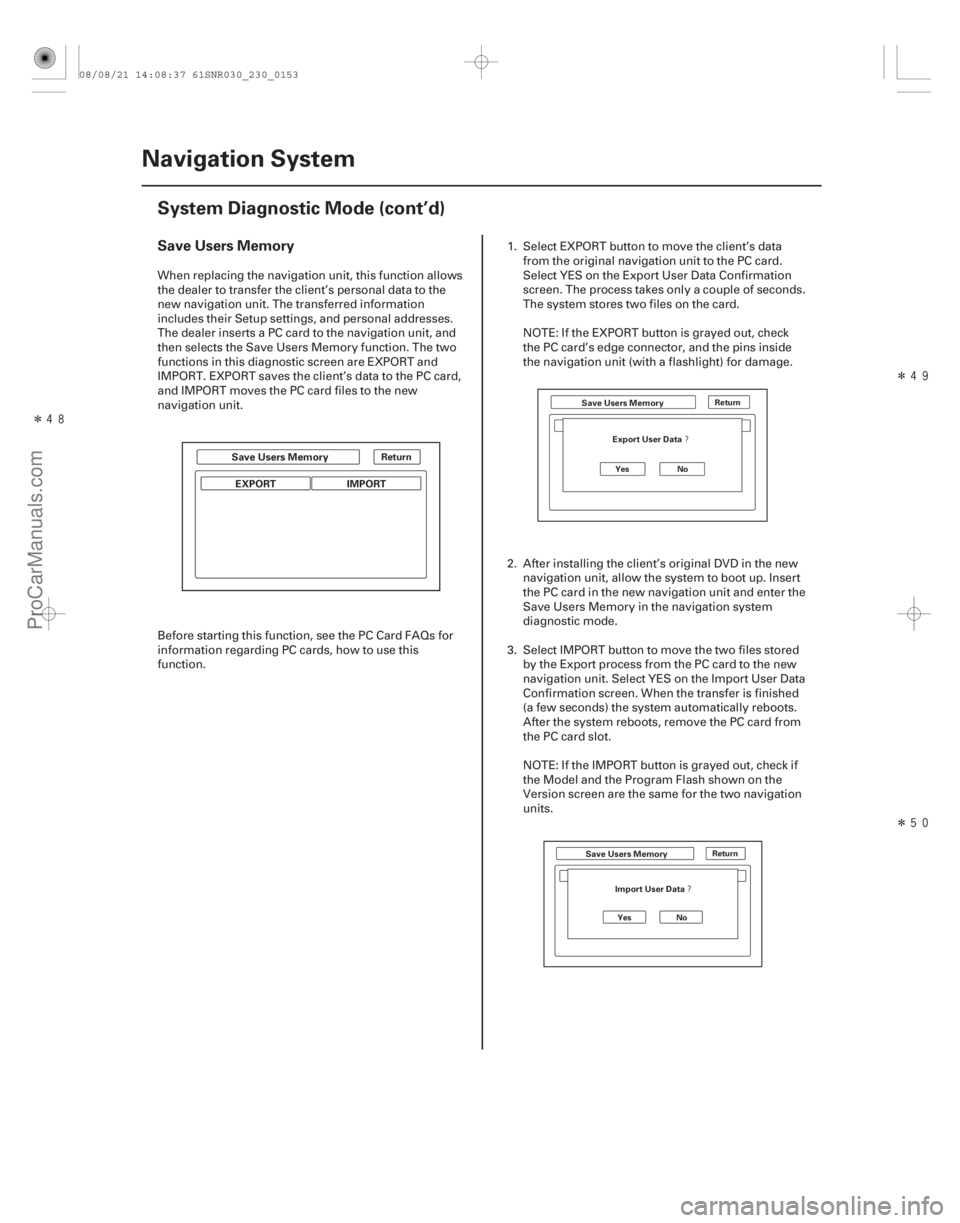

Save Users Memory Import User Data
When replacing the navigation unit, this function allows
the dealer to transfer the client’s personal data to the
new navigation unit. The transferred information
includes their Setup settings, and personal addresses.
The dealer inserts a PC card to the navigation unit, and
then selects the Save Users Memory function. The two
functions in this diagnostic screen are EXPORT and
IMPORT. EXPORT saves the client’s data to the PC card,
andIMPORTmovesthePCcardfilestothenew
navigation unit.
Before starting this function, see the PC Card FAQs for
information regarding PC cards, how to use this
function. 1. Select EXPORT button to move the client’s data
from the original navigation unit to the PC card.
Select YES on the Export User Data Confirmation
screen. The process takes only a couple of seconds.
The system stores two files on the card.
NOTE: If the EXPORT button is grayed out, check
the PC card’s edge connector, and the pins inside
the navigation unit (with a flashlight) for damage.
2. After installing the client’s original DVD in the new navigation unit, allow the system to boot up. Insert
the PC card in the new navigation unit and enter the
Save Users Memory in the navigation system
diagnostic mode.
3. Select IMPORT button to move the two files stored by the Export process from the PC card to the new
navigation unit. Select YES on the Import User Data
Confirmation screen. When the transfer is finished
(a few seconds) the system automatically reboots.
After the system reboots, remove the PC card from
the PC card slot.
NOTE: If the IMPORT button is grayed out, check if
the Model and the Program Flash shown on the
Version screen are the same for the two navigation
units.
08/08/21 14:08:37 61SNR030_230_0153
ProCarManuals.com
DYNOMITE -2009-

Page 2434 of 2893

ACURA CSX 2006 Service Repair Manual PC Card FAQs
QuestionAnswer
23-151
Wheredowebuytheflashmemoryor
adaptors, and what do we ask for?You need a PCMCIA type II adaptor and a flash memory chip. You can
purchase them at a computer, or offi

PC Card FAQs
QuestionAnswer
23-151
Wheredowebuytheflashmemoryor
adaptors, and what do we ask for?You need a PCMCIA type II adaptor and a flash memory chip. You can
purchase them at a computer, or office supply store. The card is the
same size and shape as the PC card in the HDS. Adaptors that accept
multiple flash types are not recommended.
What memory flash chips will work
with what adaptors? The flash memory devices that have been tested include Compact Flash
(CF), and ATA style (like the card in the HDS). Other card types and flash
memory chips may work, but have not been tested.
What capacity card do I need for this
function? A memory chip with capacity of 64 MB to 2 GB will work. The two files
moved to the PC card during export are less than a Megabyte in size.
Should the dealer have a dedicated PC
card for the Export and Import
navigation function? Yes, treat the PC card as a dedicated special tool that you can use any
time you need to transfer the navigation personal files to a new
navigation unit on ’07 and later vehicles.
What device can I use to maintain the
PC card, and delete files? Any computer store sells USB style card readers that accept the PC card,
and allow you to do file maintenance on your PC card. Most laptops also
accept the PC card.
Can we move the client’s data to
different models? No, the files are model specific and will only load into a navigation unit
with the same part number.
Can we move the client’s data to the
same vehicle with a different software
version (like moving from version 4.41
to version 4.51)? The client’s files can only be transferred to a new navigation unit if the
Model and the Program Flash shown on the Version screen are the same.
Files cannot be transferred to the different model and different versions.
Will other files on the PC card like
images or music files prevent the
Export/Import function from working? No, the system simply adds two small files that are recognized by the
new navigation unit when performing the import function. However, it
the PC card is full, the Export function won’t work correctly.
Do I have to delete the files on the PC
card after each transfer of the
personal data? After the transfer of personal data to the new navigation unit, the files
remain on the PC card. Since this is confidential information, Acura
recommends deleting these files after the transfer. Please note that each
time you export navigation files of the same model and version, the files
are overwritten. Over time the PC card accumulates two files for each
version of the 8 or so Acura navigation models.
If the memory card needs formatting,
what format should I use? It is unlikely that the PC card will ever need formatting, however, if it
does, use the FAT (file allocation table) file system.
I can’t enter the navigation diagnostic
mode to do the Export/Import function.
How can I transfer the personal data? Some internal navigation unit ECU failures may make it impossible to
use the Export/Import function.
(cont’d)
08/08/21 14:08:38 61SNR030_230_0154
ProCarManuals.com
DYNOMITE -2009-

Page 2435 of 2893

ACURA CSX 2006 Service Repair Manual QuestionAnswer
23-152Navigation System
System Diagnostic Mode (cont’d)

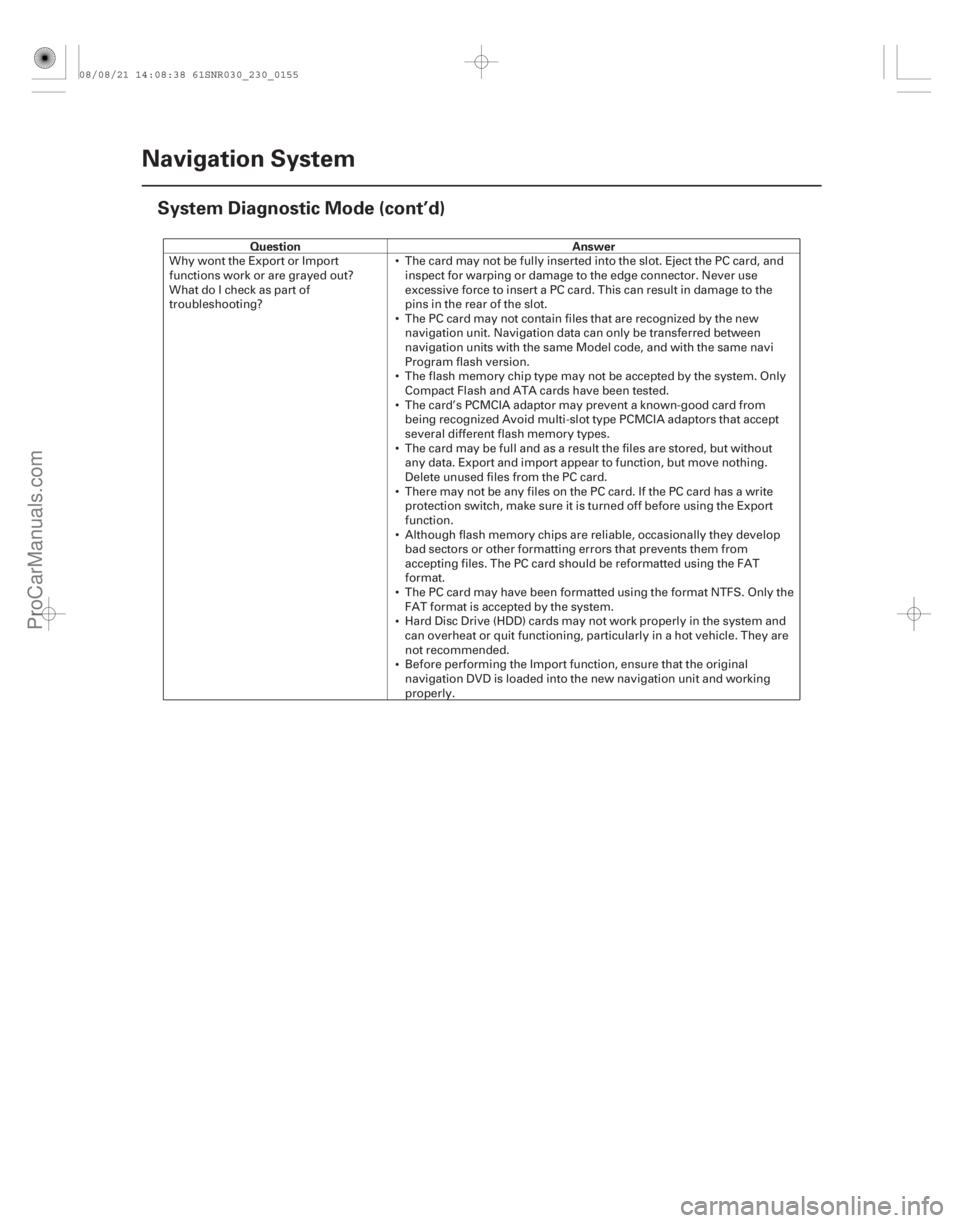

Why wont the Export or Import
functions work or are grayed out?
What do I check as part of
troubleshooting?

Page 2436 of 2893

ACURA CSX 2006 Service Repair Manual µ
Error Message Table
Screen Error MessageSolution
23-153
Navigation system is unable to acquire a proper
GPS signal.Make sure there is nothing on the dashboard blocking the GPS
antenna. If not, mov

µ
Error Message Table
Screen Error MessageSolution
23-153
Navigation system is unable to acquire a proper
GPS signal.Make sure there is nothing on the dashboard blocking the GPS
antenna. If not, move the vehicle to an open space away from
tall buildings, trees, etc. Aftermarket metallic window tinting
and other aftermarket devices can affect the GPS reception.
Navigation is open or No DVD disc installed.
Please check system. Make sure the correct white-labeled navigation DVD is
installed with the label side up and the navigation display is
closed.
DVD reading error (incorrect DVD disc) place
consult your dealer. Verify correct color (white) DVD installed.
Display temp is too high. System will shut down
until display cools down. This message appears briefly when the display temperature is
too high, and the display turns off until the temperature cools
down. The system turns back on when the display cools down.
Outside temperature is low, system will take a
while to start up. The temperature is below 30 °C and the navigation ECU has
difficulties reading the navigation DVD. The system will start
up when the temperature warms up.
DVD disc reading error (unformatted), please
consult your dealer. Check the navigation DVD source for deep scratches or other
damage. Make sure you are using an official Honda
navigation DVD (white in color). The system cannot read other
mapping databases or video DVDs. Check online for any
service publications to update the navigation system.
Route has not been completed. Please try again
from a different location. Routing to or from a place (new area) that is not in the
database. Try planning a different route to or from a different
location.
No alternate route found. Original route will be
guided. No alternate route method was found. The original route will
be used.
This destination cannot be found in database. The destination was not found in the database. Try another destination nearby, or select the destination with the joystick.
08/08/21 14:08:38 61SNR030_230_0156
ProCarManuals.com
DYNOMITE -2009-

Page 2437 of 2893

ACURA CSX 2006 Service Repair Manual

(##
)
23-154 Navigation System

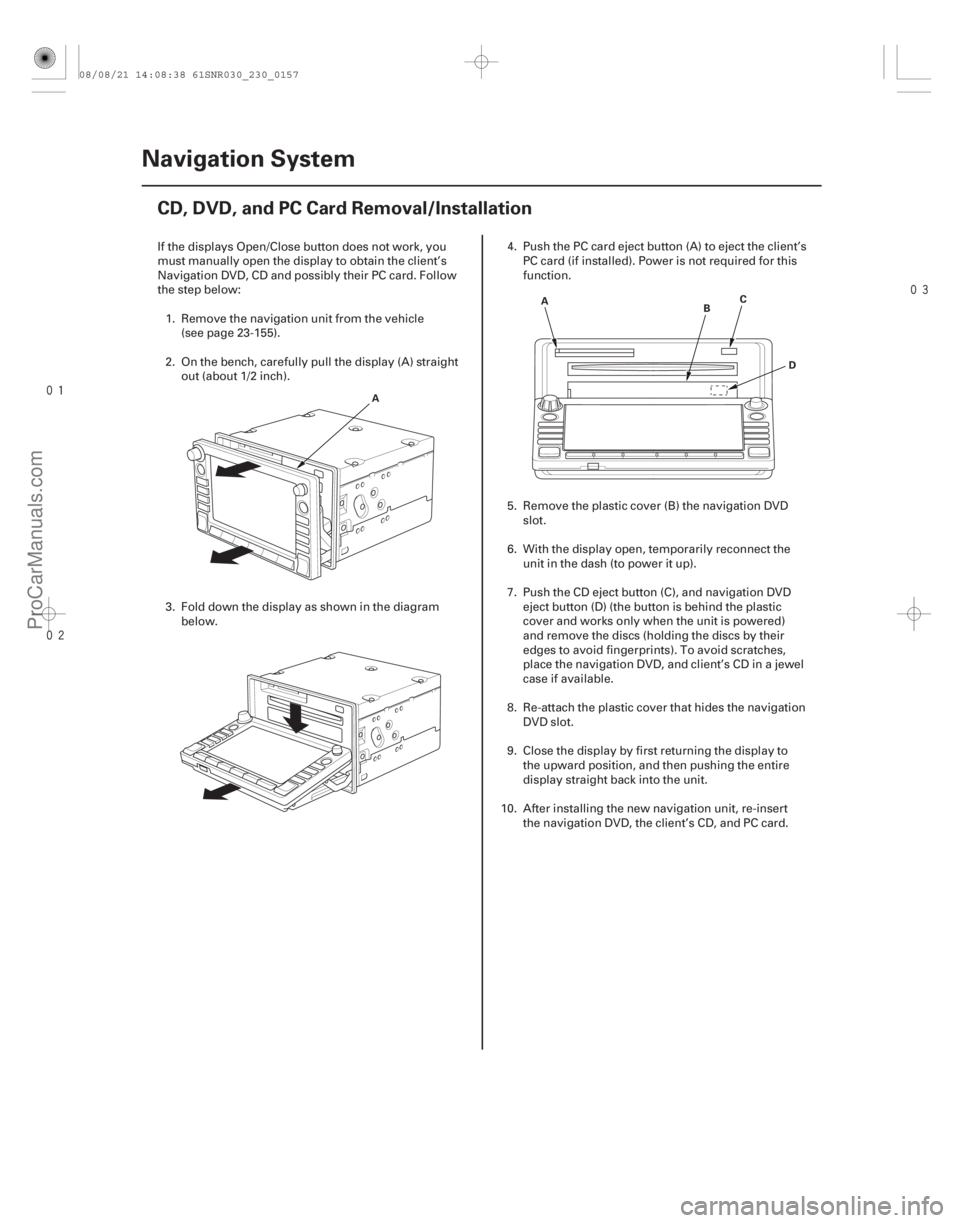

CD, DVD, and PC Card Removal/Installation
A
A
D
B
C
If the displays Open/Close button does not work, you
must

Page 2438 of 2893

ACURA CSX 2006 Service Repair Manual
(##

)
23-155
Navigation Unit Removal/Installation
A B B
C
SRS components are located in this area. Review the
SRS component location (see page 24-11).

Page 2439 of 2893

ACURA CSX 2006 Service Repair Manual

(##

) Position Resistance
23-15623-156
Navigation System

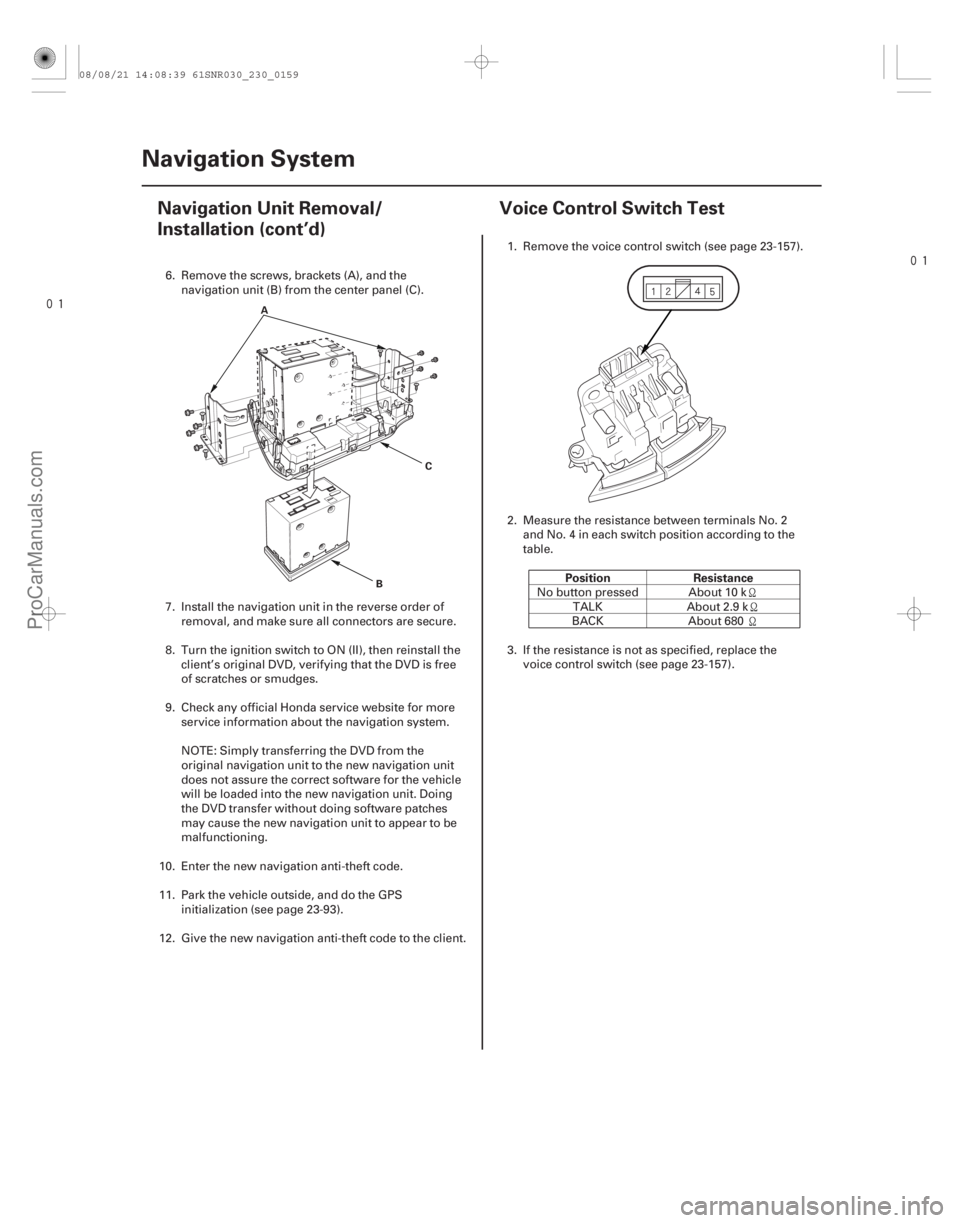

Navigation Unit Removal/
Installation (cont’d)
Voice Control Switch Test
A
BC
6. Remov

Page 2440 of 2893

ACURA CSX 2006 Service Repair Manual

(##

) Position Resistance
23-15623-156
Navigation System
Navigation Unit Removal/
Installation (cont’d)
Voice Control Switch Test
A
BC
6. Remov
