Page 1177 of 2893
14-261
A
B
A
B
C
D E
Properly Installed:
Improperly Installed: A
B

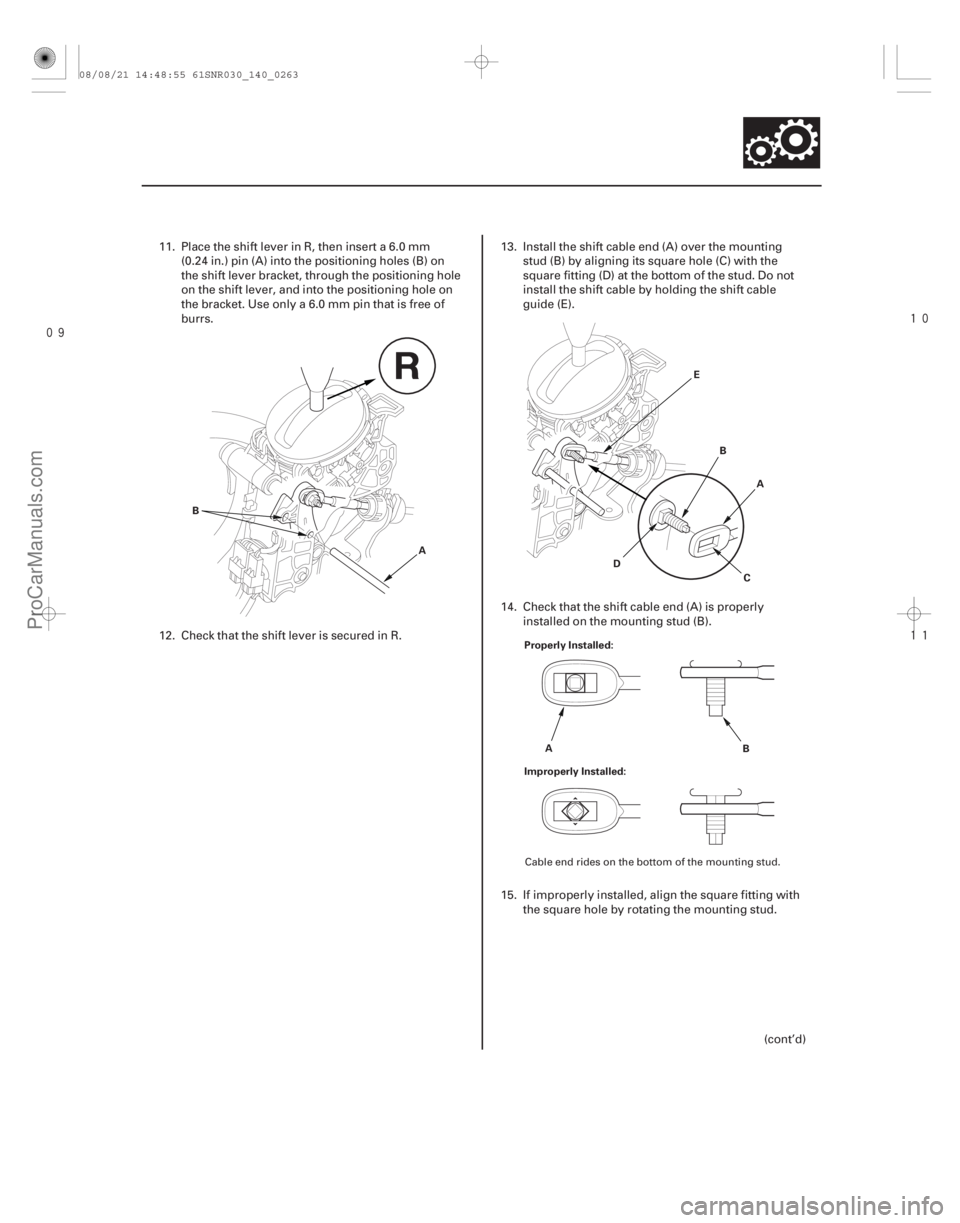

11. Place the shift lever in R, then insert a 6.0 mm
(0.24 in.) pin (A) into the positioning holes (B) on
the shift lever bracket, through the positioning hole
on the shift lever, and into the positioning hole on
thebracket.Useonlya6.0mmpinthatisfreeof
burrs.
12. Check that the shift lever is secured in R. 13. Install the shift cable end (A) over the mounting
stud (B) by aligning its square hole (C) with the
square fitting (D) at the bottom of the stud. Do not
install the shift cable by holding the shift cable
guide (E).
14. Check that the shift cable end (A) is properly installed on the mounting stud (B).
15. If improperly installed, align the square fitting with the square hole by rotating the mounting stud.
(cont’d)
Cable end rides on the bottom of the mounting stud.
08/08/21 14:48:55 61SNR030_140_0263
ProCarManuals.com
DYNOMITE -2009-
Page 1178 of 2893
14-262Automatic Transmission

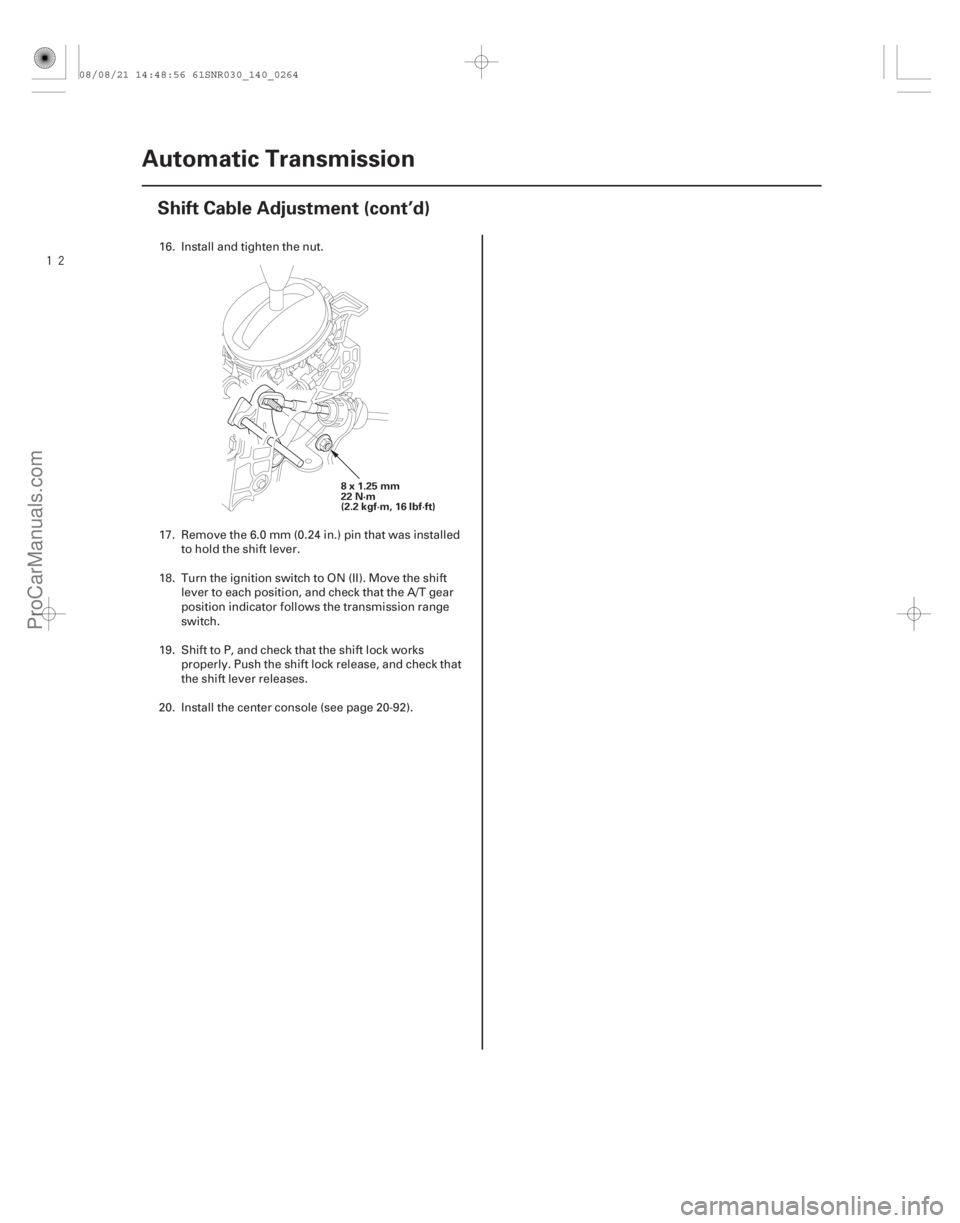

Shift Cable Adjustment (cont’d)
8x1.25mm
22 N·m
(2.2 kgf·m, 16 lbf·ft)
16. Install and tighten the nut.
17. Remove the 6.0 mm (0.24 in.) pin that was installed
to hold the shift lever.
18. Turn the ignition switch to ON (II). Move the shift lever to each position, and check that the A/T gear
position indicator follows the transmission range
switch.
19. Shift to P, and check that the shift lock works properly. Push the shift lock release, and check that
the shift lever releases.
20. Install the center console (see page 20-92).
08/08/21 14:48:56 61SNR030_140_0264
ProCarManuals.com
DYNOMITE -2009-
Page 1179 of 2893
Î
Î(#'
)
´
µ
14-263

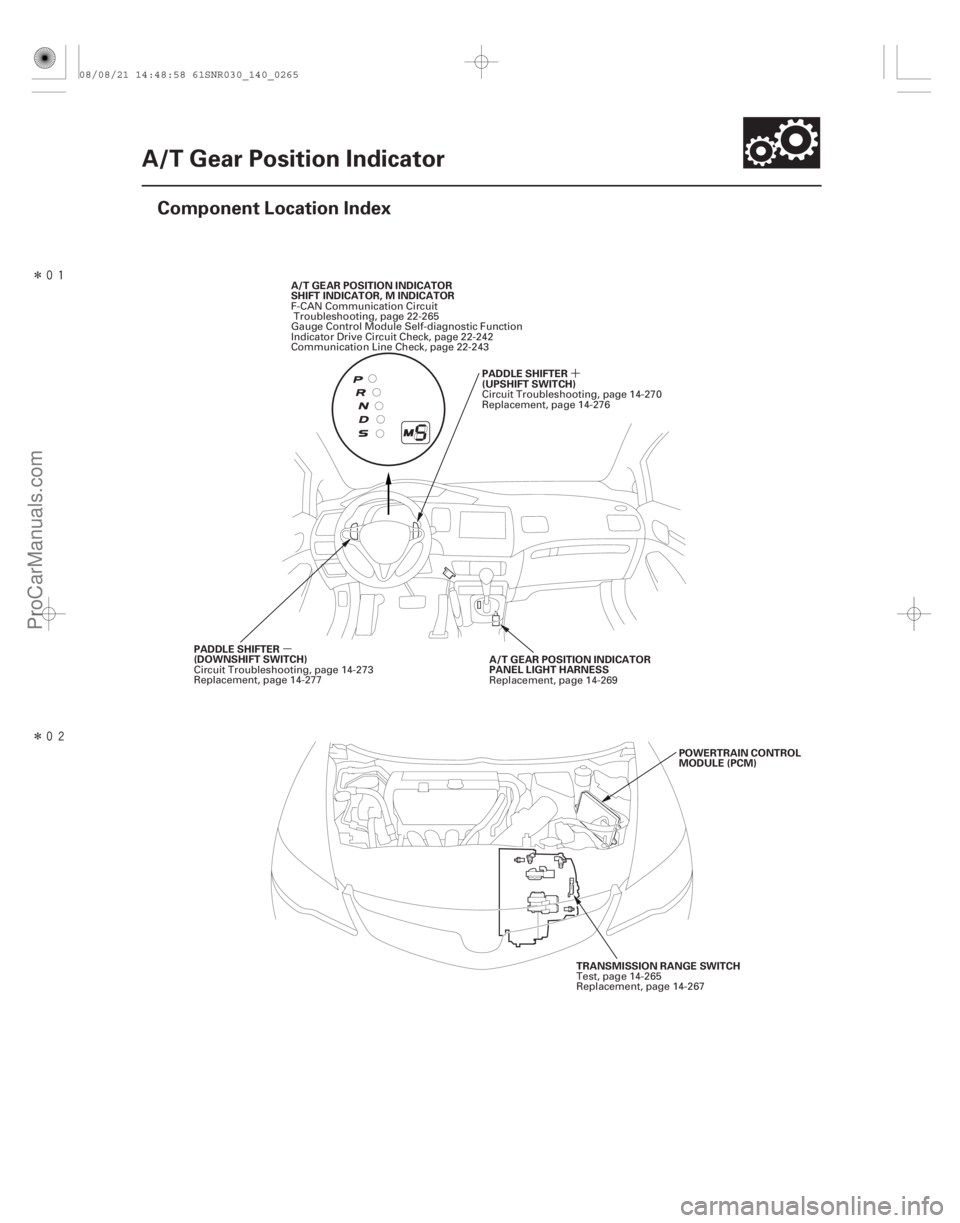

A/T Gear Position Indicator
Component Location Index
A/T GEAR POSITION INDICATOR
SHIFT INDICATOR, M INDICATOR
A/T GEAR POSITION INDICATOR
PANEL LIGHT HARNESS
PADDLE SHIFTER
(UPSHIFT SWITCH)
PADDLE SHIFTER
(DOWNSHIFT SWITCH)
TRANSMISSION RANGE SWITCHPOWERTRAIN CONTROL
MODULE (PCM)
F-CAN Communication Circuit
Troubleshooting, page 22-265
Gauge Control Module Self-diagnostic Function
Indicator Drive Circuit Check, page 22-242
Communication Line Check, page 22-243
Replacement, page 14-269
Circuit Troubleshooting, page 14-270
Replacement, page 14-276
Circuit Troubleshooting, page 14-273
Replacement, page 14-277
Test, page 14-265
Replacement, page 14-267
08/08/21 14:48:58 61SNR030_140_0265
ProCarManuals.com
DYNOMITE -2009-
Page 1180 of 2893

Î
(#'
)
Ó
Ú
Ø ´
µ µ
14-264
A/T Gear Position Indicator
Circuit Diagram
22
36 444342 27 28 30 33 34 35
3225
20 21 22 16 1817
13 14 15
1211 789
3
1
3123
31
456
1514
21
20 25
24
34
33
292827
42 44
40
37
36 31
1
23456 9 87
11 12 151413 17 1816
32
29 30
42 43 44
40
39
36
18
17
16 19
3598
10 21
20
27
2
26 29 40
4
23 24
41 23
41
10
26
39
5 6
2
1
1 2
CABLE REEL
BLU
BLU
BLU/YEL
GRN
GRN
SUPP B16
B40
SDNP
BRN
PG1
PG2
LG1
LG2
C40 B1
C44 B36
BLK
BRN/YEL
BRN/YEL
G101 No. 14 (7. 5 A)
RED GRY
2
1
RED/BLK RED
PG SG16
15
BLK BRN
C(44P)
B (44P)
A(44P)
Terminal side of female terminals
19 1
WHT
RED RED
WHT
17
CANL
A37 A36 CANH
1
3827
64 1017
54938 10
BLK
B13 BLK/GRN
BRN
C36
IG1
12 V
GAUGE CONTROL MODULE (TACH) No. 2 (15 A)
UNDER-DASH FUSE/RELAY BOX
No. 10 (7. 5 A)
BLU/WHT
RED/BLK
WHT ORN
BAT
IG1
IGNITION SWITCH
BLK
BLU/WHT
FWD RVS
S ST
P R
N
TRANSMISSION RANGE SWITCH D
B22
ATPRVS
ATPFWD
ATPP
ATPR ATPN ATPD ATPS
YEL/RED
B28
G101
B12
B21
BLU
PNK
RED/BLK
WHT
BLK/BLU
B14 B15
WHT/RED
BLU/BLK YEL/GRN
RED
BLU/YEL
BLK
G503
D N
R
P
UNDER-HOOD FUSE/RELAY BOX
No. 2 (IG) (50 A)
No. 1 (100 A)
BATTERY
A/T
GEAR
POSITION
INDICATOR
DRIVER
CIRCUIT
CPU STARTER
CUT RELAY
POWERTRAIN CONTROL
MODULE (PCM)
F-CAN
TRANSCEIVER
DASH-LIGHT
BRIGHTNESS
CONTROL
CIRCUIT
A/T GEAR
POSITION
INDICATOR
PANEL LIGHT
MULTIPLEX INTEGRATED
CONTROL UNIT (MICU)
MULTIPLEX INTEGRATED
CONTROL UNIT (MICU)
SHIFT
INDICATOR
LT GRNLEFT
BLK/WHT LT GRN GRN/ORN
RIGHT
PADDLE SHIFTER
(UPSHIFT SWITCH)
RED/WHT
G504 G504
5V
BLK*
BLK/RED*
BLK16
17
6 16
17
7
PADDLE SHIFTER
(DOWNSHIFT SWITCH)*1: ’06 model
*2: ’07 09 models
PCM Connector Terminal Locations
S
GND
21
08/08/21 14:49:00 61SNR030_140_0266
ProCarManuals.com
DYNOMITE -2009-
Page 1181 of 2893

Î
(#'
)
µ
Transmission Range Switch Subharness
Connector
14-265

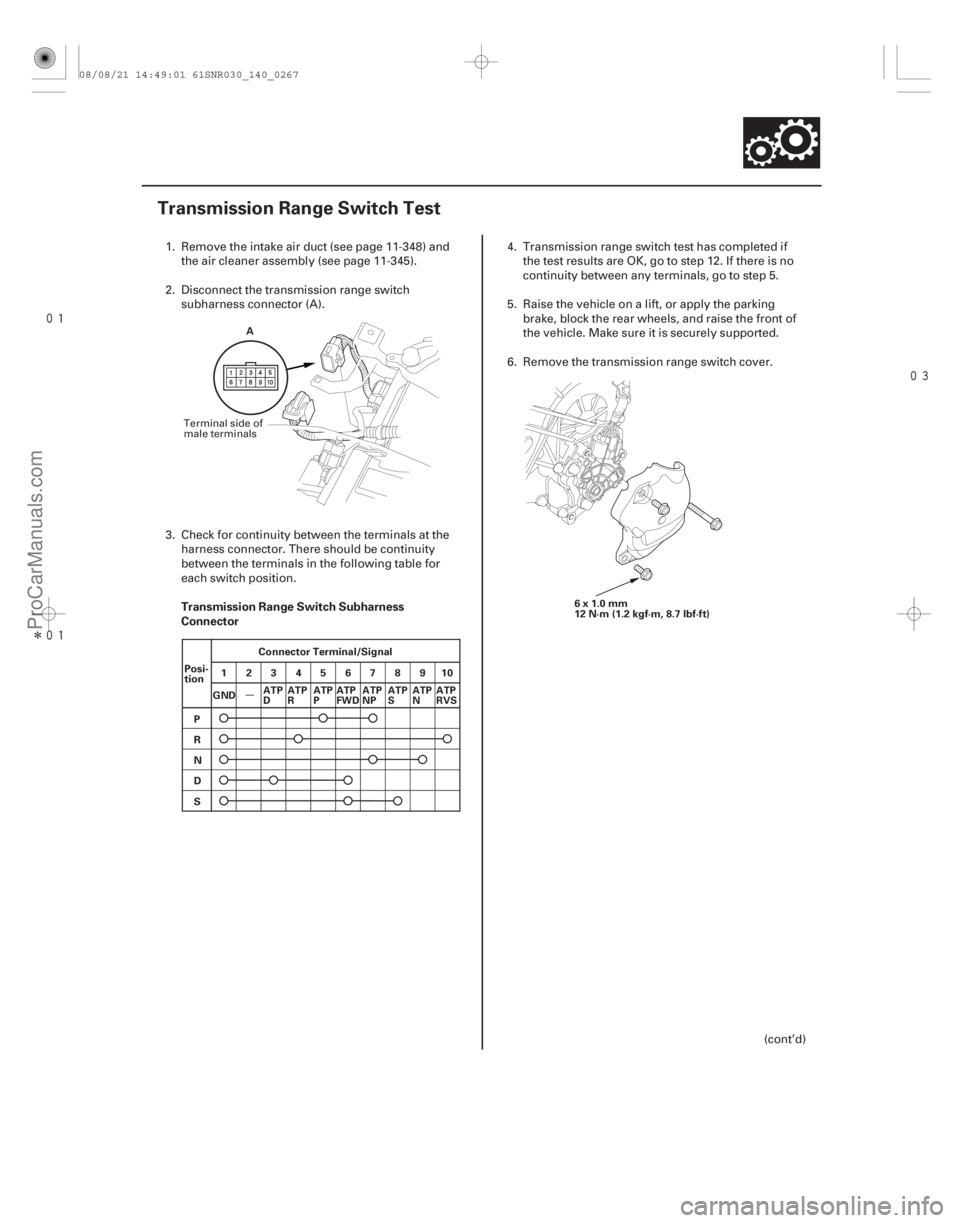

Transmission Range Switch Test
A Connector Terminal/Signal
25
134
687910
P
R
N
D
S
Posi-
tion
6x1.0mm
12 N·m (1.2 kgf·m, 8.7 lbf·ft)
ATP
NP
ATP
FWD
GND
ATP
RVS
ATP
D ATP
R ATP
P ATP
SATP
N
1. Remove the intake air duct (see page 11-348) and
the air cleaner assembly (see page 11-345).
2. Disconnect the transmission range switch subharness connector (A).
3. Check for continuity between the terminals at the harness connector. There should be continuity
between the terminals in the following table for
each switch position. 4. Transmission range switch test has completed if
the test results are OK, go to step 12. If there is no
continuity between any terminals, go to step 5.
5. Raise the vehicle on a lift, or apply the parking brake, block the rear wheels, and raise the front of
the vehicle. Make sure it is securely supported.
6. Remove the transmission range switch cover.
(cont’d)
Terminal side of
male terminals
08/08/21 14:49:01 61SNR030_140_0267
ProCarManuals.com
DYNOMITE -2009-
Page 1182 of 2893

Î
µ
µµ
µµ
Transmission Range Switch Connector Selector Control Shaft:
Width (B): 6.1 6.2 mm (0.240 0.244 in.)
End Gap (C): 1.8 2.0 mm (0.07 0.08 in.)
14-266A/T Gear Position Indicator

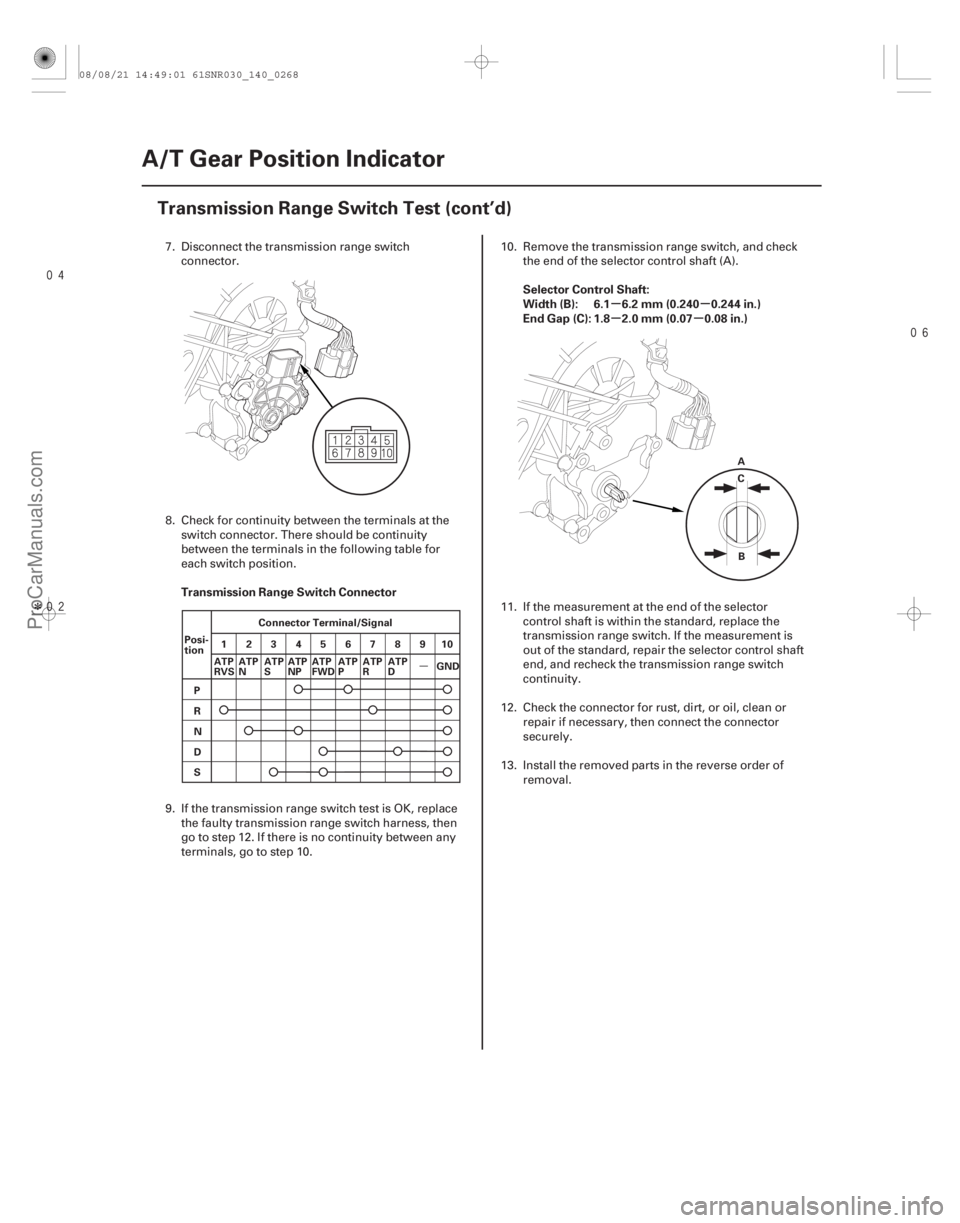

Transmission Range Switch Test (cont’d)
Connector Terminal/Signal
25
134
687910
P
R
N
D
S
Posi-
tion A
C
B
ATP
NP ATP
FWD
GND
ATP
RVS ATP
N ATP
S ATP
PATP
R ATP
D
7. Disconnect the transmission range switch
connector.
8. Check for continuity between the terminals at the switch connector. There should be continuity
between the terminals in the following table for
each switch position.
9. If the transmission range switch test is OK, replace the faulty transmission range switch harness, then
go to step 12. If there is no continuity between any
terminals, go to step 10. 10. Remove the transmission range switch, and check
the end of the selector control shaft (A).
11. If the measurement at the end of the selector control shaft is within the standard, replace the
transmission range switch. If the measurement is
out of the standard, repair the selector control shaft
end, and recheck the transmission range switch
continuity.
12. Check the connector for rust, dirt, or oil, clean or repair if necessary, then connect the connector
securely.
13. Install the removed parts in the reverse order of removal.
08/08/21 14:49:01 61SNR030_140_0268
ProCarManuals.com
DYNOMITE -2009-
Page 1183 of 2893

Î
(#'
)
14-267

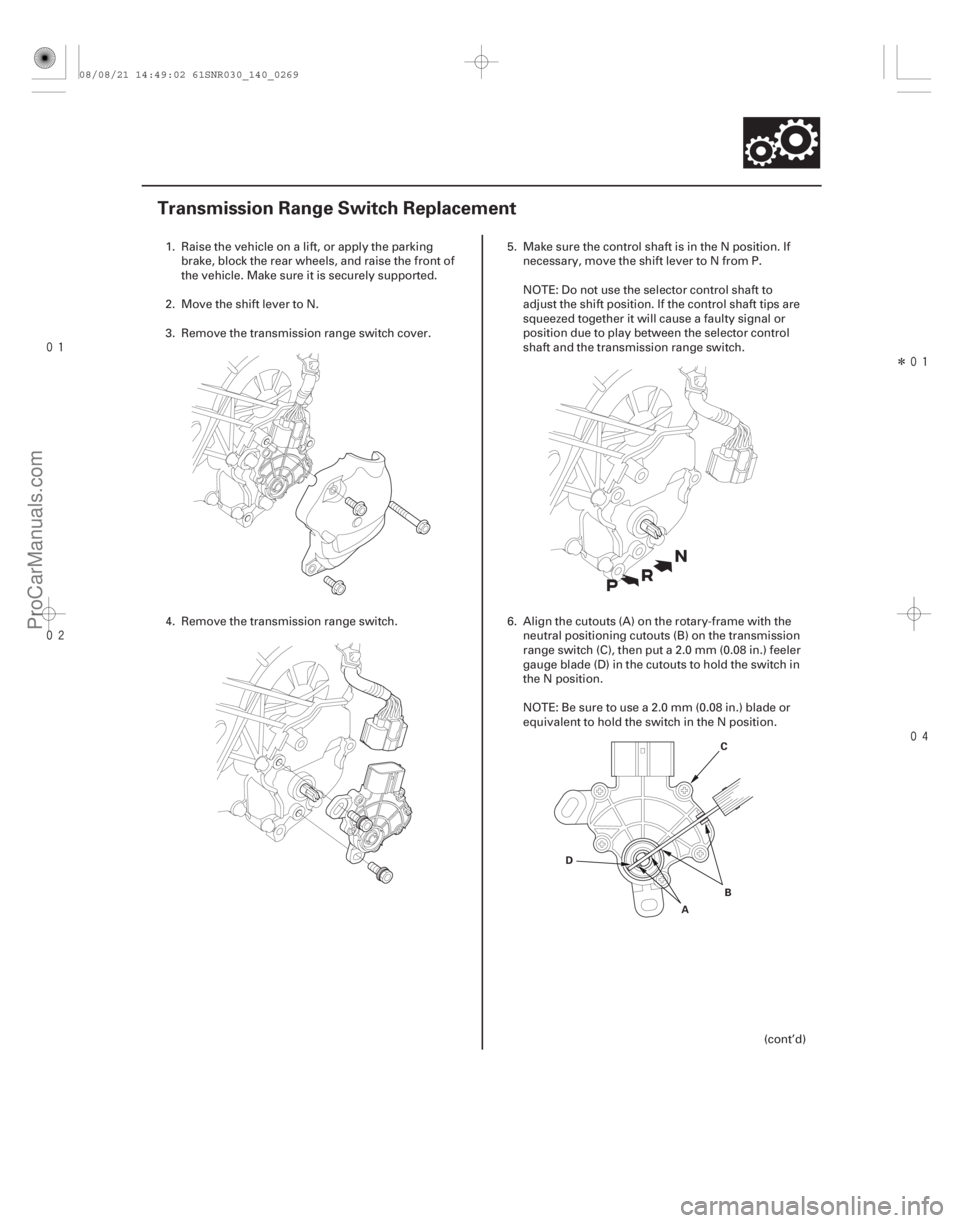

Transmission Range Switch Replacement
A B
C
D
1. Raise the vehicle on a lift, or apply the parking brake, block the rear wheels, and raise the front of
the vehicle. Make sure it is securely supported.
2. Move the shift lever to N.
3. Remove the transmission range switch cover.
4. Remove the transmission range switch. 5. Make sure the control shaft is in the N position. If
necessary, move the shift lever to N from P.
NOTE: Do not use the selector control shaft to
adjust the shift position. If the control shaft tips are
squeezed together it will cause a faulty signal or
position due to play between the selector control
shaft and the transmission range switch.
6. Align the cutouts (A) on the rotary-frame with the neutral positioning cutouts (B) on the transmission
range switch (C), then put a 2.0 mm (0.08 in.) feeler
gauge blade (D) in the cutouts to hold the switch in
the N position.
NOTE: Be sure to use a 2.0 mm (0.08 in.) blade or
equivalent to hold the switch in the N position.
(cont’d)
08/08/21 14:49:02 61SNR030_140_0269
ProCarManuals.com
DYNOMITE -2009-
Page 1184 of 2893

14-268A/T Gear Position Indicator
Transmission Range Switch Replacement (cont’d)
A
C
B
6x1.0mm
12 N·m (1.2 kgf·m, 8.7 lbf·ft) 6x1.0mm
12 N·m (1.2 kgf·m, 8.7 lbf·ft)A
7. Install the transmission range switch (A) gently on
the selector control shaft (B) while holding it in the
N position with the 2.0 mm (0.08 in.) blade (C).
8. Tighten the bolts on the transmission range switch while you continue to holding the N position. Do
not move the transmission range switch when
tightening the bolts. Remove the feeler gauge. 9. Check the connectors for rust, dirt, or oil, clean or
repair if necessary, then connect the connector
securely.
10. Turn the ignition switch to ON (II). Move the shift lever through all positions, and check the
transmission range switch synchronization with the
A/T gear position indicator.
11. Check that the engine will start with the shift lever in P and N, and will not start in any other shift lever
position.
12. Check that the back-up lights come on when the shift lever is in R.
13. Allow the front wheels to rotate freely, then start the engine, and check the shift lever operation.
14. Install the transmission range switch cover (A).
