DTC P0401:
YES
NO
YES
NO YES
NO
YES
NO
11-357
DTC Troubleshooting
EGR Insufficient Flow
NOTE: Before you troubleshoot, record all freeze data
and any on-board snapshot, and review the general
troubleshooting information (see page 11-3).
1. Turn the ignition switch to ON (II).
2. Clear the DTC with the HDS.
3. Start the engine. Hold the engine speed at 3,000 rpm without load (A/T in P or N, M/T in
neutral) until the radiator fan comes on, then let it
idle.
4. Do the EGR TEST in the INSPECTION MENU with the HDS.
Go to step 5.
Go to step 7.
5. Test-drive under these conditions:  Engine coolant temperature (ECT SENSOR 1)above70°C(158°F)
 A/TinD,M/Tin4th
 Drive at a steady speed between 88 120 km/h (55 75 mph) for at least 10 seconds
 During the drive, decelerate (with the throttle fully closed) for 5 seconds
6. Monitor the OBD STATUS for DTC P0401 in the DTCs MENU with the HDS.
RemovetheEGRplate(seepage9-2),and
clean the intake manifold port with throttle plate
and induction cleaner, then go to step 9.
If the screen indicates PASSED, intermittent
failure, the system is OK at this time. Check for
poor connections or loose terminals at the EGR
valve and the ECM/PCM. If the screen indicates
EXECUTING, keep driving until a result comes on. If
the screen indicates OUT OF CONDITION, go to
step 5 and recheck. 7. Turn the ignition switch to LOCK (0).
8. Replace the EGR valve (see page 11-370).
9. Turn the ignition switch to ON (II).
10. Reset the ECM/PCM with the HDS.
11. Do the ECM/PCM idle learn procedure (see page 11-310).
12. Test-drive under these conditions:  Engine coolant temperature (ECT SENSOR 1)above70°C(158°F)
 A/TinD,M/Tin4th
 Drive at a steady speed between 88 120 km/h (55 75 mph) for at least 10 seconds
 During the drive, decelerate (with the throttle fully closed) for 5 seconds
13. Check for Temporary DTCs or DTCs with the HDS.
Check for poor connections or loose
terminals at the EGR valve and the ECM/PCM. If the
connections are OK, go to step 15.
Go to step 14.
14. Monitor the OBD STATUS for DTC P0401 in the DTCs MENU with the HDS.
Troubleshooting is complete. If any other
Temporary DTCs or DTCs were indicated in step 13,
go to the indicated DTC’s troubleshooting.
If the screen indicates FAILED, check for poor
connections or loose terminals at the EGR valve
and the ECM/PCM, then go to step 1. If the screen
indicates EXECUTING, keep driving until a result
comes on. If the screen indicates OUT OF
CONDITION, go to step 12.
(cont’d)
Is the result OK ?
Does t he scr een i nd i cat e F AILE D? Is DT C P0401 ind icated ?
Does t he scr een i nd i cat e PASSE D?
08/08/21 14:31:15 61SNR030_110_0357
ProCarManuals.com
DYNOMITE -2009-

µ
µ µ
µ
µ
µ
YES
NO
YES
NO
YES
NO
11-360EGR System
DTC Troubleshooting (cont’d)
14. Remove the EGR valve (see page 11-370).
15. Remove the EGR plate (see page 9-2), and clean the
intake manifold EGR port with throttle plate and
induction cleaner. Also, clean the passage inside
the EGR valve with throttle plate and induction
cleaner.
16. Install the EGR valve (see page 11-370).
17. Reconnect the EGR valve 6P connector.
18. Reconnect ECM/PCM connector B (44P).
19. Turn the ignition switch to ON (II).
20. Reset the ECM/PCM with the HDS.
21. Do the ECM/PCM idle learn procedure (see page 11-310).
22. Start the engine. Hold the engine speed at 3,000 rpm without load (A/T in P or N, M/T in
neutral) until the radiator fan comes on, then let it
idle.
23. Do the EGR TEST in the INSPECTION MENU with the HDS.
Go to step 32.
Go to step 24. 24. Turn the ignition switch to LOCK (0).
25. Replace the EGR valve (see page 11-370).
26. Reconnect all connectors.
27. Turn the ignition switch to ON (II).
28. Reset the ECM/PCM with the HDS.
29. Do the ECM/PCM idle learn procedure (see page
11-310).
30. Start the engine. Hold the engine speed at 3,000 rpm without load (A/T in P or N, M/T in
neutral) until the radiator fan comes on, then let it
idle.
31. Do the EGR TEST in the INSPECTION MENU with the HDS.
32. Check for Temporary DTCs or DTCs with the HDS.
Check for poor connections or loose
terminals at the EGR valve and the ECM/PCM, then
go to step 1. If the connections and terminals are
OK,gotostep34.
Go to step 33.
33. Monitor the OBD STATUS for DTC P0404 in the DTCs MENU with the HDS.
Troubleshooting is complete. If any other
Temporary DTCs or DTCs were indicated in step 32,
go to the indicated DTC’s troubleshooting.
If the screen indicates FAILED, check for poor
connections or loose terminals at the EGR valve
and the ECM/PCM, then go to step 1. If the screen
indicates EXECUTING, keep idling until a result
comes on. If the screen indicates OUT OF
CONDITION, go to step 30.
Is the result OK ? Is DT C P0404 ind icated ?
Does t he scr een i nd i cat e PASSE D?
08/08/21 14:31:17 61SNR030_110_0360
ProCarManuals.com
DYNOMITE -2009-

µ
µ µ
µ
µ
µ
YES
NO
YES
NO
YES
NO
11-368EGR System
DTC Troubleshooting (cont’d)
33. Turn the ignition switch to LOCK (0).
34. Remove the EGR valve (see page 11-370).
35. Remove the EGR plate (see page 9-2), and clean the
intake manifold EGR port with throttle plate and
induction cleaner. Also, clean the passage inside
the EGR valve with throttle plate and induction
cleaner.
36. Install the EGR valve (see page 11-370).
37. Reconnect all connectors.
38. Turn the ignition switch to ON (II).
39. Reset the ECM/PCM with the HDS.
40. Do the ECM/PCM idle learn procedure (see page 11-310).
41. Do the EGR TEST in the INSPECTION MENU with the HDS.
Go to step 49.
Go to step 42. 42. Turn the ignition switch to LOCK (0).
43. Replace the EGR valve (see page 11-370).
44. Reconnect all connectors.
45. Turn the ignition switch to ON (II).
46. Reset the ECM/PCM with the HDS.
47. Do the ECM/PCM idle learn procedure (see page
11-310).
48. Do the EGR TEST in the INSPECTION MENU with the HDS.
49. Check for Temporary DTCs or DTCs with the HDS.
Check for poor connections or loose
terminals at the EGR valve and the ECM/PCM, then
go to step 1.
Go to step 50.
50. Monitor the OBD STATUS for DTC P2413 in the DTCs MENU with the HDS.
Troubleshooting is complete. If any other
Temporary DTCs or DTCs were indicated in step 49,
go to the indicated DTC’s troubleshooting.
If the screen indicates FAILED, check for poor
connections or loose terminals at the EGR valve
and the ECM/PCM, then go to step 1. If the screen
indicates EXECUTING, keep idling until a result
comes on. If the screen indicates OUT OF
CONDITION, go to step 47.
Is the result OK ? Is DTC P2413 indicated?
Does t he scr een i nd i cat e PASSE D?
08/08/21 14:32:26 61SNR030_110_0368
ProCarManuals.com
DYNOMITE -2009-

(#'

)
µ
µ
µ
µ µ
µ
µ
µ
µ
µ

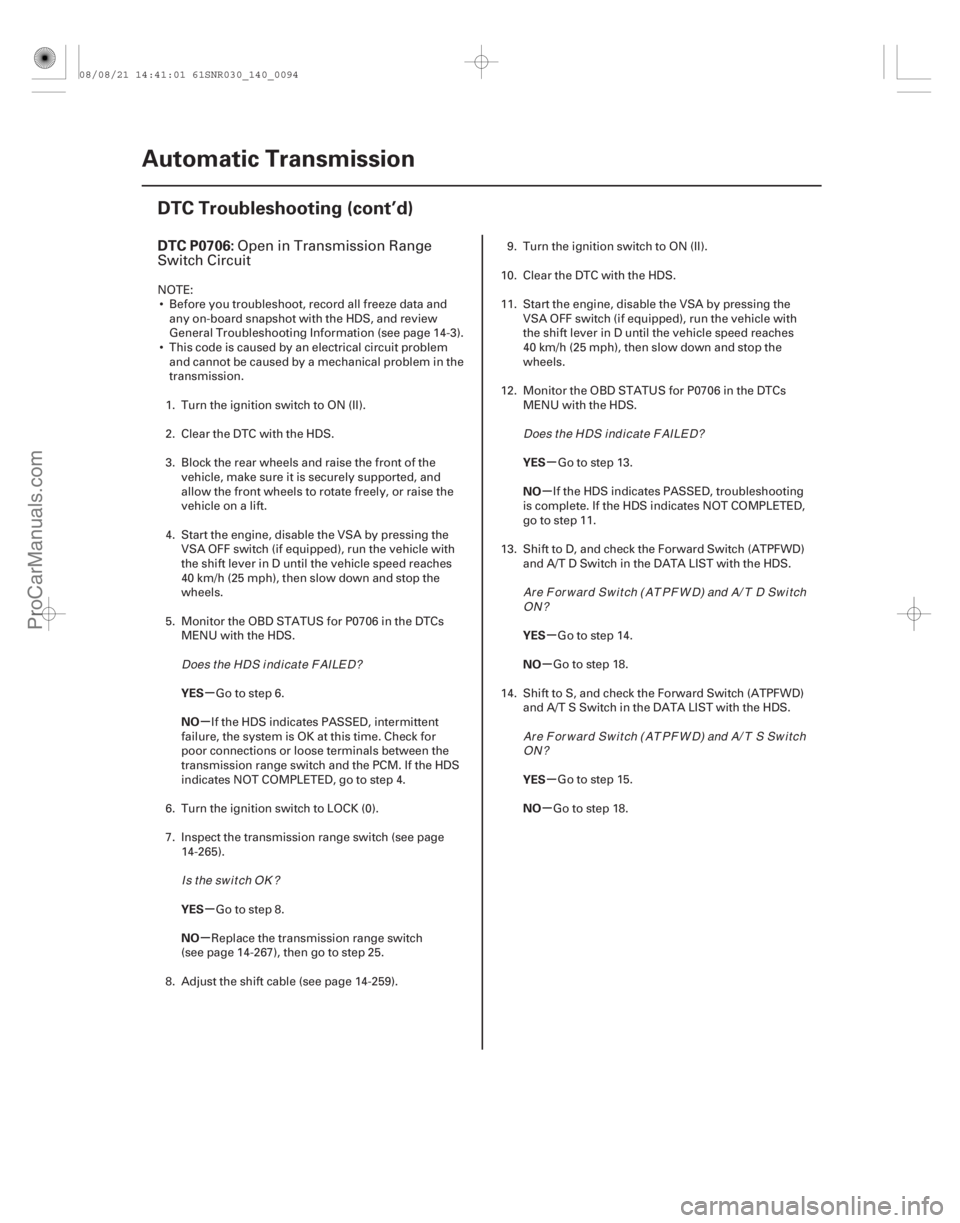

DTC P0706:
YES
NO
YES
NO YES
NO
YES
NO
YES
NO
14-92
Automatic Transmission
DTC Troubleshooting (cont’d)
Open in Transmission Range
Switch Circuit
NOTE:
 Before you troubleshoot, record all freeze data and any on-board snapshot with the HDS, and review
General Troubleshooting Information (see page 14-3).
 This code is caused by an electrical circuit problem and cannot be caused by a mechanical problem in the
transmission.
1. Turn the ignition switch to ON (II).
2. Clear the DTC with the HDS.
3. Block the rear wheels and raise the front of the vehicle, make sure it is securely supported, and
allow the front wheels to rotate freely, or raise the
vehicle on a lift.
4. Start the engine, disable the VSA by pressing the VSA OFF switch (if equipped), run the vehicle with
the shift lever in D until the vehicle speed reaches
40 km/h (25 mph), then slow down and stop the
wheels.
5. Monitor the OBD STATUS for P0706 in the DTCs MENU with the HDS.
Go to step 6.
If the HDS indicates PASSED, intermittent
failure, the system is OK at this time. Check for
poor connections or loose terminals between the
transmission range switch and the PCM. If the HDS
indicates NOT COMPLETED, go to step 4.
6. Turn the ignition switch to LOCK (0).
7. Inspect the transmission range switch (see page 14-265).
Go to step 8.
Replace the transmission range switch
(see page 14-267), then go to step 25.
8. Adjust the shift cable (see page 14-259). 9. Turn the ignition switch to ON (II).
10. Clear the DTC with the HDS.
11. Start the engine, disable the VSA by pressing the VSA OFF switch (if equipped), run the vehicle with
the shift lever in D until the vehicle speed reaches
40 km/h (25 mph), then slow down and stop the
wheels.
12. Monitor the OBD STATUS for P0706 in the DTCs MENU with the HDS.
Go to step 13.
If the HDS indicates PASSED, troubleshooting
is complete. If the HDS indicates NOT COMPLETED,
go to step 11.
13. Shift to D, and check the Forward Switch (ATPFWD) andA/TDSwitchintheDATALISTwiththeHDS.
Go to step 14.
Go to step 18.
14. Shift to S, and check the Forward Switch (ATPFWD) andA/TSSwitchintheDATALISTwiththeHDS.
Go to step 15.
Go to step 18.
Does the HDS ind icate F AILED?
Is the switch OK ? Does the HDS ind icate F AILED?
Ar e F or w ar d Sw i t ch ( AT PF W D) and A/ T D Sw i t chON?
Ar e F or w ar d Sw i t ch ( AT PF W D) and A/ T S Sw i t chON?
08/08/21 14:41:01 61SNR030_140_0094
ProCarManuals.com
DYNOMITE -2009-


(#'


)
µ
µ µ
µ

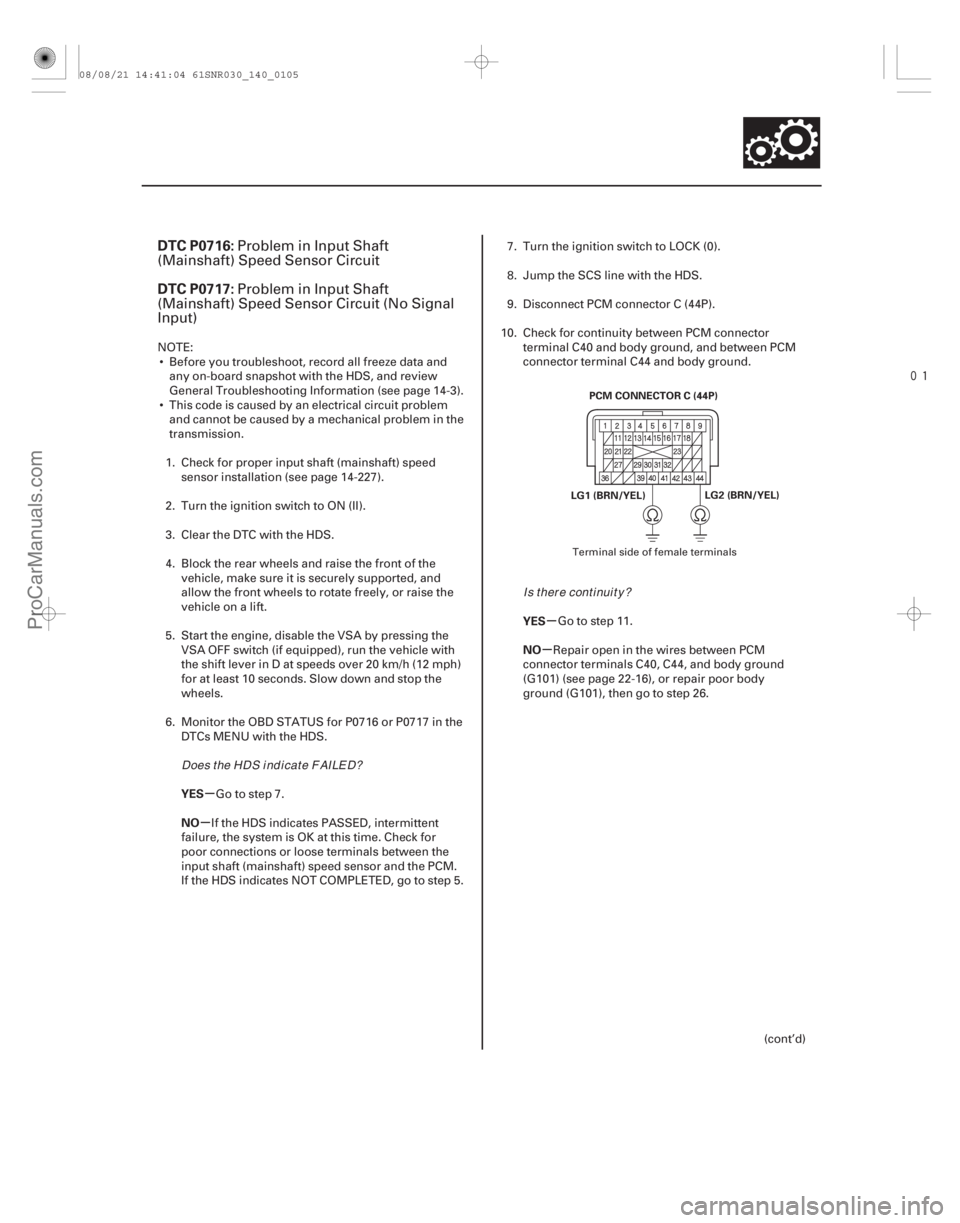

DTC P0716:
DTC P0717:
YES
NO YES
NO
14-103
PCM CONNECTOR C (44P)
LG2 (BRN/YEL)
LG1 (BRN/YEL)
Problem in Input Shaft
(Mainshaft) Speed Sensor Circuit
Problem in Input Shaft
(Mainshaft) Speed Sensor Circuit (No Signal
Input)
NOTE:
 Before you troubleshoot, record all freeze data and any on-board snapshot with the HDS, and review
General Troubleshooting Information (see page 14-3).
 This code is caused by an electrical circuit problem and cannot be caused by a mechanical problem in the
transmission.
1. Check for proper input shaft (mainshaft) speed sensor installation (see page 14-227).
2. Turn the ignition switch to ON (II).
3. Clear the DTC with the HDS.
4. Block the rear wheels and raise the front of the vehicle, make sure it is securely supported, and
allow the front wheels to rotate freely, or raise the
vehicle on a lift.
5. Start the engine, disable the VSA by pressing the VSA OFF switch (if equipped), run the vehicle with
the shift lever in D at speeds over 20 km/h (12 mph)
for at least 10 seconds. Slow down and stop the
wheels.
6. Monitor the OBD STATUS for P0716 or P0717 in the DTCs MENU with the HDS.
Go to step 7.
If the HDS indicates PASSED, intermittent
failure, the system is OK at this time. Check for
poor connections or loose terminals between the
input shaft (mainshaft) speed sensor and the PCM.
If the HDS indicates NOT COMPLETED, go to step 5. 7. Turn the ignition switch to LOCK (0).
8. Jump the SCS line with the HDS.
9. Disconnect PCM connector C (44P).
10. Check for continuity between PCM connector terminal C40 and body ground, and between PCM
connector terminal C44 and body ground.
Go to step 11.
Repair open in the wires between PCM
connector terminals C40, C44, and body ground
(G101) (see page 22-16), or repair poor body
ground (G 101), then go to step 26.
(cont’d)
Terminal side of female terminals
Does the HDS ind icate F AILED? Is there continuity?
08/08/21 14:41:04 61SNR030_140_0105
ProCarManuals.com
DYNOMITE -2009-


(#'


)
µ
µ µ
µ

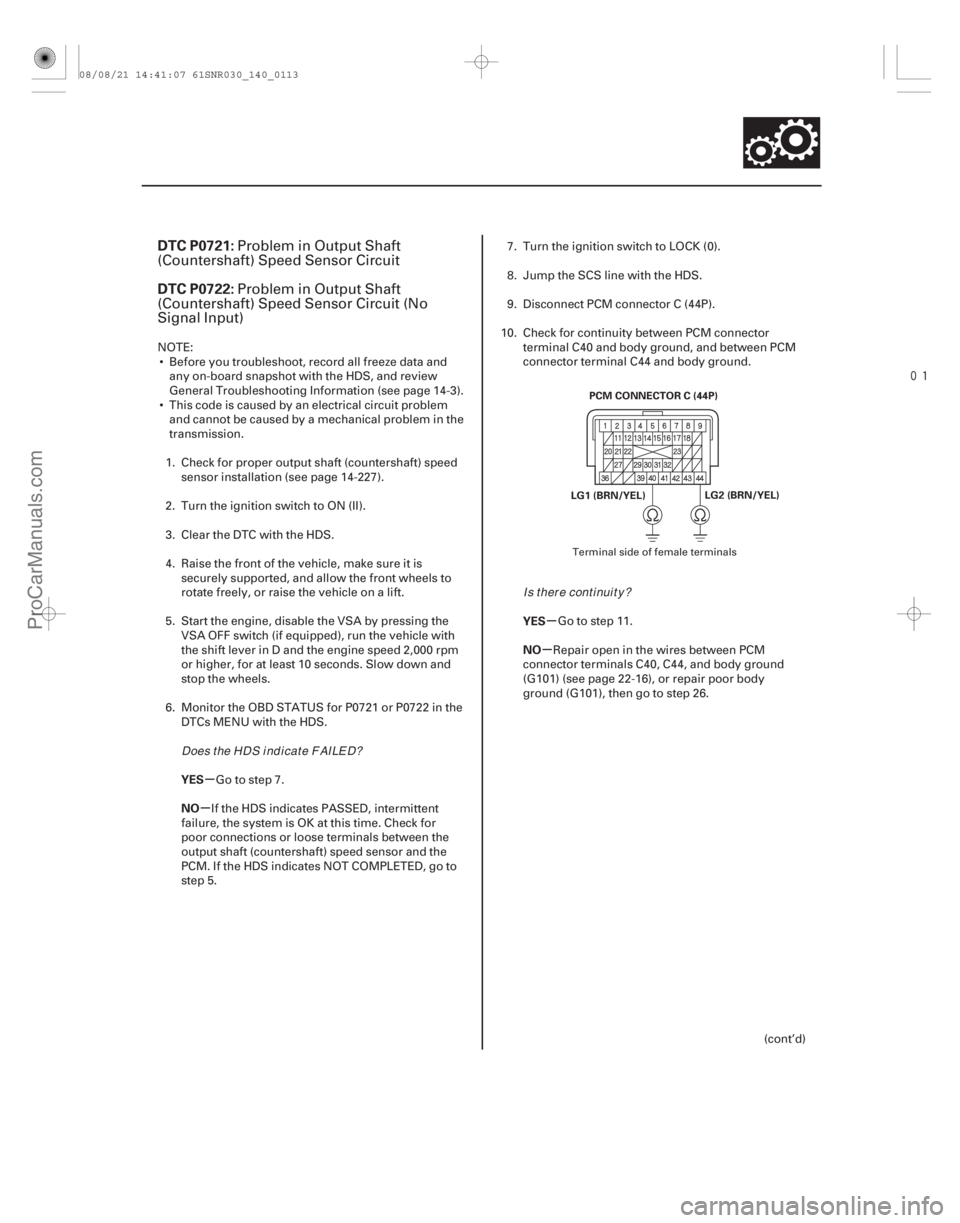

DTC P0721:
DTC P0722:
YES
NO YES
NO
14-111
PCM CONNECTOR C (44P)
LG2 (BRN/YEL)
LG1 (BRN/YEL)
Problem in Output Shaft
(Countershaft) Speed Sensor Circuit
Problem in Output Shaft
(Countershaft) Speed Sensor Circuit (No
Signal Input)
NOTE:
 Before you troubleshoot, record all freeze data and any on-board snapshot with the HDS, and review
General Troubleshooting Information (see page 14-3).
 This code is caused by an electrical circuit problem and cannot be caused by a mechanical problem in the
transmission.
1. Check for proper output shaft (countershaft) speed sensor installation (see page 14-227).
2. Turn the ignition switch to ON (II).
3. Clear the DTC with the HDS.
4. Raise the front of the vehicle, make sure it is securely supported, and allow the front wheels to
rotate freely, or raise the vehicle on a lift.
5. Start the engine, disable the VSA by pressing the VSA OFF switch (if equipped), run the vehicle with
the shift lever in D and the engine speed 2,000 rpm
or higher, for at least 10 seconds. Slow down and
stop the wheels.
6. Monitor the OBD STATUS for P0721 or P0722 in the DTCs MENU with the HDS.
Go to step 7.
If the HDS indicates PASSED, intermittent
failure, the system is OK at this time. Check for
poor connections or loose terminals between the
output shaft (countershaft) speed sensor and the
PCM. If the HDS indicates NOT COMPLETED, go to
step 5. 7. Turn the ignition switch to LOCK (0).
8. Jump the SCS line with the HDS.
9. Disconnect PCM connector C (44P).
10. Check for continuity between PCM connector terminal C40 and body ground, and between PCM
connector terminal C44 and body ground.
Go to step 11.
Repair open in the wires between PCM
connector terminals C40, C44, and body ground
(G101) (see page 22-16), or repair poor body
ground (G 101), then go to step 26.
(cont’d)
Terminal side of female terminals
Does the HDS ind icate F AILED? Is there continuity?
08/08/21 14:41:07 61SNR030_140_0113
ProCarManuals.com
DYNOMITE -2009-
