2006 ACURA CSX dashboard display


(#')
Information Display
Driver’s Side Dashboard:
3-4Maintenance Minder
General Information
MAINTENANCE MINDER INDICATOR
INFORMATION DISPLAY
SEL/RESET BUTTON
The maintenance minder is an important feature of the information display. Based on engine and transmission
operating conditions, the Acura CSX’s onboard computer (ECM/PCM) calculates the remaining engine oil and the
automatic transmission fluid life. The system also displays the remaining engine oil life along with the code(s) for
other scheduled maintenance items needing service.
08/08/21 14:08:30 61SNR030_030_0004
ProCarManuals.com
DYNOMITE -2009-



Clear A/T DTCs Procedure
OBD StatusHow to End a Troubleshooting Session
(required after any troubleshooting)
Failure Reproduction Technique
14-6Automatic Transmission
General Troubleshooting Information (cont’d)
A
1. Connect the HDS to the DLC (A) located under the
driver’s side of the dashboard.
2. Turn the ignition switch to ON (II).
3. Make sure the HDS communicates with the PCM. If it does not, go to the DLC circuit troubleshooting
(see page 11-204).
4. Clear the DTC(s) on the HDS screen.
The OBD status shows the current system status of
each DTC and all of the parameters. This function is
used to see if the technician’s repair was successfully
completed. The results of diagnostic tests for the DTC
are displayed as:  PASSED: The on-board diagnosis is successfully completed.
 FAILED: The on-board diagnosis has finished but failed.
 NOT COMPLETED: The on-board diagnosis was running but is out of the enable conditions of the DTC. NOTE: Reset the PCM with the HDS while the engine is
stopped.
1. Turn the ignition switch to LOCK (0).
2. Turn the ignition switch to ON (II), and wait for 30 seconds.
3. Turn the ignition switch to LOCK (0), and disconnect the HDS from the DLC.
4. Do the PCM idle learn procedure (see page 11-310).
5. Start the engine with the shift lever in P or N, and warm it up to normal operating temperature (the
radiator fan comes on).
6. To verify that the problem is repaired, test-drive the vehicle for several minutes at speeds over 50 km/h
(31 mph) or under the same conditions as those
indicated by the freeze data.
Make sure to follow these points while the vehicle is
raised on a lift for the test-drive.  Disable the VSA by pressing the VSA OFF switch.
 VSA DTC’s may come on when test-driving on a lift. If the VSA DTC(s) come on, clear the DTC(s) with the
HDS.
08/08/21 14:37:07 61SNR030_140_0008
ProCarManuals.com
DYNOMITE -2009-



How to Retrieve DTCs
How to Clear DTCs
17-21
A A
1. With the ignition switch in LOCK (0), connect the
HDS (Honda diagnostic system) to the data link
connector (DLC) (A) located under the driver’s side
of the dashboard.
2. Turn the ignition switch to ON (II).
3. Make sure the HDS communicates with the vehicle and the EPS control unit. If it doesn’t, troubleshoot
the DLC circuit (see page 11-204).
4. Follow the prompts on the HDS to display the DTC(s) on the screen. After determining the DTC,
refer to the DTC Troubleshooting.
NOTE: See the HDS Help menu for specific
instructions.
5. Turn the ignition switch to LOCK (0). 1. With the ignition switch in LOCK (0), connect the
HDS to the data link connector (DLC) (A) located
under the driver’s side of the dashboard.
2. Turn the ignition switch to ON (II).
3. Make sure the HDS communicates with the vehicle and the EPS control unit. If it doesn’t, troubleshoot
the DLC circuit (see page 11-204).
4. Clear the DTC(s) by following the screen prompts on the HDS.
NOTE: See the HDS Help menu for specific
instructions.
5. Turn the ignition switch to LOCK (0).
08/08/21 14:53:59 61SNR030_170_0022
ProCarManuals.com
DYNOMITE -2009-



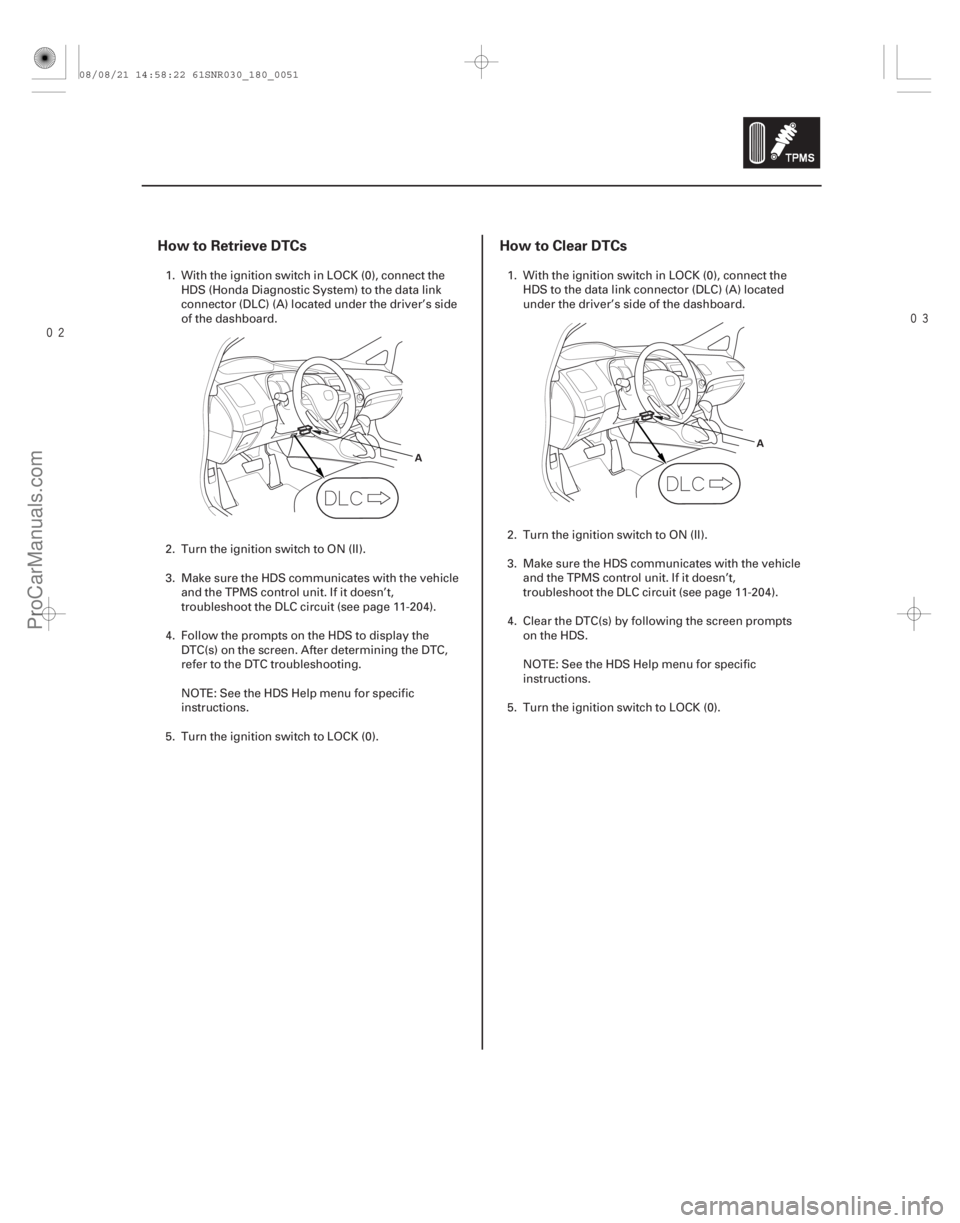

How to Retrieve DTCs
How to Clear DTCs
18-51
A A
1. With the ignition switch in LOCK (0), connect the
HDS (Honda Diagnostic System) to the data link
connector (DLC) (A) located under the driver’s side
of the dashboard.
2. Turn the ignition switch to ON (II).
3. Make sure the HDS communicates with the vehicle and the TPMS control unit. If it doesn’t,
troubleshoot the DLC circuit (see page 11- 204).
4. Follow the prompts on the HDS to display the DTC(s) on the screen. After determining the DTC,
refer to the DTC troubleshooting.
NOTE: See the HDS Help menu for specific
instructions.
5. Turn the ignition switch to LOCK (0). 1. With the ignition switch in LOCK (0), connect the
HDS to the data link connector (DLC) (A) located
under the driver’s side of the dashboard.
2. Turn the ignition switch to ON (II).
3. Make sure the HDS communicates with the vehicle and the TPMS control unit. If it doesn’t,
troubleshoot the DLC circuit (see page 11-204).
4. Clear the DTC(s) by following the screen prompts on the HDS.
NOTE: See the HDS Help menu for specific
instructions.
5. Turn the ignition switch to LOCK (0).
08/08/21 14:58:22 61SNR030_180_0051
ProCarManuals.com
DYNOMITE -2009-



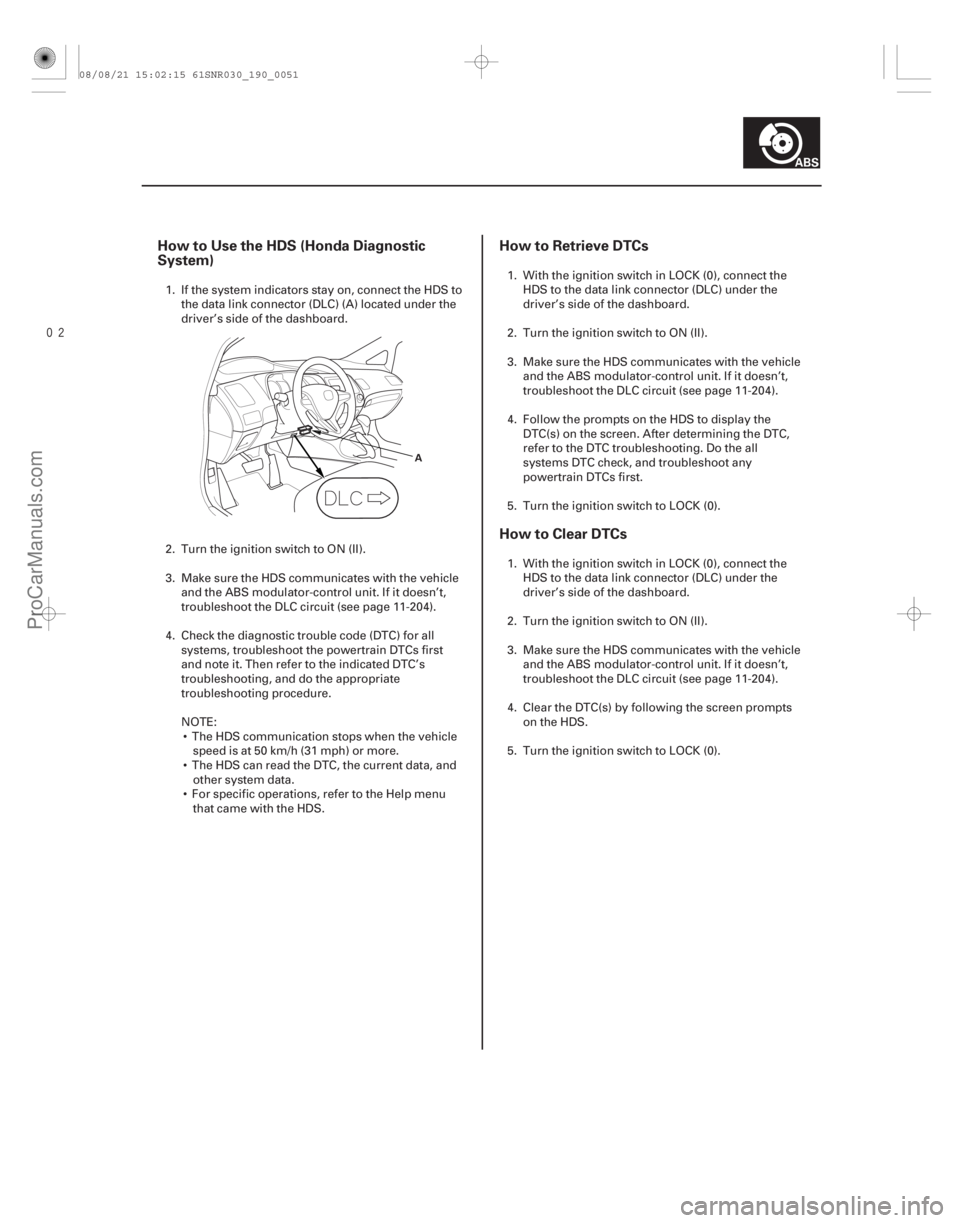

How to Use the HDS (Honda Diagnostic
System)How to Retrieve DTCs
How to Clear DTCs
19-51
A
1. If the system indicators stay on, connect the HDS to
the data link connector (DLC) (A) located under the
driver’s side of the dashboard.
2. Turn the ignition switch to ON (II).
3. Make sure the HDS communicates with the vehicle and the ABS modulator-control unit. If it doesn’t,
troubleshoot the DLC circuit (see page 11- 204).
4. Check the diagnostic trouble code (DTC) for all systems, troubleshoot the powertrain DTCs first
and note it. Then refer to the indicated DTC’s
troubleshooting, and do the appropriate
troubleshooting procedure.
NOTE: The HDS communication stops when the vehicle speed is at 50 km/h (31 mph) or more.
 The HDS can read the DTC, the current data, and other system data.
 For specific operations, refer to the Help menu that came with the HDS. 1. With the ignition switch in LOCK (0), connect the
HDS to the data link connector (DLC) under the
driver’s side of the dashboard.
2. Turn the ignition switch to ON (II).
3. Make sure the HDS communicates with the vehicle and the ABS modulator-control unit. If it doesn’t,
troubleshoot the DLC circuit (see page 11-204).
4. Follow the prompts on the HDS to display the DTC(s) on the screen. After determining the DTC,
refer to the DTC troubleshooting. Do the all
systems DTC check, and troubleshoot any
powertrain DTCs first.
5. Turn the ignition switch to LOCK (0).
1. With the ignition switch in LOCK (0), connect the HDS to the data link connector (DLC) under the
driver’s side of the dashboard.
2. Turn the ignition switch to ON (II).
3. Make sure the HDS communicates with the vehicle and the ABS modulator-control unit. If it doesn’t,
troubleshoot the DLC circuit (see page 11-204).
4. Clear the DTC(s) by following the screen prompts on the HDS.
5. Turn the ignition switch to LOCK (0).
08/08/21 15:02:15 61SNR030_190_0051
ProCarManuals.com
DYNOMITE -2009-



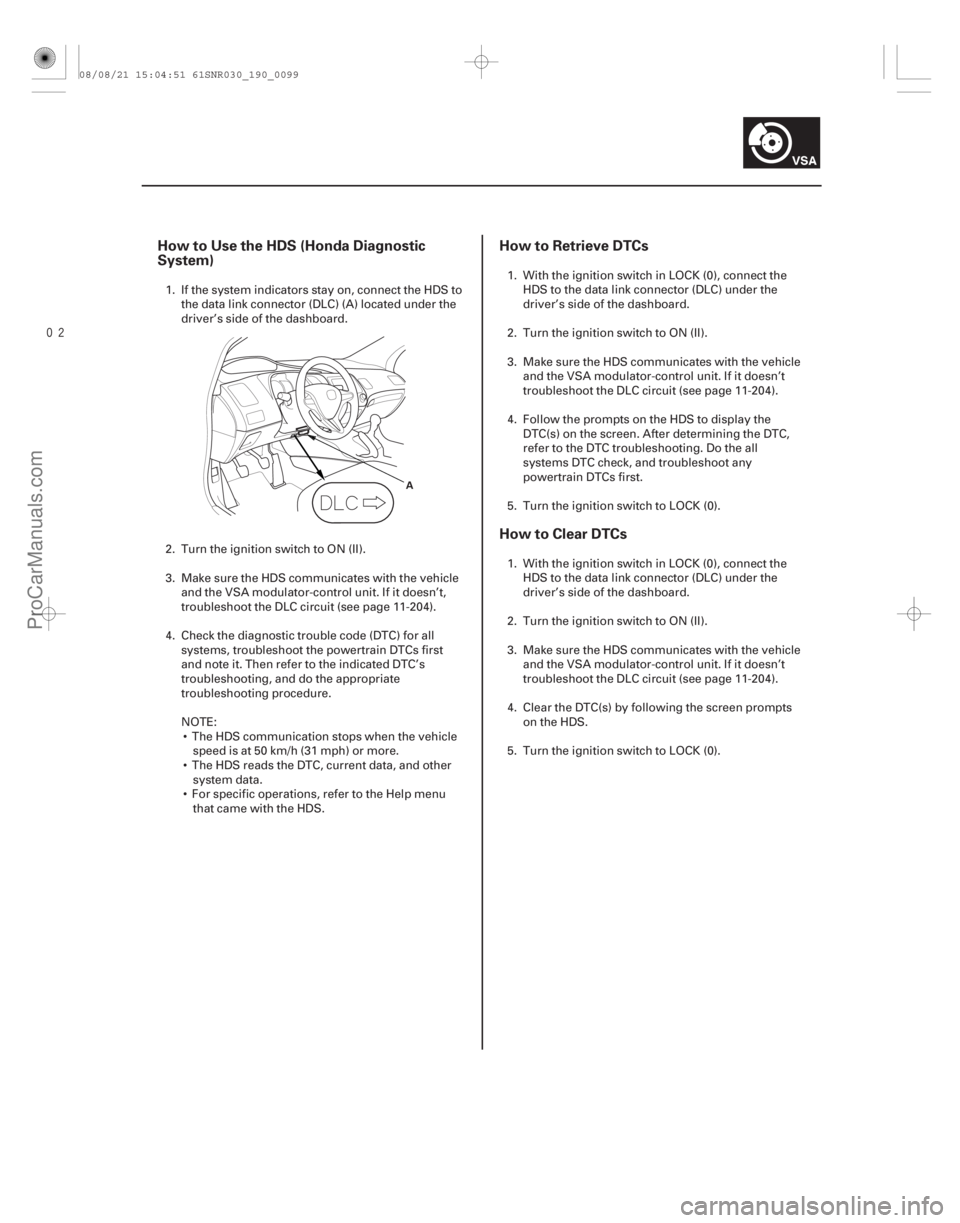

How to Use the HDS (Honda Diagnostic
System)How to Retrieve DTCs
How to Clear DTCs
19-99
A
1. If the system indicators stay on, connect the HDS to
the data link connector (DLC) (A) located under the
driver’s side of the dashboard.
2. Turn the ignition switch to ON (II).
3. Make sure the HDS communicates with the vehicle and the VSA modulator-control unit. If it doesn’t,
troubleshoot the DLC circuit (see page 11- 204).
4. Check the diagnostic trouble code (DTC) for all systems, troubleshoot the powertrain DTCs first
and note it. Then refer to the indicated DTC’s
troubleshooting, and do the appropriate
troubleshooting procedure.
NOTE: The HDS communication stops when the vehicle speed is at 50 km/h (31 mph) or more.
 The HDS reads the DTC, current data, and other system data.
 For specific operations, refer to the Help menu that came with the HDS. 1. With the ignition switch in LOCK (0), connect the
HDS to the data link connector (DLC) under the
driver’s side of the dashboard.
2. Turn the ignition switch to ON (II).
3. Make sure the HDS communicates with the vehicle and the VSA modulator-control unit. If it doesn’t
troubleshoot the DLC circuit (see page 11-204).
4. Follow the prompts on the HDS to display the DTC(s) on the screen. After determining the DTC,
refer to the DTC troubleshooting. Do the all
systems DTC check, and troubleshoot any
powertrain DTCs first.
5. Turn the ignition switch to LOCK (0).
1. With the ignition switch in LOCK (0), connect the HDS to the data link connector (DLC) under the
driver’s side of the dashboard.
2. Turn the ignition switch to ON (II).
3. Make sure the HDS communicates with the vehicle and the VSA modulator-control unit. If it doesn’t
troubleshoot the DLC circuit (see page 11-204).
4. Clear the DTC(s) by following the screen prompts on the HDS.
5. Turn the ignition switch to LOCK (0).
08/08/21 15:04:51 61SNR030_190_0099
ProCarManuals.com
DYNOMITE -2009-

(#'
/)
Body
Doors
Mirrors
Glass
MoonroofInterior Trim
Consoles
Dashboard
.............................................. ..............................................
Special Tools . 20-2
............................................ ..
.... ...
................
...........................................
........................................... ...
..... ....
..................
...........................................
........................................... .......
.............................................
............................................. ............................................
..
.... ...
................
...........................................
........................................... ...
..... ....
..................
...........................................
........................................... .......
.............................................
.............................................
Component Location Index
- Front Door . 20-3
Component Location Index - Rear Door . 20-5
Front Door Panel Removal/Installation . 20-7
Front Door Outer Handle Replacement . 20-9
Front Door Latch Replacement . 20-12
Front Door Glass and Regulator Replacement . 20-14
Front Door Glass Outer Weatherstrip Replacement . 20-15
Front Door Weatherstrip Replacement . 20-16
Rear Door Panel Removal/Installation . 20-17
Rear Door Outer Handle Replacement . 20-19
Rear Door Latch Replacement . 20-21
Rear Door Glass and Regulator Replacement . 20-23
Rear Door Glass Outer Weatherstrip Replacement . 20-26
Rear Door Weatherstrip Replacement . 20-27
Front and Rear Door Glass Adjustment . 20-28
Front and Rear Door Position Adjustment . 20-29
Front and Rear Door Striker Adjustment . 20-31
......................
......................
.......................................
......................
......................
......................
.................
Component Location Index . 20-32
Power Mirror Replacement . 20-33
Mirror Holder Replacement . 20-34
Rearview Mirror Replacement . 20-35
......................
.......................... .............
...................... ......................
.......................... .............
......................
Component Location Index
. 20-36
Windshield Replacement . 20-38
Front Corner Glass Replacement . 20-43
Rear Window Replacement . 20-47
...................... ............
.......................
.................................... ....................
.....................
............................
................................... .......
......................... ..
......................
............
.......................
.................................... ....................
.....................
............................
................................... .......
......................... ..
Component Location Index
. 20-53
Symptom Troubleshooting Index . 20-54
Glass Position Adjustment . 20-55
Glass Replacement . 20-55
Wind Deflector Replacement . 20-56
Drain Channel Replacement . 20-57
Sunshade Replacement . 20-58
Motor Replacement . 20-59
Frame and Drain Tube Replacement . 20-60
Drain Channel Slider and Cable Assembly Replacement . 20-62
Closing Force and Opening Drag Check . 20-64 ......................
..
..
.................................... ..
.....
...........
................
.................................. ......................
..
..
.................................... ..
.....
...........
................
..................................
Component Location Index
. 20-65
Trim Removal/Installation - Door Areas . 20-66
Trim Removal/Installation - Pillar Areas . 20-69
Trim Removal/Installation - Rear Shelf Area . 20-78
Trim Removal/Installation - Trunk Area . 20-80
Trim Removal/Installation - Trunk Lid . 20-82
Grab Handle Removal/Installation . 20-82
Headliner Removal/Installation . 20-84
Carpet Replacement . 20-88
......
..................... ....
...................... ......
..................... ....
......................
Center Console Removal/Installation . 20-92
Center Console
Disassembly/Reassembly . 20-95
Center Console Armrest Replacement . 20-96
Armrest Lock Replacement . 20-96
..............................
.............................. ...
..............................
.............................. .........
.............................. ....................
...............
..............................
..............................
.............................. .....................
..............................
..............................
...
..............................
.............................. .........
.............................. ....................
...............
..............................
..............................
.............................. .....................
Instrument Panel
Removal/Installation . 20-98
Gauge Control Module (Speedo) Trim Removal/Installation . 20-99
Subdisplay Visor Removal/Installation . 20-100
Driver’s Dashboard Lower Cover Removal/Installation . 20-102
Driver’s Dashboard Undercover Removal/Installation . 20-103
Center Pocket Removal/Installation . 20-103
Passenger’s Dashboard Undercover Removal/Installation . 20-104
Glove Box Removal/Installation . 20-104
Dashboard Vent Removal/Installation . 20-105
Glove Box Striker Replacement . 20-107
Dashboard Side Trim Removal/Installation . 20-107
Side Defogger Vent Trim Removal/Installation . 20-108
Dashboard/Steering Hanger Beam Removal/Installation . 20-108
Dashboard/Steering Hanger Beam Disassembly/Reassembly . 20-114
08/08/21 14:58:49 61SNR030_200_0002
ProCarManuals.com
DYNOMITE -2009-




(#'
 )
S

pecial Tools Required
20-98 Dashboard

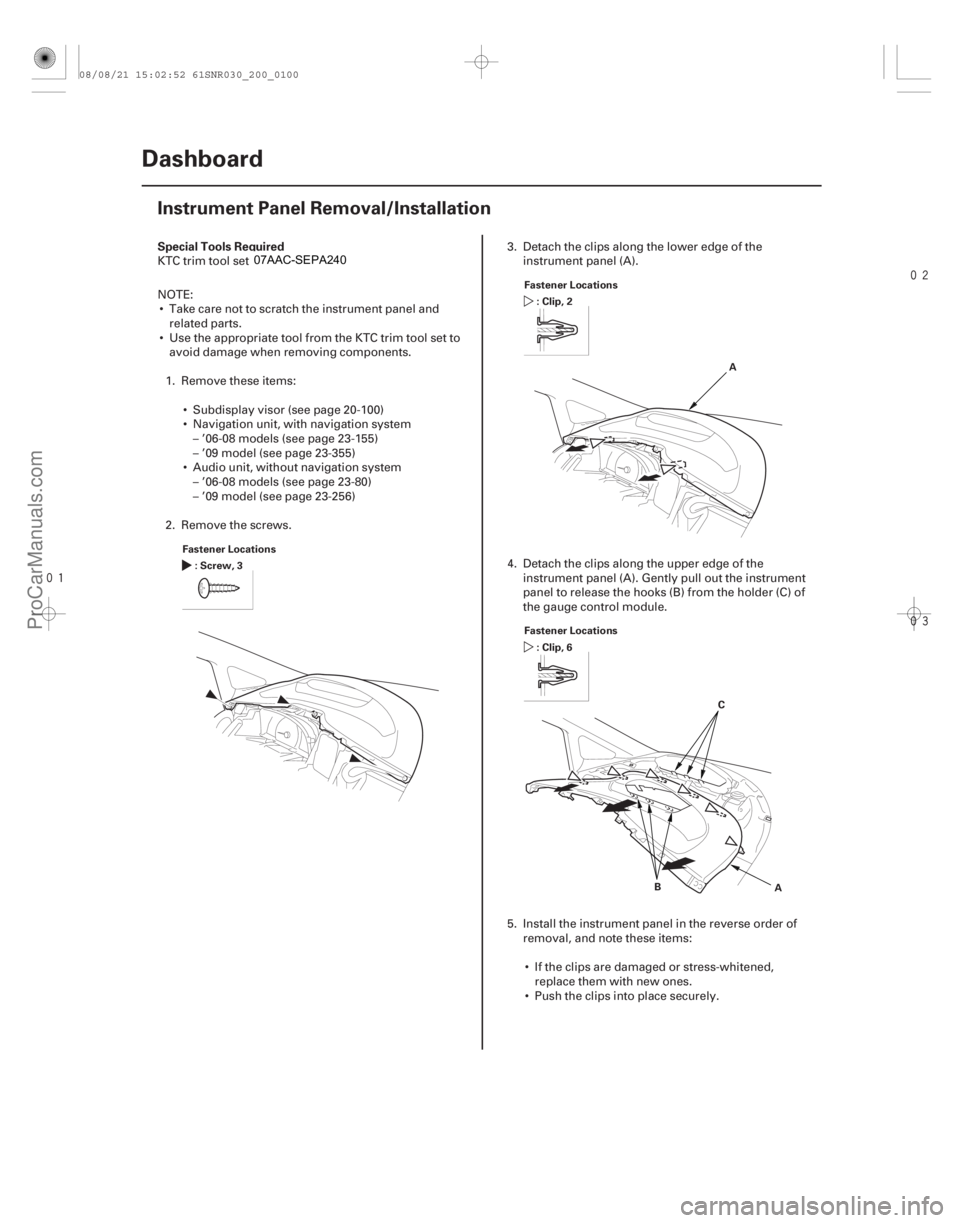

Instrument Panel Removal/Installation
Fastener Locations
:Screw,3 F
astener Locations
:Clip,2
A
Fastener Locations : Clip, 6
A
B C
KTC trim tool set SOJATP2014
NOTE:

Take care not to scratch the instrument panel and
related parts.
 Use the appropriate tool from the KTC trim tool set to avoid damage when removing components.
1. Remove these items:
 Subdisplay visor (see page 20-100)
 Navigation unit, with navigation system– ’06-08 models (see page 23-155)
– ’09 model (see page 23-355)
 Audio unit, without navigation system – ’06-08 models (see page 23-80)
– ’09 model (see page 23-256)
2. Remove the screws. 3

. Detach the clips along the lower edge of the
instrument panel (A).
4. Detach the clips along the upper edge of the instrument panel (A). Gently pull out the instrument
panel to release the hooks (B) from the holder (C) of
the gauge control module.
5. Install the instrument panel in the reverse order of removal, and note these items:
 If the clips are damaged or stress-whitened, replace them with new ones.
 Push the clips into place securely.
08/08/21 15:02:52 61SNR030_200_0100
ProCarManuals.com
DYNOMITE -2009-
