TROUBLE DIAGNOSIS
EC-107
[QR25(WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
THRTL SEN1
THRTL SEN2*2
●Ignition switch: ON
(Engine stopped)Accelerator pedal: Fully released More than 0.36V
●Shift lever:
D (A/T model)
1st (M/T model)Accelerator pedal: Fully depressed Less than 4.75V
START SIGNAL
●Ignition switch: ON → START → ON OFF → ON → OFF
CLSD THL POS
●Ignition switch: ON
(Engine stopped)Accelerator pedal: Fully released ON
Accelerator pedal: Slightly depressed OFF
AIR COND SIG
●Engine: After warming up, idle
the engineAir conditioner switch: OFF OFF
Air conditioner switch: ON
(Compressor operates.)ON
P/N POSI SW
●Ignition switch: ONShift lever:
P or N (A/T model)
Neutral (M/T model)ON
Shift lever: Except above OFF
PW/ST SIGNAL
●Engine: After warming up, idle
the engineSteering wheel is in neutral position.
(Forward direction)OFF
Steering wheel is turned. ON
LOAD SIGNAL
●Ignition switch: ONRear window defogger switch is ON
and/or lighting switch is in 2nd.ON
Rear window defogger switch is OFF
and lighting switch is OFF.OFF
IGNITION SW
●Ignition switch: ON → OFF → ON ON → OFF → ON
HEATER FAN SW
●Engine: After warming up, idle
the engineHeater fan is operating. ON
Heater fan is not operating OFF
BRAKE SW
●Ignition switch: ONBrake pedal: Fully released OFF
Brake pedal: Slightly depressed ON
INJ PULSE-B1
●Engine: After warming up
●Shift lever: N
●Air conditioner switch: OFF
●No-loadIdle 2.0 - 3.0 msec
2,000 rpm 1.9 - 2.9 msec
IGN TIMING
●Engine: After warming up
●Shift lever: N
●Air conditioner switch: OFF
●No-loadIdleMT: 12° - 16° BTDC
AT: 1 4° - 18° BTDC
2,000 rpm 25° - 45° BTDC
CAL/LD VALUE
●Engine: After warming up
●Shift lever: N
●Air conditioner switch: OFF
●No-loadIdle 10% - 35%
2,500 rpm 10% - 35%
MASS AIRFLOW
●Engine: After warming up
●Shift lever: N
●Air conditioner switch: OFF
●No-loadIdle 1.0 - 4.0 g·m/s
2,500 rpm 4.0 - 10.0 g·m/s
PURG VOL C/V
●Engine: After warming up
●Shift lever: N
●Air conditioner switch: OFF
●No-loadIdle 0%
2,000 rpm 20 - 30% MONITOR ITEM CONDITION SPECIFICATION
Page 458 of 3833
![NISSAN X-TRAIL 2001 Service Repair Manual EC-108
[QR25(WITH EURO-OBD)]
TROUBLE DIAGNOSIS
*1: These items are not applied for M/T models.
*2: Accelerator pedal position sensor 2 signal and throttle position sensor 2 signal are co NISSAN X-TRAIL 2001 Service Repair Manual EC-108
[QR25(WITH EURO-OBD)]
TROUBLE DIAGNOSIS
*1: These items are not applied for M/T models.
*2: Accelerator pedal position sensor 2 signal and throttle position sensor 2 signal are co](/manual-img/5/57405/w960_57405-457.png)
EC-108
[QR25(WITH EURO-OBD)]
TROUBLE DIAGNOSIS
*1: These items are not applied for M/T models.
*2: Accelerator pedal position sensor 2 signal and throttle position sensor 2 signal are converted by ECM internally. Thus, they differ
from ECM terminals voltage signal.INT/V TIM (B1)
●Engine: After warming up
●Shift lever: N
●Air conditioner switch: OFF
●No-loadIdle−5° - 5°CA
When revving engine up to 2,000 rpm
quicklyApprox. 0° - 20°CA
INT/V SOL (B1)
●Engine: After warming up
●Shift lever: N
●Air conditioner switch: OFF
●No-loadIdle 0% - 2%
When revving engine up to 2,000 rpm
quicklyApprox. 0% - 50%
VIAS S/V
●Engine: After warming upIdle OFF
More than 5,000 rpm ON
AIR COND RLY
●Engine: After warming up, idle
the engineAir conditioner switch: OFF OFF
Air conditioner switch: ON
(Compressor operates)ON
FUEL PUMP RLY
●For 1 seconds after turning ignition switch ON
●Engine running or crankingON
●Except above conditions OFF
THRTL RELAY
●Ignition switch: ON ON
COOLING FAN
●Engine: After warming up, idle
the engine
●Air conditioner switch: OFFEngine coolant temperature is 94°C
(201°F) or lessOFF
Engine coolant temperature is
between 95°C (203°F) and 104°C
(219°F)LOW
Engine coolant temperature is 105°C
(221°F) or moreHIGH
HO2S1 HTR (B1)
●Engine: After warming up
●Engine speed: Below 3,600 rpmON
●Engine speed: Above 3,600 rpm OFF
HO2S2 HTR (B1)
●Engine speed: Below 3,600 rpm after the following conditions are met.
●Engine: After warming up
●Keeping the engine speed between 3,500 and 4,000 rpm for one minute
and at idle for one minute under on loadON
●Engine speed: Above 3,600 rpm OFF
TRVL AFTER MIL
●Ignition switch: ONVehicle has traveled after MI has
turned ON.0 - 65,535 km
(0 - 40,723 mile)
AC PRESS SEN
●Ignition switch: ON (Engine stopped) Approx. 0V
●Engine: Idle
●Air conditioner switch: OFF1.0 - 4.0V
CAN COMM*
1
●Ignition switch: ONOK
CAN CIRC 1*
1OK
CAN CIRC 2*
1OK
CAN CIRC 3*
1UNKWN
CAN CIRC 4*
1UNKWN
CAN CIRC 5*
1UNKWN MONITOR ITEM CONDITION SPECIFICATION
Page 459 of 3833
![NISSAN X-TRAIL 2001 Service Repair Manual TROUBLE DIAGNOSIS
EC-109
[QR25(WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
Major Sensor Reference Graph in Data Monitor ModeEBS00M14
The following are the major sensor reference graphs in “DATA MONITO NISSAN X-TRAIL 2001 Service Repair Manual TROUBLE DIAGNOSIS
EC-109
[QR25(WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
Major Sensor Reference Graph in Data Monitor ModeEBS00M14
The following are the major sensor reference graphs in “DATA MONITO](/manual-img/5/57405/w960_57405-458.png)
TROUBLE DIAGNOSIS
EC-109
[QR25(WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
Major Sensor Reference Graph in Data Monitor ModeEBS00M14

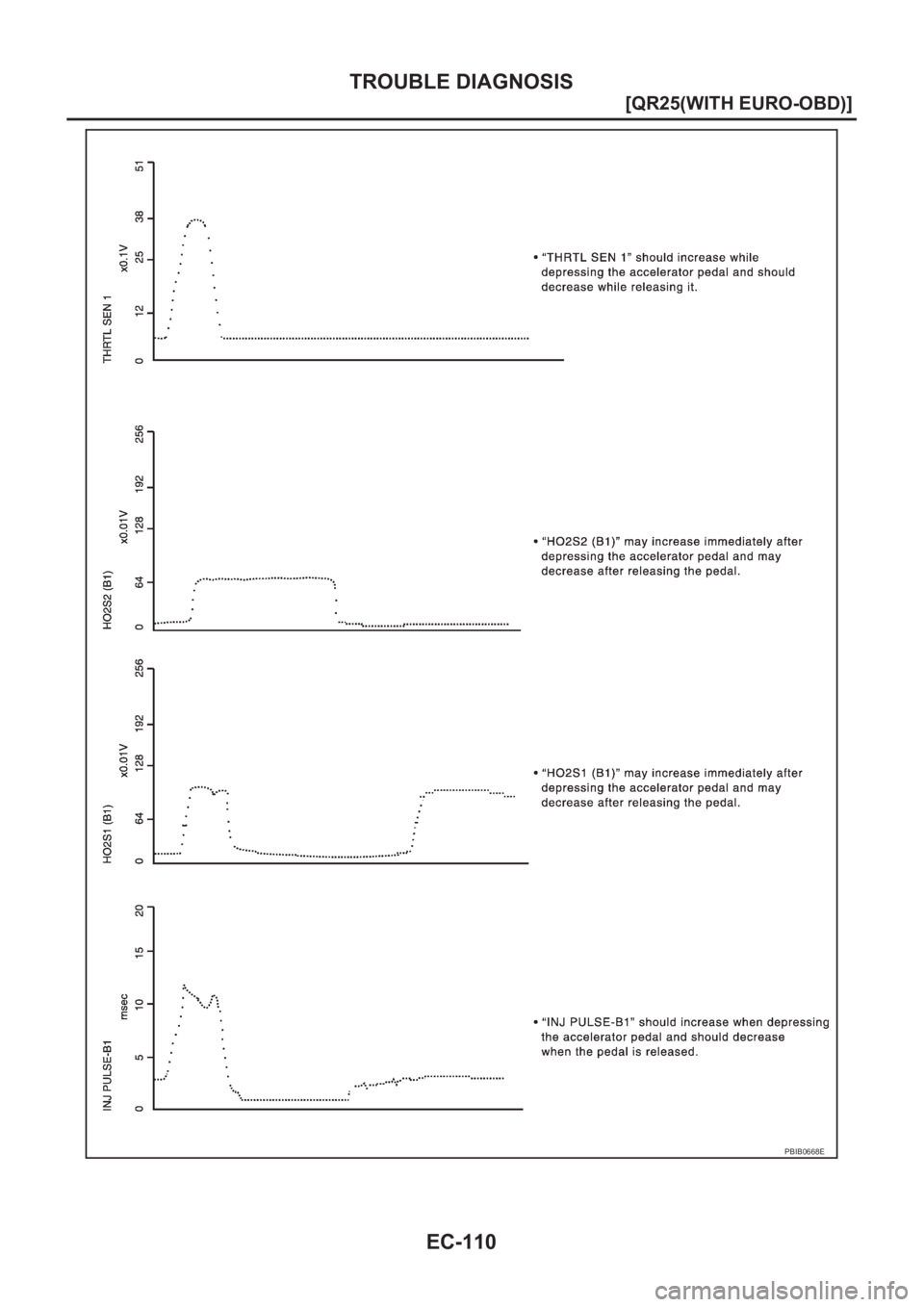

The following are the major sensor reference graphs in “DATA MONITOR” mode.
