Page 3521 of 3833

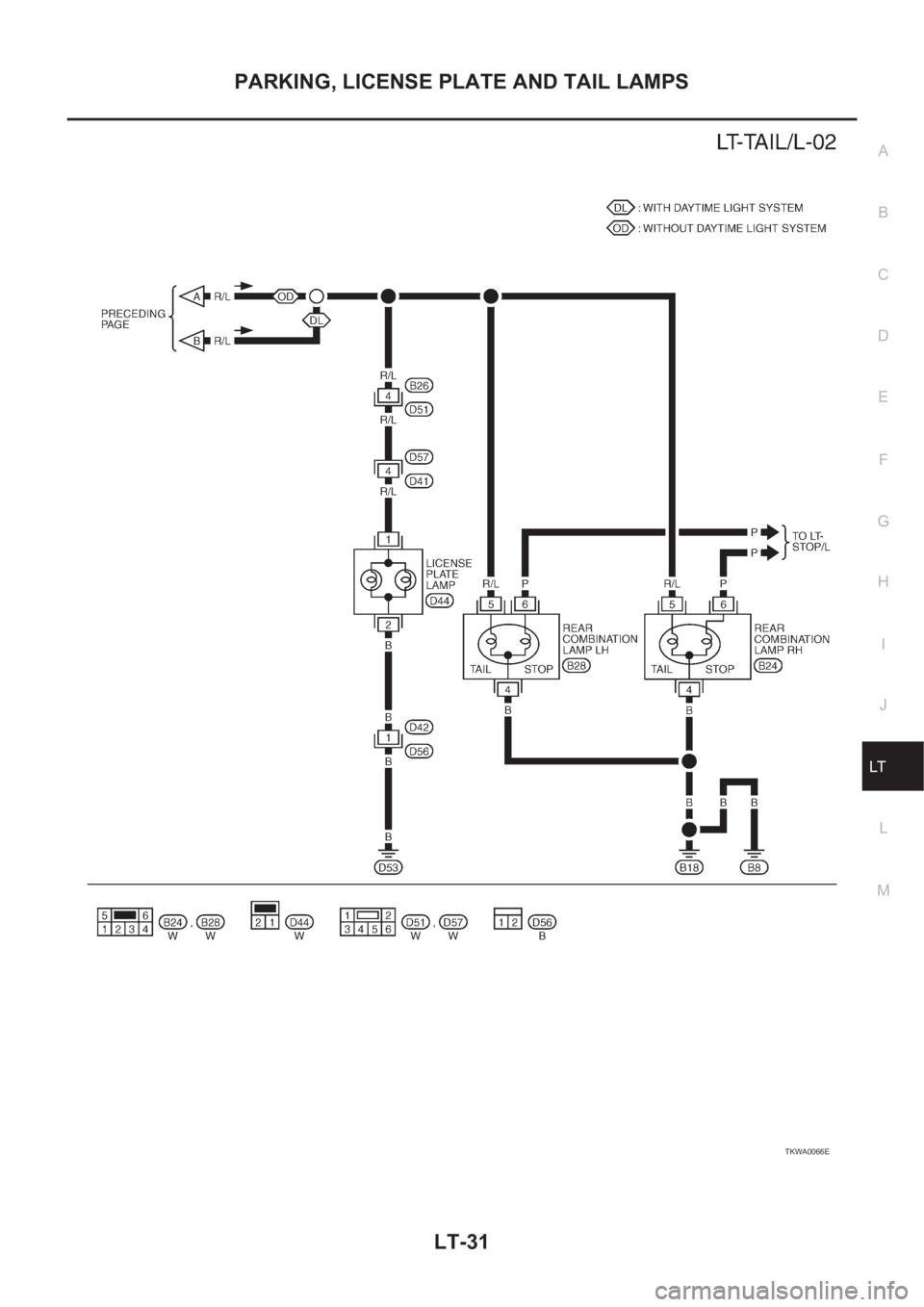

NISSAN X-TRAIL 2001 Service Repair Manual PARKING, LICENSE PLATE AND TAIL LAMPS LT-31 C D E F G H I J L MA B LT TKWA0066E

Page 3522 of 3833

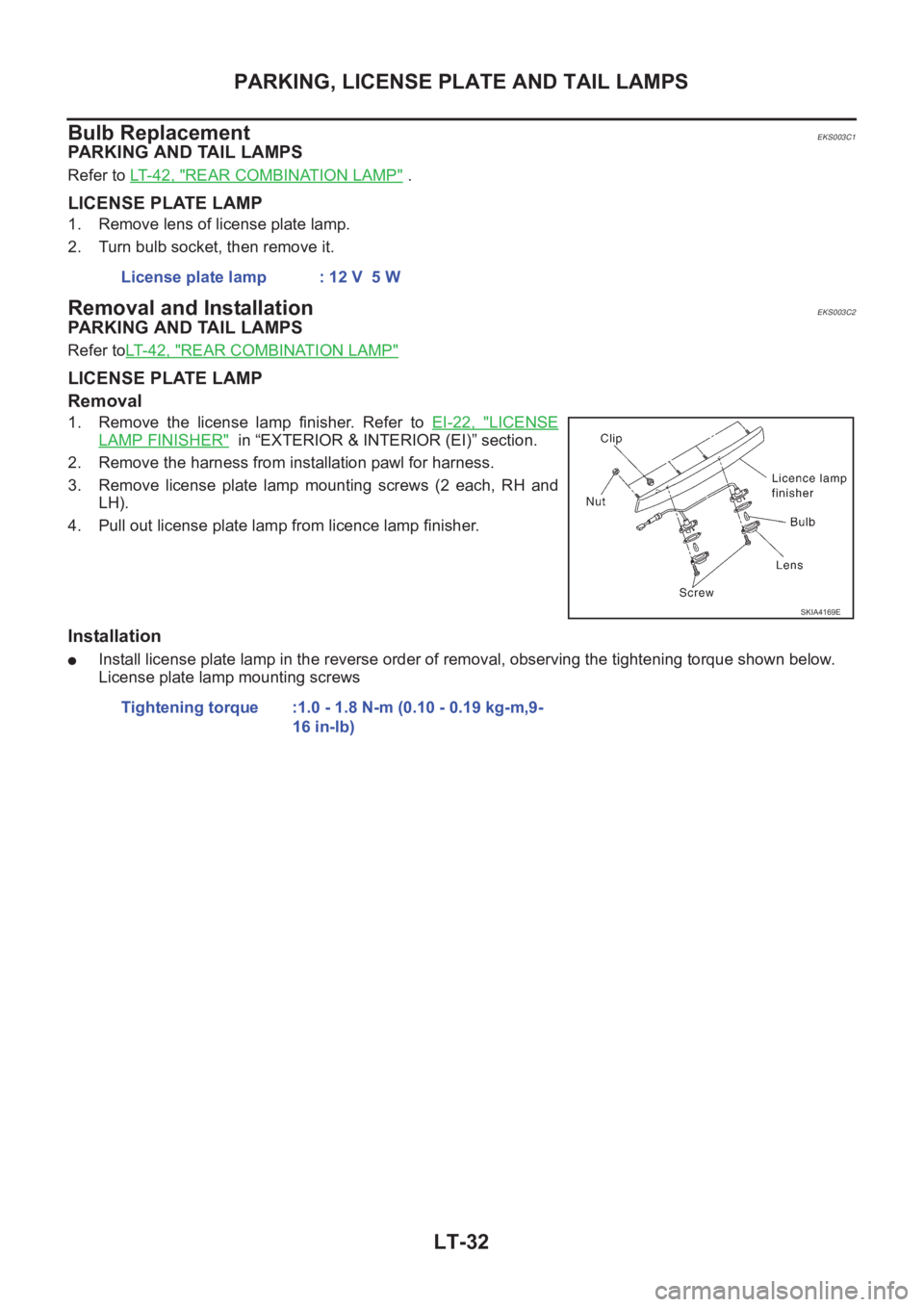

NISSAN X-TRAIL 2001 Service Repair Manual LT-32 PARKING, LICENSE PLATE AND TAIL LAMPS Bulb Replacement EKS003C1 PARKING AND TAIL LAMPS Refer to LT-42, "REAR COMBINATION LAMP" . LICENSE PLATE LAMP 1. Remove lens of license plate lam

Page 3523 of 3833

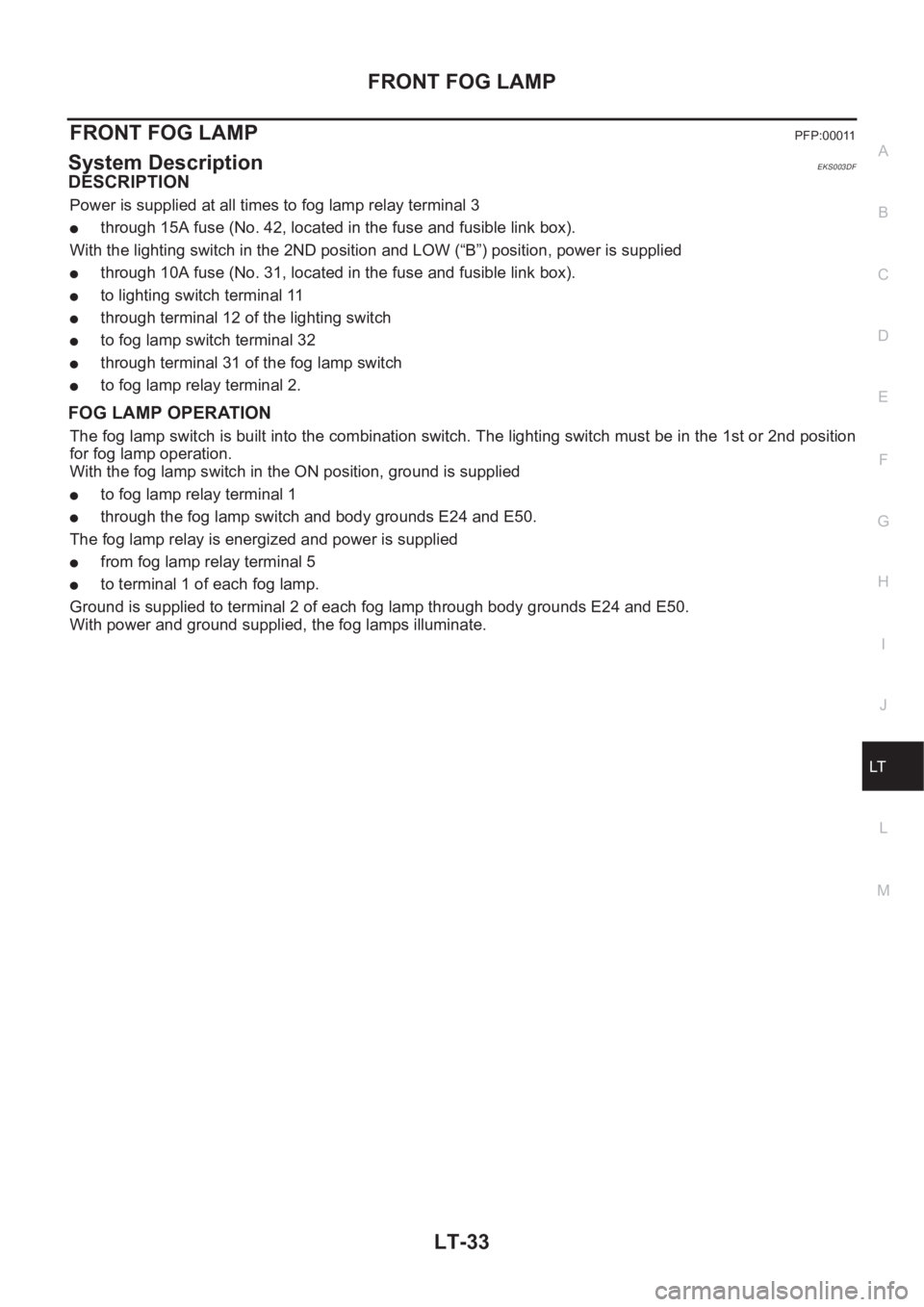

NISSAN X-TRAIL 2001 Service Repair Manual FRONT FOG LAMP LT-33 C D E F G H I J L MA B LT FRONT FOG LAMP PFP:00011 System Description EKS003DF DESCRIPTION Power is supplied at all times to fog lamp relay terminal 3 ●through 15A fuse (No. 42

Page 3524 of 3833

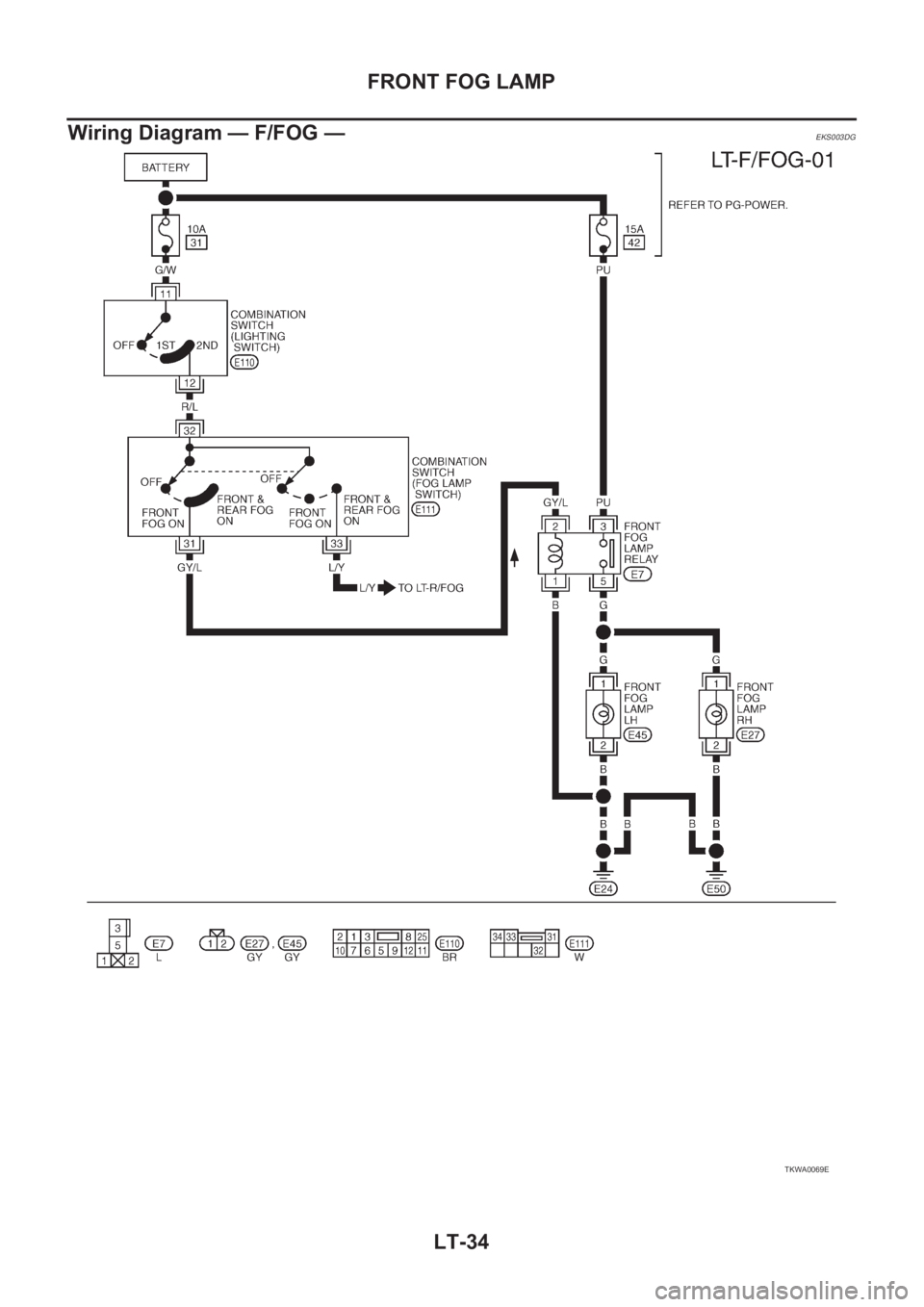

NISSAN X-TRAIL 2001 Service Repair Manual LT-34 FRONT FOG LAMP Wiring Diagram — F/FOG — EKS003DG TKWA0069E

Page 3525 of 3833

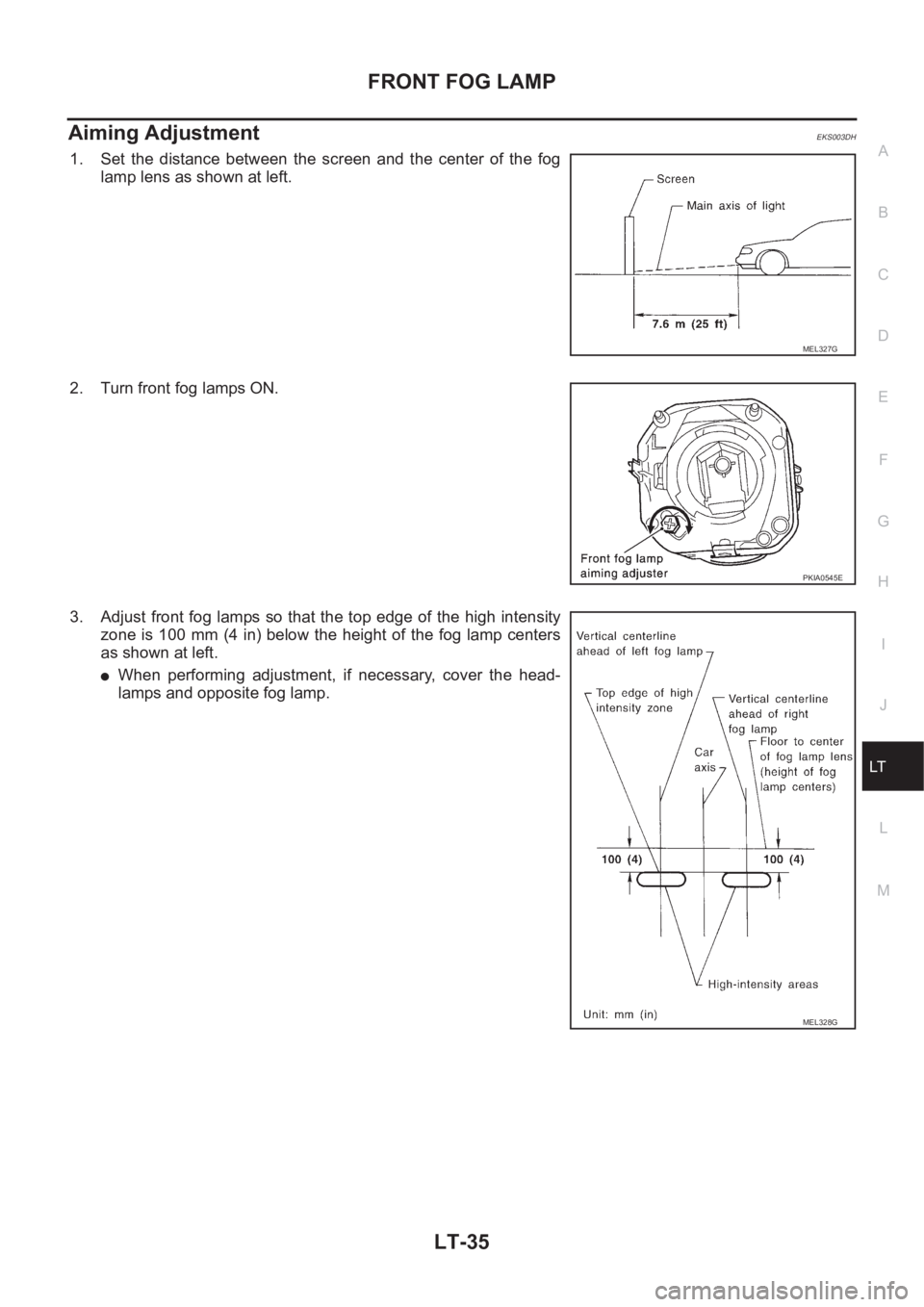

NISSAN X-TRAIL 2001 Service Repair Manual FRONT FOG LAMP LT-35 C D E F G H I J L MA B LT Aiming Adjustment EKS003DH 1. Set the distance between the screen and the center of the fog lamp lens as shown at left. 2. Turn front fog lamp

Page 3526 of 3833

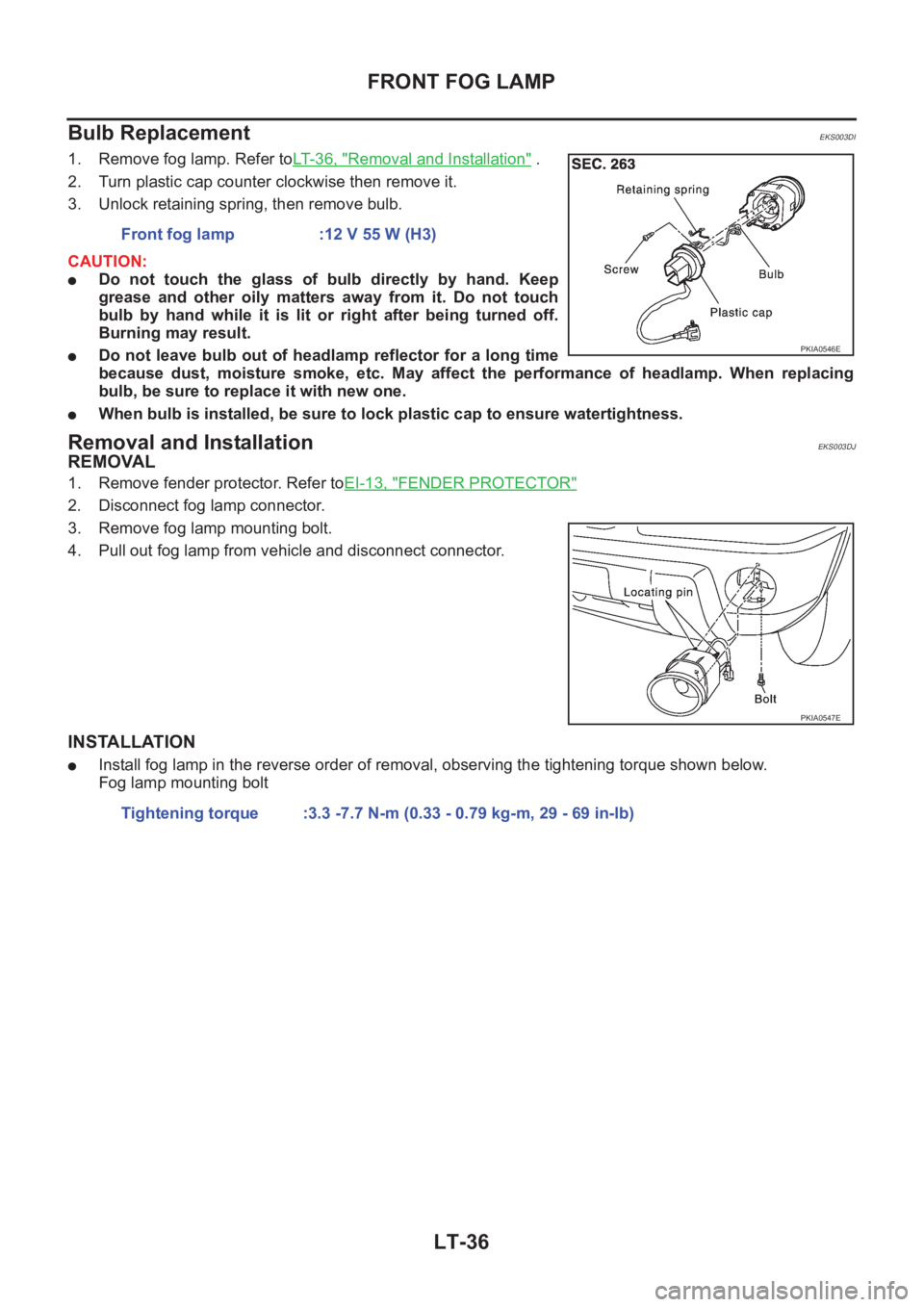

NISSAN X-TRAIL 2001 Service Repair Manual LT-36 FRONT FOG LAMP Bulb Replacement EKS003DI 1. Remove fog lamp. Refer toLT-36, "Removal and Installation" . 2. Turn plastic cap counter clockwise then remove it. 3. Unlock retaining spring

Page 3527 of 3833

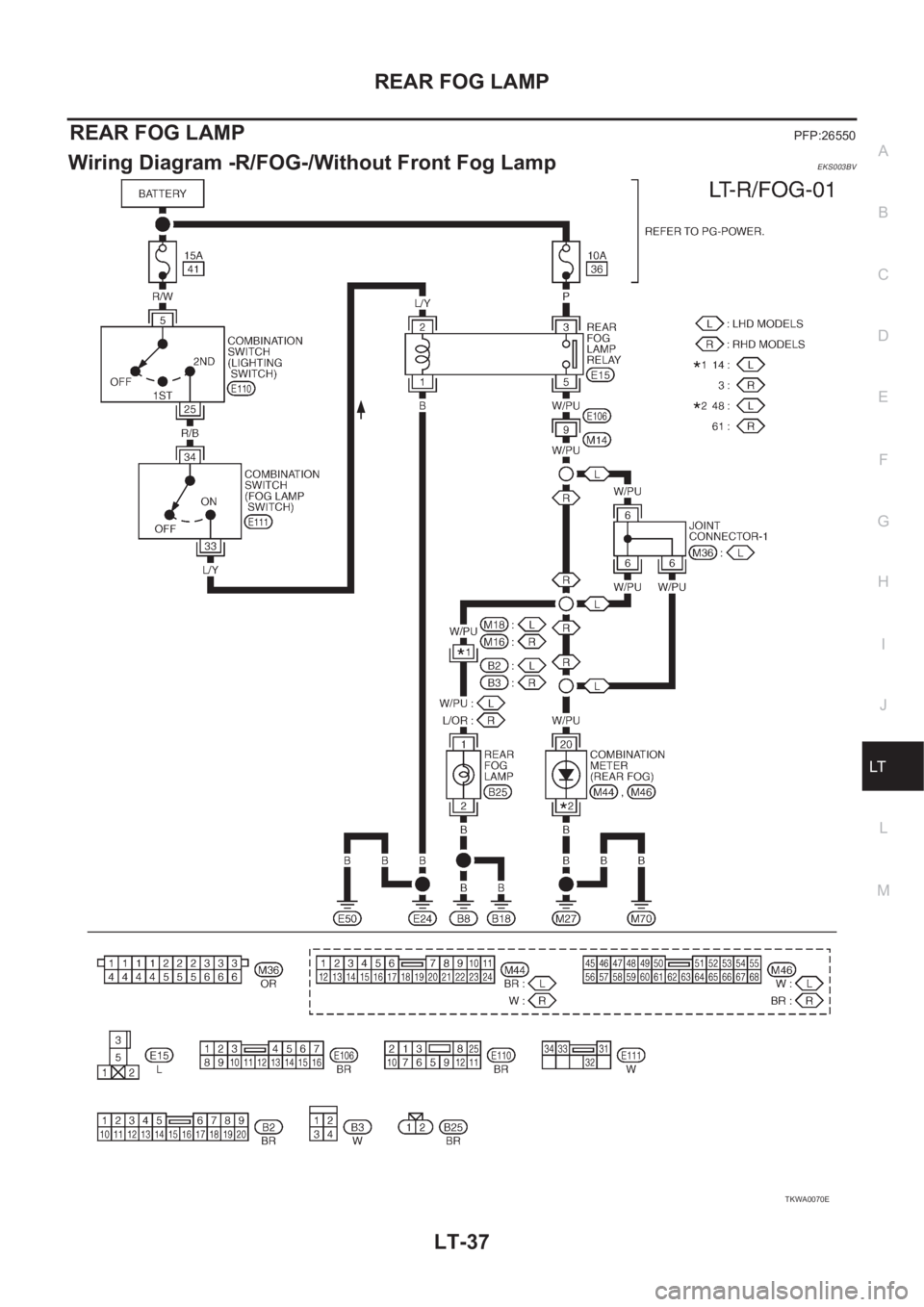

NISSAN X-TRAIL 2001 Service Repair Manual REAR FOG LAMP LT-37 C D E F G H I J L MA B LT REAR FOG LAMPPFP:26550 Wiring Diagram -R/FOG-/Without Front Fog LampEKS003BV TKWA0070E

Page 3528 of 3833

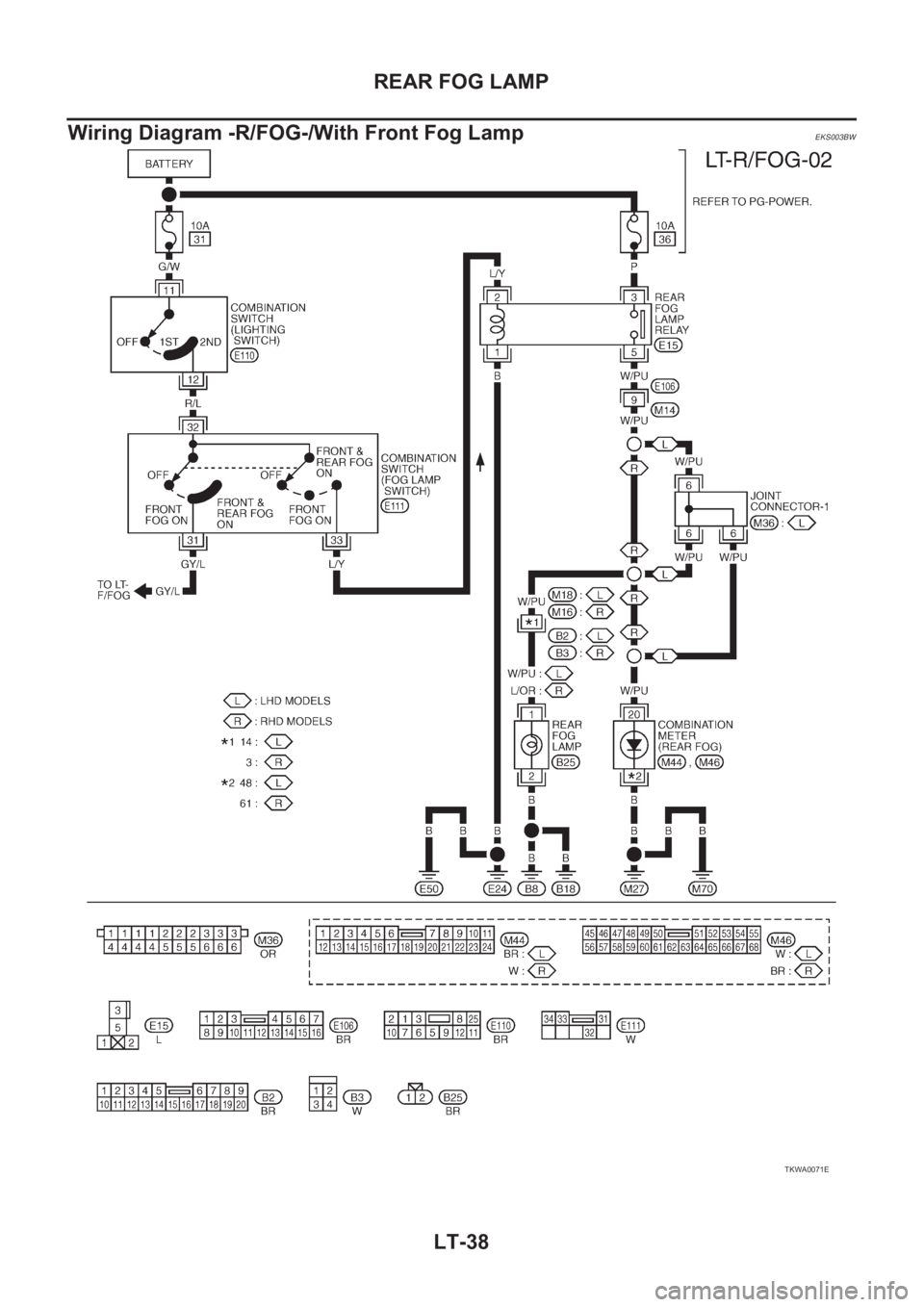

NISSAN X-TRAIL 2001 Service Repair Manual LT-38 REAR FOG LAMP Wiring Diagram -R/FOG-/With Front Fog Lamp EKS003BW TKWA0071E
