Page 2505 of 3833

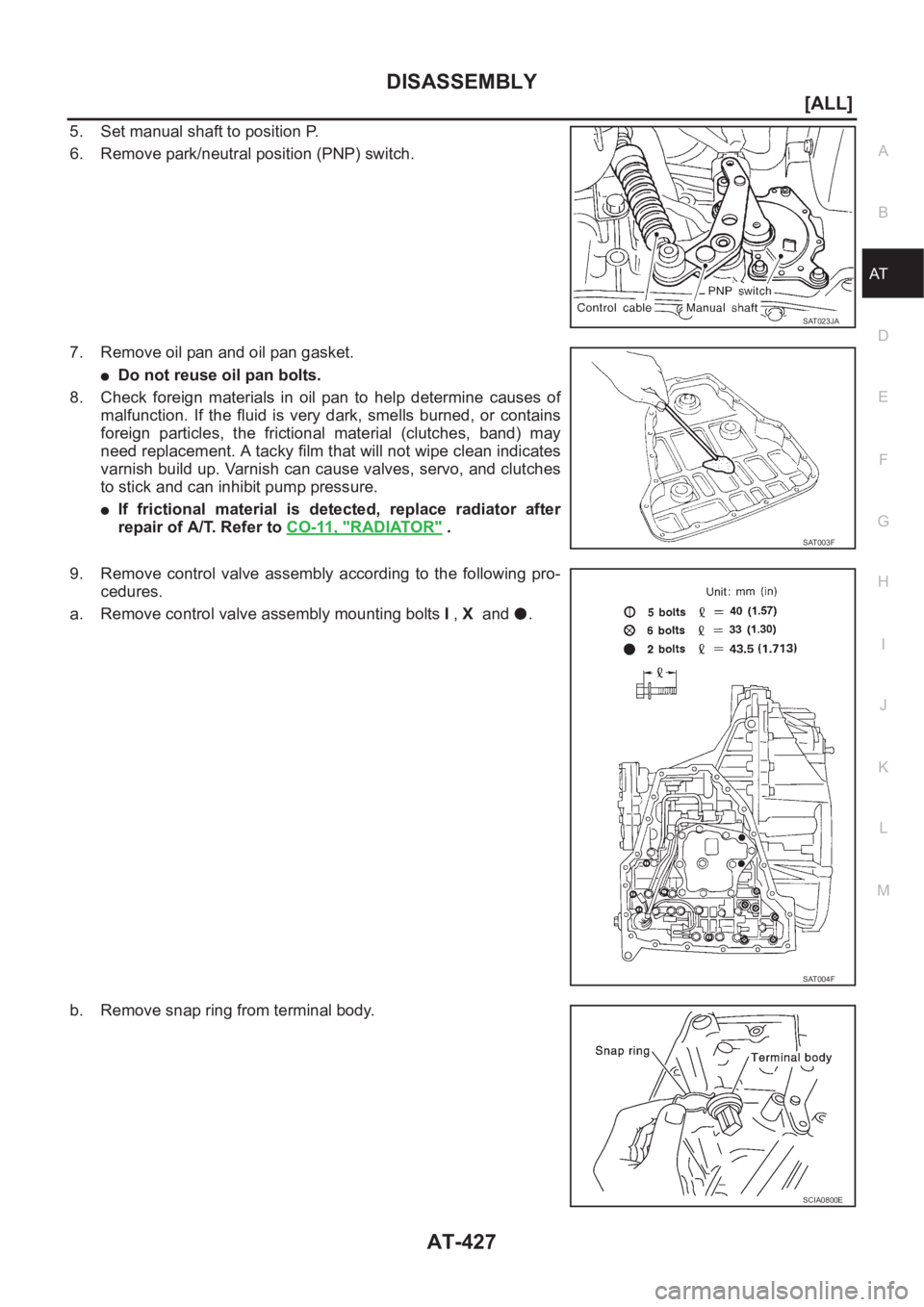

NISSAN X-TRAIL 2001 Service Repair Manual DISASSEMBLY AT-427 [ALL] D E F G H I J K L MA B AT 5. Set manual shaft to position P. 6. Remove park/neutral position (PNP) switch. 7. Remove oil pan and oil pan gasket. ●Do not reuse oil pan bolts.

Page 2506 of 3833

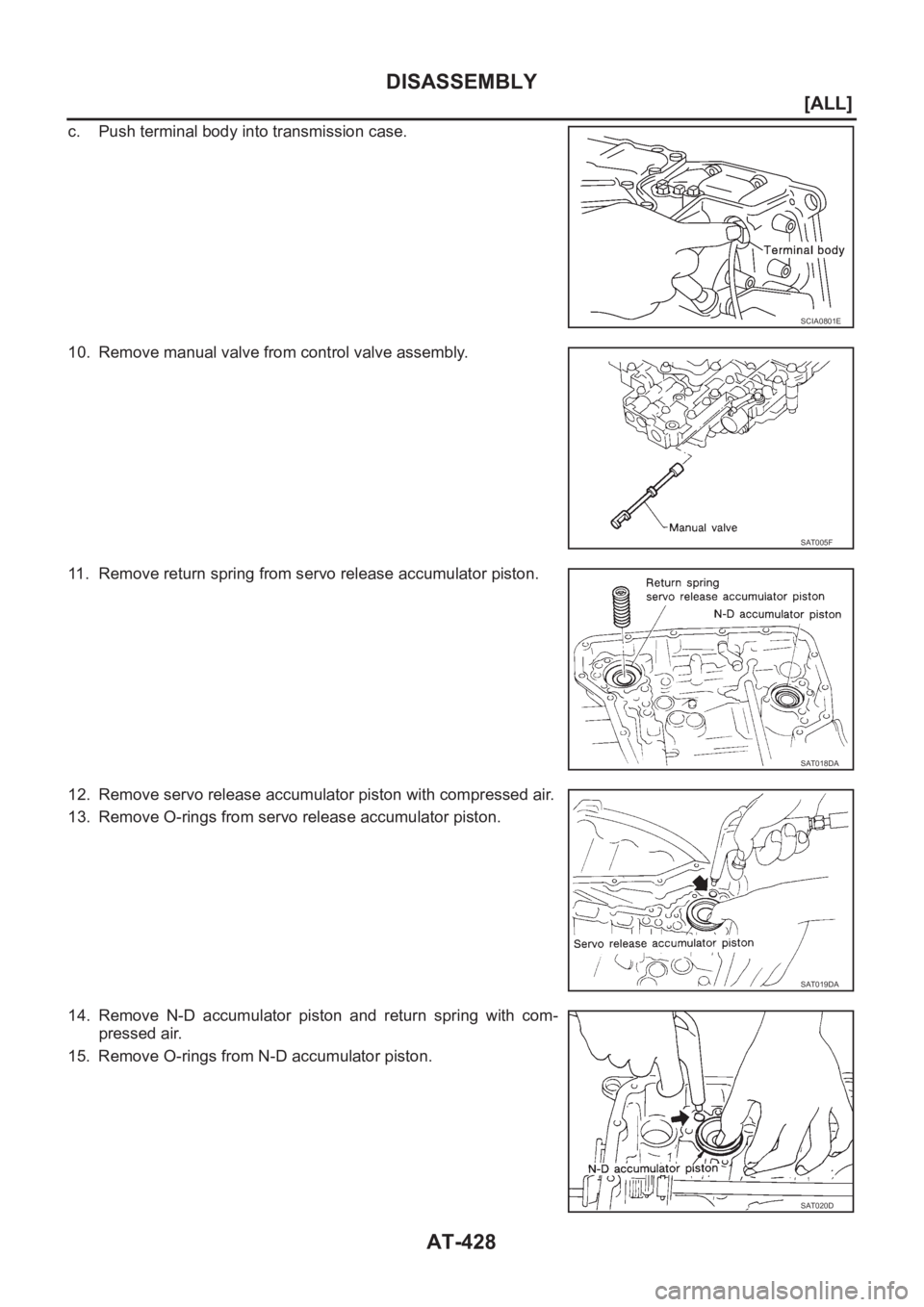

NISSAN X-TRAIL 2001 Service Repair Manual AT-428 [ALL] DISASSEMBLY c. Push terminal body into transmission case. 10. Remove manual valve from control valve assembly. 11. Remove return spring from servo release accumulator piston. 12. Remove s

Page 2507 of 3833

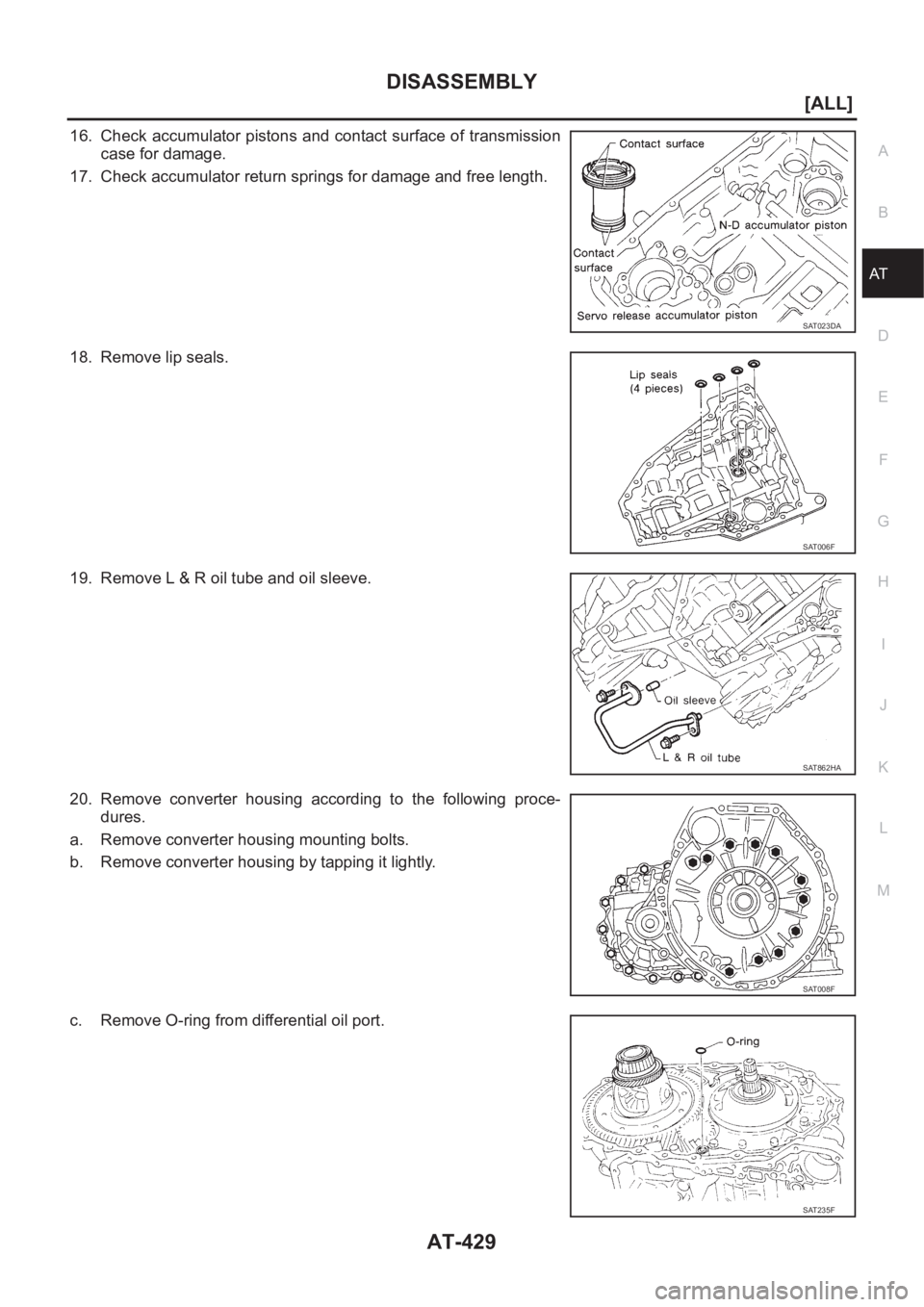

NISSAN X-TRAIL 2001 Service Repair Manual DISASSEMBLY AT-429 [ALL] D E F G H I J K L MA B AT 16. Check accumulator pistons and contact surface of transmission case for damage. 17. Check accumulator return springs for damage and free length. 1

Page 2508 of 3833

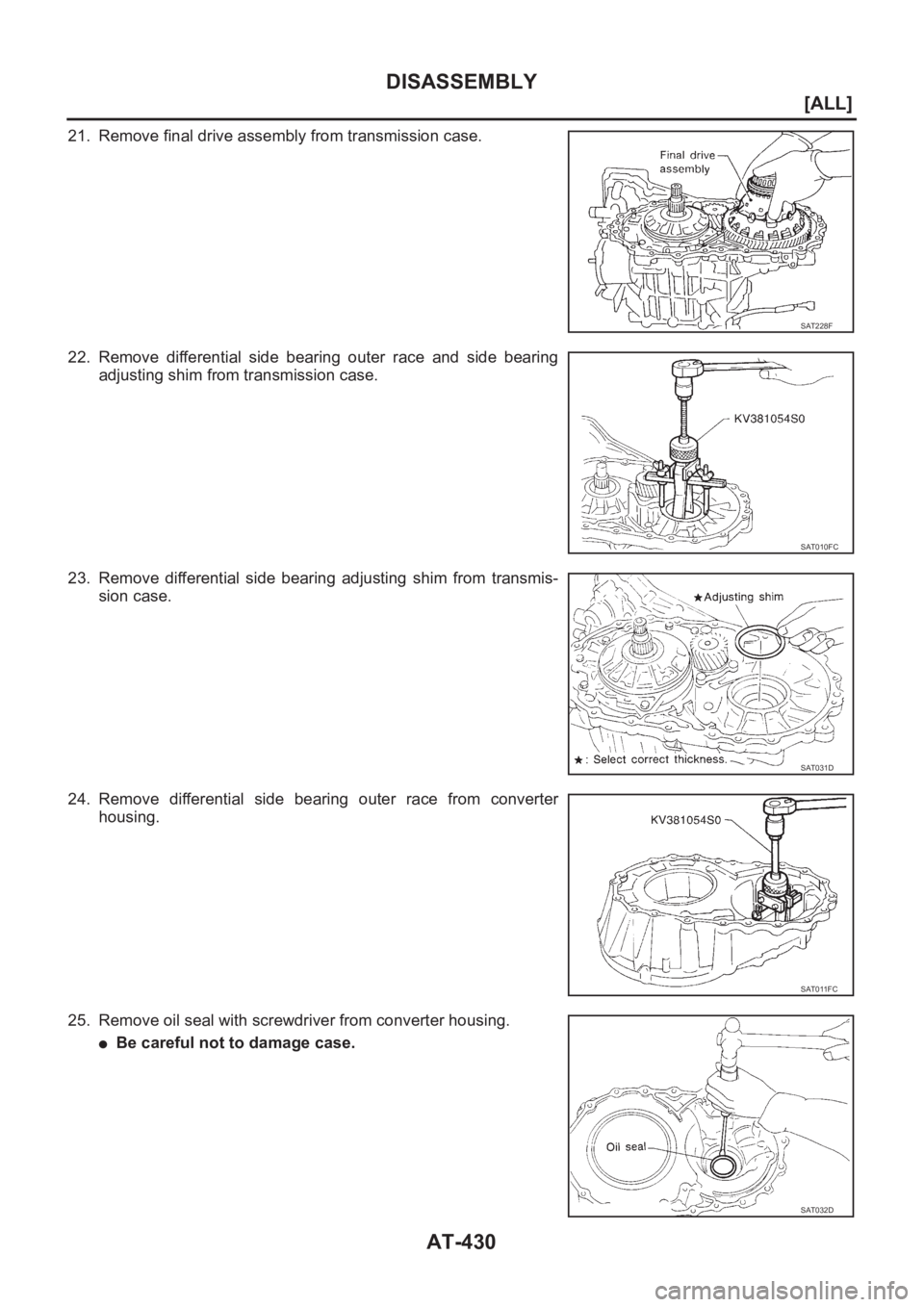

NISSAN X-TRAIL 2001 Service Repair Manual AT-430 [ALL] DISASSEMBLY 21. Remove final drive assembly from transmission case. 22. Remove differential side bearing outer race and side bearing adjusting shim from transmission case. 23. Rem

Page 2509 of 3833

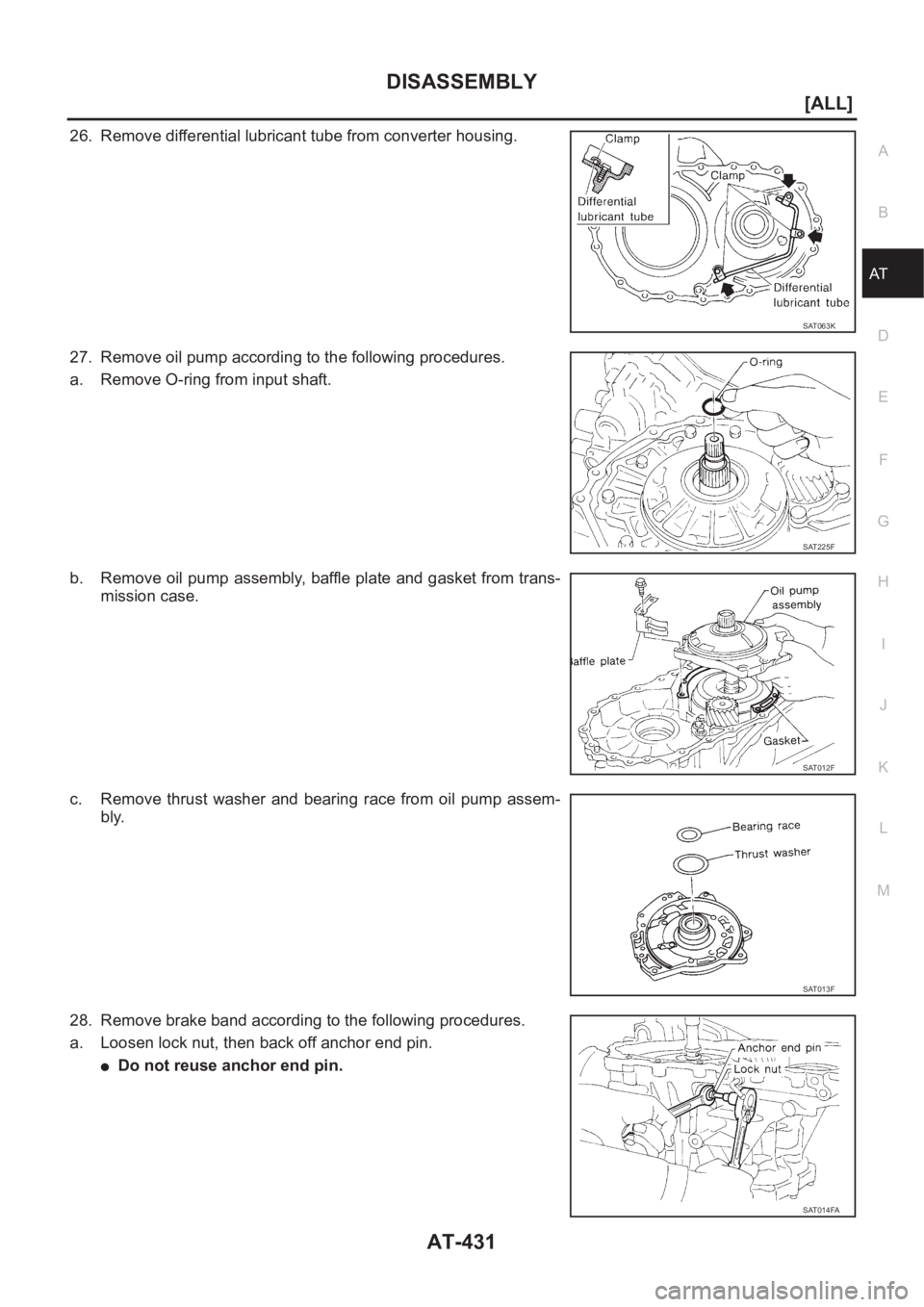

NISSAN X-TRAIL 2001 Service Repair Manual DISASSEMBLY AT-431 [ALL] D E F G H I J K L MA B AT 26. Remove differential lubricant tube from converter housing. 27. Remove oil pump according to the following procedures. a. Remove O-ring from input

Page 2510 of 3833

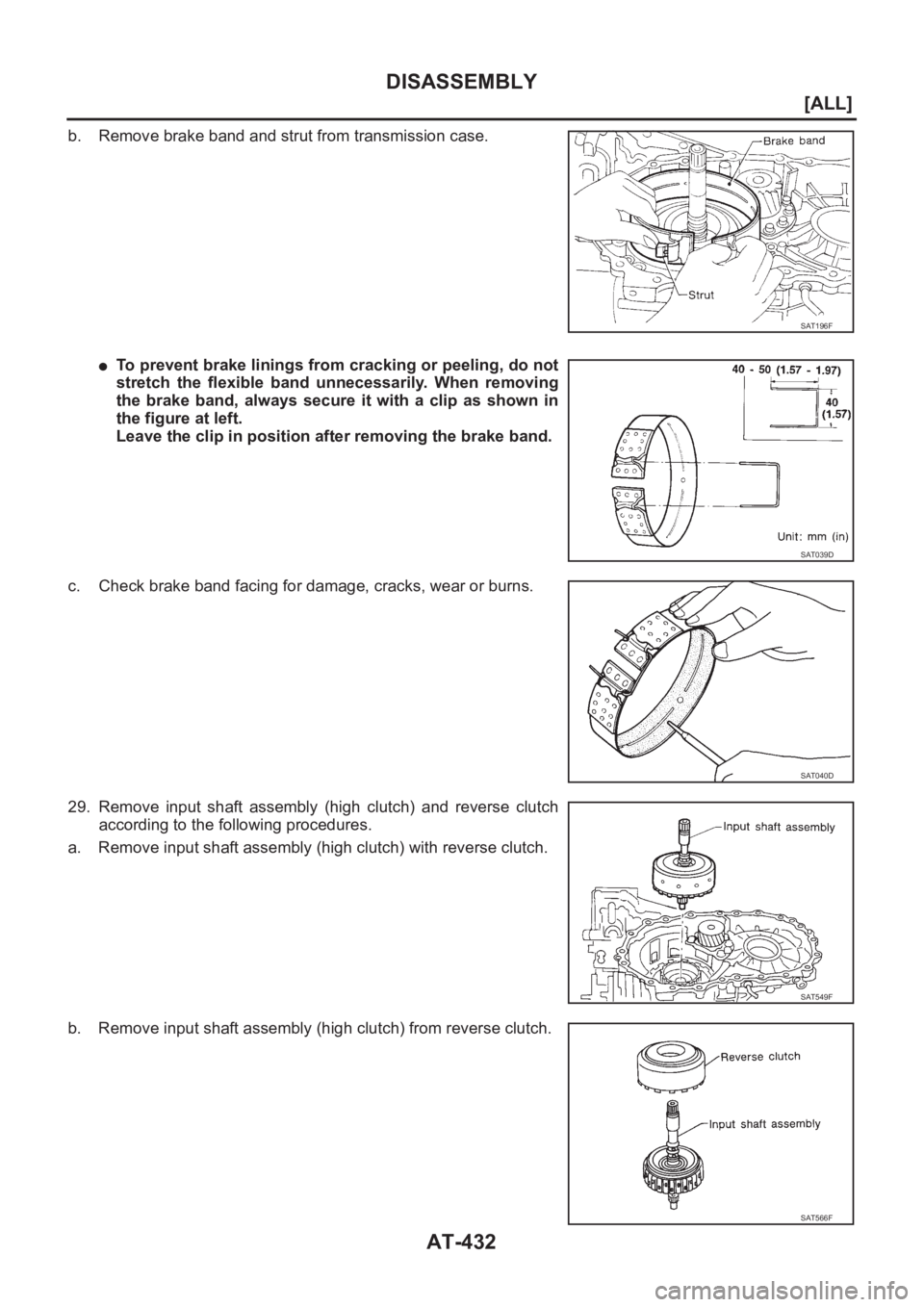

NISSAN X-TRAIL 2001 Service Repair Manual AT-432 [ALL] DISASSEMBLY b. Remove brake band and strut from transmission case. ●To prevent brake linings from cracking or peeling, do not stretch the flexible band unnecessarily. When removin

Page 2511 of 3833

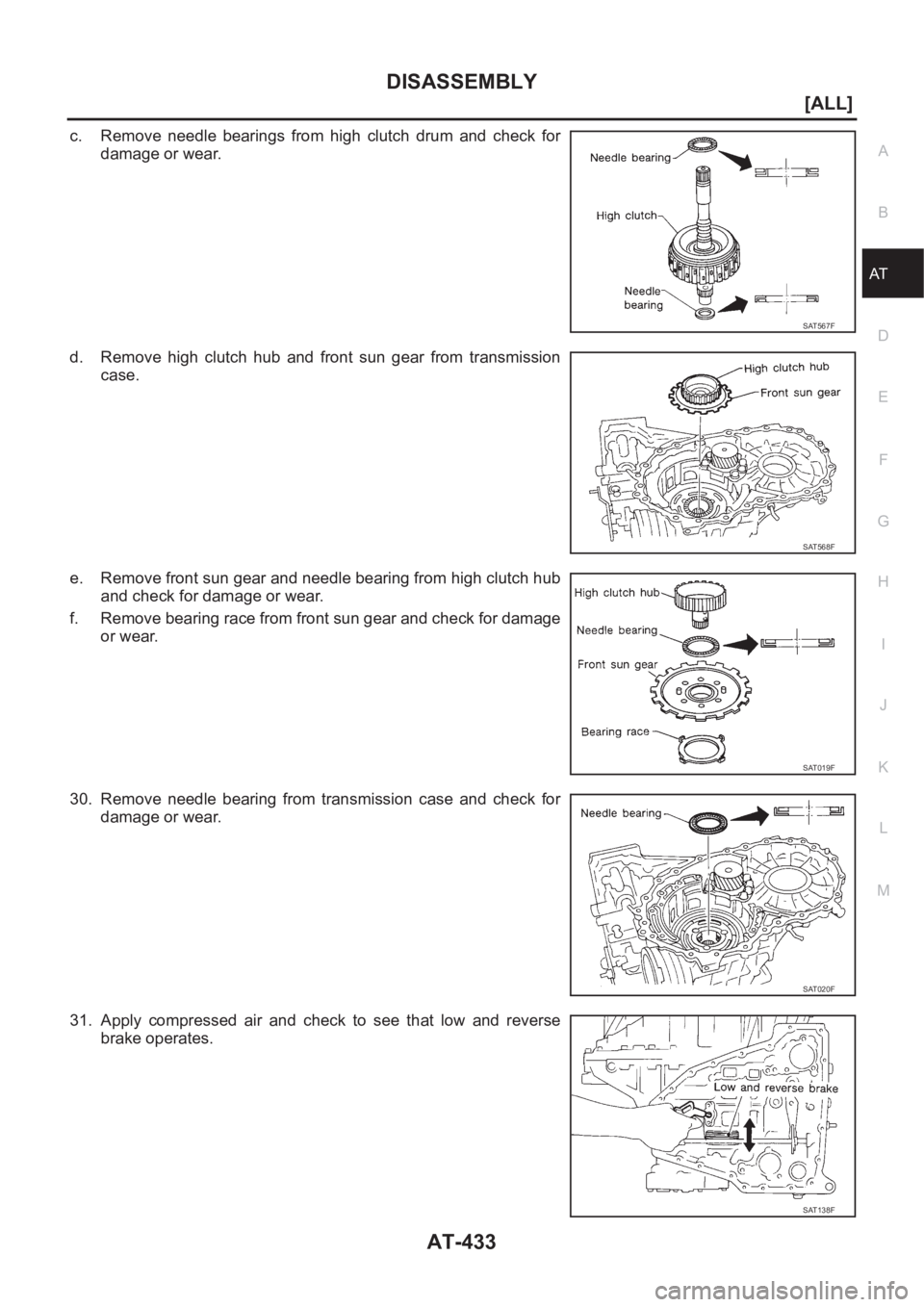

NISSAN X-TRAIL 2001 Service Repair Manual DISASSEMBLY AT-433 [ALL] D E F G H I J K L MA B AT c. Remove needle bearings from high clutch drum and check for damage or wear. d. Remove high clutch hub and front sun gear from transmission

Page 2512 of 3833

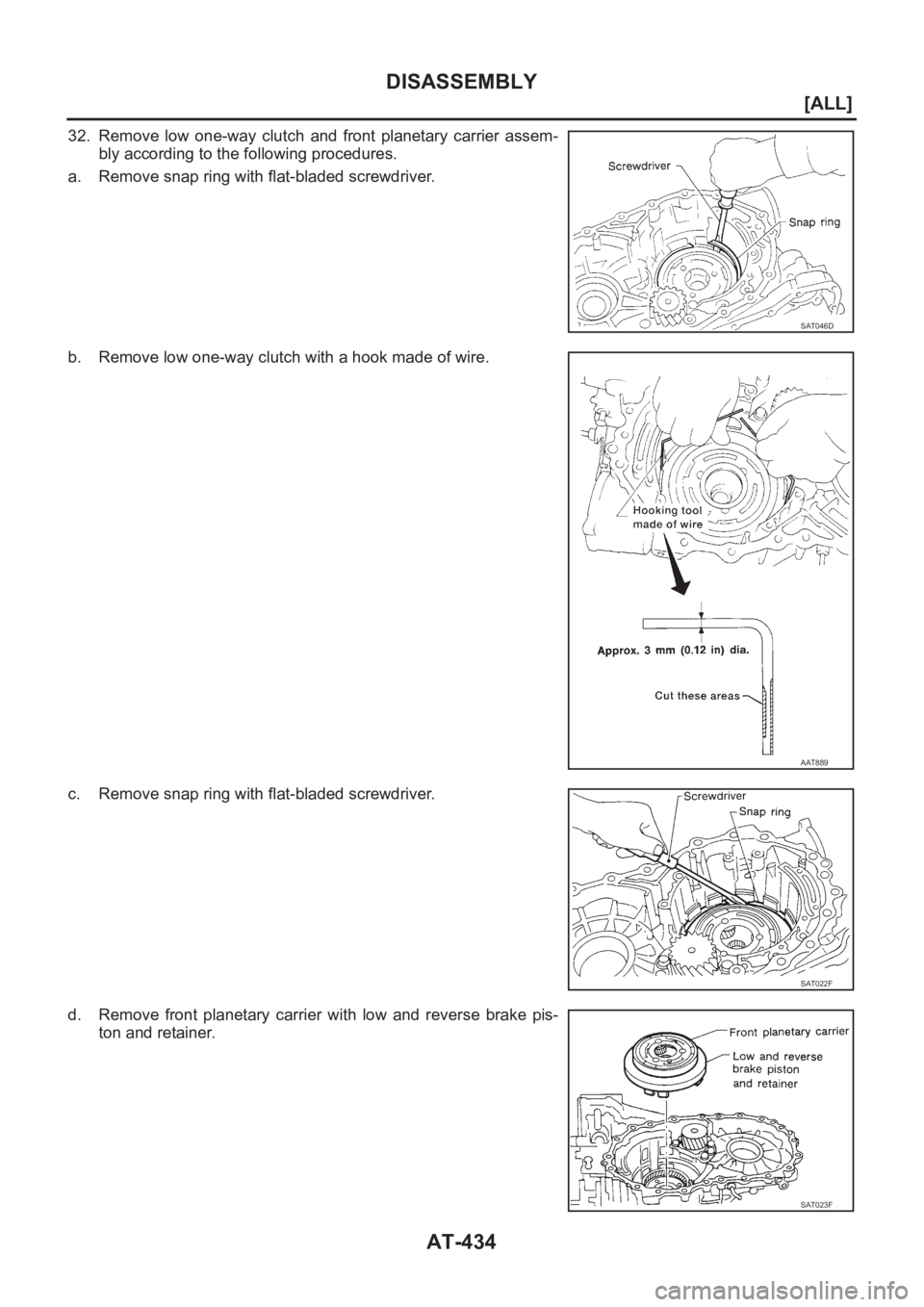

NISSAN X-TRAIL 2001 Service Repair Manual AT-434 [ALL] DISASSEMBLY 32. Remove low one-way clutch and front planetary carrier assem- bly according to the following procedures. a. Remove snap ring with flat-bladed screwdriver. b. Remove
