NISSAN X-TRAIL 2001 Service Repair Manual SERVICE DATA AND SPECIFICATIONS (SDS)
EM-223
[YD22DDTi]
C
D
E
F
G
H
I
J
K
L
MA
EM

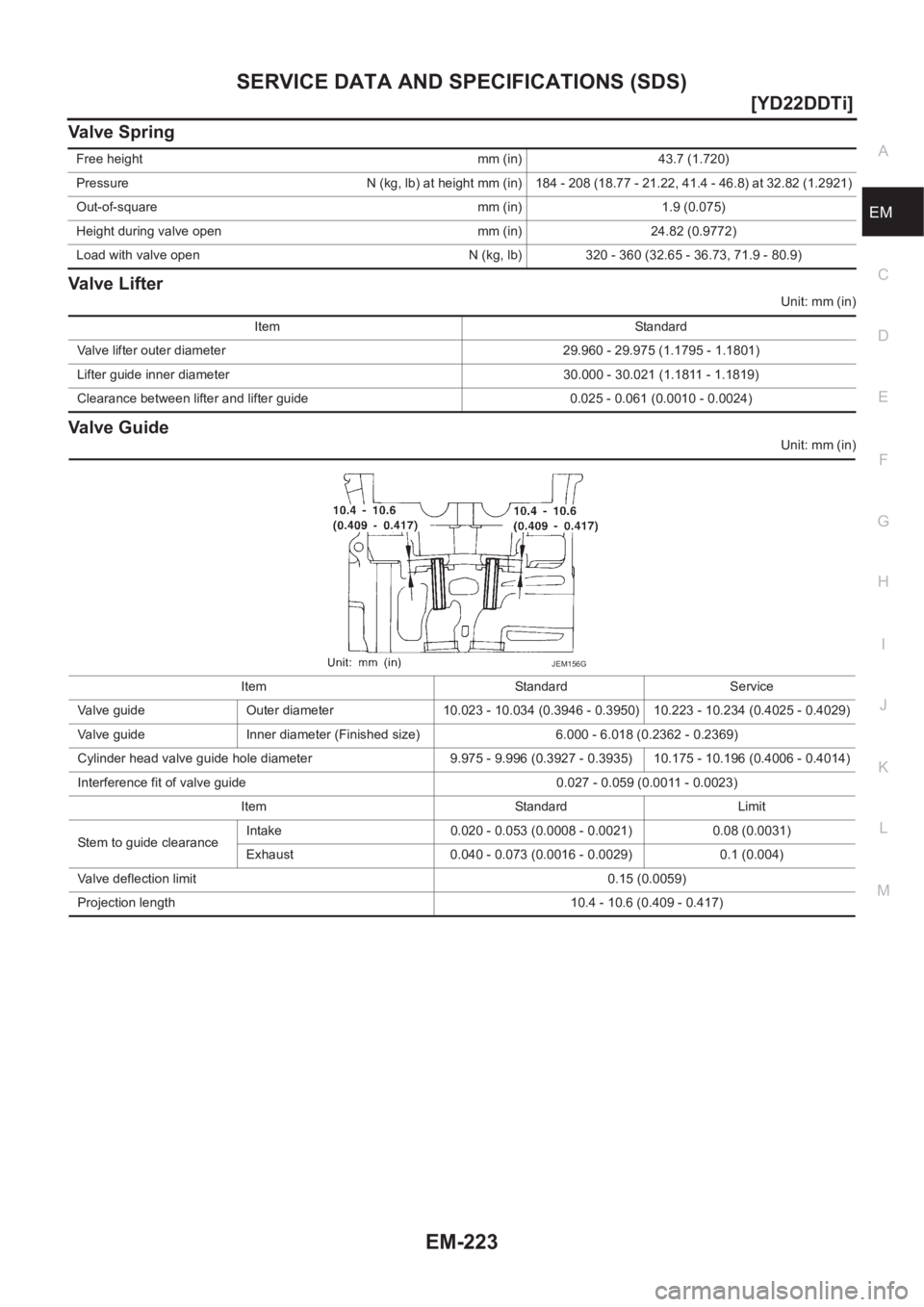

Valve Spring
Valve Lifter
Unit: mm (in)
Valve Guide
Unit: mm (in) Free height mm (in) 43.7 (1.720)
Pressure N (kg, lb

Page 274 of 3833

NISSAN X-TRAIL 2001 Service Repair Manual EM-224
[YD22DDTi]
SERVICE DATA AND SPECIFICATIONS (SDS)

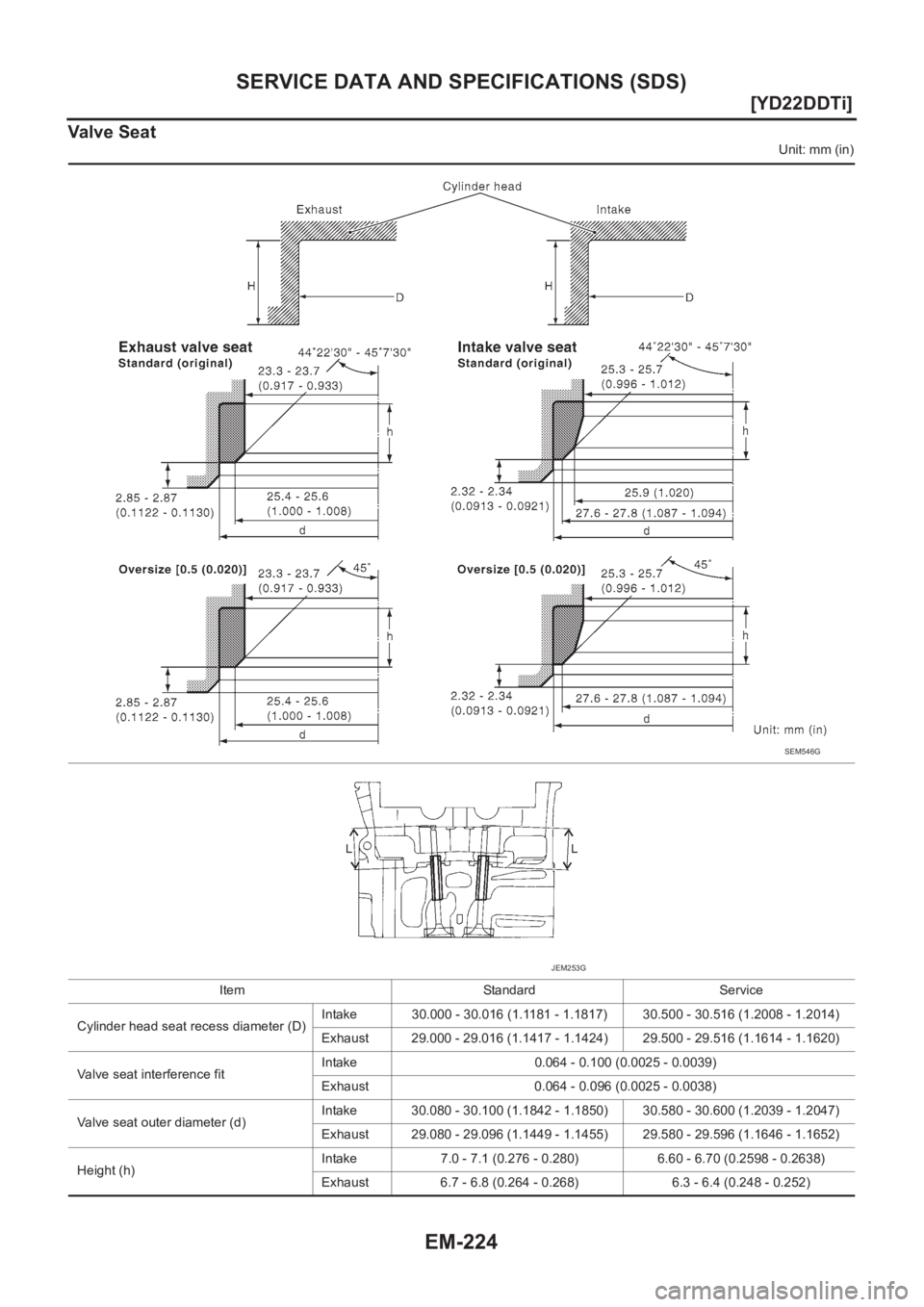

Valve Seat
Unit: mm (in)
Item Standard Service
Cylinder head seat recess diameter (D)Intake 30.000 - 30.016 (1.1181 - 1.1817) 30.500 - 30.516 (1

Page 275 of 3833

NISSAN X-TRAIL 2001 Service Repair Manual SERVICE DATA AND SPECIFICATIONS (SDS)
EM-225
[YD22DDTi]
C
D
E
F
G
H
I
J
K
L
MA
EM

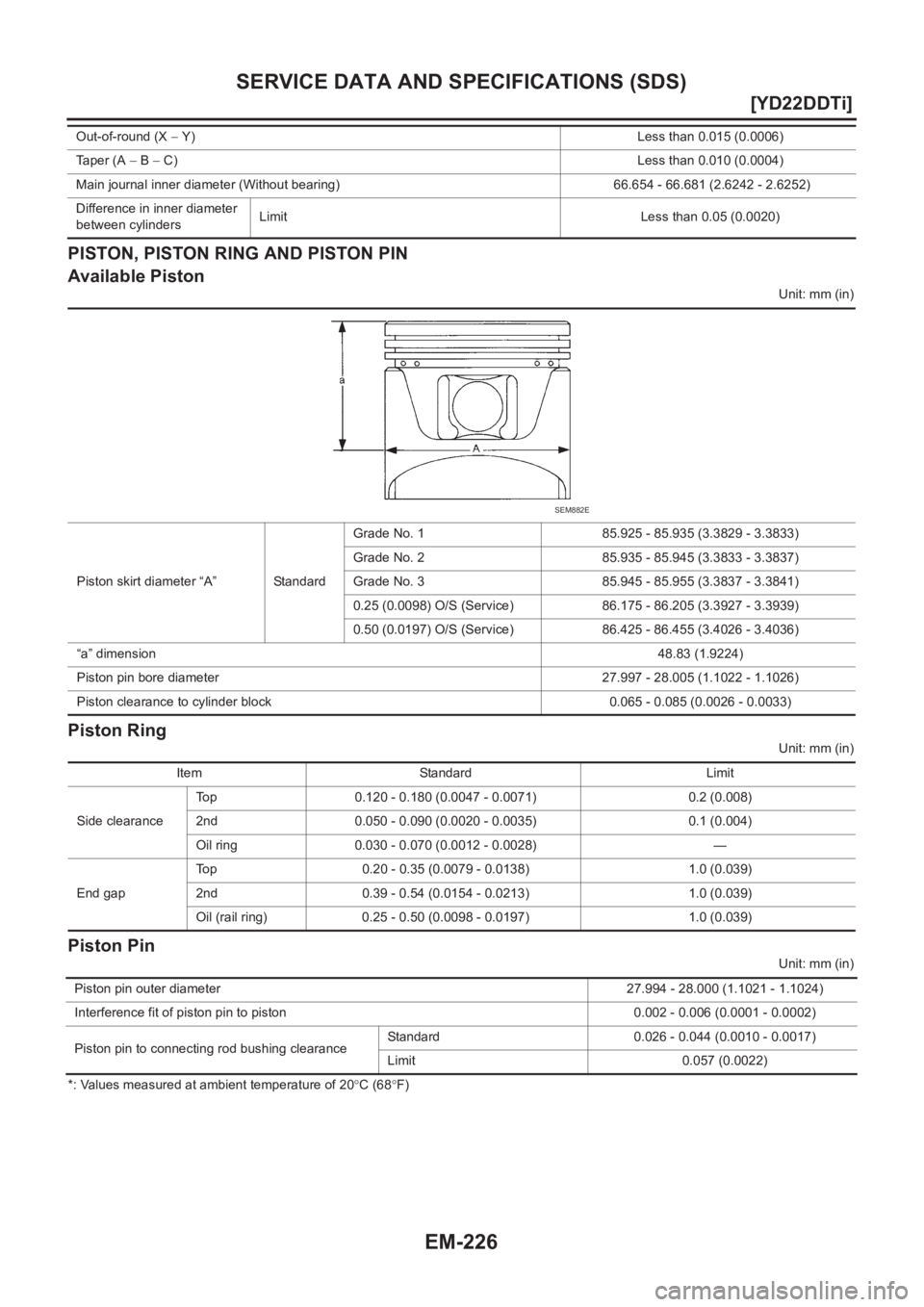

CAMSHAFT AND CAMSHAFT BEARING
Unit: mm (in)
CYLINDER BLOCK
Unit: mm (in) Depth (H)Intake 8.83 - 9.13 (0.3476 - 0.3594)

Page 276 of 3833

NISSAN X-TRAIL 2001 Service Repair Manual EM-226
[YD22DDTi]
SERVICE DATA AND SPECIFICATIONS (SDS)
PISTON, PISTON RING AND PISTON PIN
Available Piston
Unit: mm (in)
Piston Ring
Unit: mm (in)
Piston Pin
Unit: mm (in)
*: Values measured at ambie

Page 277 of 3833

NISSAN X-TRAIL 2001 Service Repair Manual SERVICE DATA AND SPECIFICATIONS (SDS)
EM-227
[YD22DDTi]
C
D
E
F
G
H
I
J
K
L
MA
EM
CONNECTING ROD
Unit: mm (in)
*: After installing in connecting rod
CRANKSHAFT
Unit: mm (in)
*: Total indicator reading

Page 278 of 3833

NISSAN X-TRAIL 2001 Service Repair Manual EM-228
[YD22DDTi]
SERVICE DATA AND SPECIFICATIONS (SDS)
AVAILABLE MAIN BEARING
Main bearing
Unit: mm (in)
Under size
Unit: mm (in)
AVAILABLE CONNECTING ROD BEARING
Connecting Rod Bearing
Unit: mm (in

Page 279 of 3833

NISSAN X-TRAIL 2001 Service Repair Manual SERVICE DATA AND SPECIFICATIONS (SDS)
EM-229
[YD22DDTi]
C
D
E
F
G
H
I
J
K
L
MA
EM
Bearing Clearance
Unit: mm (in)
Tightening TorqueEBS00OE0
*1: Parts to be tightened in particular orders.
1)-: Order o

SERVICE DATA AND SPECIFICATIONS (SDS)
EM-229
[YD22DDTi]
C
D
E
F
G
H
I
J
K
L
MA
EM
Bearing Clearance
Unit: mm (in)
Tightening TorqueEBS00OE0
*1: Parts to be tightened in particular orders.
1)-: Order of tightening when tightening two or more times separately.
Unit: N·m (kg-m, ft-lb)
Unit: N·m (kg-m, in-lb)*2
Main bearing oil clearanceStandard 0.039 - 0.066 (0.0015 - 0.0026)
Limit 0.10 (0.0039)
Connecting rod bearing oil
clearanceStandard 0.031 - 0.061 (0.0012 - 0.0024)
Limit 0.09 (0.0035)
Alternator Nut C 19 - 24 (1.9 - 2.5, 14 - 18)
Nut D 44 - 57 (4.4 - 5.9, 32 - 42)
Idler pulley Nut A 31 - 39 (3.1 - 4.0, 23 - 28)
Catalyst44 - 53 (4.4 - 5.5, 32 - 39)
Catalyst rear diffuser30 - 37 (3.0 - 3.8, 22 - 27)
Catalyst insulator
6.4 - 8.3 (0.65 - 0.85, 57 - 73)*
2
Turbocharger44.0 - 53.0 (4.4 - 5.5, 32 -39)
Charge air cooler Bracket 19.6 - 23.5 (2.0 - 2.3,15 - 17)
Charge air cooler cover
8.1 - 9.5 (0.83 - 0.96, 72- 84)*
2
EGR volume control valve 62.0 - 78.0 (6.3 - 8.0, 46 - 57)
EGR cooler60.0 - 69.0 (6.1 - 7.1, 45 - 51)
EGR support21.0 - 26.0 (2.1 - 2.7, 16 - 19)
Exhaust manifold insulator
5.1 - 6.4 (0.52 - 0.66, 46 - 57)*
2
*1 Exhaust manifold29.0 - 33.0 (2.9 - 3.4, 21 - 24)
*1 Rocker cover1)
6.8 - 8.8 (0.7 - 0.9, 61 - 75)*
2
2)
6.8 - 8.8 (0.7 - 0.9, 61 - 75) *2
Oil pan lower
6.4 - 7.5 (0.65 - 0.76, 57 - 66)*2
Oil pan drain plug29 - 39 (3.0 - 4.0, 22 - 28)
Oil strainer16 - 18 (1.7 - 1.8, 12 - 13)
*1 Oil pan upper M6 bolt
6.4 - 7.5 (0.65 - 0.76, 57 - 66)*
2
M8 bolt 20 - 23 (2.1 - 2.3, 15 - 16)
M10 bolt 31 - 36 (3.2 - 3.6, 23 - 26)
Vacuum pumpModels produced
before March 200133 - 42 (3.4 - 4.2, 25 - 30)
Models produced since
April 200153.8 - 63.8 (5.5 - 6.5, 40 - 47)
Cylinder head rear cover M6 bolt
8.5 - 10.7 (0.86 - 1.1, 75 - 97) *
2
M8 bolt 16.0 - 18.0 (1.7 - 1.8, 12 - 13)
Injection tube Nozzle side 21.6 - 24.5 (2.2 - 2.5, 16 - 18)
Pump side 21.6 - 24.5 (2.2 - 2.5, 16 - 18)
Nozzle support24.7 - 27.8 (2.6 - 2.8, 19 - 20)
Spill tube Nozzle side 16.8 - 20.6 (1.8 - 2.1, 13 - 15)
Cylinder head side 16.8 - 20.6 (1.8 - 2.1, 13 - 15)

Page 280 of 3833

NISSAN X-TRAIL 2001 Service Repair Manual EM-230
[YD22DDTi]
SERVICE DATA AND SPECIFICATIONS (SDS)
Common rail51.0 - 64.0 (5.2 - 6.5, 38 - 47)
Fuel supply pump51.0 - 56.0 (5.2 - 5.7, 38 - 41)
Fuel supply pump sprocket 37.0 - 41.0 (3.8 - 4.2, 2
