IVT CONTROL SOLENOID VALVE
EC-699
[QR25(WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
IVT CONTROL SOLENOID VALVEPFP:23796
DescriptionEBS00ND9
SYSTEM DESCRIPTION
This mechanism hydraulically controls cam phases continuously with the fixed operating angle of the intake
valve.
The ECM receives signals such as crankshaft position, camshaft position, engine speed, and engine coolant
temperature. Then, the ECM sends ON/OFF pulse duty signals to the intake valve timing control solenoid
valve depending on driving status. This makes it possible to control the shut/open timing of the intake valve to
increase engine torque in low/mid speed range and output in high-speed range.
COMPONENT DESCRIPTION
Intake valve timing control solenoid valve is activated by ON/OFF
pulse duty (ratio) signals from the ECM.
The intake valve timing control solenoid valve changes the oil
amount and direction of flow through intake valve timing control unit
or stops oil flow.
The longer pulse width advances valve angle.
The shorter pulse width retards valve angle.
When ON and OFF pulse widths become equal, the solenoid valve
stops oil pressure flow to fix the intake valve angle at the control
position.
CONSULT-II Reference Value in Data Monitor ModeEBS00NDA
Specification data are reference values.
Sensor Input signal to ECM function ECM Actuator
Crankshaft position sensor (POS) Engine speed
Intake valve
timing controlIntake valve timing control
solenoid valve Camshaft position sensor (PHASE) Engine speed and piston position
Engine coolant temperature sensor Engine coolant temperature
Wheel sensor Vehicle speed
PBIB0540E
PBIB0195E
MONITOR ITEM CONDITION SPECIFICATION
INT/V SOL (B1)
●Engine: After warming up
●Shift lever: N
●Air conditioner switch: OFF
●No-loadIdle 0% - 2%
When revving engine up to 2,000 rpm
quicklyApprox. 0% - 50%
Page 1050 of 3833
EC-700
[QR25(WITHOUT EURO-OBD)]
IVT CONTROL SOLENOID VALVE
ECM Terminals and Reference Value
EBS00NDB
Specification data are reference values and are measured between each terminal and ground.
Pulse signal is measured by CONSULT-II.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
: Average voltage for pulse signal (Actual pulse signal can be confirmed by oscilloscope.) TER-
MINAL
NO.WIRE
COLORITEM CONDITION DATA (DC Voltage)
107 Y/RIntake valve timing
control solenoid valve[Engine is running]
●Warm-up condition
●Idle speedBATTERY VOLTAGE
(11 - 14V)
[Engine is running]
●Warm-up condition
●When revving engine up to 2,000 rpm quicklyApproximately 4V - BATTERY
VOLTAGE (11 - 14V)
PBIB0532E
Page 1051 of 3833
IVT CONTROL SOLENOID VALVE
EC-701
[QR25(WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
Wiring DiagramEBS00NDC
TBWA0080E
Page 1052 of 3833
![NISSAN X-TRAIL 2001 Service Repair Manual EC-702
[QR25(WITHOUT EURO-OBD)]
IVT CONTROL SOLENOID VALVE
Diagnostic Procedure
EBS00NDD
1. CHECK OVERALL FUNCTION CHECK
1. Start engine and warm it up to normal operating temperature.
2. Turn ignitio NISSAN X-TRAIL 2001 Service Repair Manual EC-702
[QR25(WITHOUT EURO-OBD)]
IVT CONTROL SOLENOID VALVE
Diagnostic Procedure
EBS00NDD
1. CHECK OVERALL FUNCTION CHECK
1. Start engine and warm it up to normal operating temperature.
2. Turn ignitio](/manual-img/5/57405/w960_57405-1051.png)
EC-702
[QR25(WITHOUT EURO-OBD)]
IVT CONTROL SOLENOID VALVE
Diagnostic Procedure
EBS00NDD
1. CHECK OVERALL FUNCTION CHECK
1. Start engine and warm it up to normal operating temperature.
2. Turn ignition switch “OFF” and wait at least 10 seconds.
3. Turn ignition switch “ON”.
4. Set the tester probe between ECM terminals 107 (IVT control solenoid valve signal) and ground.
5. Start engine and let it idle.
6. Check the voltage under the following conditions.
Verify that the oscilloscope screen shows the signal wave as
shown below.
: Average voltage for pulse signal (Actual pulse signal can be confirmed by oscilloscope.)
OK or NG
OK >>INSPECTION END
NG >> GO TO 2.
2. CHECK POWER SUPPLY CIRCUIT
1. Turn ignition switch “OFF”.
2. Disconnect intake valve timing control solenoid valve harness connector.
3. Turn ignition switch “ON”.
4. Check voltage between intake valve timing control solenoid
valve terminal 1 and ground with CONSULT-II or tester.
OK or NG
OK >> GO TO 4.
NG >> GO TO 3.
Conditions Voltage
At idleBATTERY VOLTAGE
(11 - 14V)
When revving engine up
to 2,000 rpm quicklyApproximately 4V - BATTERY VOLTAGE (11 - 14V)
PBIB0678E
PBIB0532E
Voltage: Battery voltage
PBIB0511E
PBIB0285E
Page 1053 of 3833
![NISSAN X-TRAIL 2001 Service Repair Manual IVT CONTROL SOLENOID VALVE
EC-703
[QR25(WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
3.DETECT MALFUNCTION PART
Check the harness for open or short between intake valve timing control solenoid valve an NISSAN X-TRAIL 2001 Service Repair Manual IVT CONTROL SOLENOID VALVE
EC-703
[QR25(WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
3.DETECT MALFUNCTION PART
Check the harness for open or short between intake valve timing control solenoid valve an](/manual-img/5/57405/w960_57405-1052.png)
IVT CONTROL SOLENOID VALVE
EC-703
[QR25(WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
3.DETECT MALFUNCTION PART
Check the harness for open or short between intake valve timing control solenoid valve and ECM relay.
>> Repair open circuit or short to ground or short to power in harness or connectors.
4.CHECK INTAKE VALVE TIMING CONTROL SOLENOID VALVE OUTPUT SIGNAL CIRCUIT FOR
OPEN AND SHORT
1. Turn ignition switch “OFF”.
2. Disconnect ECM harness connector.
3. Check harness continuity between ECM terminal 107 and intake valve timing control solenoid valve termi-
nal 2. Refer to Wiring Diagram.
4. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 5.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
5.CHECK INTAKE VALVE TIMING CONTROL SOLENOID VALVE
Refer to EC-704, "
Component Inspection" .
OK or NG
OK >> GO TO 6.
NG >> Replace intake valve timing control solenoid valve.
6.CHECK CRANKSHAFT POSITION SENSOR (POS)
Refer to EC-1245, "
Component Inspection" .
OK or NG
OK >> GO TO 7.
NG >> Replace crankshaft position sensor (POS).
7.CHECK CAMSHAFT POSITION SENSOR (PHASE)
Refer to EC-1251, "
Component Inspection" .
OK or NG
OK >> GO TO 8.
NG >> Replace camshaft position sensor (PHASE).
8.CHECK CAMSHAFT (INTAKE)
Check the following.
●Accumulation of debris to the signal plate of camshaft rear end
●Chipping signal plate of camshaft rear end
OK or NG
OK >> GO TO 9.
NG >> Remove debris and clean the signal plate of camshaft
rear end or replace camshaft. Continuity should exist.
PBIB0565E
Page 1054 of 3833
EC-704
[QR25(WITHOUT EURO-OBD)]
IVT CONTROL SOLENOID VALVE
9. CHECK INTERMITTENT INCIDENT
Refer to EC-506, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
>>INSPECTION END
Component InspectionEBS00NDE
INTAKE VALVE TIMING CONTROL SOLENOID VALVE
1. Disconnect intake valve timing control solenoid valve harness connector.
2. Check resistance between intake valve timing control solenoid
valve terminals 1 and 2.
Removal and InstallationEBS00NDF
INTAKE VALVE TIMING CONTROL SOLENOID VALVE
Refer to EM-37, "TIMING CHAIN" .
Terminals Resistance
1 and 2 Approximately 8Ω at 20°C (68°F)
1 or 2 and ground∞Ω
(Continuity should not exist)
PBIB0574E
Page 1055 of 3833
![NISSAN X-TRAIL 2001 Service Repair Manual PNP SWITCH
EC-705
[QR25(WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
PNP SWITCHPFP:32006
Component DescriptionEBS00NDG
When the gear position is “P” (A/T models only) or “N”, park/neutral posi NISSAN X-TRAIL 2001 Service Repair Manual PNP SWITCH
EC-705
[QR25(WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
PNP SWITCHPFP:32006
Component DescriptionEBS00NDG
When the gear position is “P” (A/T models only) or “N”, park/neutral posi](/manual-img/5/57405/w960_57405-1054.png)

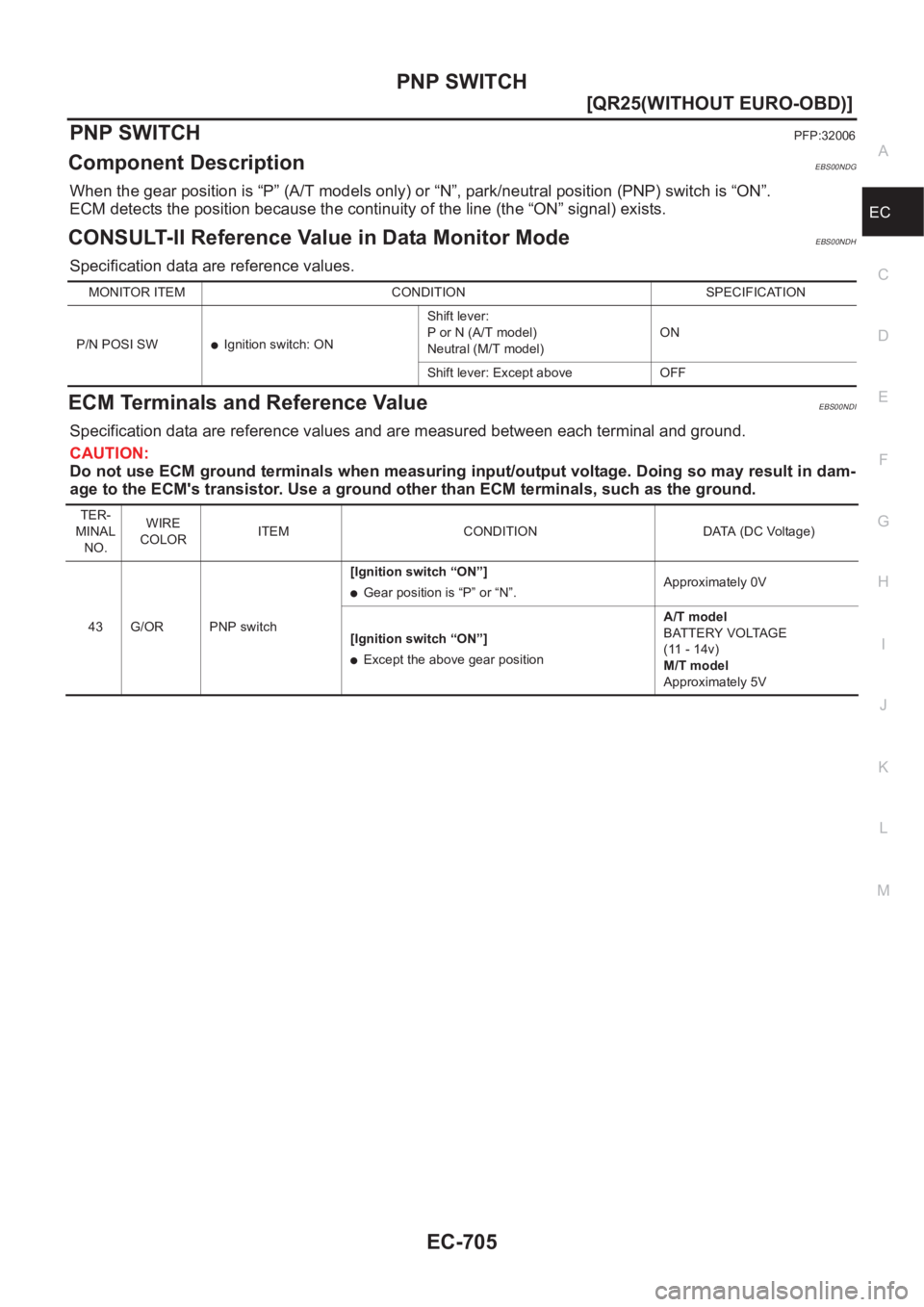

PNP SWITCH
EC-705
[QR25(WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
PNP SWITCHPFP:32006
Component DescriptionEBS00NDG
When the gear position is “P” (A/T models only) or “N”, park/neutral position (PNP) switch is “ON”.
ECM detects the position because the continuity of the line (the “ON” signal) exists.
CONSULT-II Reference Value in Data Monitor ModeEBS00NDH
Specification data are reference values.
ECM Terminals and Reference ValueEBS00NDI
Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
MONITOR ITEM CONDITION SPECIFICATION
P/N POSI SW
●Ignition switch: ONShift lever:
P or N (A/T model)
Neutral (M/T model)ON
Shift lever: Except above OFF
TER-
MINAL
NO.WIRE
COLORITEM CONDITION DATA (DC Voltage)
43 G/OR PNP switch[Ignition switch “ON”]
●Gear position is “P” or “N”.Approximately 0V
[Ignition switch “ON”]
●Except the above gear positionA/T model
BATTERY VOLTAGE
(11 - 14v)
M/T model
Approximately 5V
Page 1056 of 3833
EC-706
[QR25(WITHOUT EURO-OBD)]
PNP SWITCH

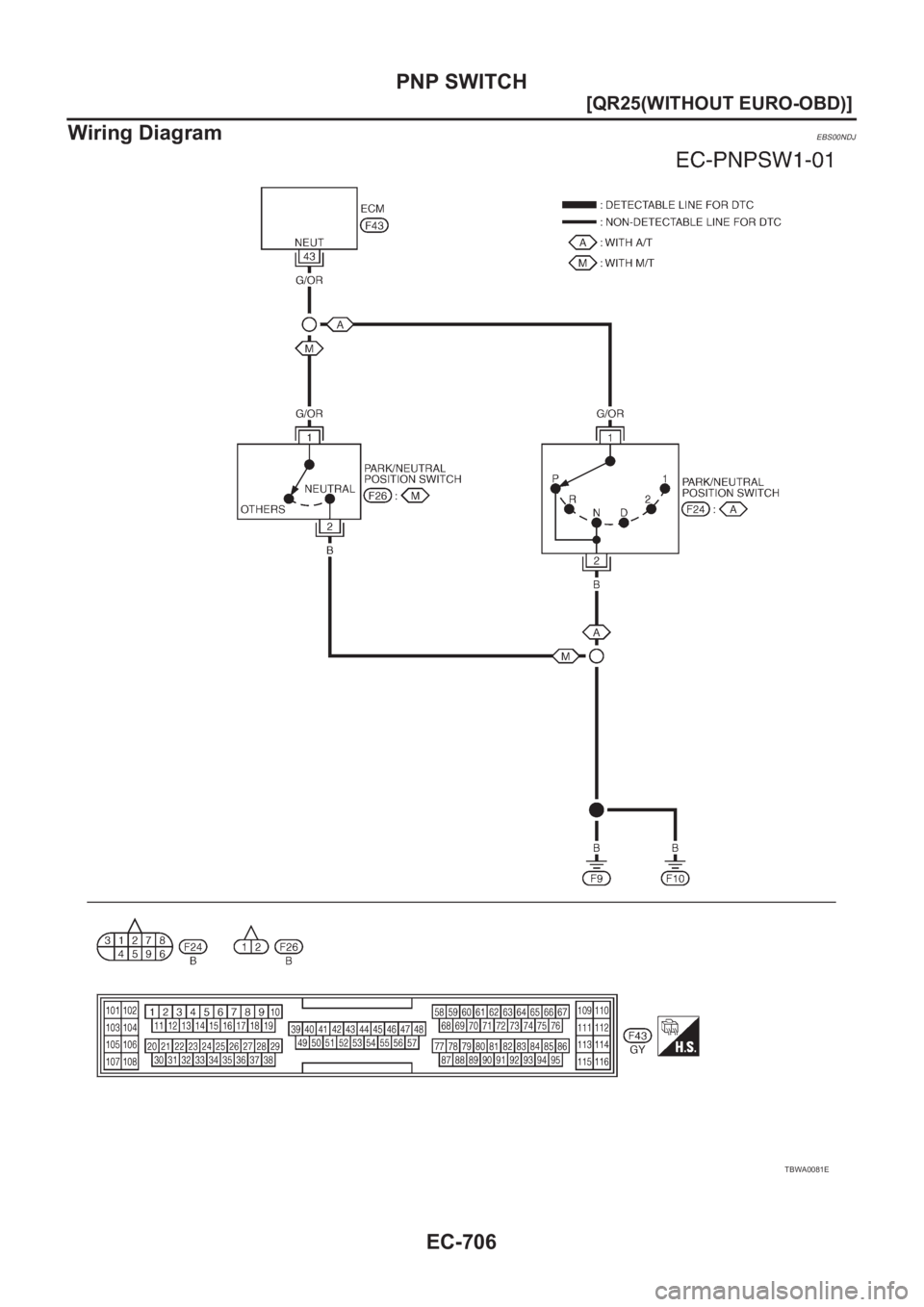

Wiring Diagram
EBS00NDJ
TBWA0081E
