2001 NISSAN X-TRAIL Service Repair Manual

USB parking brake brake pads replacement navigation update hood release MPG

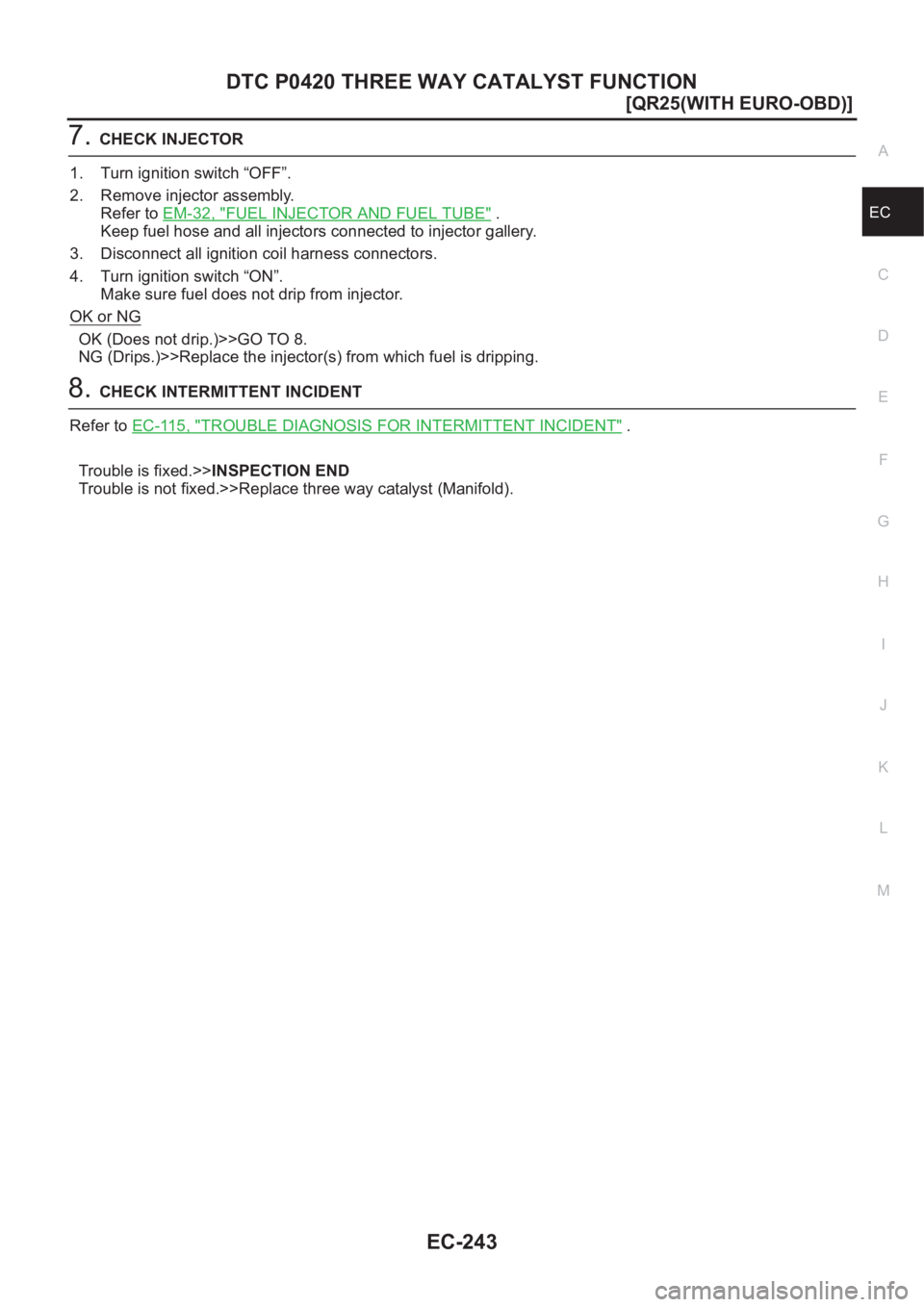

Page 593 of 3833

NISSAN X-TRAIL 2001 Service Repair Manual DTC P0420 THREE WAY CATALYST FUNCTION
EC-243
[QR25(WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
7.CHECK INJECTOR
1. Turn ignition switch “OFF”.
2. Remove injector assembly.
Refer to EM-32, "
FUEL

Page 594 of 3833

NISSAN X-TRAIL 2001 Service Repair Manual EC-244
[QR25(WITH EURO-OBD)]
DTC P0444, P0445 EVAP CANISTER PURGE VOLUME CONTROL SOLENOID
VALVE
DTC P0444, P0445 EVAP CANISTER PURGE VOLUME CONTROL SOLENOID
VA LV E
PFP:14920
DescriptionEBS00

EC-244
[QR25(WITH EURO-OBD)]
DTC P0444, P0445 EVAP CANISTER PURGE VOLUME CONTROL SOLENOID
VALVE
DTC P0444, P0445 EVAP CANISTER PURGE VOLUME CONTROL SOLENOID
VA LV E
PFP:14920
DescriptionEBS00M5Y
SYSTEM DESCRIPTION
This system controls flow rate of fuel vapor from the EVAP canister. The opening of the vapor by-pass pas-
sage in the EVAP canister purge volume control solenoid valve changes to control the flow rate. The EVAP
canister purge volume control solenoid valve repeats ON/OFF operation according to the signal sent from the
ECM. The opening of the valve varies for optimum engine control. The optimum value stored in the ECM is
determined by considering various engine conditions. When the engine is operating, the flow rate of fuel vapor
from the EVAP canister is regulated as the air flow changes.
COMPONENT DESCRIPTION
The EVAP canister purge volume control solenoid valve uses a ON/
OFF duty to control the flow rate of fuel vapor from the EVAP canis-
ter. The EVAP canister purge volume control solenoid valve is
moved by ON/OFF pulses from the ECM. The longer the ON pulse,
the greater the amount of fuel vapor that will flow through the valve.
CONSULT-II Reference Value in Data Monitor ModeEBS00M5Z
Specification data are reference values.
ECM Terminals and Reference ValueEBS00M60
Specification data are reference values and are measured between each terminal and ground.
Pulse signal is measured by CONSULT-II
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
Sensor Input Signal to ECMECM func-
tionActuator
Crankshaft position sensor (POS) Engine speed
EVAP can-
ister purge
flow con-
trolEVAP canister purge volume
control solenoid valve Mass air flow sensor Amount of intake air
Engine coolant temperature sensor Engine coolant temperature
Ignition switch Start signal
Throttle position sensor Throttle position
Accelerator pedal position sensor Closed throttle position
Heated oxygen sensor 1Density of oxygen in exhaust gas
(Mixture ratio feedback signal)
Vehicle speed sensor Vehicle speed
SEF337U
MONITOR ITEM CONDITION SPECIFICATION
PURG VOL C/V
●Engine: After warming up
●Shift lever: N
●Air conditioner switch: OFF
●No-loadIdle 0%
2,000 rpm 20 - 30%

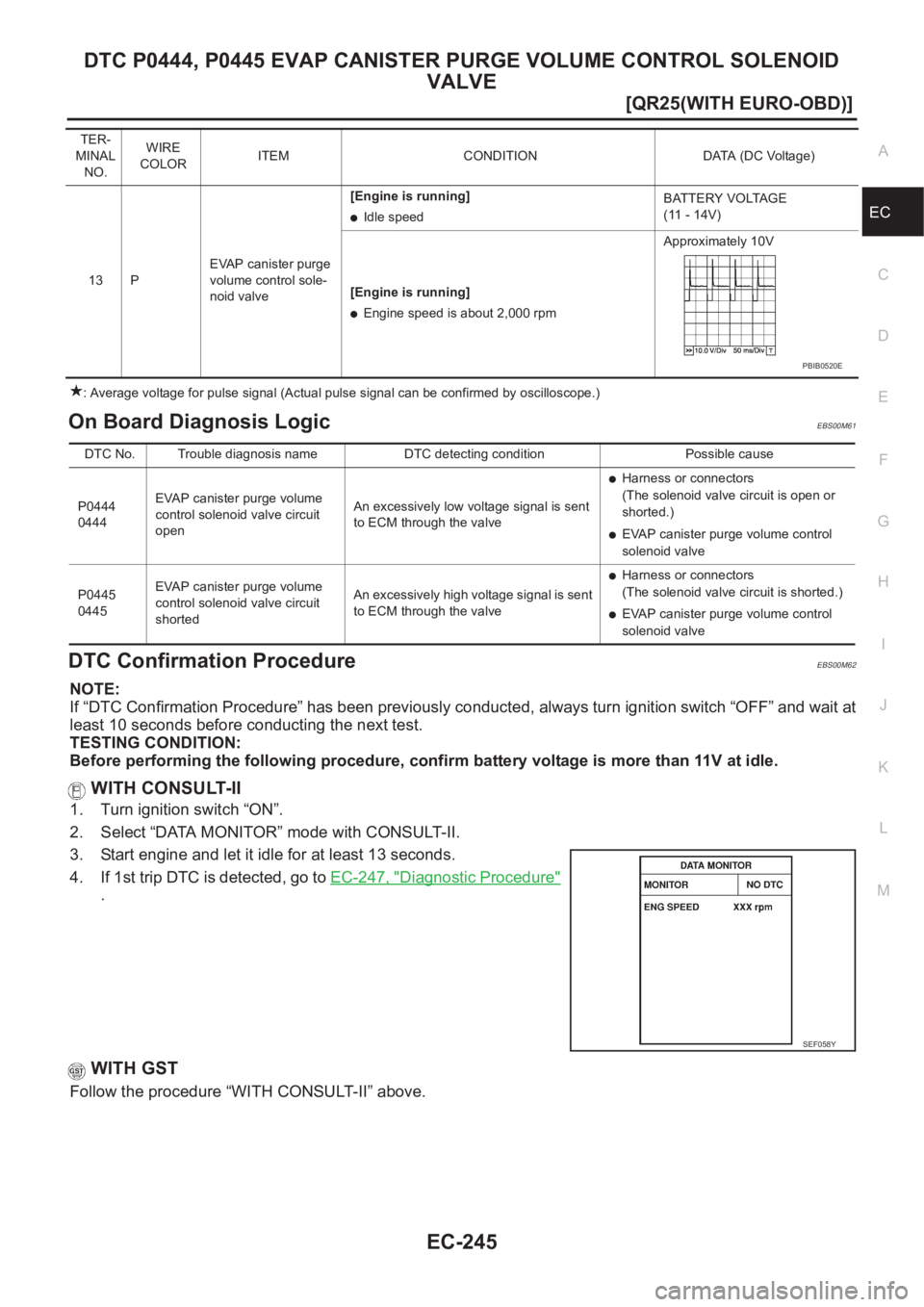

Page 595 of 3833

NISSAN X-TRAIL 2001 Service Repair Manual DTC P0444, P0445 EVAP CANISTER PURGE VOLUME CONTROL SOLENOID
VALVE
EC-245
[QR25(WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
: Average voltage for pulse signal (Actual pulse signal can be confirmed by o

Page 596 of 3833

NISSAN X-TRAIL 2001 Service Repair Manual EC-246
[QR25(WITH EURO-OBD)]
DTC P0444, P0445 EVAP CANISTER PURGE VOLUME CONTROL SOLENOID
VALVE

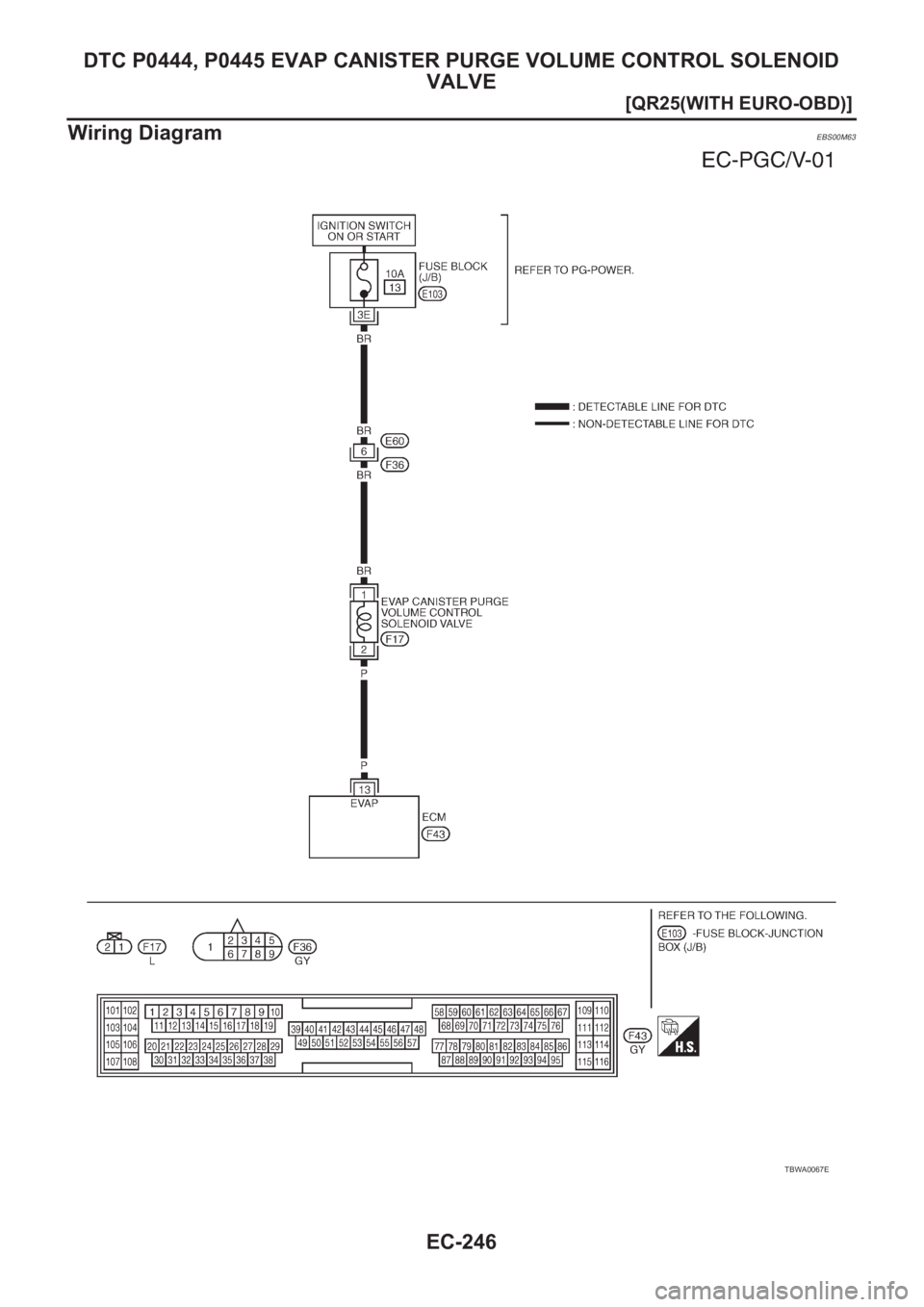

Wiring Diagram
EBS00M63
TBWA0067E

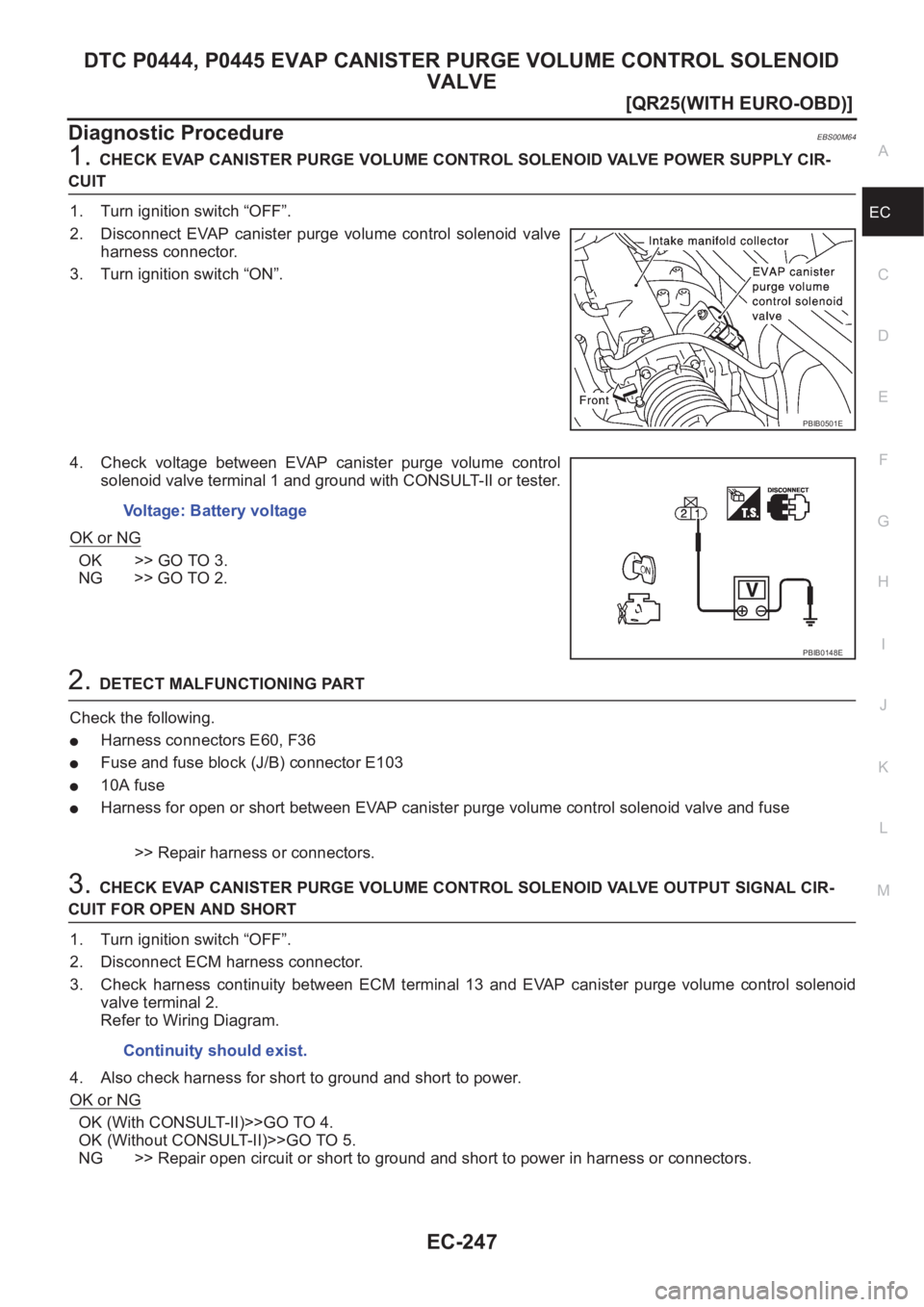

Page 597 of 3833

NISSAN X-TRAIL 2001 Service Repair Manual DTC P0444, P0445 EVAP CANISTER PURGE VOLUME CONTROL SOLENOID
VALVE
EC-247
[QR25(WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
Diagnostic ProcedureEBS00M64
1.CHECK EVAP CANISTER PURGE VOLUME CONTROL SOLEN

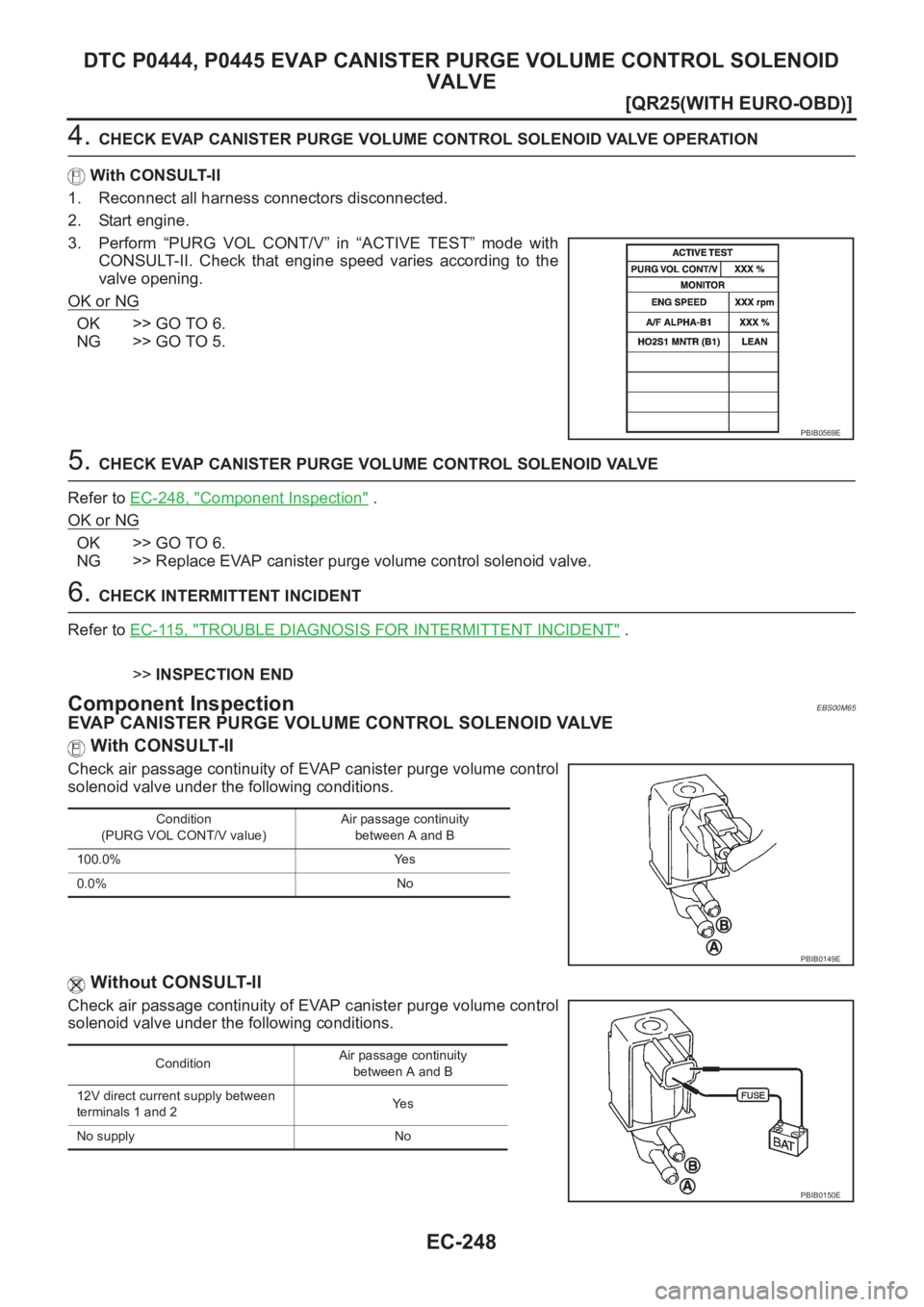

Page 598 of 3833

NISSAN X-TRAIL 2001 Service Repair Manual EC-248
[QR25(WITH EURO-OBD)]
DTC P0444, P0445 EVAP CANISTER PURGE VOLUME CONTROL SOLENOID
VALVE
4. CHECK EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE OPERATION
With CONSULT-II
1. Reconnect all h

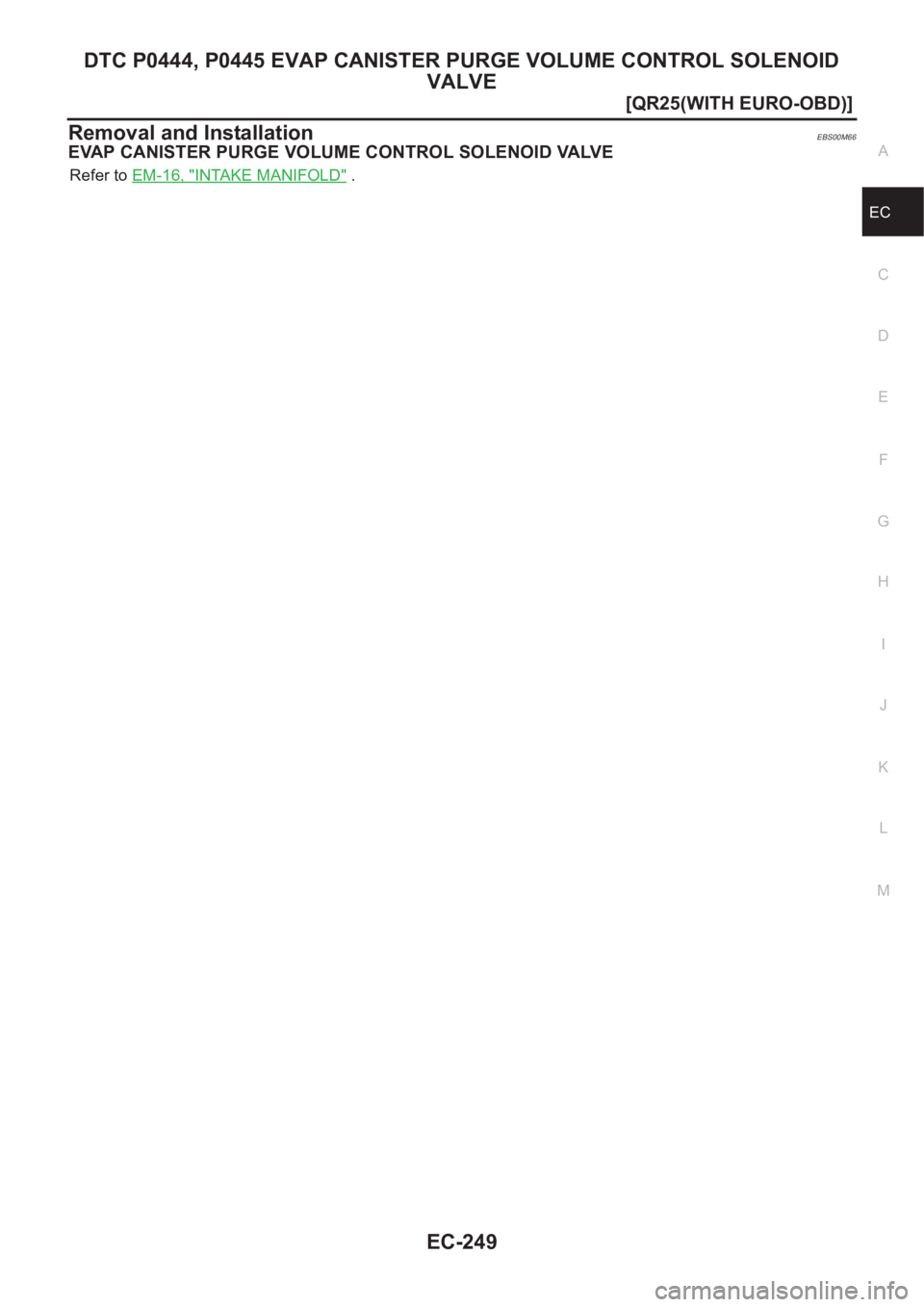

Page 599 of 3833

NISSAN X-TRAIL 2001 Service Repair Manual DTC P0444, P0445 EVAP CANISTER PURGE VOLUME CONTROL SOLENOID
VALVE
EC-249
[QR25(WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
Removal and InstallationEBS00M66
EVAP CANISTER PURGE VOLUME CONTROL SOLENOID

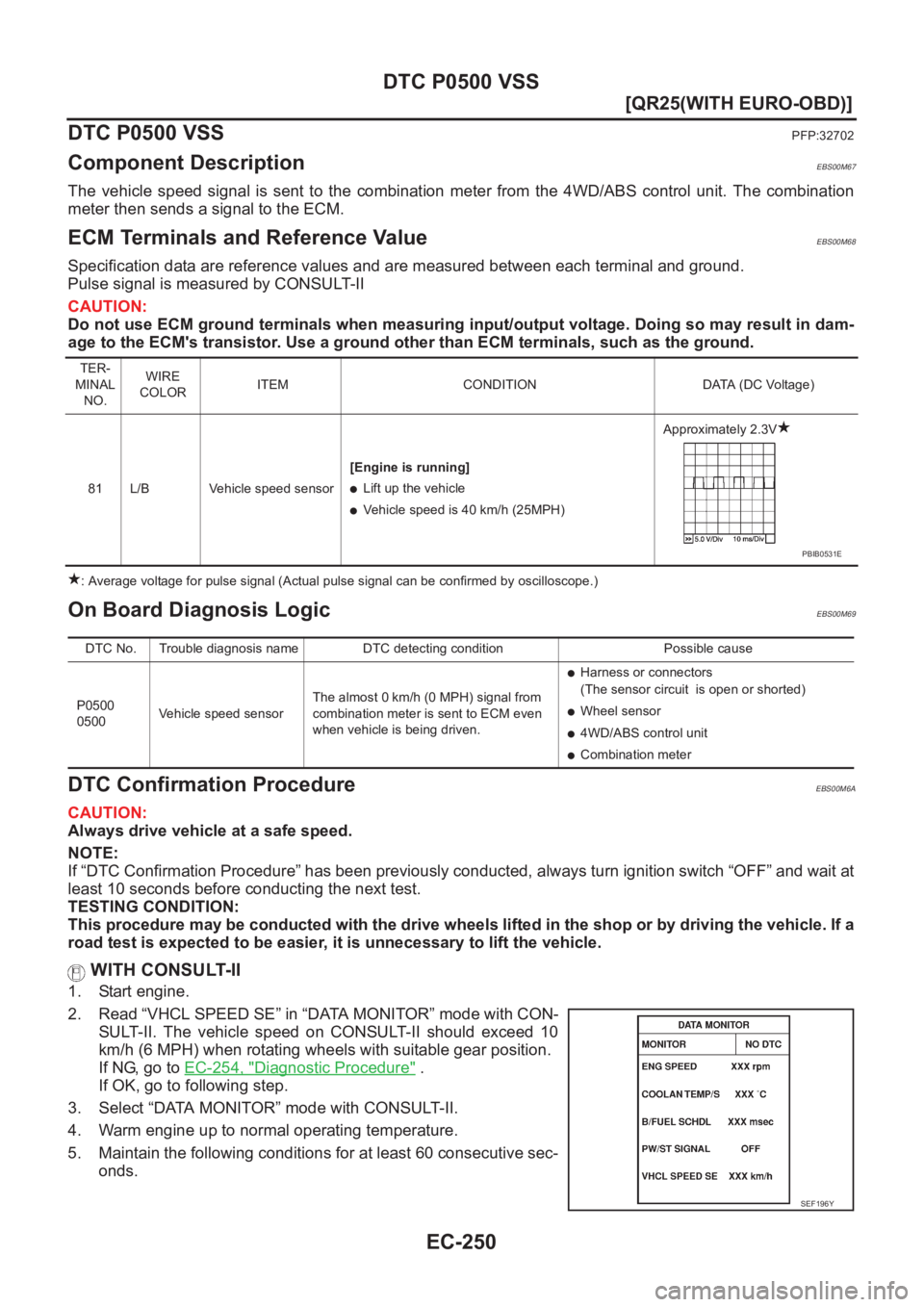

Page 600 of 3833

NISSAN X-TRAIL 2001 Service Repair Manual EC-250
[QR25(WITH EURO-OBD)]
DTC P0500 VSS
DTC P0500 VSS
PFP:32702
Component DescriptionEBS00M67
The vehicle speed signal is sent to the combination meter from the 4WD/ABS control unit.

EC-250
[QR25(WITH EURO-OBD)]
DTC P0500 VSS
DTC P0500 VSS
PFP:32702
Component DescriptionEBS00M67
The vehicle speed signal is sent to the combination meter from the 4WD/ABS control unit. The combination
meter then sends a signal to the ECM.
ECM Terminals and Reference ValueEBS00M68
Specification data are reference values and are measured between each terminal and ground.
Pulse signal is measured by CONSULT-II
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
: Average voltage for pulse signal (Actual pulse signal can be confirmed by oscilloscope.)
On Board Diagnosis LogicEBS00M69
DTC Confirmation ProcedureEBS00M6A
CAUTION:
Always drive vehicle at a safe speed.
NOTE:
If “DTC Confirmation Procedure” has been previously conducted, always turn ignition switch “OFF” and wait at
least 10 seconds before conducting the next test.
TESTING CONDITION:
This procedure may be conducted with the drive wheels lifted in the shop or by driving the vehicle. If a
road test is expected to be easier, it is unnecessary to lift the vehicle.
WITH CONSULT-II
1. Start engine.
2. Read “VHCL SPEED SE” in “DATA MONITOR” mode with CON-
SULT-II. The vehicle speed on CONSULT-II should exceed 10
km/h (6 MPH) when rotating wheels with suitable gear position.
If NG, go to EC-254, "
Diagnostic Procedure" .
If OK, go to following step.
3. Select “DATA MONITOR” mode with CONSULT-II.
4. Warm engine up to normal operating temperature.
5. Maintain the following conditions for at least 60 consecutive sec-
onds.
TER-
MINAL
NO.WIRE
COLORITEM CONDITION DATA (DC Voltage)
81 L/B Vehicle speed sensor[Engine is running]
●Lift up the vehicle
●Vehicle speed is 40 km/h (25MPH)Approximately 2.3V
PBIB0531E
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P0500
0500Vehicle speed sensorThe almost 0 km/h (0 MPH) signal from
combination meter is sent to ECM even
when vehicle is being driven.
●Harness or connectors
(The sensor circuit is open or shorted)
●Wheel sensor
●4WD/ABS control unit
●Combination meter
SEF196Y
