NISSAN X-TRAIL 2001 Service Repair Manual DTC P1217 ENGINE OVER TEMPERATURE
EC-603
[QR25(WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
DTC P1217 ENGINE OVER TEMPERATUREPFP:00000
System DescriptionEBS00NIC
COOLING FAN CONTROL
The ECM controls t

Page 954 of 3833

NISSAN X-TRAIL 2001 Service Repair Manual EC-604
[QR25(WITHOUT EURO-OBD)]
DTC P1217 ENGINE OVER TEMPERATURE
ECM Terminals and Reference Value
EBS00NIE
Specification data are reference values and are measured between each terminal and ground.

EC-604
[QR25(WITHOUT EURO-OBD)]
DTC P1217 ENGINE OVER TEMPERATURE
ECM Terminals and Reference Value
EBS00NIE
Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
On Board Diagnosis LogicEBS00NIF
If the cooling fan or another component in the cooling system malfunctions, engine coolant temperature will
rise.
When the engine coolant temperature reaches an abnormally high temperature condition, a malfunction is
indicated.
This self-diagnosis has the one trip detection logic.
CAUTION:
When a malfunction is indicated, be sure to replace the coolant. Refer to CO-29, "
Changing Engine
Coolant" . Also, replace the engine oil. Refer to LU-19, "Changing Engine Oil" .
1. Fill radiator with coolant up to specified level with a filling speed of 2 liters per minute. Be sure to
use coolant with the proper mixture ratio. Refer to MA-18, "
Engine Coolant Mixture Ratio" .
2. After refilling coolant, run engine to ensure that no water-flow noise is emitted.
COOLING FAN
●Engine: After warming up, idle
the engine
●Air conditioner switch: OFFEngine coolant temperature is 94°C
(201°F) or lessOFF
Engine coolant temperature is
between 95°C (203°F) and 104°C
(219°F)LOW
Engine coolant temperature is 105°C
(221°F) or moreHIGH MONITOR ITEM CONDITION SPECIFICATION
TER-
MINAL
NO.WIRE
COLORITEM CONDITION DATA (DC Voltage)
27 LG/BCooling fan relay
(High)[Engine is running]
●Cooling fan is not operating
●Cooling fan is operating at low speedBATTERY VOLTAGE
(11 - 14V)
[Engine is running]
●Cooling fan is operating at high speed0 - 1.0V
37 LYCooling fan relay
(Low)[Engine is running]
●Cooling fan is not operatingBATTERY VOLTAGE
(11 - 14V)
[Engine is running]
●Cooling fan is operating0 - 1.0V
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P1217
1217Engine over tempera-
ture (Overheat)
●Cooling fan does not operate properly (Over-
heat).
●Cooling fan system does not operate prop-
erly (Overheat).
●Engine coolant was not added to the system
using the proper filling method.
●Harness or connectors
(The cooling fan circuit is open or
shorted.)
●Cooling fan
●Radiator hose
●Radiator
●Radiator cap
●Water pump
●Thermostat
For more information, refer to EC-615,
"Main 12 Causes of Overheating" .

Page 955 of 3833

NISSAN X-TRAIL 2001 Service Repair Manual DTC P1217 ENGINE OVER TEMPERATURE
EC-605
[QR25(WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
Overall Function CheckEBS00NIG
Use this procedure to check the overall function of the cooling fan. During t

DTC P1217 ENGINE OVER TEMPERATURE
EC-605
[QR25(WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
Overall Function CheckEBS00NIG
Use this procedure to check the overall function of the cooling fan. During this check, a DTC might not be con-
firmed.
WARNING:
Never remove the radiator cap when the engine is hot. Serious burns could be caused by high pres-
sure fluid escaping from the radiator.
Wrap a thick cloth around cap. Carefully remove the cap by turning it a quarter turn to allow built-up
pressure to escape. Then turn the cap all the way off.
WITH CONSULT-II
1. Check the coolant level in the reservoir tank and radiator.
Allow engine to cool before checking coolant level.
If the coolant level in the reservoir tank and/or radiator is below
the proper range, skip the following steps and go to EC-608,
"Diagnostic Procedure" .
2. Confirm whether customer filled the coolant or not. If customer
filled the coolant, skip the following steps and go to EC-608,
"Diagnostic Procedure" .
3. Turn ignition switch “ON”.
4. Perform “COOLING FAN” in “ACTIVE TEST” mode with CON-
SULT-II.
5. If the results are NG, go to EC-608, "
Diagnostic Procedure" .
WITHOUT CONSULT-II
1. Check the coolant level in the reservoir tank and radiator.
Allow engine to cool before checking coolant level.
If the coolant level in the reservoir tank and/or radiator is below
the proper range, skip the following steps and go to EC-608,
"Diagnostic Procedure" .
2. Confirm whether customer filled the coolant or not. If customer
filled the coolant, skip the following steps and go to EC-608,
"Diagnostic Procedure" .
3. Start engine.
Be careful not to overheat engine.
4. Set temperature control lever to full cold position.
5. Turn air conditioner switch “ON”.
6. Turn blower fan switch “ON”.
7. Run engine at idle for a few minutes with air conditioner operating.
Be careful not to overheat engine.
SEF621W
SEF646X
SEF621W

Page 956 of 3833

NISSAN X-TRAIL 2001 Service Repair Manual EC-606
[QR25(WITHOUT EURO-OBD)]
DTC P1217 ENGINE OVER TEMPERATURE
8. Make sure that cooling fan operates at low speed.
If NG, go to EC-608, "
Diagnostic Procedure" .
If OK, go to the following

Page 957 of 3833

NISSAN X-TRAIL 2001 Service Repair Manual DTC P1217 ENGINE OVER TEMPERATURE
EC-607
[QR25(WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

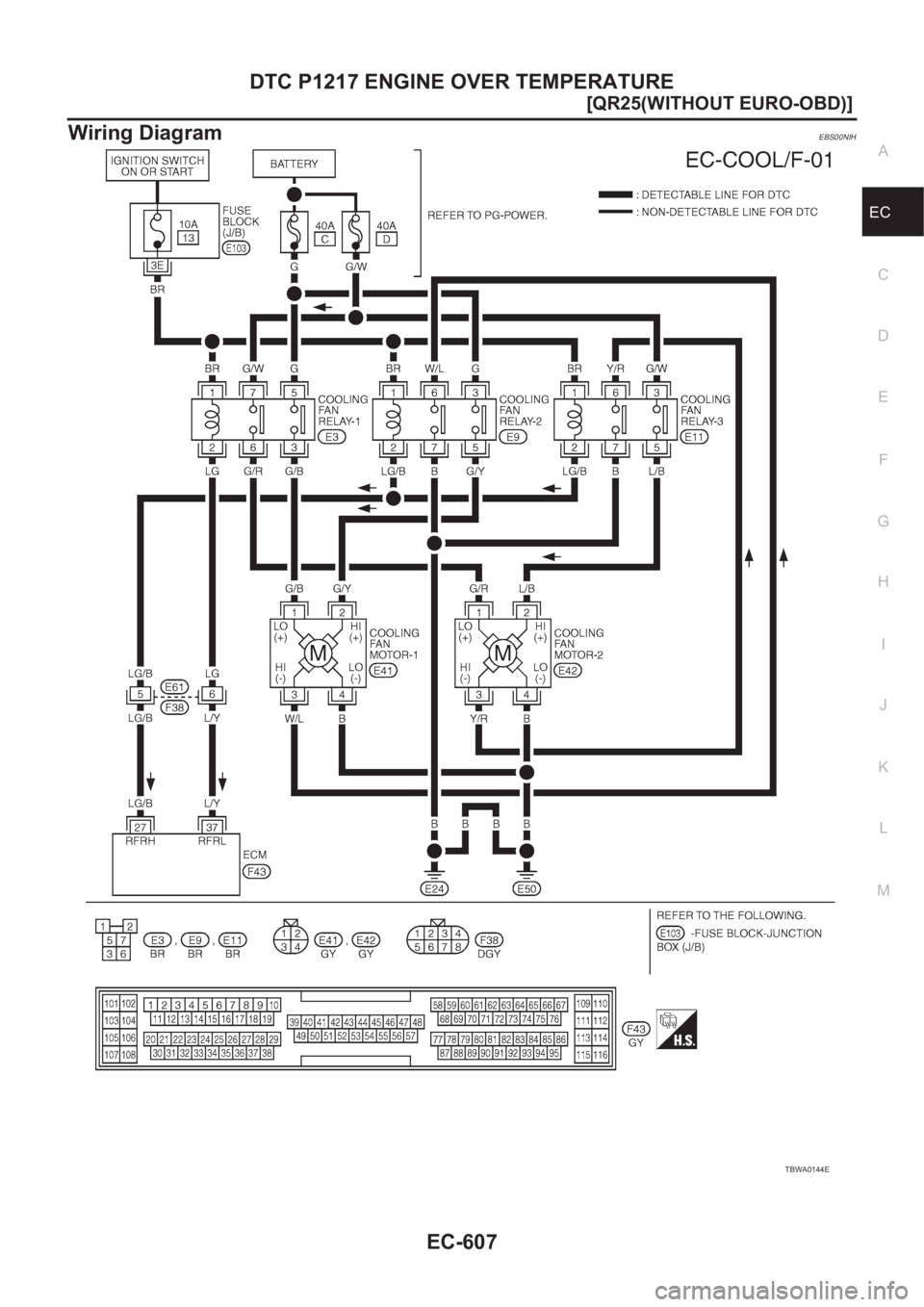

Wiring DiagramEBS00NIH
TBWA0144E

Page 958 of 3833

NISSAN X-TRAIL 2001 Service Repair Manual EC-608
[QR25(WITHOUT EURO-OBD)]
DTC P1217 ENGINE OVER TEMPERATURE
Diagnostic Procedure
EBS00NII
1. INSPECTION START
Do you have CONSULT-II?
Ye s o r N o
Yes >> GO TO 2
No >> GO TO 4
2. CHECK COOLI

Page 959 of 3833

NISSAN X-TRAIL 2001 Service Repair Manual DTC P1217 ENGINE OVER TEMPERATURE
EC-609
[QR25(WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
4.CHECK COOLING FAN LOW SPEED OPERATION
Without CONSULT-II
1. Disconnect cooling fan relays-2 and -3.
2. Sta

Page 960 of 3833

NISSAN X-TRAIL 2001 Service Repair Manual EC-610
[QR25(WITHOUT EURO-OBD)]
DTC P1217 ENGINE OVER TEMPERATURE
6. CHECK COOLING SYSTEM FOR LEAK
Apply pressure to the cooling system with a tester, and check if the
pressure drops.
CAUTION:
Higher
