DTC P1621 ECM RELAY
EC-1539
[YD]
C
D
E
F
G
H
I
J
K
L
MA
EC

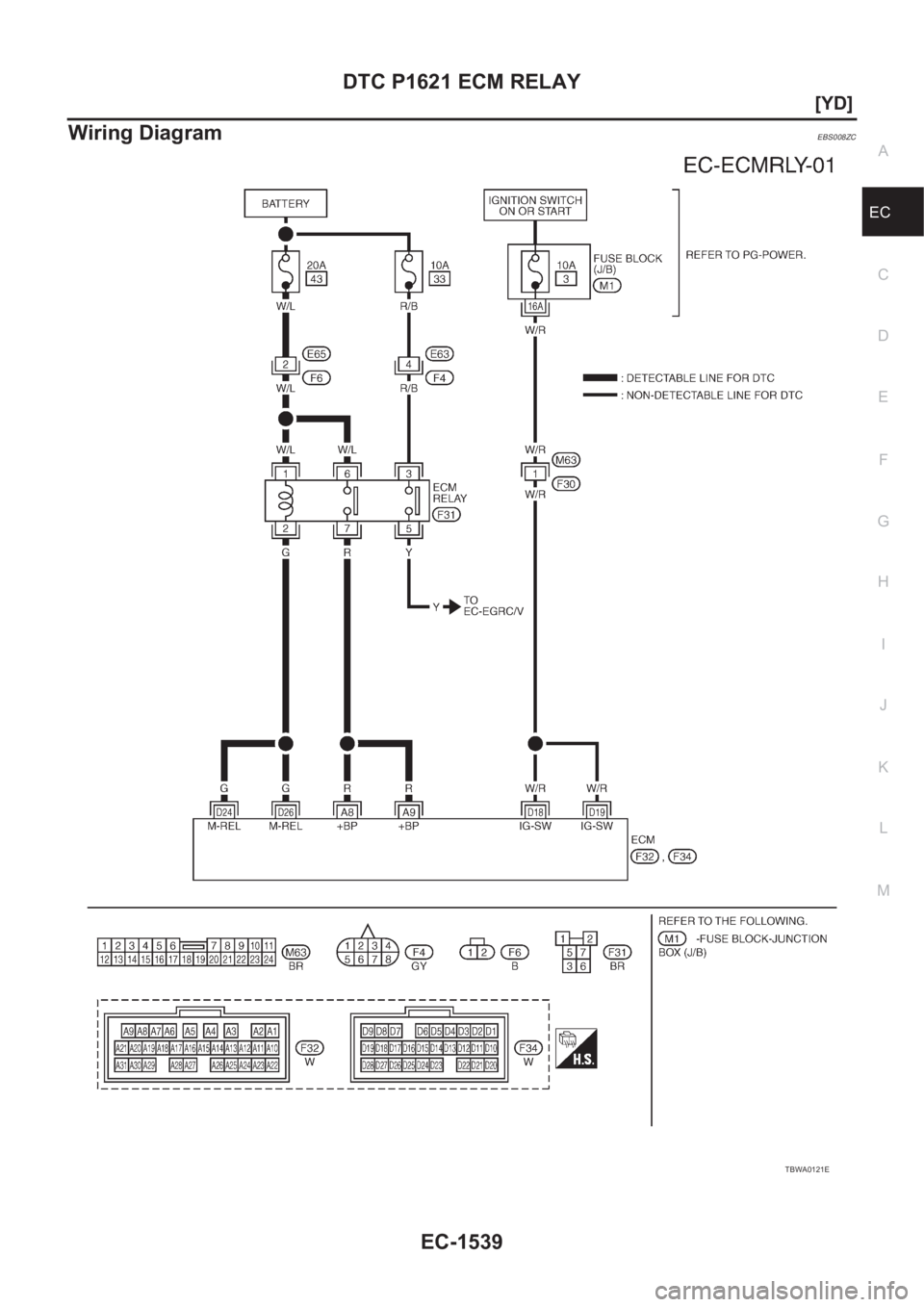

Wiring DiagramEBS008ZC
TBWA0121E
Page 1890 of 3833
![NISSAN X-TRAIL 2001 Service Repair Manual EC-1540
[YD]
DTC P1621 ECM RELAY
Diagnostic Procedure
EBS008Y5
1. CHECK ECM POWER SUPPLY CIRCUIT
1. Turn ignition switch “OFF”.
2. Disconnect ECM relay.
3. Check voltage between ECM relay ter NISSAN X-TRAIL 2001 Service Repair Manual EC-1540
[YD]
DTC P1621 ECM RELAY
Diagnostic Procedure
EBS008Y5
1. CHECK ECM POWER SUPPLY CIRCUIT
1. Turn ignition switch “OFF”.
2. Disconnect ECM relay.
3. Check voltage between ECM relay ter](/manual-img/5/57405/w960_57405-1889.png)
EC-1540
[YD]
DTC P1621 ECM RELAY
Diagnostic Procedure
EBS008Y5
1. CHECK ECM POWER SUPPLY CIRCUIT
1. Turn ignition switch “OFF”.
2. Disconnect ECM relay.
3. Check voltage between ECM relay terminals 1, 6 and ground
with CONSULT-II or tester.
OK or NG
OK >> GO TO 3.
NG >> GO TO 2.
2. DETECT MALFUNCTIONING PART
Check the following.
●Harness connectors E65, F6
●20A fuse
●Harness for open and short between ECM relay and battery
>> Repair open circuit or short to ground or short to power in harness or connectors.
3. CHECK ECM INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch “OFF”.
2. Disconnect ECM harness connector.
3. Check harness continuity between ECM terminals A8, A9 and ECM relay terminal 7. Refer to Wiring Dia-
gram.
4. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 4.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
PBIB0377E
Voltage: Battery voltage
PBIB0359E
Continuity should exist.
Page 1891 of 3833
DTC P1621 ECM RELAY
EC-1541
[YD]
C
D
E
F
G
H
I
J
K
L
MA
EC

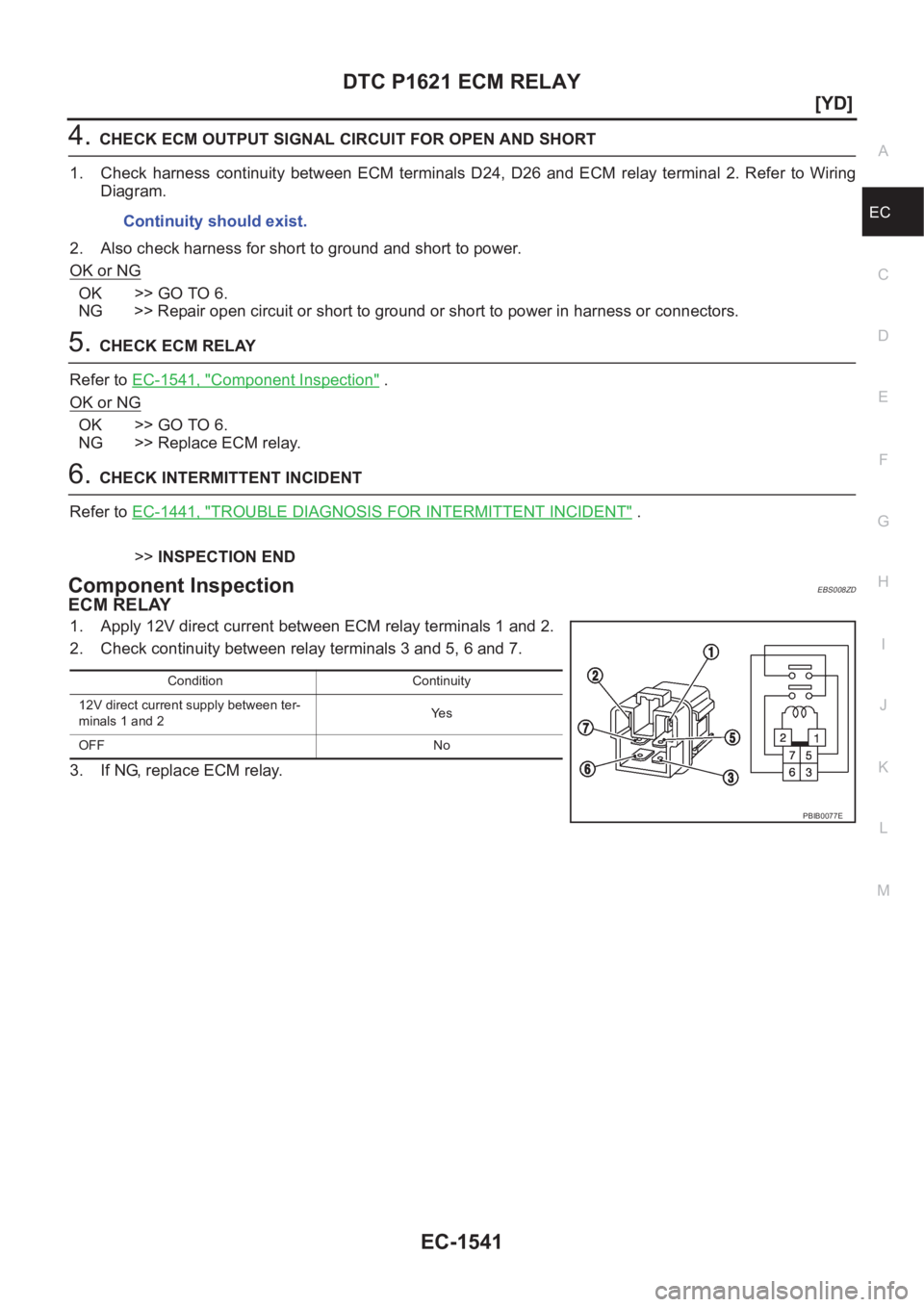

4.CHECK ECM OUTPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Check harness continuity between ECM terminals D24, D26 and ECM relay terminal 2. Refer to Wiring
Diagram.
2. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 6.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
5.CHECK ECM RELAY
Refer to EC-1541, "
Component Inspection" .
OK or NG
OK >> GO TO 6.
NG >> Replace ECM relay.
6.CHECK INTERMITTENT INCIDENT
Refer to EC-1441, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
>>INSPECTION END
Component InspectionEBS008ZD
ECM RELAY
1. Apply 12V direct current between ECM relay terminals 1 and 2.
2. Check continuity between relay terminals 3 and 5, 6 and 7.
3. If NG, replace ECM relay.Continuity should exist.
Condition Continuity
12V direct current supply between ter-
minals 1 and 2Ye s
OFF No
PBIB0077E
Page 1892 of 3833
![NISSAN X-TRAIL 2001 Service Repair Manual EC-1542
[YD]
DTC P1660 BATTERY VOLTAGE
DTC P1660 BATTERY VOLTAGE
PFP:AYBGL
On Board Diagnosis LogicEBS0035A
The ECM checks if battery voltage is within the tolerance range for the engine control syste NISSAN X-TRAIL 2001 Service Repair Manual EC-1542
[YD]
DTC P1660 BATTERY VOLTAGE
DTC P1660 BATTERY VOLTAGE
PFP:AYBGL
On Board Diagnosis LogicEBS0035A
The ECM checks if battery voltage is within the tolerance range for the engine control syste](/manual-img/5/57405/w960_57405-1891.png)
EC-1542
[YD]
DTC P1660 BATTERY VOLTAGE
DTC P1660 BATTERY VOLTAGE
PFP:AYBGL
On Board Diagnosis LogicEBS0035A
The ECM checks if battery voltage is within the tolerance range for the engine control system.
DTC Confirmation ProcedureEBS0035B
With CONSULT-II
1. Check the following.
–Jumper cables are connected for jump starting.
–Battery or alternator has been replaced.
If the result is “Yes” for one item or more, skip the following steps and go to EC-1542, "
Diagnostic Proce-
dure" .
2. Check that the positive battery terminal is connected to battery properly. If NG, reconnect it properly.
3. Check that the alternator functions properly. Refer to SC-12, "
CHARGING SYSTEM" .
4. Turn ignition switch “ON” and select “DATA MONITOR” mode with CONSULT-II.
5. Wait one minute.
6. If DTC is detected, go to EC-1542, "
Diagnostic Procedure" .
If DTC is not detected, go to next step.
7. Start engine and wait one minute at idle.
8. If DTC is detected, go to EC-1542, "
Diagnostic Procedure" .
Diagnostic ProcedureEBS0035C
1. INSPECTION START
Are jumper cables connected for the jump starting?
Ye s o r N o
Yes >> GO TO 3.
No >> GO TO 2.
2. CHECK BATTERY AND ALTERNATOR
Check that the proper type of battery and alternator is installed.
Refer to SC-3, "
BATTERY" , SC-12, "CHARGING SYSTEM" .
OK or NG
OK >> GO TO 5.
NG >> Replace with a proper one.
DTC Malfunction is detected when ... Check Items (Possible Cause)
P1660
●An abnormally high or low voltage from the battery
is sent to ECM.●Incorrect jump starting
●Battery
●Alternator
●ECM
Page 1893 of 3833
DTC P1660 BATTERY VOLTAGE
EC-1543
[YD]
C
D
E
F
G
H
I
J
K
L
MA
EC
3.CHECK JUMPER CABLES INSTALLATION
Check that the jumper cables are connected in the correct sequence.
OK or NG
OK >> GO TO 4.
NG >> Reconnect jumper cables properly.
4.CHECK BATTERY FOR BOOSTER
Check that the battery for the booster is a 12V battery.
OK or NG
OK >> GO TO 5.
NG >> Change the vehicle for booster.
5.PERFORM DTC CONFIRMATION PROCEDURE AGAIN
Perform EC-1542, "
DTC Confirmation Procedure" , again.
OK or NG
OK >> GO TO 6.
NG >> Replace ECM.
6.CHECK ELECTRICAL PARTS DAMAGE
Check the following for damage.
●Wiring harness and harness connectors for burn
●Fuses for short
OK or NG
OK >>INSPECTION END
NG >> Repair or replace malfunctioning part.
SEF439Z
Page 1894 of 3833
![NISSAN X-TRAIL 2001 Service Repair Manual EC-1544
[YD]
GLOW CONTROL SYSTEM
GLOW CONTROL SYSTEM
PFP:25230
DescriptionEBS0035J
SYSTEM DESCRIPTION
When engine coolant temperature is more than approximately 80°C (176°F), the glow relay turns of NISSAN X-TRAIL 2001 Service Repair Manual EC-1544
[YD]
GLOW CONTROL SYSTEM
GLOW CONTROL SYSTEM
PFP:25230
DescriptionEBS0035J
SYSTEM DESCRIPTION
When engine coolant temperature is more than approximately 80°C (176°F), the glow relay turns of](/manual-img/5/57405/w960_57405-1893.png)
EC-1544
[YD]
GLOW CONTROL SYSTEM
GLOW CONTROL SYSTEM
PFP:25230
DescriptionEBS0035J
SYSTEM DESCRIPTION
When engine coolant temperature is more than approximately 80°C (176°F), the glow relay turns off.
When coolant temperature is lower than approximately 80°C (176°F):
●Ignition switch ON
After ignition switch has turned to ON, the glow relay turns ON for a certain period of time in relation to
engine coolant temperature, allowing current to flow through glow plug.
●Cranking
The glow relay turns ON, allowing current to flow through glow plug.
●Starting
After engine has started, current continues to flow through glow plug (after-glow mode) for a certain period
in relation to engine coolant temperature.
The glow indicator lamp turns ON for a certain period of time in relation to engine coolant temperature at the
time glow relay is turned ON.
COMPONENT DESCRIPTION
Glow Plug
The glow plug is provided with a ceramic heating element to obtain a
high-temperature resistance. It glows in response to a signal sent
from the ECM, allowing current to flow through the glow plug via the
glow relay.
ECM Terminals and Reference ValueEBS0035K
Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
Sensor Input Signal to ECM ECM Function Actuator
Crankshaft position sensor (TDC) Engine speed
Glow controlGlow lamp
Glow relay
Glow plugs Engine coolant temperature sensor Engine coolant temperature
SEF376Y
TERMI-
NAL
NO.WIRE
COLORITEM CONDITION DATA (DC Voltage)
D2 OR Glow lamp[Ignition switch “ON”]
●Glow lamp is “ON”Approximately 1.0V
[Ignition switch “ON”]
●Glow lamp is “OFF”BATTERY VOLTAGE
(11 - 14V)
E9 W/R Glow relay Refer to EC-1544, "
SYSTEM DESCRIPTION"
Page 1895 of 3833
GLOW CONTROL SYSTEM
EC-1545
[YD]
C
D
E
F
G
H
I
J
K
L
MA
EC

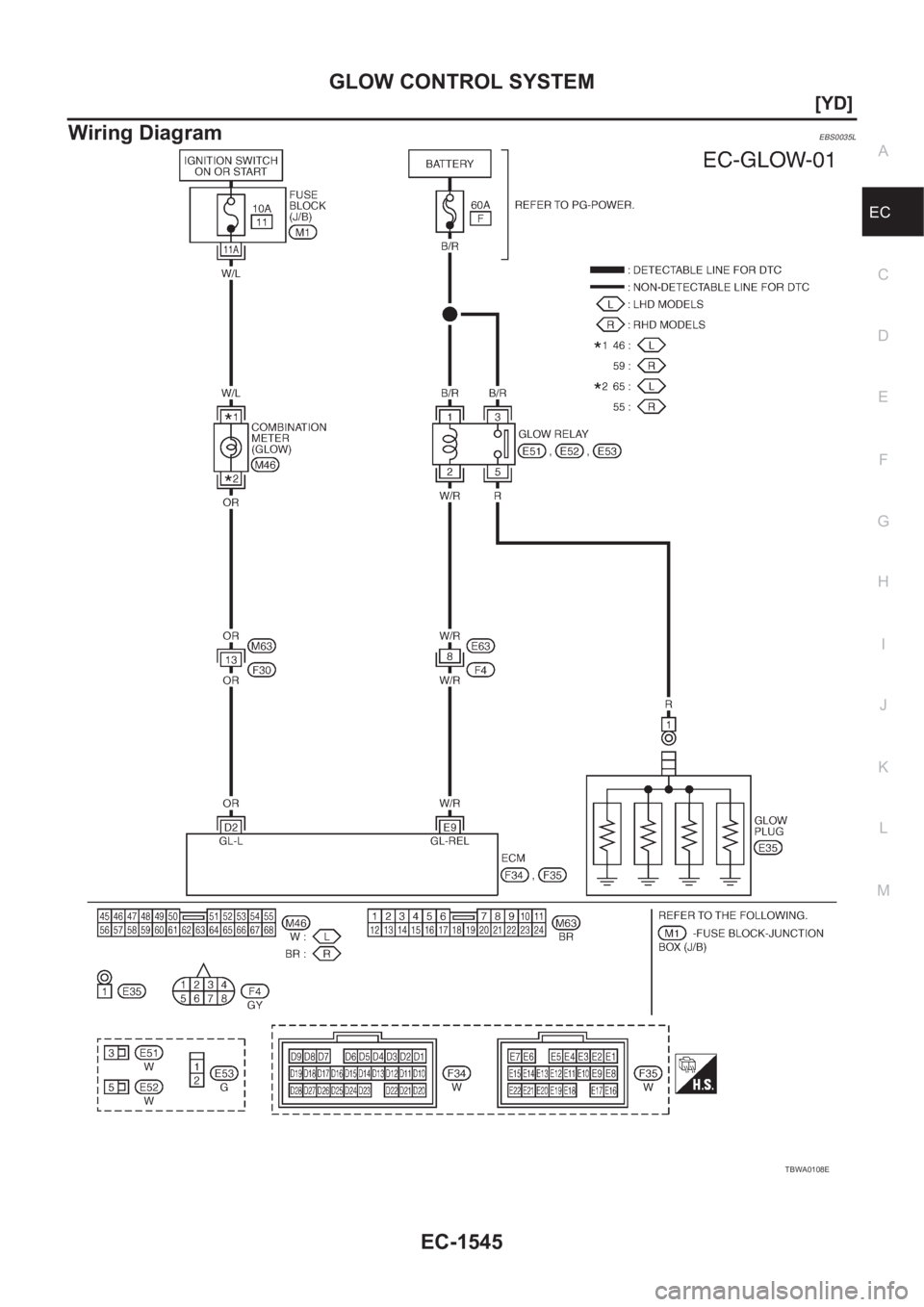

Wiring DiagramEBS0035L
TBWA0108E
Page 1896 of 3833
EC-1546
[YD]
GLOW CONTROL SYSTEM
Diagnostic Procedure
EBS0035M
1. INSPECTION START
Check fuel level, fuel supplying system, starter motor, etc.
OK or NG
OK >> GO TO 2.
NG >> Correct.
2. CHECK INSTALLATION
Check that glow plug nut and all glow plug connecting plate nuts are
installed properly.
OK or NG
OK >> GO TO 3.
NG >> Install properly.
3. CHECK GLOW INDICATOR LAMP OPERATION
With CONSULT-II
1. Turn ignition switch “ON”.
2. Select “COOLAN TEMP/S” in “DATA MONITOR” mode with
CONSULT-II.
3. Confirm that “COOLAN TEMP/S” indicates below 80°C (176°F).
If it indicates above 80°C (176°F), cool down engine.
4. Turn ignition switch “OFF”, wait at least 5 seconds and then turn
“ON”.
5. Make sure that glow indicator lamp is turned “ON” for 1.5 sec-
onds or more after turning ignition switch “ON”, and then glow
indicator lamp turned “OFF”.
OK or NG
OK >> GO TO 4.
NG >> GO TO 5.
SEF392YA
SEF013Y
