DIAGNOSTIC WORKSHEET
Information from Customer
KEY POINTS
●WHAT..... Vehicle & A/T model
●WHEN..... Date, Frequencies
●WHERE..... Road conditions
●HOW..... Operating conditions, Symptoms
Customer name MR/MS Model & Year VIN
Trans. model Engine Mileage
Incident Date Manuf. Date In Service Date
Frequency❏ Continuous❏ Intermittent ( times a day)
Symptoms❏ Vehicle does not move. (❏ Any position❏ Particular position)
❏ No up-shift (❏ 1st → 2nd❏ 2nd → 3rd❏ 3rd → O/D)
❏ No down-shift (❏ O/D → 3rd❏ 3rd → 2nd❏ 2nd → 1st)
❏ Lockup malfunction
❏ Shift point too high or too low.
❏ Shift shock or slip (❏ N → D❏ Lockup❏ Any drive position)
❏ Noise or vibration
❏ No kick down
❏ No pattern select
❏ Others
()
O/D OFF indicator lamp Blinks for about 8 seconds.
❏ Continuously lit❏ Not lit
Page 2338 of 3833
![NISSAN X-TRAIL 2001 Service Repair Manual AT-260
[EXC.F/EURO-OBD]
TROUBLE DIAGNOSIS — INTRODUCTION
Diagnostic Worksheet
1.❏ Read the Fail-safe and listen to customer complaints.AT- 8 , "Wiring
Diagrams
and Trouble
Diagnosis", NISSAN X-TRAIL 2001 Service Repair Manual AT-260
[EXC.F/EURO-OBD]
TROUBLE DIAGNOSIS — INTRODUCTION
Diagnostic Worksheet
1.❏ Read the Fail-safe and listen to customer complaints.AT- 8 , "Wiring
Diagrams
and Trouble
Diagnosis",](/manual-img/5/57405/w960_57405-2337.png)
AT-260
[EXC.F/EURO-OBD]
TROUBLE DIAGNOSIS — INTRODUCTION
Diagnostic Worksheet
1.❏ Read the Fail-safe and listen to customer complaints.AT- 8 , "Wiring
Diagrams
and Trouble
Diagnosis",
AT-259,
"DIAGNOS-
TIC WORK-
SHEET"
2.❏ CHECK A/T FLUIDAT-264, "A/T
Fluid Check"❏ Leakage (Follow specified procedure)
❏ Fluid condition
❏ Fluid level
3.❏ Perform STALL TEST and LINE PRESSURE TEST.AT- 2 6 5 , "
Stall
Te s t",
AT-268, "
Line
Pressure
Te s t"
❏ Stall test — Mark possible damaged components/others.
❏ Torque converter one-way clutch
❏ Reverse clutch
❏ Forward clutch
❏ Overrun clutch
❏ Forward one-way clutch❏ Low & reverse brake
❏ Low one-way clutch
❏ Engine
❏ Line pressure is low
❏ Clutches and brakes except high clutch and
brake band are OK
❏ Line Pressure test — Suspected parts:
4.❏ Perform all ROAD TEST and mark required procedures.AT-269,
"Road Test"
4-1. Check before engine is started.AT-271, "1.
CHECK
BEFORE
ENGINE IS
STARTED"
❏ O/D OFF Indicator Lamp Does Not Come On, AT-312 .
❏ SELF-DIAGNOSTIC CONFIRMATION PROCEDURE — Mark detected items.
❏ Vehicle speed sensor·A/T (Revolution sensor), AT-353
.
❏ Vehicle speed sensor·MTR, AT- 3 5 8
.
❏ Accelerator pedal position (APP) sensor, AT-362
.
❏ Shift solenoid valve A, AT-367
.
❏ Shift solenoid valve B, AT-372
.
❏ Overrun clutch solenoid valve, AT-377
.
❏ Torque converter clutch solenoid valve, AT- 3 8 1
.
❏ A/T fluid temperature sensor and TCM power source, AT-386
.
❏ Engine speed signal, AT-392
.
❏ Line pressure solenoid valve, AT-396
.
❏ CAN communication line, AT-403
.
❏ Control unit (RAM), control unit (ROM), AT- 2 0 3 , "
DTC CONTROL UNIT (RAM), CONTROL UNIT
(ROM)" .
❏ Control unit (EEP ROM), AT- 2 0 5 , "
DTC CONTROL UNIT(EEPROM)" .
❏ PNP & overdrive control switches, and throttle position sensor, AT- 3 4 4
.
❏ Battery
❏ Others
4-2. Check at idleAT-272, "
2.
CHECK AT
IDLE"❏ Engine Cannot Be Started In “P” And “N” Position, AT-314 .
❏ In “P” Position, Vehicle Moves Forward Or Backward When Pushed, AT- 3 1 5
.
❏ In “N” Position, Vehicle Moves, AT- 3 1 5
.
❏ Large Shock. “N” → “R” Position, AT-317
.
❏ Vehicle Does Not Creep Backward In “R” Position, AT- 3 1 7
.
❏ Vehicle Does Not Creep Forward In “D”, “2” Or “1” Position, AT- 3 2 1
.
Page 2339 of 3833
![NISSAN X-TRAIL 2001 Service Repair Manual TROUBLE DIAGNOSIS — INTRODUCTION
AT-261
[EXC.F/EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT
4. 4-3. Cruise testAT- 2 7 5 , "3.
CRUISE
TEST",
AT- 2 7 9 ,
"Cruise Test
— Part 1"
Part-1
NISSAN X-TRAIL 2001 Service Repair Manual TROUBLE DIAGNOSIS — INTRODUCTION
AT-261
[EXC.F/EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT
4. 4-3. Cruise testAT- 2 7 5 , "3.
CRUISE
TEST",
AT- 2 7 9 ,
"Cruise Test
— Part 1"
Part-1](/manual-img/5/57405/w960_57405-2338.png)
TROUBLE DIAGNOSIS — INTRODUCTION
AT-261
[EXC.F/EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT
4. 4-3. Cruise testAT- 2 7 5 , "3.
CRUISE
TEST",
AT- 2 7 9 ,
"Cruise Test
— Part 1"
Part-1
❏ Vehicle Cannot Be Started From D
1 , AT- 3 2 3 .
❏ A/T Does Not Shift: D
1→ D2 Or Does Not Kickdown: D4→ D2 , AT- 3 2 6 .
❏ A/T Does Not Shift: D
2→ D3 , AT-328 .
❏ A/T Does Not Shift: D
3→ D4 , AT-330 .
❏ A/T Does Not Perform Lock-up,AT- 3 3 2
.
❏ A/T Does Not Hold Lock-up Condition, AT-333
.
❏ Lock-up Is Not Released, AT-335
.
❏ Engine Speed Does Not Return To Idle (Light Braking D
4→ D3 ), AT- 3 3 6 .
Part-2AT- 2 8 2 ,
"Cruise Test
— Part 2"❏ Vehicle Does Not Start From D1 , AT-338 .
❏ A/T Does Not Shift: D
1→ D2 Or Does Not Kickdown: D4→ D2 , AT- 3 2 6 .
❏ A/T Does Not Shift: D
2→ D3 , AT-328 .
❏ A/T Does Not Shift: D
3→ D4 , AT-330 .
Part-3AT- 2 8 4 ,
"Cruise Test
— Part 3"❏ A/T Does Not Shift: D4→ D3 When Overdrive Control Switch “ON” → “OFF”, AT- 3 3 9 .
❏ Engine Speed Does Not Return To Idle (Engine Brake In D
3 ), AT-336 .
❏ A/T Does Not Shift: D
3→ 22 , When Selector Lever “D” → “2” Position, AT- 3 4 0 .
❏ Engine Speed Does Not Return To Idle (Engine Brake In 2
2 ),AT- 3 3 6 .
❏ A/T Does Not Shift: 2
2→ 11 , When Selector Lever “2” → “1” Position, AT- 3 4 1 .
❏ Vehicle Does Not Decelerate By Engine Brake, AT-343
.
❏ TCM Self-diagnosis Does Not Activate (PNP & Overdrive Control Switches, and throttle position sensor
Circuit Checks), AT- 3 4 4
.
❏ SELF-DIAGNOSTIC PROCEDURE — Mark detected items.
❏ Vehicle speed sensor·A/T (Revolution sensor), AT- 3 5 3
.
❏ Vehicle speed sensor·MTR, AT-358
.
❏ Accelerator pedal position (APP) sensor, AT-362
.
❏ Shift solenoid valve A, AT- 3 6 7
.
❏ Shift solenoid valve B, AT- 3 7 2
.
❏ Overrun clutch solenoid valve, AT- 3 7 7
.
❏ Torque converter clutch solenoid valve, AT-381
.
❏ Batt/fluid temp sen (A/T fluid temperature sensor and TCM power source), AT- 3 8 6
.
❏ Engine speed signal, AT- 3 9 2
.
❏ Line pressure solenoid valve, AT-396
.
❏ CAN communication line, AT- 4 0 3
.
❏ Control unit (RAM), control unit (ROM), AT-203, "
DTC CONTROL UNIT (RAM), CONTROL UNIT
(ROM)" .
❏ Control unit (EEP ROM), AT-205, "
DTC CONTROL UNIT(EEPROM)" .
❏ PNP & overdrive control switches, and throttle position sensor, AT- 3 4 4
.
❏ Battery
❏ Others
5.❏ For self-diagnosis NG items, inspect each component. Repair or replace the damaged parts.AT- 2 5 3 ,
"SELF-DIAG-
NOSTIC
PROCE-
DURE
(WITHOUT
CONSULT-
II)"
6.❏ Perform all ROAD TEST and re-mark required procedures.AT- 2 6 9 ,
"Road Test"
Page 2340 of 3833
![NISSAN X-TRAIL 2001 Service Repair Manual AT-262
[EXC.F/EURO-OBD]
TROUBLE DIAGNOSIS — INTRODUCTION
Work Flow
ECS004TG
HOW TO PERFORM TROUBLE DIAGNOSES FOR QUICK AND ACCURATE REPAIR
A good understanding of the malfunction conditions c NISSAN X-TRAIL 2001 Service Repair Manual AT-262
[EXC.F/EURO-OBD]
TROUBLE DIAGNOSIS — INTRODUCTION
Work Flow
ECS004TG
HOW TO PERFORM TROUBLE DIAGNOSES FOR QUICK AND ACCURATE REPAIR
A good understanding of the malfunction conditions c](/manual-img/5/57405/w960_57405-2339.png)
AT-262
[EXC.F/EURO-OBD]
TROUBLE DIAGNOSIS — INTRODUCTION
Work Flow
ECS004TG
HOW TO PERFORM TROUBLE DIAGNOSES FOR QUICK AND ACCURATE REPAIR
A good understanding of the malfunction conditions can make troubleshooting faster and more accurate. In
general, each customer feels differently about a problem. It is important to fully understand the symptoms or
conditions for a customer complaint.
Make good use of the two sheets provided, “INFORMATION FROM CUSTOMER” (AT- 2 5 9
) and “DIAGNOS-
TIC WORKSHEET” (AT- 2 6 0
), to perform the best troubleshooting possible.
7.❏ Perform the Diagnostic Procedures for all remaining items marked NG. Repair or replace the damaged parts.
Refer to the Symptom Chart when you perform the procedures. (The chart also shows some other possible
symptoms and the component inspection orders.)AT- 2 8 7 ,
"TROUBLE
DIAGNOSIS
— GEN-
ERAL
DESCRIP-
TION"
8.❏ Erase self-diagnosis code from TCM memories.AT-252,
"HOW TO
ERASE
SELF-DIAG-
NOSTIC
RESULTS
(WITH CON-
SULT-II)",AT-
257, "HOW
TO ERASE
SELF-DIAG-
NOSTIC
RESULTS
(WITHOUT
CONSULT-
II)"
Page 2341 of 3833
TROUBLE DIAGNOSIS — INTRODUCTION
AT-263
[EXC.F/EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT

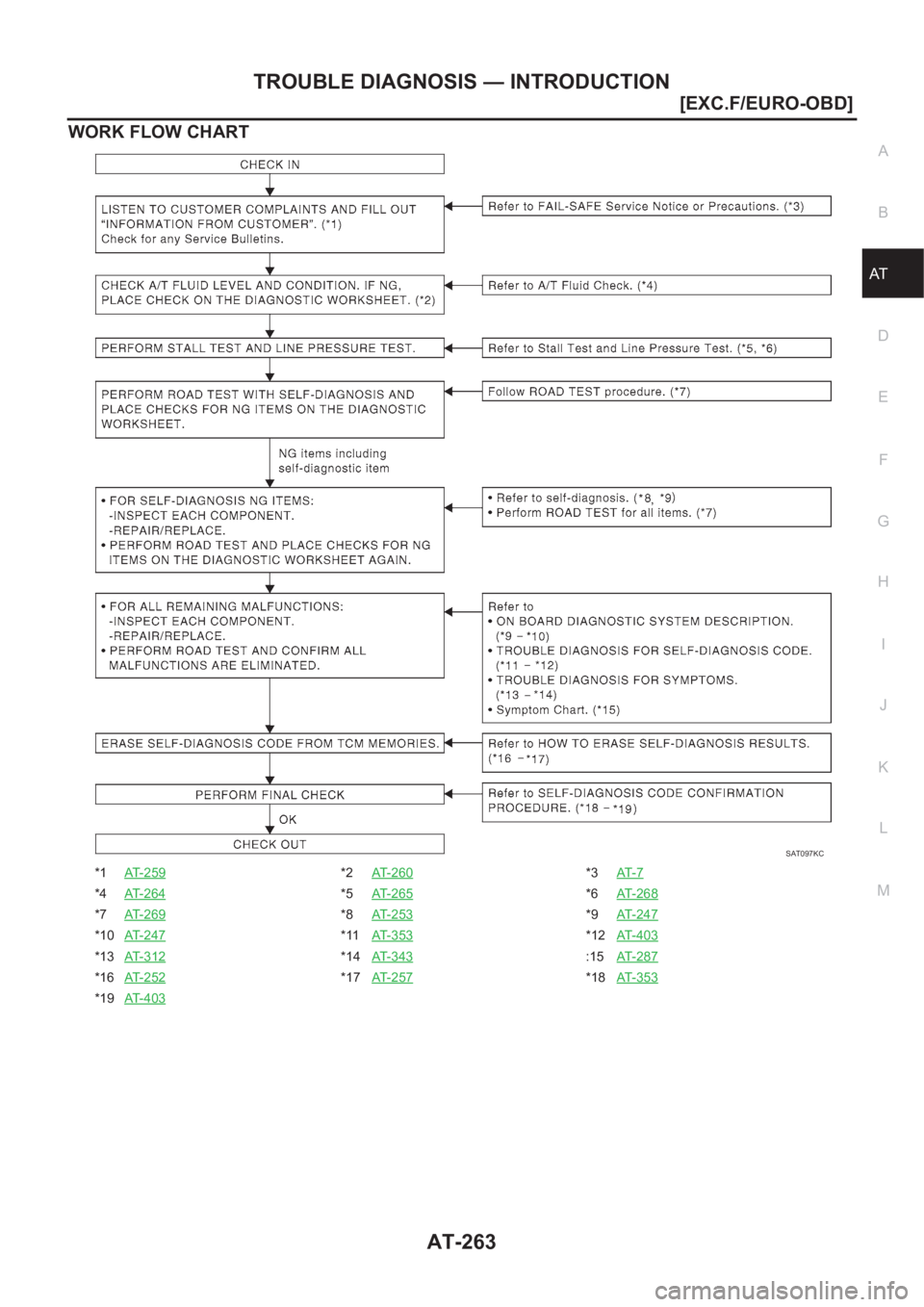

WORK FLOW CHART
*1AT-259*2AT- 2 6 0*3AT- 7
*4AT-264*5AT- 2 6 5*6AT-268
*7AT-269*8AT- 2 5 3*9AT-247
*10AT-247*11AT- 3 5 3*12AT-403
*13AT-312*14AT- 3 4 3:15AT-287
*16AT-252*17AT- 2 5 7*18AT-353
*19AT-403
SAT097KC
Page 2342 of 3833
AT-264
[EXC.F/EURO-OBD]
TROUBLE DIAGNOSIS — BASIC INSPECTION
TROUBLE DIAGNOSIS — BASIC INSPECTION
PFP:00000
A/T Fluid CheckECS004VR
FLUID LEAKAGE CHECK
1. Clean area suspected of leaking. — for example, mating surface
of converter housing and transmission case.
2. Start engine, apply foot brake, place selector lever in “D” posi-
tion and wait a few minutes.
3. Stop engine.
4. Check for fresh leakage.
FLUID CONDITION CHECK
FLUID LEVEL CHECK
Refer to AT- 1 3 , "Checking A/T Fluid" .
SAT767B
SAT288G
Fluid color Suspected problem
Dark or black with burned odor Wear of frictional material
Milky pink Water contamination — Road water
entering through filler tube or breather
Varnished fluid, light to dark brown and
tackyOxidation — Over or under filling, —
Overheating
SAT638A
Page 2343 of 3833
![NISSAN X-TRAIL 2001 Service Repair Manual TROUBLE DIAGNOSIS — BASIC INSPECTION
AT-265
[EXC.F/EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT
Stall TestECS004VS
STALL TEST PROCEDURE
1. Check A/T fluid and engine oil levels. If necessary, add.
2. Drive NISSAN X-TRAIL 2001 Service Repair Manual TROUBLE DIAGNOSIS — BASIC INSPECTION
AT-265
[EXC.F/EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT
Stall TestECS004VS
STALL TEST PROCEDURE
1. Check A/T fluid and engine oil levels. If necessary, add.
2. Drive](/manual-img/5/57405/w960_57405-2342.png)
TROUBLE DIAGNOSIS — BASIC INSPECTION
AT-265
[EXC.F/EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT
Stall TestECS004VS
STALL TEST PROCEDURE
1. Check A/T fluid and engine oil levels. If necessary, add.
2. Drive vehicle for approx. 10 minutes or until fluid and oil reach
operating temperature.
3. Set parking brake and block wheels.
4. Install a tachometer where it can be seen by driver during test.
●It is good practice to mark the point of specified engine
rpm on indicator.
5. Start engine, apply foot brake, and place selector lever in D
position.
6. Accelerate to wide open throttle gradually while applying foot
brake.
7. Quickly note the engine stall revolution and immediately release
throttle.
●During test, never hold throttle wide open for less than 5
seconds.
Stall revolution:
8. Move selector lever to “N” position.
9. Cool off ATF.
●Run engine at idle for at least one minute.
10. Repeat steps 5 through 9 with selector lever in “2”, “1” and “R”
positions.ATF operating temperature:
50 - 80°C (122 - 176°F)
SAT647B
SAT513G
SAT514G
QR20DE 2,450 - 2,950 rpm
QR25DE 2,300 - 2,750 rpm
SAT771B
Page 2344 of 3833
![NISSAN X-TRAIL 2001 Service Repair Manual AT-266
[EXC.F/EURO-OBD]
TROUBLE DIAGNOSIS — BASIC INSPECTION
JUDGEMENT OF STALL TEST
The test result and possible damaged components relating to each result are shown in the illustrations on next
pa NISSAN X-TRAIL 2001 Service Repair Manual AT-266
[EXC.F/EURO-OBD]
TROUBLE DIAGNOSIS — BASIC INSPECTION
JUDGEMENT OF STALL TEST
The test result and possible damaged components relating to each result are shown in the illustrations on next
pa](/manual-img/5/57405/w960_57405-2343.png)
AT-266
[EXC.F/EURO-OBD]
TROUBLE DIAGNOSIS — BASIC INSPECTION
JUDGEMENT OF STALL TEST
The test result and possible damaged components relating to each result are shown in the illustrations on next
page.
In order to pinpoint the possible damaged components, follow the WORK FLOW shown in AT- 2 6 2 , "
Work
Flow" (EXCEPT FOR EURO-OBD).
NOTE:
Stall revolution is too high in “D”, “2” or “1” position:
●Slippage occurs in 1st gear but not in 2nd and 3rd gears...... Low one-way clutch slippage
●Slippage occurs in the following gears:
1st through 3rd gears in “D” position and engine brake functions with overdrive control switch set to
“OFF”.
1st and 2nd gears in “2” position and engine brake functions with accelerator pedal released (fully closed
throttle)...... Forward clutch or forward one-way clutch slippage
Stall revolution is too high in R position:
●Engine brake does not function in “1” position...... Low & reverse brake slippage
●Engine brake functions in “1” position...... Reverse clutch slippage
Stall revolution within specifications:
●Vehicle does not achieve speed of more than 80 km/h (50 MPH)...... One-way clutch seizure in torque
converter housing
CAUTION:
Be careful since automatic fluid temperature increases abnormally.
●Slippage occurs in 3rd and 4th gears in “D” position...... High clutch slippage
●Slippage occurs in 2nd and 4th gear in “D” position...... Brake band slippage
●Engine brake does not function in 2nd and 3rd gears in “D” position, 2nd gear in “2” position, and 1st gear
in “1” position with overdrive control switch set to “OFF”...... Overrun clutch slippage
Stall revolution less than specifications:
●Poor acceleration during starts...... One-way clutch slippage in torque converter
