NISSAN X-TRAIL 2001 Service Repair Manual REAR PROPELLER SHAFT
PR-3
C
E
F
G
H
I
J
K
L
MA
B
PR

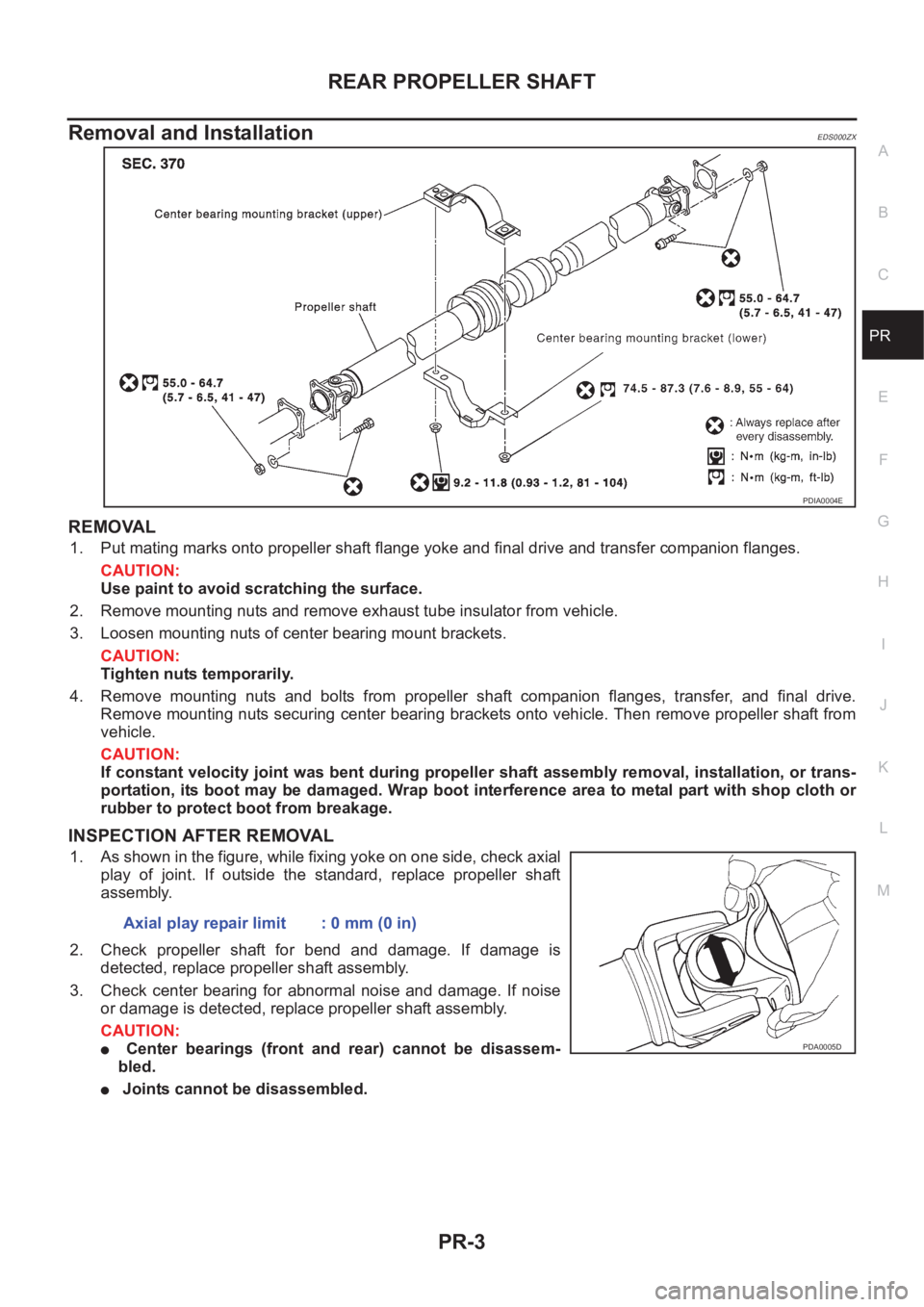

Removal and InstallationEDS000ZX
REMOVAL
1. Put mating marks onto propeller shaft flange yoke and final drive and transfer companion flanges.
CAUTIO

Page 2674 of 3833

NISSAN X-TRAIL 2001 Service Repair Manual PR-4
REAR PROPELLER SHAFT

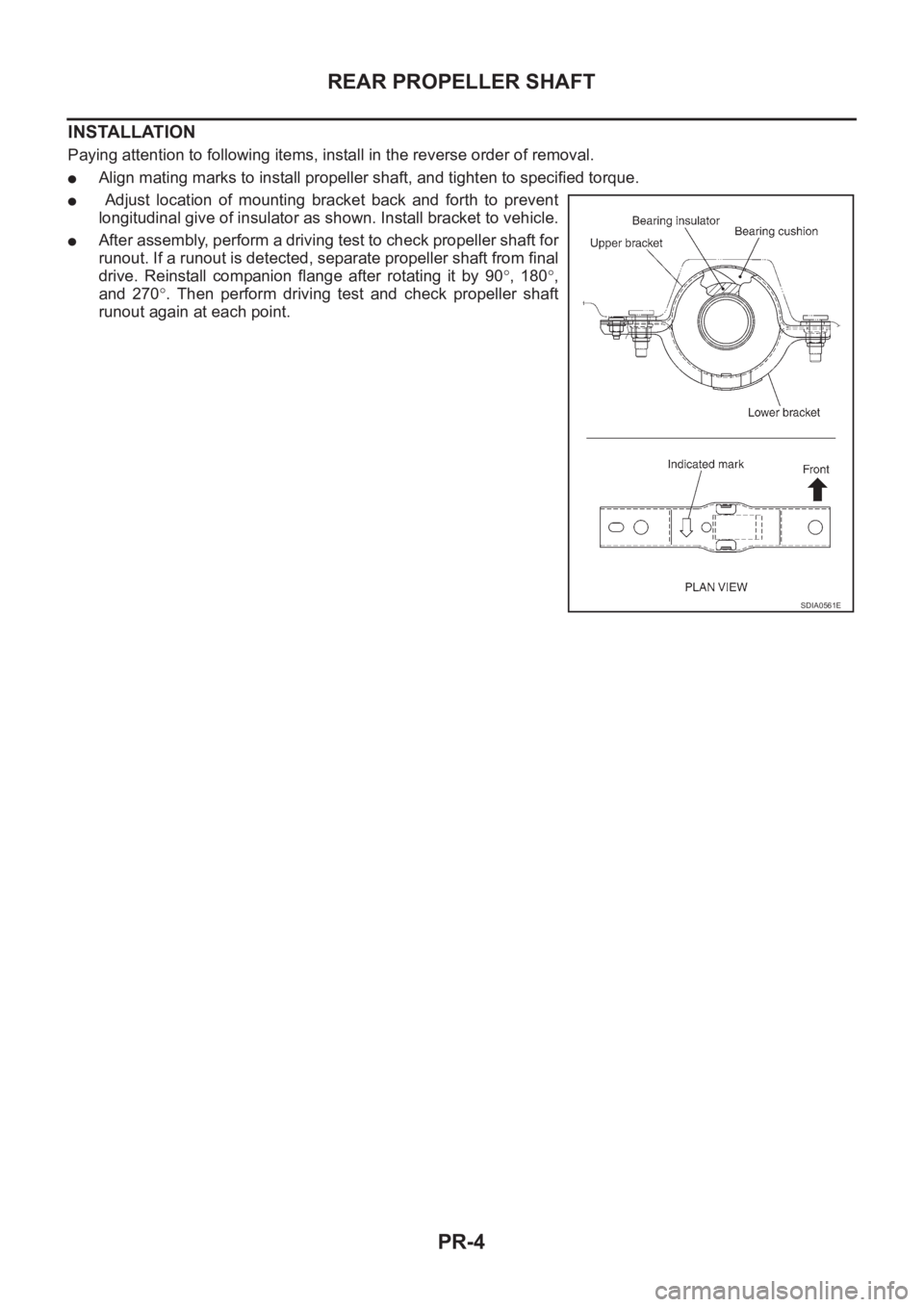

INSTALLATION
Paying attention to following items, install in the reverse order of removal.
●Align mating marks to install propeller shaft, and tighten to specified torque.

Page 2675 of 3833

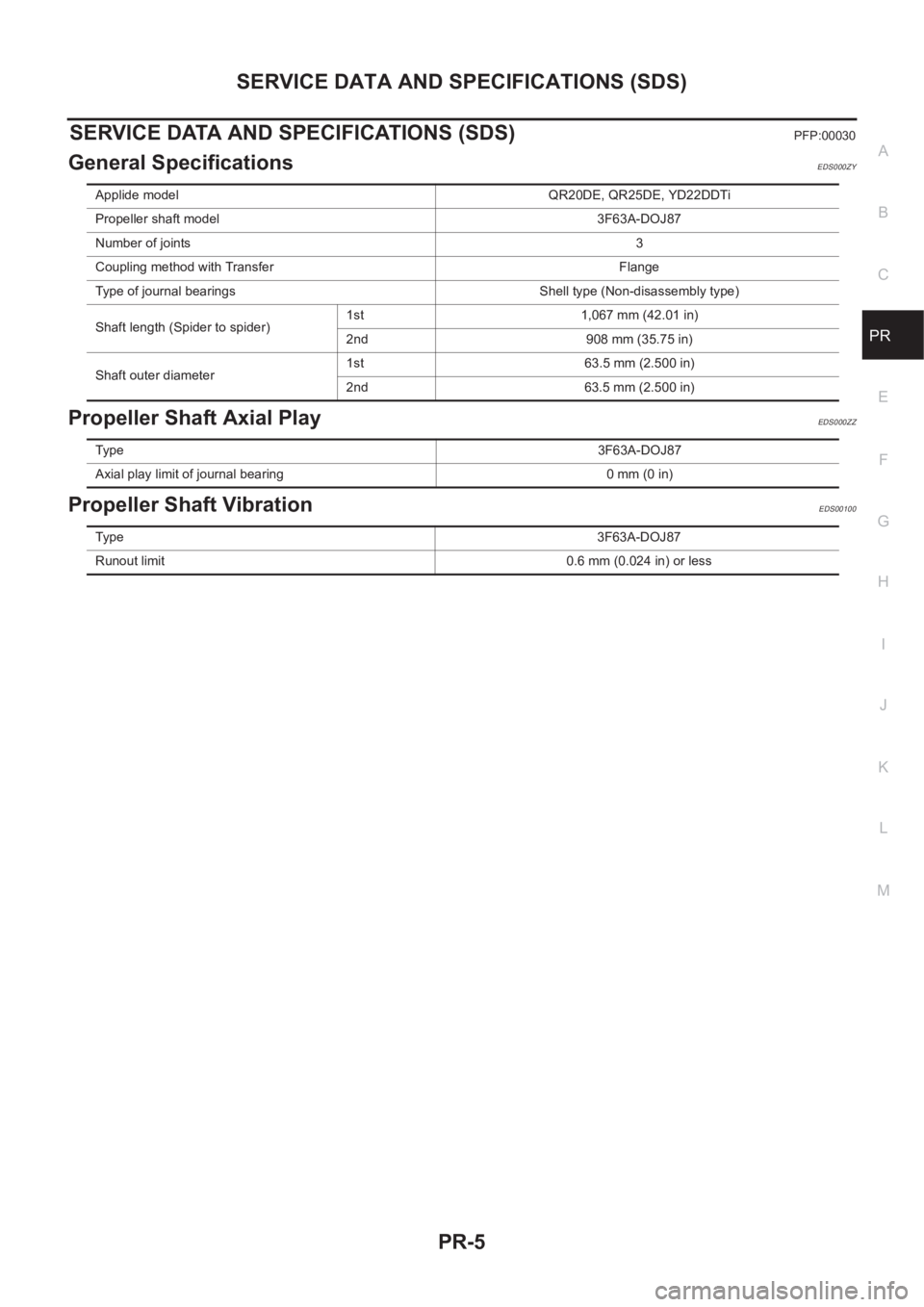

NISSAN X-TRAIL 2001 Service Repair Manual SERVICE DATA AND SPECIFICATIONS (SDS)
PR-5
C
E
F
G
H
I
J
K
L
MA
B
PR
SERVICE DATA AND SPECIFICATIONS (SDS)PFP:00030
General SpecificationsEDS000ZY
Propeller Shaft Axial PlayEDS000ZZ
Propeller Shaft Vi

Page 2676 of 3833

NISSAN X-TRAIL 2001 Service Repair Manual PR-6
SERVICE DATA AND SPECIFICATIONS (SDS)

Page 2677 of 3833

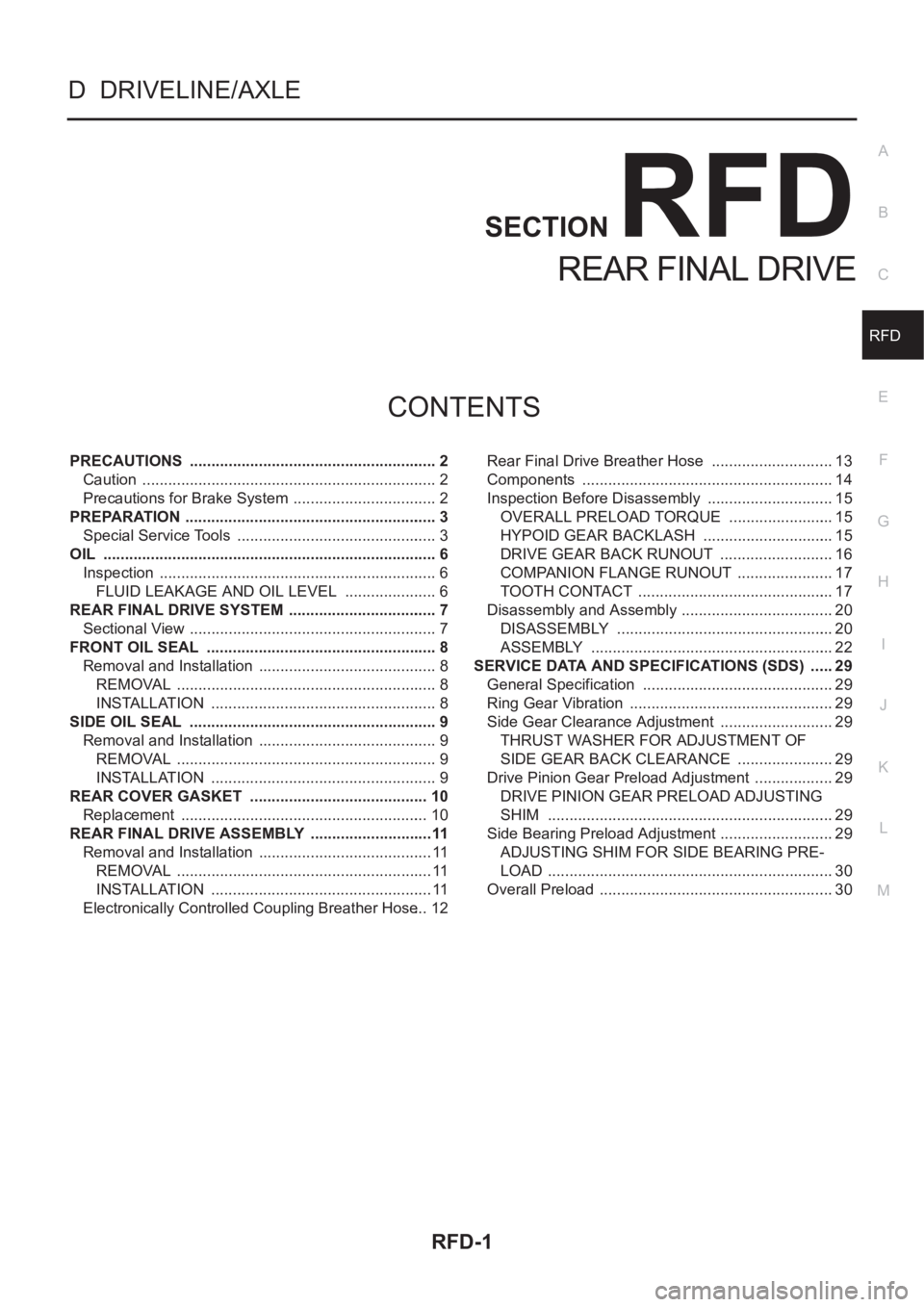

NISSAN X-TRAIL 2001 Service Repair Manual RFD-1
REAR FINAL DRIVE
D DRIVELINE/AXLE
CONTENTS
C
E
F
G
H
I
J
K
L
M
SECTION
A
B
RFD
REAR FINAL DRIVE
PRECAUTIONS .......................................................... 2
Caution ..............

RFD-1
REAR FINAL DRIVE
D DRIVELINE/AXLE
CONTENTS
C
E
F
G
H
I
J
K
L
M
SECTION
A
B
RFD
REAR FINAL DRIVE
PRECAUTIONS .......................................................... 2
Caution ..................................................................... 2
Precautions for Brake System .................................. 2
PREPARATION ........................................................... 3
Special Service Tools ............................................... 3
OIL .............................................................................. 6
Inspection ................................................................. 6
FLUID LEAKAGE AND OIL LEVEL ...................... 6
REAR FINAL DRIVE SYSTEM ................................... 7
Sectional View .......................................................... 7
FRONT OIL SEAL ................................................. ..... 8
Removal and Installation .......................................... 8
REMOVAL ............................................................. 8
INSTALLATION ..................................................... 8
SIDE OIL SEAL .......................................................... 9
Removal and Installation .......................................... 9
REMOVAL ............................................................. 9
INSTALLATION ..................................................... 9
REAR COVER GASKET .......................................... 10
Replacement .......................................................... 10
REAR FINAL DRIVE ASSEMBLY .............................11
Removal and Installation ......................................... 11
REMOVAL ............................................................ 11
INSTALLATION .................................................... 11
Electronically Controlled Coupling Breather Hose ... 12Rear Final Drive Breather Hose ............................. 13
Components ........................................................... 14
Inspection Before Disassembly .............................. 15
OVERALL PRELOAD TORQUE ......................... 15
HYPOID GEAR BACKLASH ............................... 15
DRIVE GEAR BACK RUNOUT ........................... 16
COMPANION FLANGE RUNOUT ....................... 17
TOOTH CONTACT .............................................. 17
Disassembly and Assembly .................................... 20
DISASSEMBLY ................................................... 20
ASSEMBLY ......................................................... 22
SERVICE DATA AND SPECIFICATIONS (SDS) ...... 29
General Specification ............................................. 29
Ring Gear Vibration ................................................ 29
Side Gear Clearance Adjustment ........................... 29
THRUST WASHER FOR ADJUSTMENT OF
SIDE GEAR BACK CLEARANCE ....................... 29
Drive Pinion Gear Preload Adjustment ................... 29
DRIVE PINION GEAR PRELOAD ADJUSTING
SHIM ................................................................... 29
Side Bearing Preload Adjustment ........................... 29
ADJUSTING SHIM FOR SIDE BEARING PRE-
LOAD ................................................................... 30
Overall Preload ....................................................... 30

Page 2678 of 3833

NISSAN X-TRAIL 2001 Service Repair Manual RFD-2
PRECAUTIONS
PRECAUTIONS
PFP:00001
CautionEDS00101
●Before starting diagnosis of the vehicle, understand symptoms well. Perform correct and systematic oper-
ations.
●Check for the correct ins

RFD-2
PRECAUTIONS
PRECAUTIONS
PFP:00001
CautionEDS00101
●Before starting diagnosis of the vehicle, understand symptoms well. Perform correct and systematic oper-
ations.
●Check for the correct installation status prior to removal or disassembly. When mating marks are required,
be sure they do not interfere with the function of the parts they are applied to.
●Carry out an overhaul in a clean work place. Using a dust proof room is recommended.
●Before disassembly, using steam or white gasoline, completely remove sand and mud from the exterior of
the unit, preventing them from entering into the unit during disassembly or assembly.
●Check appearance of the disassembled parts for damage, deformation, and abnormal wear. If a malfunc-
tion is detected, replace it with a new one.
●Normally replace lock pins, oil seals, and bearings with new ones every time they are removed.
●In principle, tighten bolts or nuts gradually in several steps working diagonally from inside to outside. If
tightening sequence is specified, observe it.
●Clean and flush the parts sufficiently and blow them dry.
●Be careful not to damage the sliding surfaces and mating surfaces.
●When applying sealant, remove the old sealant from the mounting surface; then remove any moisture, oil,
and foreign materials from the application and mounting surfaces.
●Always use shop paper for cleaning the inside of components.
●Avoid using cotton gloves or a shop cloth to prevent entering of lint.
●During assembly, observe the specified tightening torque, and apply new differential oil, Vaseline, or Nis-
san MP Special Grease No. 2, as specified for each vehicle, when necessary.
●Do not reuse drained oil. Discard waste oil after oil changes or part treatment in accordance with local
laws and regulations.
Precautions for Brake SystemEDS00102
●When installing rubber parts, final tightening must be carried out under unladen condition* with tires on
ground.
*: Fuel, radiator coolant and engine oil full. Spare tire, jack, hand tools and mats in designated positions.
●After installing removed suspension parts, check wheel alignment and adjust if necessary.
●Use flare nut wrench when removing or installing brake tubes.
●Always torque brake lines when installing.
SBR820BA

Page 2679 of 3833

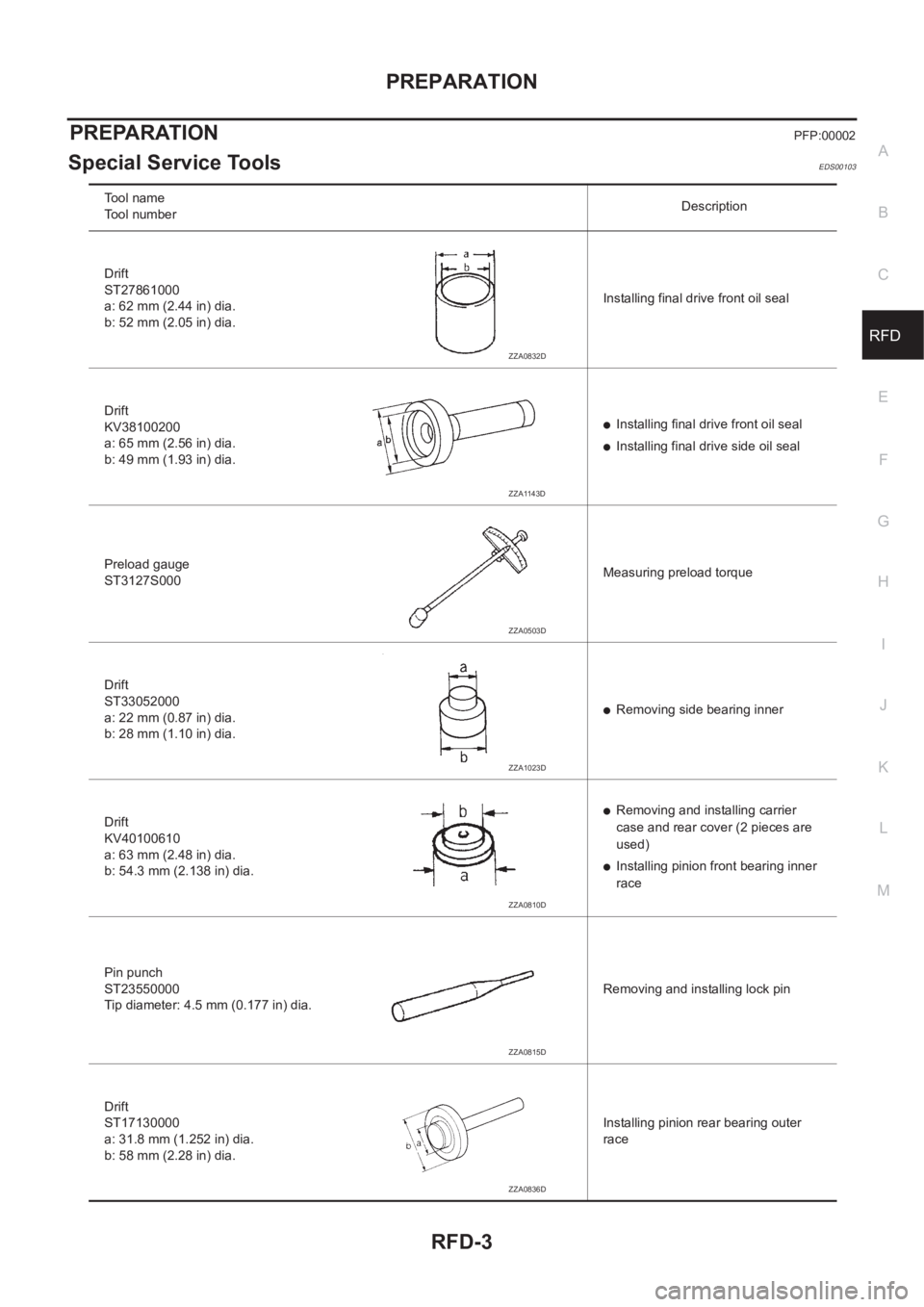

NISSAN X-TRAIL 2001 Service Repair Manual PREPARATION
RFD-3
C
E
F
G
H
I
J
K
L
MA
B
RFD
PREPARATIONPFP:00002
Special Service ToolsEDS00103
Tool name
Tool numberDescription
Drift
ST27861000
a: 62 mm (2.44 in) dia.
b: 52 mm (2.05 in) dia.Install

Page 2680 of 3833

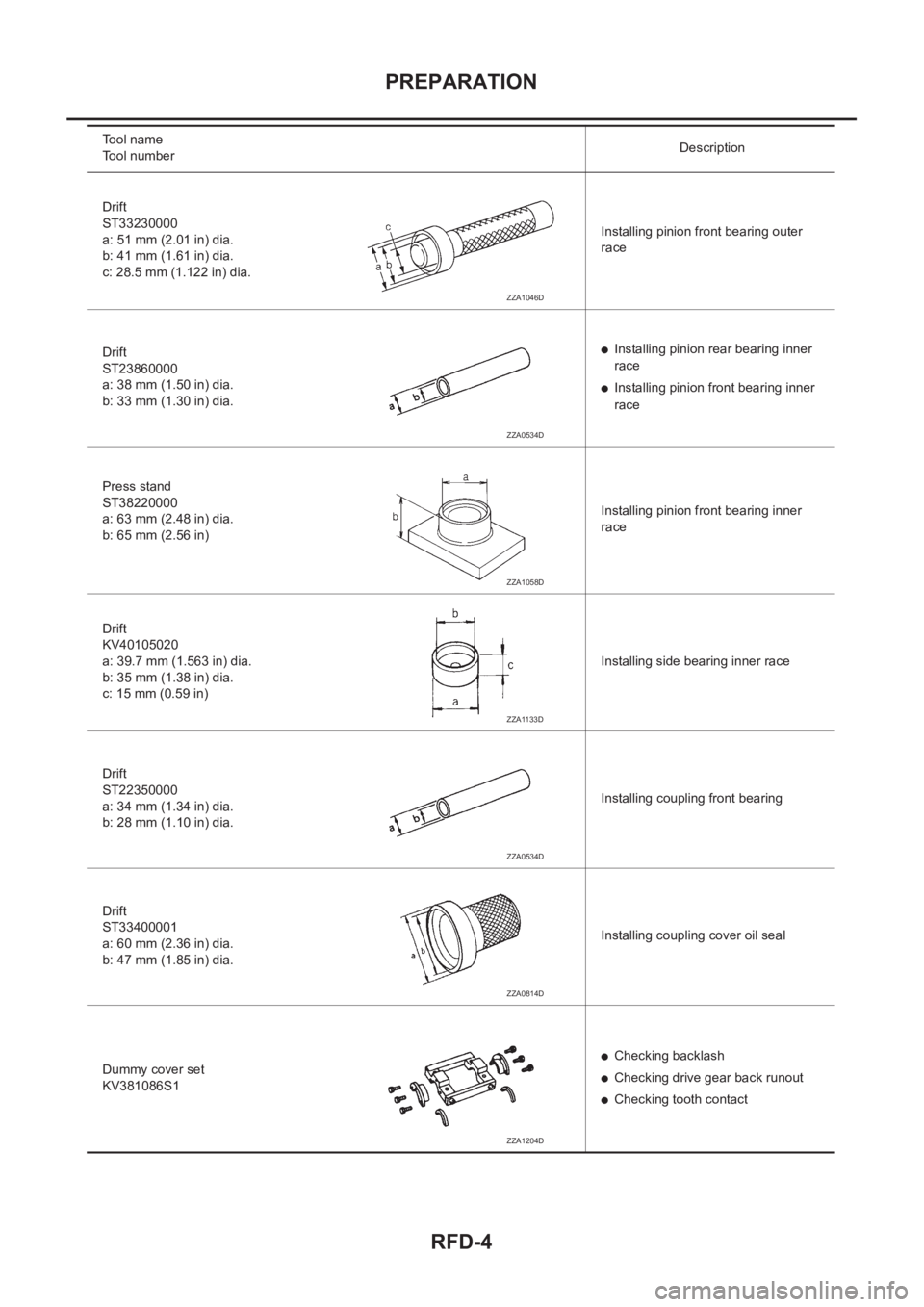

NISSAN X-TRAIL 2001 Service Repair Manual RFD-4
PREPARATION
Drift
ST33230000
a: 51 mm (2.01 in) dia.
b: 41 mm (1.61 in) dia.
c: 28.5 mm (1.122 in) dia.Installing pinion front bearing outer
race
Drift
ST23860000
a: 38 mm (1.50 in) dia.
b: 33
