![NISSAN X-TRAIL 2001 Service Repair Manual TROUBLE DIAGNOSIS
BRC-81
[ESP/TCS/ABS]
C
D
E
G
H
I
J
K
L
MA
B
BRC
SELF-DIAGNOSIS
Description
If a malfunction is detected in the system, the ABS warning lamp, ESP OFF indicator lamp, and SLIP indicato NISSAN X-TRAIL 2001 Service Repair Manual TROUBLE DIAGNOSIS
BRC-81
[ESP/TCS/ABS]
C
D
E
G
H
I
J
K
L
MA
B
BRC
SELF-DIAGNOSIS
Description
If a malfunction is detected in the system, the ABS warning lamp, ESP OFF indicator lamp, and SLIP indicato](/manual-img/5/57405/w960_57405-2864.png)
TROUBLE DIAGNOSIS
BRC-81
[ESP/TCS/ABS]
C
D
E
G
H
I
J
K
L
MA
B
BRC
SELF-DIAGNOSIS
Description
If a malfunction is detected in the system, the ABS warning lamp, ESP OFF indicator lamp, and SLIP indicator
lamp on the meter turn on. In this case, perform the self-diagnosis as follows:
Procedure
1. Perform a BRC-91, "Basic Inspection" using information from the customer.
2. After the ignition switch is turned OFF, connect the CONSULT-II
connector to the vehicle-side data link connector. The data link
connector is on the lower instrument cover).
3. Start the engine and drive at Approx. 30 km/h (19 MPH) for
approx. 1 minute.
4. After stopping the vehicle, with the engine still idling, touch “
START”, “ABS”, “SELF-DIAG RESULTS” on the CONSULT-II
screen in this order.
CAUTION:
Just after starting the engine, or turning the ignition switch
ON, “ABS” may not be displayed on the system selection
screen even if “START” is touched. In this case, start the
self-diagnosis again from step 2. If it cannot be shown after
several attempts, the ESP/TCS/ABS control unit may mal-
function. Repair or replace the control unit.
5. The self-diagnosis result is displayed. (If necessary, touch “PRINT” to print the self-diagnosis result.)
●When “NO FAILURE” is shown, check the ABS warning lamp, ESP OFF indicator lamp, SLIP indicator
lamp. Refer to BRC-90, "
For Correct and Quick Diagnosis" .
●CONSULT-II self-diagnosis results are displayed without regard to occurrence timing. In some case, the
later ones (timing value is small) appear on the next screen.
6. Go to appropriate “Inspection” chart according to “Self-Diagnostic Items to Result Mode” and repair or
replace as necessary.
7. Start the engine and drive at Approx. 30 km/h (19 MPH) for Approx. 1 minute.
CAUTION:
Check again to make sure that there is NO MALFUNCTION on other parts.
8. Turn the ignition switch OFF to prepare for erasing the memory.
9. Start the engine and touch “START”, “ABS”, “SELF-DIAG RESULTS” and “ERASE” on CONSULT-II
screen in this order to ease the memory.
CAUTION:
If the memory cannot be erased, go to step 6.
PBIA0153E
SFIA0364E
SFIA0365E
Page 2866 of 3833
![NISSAN X-TRAIL 2001 Service Repair Manual BRC-82
[ESP/TCS/ABS]
TROUBLE DIAGNOSIS
10. Drive the vehicle at Approx. 30 km/h (19 MPH) and check that the ABS warning lamp, ESP OFF indicator
lamp, and SLIP indicator lamp stay off.
CAUTION:
ESP OFF NISSAN X-TRAIL 2001 Service Repair Manual BRC-82
[ESP/TCS/ABS]
TROUBLE DIAGNOSIS
10. Drive the vehicle at Approx. 30 km/h (19 MPH) and check that the ABS warning lamp, ESP OFF indicator
lamp, and SLIP indicator lamp stay off.
CAUTION:
ESP OFF](/manual-img/5/57405/w960_57405-2865.png)
BRC-82
[ESP/TCS/ABS]
TROUBLE DIAGNOSIS
10. Drive the vehicle at Approx. 30 km/h (19 MPH) and check that the ABS warning lamp, ESP OFF indicator
lamp, and SLIP indicator lamp stay off.
CAUTION:
ESP OFF switch is not cancelled.
Self-Diagnostic Items to Result Mode
Self-Diagnostic item Malfunction detecting condition Check route
FR LH SENSOR – 1 Circuit of front LH wheel sensor is open.
Wheel sensor and cir-
cuit. Refer to BRC-92
RR RH SENSOR – 1 Circuit of rear RH wheel sensor is open.
FR RH SENSOR – 1 Circuit of front RH wheel sensor is open.
RR LH SENSOR – 1 Circuit of rear LH wheel sensor is open.
FR LH SENSOR – 2 Front LH wheel sensor is shorted or input signal is abnormal.
RR RH SENSOR – 2 Rear RH wheel sensor is shorted or input signal is abnormal.
FR RH SENSOR – 2 Front RH wheel sensor is shorted or input signal is abnormal.
RR LH SENSOR – 2 Rear LH wheel sensor is shorted or input signal is abnormal.
MAIN RELAYDuring the actuator relay operation with OFF, when the actuator
relay turns ON. Or when the control line for the relay is shorted to
the ground.Actuator relay and cir-
cuit. Refer to BRC-104
During the actuator relay operation with ON, when the actuator
relay turns OFF. Or when the control line for the relay is open.
STOP LAMP SW Stop lamp switch circuit is open.Stop lamp switch and cir-
cuit. Refer to BRC-106
PRESS SEN CIRCUIT Pressure sensor signal line is open or shorted, or pressure sen-
sor is abnormal.Pressure sensor and cir-
cuit. Refer to BRC-95
ST ANGLE SEN CIRCUIT Neutral position of the steering wheel angle sensor is dislocated,
or the steering wheel angle sensor is abnormal.Steering wheel angle
sensor and circuit. Refer
to BRC-96
YAW RATE SENOR Yaw rate sensor is abnormal, or the yaw rate sensor signal line is
open or shorted.Yaw rate/transverse
acceleration sensor and
circuit. Refer to BRC-98
FR LH IN ABS SOLCircuit of the front LH wheel inlet solenoid valve is open or
shorted, or the control line is open or shorted to the power supply
or the ground.
Solenoid valve and cir-
cuit. Refer to BRC-99
FR LH OUT ABS SOLCircuit of the front LH wheel outlet solenoid valve is open or
shorted, or the control line is open or shorted to the power supply
or the ground.
RR RH IN ABS SOLCircuit of the rear RH wheel inlet solenoid valve is open or
shorted, or the control line is open or shorted to the power supply
or the ground.
RR RH OUT ABS SOLCircuit of the rear RH wheel outlet solenoid valve is open or
shorted, or the control line is open or shorted to the power supply
or the ground.
FR RH IN ABS SOLCircuit of the front RH wheel inlet solenoid valve is open or
shorted, or the control line is open or shorted to the power supply
or the ground.
FR RH OUT ABS SOLCircuit of the front RH wheel outlet solenoid valve is open or
shorted, or the control line is open or shorted to the power supply
or the ground.
RR LH IN ABS SOLCircuit of the rear LH wheel inlet solenoid valve is open or
shorted, or the control line is open or shorted to the power supply
or the ground.
RR LH OUT ABS SOLCircuit of the rear LH wheel outlet solenoid valve is open or
shorted, or the control line is open or shorted to the power supply
or the ground.
Page 2867 of 3833
![NISSAN X-TRAIL 2001 Service Repair Manual TROUBLE DIAGNOSIS
BRC-83
[ESP/TCS/ABS]
C
D
E
G
H
I
J
K
L
MA
B
BRC
(note) “ACTUATOR RLY” on the CONSULT-II self-diagnosis results indicates the malfunction of the actuator motor relay and circuit.
NISSAN X-TRAIL 2001 Service Repair Manual TROUBLE DIAGNOSIS
BRC-83
[ESP/TCS/ABS]
C
D
E
G
H
I
J
K
L
MA
B
BRC
(note) “ACTUATOR RLY” on the CONSULT-II self-diagnosis results indicates the malfunction of the actuator motor relay and circuit.](/manual-img/5/57405/w960_57405-2866.png)
TROUBLE DIAGNOSIS
BRC-83
[ESP/TCS/ABS]
C
D
E
G
H
I
J
K
L
MA
B
BRC
(note) “ACTUATOR RLY” on the CONSULT-II self-diagnosis results indicates the malfunction of the actuator motor relay and circuit.
DATA MONITOR
For details of the data monitor function, refer to the CONSULT-II Instruction Manual.
USV LINE [FL-RR]ESP switch-over solenoid valve 1 on the primary side is open cir-
cuit or shorted, or the control line is open or shorted to the power
supply or the ground.
ESP switch-over sole-
noid valve and circuit.
Refer to BRC-99
. USV LINE [FR-RL]ESP switch-over solenoid valve 1 on the secondary side is open
circuit or shorted, or the control line is open or shorted to the
power supply or the ground.
HSV LINE [FL-RR]ESP switch-over solenoid valve 2 on the primary side is open cir-
cuit or shorted, or the control line is open or shorted to the power
supply or the ground.
HSV LINE [FR-RL]ESP switch-over solenoid valve 2 on the secondary side is open
circuit or shorted, or the control line is open or shorted to the
power supply or the ground.
PUMP MOTOR
ACTUATOR RLY (note) During the actuator motor operation with ON, when the actuator
motor turns OFF. Or when the control line for actuator motor relay
is open.Actuator motor, motor
relay, and circuit. Refer
to BRC-102
During the actuator motor operation with OFF, when the actuator
motor turns ON. Or when the control line for relay is shorted to
ground.
ABS SENSOR
[ABNORMAL SIGNAL]Wheel sensor input is abnormal.Wheel sensor and cir-
cuit. Refer to BRC-92
BATTERY VOLTAGE
[ABNORMAL]ESP/TCS/ABS control unit battery voltage is too low.ESP/TCS/ABS control
unit battery voltage cir-
cuit and ground circuit.
Refer to BRC-106
ST ANGLE SEN SIGNALNeutral position correction of steering wheel angle sensor is not
finished.Neutral position adjust-
ment of steering wheel
angle sensor. Refer to
BRC-108
ST ANG SEN COM CIRCAN communication system or steering wheel angle sensor is
abnormal.Steering wheel angle
sensor and CAN com-
munication circuit. Refer
to BRC-110
SIDE G-SEN CIRCUITSide G sensor is abnormal, or the signal line of side G sensor is
open or shorted.Yaw rate and Side G
sensor and circuit. Refer
to BRC-98
EMERGENCY BRAKEESP/TCS/ABS control unit malfunction (pressure increase is too
much or too little.)ESP/TCS/ABS control
unit. Refer to BRC-108
CONTROLLER FAILURE ESP/TCS/ABS internal malfunction of control unitESP/TCS/ABS control
unit. Refer to BRC-94
CAN COMM CIRCUIT
●CAN communication line is open or shorted.
●ESP/TCS/ABS control unit internal malfunction.
●Battery voltage for EMC is interrupted instantaneously for
Approx. 0.5 seconds or more.Communication circuit
between ESP/TCS/ABS
control unit and units.
Refer to BRC-110
BR FLUID LEVEL LOWBrake fluid level drops or communication line between the ESP/
TCS/ABS control unit and the brake fluid level warning switch is
open or shorted. Communication circuit
between the ESP/TCS/
ABS control unit and the
brake fluid level warning
switch.
Reservoir tank fluid.
Refer to BRC-109
ENGINE SIGNAL 1-4, 6 Major engine components are abnormal Engine system. Refer to
BRC-94
Self-Diagnostic item Malfunction detecting condition Check route
Page 2868 of 3833
![NISSAN X-TRAIL 2001 Service Repair Manual BRC-84
[ESP/TCS/ABS]
TROUBLE DIAGNOSIS
Procedure
1. Turn the ignition switch OFF.
2. Connect the CONSULT-II connector to the vehicle-side data link connector.
3. Turn the ignition switch ON.
4. Touch NISSAN X-TRAIL 2001 Service Repair Manual BRC-84
[ESP/TCS/ABS]
TROUBLE DIAGNOSIS
Procedure
1. Turn the ignition switch OFF.
2. Connect the CONSULT-II connector to the vehicle-side data link connector.
3. Turn the ignition switch ON.
4. Touch](/manual-img/5/57405/w960_57405-2867.png)
BRC-84
[ESP/TCS/ABS]
TROUBLE DIAGNOSIS
Procedure
1. Turn the ignition switch OFF.
2. Connect the CONSULT-II connector to the vehicle-side data link connector.
3. Turn the ignition switch ON.
4. Touch “START” on the display.
5. Touch “ABS” on the display.
CAUTION:
Just after the engine is started, or the ignition switch is
turned ON, “ABS” may not be displayed on the system
selection screen even if “START” is touched. In this case,
start the self-diagnosis again from step 2.
6. Touch “DATA MONITOR”.
7. The data monitor item selection screen is displayed, and touch
one of “ECU INPUT SIGNALS” “MAIN SIGNALS”, “CAN DIAG
SUPPORT MNTR” or “SELECTION FROM MENU”. Refer to
BRC-84, "
Data Monitor Items to be Displayed".
8. Touch “START”.
9. Screen of data monitor is displayed.

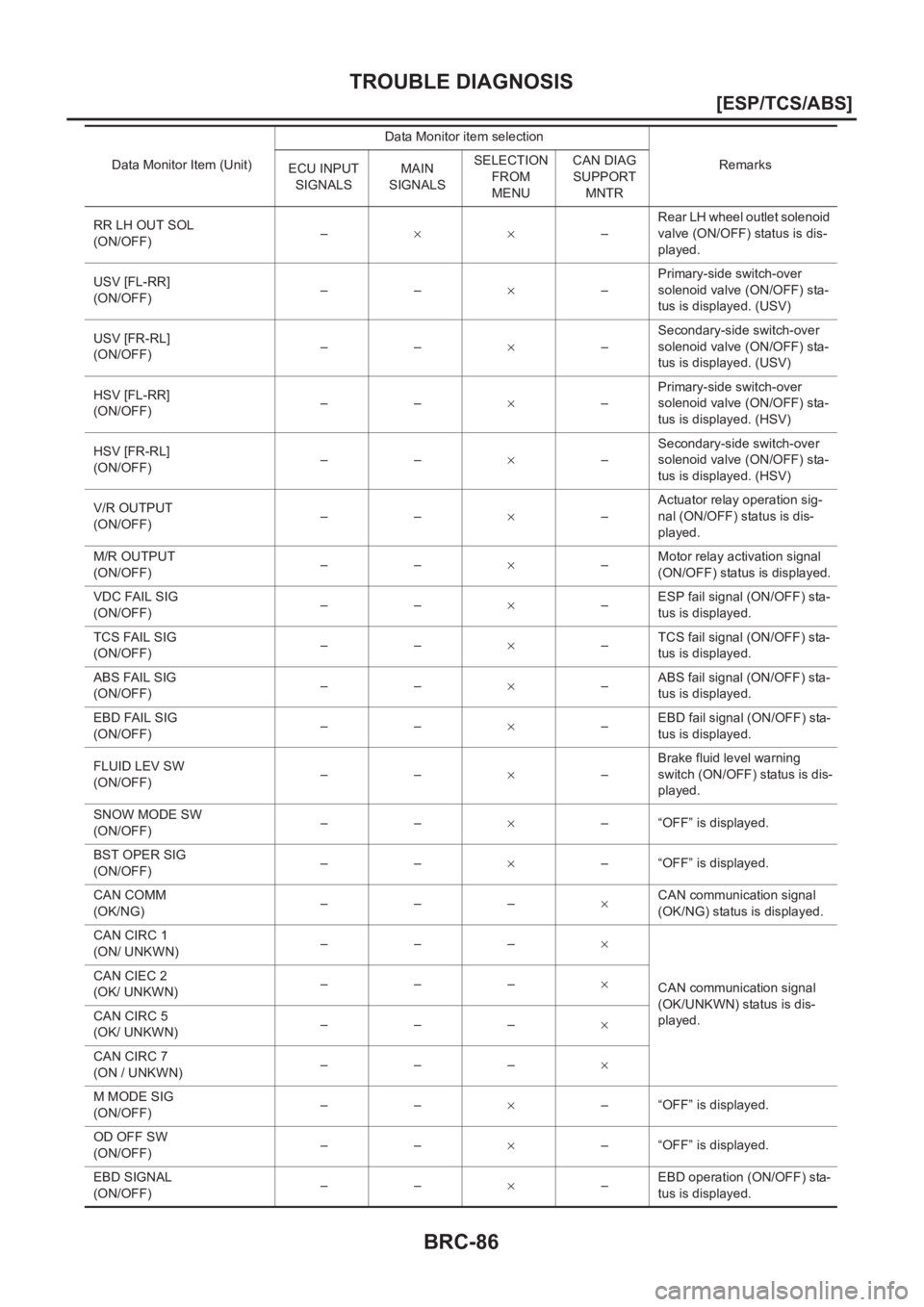

Data Monitor Items to be Displayed
SFIA0364E
SFIA0365E
Data Monitor Item (Unit)Data Monitor item selection
Remarks
ECU INPUT
SIGNALSMAIN
SIGNALSSELECTION
FROM
MENUCAN DIAG
SUPPORT
MNTR
GEAR×××– “1” is displayed.
SLCT LVR POSI×××– “##” is displayed.
FR RH SENSOR (km/h)×××–Wheel speed calculated by
front RH wheel sensor signal
is displayed.
FR LH SENSOR (km/h)×××–Wheel speed calculated by
front LH wheel sensor signal
is displayed.
RR RH SENSOR (km/h)×××–Wheel speed calculated by
rear RH wheel sensor signal
is displayed.
RR LH SENSOR (km/h)×××–Wheel speed calculated by
rear LH wheel sensor signal is
displayed.
ACCEL POS SIG
(%)×××–Throttle valve open/close sta-
tus judged by the CAN com-
munication signal is
displayed.
ENGINE RPM
(rpm)×××–Engine speed judged by the
CAN communication signal is
displayed.
CAN COM START
(ON/OFF)–××–Communication status of CAN
communication is displayed.
Page 2869 of 3833
![NISSAN X-TRAIL 2001 Service Repair Manual TROUBLE DIAGNOSIS
BRC-85
[ESP/TCS/ABS]
C
D
E
G
H
I
J
K
L
MA
B
BRC
STR ANGLE SIG
(deg)×××–Steering wheel angle
detected by the steering
wheel angle sensor is dis-
played.
YAW RATE SEN
(d/s)×× NISSAN X-TRAIL 2001 Service Repair Manual TROUBLE DIAGNOSIS
BRC-85
[ESP/TCS/ABS]
C
D
E
G
H
I
J
K
L
MA
B
BRC
STR ANGLE SIG
(deg)×××–Steering wheel angle
detected by the steering
wheel angle sensor is dis-
played.
YAW RATE SEN
(d/s)××](/manual-img/5/57405/w960_57405-2868.png)
TROUBLE DIAGNOSIS
BRC-85
[ESP/TCS/ABS]
C
D
E
G
H
I
J
K
L
MA
B
BRC
STR ANGLE SIG
(deg)×××–Steering wheel angle
detected by the steering
wheel angle sensor is dis-
played.
YAW RATE SEN
(d/s)×××–Yaw rate detected by the yaw
rate sensor is displayed.
SIDE G-SENSOR
(m/s
2 )×××–Transverse acceleration
detected by the side G sensor
is displayed.
PRESS SENSOR
(bar )×××–Brake fluid pressure detected
by the pressure sensor is dis-
played.
BATTERY VOLT
(V )×××–Voltage supplied to ESP/TCS/
ABS control unit is displayed.
MOTOR RELAY
(ON/OFF )–××–Motor relay signal (ON/OFF)
status is displayed.
ACTUATOR RLY
(ON/OFF )–××–Actuator relay signal (ON/
OFF) status is displayed.
STOP LAMP SW
(ON/OFF)×××–Stop lamp switch (ON/OFF)
status is displayed.
PARK BRAKE SW
(ON/OFF)×××–Parking brake switch (ON/
OFF) status is displayed.
OFF SW
(ON/OFF)×××–ESP OFF switch (ON/OFF)
status is displayed.
ABS WARN LAMP
(ON/OFF)–××–ABS warning lamp (ON/OFF)
status is displayed.
OFF LAMP
(ON/OFF)–××–ESP OFF indicator lamp (ON/
OFF) status is displayed.
SLIP LAMP
(ON/OFF)–××–SLIP indicator lamp (ON/
OFF) status is displayed.
FR LH IN SOL
(ON/OFF)–××–Front LH wheel inlet solenoid
valve (ON/OFF) status is dis-
played.
FR LH OUT SOL
(ON/OFF)–××–Front LH wheel outlet sole-
noid valve (ON/OFF) status is
displayed.
RR RH IN SOL
(ON/OFF)–××–Rear RH wheel inlet solenoid
valve (ON/OFF) status is dis-
played.
RR RH OUT SOL
(ON/OFF)–××–
Rear RH wheel outlet sole-
noid valve (ON/OFF) status is
displayed.
FR RH IN SOL
(ON/OFF)–××–Front RH wheel inlet solenoid
valve (ON/OFF) status is dis-
played.
FR RH OUT SOL
(ON/OFF)–××–Front RH wheel outlet sole-
noid valve (ON/OFF) status is
displayed.
RR LH IN SOL
(ON/OFF)–××–Rear LH wheel inlet solenoid
valve (ON/OFF) status is dis-
played. Data Monitor Item (Unit)Data Monitor item selection
Remarks
ECU INPUT
SIGNALSMAIN
SIGNALSSELECTION
FROM
MENUCAN DIAG
SUPPORT
MNTR
Page 2870 of 3833
![NISSAN X-TRAIL 2001 Service Repair Manual BRC-86
[ESP/TCS/ABS]
TROUBLE DIAGNOSIS
RR LH OUT SOL
(ON/OFF)–××–Rear LH wheel outlet solenoid
valve (ON/OFF) status is dis-
played.
USV [FL-RR]
(ON/OFF)––×–Primary-side switch-over
so NISSAN X-TRAIL 2001 Service Repair Manual BRC-86
[ESP/TCS/ABS]
TROUBLE DIAGNOSIS
RR LH OUT SOL
(ON/OFF)–××–Rear LH wheel outlet solenoid
valve (ON/OFF) status is dis-
played.
USV [FL-RR]
(ON/OFF)––×–Primary-side switch-over
so](/manual-img/5/57405/w960_57405-2869.png)
BRC-86
[ESP/TCS/ABS]
TROUBLE DIAGNOSIS
RR LH OUT SOL
(ON/OFF)–××–Rear LH wheel outlet solenoid
valve (ON/OFF) status is dis-
played.
USV [FL-RR]
(ON/OFF)––×–Primary-side switch-over
solenoid valve (ON/OFF) sta-
tus is displayed. (USV)
USV [FR-RL]
(ON/OFF)––×–Secondary-side switch-over
solenoid valve (ON/OFF) sta-
tus is displayed. (USV)
HSV [FL-RR]
(ON/OFF)––×–Primary-side switch-over
solenoid valve (ON/OFF) sta-
tus is displayed. (HSV)
HSV [FR-RL]
(ON/OFF)––×–Secondary-side switch-over
solenoid valve (ON/OFF) sta-
tus is displayed. (HSV)
V/R OUTPUT
(ON/OFF)––×–Actuator relay operation sig-
nal (ON/OFF) status is dis-
played.
M/R OUTPUT
(ON/OFF)––×–Motor relay activation signal
(ON/OFF) status is displayed.
VDC FAIL SIG
(ON/OFF)––×–ESP fail signal (ON/OFF) sta-
tus is displayed.
TCS FAIL SIG
(ON/OFF)––×–TCS fail signal (ON/OFF) sta-
tus is displayed.
ABS FAIL SIG
(ON/OFF)––×–ABS fail signal (ON/OFF) sta-
tus is displayed.
EBD FAIL SIG
(ON/OFF)––×–EBD fail signal (ON/OFF) sta-
tus is displayed.
FLUID LEV SW
(ON/OFF)––×–Brake fluid level warning
switch (ON/OFF) status is dis-
played.
SNOW MODE SW
(ON/OFF)––×– “OFF” is displayed.
BST OPER SIG
(ON/OFF)––×– “OFF” is displayed.
CAN COMM
(OK/NG)
–––×CAN communication signal
(OK/NG) status is displayed.
CAN CIRC 1
(ON/ UNKWN)–––×
CAN communication signal
(OK/UNKWN) status is dis-
played. CAN CIEC 2
(OK/ UNKWN)–––×
CAN CIRC 5
(OK/ UNKWN)–––×
CAN CIRC 7
(ON / UNKWN)–––×
M MODE SIG
(ON/OFF)––×– “OFF” is displayed.
OD OFF SW
(ON/OFF)––×– “OFF” is displayed.
EBD SIGNAL
(ON/OFF)––×–EBD operation (ON/OFF) sta-
tus is displayed. Data Monitor Item (Unit)Data Monitor item selection
Remarks
ECU INPUT
SIGNALSMAIN
SIGNALSSELECTION
FROM
MENUCAN DIAG
SUPPORT
MNTR
Page 2871 of 3833
TROUBLE DIAGNOSIS
BRC-87
[ESP/TCS/ABS]
C
D
E
G
H
I
J
K
L
MA
B
BRC
×: Applicable
–: Not applicable

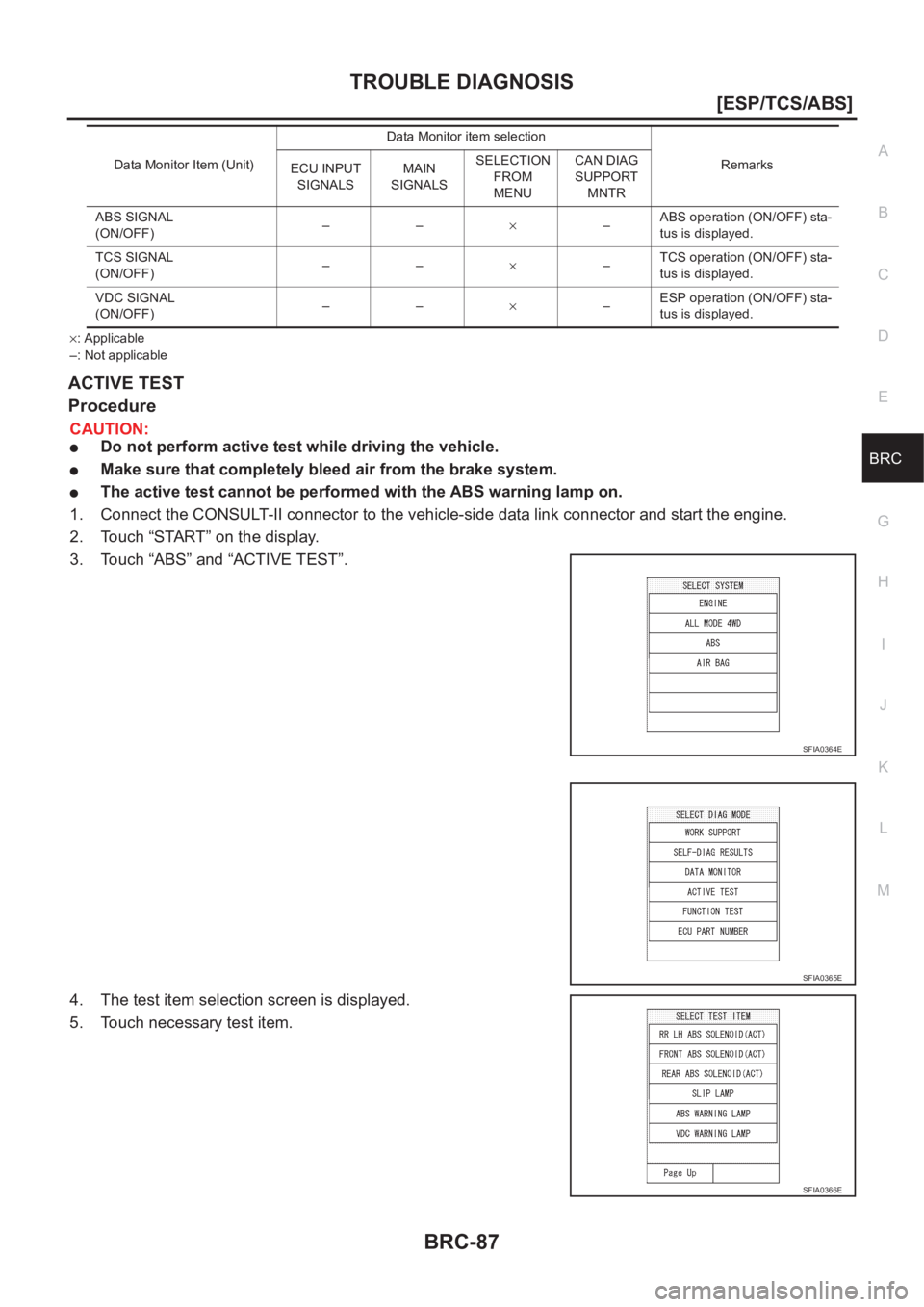

ACTIVE TEST
Procedure
CAUTION:
●Do not perform active test while driving the vehicle.
●Make sure that completely bleed air from the brake system.
●The active test cannot be performed with the ABS warning lamp on.
1. Connect the CONSULT-II connector to the vehicle-side data link connector and start the engine.
2. Touch “START” on the display.
3. Touch “ABS” and “ACTIVE TEST”.
4. The test item selection screen is displayed.
5. Touch necessary test item.
ABS SIGNAL
(ON/OFF)––×–ABS operation (ON/OFF) sta-
tus is displayed.
TCS SIGNAL
(ON/OFF)––×–TCS operation (ON/OFF) sta-
tus is displayed.
VDC SIGNAL
(ON/OFF)––×–ESP operation (ON/OFF) sta-
tus is displayed. Data Monitor Item (Unit)Data Monitor item selection
Remarks
ECU INPUT
SIGNALSMAIN
SIGNALSSELECTION
FROM
MENUCAN DIAG
SUPPORT
MNTR
SFIA0364E
SFIA0365E
SFIA0366E
Page 2872 of 3833
![NISSAN X-TRAIL 2001 Service Repair Manual BRC-88
[ESP/TCS/ABS]
TROUBLE DIAGNOSIS
6. Touch “START” with “MAIN SIGNALS” line inverted.
7. The active test screen is displayed.
Solenoid Valve
1. Select each test items without “(ACT NISSAN X-TRAIL 2001 Service Repair Manual BRC-88
[ESP/TCS/ABS]
TROUBLE DIAGNOSIS
6. Touch “START” with “MAIN SIGNALS” line inverted.
7. The active test screen is displayed.
Solenoid Valve
1. Select each test items without “(ACT](/manual-img/5/57405/w960_57405-2871.png)
BRC-88
[ESP/TCS/ABS]
TROUBLE DIAGNOSIS
6. Touch “START” with “MAIN SIGNALS” line inverted.
7. The active test screen is displayed.
Solenoid Valve
1. Select each test items without “(ACT)” for the ABS function
active test, and with “(ACT)” for the ESP/TCS function active
test.
2. Touch “UP,” “KEEP,” and “DOWN” or “UP,” “ACTUATOR UP,”
and “ACTUATOR KEEP.” And check that the solenoid valves
operate as the “Solenoid Valve Operation Chart”. Refer to BRC-
88, "Solenoid Valve Operation Chart" .
Solenoid Valve Operation Chart
SFIA0367E
SFIA0368E
SFIA0366E
OperationWithout “(ACT)” With “(ACT)”
UP KEEP DOWN UPACTUA-
TOR UPACTUA-
TOR KEEP
FR RH SOL
FR RH ABS SOLE-
NOID (ACT)FR RH IN SOL OFF ON ON OFF OFF OFF
FR RH OUT SOL OFF OFF ON* OFF OFF OFF
USV [FR-RL] OFF OFF OFF OFF ON ON
HSV [FR-RL] OFF OFF OFF OFF ON* OFF
FR LH SOL
FR LH ABS SOLE-
NOID (ACT)FR LH IN SOL OFF ON ON OFF OFF OFF
FR LH OUT SOL OFF OFF ON* OFF OFF OFF
USV [FL-RR] OFF OFF OFF OFF ON ON
HSV [FL-RR] OFF OFF OFF OFF ON* OFF
RR RH SOL
RR RH ABS SOLE-
NOID (ACT)RR RH IN SOL OFF ON ON OFF OFF OFF
RR RH OUT SOL OFF OFF ON* OFF OFF OFF
USV [FL-RR] OFF OFF OFF OFF ON ON
HSV [FL-RR] OFF OFF OFF OFF ON* OFF
