DESCRIPTION
MT-9
D
E
F
G
H
I
J
K
L
MA
B
MT

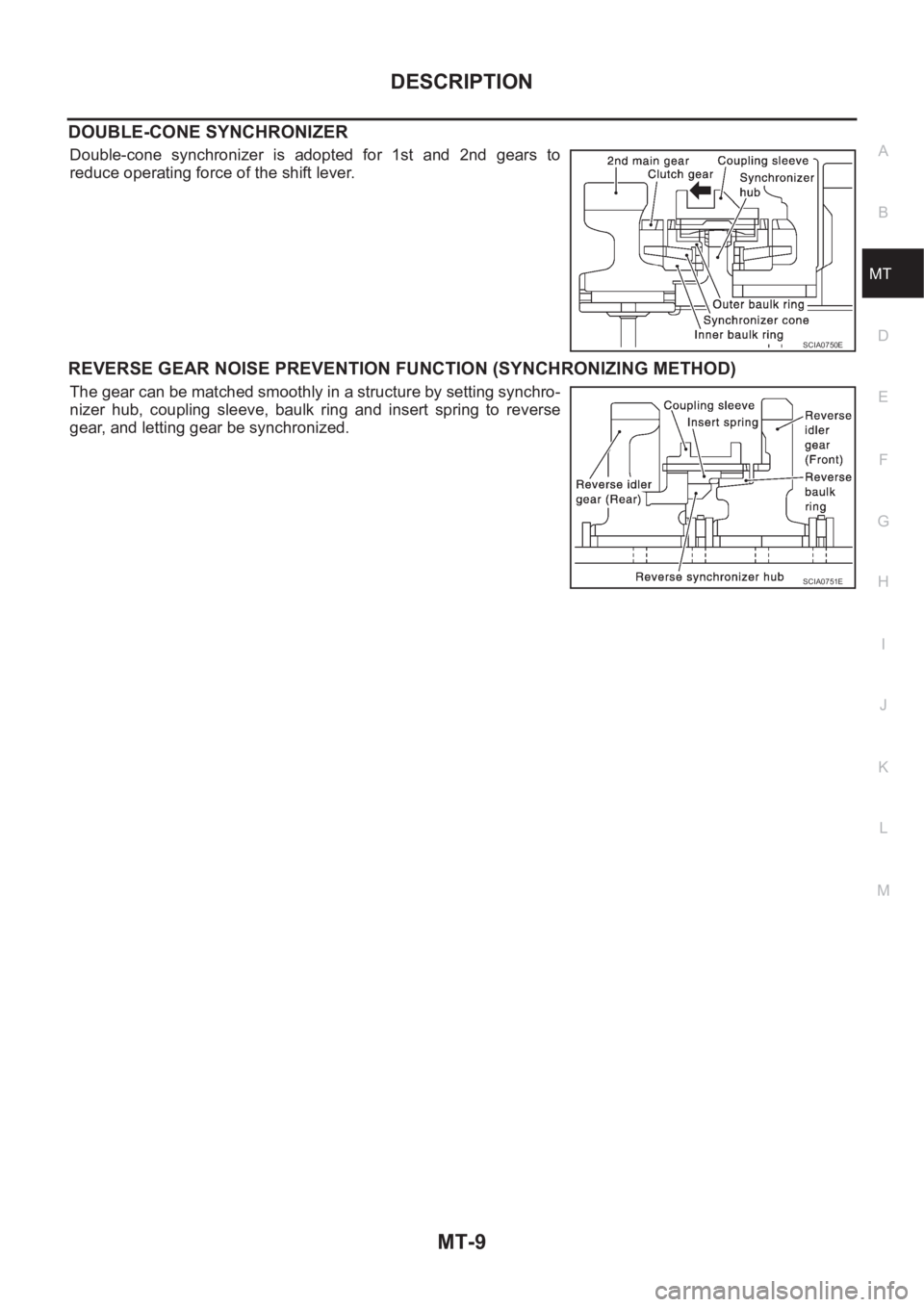

DOUBLE-CONE SYNCHRONIZER
Double-cone synchronizer is adopted for 1st and 2nd gears to
reduce operating force of the shift lever.
REVERSE GEAR NOISE PREVENTION FUNCTION (SYNCHRONIZING METHOD)
The gear can be matched smoothly in a structure by setting synchro-
nizer hub, coupling sleeve, baulk ring and insert spring to reverse
gear, and letting gear be synchronized.
SCIA0750E
SCIA0751E
Page 1986 of 3833

MT-10
M/T OIL
M/T OIL
PFP:KLD20
Changing M/T OilECS008BR
DRAINING

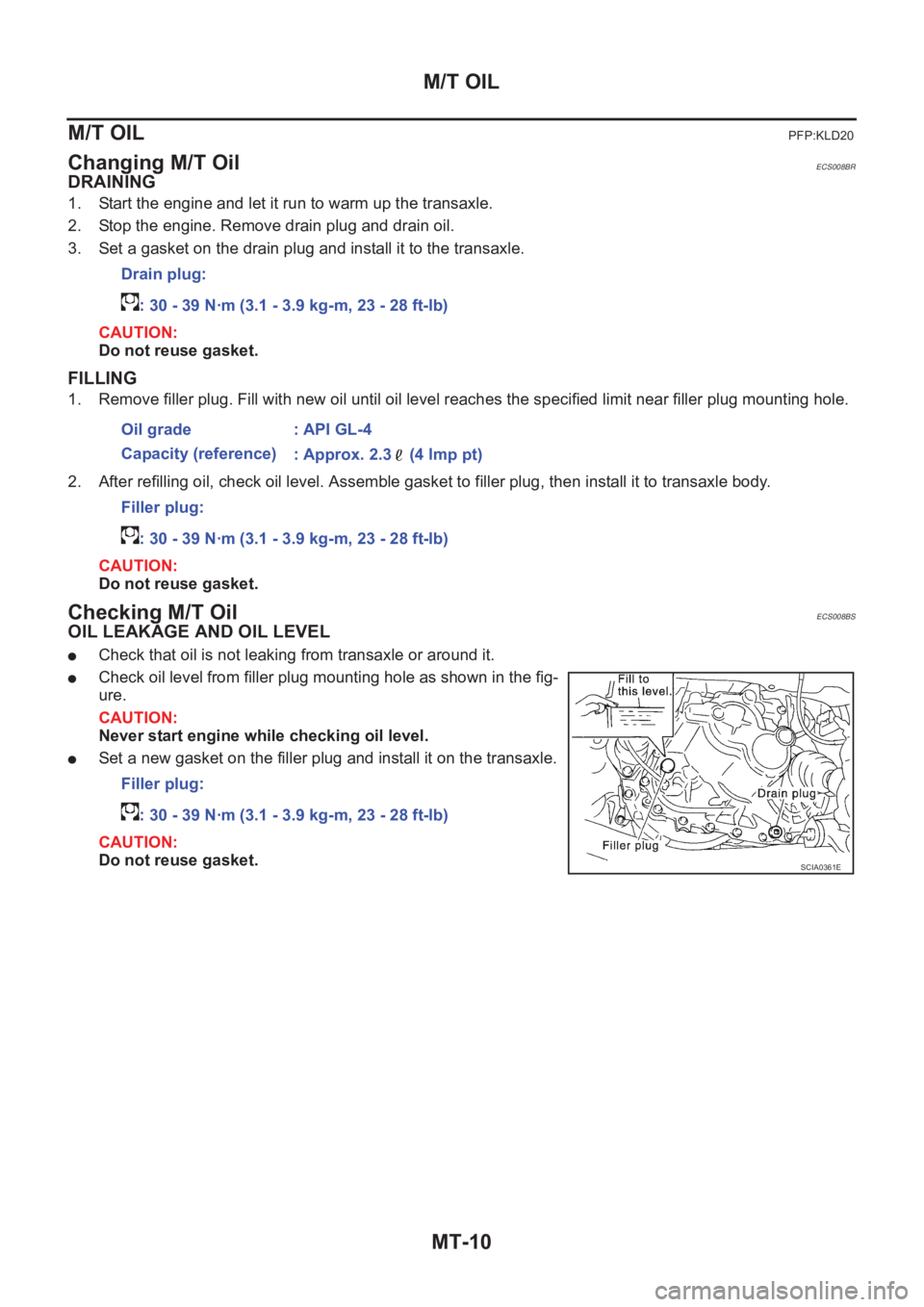

1. Start the engine and let it run to warm up the transaxle.
2. Stop the engine. Remove drain plug and drain oil.
3. Set a gasket on the drain plug and install it to the transaxle.
CAUTION:
Do not reuse gasket.
FILLING
1. Remove filler plug. Fill with new oil until oil level reaches the specified limit near filler plug mounting hole.
2. After refilling oil, check oil level. Assemble gasket to filler plug, then install it to transaxle body.
CAUTION:
Do not reuse gasket.
Checking M/T OilECS008BS
OIL LEAKAGE AND OIL LEVEL
●Check that oil is not leaking from transaxle or around it.
●Check oil level from filler plug mounting hole as shown in the fig-
ure.
CAUTION:
Never start engine while checking oil level.
●Set a new gasket on the filler plug and install it on the transaxle.
CAUTION:
Do not reuse gasket.Drain plug:
: 30 - 39 N·m (3.1 - 3.9 kg-m, 23 - 28 ft-lb)
Oil grade : API GL-4
Capacity (reference)
: Approx. 2.3 (4 lmp pt)
Filler plug:
: 30 - 39 N·m (3.1 - 3.9 kg-m, 23 - 28 ft-lb)
Filler plug:
: 30 - 39 N·m (3.1 - 3.9 kg-m, 23 - 28 ft-lb)
SCIA0361E
Page 1987 of 3833
SIDE OIL SEAL
MT-11
D
E
F
G
H
I
J
K
L
MA
B
MT
SIDE OIL SEALPFP:32113
Removal and InstallationECS008BT

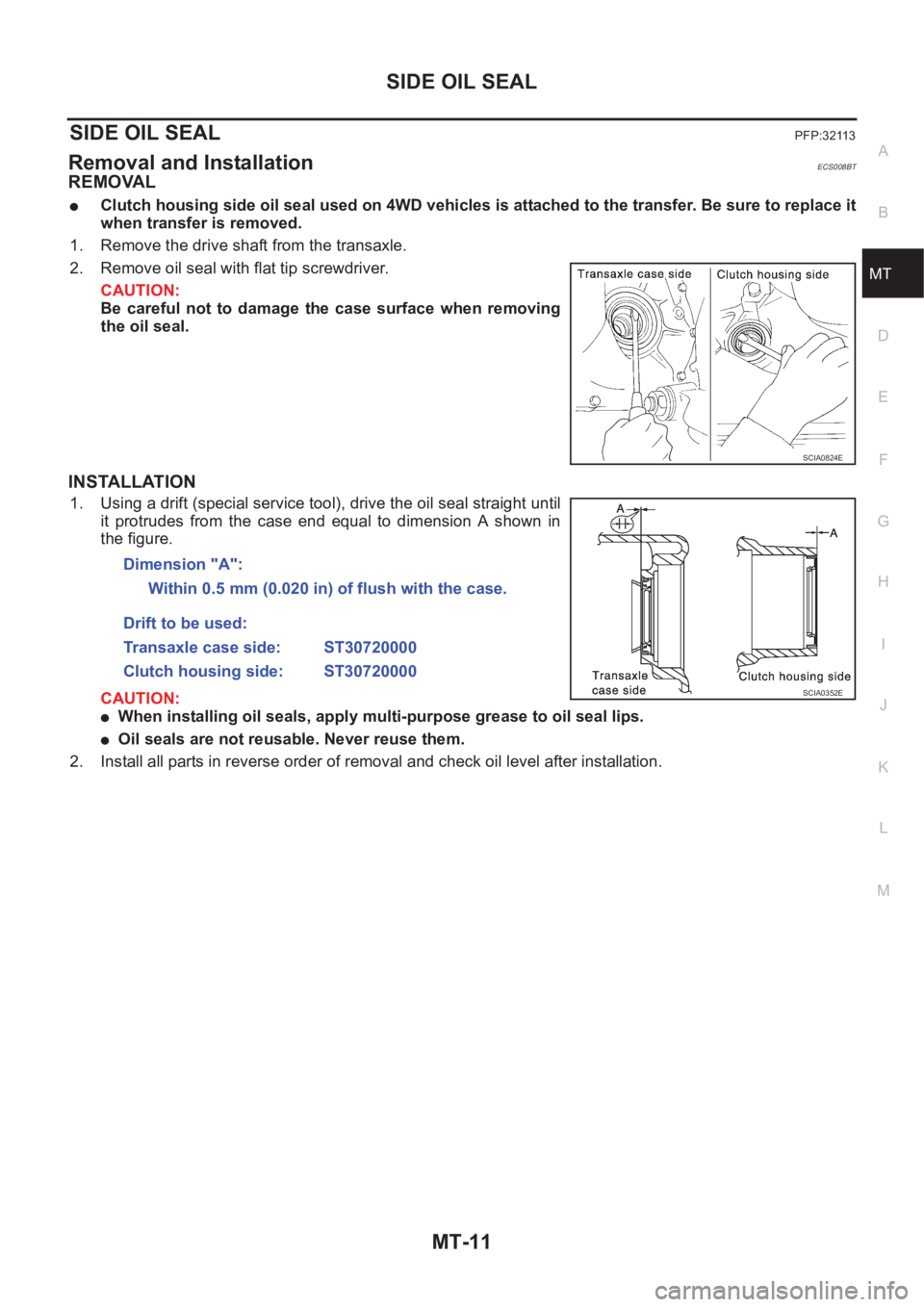

REMOVAL
●Clutch housing side oil seal used on 4WD vehicles is attached to the transfer. Be sure to replace it
when transfer is removed.
1. Remove the drive shaft from the transaxle.
2. Remove oil seal with flat tip screwdriver.
CAUTION:
Be careful not to damage the case surface when removing
the oil seal.
INSTALLATION
1. Using a drift (special service tool), drive the oil seal straight until
it protrudes from the case end equal to dimension A shown in
the figure.
CAUTION:
●When installing oil seals, apply multi-purpose grease to oil seal lips.
●Oil seals are not reusable. Never reuse them.
2. Install all parts in reverse order of removal and check oil level after installation.
SCIA0824E
Dimension "A":
Within 0.5 mm (0.020 in) of flush with the case.
Drift to be used:
Transaxle case side: ST30720000
Clutch housing side: ST30720000
SCIA0352E
Page 1988 of 3833
MT-12
POSITION SWITCH
POSITION SWITCH
PFP:32005
CheckingECS008BU

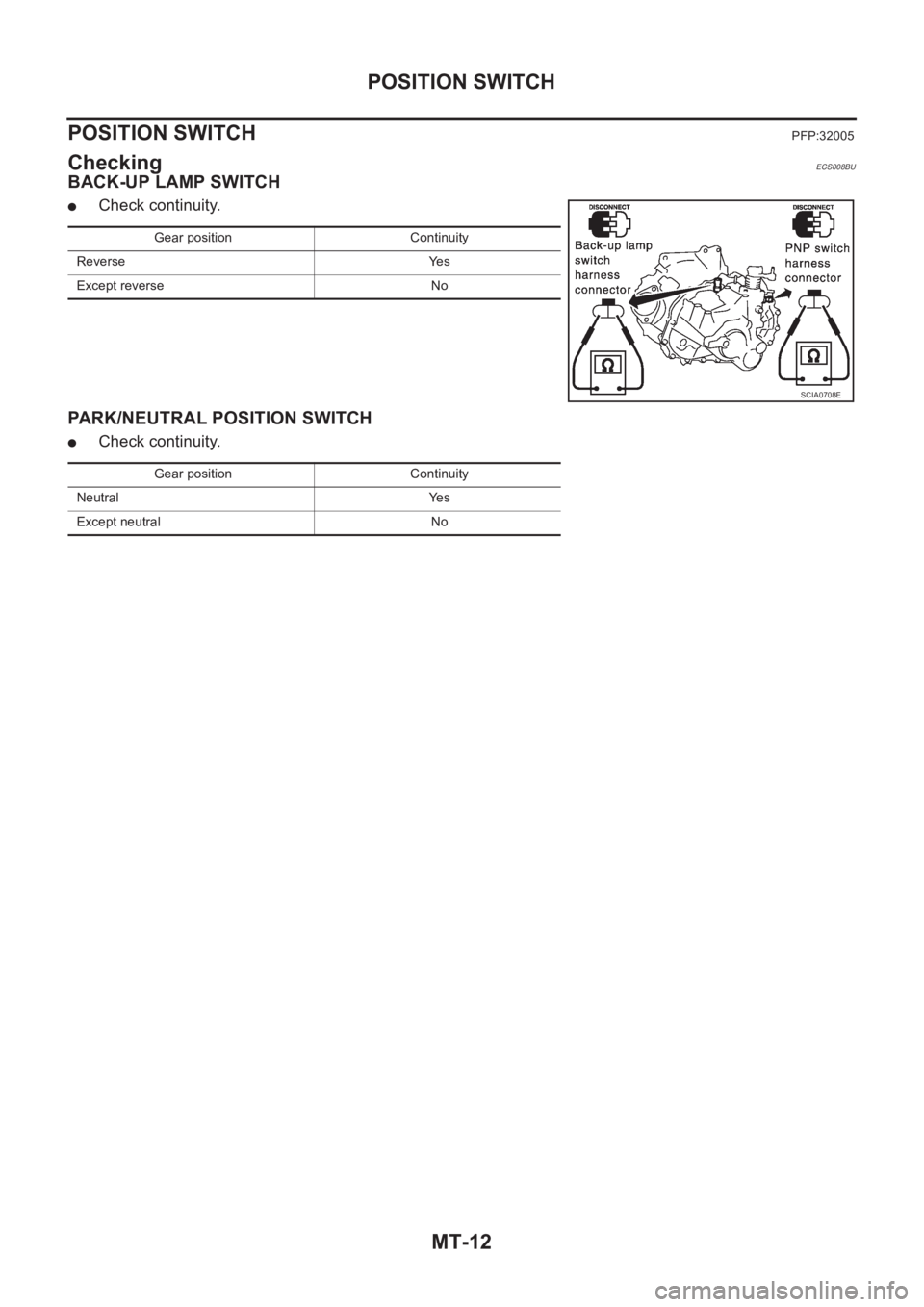

BACK-UP LAMP SWITCH
●Check continuity.
PARK/NEUTRAL POSITION SWITCH
●Check continuity.
Gear position Continuity
Reverse Yes
Except reverse No
SCIA0708E
Gear position Continuity
Neutral Yes
Except neutral No
Page 1989 of 3833
CONTROL LINKAGE
MT-13
D
E
F
G
H
I
J
K
L
MA
B
MT
CONTROL LINKAGEPFP:34103
Removal and Installation of Control Device and CableECS008BV

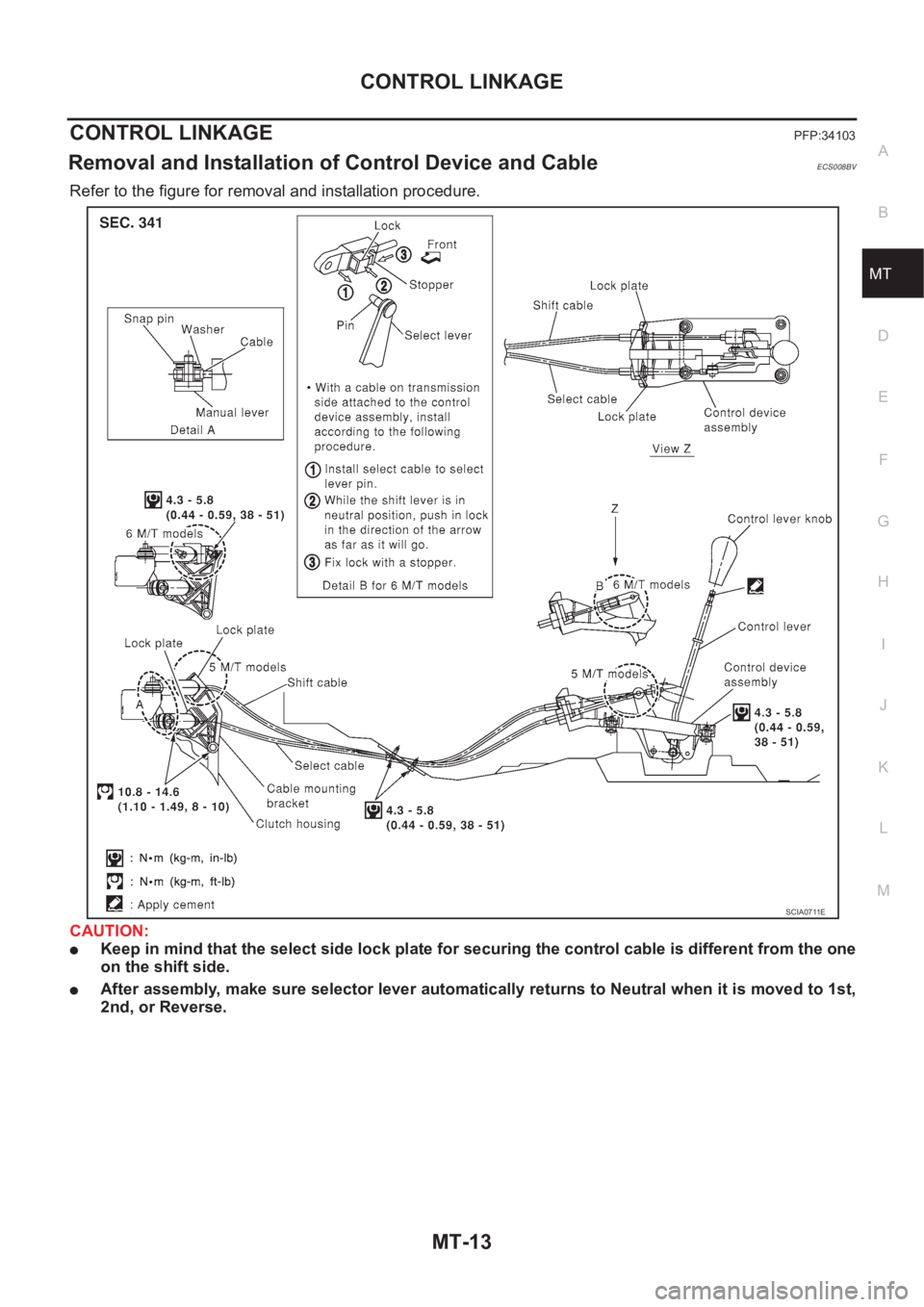

Refer to the figure for removal and installation procedure.
CAUTION:
●Keep in mind that the select side lock plate for securing the control cable is different from the one
on the shift side.
●After assembly, make sure selector lever automatically returns to Neutral when it is moved to 1st,
2nd, or Reverse.
SCIA0711E
Page 1990 of 3833
MT-14
AIR BREATHER HOSE
AIR BREATHER HOSE
PFP:31098
Removal and InstallationECS008BW

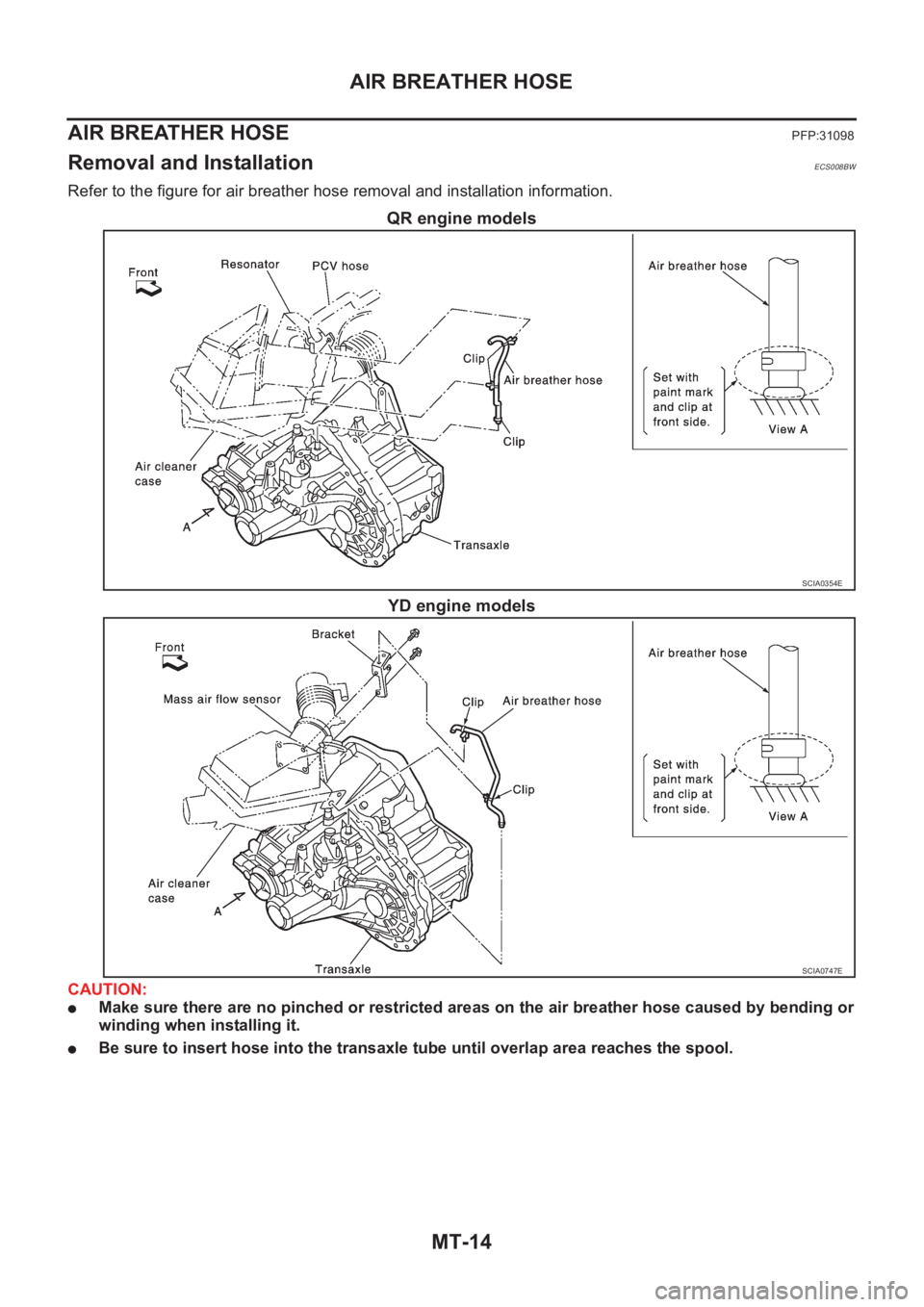

Refer to the figure for air breather hose removal and installation information.
QR engine models
YD engine models
CAUTION:
●Make sure there are no pinched or restricted areas on the air breather hose caused by bending or
winding when installing it.
●Be sure to insert hose into the transaxle tube until overlap area reaches the spool.
SCIA0354E
SCIA0747E
Page 1991 of 3833

TRANSAXLE ASSEMBLY
MT-15
D
E
F
G
H
I
J
K
L
MA
B
MT
TRANSAXLE ASSEMBLYPFP:32010
Removal and InstallationECS008BX
REMOVAL
1. Remove air cleaner, air duct, and battery.
2. Remove the air breather hose.
3. Remove clutch operating cylinder.
CAUTION:
Do not depress clutch pedal during removal procedure.
4. Disconnect control cable from transaxle.
5. Drain gear oil from transaxle.
6. Disconnect PNP switch, back-up lamp switch, and ground harness connectors.
7. Remove exhaust front tube and the drive shaft.
8. Remove transfer.
●Refer to TF-11, "Removal and Installation from Vehicle" .
9. Remove starter motor.
10. Place a jack onto the transaxle.
CAUTION:
When setting jack, be careful not to bring it into contact with the switch.
11. Remove center member, engine insulator and engine mount bracket.
●Refer to EM-69, "ENGINE ASSEMBLY" (QR engine models) or EM-193, "ENGINE ASSEMBLY" (YD
engine models).
12. Remove suspension members.
●Refer to FSU-12, "FRONT SUSPENSION MEMBER" .
13. Support engine by placing a jack under oil pan.
14. Remove bolts securing transaxle to engine.
SCIA0845E
Page 1992 of 3833
MT-16
TRANSAXLE ASSEMBLY
15. Remove transaxle from vehicle.

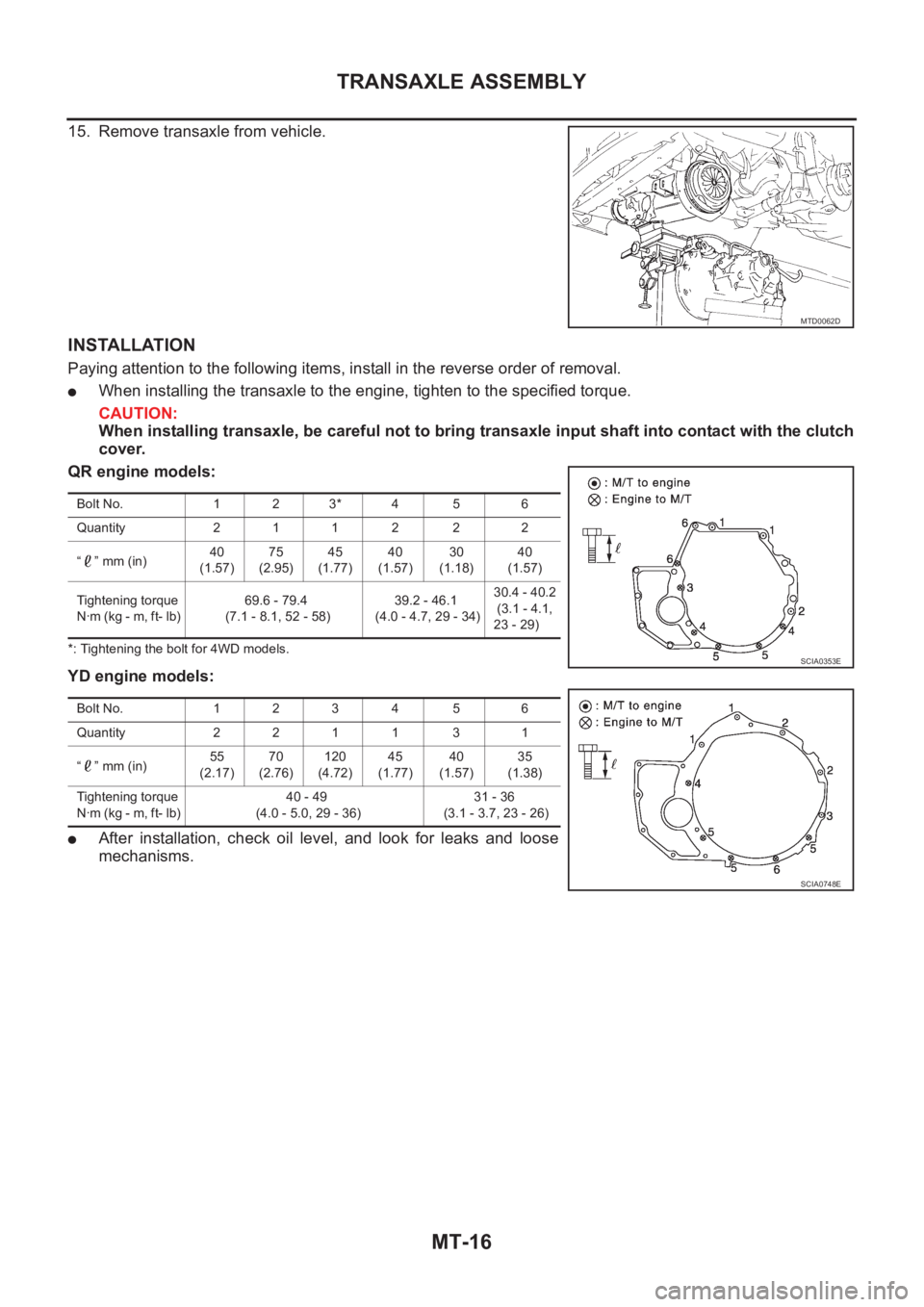

INSTALLATION
Paying attention to the following items, install in the reverse order of removal.
●When installing the transaxle to the engine, tighten to the specified torque.
CAUTION:
When installing transaxle, be careful not to bring transaxle input shaft into contact with the clutch
cover.
QR engine models:
*: Tightening the bolt for 4WD models.
YD engine models:
●After installation, check oil level, and look for leaks and loose
mechanisms.
MTD0062D
Bolt No. 1 2 3* 4 5 6
Quantity 2 1 1 2 2 2
“ ” mm (in)40
(1.57)75
(2.95)45
(1.77)40
(1.57)30
(1.18)40
(1.57)
Tightening torque
N·m (kg - m, ft- lb)69.6 - 79.4
(7.1 - 8.1, 52 - 58)39.2 - 46.1
(4.0 - 4.7, 29 - 34)30.4 - 40.2
(3.1 - 4.1,
23 - 29)
Bolt No. 1 2 3 4 5 6
Quantity 2 2 1 1 3 1
“ ” mm (in)55
(2.17)70
(2.76)120
(4.72)45
(1.77)40
(1.57)35
(1.38)
Tightening torque
N·m (kg - m, ft- lb)40 - 49
(4.0 - 5.0, 29 - 36)31 - 36
(3.1 - 3.7, 23 - 26)
SCIA0353E
SCIA0748E
