NISSAN X-TRAIL 2001 Service Repair Manual DTC P1146 HO2S2
EC-307
[QR25(WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
DTC P1146 HO2S2PFP:226A0
Component DescriptionEBS00M8F
The heated oxygen sensor 2, after three way catalyst (manifold),

DTC P1146 HO2S2
EC-307
[QR25(WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
DTC P1146 HO2S2PFP:226A0
Component DescriptionEBS00M8F
The heated oxygen sensor 2, after three way catalyst (manifold),
monitors the oxygen level in the exhaust gas on each bank.
Even if switching characteristics of the heated oxygen sensor 1 are
shifted, the air-fuel ratio is controlled to stoichiometric, by the signal
from the heated oxygen sensor 2.
This sensor is made of ceramic zirconia. The zirconia generates volt-
age from approximately 1V in richer conditions to 0V in leaner condi-
tions.
Under normal conditions the heated oxygen sensor 2 is not used for
engine control operation.
CONSULT-II Reference Value in Data Monitor ModeEBS00M8G
Specification data are reference values.
ECM Terminals and Reference ValueEBS00M8H
Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
On Board Diagnosis LogicEBS00M8I
The heated oxygen sensor 2 has a much longer switching time
between rich and lean than the heated oxygen sensor 1. The oxygen
storage capacity before the three way catalyst (manifold) causes the
longer switching time. To judge the malfunctions of heated oxygen
sensor 2, ECM monitors whether the minimum voltage of sensor is
sufficiently low during the various driving condition such as fuel-cut.
SEF327R
MONITOR ITEM CONDITION SPECIFICATION
HO2S2 (B1)
●Engine: After warming up
●Keeping the engine speed at
between 3,500 to 4,000 rpm for
one minute and at idle for one
minute under no loadRevving engine from idle up to 3,000
rpm quickly.0 - 0.3V ←→ Approx. 0.6 - 1.0V
HO2S2 MNTR (B1)
●Engine: After warming up
●Keeping the engine speed at
between 3,500 to 4,000 rpm for
one minute and at idle for one
minute under no loadRevving engine from idle up to 3,000
rpm quickly.LEAN←→ RICH
TER-
MINAL
NO.WIRE
COLORITEM CONDITION DATA (DC Voltage)
95 OR/BHeated oxygen sen-
sor 2[Engine is running]
●Warm-up condition
●Revving engine from idle up to 3,000 rpm quickly
after the following conditions are met.
●Keeping the engine speed between 3,500 and
4,000 rpm for one minute and at idle for one
minute under no load.0 - Approximately 1.0V
PBIB0554E

Page 658 of 3833

NISSAN X-TRAIL 2001 Service Repair Manual EC-308
[QR25(WITH EURO-OBD)]
DTC P1146 HO2S2
DTC Confirmation Procedure
EBS00M8J
NOTE:
If “DTC Confirmation Procedure” has been previously conducted, always turn ignition switch “OFF” and wait

EC-308
[QR25(WITH EURO-OBD)]
DTC P1146 HO2S2
DTC Confirmation Procedure
EBS00M8J
NOTE:
If “DTC Confirmation Procedure” has been previously conducted, always turn ignition switch “OFF” and wait at
least 10 seconds before conducting the next test.
TESTING CONDITION:
●For the best results, perform “DTC WORK SUPPORT” at a temperature of 0 to 30°C (32 to 86°F).
●Open engine hood before conducting following procedure.
WITH CONSULT-II
1. Start engine and warm it up to normal operating temperature.
2. Turn ignition switch “OFF” and wait at least 10 seconds.
3. Start engine and keep the engine speed between 3,500 and 4,000 rpm for at least one minute under no
load.
4. Let engine idle for one minute.
5. Select “HO2S2 (B1) P1146” of “HO2S2” in “DTC WORK SUPPORT” mode with CONSULT-II and follow
the instruction of CONSULT-II.
6. Make sure that “OK” is displayed after touching “SELF-DIAG RESULTS”.
If “NG” is displayed, refer to EC-311, "
Diagnostic Procedure" .
If “CAN NOT BE DIAGNOSED” is displayed, perform the following.
a. Turn ignition switch “OFF” and leave the vehicle in a cool place (soak the vehicle).
b. Turn ignition switch “ON” and select “COOLANTEMP/S” in “DATA MONITOR” mode with CONSULT-II.
c. Start engine and warm it up while monitoring “COOLANTEMP/S” indication on CONSULT-II.
d. When “COOLANTEMP/S” indication reaches to 70°C (158°F), go to step 3.
Overall Function CheckEBS00M8K
Use this procedure to check the overall function of the heated oxygen sensor 2 circuit. During this check, a
DTC might not be confirmed.
WITH GST
1. Start engine and warm it up to the normal operating temperature.
2. Turn ignition switch “OFF” and wait at least 10 seconds.
3. Start engine and keep the engine speed between 3,500 and 4,000 rpm for at least one minute under no
load.
4. Let engine idle for one minute.
5. Set voltmeter probes between ECM terminal 95 (HO2S2 signal) and engine ground.
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P1146
11 4 6Heated oxygen sensor
2 minimum voltage
monitoringThe minimum voltage from the sensor is not
reached to the specified voltage.
●Harness or connectors
(The sensor circuit is open or shorted)
●Heated oxygen sensor 2
●Fuel pressure
●Injectors
PBIB0818E

Page 659 of 3833

NISSAN X-TRAIL 2001 Service Repair Manual DTC P1146 HO2S2
EC-309
[QR25(WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
6. Check the voltage when revving up to 4,000 rpm under no load
at least 10 times.
(Depress and release accelerator pedal as soon

Page 660 of 3833

NISSAN X-TRAIL 2001 Service Repair Manual EC-310
[QR25(WITH EURO-OBD)]
DTC P1146 HO2S2

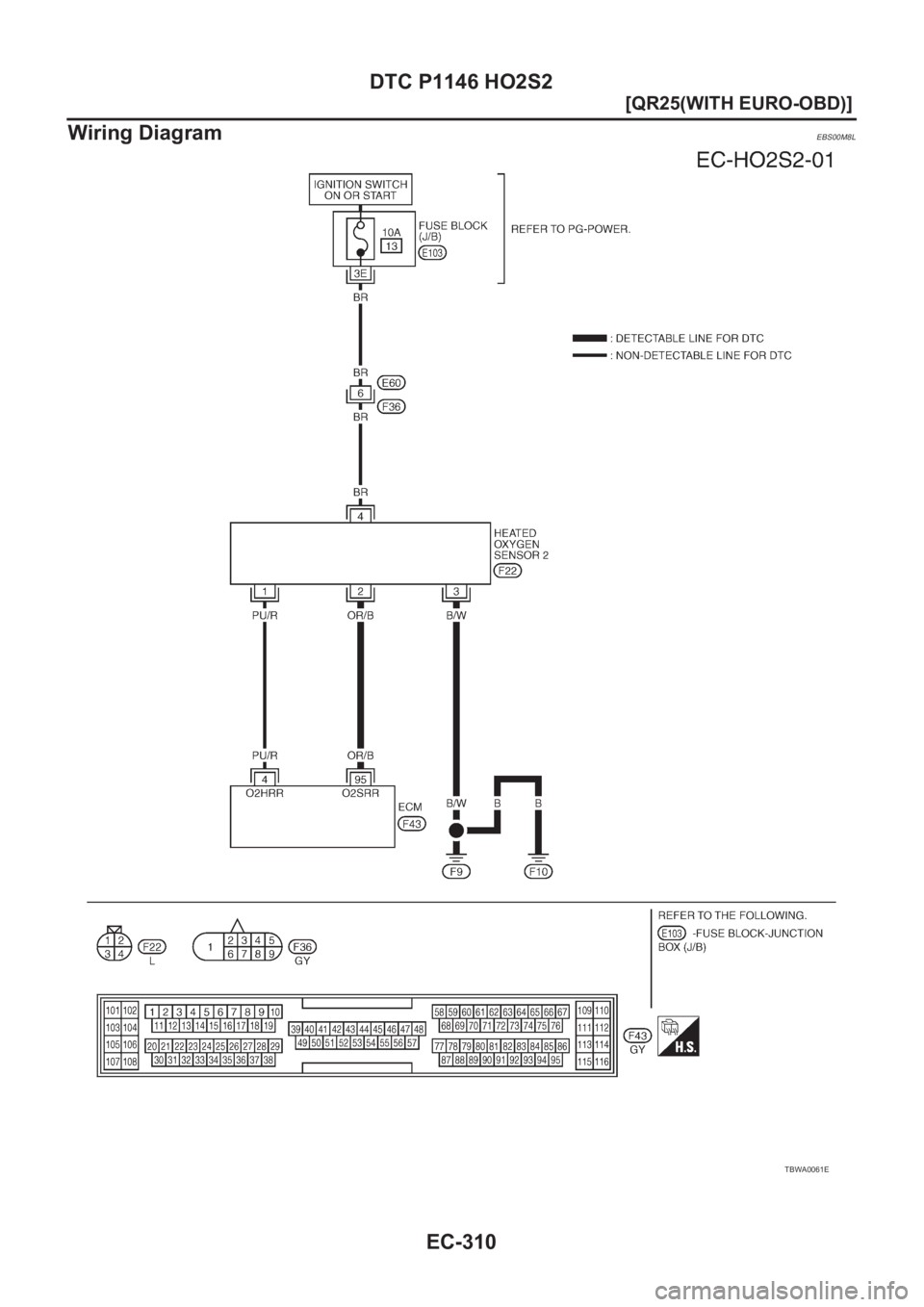

Wiring Diagram
EBS00M8L
TBWA0061E

Page 661 of 3833

NISSAN X-TRAIL 2001 Service Repair Manual DTC P1146 HO2S2
EC-311
[QR25(WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

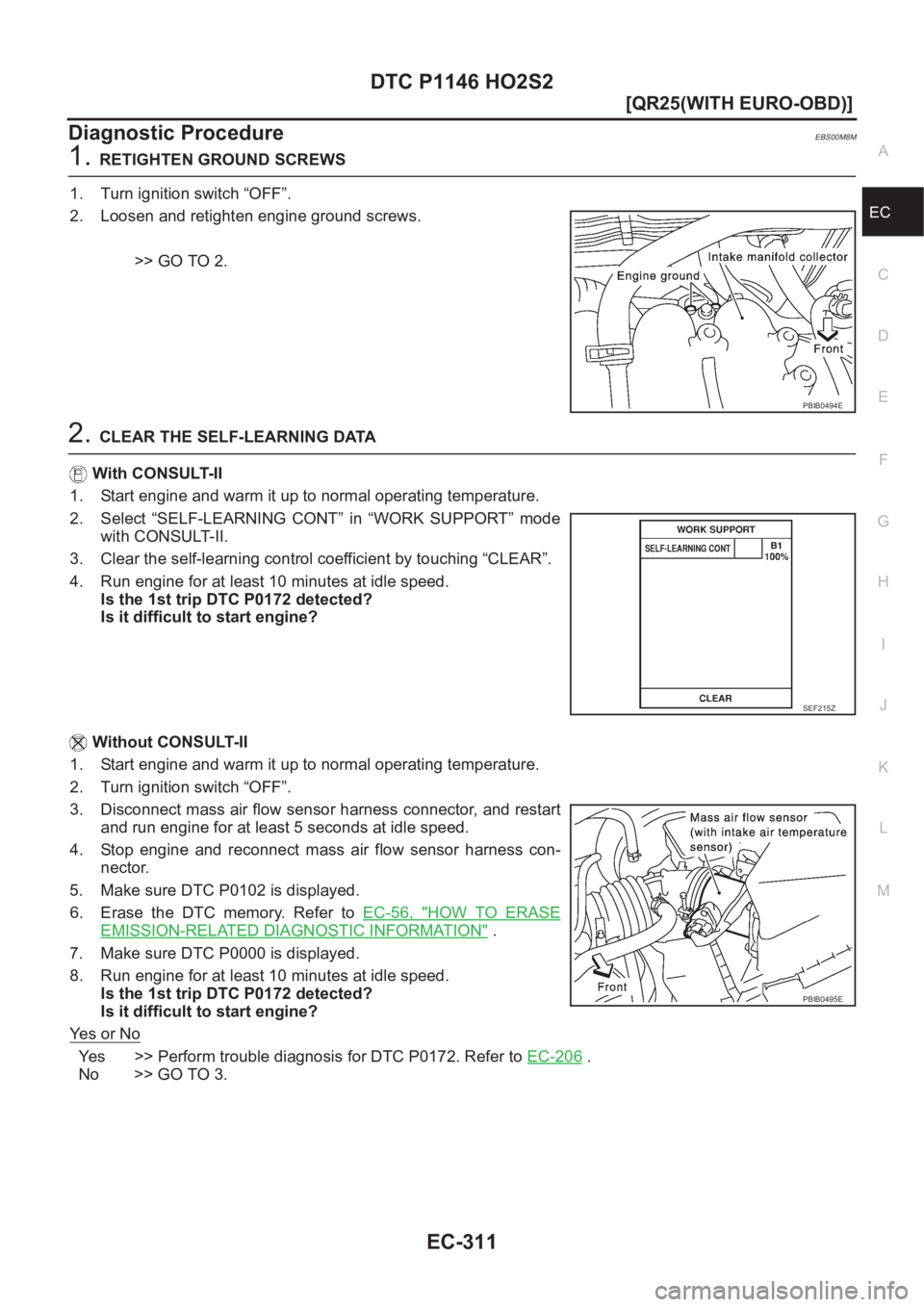

Diagnostic ProcedureEBS00M8M
1.RETIGHTEN GROUND SCREWS
1. Turn ignition switch “OFF”.
2. Loosen and retighten engine ground s

Page 662 of 3833

NISSAN X-TRAIL 2001 Service Repair Manual EC-312
[QR25(WITH EURO-OBD)]
DTC P1146 HO2S2
3. CHECK HO2S2 GROUND CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch “OFF”.
2. Disconnect heated oxygen sensor 2 harness connector.
3. Check harne

Page 663 of 3833

NISSAN X-TRAIL 2001 Service Repair Manual DTC P1146 HO2S2
EC-313
[QR25(WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
5. Select “FUEL INJECTION” in “ACTIVE TEST” mode, and select
“HO2S2 (B1)” as the monitor item with CONSULT-II.
6. Che

DTC P1146 HO2S2
EC-313
[QR25(WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
5. Select “FUEL INJECTION” in “ACTIVE TEST” mode, and select
“HO2S2 (B1)” as the monitor item with CONSULT-II.
6. Check “HO2S2 (B1)” at idle speed when adjusting “FUEL INJECTION” to ±25%.
“HO2S2 (B1)” should be above 0.68V at least once when the “FUEL INJECTION” is +25%.
“HO2S2 (B1)” should be below 0.50V at least once when the “FUEL INJECTION” is −25%.
CAUTION:
●Discard any heated oxygen sensor which has been dropped from a height of more than 0.5 m (19.7
in) onto a hard surface such as a concrete floor; use a new one.
●Before installing new oxygen sensor, clean exhaust system threads using Oxygen Sensor Thread
Cleaner tool J-43897-18 or J-43897-12 and approved anti-seize lubricant.
Without CONSULT-II
1. Start engine and warm it up to the normal operating temperature.
2. Turn ignition switch “OFF” and wait at least 10 seconds.
3. Start engine and keep the engine speed between 3,500 and 4,000 rpm for at least one minute under no
load.
4. Let engine idle for one minute.
5. Set voltmeter probes between ECM terminal 95 (HO2S2 signal) and engine ground.
6. Check the voltage when revving up to 4,000 rpm under no load
at least 10 times.
(Depress and release accelerator pedal as soon as possible.)
The voltage should be above 0.68V at least once during this
procedure.
If the voltage is above 0.68V at step 4, step 5 is not neces-
sary.
7. Keep vehicle idling for 10 minutes, then check voltage. Or check
the voltage when coasting from 80 km/h (50 MPH) in “D” posi-
tion with “OD” OFF (A/T), 3rd gear position (M/T).
The voltage should be below 0.50V at least once during this
procedure.
8. If NG, replace heated oxygen sensor 2.
CAUTION:
●Discard any heated oxygen sensor which has been dropped from a height of more than 0.5 m (19.7
in) onto a hard surface such as a concrete floor; use a new one.
●Before installing new oxygen sensor, clean exhaust system threads using Oxygen Sensor Thread
Cleaner tool J-43897-18 or J-43897-12 and approved anti-seize lubricant.
SEF662Y
PBIB0551E
PBIB0550E

Page 664 of 3833

NISSAN X-TRAIL 2001 Service Repair Manual EC-314
[QR25(WITH EURO-OBD)]
DTC P1146 HO2S2
Removal and Installation
EBS00M8O
HEATED OXYGEN SENSOR 2
Refer to EX-2, "EXHAUST SYSTEM" .
