SUNROOF
RF-9
C
D
E
F
G
H
J
K
L
MA
B
RF

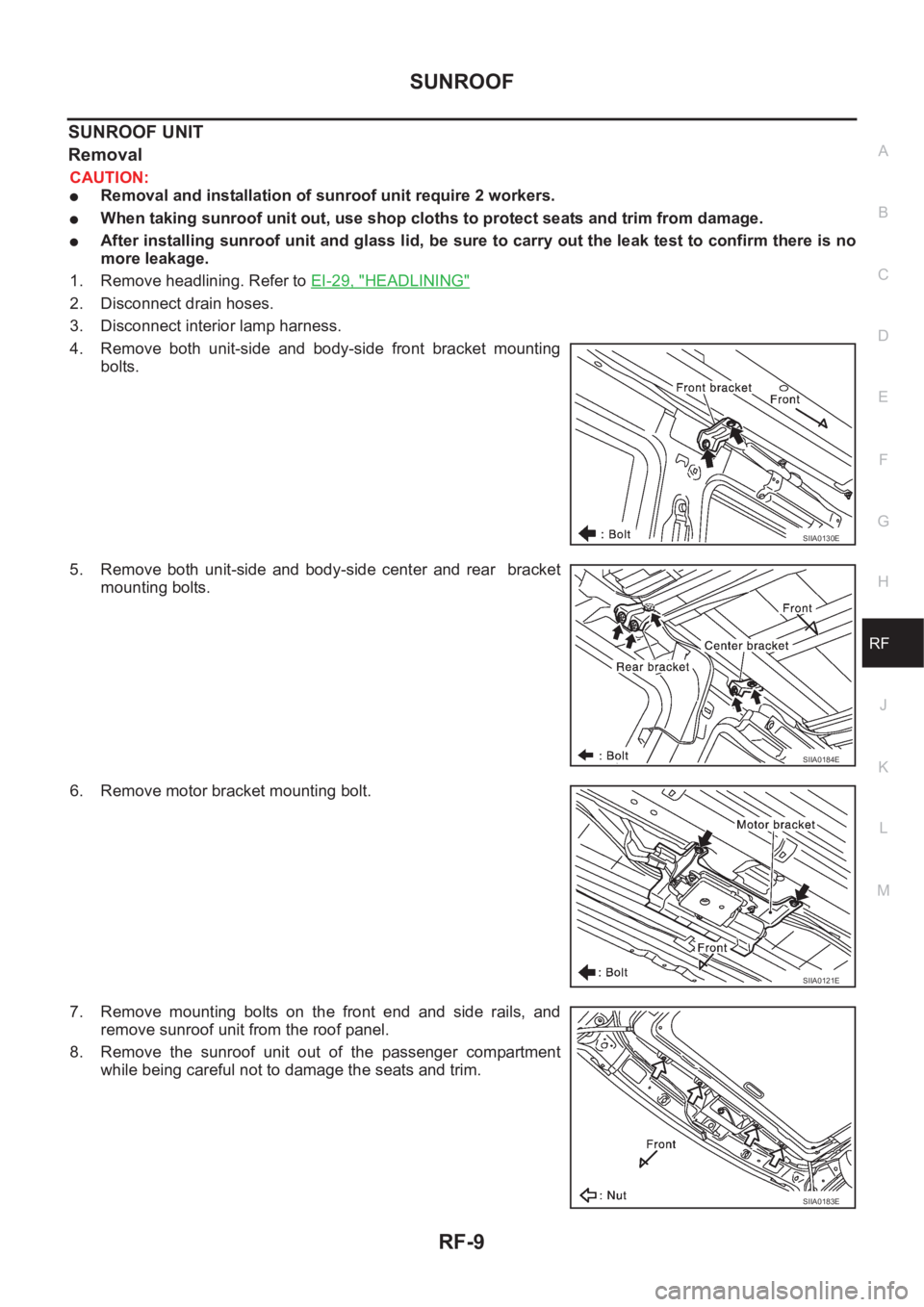

SUNROOF UNIT
Removal
CAUTION:
●Removal and installation of sunroof unit require 2 workers.
●When taking sunroof unit out, use shop cloths to protect seats and trim from damage.
●After installing sunroof unit and glass lid, be sure to carry out the leak test to confirm there is no
more leakage.
1. Remove headlining. Refer to EI-29, "
HEADLINING"
2. Disconnect drain hoses.
3. Disconnect interior lamp harness.
4. Remove both unit-side and body-side front bracket mounting
bolts.
5. Remove both unit-side and body-side center and rear bracket
mounting bolts.
6. Remove motor bracket mounting bolt.
7. Remove mounting bolts on the front end and side rails, and
remove sunroof unit from the roof panel.
8. Remove the sunroof unit out of the passenger compartment
while being careful not to damage the seats and trim.
SIIA0130E
SIIA0184E
SIIA0121E
SIIA0183E
Page 3218 of 3833

RF-10
SUNROOF

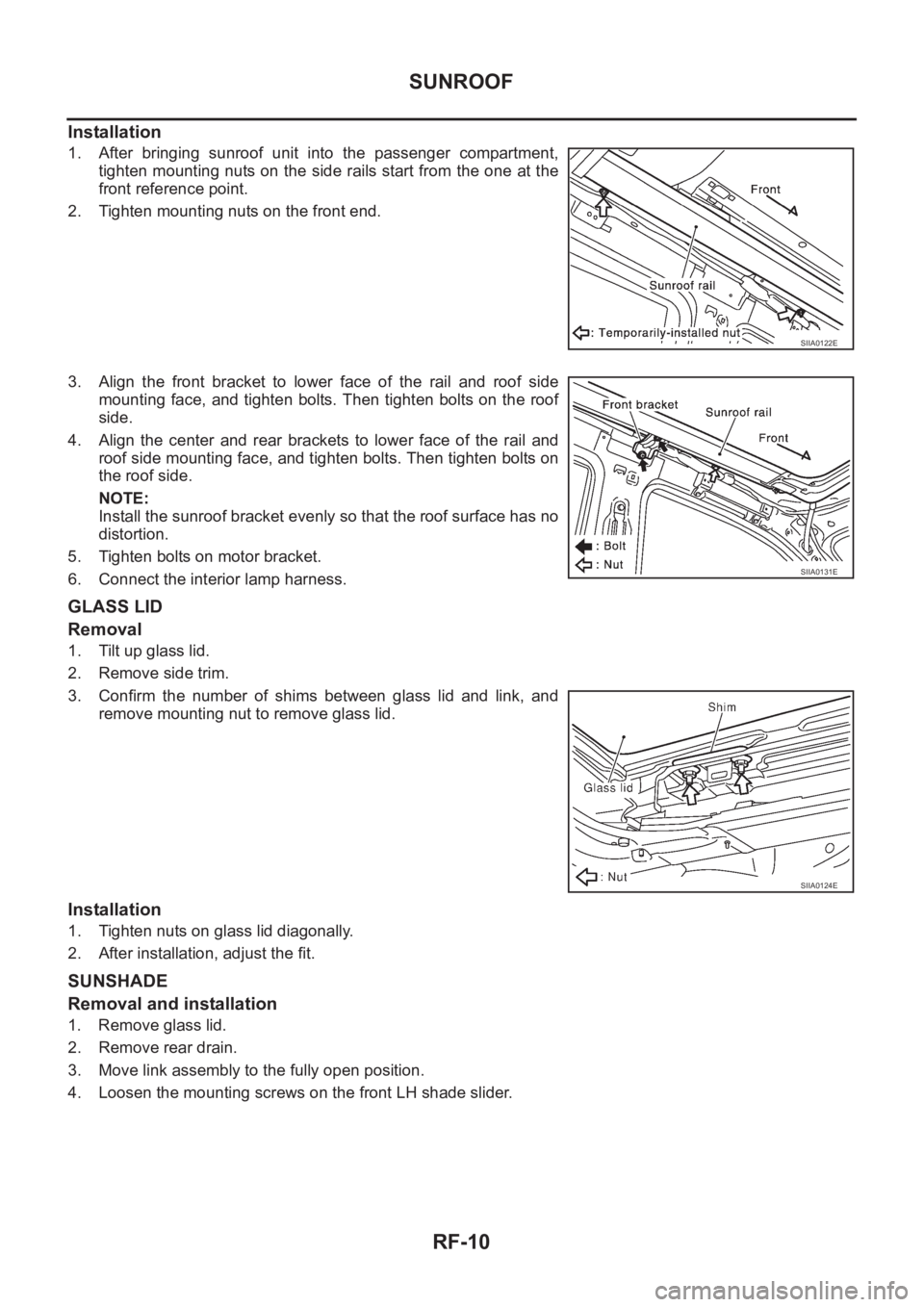

Installation
1. After bringing sunroof unit into the passenger compartment,
tighten mounting nuts on the side rails start from the one at the
front reference point.
2. Tighten mounting nuts on the front end.
3. Align the front bracket to lower face of the rail and roof side
mounting face, and tighten bolts. Then tighten bolts on the roof
side.
4. Align the center and rear brackets to lower face of the rail and
roof side mounting face, and tighten bolts. Then tighten bolts on
the roof side.
NOTE:
Install the sunroof bracket evenly so that the roof surface has no
distortion.
5. Tighten bolts on motor bracket.
6. Connect the interior lamp harness.
GLASS LID
Removal
1. Tilt up glass lid.
2. Remove side trim.
3. Confirm the number of shims between glass lid and link, and
remove mounting nut to remove glass lid.
Installation
1. Tighten nuts on glass lid diagonally.
2. After installation, adjust the fit.
SUNSHADE
Removal and installation
1. Remove glass lid.
2. Remove rear drain.
3. Move link assembly to the fully open position.
4. Loosen the mounting screws on the front LH shade slider.
SIIA0122E
SIIA0131E
SIIA0124E
Page 3219 of 3833

SUNROOF
RF-11
C
D
E
F
G
H
J
K
L
MA
B
RF

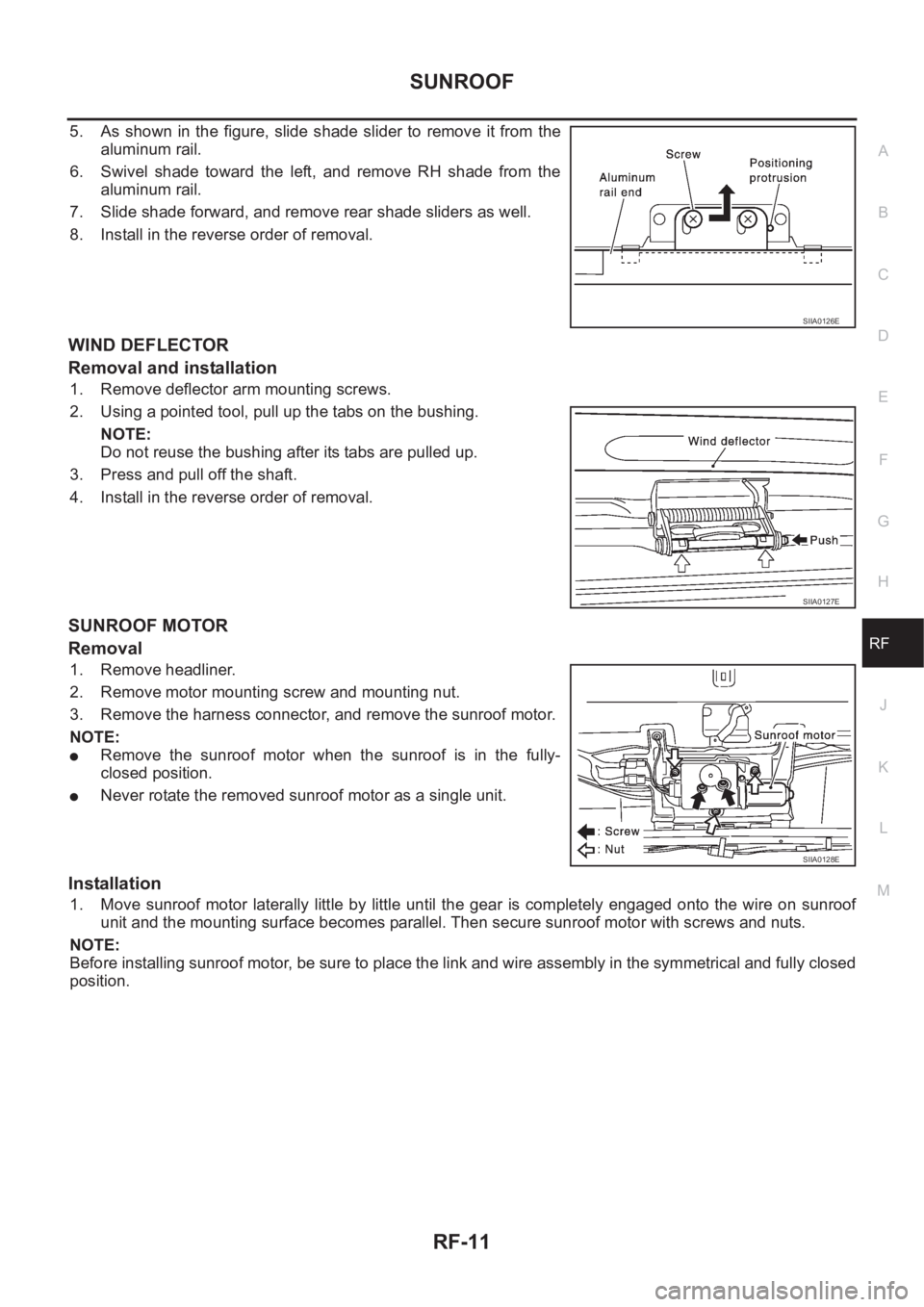

5. As shown in the figure, slide shade slider to remove it from the
aluminum rail.
6. Swivel shade toward the left, and remove RH shade from the
aluminum rail.
7. Slide shade forward, and remove rear shade sliders as well.
8. Install in the reverse order of removal.
WIND DEFLECTOR
Removal and installation
1. Remove deflector arm mounting screws.
2. Using a pointed tool, pull up the tabs on the bushing.
NOTE:
Do not reuse the bushing after its tabs are pulled up.
3. Press and pull off the shaft.
4. Install in the reverse order of removal.
SUNROOF MOTOR
Removal
1. Remove headliner.
2. Remove motor mounting screw and mounting nut.
3. Remove the harness connector, and remove the sunroof motor.
NOTE:
●Remove the sunroof motor when the sunroof is in the fully-
closed position.
●Never rotate the removed sunroof motor as a single unit.
Installation
1. Move sunroof motor laterally little by little until the gear is completely engaged onto the wire on sunroof
unit and the mounting surface becomes parallel. Then secure sunroof motor with screws and nuts.
NOTE:
Before installing sunroof motor, be sure to place the link and wire assembly in the symmetrical and fully closed
position.
SIIA0126E
SIIA0127E
SIIA0128E
Page 3220 of 3833
Page 3221 of 3833

EI-1
EXTERIOR & INTERIOR
I BODY
CONTENTS
C
D
E
F
G
H
J
K
L
M
SECTION
A
B
EI
EXTERIOR & INTERIOR
PRECAUTIONS .......................................................... 2
Precautions for Supplemental Restraint System
(SRS) “AIR BAG” and “SEAT BELT PRE-TEN-
SIONER” .................................................................. 2
Precautions .............................................................. 2
CLIP AND FASTENER ............................................... 3
Clip and Fastener ..................................................... 3
FRONT BUMPER ....................................................... 6
Removal and Installation .......................................... 6
REMOVAL ............................................................. 8
INSTALLATION ..................................................... 8
REAR BUMPER .................................................... ..... 9
Removal and Installation .......................................... 9
REMOVAL ............................................................. 9
INSTALLATION ................................................... 10
FRONT GRILLE .........................................................11
Removal and Installation ......................................... 11
REMOVAL ............................................................ 11
INSTALLATION .................................................... 11
COWL TOP ............................................................... 12
Removal and Installation ........................................ 12
REMOVAL ........................................................... 12
INSTALLATION ................................................... 12
FENDER PROTECTOR ............................................ 13
Removal and Installation ........................................ 13
DOOR OUTSIDE MOLDING .................................... 14
Removal and Installation ........................................ 14
REMOVAL ........................................................... 14
INSTALLATION ................................................... 15
SIDE GUARD MOLDING .......................................... 16
Removal and Installation ........................................ 16
DOOR OUTSIDE LOWER MOLDING ...................... 17
Removal and Installation ........................................ 17
SIDE SILL PROTECTOR .......................................... 18
Removal and Installation ........................................ 18ROOF RAIL ............................................................... 19
Removal and Installation ........................................ 19
REMOVAL ........................................................... 19
INSTALLATION ................................................... 20
ROOF SPOILER ....................................................... 21
Removal and Installation ........................................ 21
REMOVAL ........................................................... 21
INSTALLATION ................................................... 21
LICENSE LAMP FINISHER ...................................... 22
Removal and Installation ........................................ 22
REMOVAL ........................................................... 22
INSTALLATION ................................................... 22
DOOR FINISHER ...................................................... 23
Removal and Installation ........................................ 23
FRONT AND REAR ............................................ 23
BACK DOOR TRIM ................................................... 25
Removal and Installation ........................................ 25
BODY SIDE TRIM ..................................................... 26
Removal and Installation ........................................ 26
CENTER PILLAR LOWER GARNISH ................. 26
CENTER PILLAR UPPER GARNISH .................. 27
LUGGAGE SIDE LOWER FINISHER ................. 27
REAR PILLAR FINISHER ................................... 27
DASHBOARD SIDE FINISHER .......................... 27
BODY SIDE WELT .............................................. 27
FLOOR TRIM ............................................................ 28
Removal and Installation ........................................ 28
REMOVAL ........................................................... 28
INSTALLATION ................................................... 28
HEADLINING ............................................................ 29
Removal and Installation ........................................ 29
REMOVAL ........................................................... 29
INSTALLATION ................................................... 30
Page 3222 of 3833

EI-2

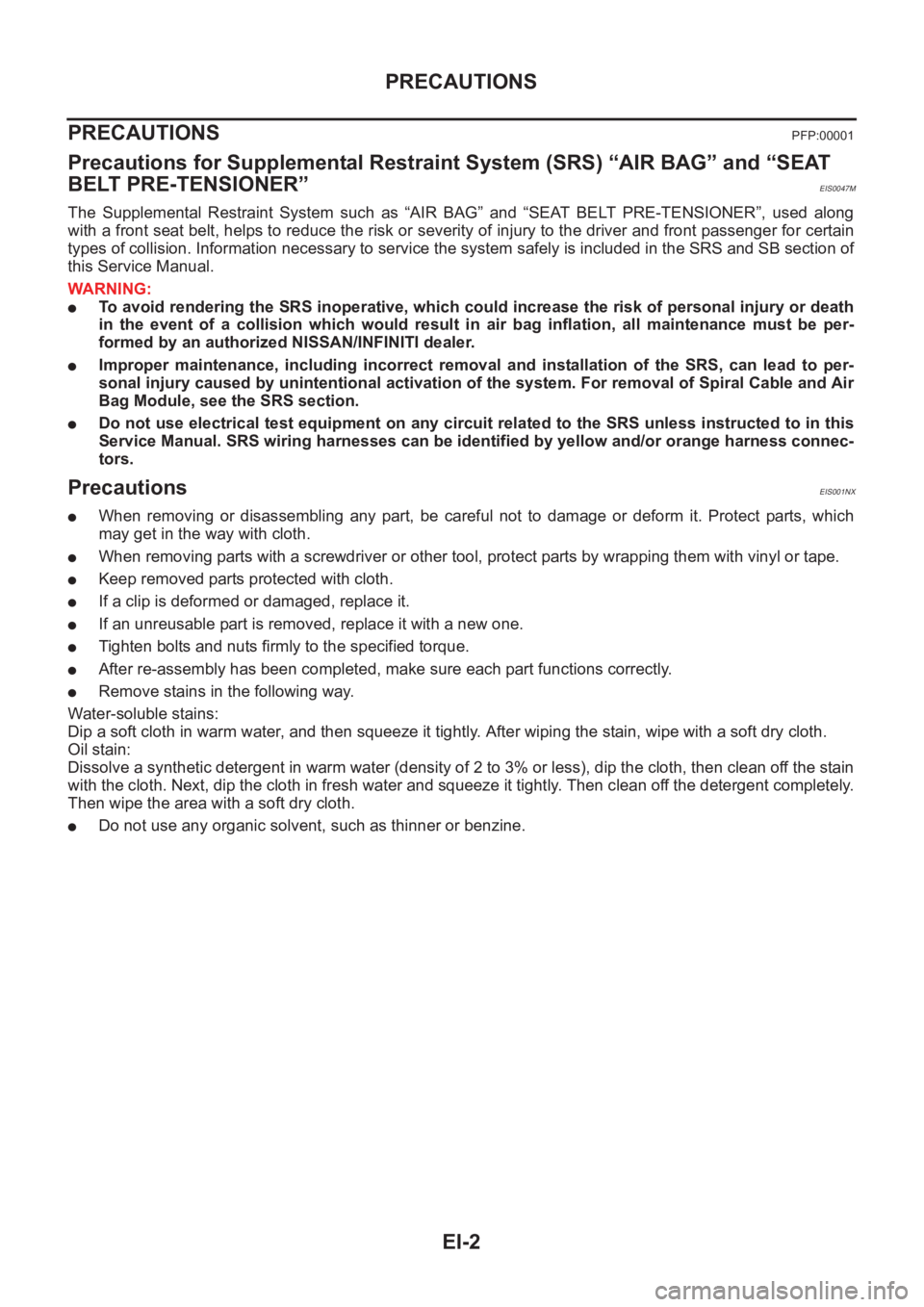

PRECAUTIONS
PRECAUTIONS
PFP:00001
Precautions for Supplemental Restraint System (SRS) “AIR BAG” and “SEAT
BELT PRE-TENSIONER”
EIS0047M
The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. Information necessary to service the system safely is included in the SRS and SB section of
this Service Manual.
WARNING:
●To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death
in the event of a collision which would result in air bag inflation, all maintenance must be per-
formed by an authorized NISSAN/INFINITI dealer.
●Improper maintenance, including incorrect removal and installation of the SRS, can lead to per-
sonal injury caused by unintentional activation of the system. For removal of Spiral Cable and Air
Bag Module, see the SRS section.
●Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this
Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harness connec-
tors.
Precautions EIS001NX
●When removing or disassembling any part, be careful not to damage or deform it. Protect parts, which
may get in the way with cloth.
●When removing parts with a screwdriver or other tool, protect parts by wrapping them with vinyl or tape.
●Keep removed parts protected with cloth.
●If a clip is deformed or damaged, replace it.
●If an unreusable part is removed, replace it with a new one.
●Tighten bolts and nuts firmly to the specified torque.
●After re-assembly has been completed, make sure each part functions correctly.
●Remove stains in the following way.
Water-soluble stains:
Dip a soft cloth in warm water, and then squeeze it tightly. After wiping the stain, wipe with a soft dry cloth.
Oil stain:
Dissolve a synthetic detergent in warm water (density of 2 to 3% or less), dip the cloth, then clean off the stain
with the cloth. Next, dip the cloth in fresh water and squeeze it tightly. Then clean off the detergent completely.
Then wipe the area with a soft dry cloth.
●Do not use any organic solvent, such as thinner or benzine.
Page 3223 of 3833
CLIP AND FASTENER
EI-3
C
D
E
F
G
H
J
K
L
MA
B
EI

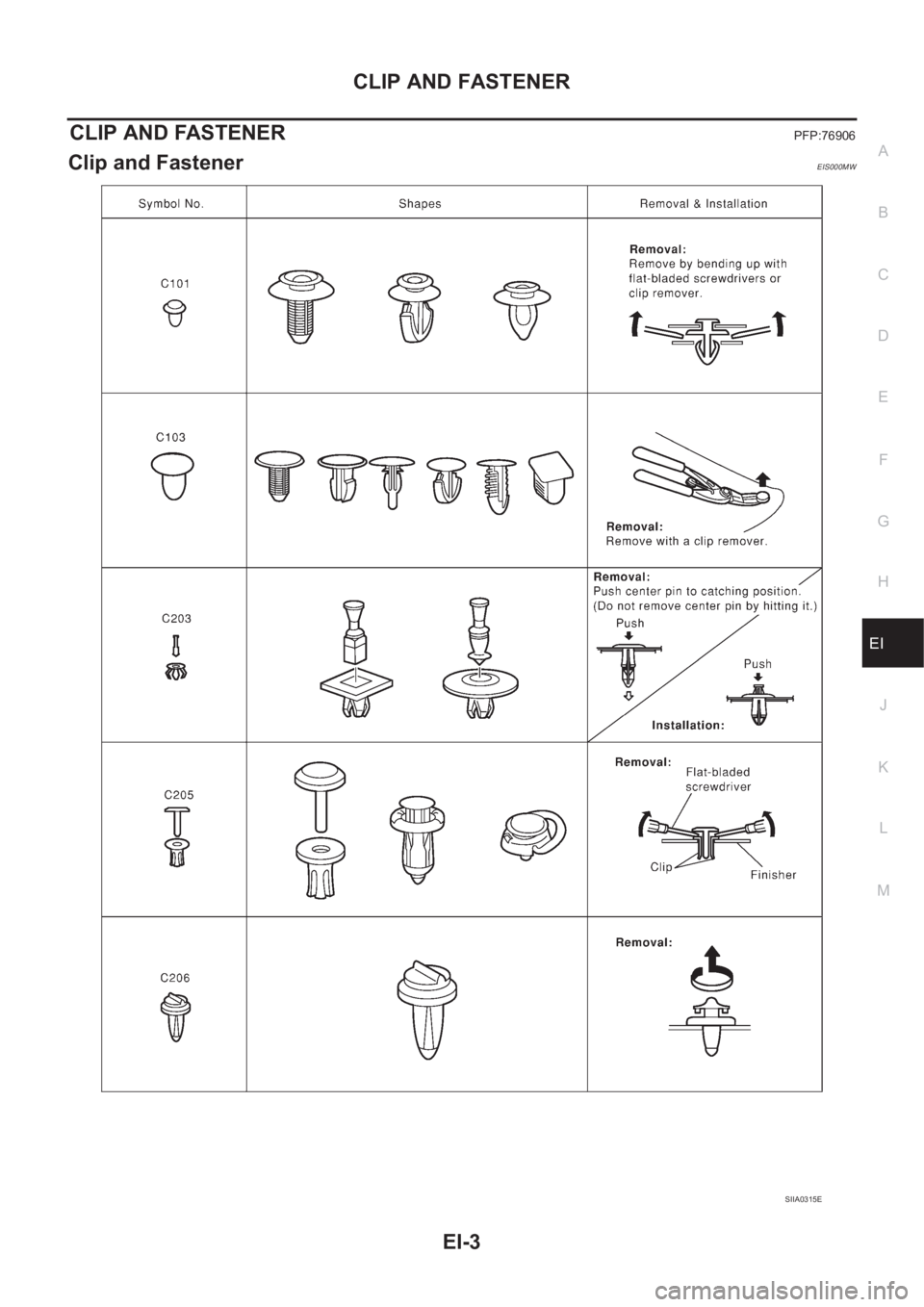

CLIP AND FASTENERPFP:76906
Clip and FastenerEIS000MW
SIIA0315E
Page 3224 of 3833
EI-4

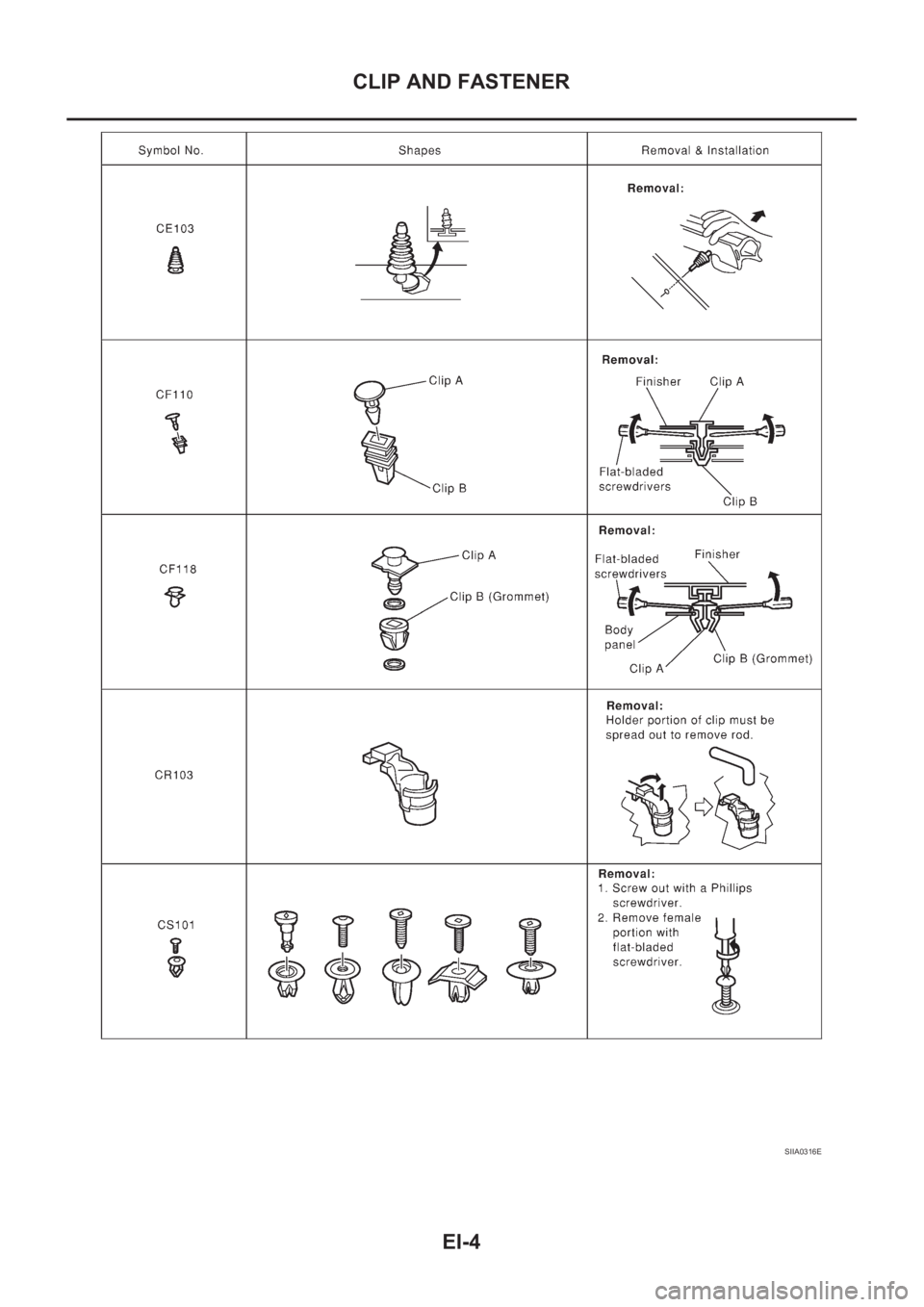

CLIP AND FASTENER
SIIA0316E
