NISSAN X-TRAIL 2001  Service Repair Manual TROUBLE DIAGNOSIS — BASIC INSPECTION
AT-275
[EXC.F/EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT

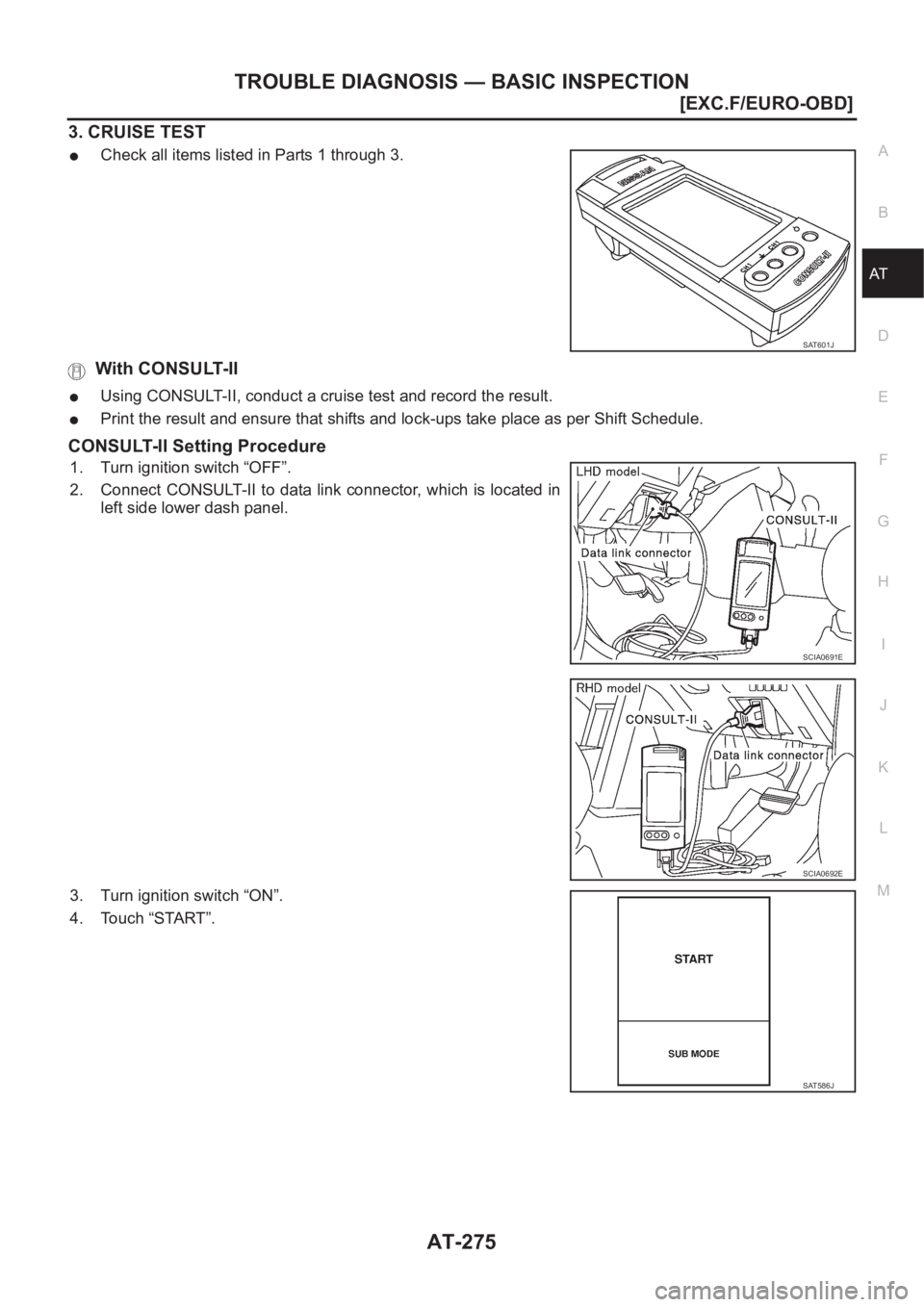

3. CRUISE TEST
●Check all items listed in Parts 1 through 3.
 With CONSULT-II
●Using CONSULT-II, conduct a

Page 2354 of 3833

NISSAN X-TRAIL 2001  Service Repair Manual AT-276
[EXC.F/EURO-OBD]
TROUBLE DIAGNOSIS — BASIC INSPECTION

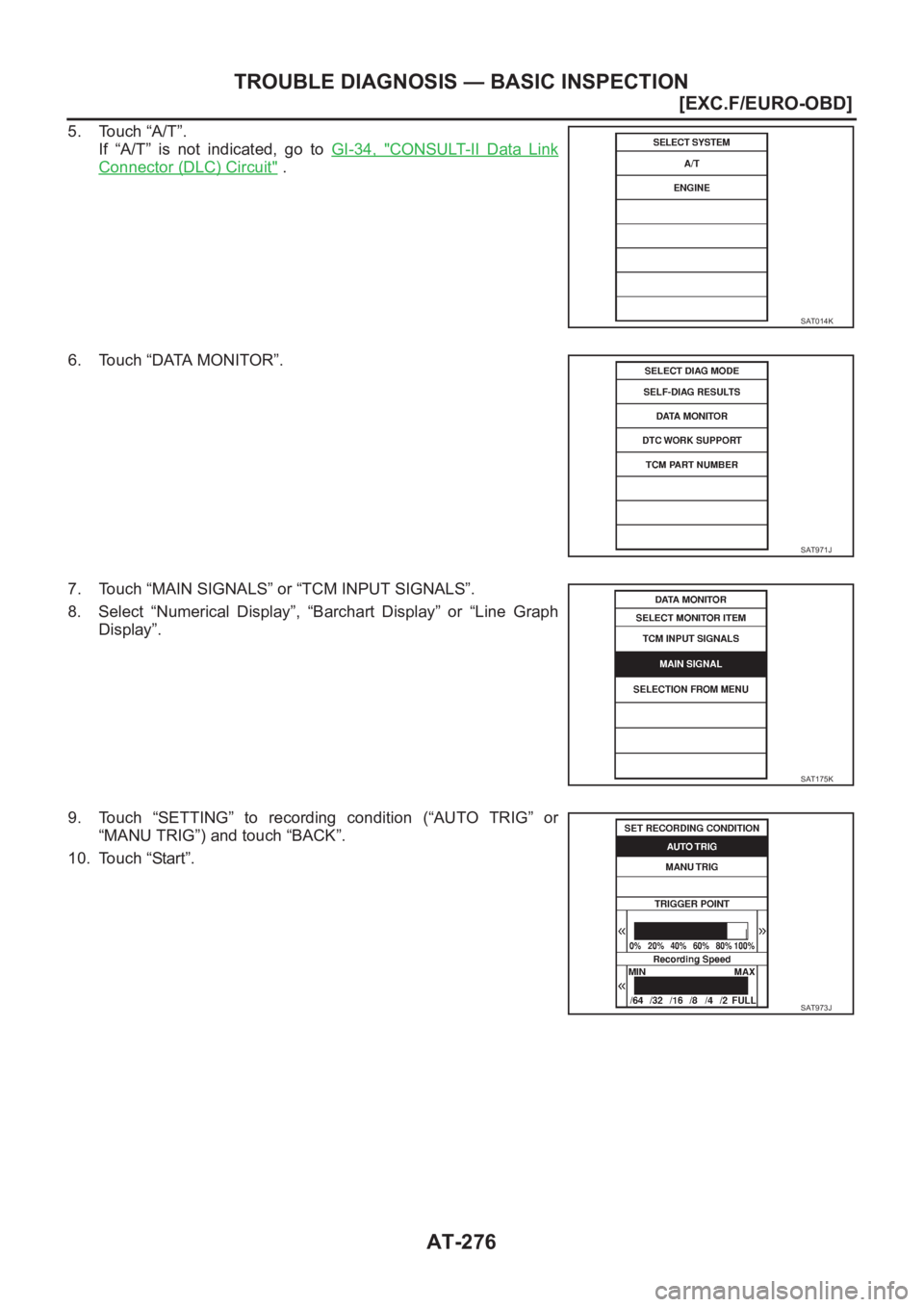

5. Touch “A/T”.
If  “A/T”  is  not  indicated,  go  to GI-34,  "
CONSULT-II  Data  Link
Connector (DLC) Circuit" .
6. Tou

Page 2355 of 3833

NISSAN X-TRAIL 2001  Service Repair Manual TROUBLE DIAGNOSIS — BASIC INSPECTION
AT-277
[EXC.F/EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT

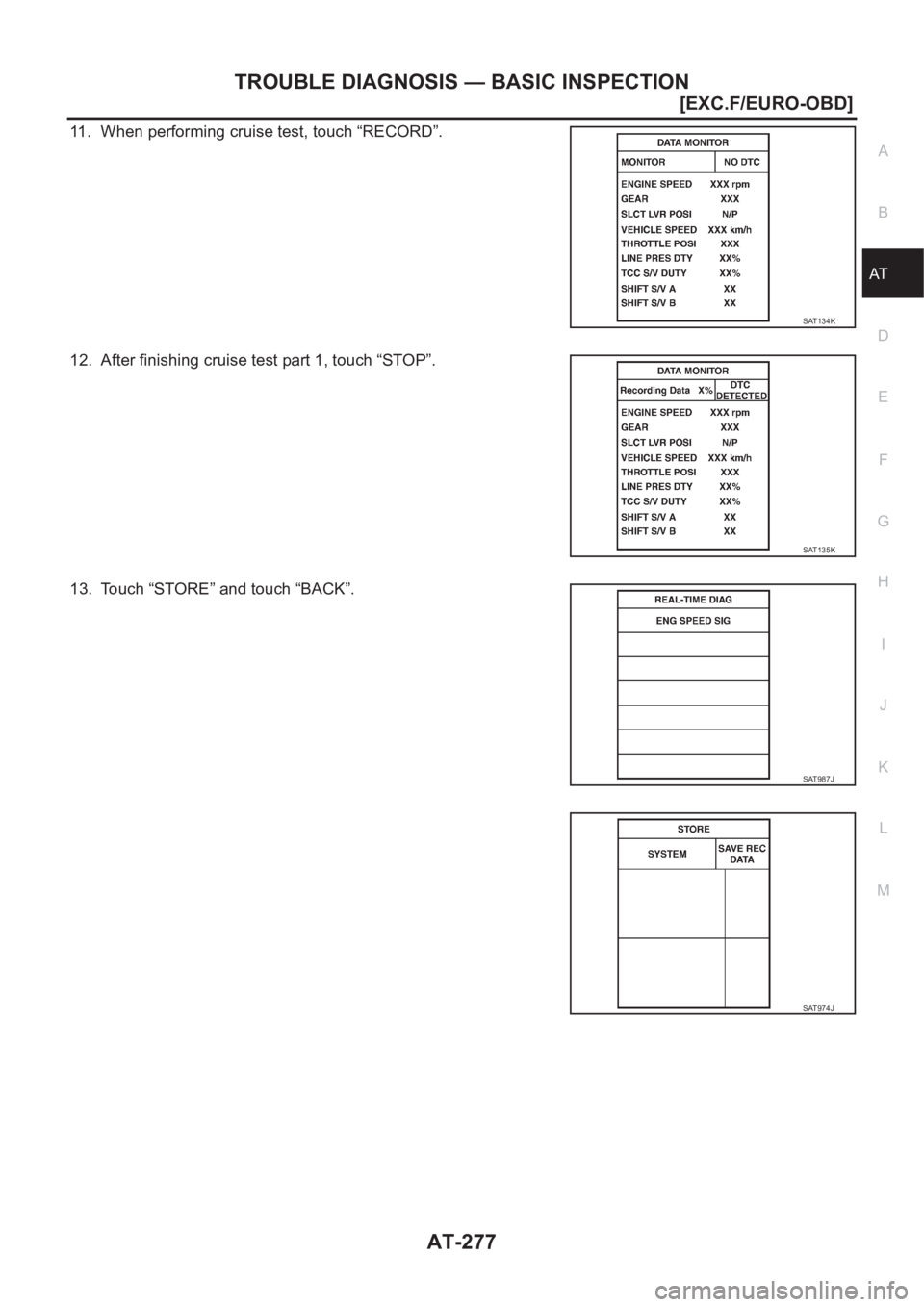

11. When performing cruise test, touch “RECORD”.
12. After finishing cruise test part 1, touch “STOP”.

Page 2356 of 3833

NISSAN X-TRAIL 2001  Service Repair Manual AT-278
[EXC.F/EURO-OBD]
TROUBLE DIAGNOSIS — BASIC INSPECTION
14. Touch “DISPLAY”.
15. Touch “PRINT”.
16. Check the monitor data printed out.
17. Continue cruise test part 2 and 3.
 Without C

Page 2357 of 3833

NISSAN X-TRAIL 2001  Service Repair Manual TROUBLE DIAGNOSIS — BASIC INSPECTION
AT-279
[EXC.F/EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT
Cruise Test — Part 1
1.CHECK STARTING GEAR (D1 ) POSITION
1. Drive vehicle for approx. 10 minutes to warm eng

Page 2358 of 3833

NISSAN X-TRAIL 2001  Service Repair Manual AT-280
[EXC.F/EURO-OBD]
TROUBLE DIAGNOSIS — BASIC INSPECTION

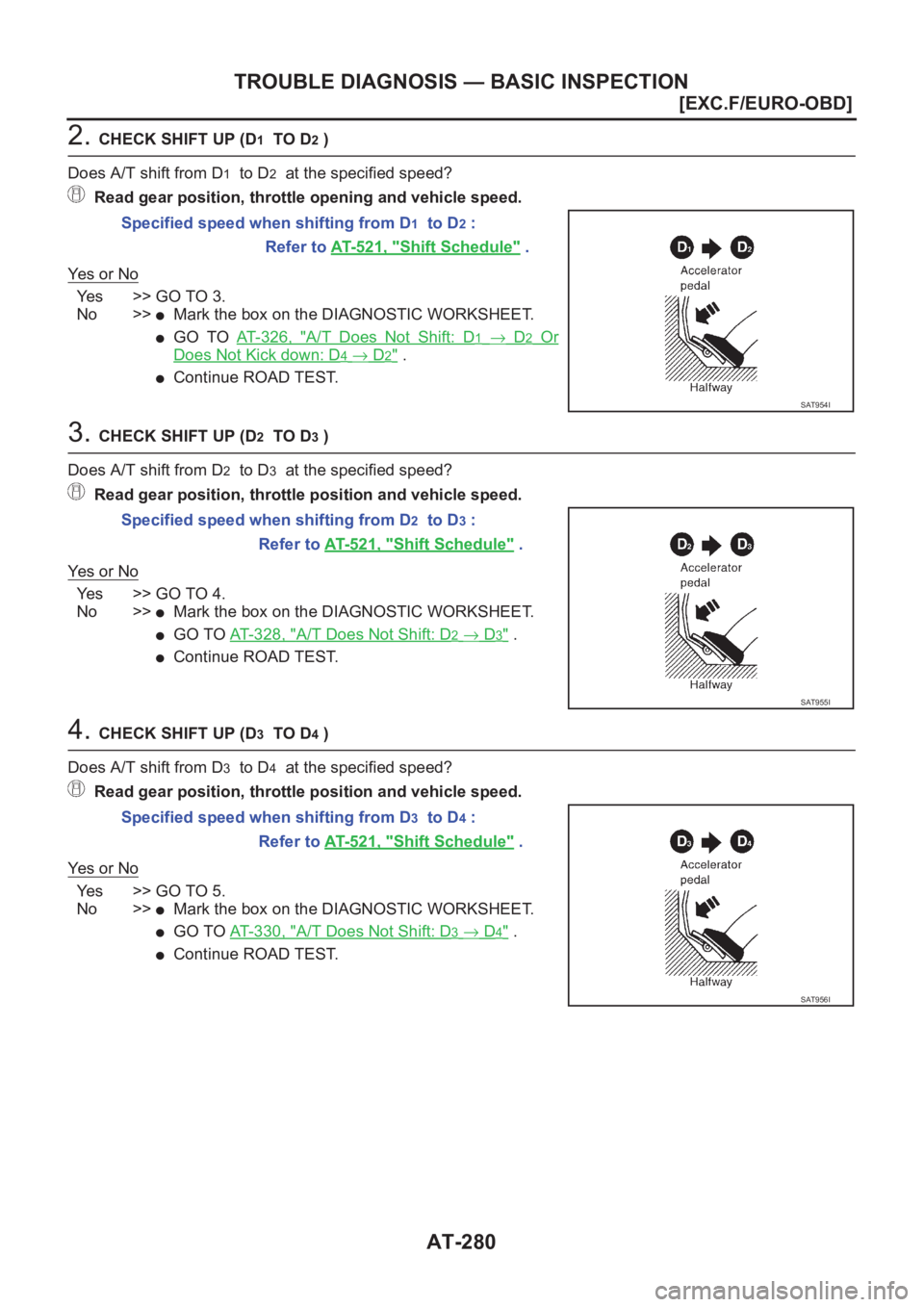

2. CHECK SHIFT UP (D1  TO D2 )
Does A/T shift from D
1  to D2  at the specified speed?
Read gear position, throttle opening and vehicle s

Page 2359 of 3833

NISSAN X-TRAIL 2001  Service Repair Manual TROUBLE DIAGNOSIS — BASIC INSPECTION
AT-281
[EXC.F/EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT
5.CHECK LOCK-UP (D4  TO D4  L/U)
Does A/T perform lock-up at the specified speed?
Read vehicle speed, throttle

Page 2360 of 3833

NISSAN X-TRAIL 2001  Service Repair Manual AT-282
[EXC.F/EURO-OBD]
TROUBLE DIAGNOSIS — BASIC INSPECTION
Cruise Test — Part 2
1. CHECK STARTING GEAR (D1 ) POSITION
1. Confirm overdrive control switch is in “ON” position.
2. Confirm sele
