Page 3473 of 3833

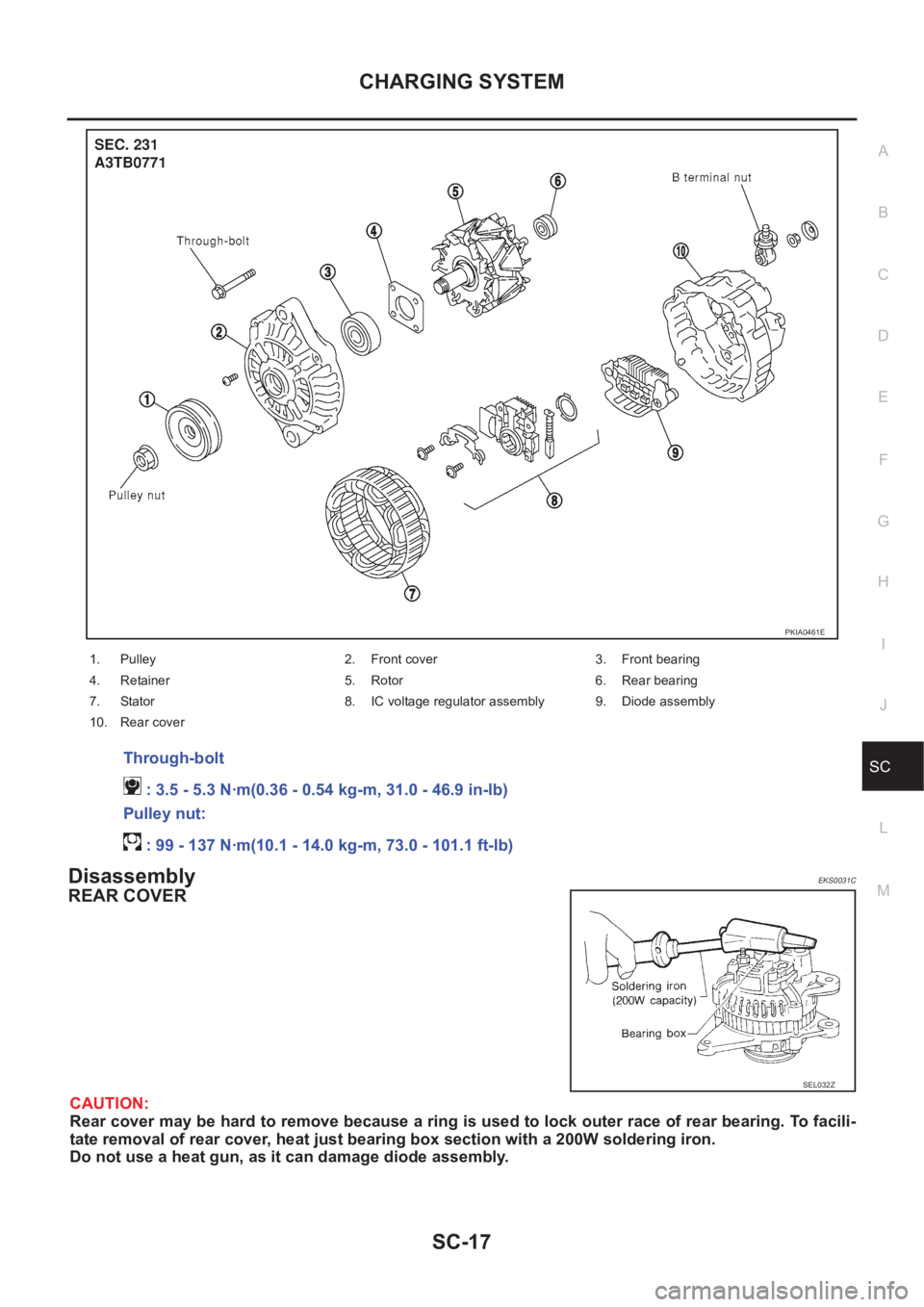

NISSAN X-TRAIL 2001 Service Repair Manual CHARGING SYSTEM SC-17 C D E F G H I J L MA B SC DisassemblyEKS0031C REAR COVER CAUTION: Rear cover may be hard to remove because a ring is used to lock outer race of rear bearing. To facili- tate remo

Page 3474 of 3833

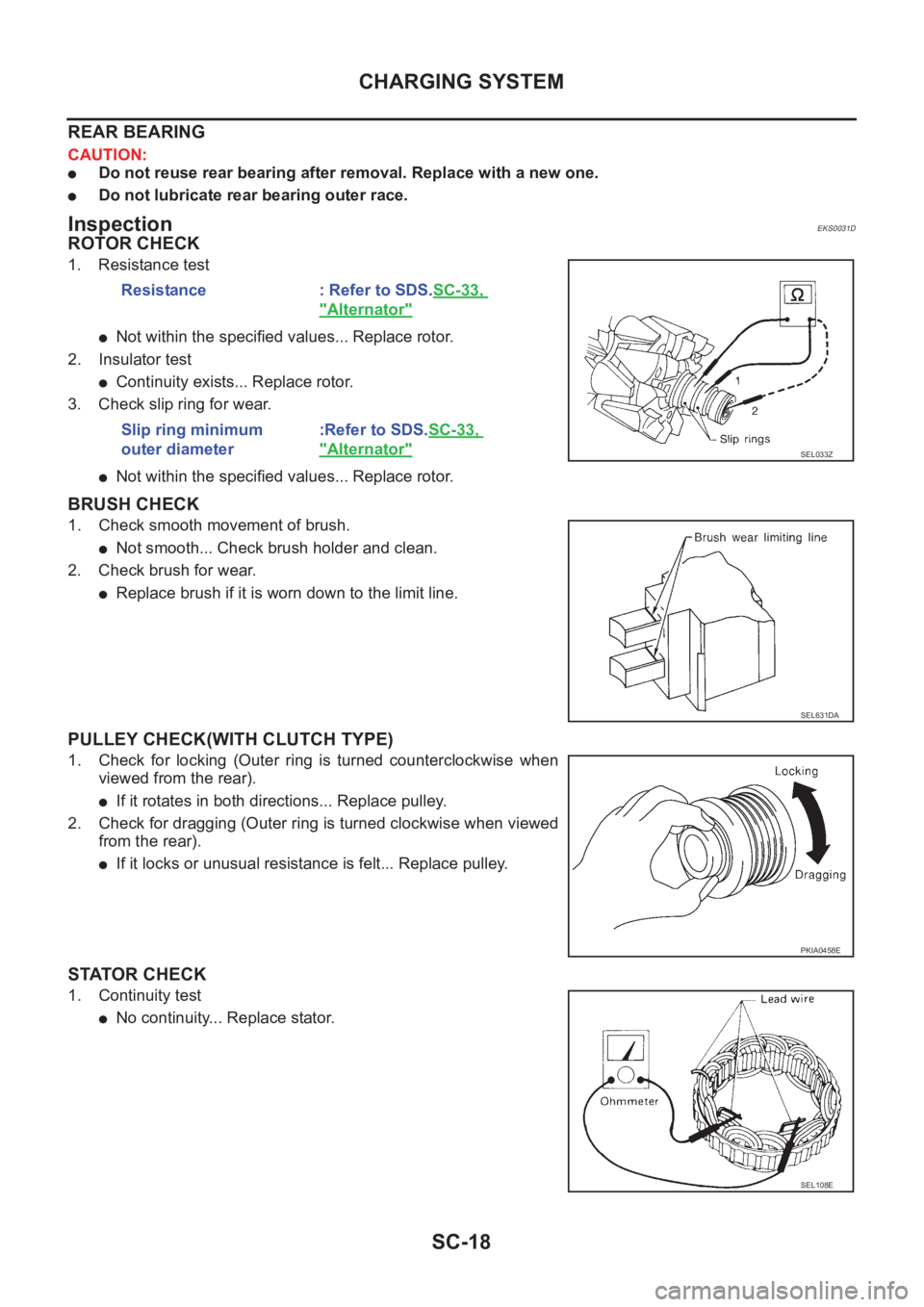

NISSAN X-TRAIL 2001 Service Repair Manual SC-18 CHARGING SYSTEM REAR BEARING CAUTION: ●Do not reuse rear bearing after removal. Replace with a new one. ●Do not lubricate rear bearing outer race. InspectionEKS0031D ROTOR CHECK 1. Resistanc

Page 3475 of 3833

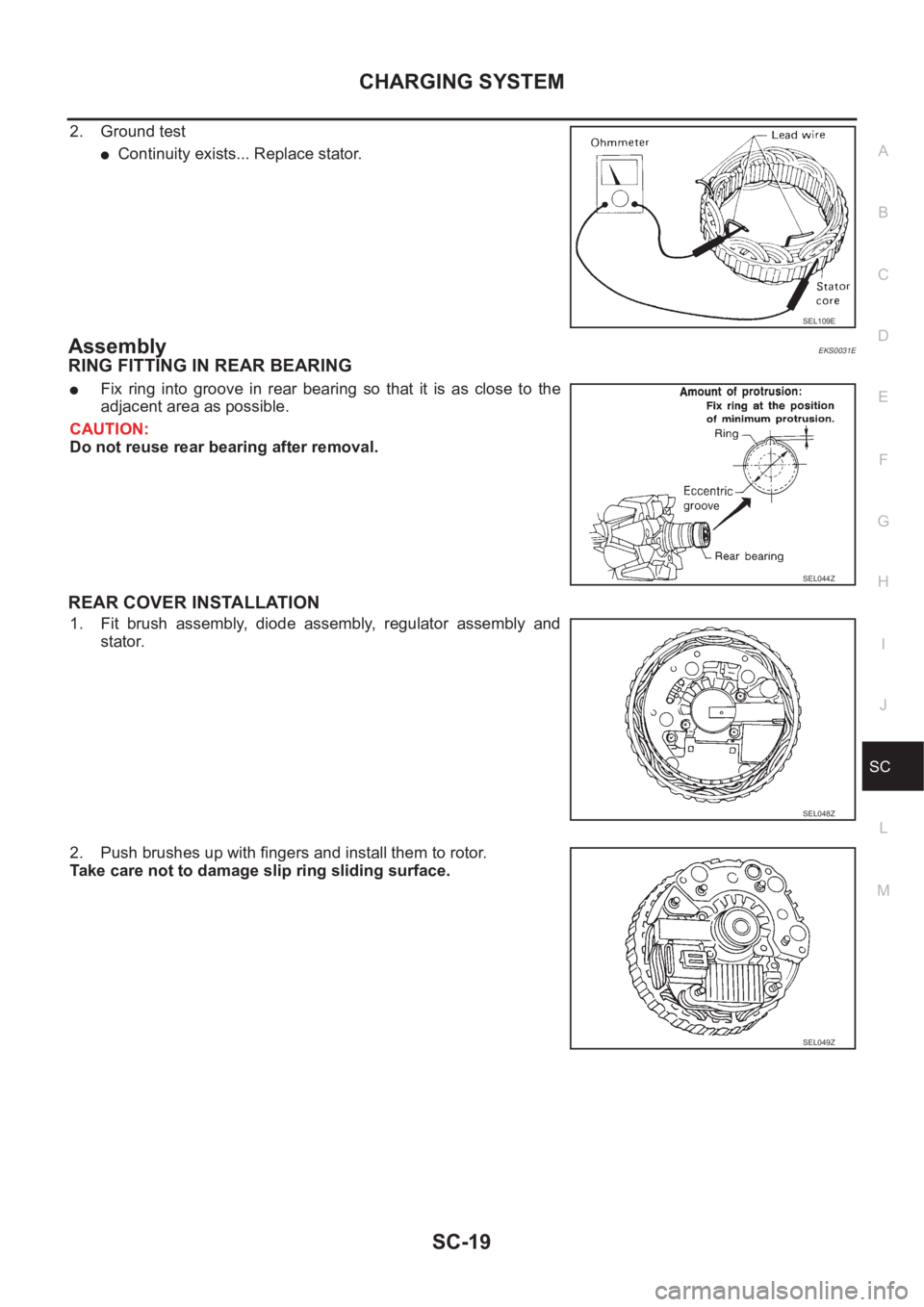

NISSAN X-TRAIL 2001 Service Repair Manual CHARGING SYSTEM SC-19 C D E F G H I J L MA B SC 2. Ground test ●Continuity exists... Replace stator. AssemblyEKS0031E RING FITTING IN REAR BEARING ●Fix ring into groove in rear bearing so

Page 3476 of 3833

NISSAN X-TRAIL 2001 Service Repair Manual SC-20 STARTING SYSTEM STARTING SYSTEM PFP:00011 System Description EKS0031F M/T MODELS Power is supplied at all times ●through 30A fusible link (letter J, located in the fuse and fusible link box)

Page 3477 of 3833

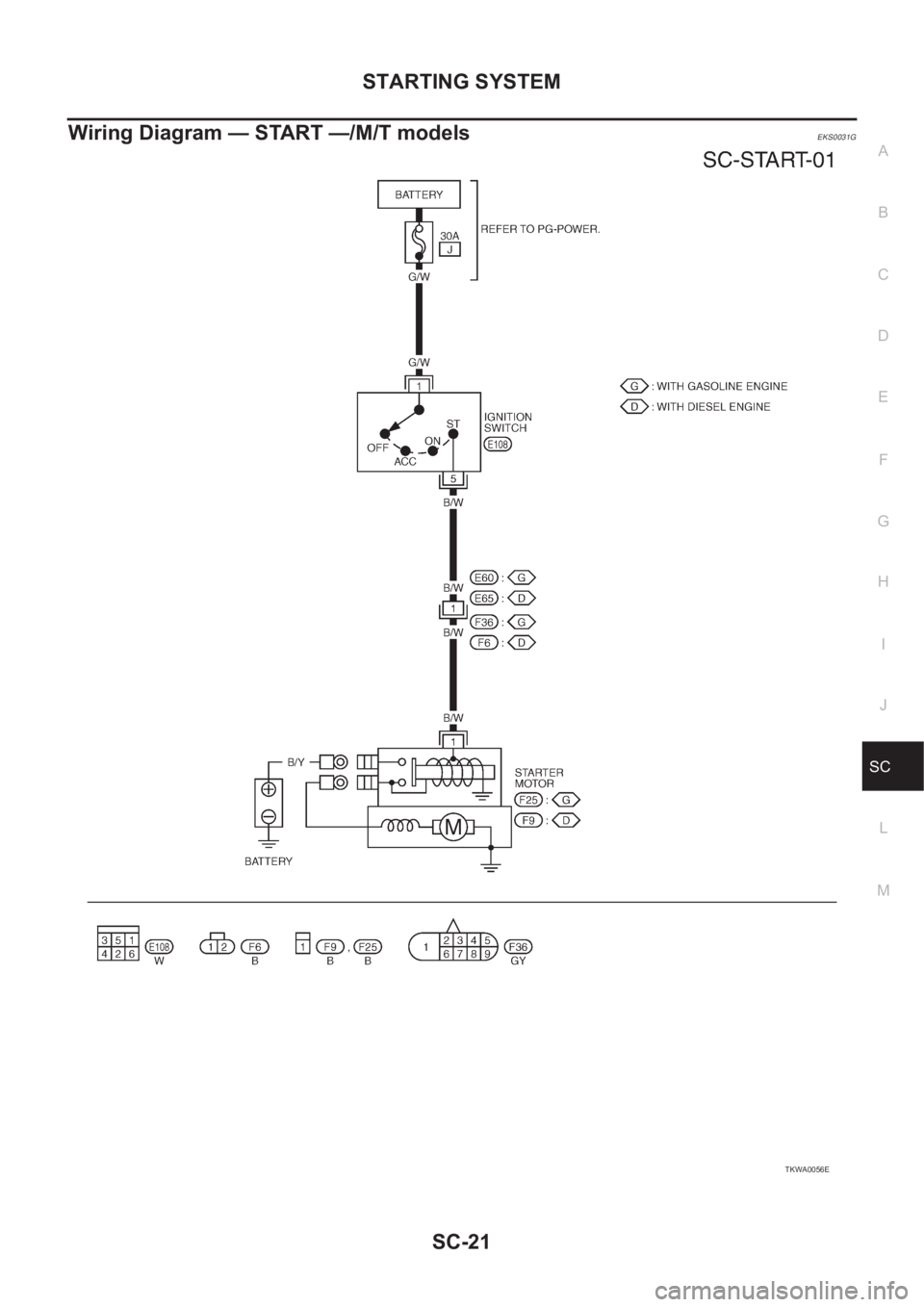

NISSAN X-TRAIL 2001 Service Repair Manual STARTING SYSTEM SC-21 C D E F G H I J L MA B SC Wiring Diagram — START —/M/T modelsEKS0031G TKWA0056E

Page 3478 of 3833

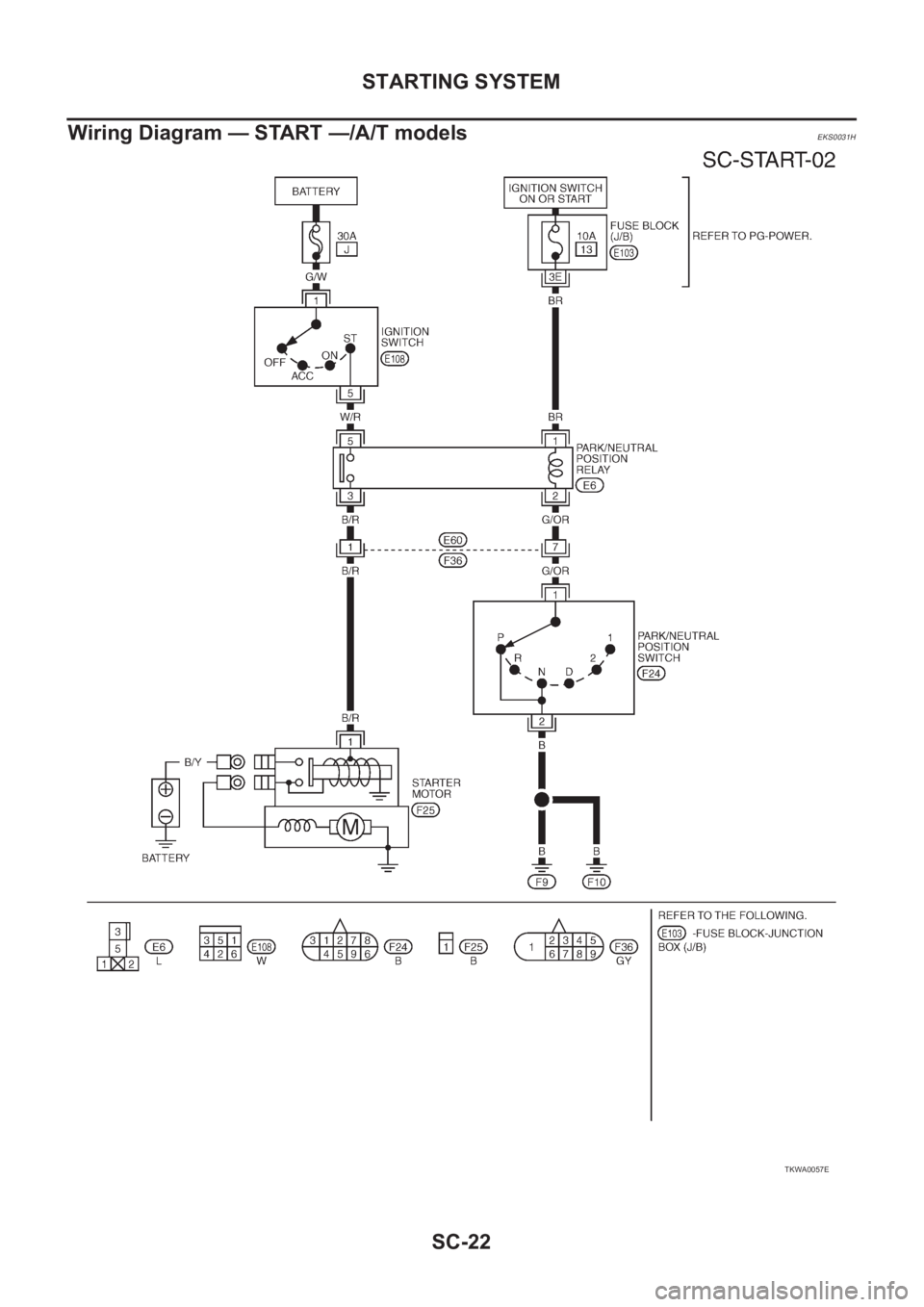

NISSAN X-TRAIL 2001 Service Repair Manual SC-22 STARTING SYSTEM Wiring Diagram — START —/A/T models EKS0031H TKWA0057E

Page 3479 of 3833

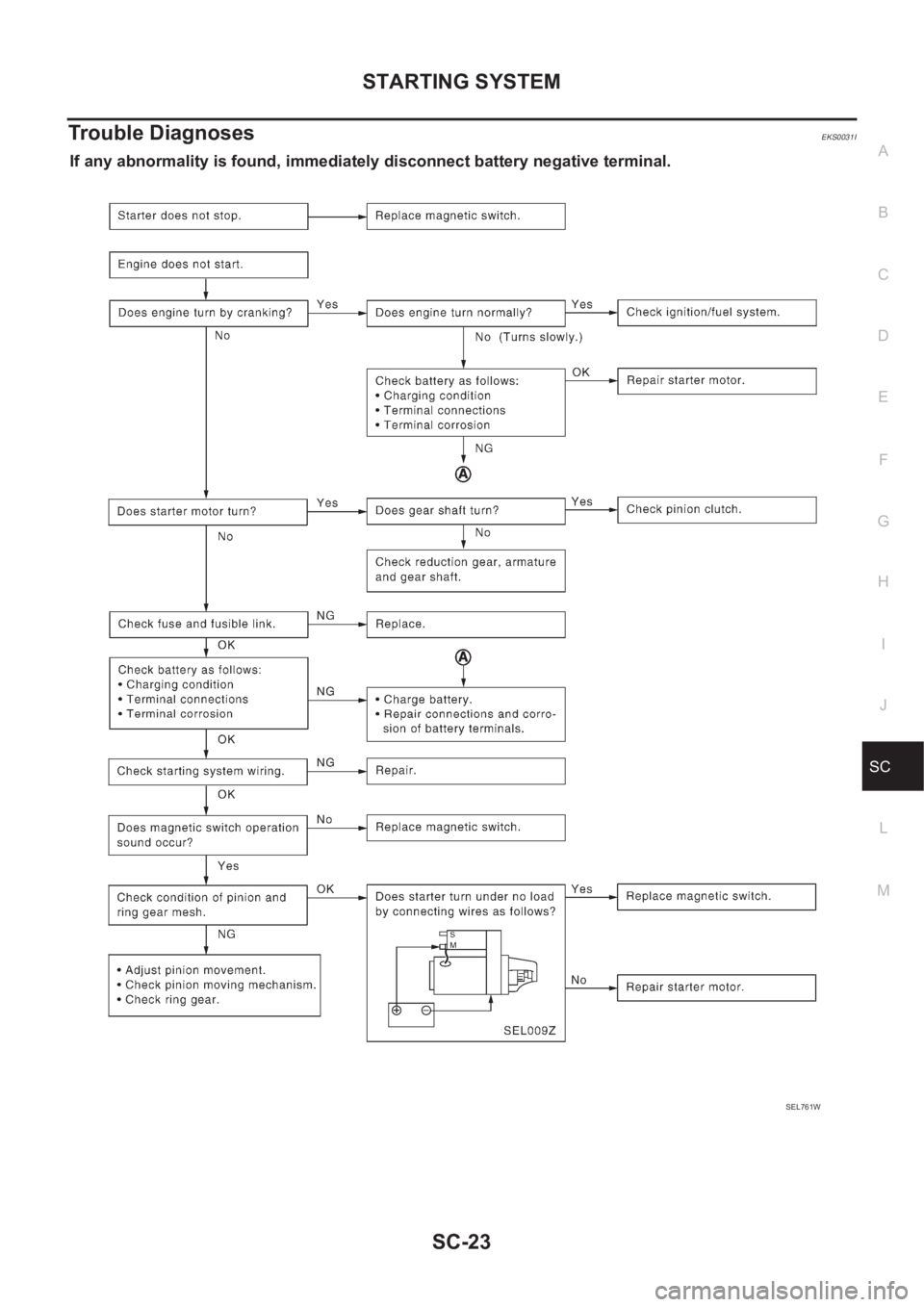

NISSAN X-TRAIL 2001 Service Repair Manual STARTING SYSTEM SC-23 C D E F G H I J L MA B SC Trouble DiagnosesEKS0031I If any abnormality is found, immediately disconnect battery negative terminal. SEL761W

Page 3480 of 3833

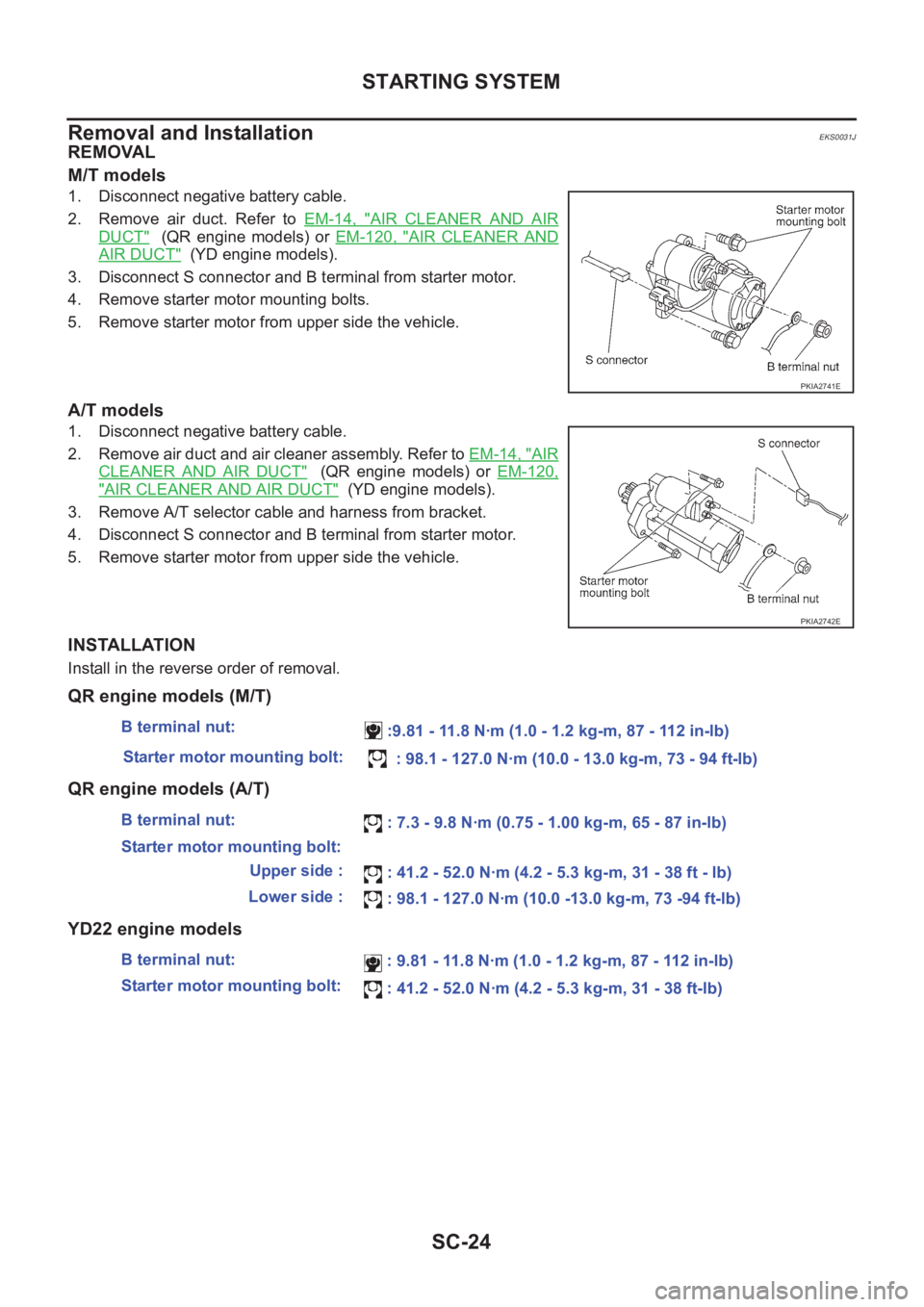

NISSAN X-TRAIL 2001 Service Repair Manual SC-24 STARTING SYSTEM Removal and Installation EKS0031J REMOVAL M/T models 1. Disconnect negative battery cable. 2. Remove air duct. Refer to EM-14, " AIR CLEANER AND AIR DUCT" (QR e
