OVERRUN CLUTCH SOLENOID VALVE
AT-379
[ALL]
D
E
F
G
H
I
J
K
L
MA
B
AT
Diagnostic ProcedureECS004U2
1.CHECK VALVE RESISTANCE
1. Turn ignition switch to “OFF” position.
2. Disconnect terminal cord assembly connector in engine compartment.
3. Check resistance between terminal 3 and ground.
OK or NG
OK >> GO TO 2.
NG >>1.Remove control valve assembly. Refer to AT- 4 4 8 ,
"Control Valve Assembly" .
2. Check the following items:
Overrun clutch solenoid valve
Refer to AT- 3 8 0 , "
Component Inspection" .
Harness of terminal cord assembly for short or open
2.CHECK POWER SOURCE CIRCUIT
1. Turn ignition switch to “OFF” position.
2. Disconnect TCM harness connector.
3. Check continuity between terminal 3 and TCM harness connector terminal 20.
If OK, check harness for short to ground and short to power.
4. Reinstall any part removed.
OK or NG
OK >> GO TO 3.
NG >> Repair open circuit or short to ground or short to power
in harness or connectors.
3.CHECK DTC
Perform Self-diagnosis Code confirmation procedure. Refer to AT- 3 7 7 , "
SELF-DIAGNOSIS CODE CONFIR-
MATION PROCEDURE" .
OK or NG
OK >>INSPECTION END
NG >> 1. Perform TCM input/output signal inspection.
2. If NG, recheck TCM pin terminals for damage or loose connection with harness connector. Resistance : 20 - 30Ω
SCIA0727E
Continuity should exist.
SCIA0728E
Page 2458 of 3833
AT-380
[ALL]
OVERRUN CLUTCH SOLENOID VALVE

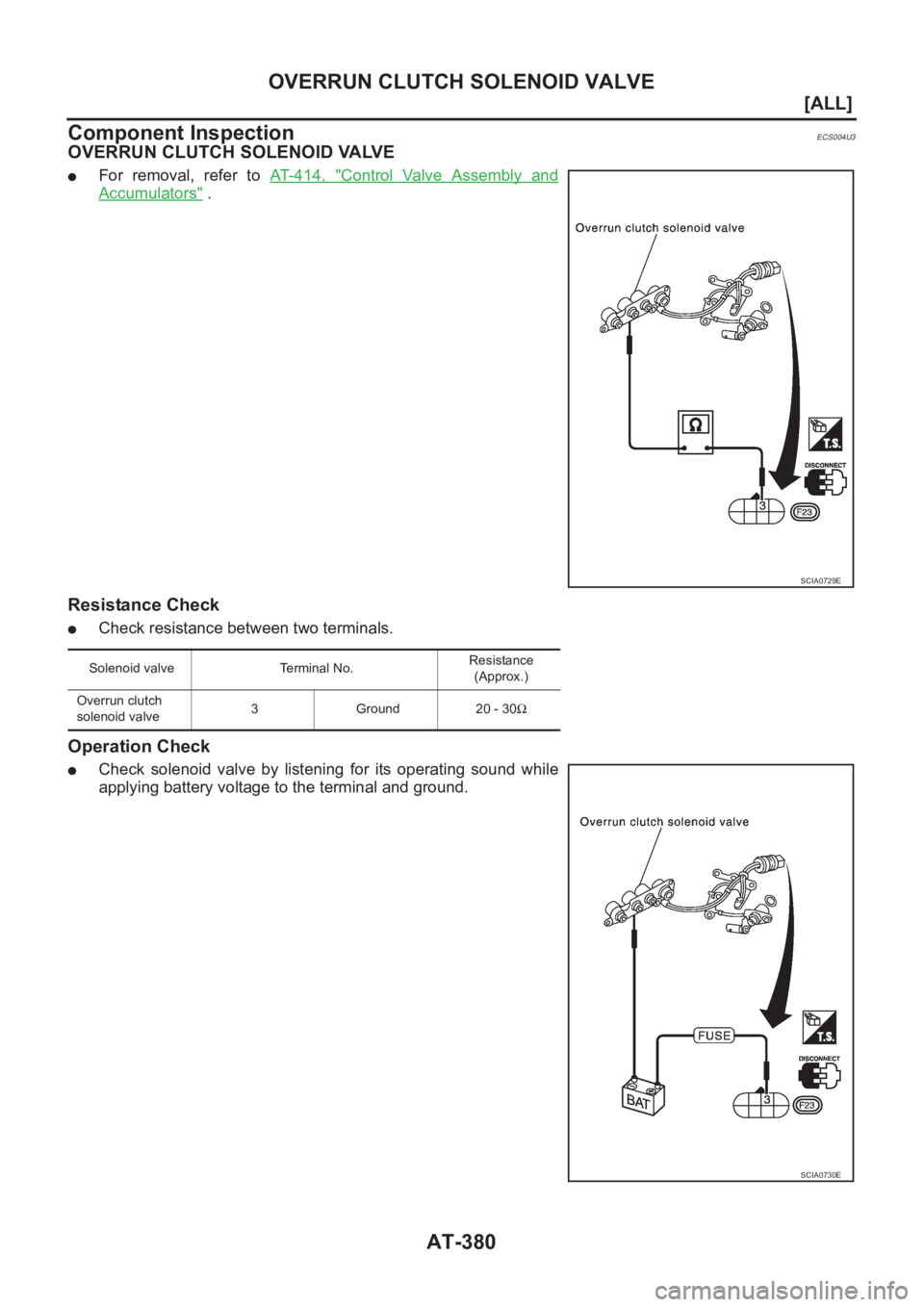

Component Inspection
ECS004U3
OVERRUN CLUTCH SOLENOID VALVE
●For removal, refer to AT- 4 1 4 , "Control Valve Assembly and
Accumulators" .
Resistance Check
●Check resistance between two terminals.
Operation Check
●Check solenoid valve by listening for its operating sound while
applying battery voltage to the terminal and ground.
SCIA0729E
Solenoid valve Terminal No.Resistance
(Approx.)
Overrun clutch
solenoid valve3 Ground 20 - 30Ω
SCIA0730E
Page 2459 of 3833
![NISSAN X-TRAIL 2001 Service Repair Manual TORQUE CONVERTER CLUTCH SOLENOID VALVE
AT-381
[ALL]
D
E
F
G
H
I
J
K
L
MA
B
AT
TORQUE CONVERTER CLUTCH SOLENOID VALVEPFP:31940
DescriptionECS004U4
The torque converter clutch solenoid valve is activate NISSAN X-TRAIL 2001 Service Repair Manual TORQUE CONVERTER CLUTCH SOLENOID VALVE
AT-381
[ALL]
D
E
F
G
H
I
J
K
L
MA
B
AT
TORQUE CONVERTER CLUTCH SOLENOID VALVEPFP:31940
DescriptionECS004U4
The torque converter clutch solenoid valve is activate](/manual-img/5/57405/w960_57405-2458.png)
TORQUE CONVERTER CLUTCH SOLENOID VALVE
AT-381
[ALL]
D
E
F
G
H
I
J
K
L
MA
B
AT
TORQUE CONVERTER CLUTCH SOLENOID VALVEPFP:31940
DescriptionECS004U4
The torque converter clutch solenoid valve is activated, with the gear
in “D
4 ”, by the TCM in response to signals sent from the vehicle
speed and throttle position sensors. Lock-up piston operation will
then be controlled.
Lock-up operation, however, is prohibited when A/T fluid tempera-
ture is too low.
When the accelerator pedal is depressed (less than 2/8) in lock-up
condition, the engine speed should not change abruptly. If there is a
big jump in engine speed, there is no lock-up.
CONSULT-II REFERENCE VALUE IN DATA MONITOR MODE
Remarks: Specification data are reference values.
TCM TERMINALS AND REFERENCE VALUE
Remarks: Specification data are reference values.
ON BOARD DIAGNOSIS LOGIC
SELF-DIAGNOSIS CODE CONFIRMATION PROCEDURE
After the repair, perform the following procedure to confirm the malfunction is eliminated.
With CONSULT-II
1. Start engine.
2. Select “SELF-DIAG RESULTS” mode for A/T with CONSULT-II.
3. Drive vehicle in D
1→ D2→ D3→ D4→ D4 lock-up position.
SCIA0718E
Monitor item Condition Specification
Torque converter clutch solenoid valve
dutyLock-up “OFF”
↓
Lock-up “ON”Approximately 4%
↓
Approximately 94%
Te r m i -
nal No.Wire color Item ConditionJudgement stan-
dard
(Approx.)
3GY/RTorque converter
clutch solenoid
valveWhen A/T performs lock-up. 8 - 15V
When A/T does not perform lock-up. 0V
Diagnostic trouble code Malfunction is detected when... Check items (Possible cause)
: T/C CLUTCH SOL/V
TCM detects an improper voltage drop
when it tries to operate the solenoid valve.
●Harness or connectors
(The solenoid circuit is open or shorted.)
●T/C clutch solenoid valve
: 7th judgement flicker
SAT014K
Page 2460 of 3833
AT-382
[ALL]
TORQUE CONVERTER CLUTCH SOLENOID VALVE
Without CONSULT-II
1. Start engine.
2. Drive vehicle in D
1→ D2→ D3→ D4→ D4 lock-up position.
3. Perform self-diagnosis.
Refer to AT- 2 5 3 , "
SELF-DIAGNOSTIC PROCEDURE (WITH-
OUT CONSULT-II)" .
SCIA0701E
Page 2461 of 3833
TORQUE CONVERTER CLUTCH SOLENOID VALVE
AT-383
[ALL]
D
E
F
G
H
I
J
K
L
MA
B
AT

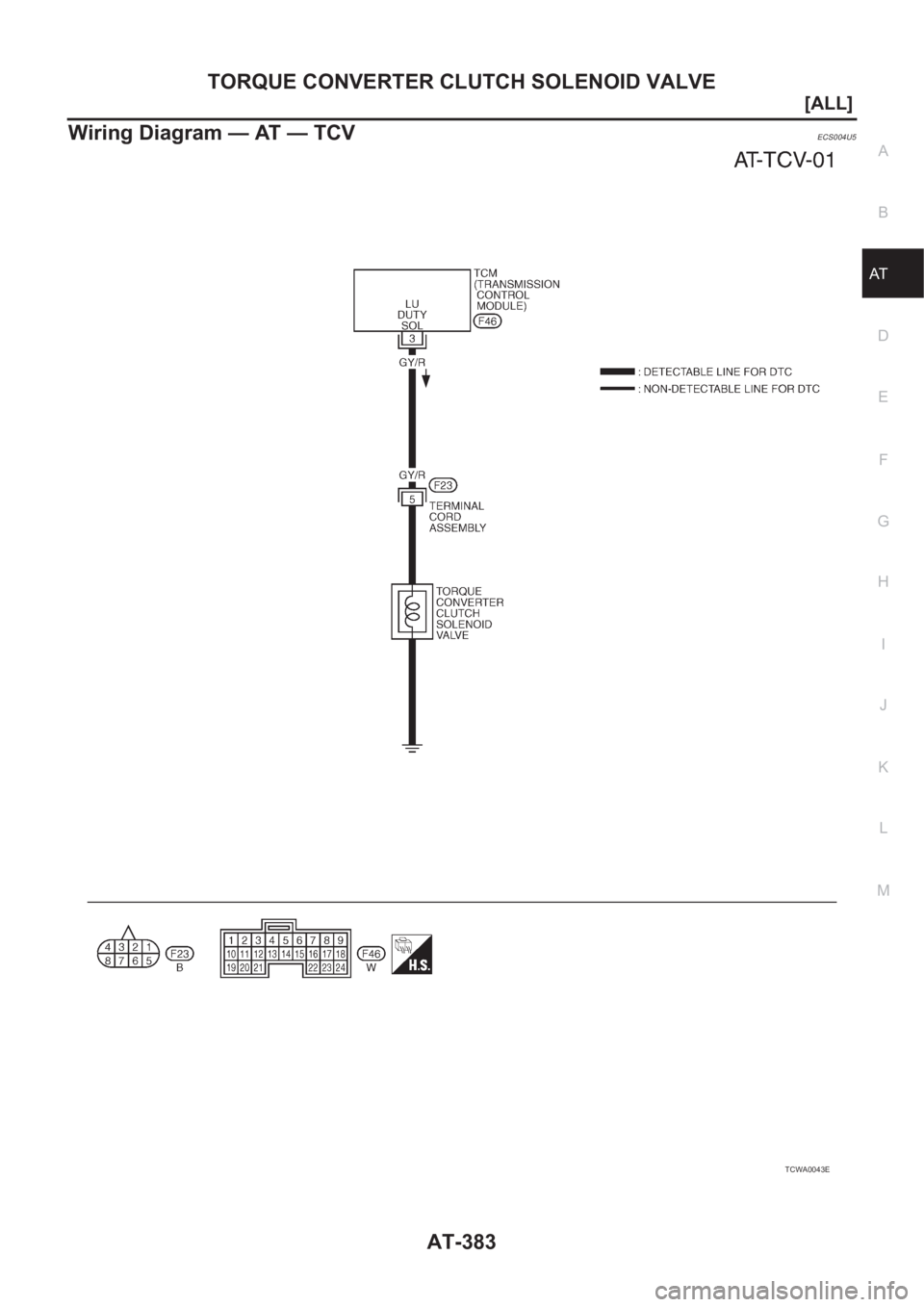

Wiring Diagram — AT — TCVECS004U5
TCWA0043E
Page 2462 of 3833
![NISSAN X-TRAIL 2001 Service Repair Manual AT-384
[ALL]
TORQUE CONVERTER CLUTCH SOLENOID VALVE
Diagnostic Procedure
ECS004U6
1. CHECK VALVE RESISTANCE
1. Turn ignition switch to “OFF” position.
2. Disconnect terminal cord assembly connecto NISSAN X-TRAIL 2001 Service Repair Manual AT-384
[ALL]
TORQUE CONVERTER CLUTCH SOLENOID VALVE
Diagnostic Procedure
ECS004U6
1. CHECK VALVE RESISTANCE
1. Turn ignition switch to “OFF” position.
2. Disconnect terminal cord assembly connecto](/manual-img/5/57405/w960_57405-2461.png)
AT-384
[ALL]
TORQUE CONVERTER CLUTCH SOLENOID VALVE
Diagnostic Procedure
ECS004U6
1. CHECK VALVE RESISTANCE
1. Turn ignition switch to “OFF” position.
2. Disconnect terminal cord assembly connector in engine compartment.
3. Check resistance between terminal 5 and ground.
OK or NG
OK >> GO TO 2.
NG >> 1. Remove oil pan. Refer to AT-413, "
Installation" .
2. Check the following items:
Torque converter clutch solenoid valve
Refer to AT-385, "
Component Inspection" .
Harness of terminal cord assembly for short or open
2. CHECK POWER SOURCE CIRCUIT
1. Turn ignition switch to “OFF” position.
2. Disconnect TCM harness connector.
3. Check continuity between terminal 5 and TCM harness connector terminal 3.
If OK, check harness for short to ground and short to power.
4. Reinstall any part removed.
OK or NG
OK >> GO TO 3.
NG >> Repair open circuit or short to ground or short to power
in harness or connectors.
3. CHECK DTC
Perform Self-diagnosis Code confirmation procedure. Refer to AT- 3 8 1 , "
SELF-DIAGNOSIS CODE CONFIR-
MATION PROCEDURE" .
OK or NG
OK >>INSPECTION END
NG >> 1. Perform TCM input/output signal inspection.
2. If NG, recheck TCM pin terminals for damage or loose connection with harness connector. Resistance: 5 - 20Ω
SCIA0731E
Continuity should exist.
SCIA0732E
Page 2463 of 3833
TORQUE CONVERTER CLUTCH SOLENOID VALVE
AT-385
[ALL]
D
E
F
G
H
I
J
K
L
MA
B
AT

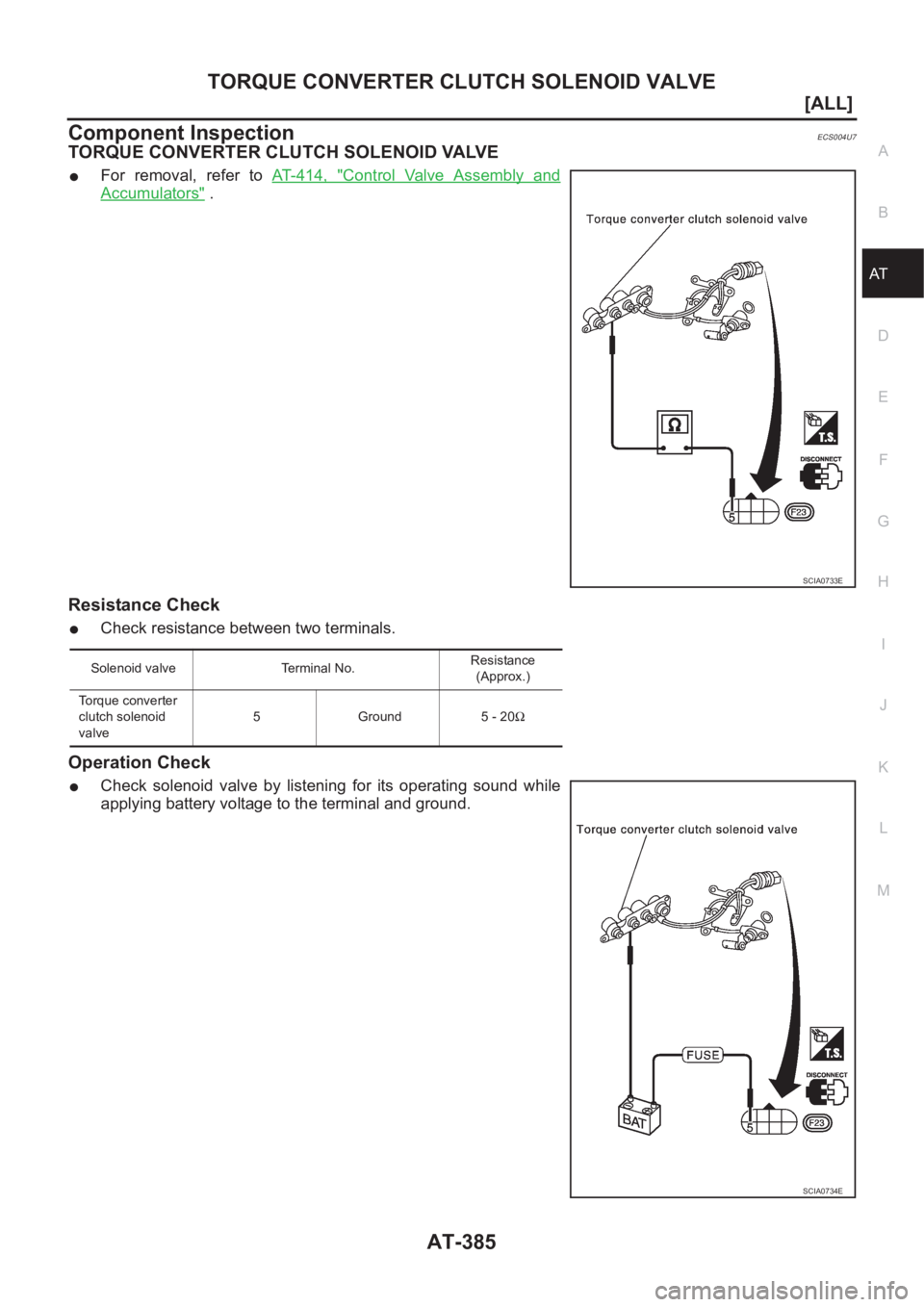

Component InspectionECS004U7
TORQUE CONVERTER CLUTCH SOLENOID VALVE
●For removal, refer to AT- 4 1 4 , "Control Valve Assembly and
Accumulators" .
Resistance Check
●Check resistance between two terminals.
Operation Check
●Check solenoid valve by listening for its operating sound while
applying battery voltage to the terminal and ground.
SCIA0733E
Solenoid valve Terminal No.Resistance
(Approx.)
Torque converter
clutch solenoid
valve5 Ground 5 - 20Ω
SCIA0734E
Page 2464 of 3833
![NISSAN X-TRAIL 2001 Service Repair Manual AT-386
[ALL]
BATT/FLUID TEMP SEN (A/T FLUID TEMP SENSOR CIRCUIT AND TCM POW-
ER SOURCE)
BATT/FLUID TEMP SEN (A/T FLUID TEMP SENSOR CIRCUIT AND TCM POWER
SOURCE)
PFP:31940
DescriptionECS004U8
The A/T f NISSAN X-TRAIL 2001 Service Repair Manual AT-386
[ALL]
BATT/FLUID TEMP SEN (A/T FLUID TEMP SENSOR CIRCUIT AND TCM POW-
ER SOURCE)
BATT/FLUID TEMP SEN (A/T FLUID TEMP SENSOR CIRCUIT AND TCM POWER
SOURCE)
PFP:31940
DescriptionECS004U8
The A/T f](/manual-img/5/57405/w960_57405-2463.png)
AT-386
[ALL]
BATT/FLUID TEMP SEN (A/T FLUID TEMP SENSOR CIRCUIT AND TCM POW-
ER SOURCE)
BATT/FLUID TEMP SEN (A/T FLUID TEMP SENSOR CIRCUIT AND TCM POWER
SOURCE)
PFP:31940
DescriptionECS004U8
The A/T fluid temperature sensor detects the A/T fluid temperature
and sends a signal to the TCM.
CONSULT-II REFERENCE VALUE IN DATA MONITOR MODE
Remarks: Specification data are reference values.
TCM TERMINALS AND REFERENCE VALUE
Remarks: Specification data are reference values.
SCIA0735E
SAT021J
Monitor item Condition Specification (Approximately)
A/T fluid temperature sensorCold [20°C (68°F)]
↓
Hot [80°C (176°F)]1.5V
↓
0.5V2.5 kΩ
↓
0.3 kΩ
Termi-
nal No.Wire color Item ConditionJudgement stan-
dard
(Approx.)
10 BR/W Power source
or When turning ignition switch to “ON”. Battery voltage
When turning ignition switch to
“OFF”.0V
19 BR/W Power source Same as No. 10
28 R/BPower source
(Memory back-up)
or When turning ignition switch to
“OFF”.Battery voltage
When turning ignition switch to “ON”. Battery voltage
42 BGround
(A/T fluid tempera-
ture sensor)———
47 BRA/T fluid tempera-
ture sensorWhen ATF temperature is 20°C
(68°F).1.5V
When ATF temperature is 80°C
(176°F).0.5V
