Page 2065 of 3833

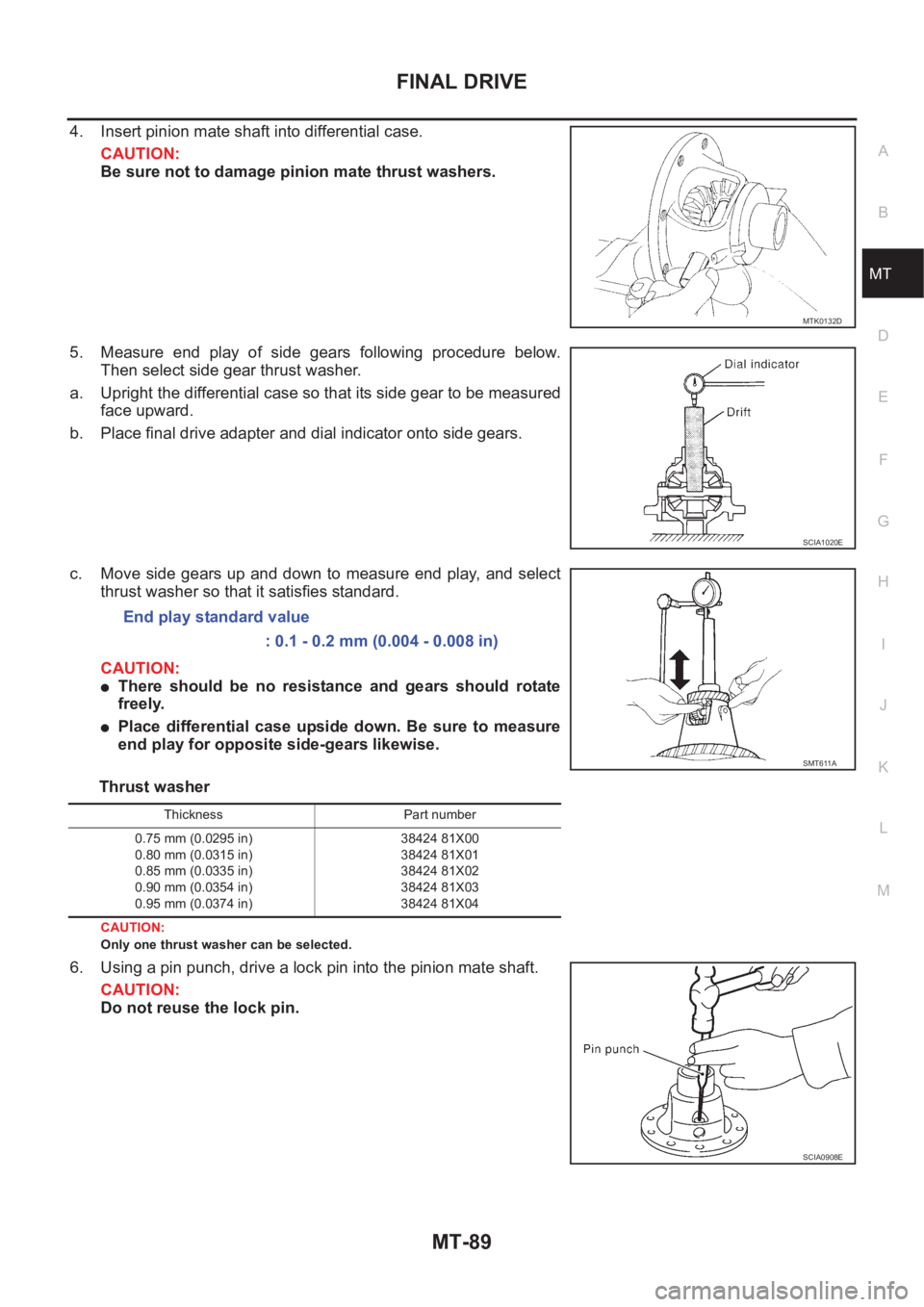

NISSAN X-TRAIL 2001 Service Repair Manual FINAL DRIVE MT-89 D E F G H I J K L MA B MT 4. Insert pinion mate shaft into differential case. CAUTION: Be sure not to damage pinion mate thrust washers. 5. Measure end play of side gears follo

Page 2066 of 3833

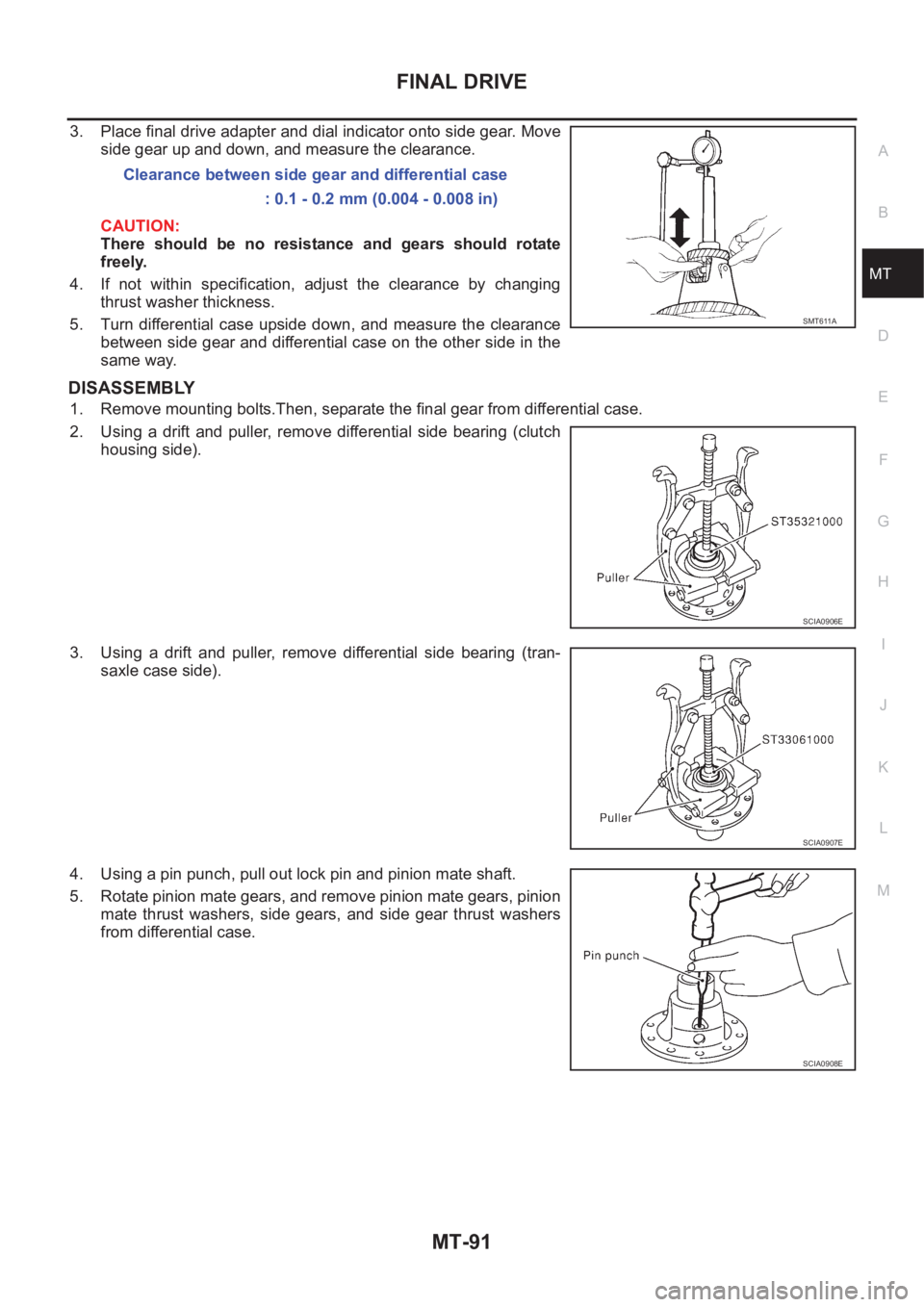

NISSAN X-TRAIL 2001 Service Repair Manual MT-90 FINAL DRIVE 7. Using a drift (special service tool), install differential side bearing (transaxle case side). 8. Using a drift (special service tool), install differential side bearing (clutch h

Page 2067 of 3833

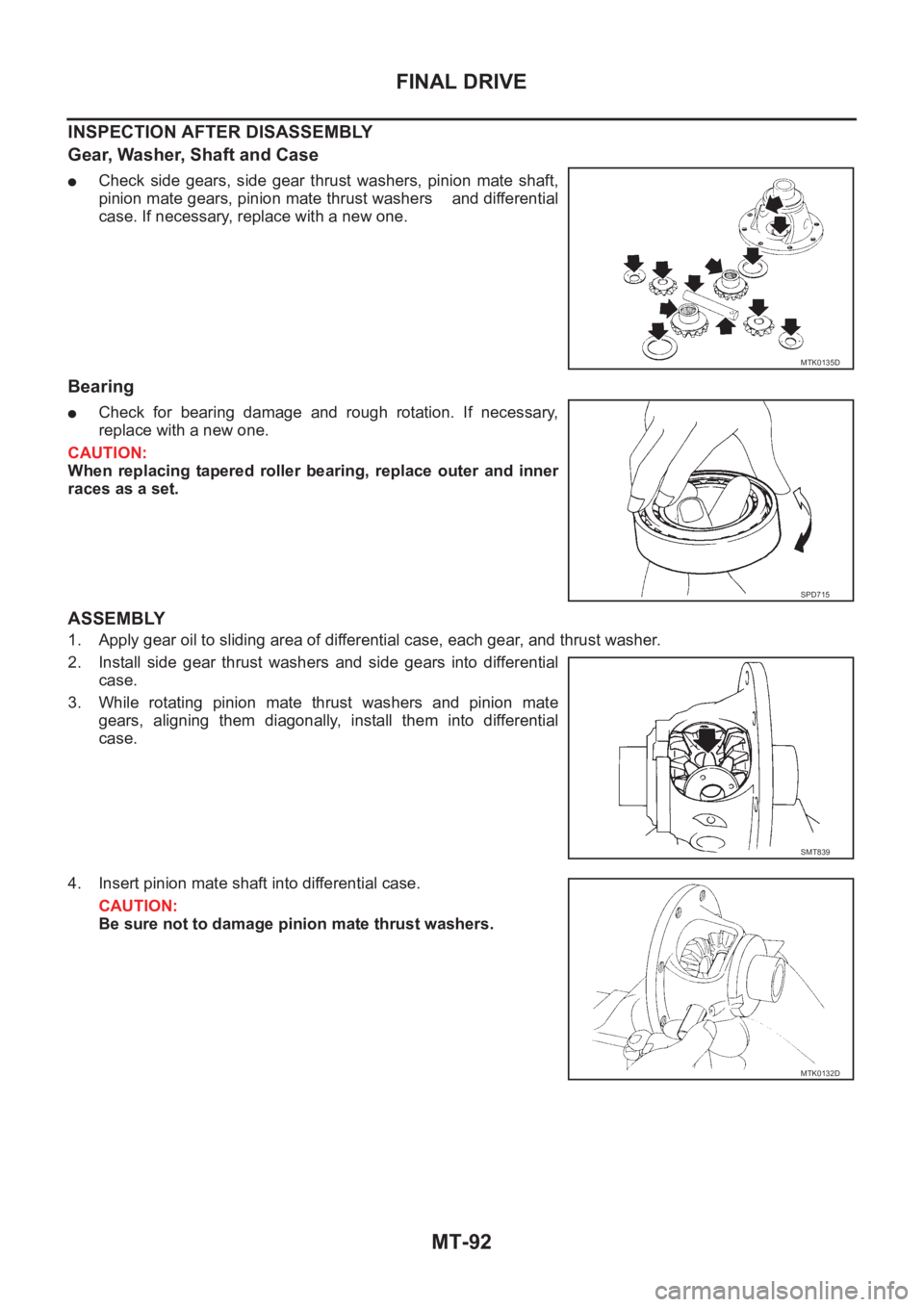

NISSAN X-TRAIL 2001 Service Repair Manual FINAL DRIVE MT-91 D E F G H I J K L MA B MT 3. Place final drive adapter and dial indicator onto side gear. Move side gear up and down, and measure the clearance. CAUTION: There should be no resis

Page 2068 of 3833

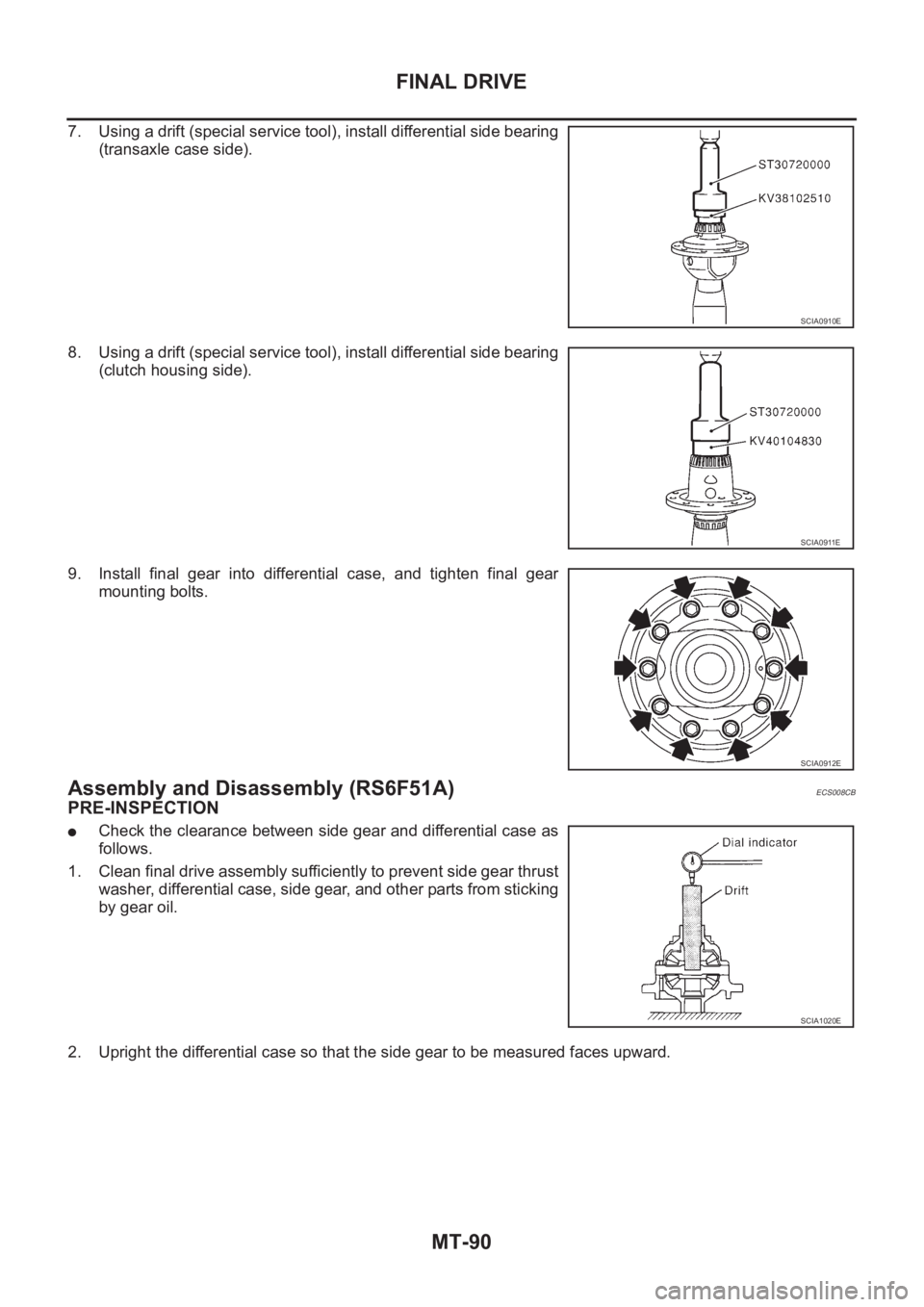

NISSAN X-TRAIL 2001 Service Repair Manual MT-92 FINAL DRIVE INSPECTION AFTER DISASSEMBLY Gear, Washer, Shaft and Case ●Check side gears, side gear thrust washers, pinion mate shaft, pinion mate gears, pinion mate thrust washers

Page 2069 of 3833

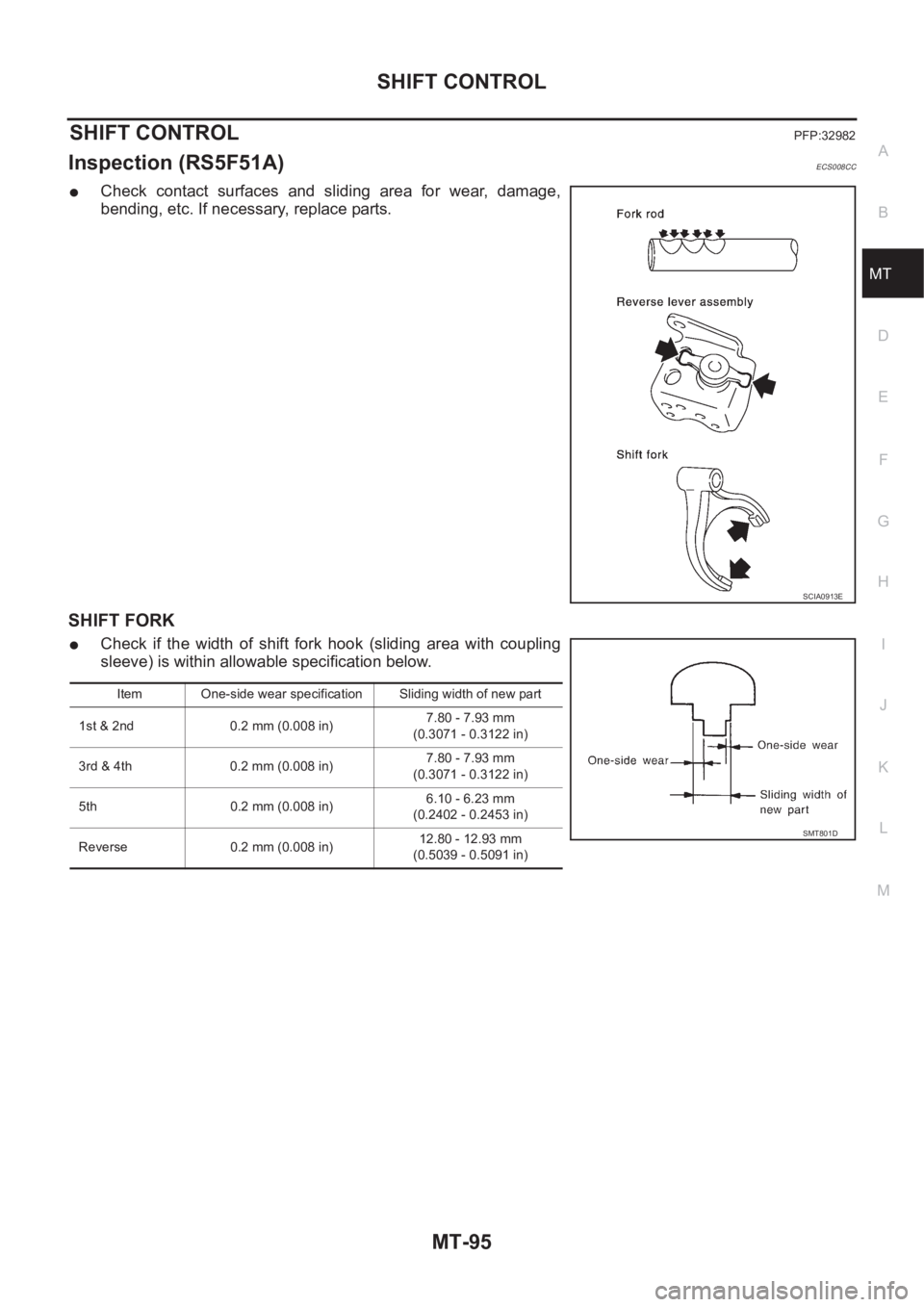

NISSAN X-TRAIL 2001 Service Repair Manual FINAL DRIVE MT-93 D E F G H I J K L MA B MT 5. Measure end play of side gears following procedure below. Then select side gear thrust washer. a. Upright the differential case so that its side

Page 2070 of 3833

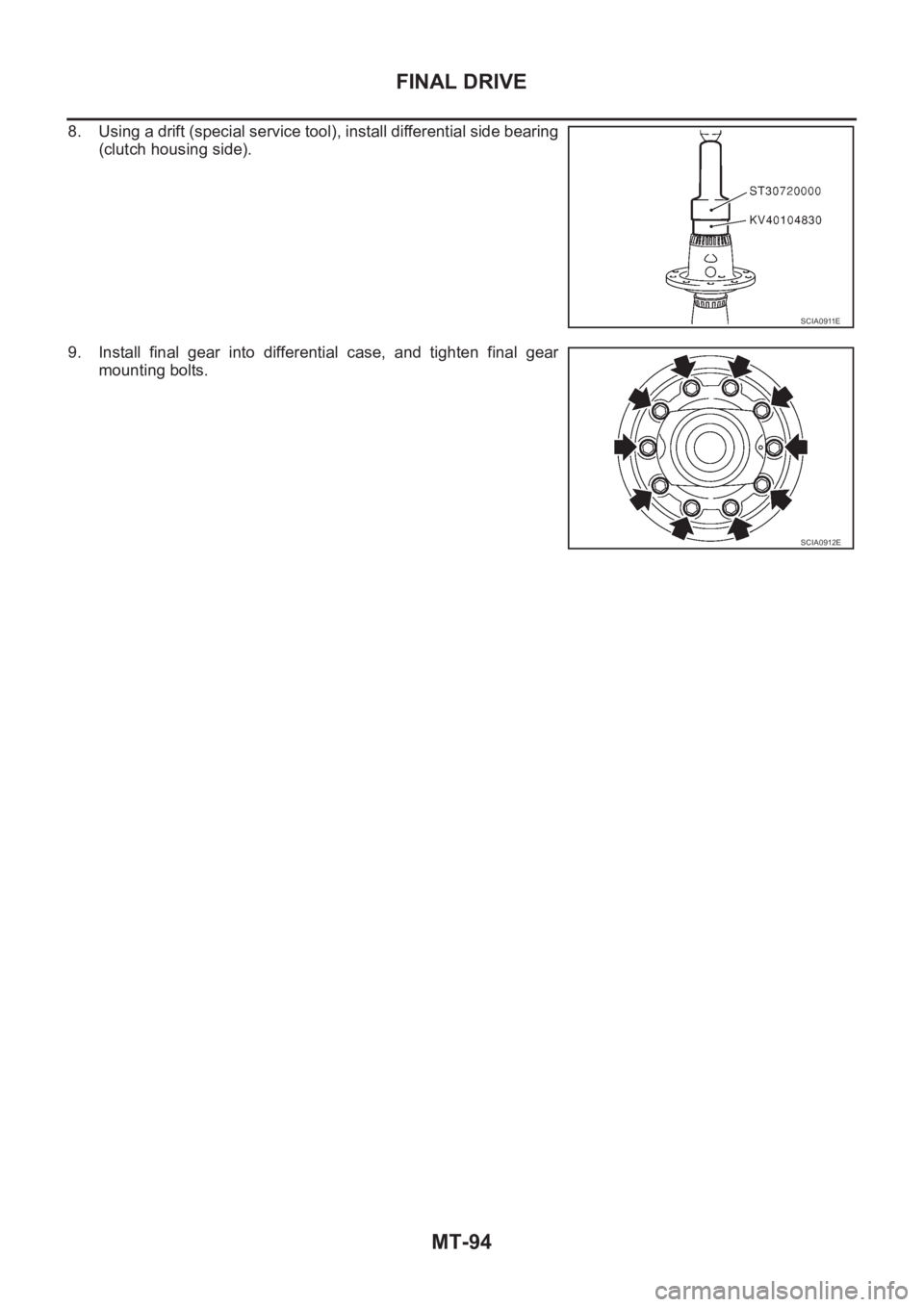

NISSAN X-TRAIL 2001 Service Repair Manual MT-94 FINAL DRIVE 8. Using a drift (special service tool), install differential side bearing (clutch housing side). 9. Install final gear into differential case, and tighten final gear mountin

Page 2071 of 3833

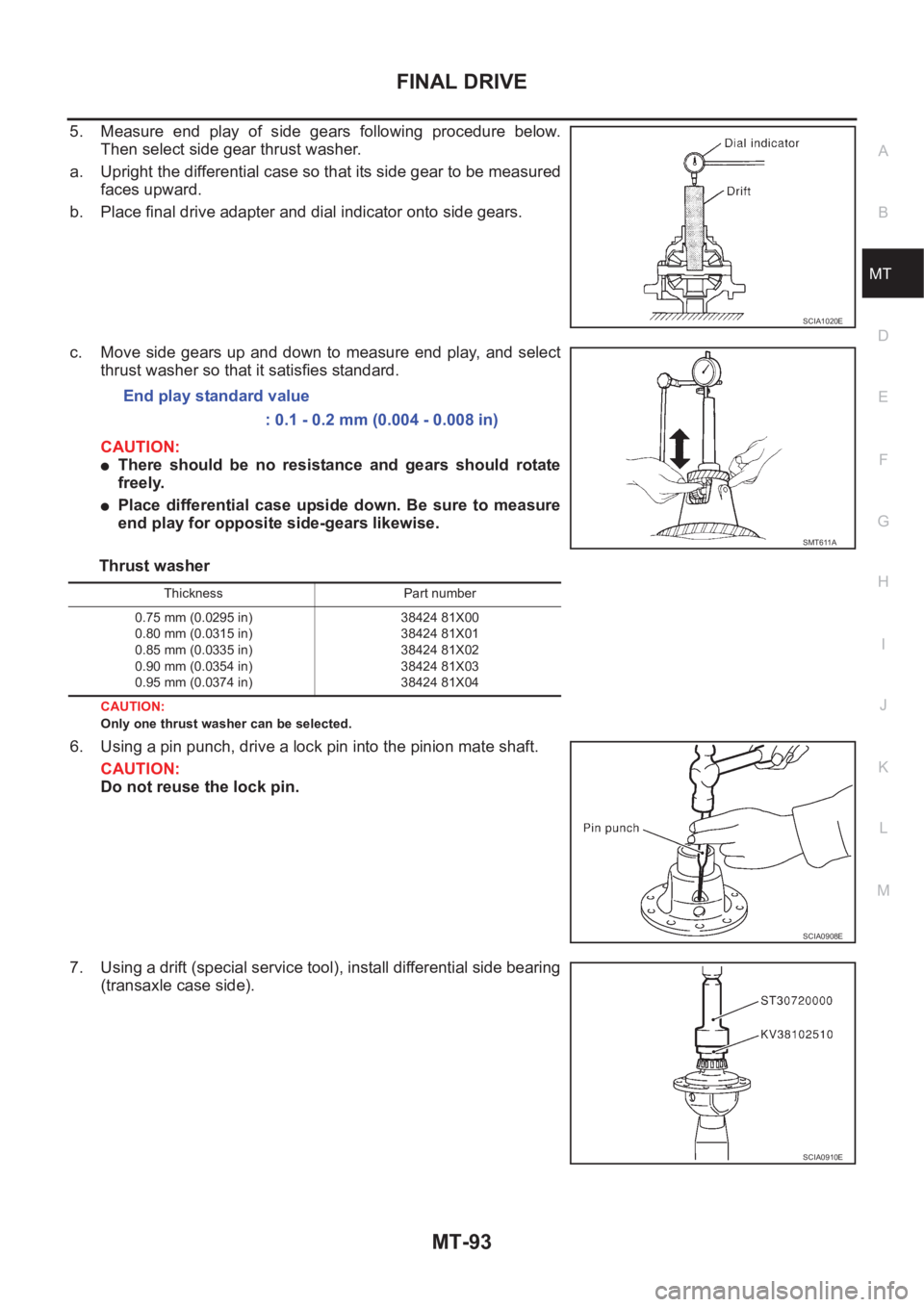

NISSAN X-TRAIL 2001 Service Repair Manual SHIFT CONTROL MT-95 D E F G H I J K L MA B MT SHIFT CONTROLPFP:32982 Inspection (RS5F51A)ECS008CC ●Check contact surfaces and sliding area for wear, damage, bending, etc. If necessary, repla

Page 2072 of 3833

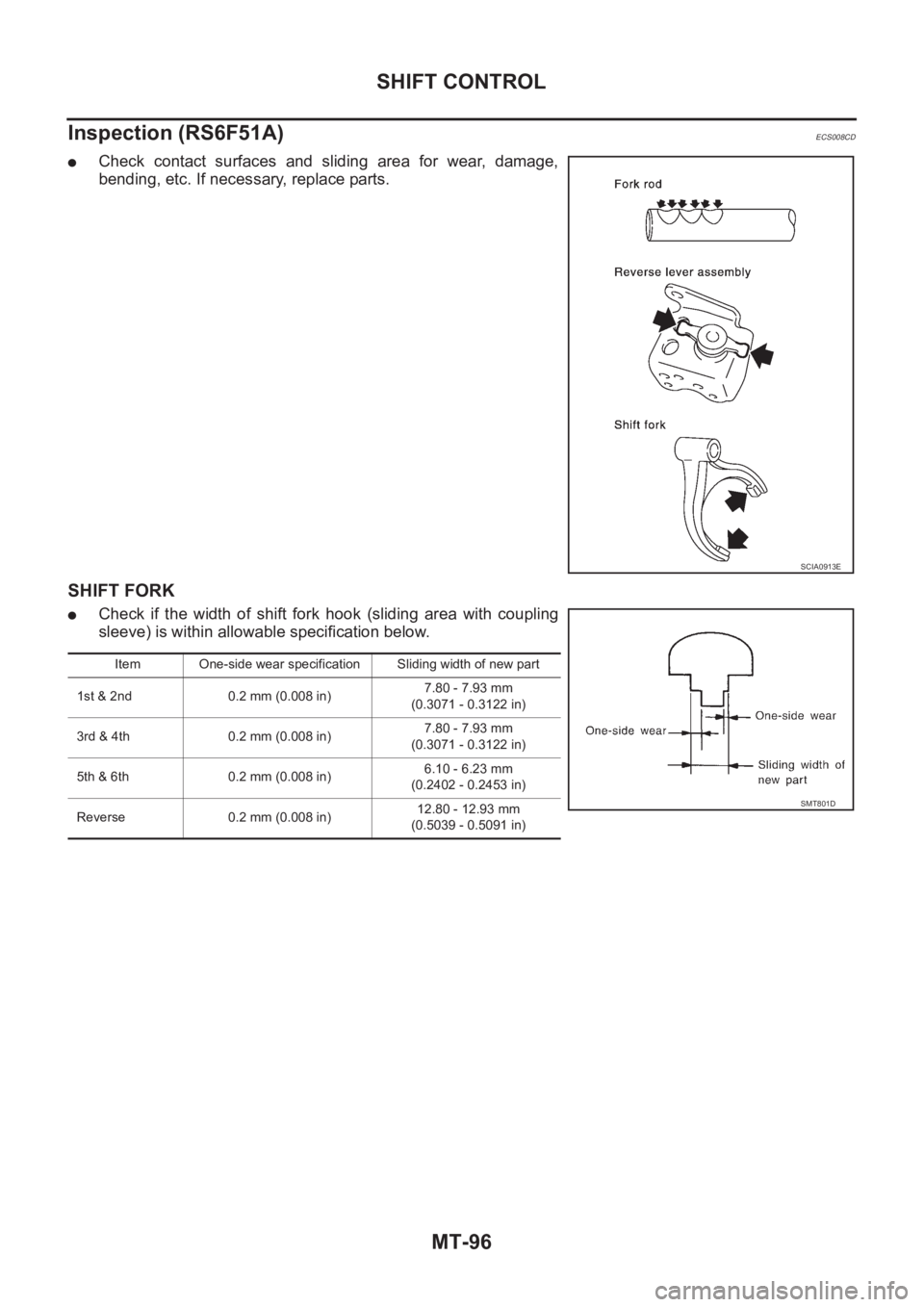

NISSAN X-TRAIL 2001 Service Repair Manual MT-96 SHIFT CONTROL Inspection (RS6F51A) ECS008CD ●Check contact surfaces and sliding area for wear, damage, bending, etc. If necessary, replace parts. SHIFT FORK ●Check if the width o
