DTC P1226 TP SENSORPFP:16119
Component DescriptionEBS00MQ8
Electric Throttle Control Actuator consists of throttle con NISSAN X-TRAIL 2001 Service Repair Manual DTC P1226 TP SENSOR
EC-339
[QR25(WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
DTC P1226 TP SENSORPFP:16119
Component DescriptionEBS00MQ8
Electric Throttle Control Actuator consists of throttle con](/manual-img/5/57405/w960_57405-688.png)
DTC P1226 TP SENSOR
EC-339
[QR25(WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
DTC P1226 TP SENSORPFP:16119
Component DescriptionEBS00MQ8
Electric Throttle Control Actuator consists of throttle control motor,
throttle position sensor, etc. The throttle position sensor responds to
the throttle valve movement.
The throttle position sensor has the two sensors. These sensors are
a kind of potentiometers which transform the throttle valve position
into output voltage, and emit the voltage signal to the ECM. In addi-
tion, these sensors detect the opening and closing speed of the
throttle valve and feed the voltage signals to the ECM. The ECM
judges the current opening angle of the throttle valve from these sig-
nals and the ECM controls the throttle control motor to make the
throttle valve opening angle properly in response to driving condi-
tion.
On Board Diagnosis LogicEBS00MQ9
The MI will not light up for this diagnosis.
DTC Confirmation ProcedureEBS00MQA
NOTE:
If “DTC Confirmation Procedure” has been previously conducted, always turn ignition switch “OFF” and wait at
least 10 seconds before conducting the next test.
TESTING CONDITION:
Before performing the following procedure, confirm that battery voltage is more than 10V at idle.
WITH CONSULT-II
1. Turn ignition switch “ON”.
2. Select “DATA MONITOR” mode with CONSULT-II.
3. Turn ignition switch “OFF”, wait at least 10 seconds.
4. Turn ignition switch “ON”.
5. Repeat steps 3 and 4, 32 times.
6. If 1st trip DTC is detected, go to EC-340, "
Diagnostic Procedure"
.
WITH GST
Follow the procedure “WITH CONSULT-II” above.
PBIB0145E
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P1226
1226Closed throttle position learning
performance problemClosed throttle position learning is not
performed successfully, repeatedly.
●Electric throttle control actuator
(TP sensor 1 and 2)
SEF058Y
Page 690 of 3833
EC-340
[QR25(WITH EURO-OBD)]
DTC P1226 TP SENSOR
Diagnostic Procedure
EBS00MQB
1. CHECK ELECTRIC THROTTLE CONTROL ACTUATOR VISUALLY
1. Turn ignition switch “OFF”.
2. Remove the intake air duct.
3. Check if foreign matter is caught between the throttle valve and
the housing.
OK or NG
OK >> GO TO 2.
NG >> Remove the foreign matter and clean the electric throttle
control actuator inside.
2. REPLACE ELECTRIC THROTTLE CONTROL ACTUATOR
1. Replace the electric throttle control actuator.
2. Perform EC-39, "
Throttle Valve Closed Position Learning" .
3. Perform EC-39, "
Idle Air Volume Learning" .
>>INSPECTION END
Remove and InstallationEBS00MQC
ELECTRIC THROTTLE CONTROL ACTUATOR
Refer to EM-16, "INTAKE MANIFOLD" .
PBIB0518E
Page 691 of 3833
![NISSAN X-TRAIL 2001 Service Repair Manual DTC P1229 SENSOR POWER SUPPLY
EC-341
[QR25(WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
DTC P1229 SENSOR POWER SUPPLYPFP:16119
On Board Diagnosis LogicEBS00MQD
This self-diagnosis has the one trip detect NISSAN X-TRAIL 2001 Service Repair Manual DTC P1229 SENSOR POWER SUPPLY
EC-341
[QR25(WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
DTC P1229 SENSOR POWER SUPPLYPFP:16119
On Board Diagnosis LogicEBS00MQD
This self-diagnosis has the one trip detect](/manual-img/5/57405/w960_57405-690.png)
DTC P1229 SENSOR POWER SUPPLY
EC-341
[QR25(WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
DTC P1229 SENSOR POWER SUPPLYPFP:16119
On Board Diagnosis LogicEBS00MQD
This self-diagnosis has the one trip detection logic.
FAIL-SAFE MODE
When the malfunction is detected, the ECM enters fail-safe mode and the MI lights up.
DTC Confirmation ProcedureEBS00MQE
NOTE:
If “DTC Confirmation Procedure” has been previously conducted, always turn ignition switch “OFF” and wait at
least 10 seconds before conducting the next test.
TESTING CONDITION:
Before performing the following procedure, confirm that battery voltage is more than 10V at idle.
WITH CONSULT-II
1. Turn ignition switch “ON”.
2. Select “DATA MONITOR” mode with CONSULT-II.
3. Start engine and let it idle for 1 second.
4. If DTC is detected, go to EC-343, "
Diagnostic Procedure" .
WITH GST
Follow the procedure “WITH CONSULT-II” above.
DTC No.Trouble diagnosis
nameDTC detecting condition Possible cause
P1229
1229Sensor power supply
circuit shortECM detects a voltage of power source for
sensor is excessively low or high.
●Harness or connectors
(The TP sensor 1 and 2 circuit is shorted.)
(APP sensor 1 circuit is shorted.)
(MAF sensor circuit is shorted.)
(Refrigerant pressure sensor circuit is
shorted.)
●Electric throttle control actuator
(TP sensor 1 and 2)
●Accelerator pedal position sensor
(APP sensor 1)
●MAF sensor
●Refrigerant pressures sensor
●ECM pin terminal
Engine operation condition in fail-safe mode
ECM stops the electric throttle control actuator control, throttle valve is maintained at a fixed opening (approx. 5 degrees) by the return
spring.
SEF058Y
Page 692 of 3833
EC-342
[QR25(WITH EURO-OBD)]
DTC P1229 SENSOR POWER SUPPLY
Wiring Diagram
EBS00MQF
TBWA0183E
Page 693 of 3833
![NISSAN X-TRAIL 2001 Service Repair Manual DTC P1229 SENSOR POWER SUPPLY
EC-343
[QR25(WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
Diagnostic ProcedureEBS00MQG
1.RETIGHTEN GROUND SCREWS
1. Turn ignition switch “OFF”.
2. Loosen and retighten e NISSAN X-TRAIL 2001 Service Repair Manual DTC P1229 SENSOR POWER SUPPLY
EC-343
[QR25(WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
Diagnostic ProcedureEBS00MQG
1.RETIGHTEN GROUND SCREWS
1. Turn ignition switch “OFF”.
2. Loosen and retighten e](/manual-img/5/57405/w960_57405-692.png)
DTC P1229 SENSOR POWER SUPPLY
EC-343
[QR25(WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
Diagnostic ProcedureEBS00MQG
1.RETIGHTEN GROUND SCREWS
1. Turn ignition switch “OFF”.
2. Loosen and retighten engine ground screws.
>> GO TO 2.
2.CHECK THROTTLE POSITION SENSOR POWER SUPPLY CIRCUIT
1. Disconnect electric throttle control actuator harness connector.
2. Turn ignition switch “ON”.
3. Check voltage between electric throttle control actuator terminal
1 and ground with CONSULT-II or tester.
OK or NG
OK >> GO TO 5.
NG >> GO TO 3.
3.CHECK SENSOR POWER SUPPLY CIRCUITS FOR SHORT
Check the following.
●Harness for short to power and short to ground, between the following terminals.
●ECM pin terminal.
OK or NG
OK >> GO TO 4.
NG >> Repair short to ground or short to power in harness or connectors.
PBIB0925E
PBIB0497E
Voltage: Approximately 5V
PBIB0082E
ECM terminal Sensor terminals Reference Wiring Diagram
65Electric throttle control actuator terminal 1EC-280
APP sensor terminal 6EC-375
MAF sensor terminal 2EC-140
Refrigerant pressure sensor terminal 3EC-413
Page 694 of 3833
EC-344
[QR25(WITH EURO-OBD)]
DTC P1229 SENSOR POWER SUPPLY
4. CHECK COMPONENTS
Check the following.
●Accelerator pedal position sensor (Refer to EC-378, "Component Inspection" .)
●Mass air flow sensor (Refer to EC-142, "Component Inspection" .)
●Refrigerant pressure sensor [Refer to AT C - 1 8 , "REFRIGERATION SYSTEM" (models with automatic air
conditioner) or (models with manual air conditioner).]
OK or NG
OK >> GO TO 7.
NG >> Replace malfunctioning component.
5. CHECK THROTTLE POSITION SENSOR
Refer to EC-372, "
Component Inspection" .
OK or NG
OK >> GO TO 7.
NG >> GO TO 6.
6. REPLACE ELECTRIC THROTTLE CONTROL ACTUATOR
1. Replace electric throttle control actuator.
2. Perform EC-39, "
Throttle Valve Closed Position Learning" .
3. Perform EC-39, "
Idle Air Volume Learning" .
>>INSPECTION END
7. CHECK INTERMITTENT INCIDENT
Refer to EC-115, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
>>INSPECTION END
Page 695 of 3833
![NISSAN X-TRAIL 2001 Service Repair Manual DTC P1706 PNP SWITCH
EC-345
[QR25(WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
DTC P1706 PNP SWITCHPFP:32006
Component DescriptionEBS00M9M
When the gear position is “P” (A/T models only) or “N”, NISSAN X-TRAIL 2001 Service Repair Manual DTC P1706 PNP SWITCH
EC-345
[QR25(WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
DTC P1706 PNP SWITCHPFP:32006
Component DescriptionEBS00M9M
When the gear position is “P” (A/T models only) or “N”,](/manual-img/5/57405/w960_57405-694.png)

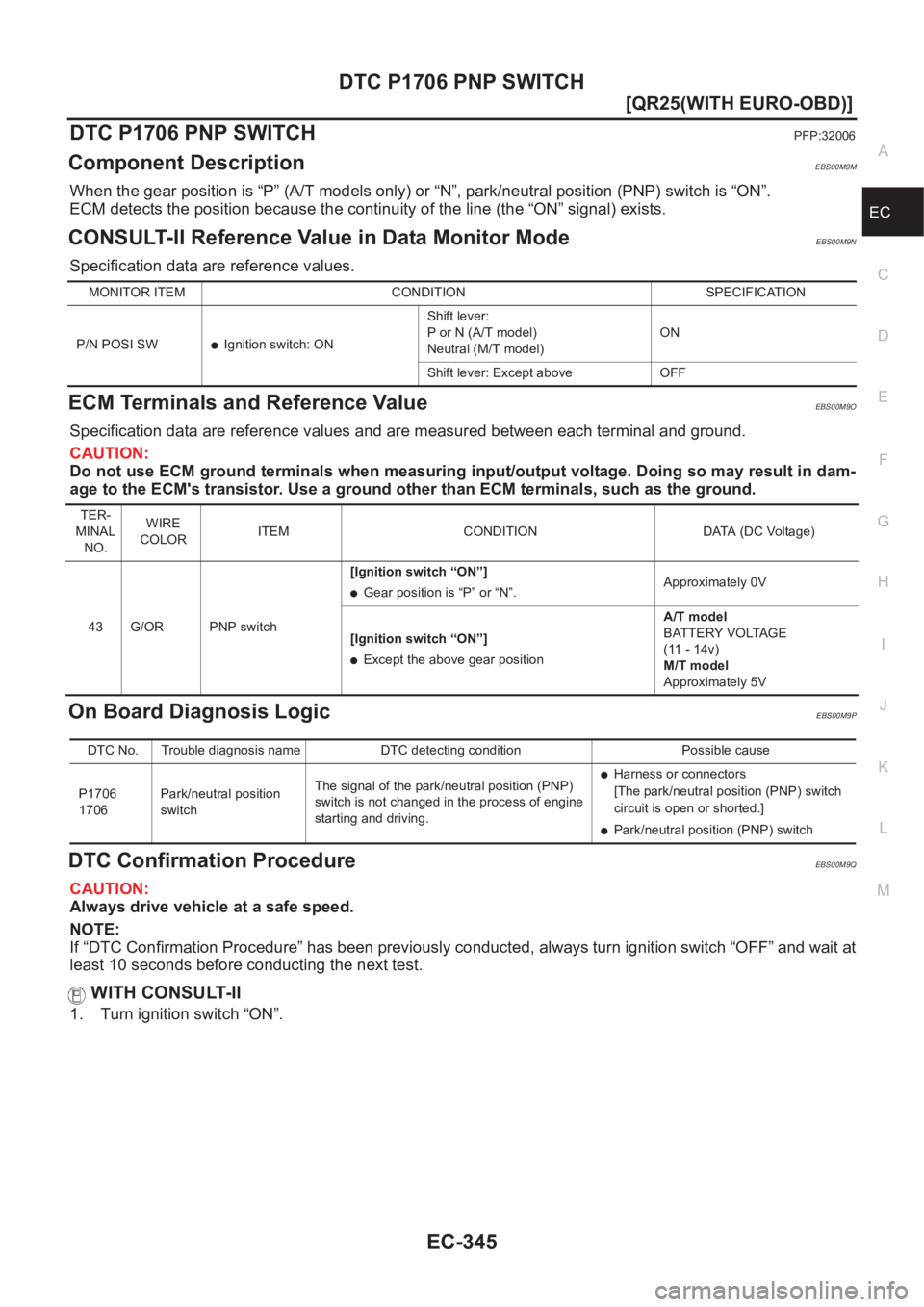

DTC P1706 PNP SWITCH
EC-345
[QR25(WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
DTC P1706 PNP SWITCHPFP:32006
Component DescriptionEBS00M9M
When the gear position is “P” (A/T models only) or “N”, park/neutral position (PNP) switch is “ON”.
ECM detects the position because the continuity of the line (the “ON” signal) exists.
CONSULT-II Reference Value in Data Monitor ModeEBS00M9N
Specification data are reference values.
ECM Terminals and Reference ValueEBS00M9O
Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
On Board Diagnosis LogicEBS00M9P
DTC Confirmation ProcedureEBS00M9Q
CAUTION:
Always drive vehicle at a safe speed.
NOTE:
If “DTC Confirmation Procedure” has been previously conducted, always turn ignition switch “OFF” and wait at
least 10 seconds before conducting the next test.
WITH CONSULT-II
1. Turn ignition switch “ON”.
MONITOR ITEM CONDITION SPECIFICATION
P/N POSI SW
●Ignition switch: ONShift lever:
P or N (A/T model)
Neutral (M/T model)ON
Shift lever: Except above OFF
TER-
MINAL
NO.WIRE
COLORITEM CONDITION DATA (DC Voltage)
43 G/OR PNP switch[Ignition switch “ON”]
●Gear position is “P” or “N”.Approximately 0V
[Ignition switch “ON”]
●Except the above gear positionA/T model
BATTERY VOLTAGE
(11 - 14v)
M/T model
Approximately 5V
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P1706
1706Park/neutral position
switchThe signal of the park/neutral position (PNP)
switch is not changed in the process of engine
starting and driving.
●Harness or connectors
[The park/neutral position (PNP) switch
circuit is open or shorted.]
●Park/neutral position (PNP) switch
Page 696 of 3833
![NISSAN X-TRAIL 2001 Service Repair Manual EC-346
[QR25(WITH EURO-OBD)]
DTC P1706 PNP SWITCH
2. Select “P/N POSI SW” in “DATA MONITOR” mode with CON-
SULT-II. Then check the “P/N POSI SW” signal under the follow-
ing condi NISSAN X-TRAIL 2001 Service Repair Manual EC-346
[QR25(WITH EURO-OBD)]
DTC P1706 PNP SWITCH
2. Select “P/N POSI SW” in “DATA MONITOR” mode with CON-
SULT-II. Then check the “P/N POSI SW” signal under the follow-
ing condi](/manual-img/5/57405/w960_57405-695.png)
EC-346
[QR25(WITH EURO-OBD)]
DTC P1706 PNP SWITCH
2. Select “P/N POSI SW” in “DATA MONITOR” mode with CON-
SULT-II. Then check the “P/N POSI SW” signal under the follow-
ing conditions.
If NG, go to EC-348, "
Diagnostic Procedure" .
If OK, go to following step.
3. Select “DATA MONITOR” mode with CONSULT-II.
4. Start engine and warm it up to normal operating temperature.
5. Maintain the following conditions for at least 60 consecutive sec-
onds.
6. If 1st trip DTC is detected, go to EC-348, "
Diagnostic Procedure"
.
Overall Function CheckEBS00M9R
Use this procedure to check the overall function of the park/neutral position (PNP) switch circuit. During this
check, a 1st trip DTC might not be confirmed.
WITH GST
1. Turn ignition switch “ON”.
2. Check voltage between ECM terminal 43 (PNP switch signal)
and body ground under the following conditions.
3. If NG, go to EC-348, "
Diagnostic Procedure" .
Position (Selector lever) Known-good signal
“N” and “P” position ON
Except the above position OFF
ENG SPEED 1,500 - 3,000 rpm
COOLAN TEMP/S More than 70°C (158°F)
B/FUEL SCHDL 3.0 - 31.8 msec
VHCL SPEED SE More than 64 km/h (40 MPH)
Selector lever Suitable position
SEF212Y
SEF213Y
Condition (Gear position) Voltage V (Known good data)
“P” (A/T models only) and “N” position Approx. 0
Except the above positionA/T models: Battery voltage
M/T: Approximately 5V
PBIB0578E
