NISSAN X-TRAIL 2001 Service Repair Manual FRONT DRIVE SHAFT
FAX-13
C
E
F
G
H
I
J
K
L
MA
B
FA X

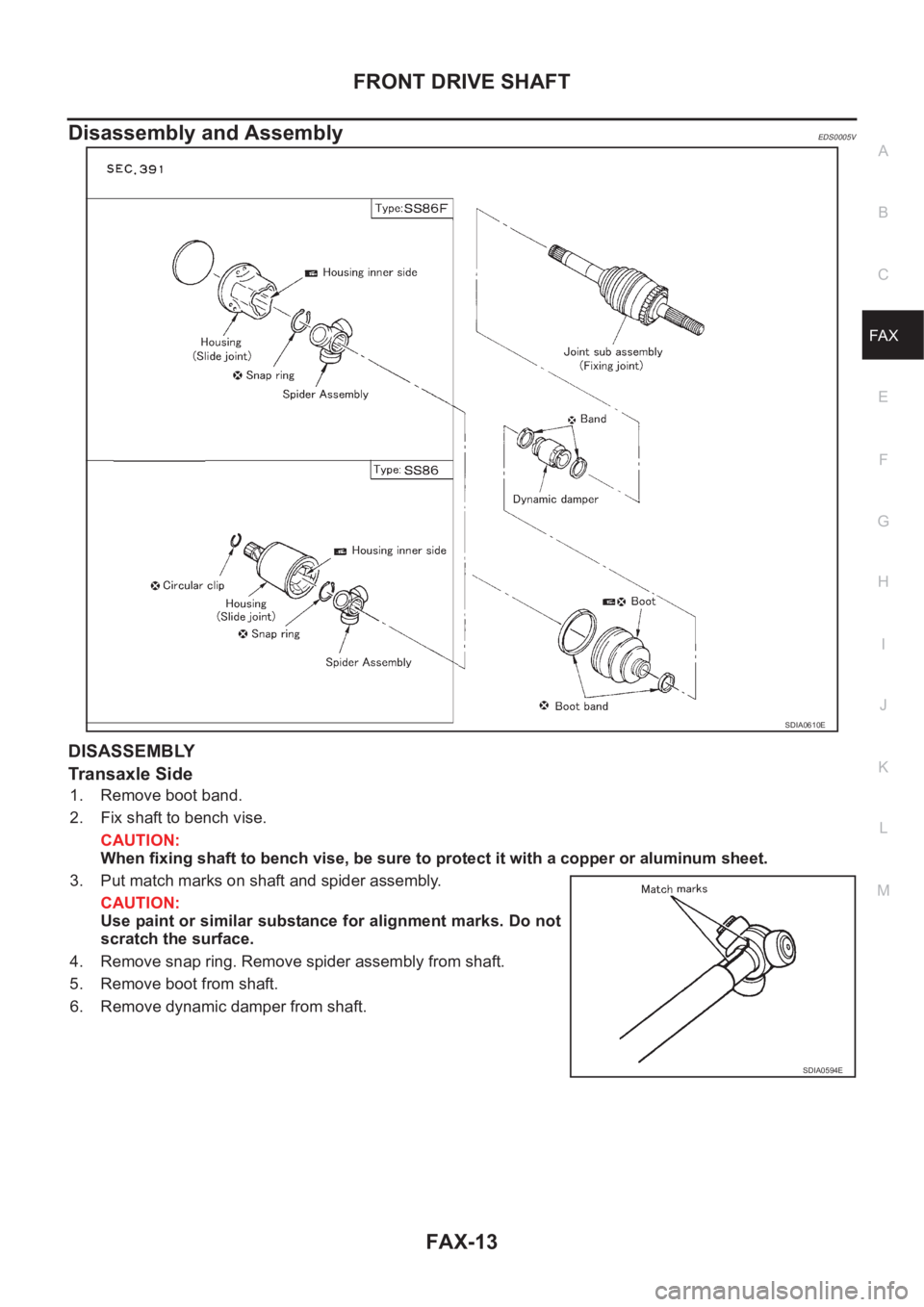

Disassembly and AssemblyEDS0005V
DISASSEMBLY
Transaxle Side
1. Remove boot band.
2. Fix shaft to bench vise.
CAUTION:
When fixing shaft to bench vi

Page 2962 of 3833

NISSAN X-TRAIL 2001 Service Repair Manual FAX-14
FRONT DRIVE SHAFT
Wheel Side
●As shown in the figure, use a bearing replacer and puller to
remove sensor rotor from drive shaft.
CAUTION:
Aside from sensor rotor, this part cannot

Page 2963 of 3833

NISSAN X-TRAIL 2001 Service Repair Manual FRONT DRIVE SHAFT
FAX-15
C
E
F
G
H
I
J
K
L
MA
B
FA X

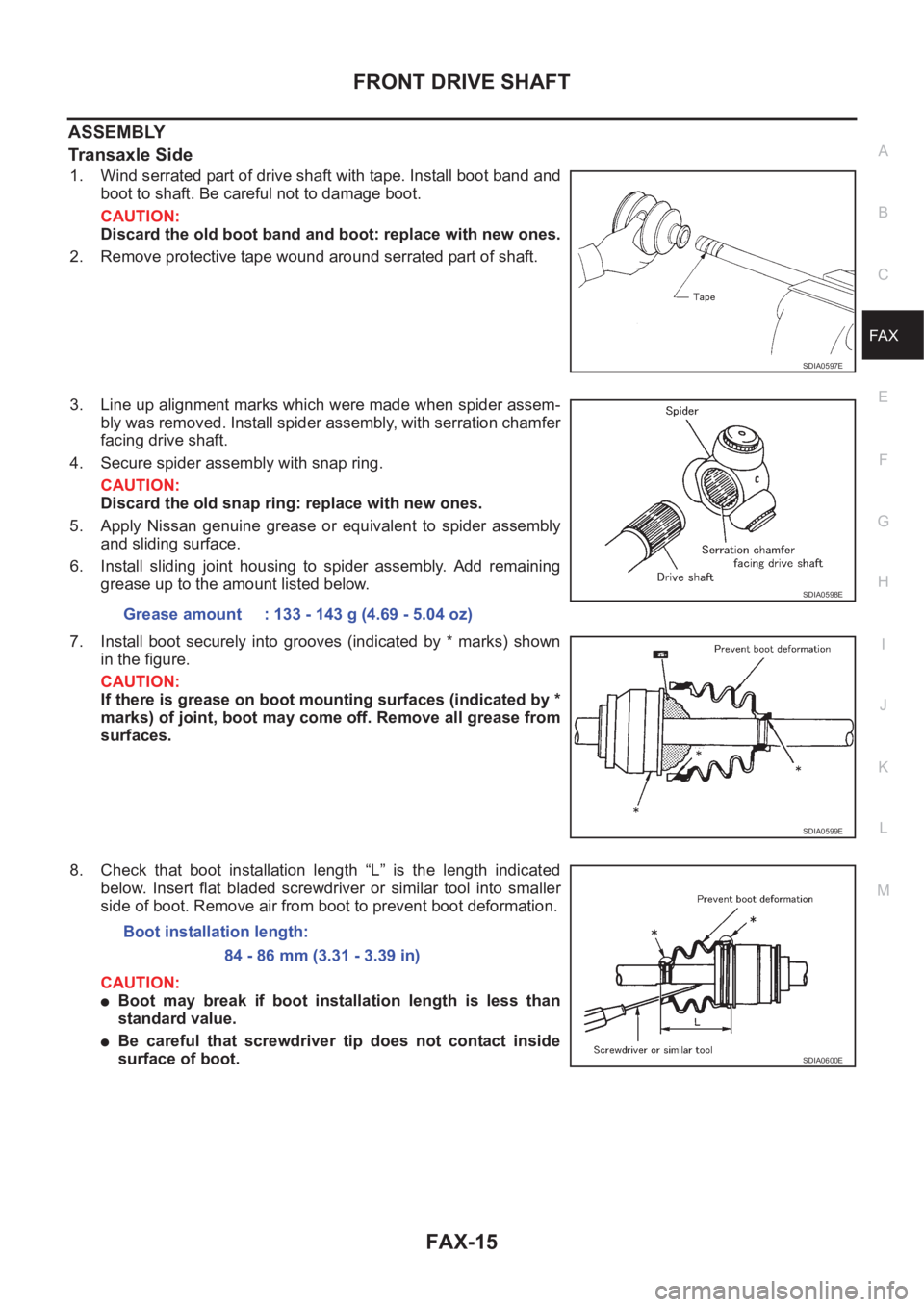

ASSEMBLY
Transaxle Side
1. Wind serrated part of drive shaft with tape. Install boot band and
boot to shaft. Be careful not to damage boot.
CAUTION

Page 2964 of 3833

NISSAN X-TRAIL 2001 Service Repair Manual FAX-16
FRONT DRIVE SHAFT
9. Secure big and small ends of boot with new boot bands as
shown in figure.
CAUTION:
Rotate housing and check that boot installation position
does not change. If posit

Page 2965 of 3833

NISSAN X-TRAIL 2001 Service Repair Manual SERVICE DATA AND SPECIFICATIONS (SDS)
FAX-17
C
E
F
G
H
I
J
K
L
MA
B
FA X

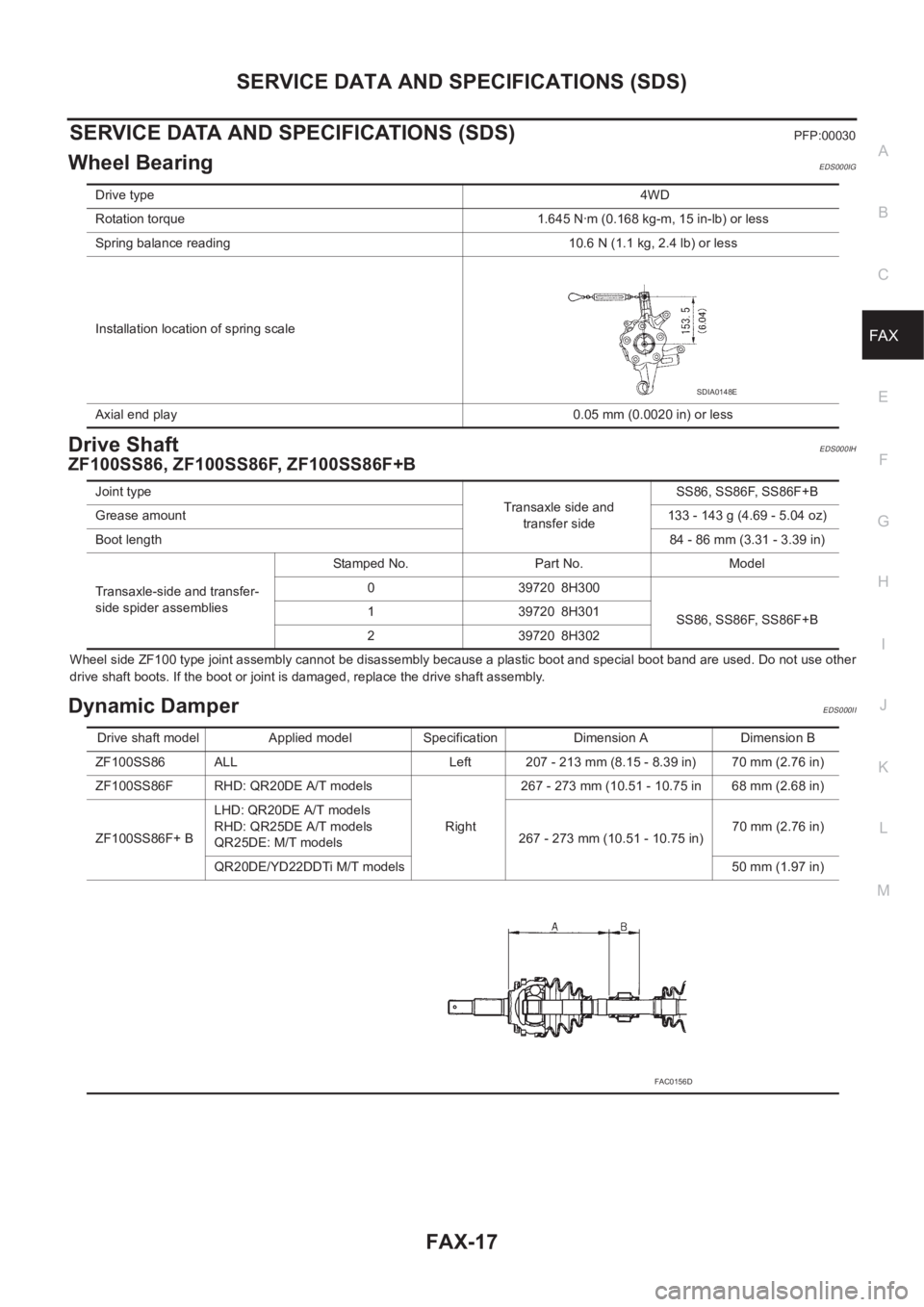

SERVICE DATA AND SPECIFICATIONS (SDS)PFP:00030
Wheel BearingEDS000IG
Drive ShaftEDS000IH
ZF100SS86, ZF100SS86F, ZF100SS86F+B
Wh

Page 2966 of 3833

NISSAN X-TRAIL 2001 Service Repair Manual FAX-18
SERVICE DATA AND SPECIFICATIONS (SDS)

Page 2967 of 3833

NISSAN X-TRAIL 2001 Service Repair Manual RAX-1
REAR AXLE
D DRIVELINE/AXLE

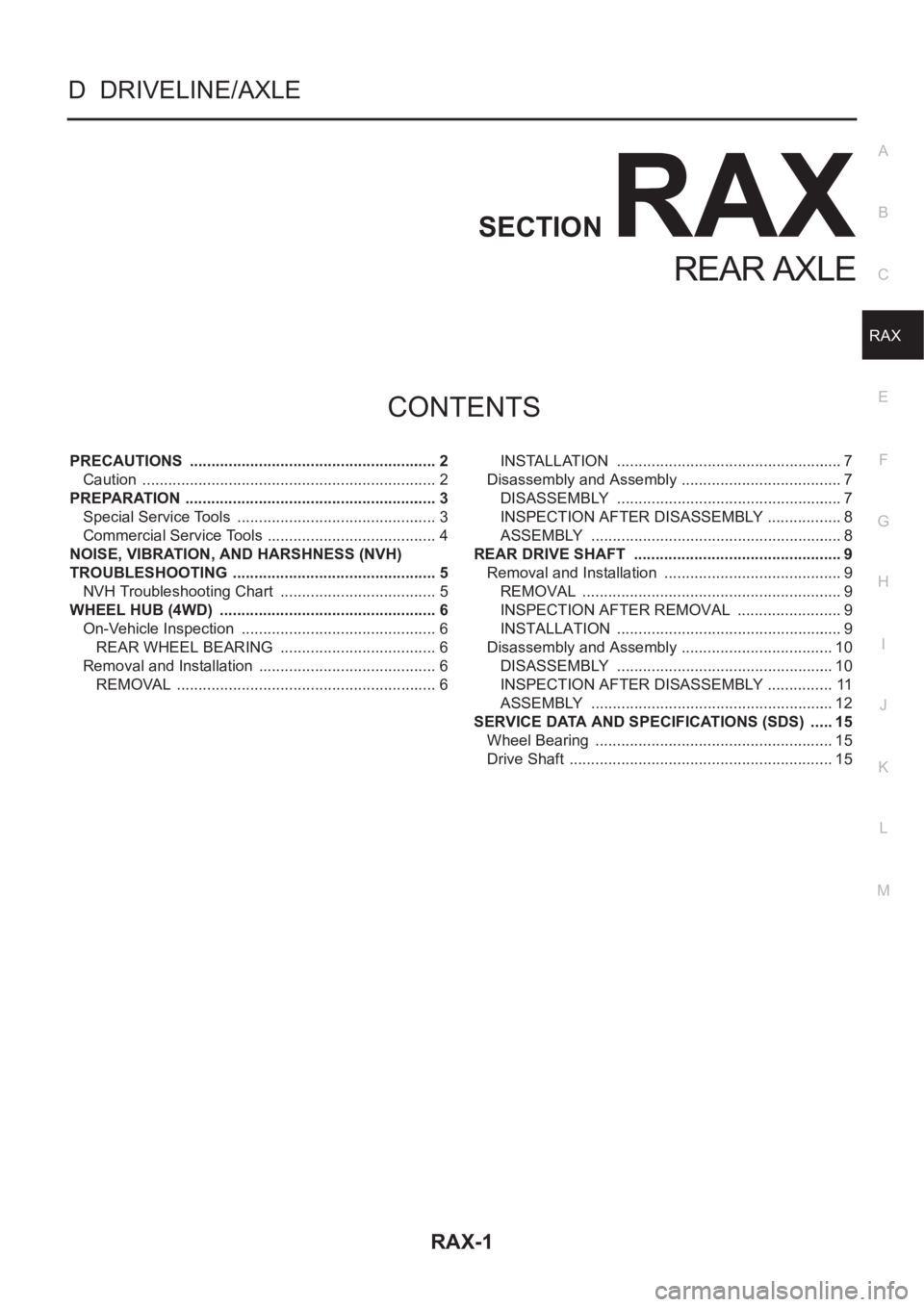

CONTENTS
C
E
F
G
H
I
J
K
L
M
SECTION
A
B
RAX
REAR AXLE
PRECAUTIONS .......................................................... 2
Caution ............................

RAX-1
REAR AXLE
D DRIVELINE/AXLE
CONTENTS
C
E
F
G
H
I
J
K
L
M
SECTION
A
B
RAX
REAR AXLE
PRECAUTIONS .......................................................... 2
Caution ..................................................................... 2
PREPARATION ........................................................... 3
Special Service Tools ............................................... 3
Commercial Service Tools ........................................ 4
NOISE, VIBRATION, AND HARSHNESS (NVH)
TROUBLESHOOTING ................................................ 5
NVH Troubleshooting Chart ..................................... 5
WHEEL HUB (4WD) ................................................... 6
On-Vehicle Inspection .............................................. 6
REAR WHEEL BEARING ..................................... 6
Removal and Installation .......................................... 6
REMOVAL ............................................................. 6INSTALLATION ..................................................... 7
Disassembly and Assembly ...................................... 7
DISASSEMBLY ..................................................... 7
INSPECTION AFTER DISASSEMBLY .................. 8
ASSEMBLY ........................................................... 8
REAR DRIVE SHAFT ................................................. 9
Removal and Installation .......................................... 9
REMOVAL ............................................................. 9
INSPECTION AFTER REMOVAL ......................... 9
INSTALLATION ..................................................... 9
Disassembly and Assembly .................................... 10
DISASSEMBLY ................................................... 10
INSPECTION AFTER DISASSEMBLY ................ 11
ASSEMBLY ......................................................... 12
SERVICE DATA AND SPECIFICATIONS (SDS) ...... 15
Wheel Bearing ........................................................ 15
Drive Shaft .............................................................. 15

Page 2968 of 3833

NISSAN X-TRAIL 2001 Service Repair Manual RAX-2
PRECAUTIONS
PRECAUTIONS
PFP:00001
CautionEDS00060
●When installing rubber parts, final tightening must be carried out under unladen condition* with tires on
ground.
