NISSAN X-TRAIL 2001 Service Repair Manual CYLINDER HEAD
EM-63
[QR]
C
D
E
F
G
H
I
J
K
L
MA
EM

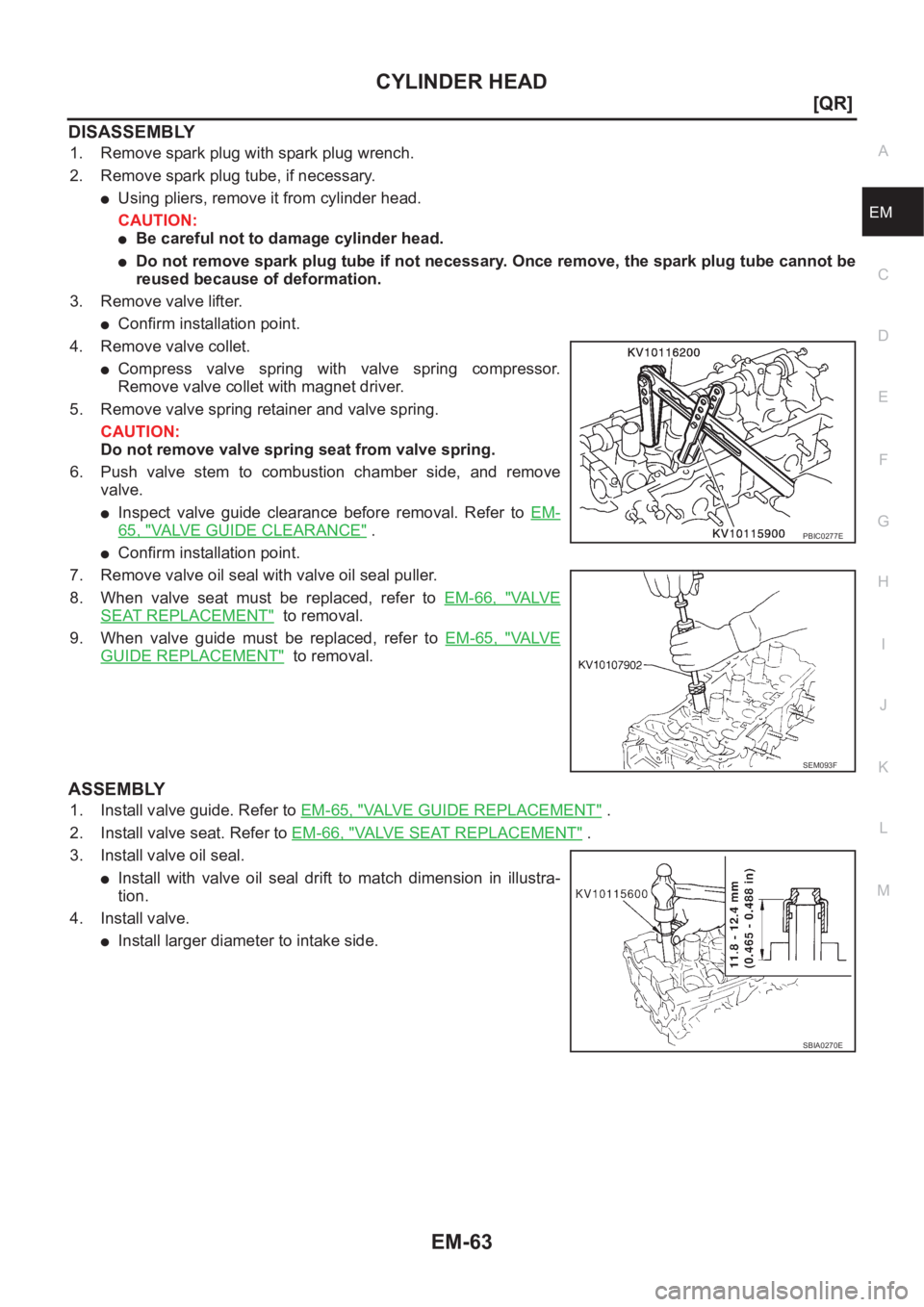

DISASSEMBLY
1. Remove spark plug with spark plug wrench.
2. Remove spark plug tube, if necessary.
●Using pliers, remove it from cylinder head.
CAUT

Page 114 of 3833

NISSAN X-TRAIL 2001 Service Repair Manual EM-64
[QR]
CYLINDER HEAD
5. Install valve spring.
●Install smaller pitch (valve spring seat side) to cylinder head
side.
●Confirm identification color of valve spring.
6. Install valve sp

Page 115 of 3833

NISSAN X-TRAIL 2001 Service Repair Manual CYLINDER HEAD
EM-65
[QR]
C
D
E
F
G
H
I
J
K
L
MA
EM

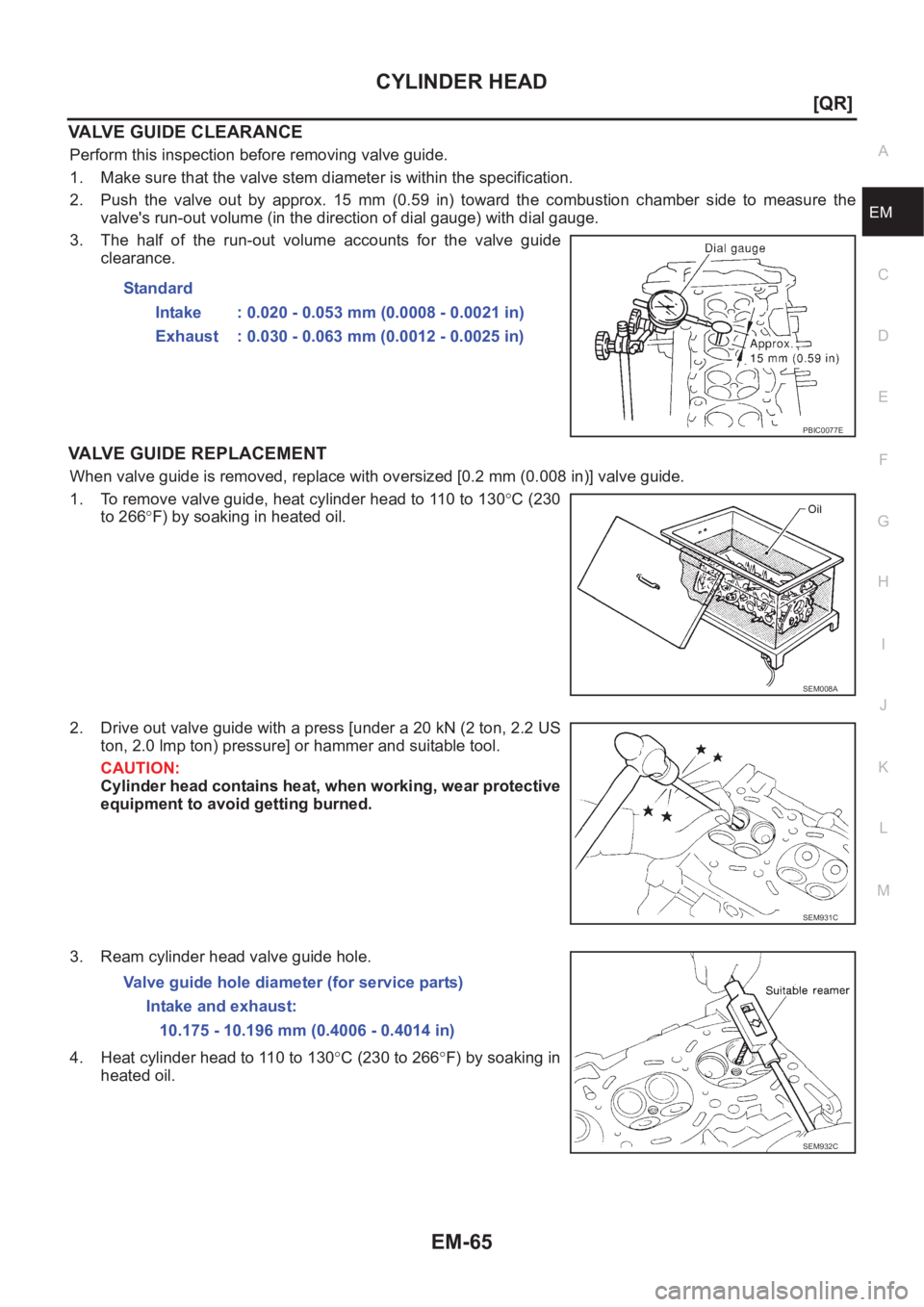

VALVE GUIDE CLEARANCE
Perform this inspection before removing valve guide.
1. Make sure that the valve stem diameter is within the specification.
2.

Page 116 of 3833

NISSAN X-TRAIL 2001 Service Repair Manual EM-66
[QR]
CYLINDER HEAD

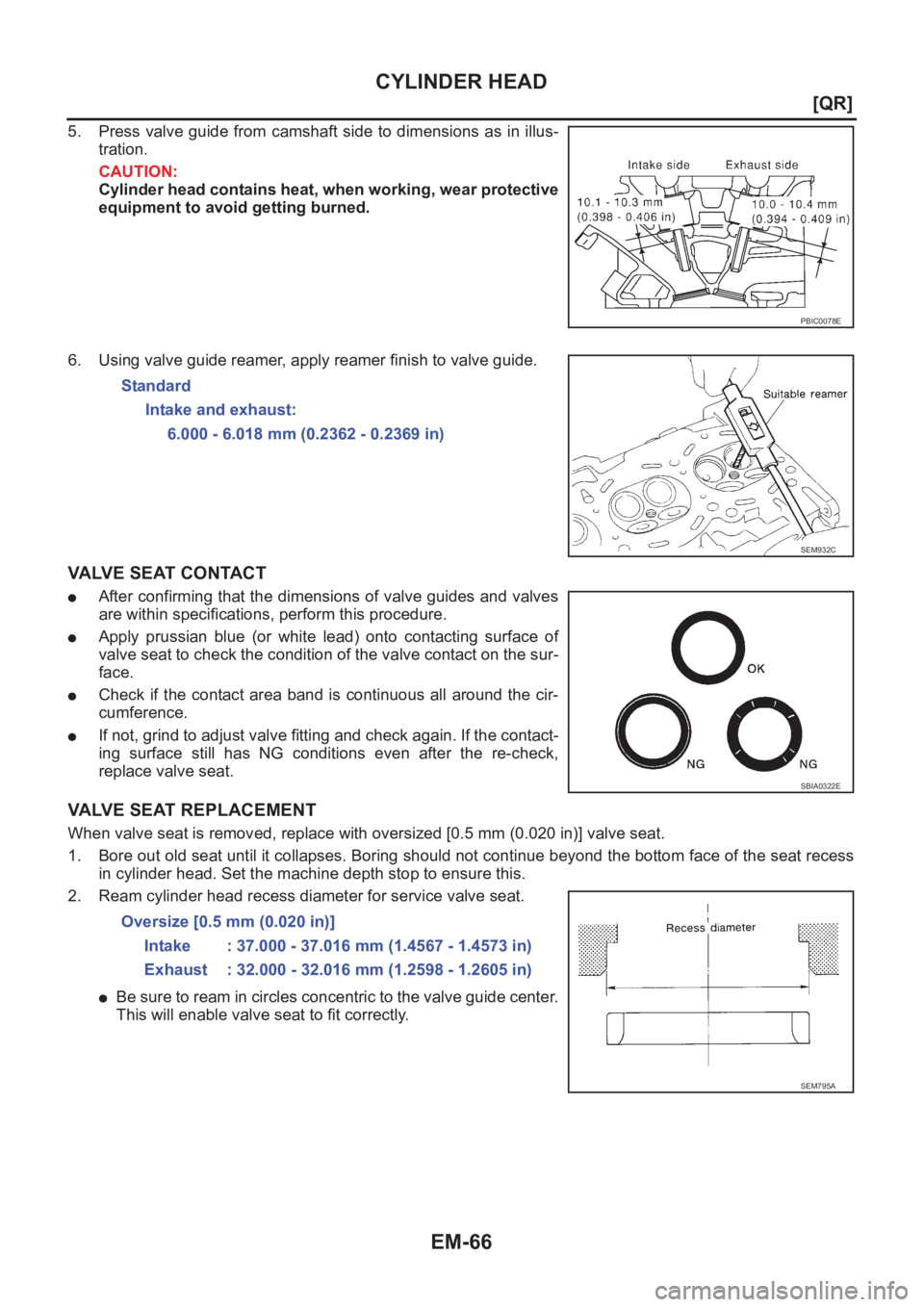

5. Press valve guide from camshaft side to dimensions as in illus-
tration.
CAUTION:
Cylinder head contains heat, when working, wear protective
equipment to avoid getting burn

Page 117 of 3833

NISSAN X-TRAIL 2001 Service Repair Manual CYLINDER HEAD
EM-67
[QR]
C
D
E
F
G
H
I
J
K
L
MA
EM

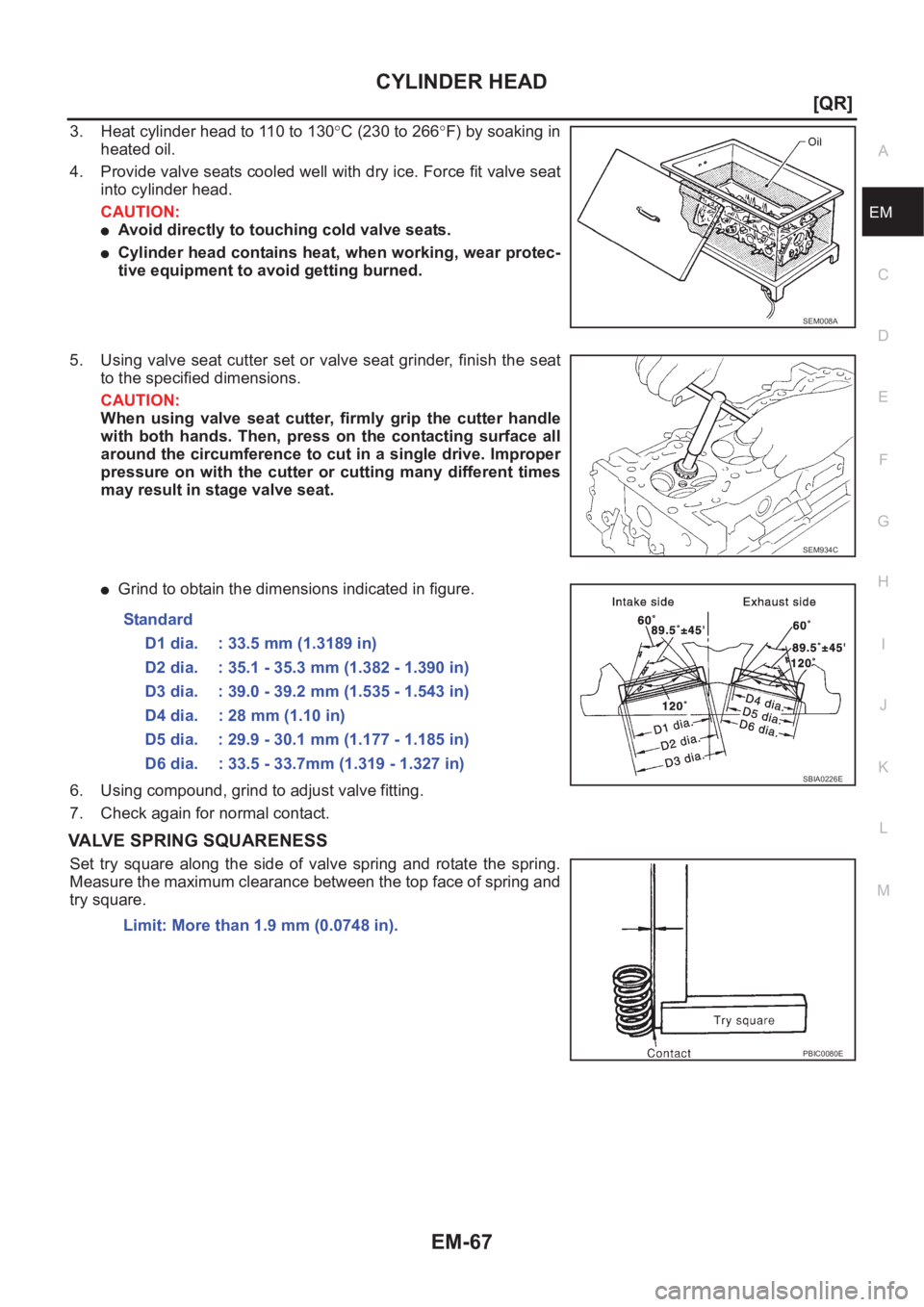

3. Heat cylinder head to 110 to 130°C (230 to 266°F) by soaking in
heated oil.
4. Provide valve seats cooled well with dry ice. Force fit valve sea

Page 118 of 3833

NISSAN X-TRAIL 2001 Service Repair Manual EM-68
[QR]
CYLINDER HEAD

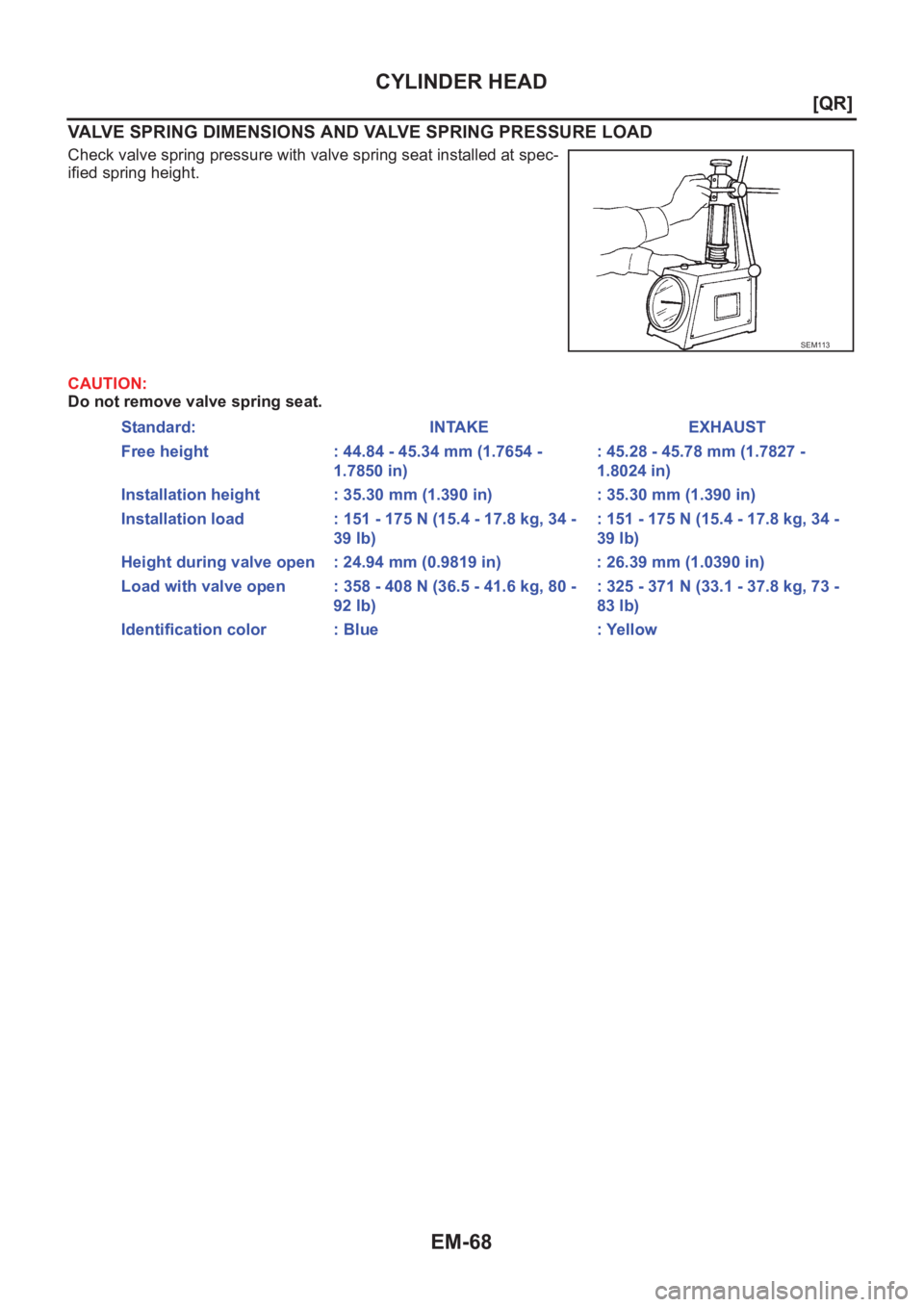

VALVE SPRING DIMENSIONS AND VALVE SPRING PRESSURE LOAD
Check valve spring pressure with valve spring seat installed at spec-
ified spring height.
CAUTION:
Do not remove valve

Page 119 of 3833

NISSAN X-TRAIL 2001 Service Repair Manual ENGINE ASSEMBLY
EM-69
[QR]
C
D
E
F
G
H
I
J
K
L
MA
EM
ENGINE ASSEMBLYPFP:10001
Removal and InstallationEBS00KNT
WARNING:
●Situate vehicle on a flat and solid surface.
●Place chocks at front and bac

Page 120 of 3833

NISSAN X-TRAIL 2001 Service Repair Manual EM-70
[QR]
ENGINE ASSEMBLY
1. Release fuel pressure. Refer to EC-775, "FUEL PRESSURE RELEASE" [QR20DE (WITH EURO-OBD)],
EC-1139, "
FUEL PRESSURE RELEASE" [QR20DE (WITHOUT EURO

EM-70
[QR]
ENGINE ASSEMBLY
1. Release fuel pressure. Refer to EC-775, "FUEL PRESSURE RELEASE" [QR20DE (WITH EURO-OBD)],
EC-1139, "
FUEL PRESSURE RELEASE" [QR20DE (WITHOUT EURO-OBD)], EC-42, "FUEL PRES-
SURE RELEASE" [QR25DE (WITH EURO-OBD)] or EC-452, "FUEL PRESSURE RELEASE" [QR25DE
(WITHOUT EURO-OBD)].
2. Remove engine hood.
3. Drain engine coolant from radiator drain plug. Refer to CO-9, "
DRAINING ENGINE COOLANT" .
4. Remove the following parts.
●LH/RH undercovers
●LH/RH front wheels
●Battery
●Drive belts; Refer to EM-12, "REMOVAL" .
●Air duct and air cleaner case assembly; Refer to EM-14, "REMOVAL" .
●Alternator
●Radiator and radiator fan assembly; Refer to CO-11, "RADIATOR" .
5. Disconnect engine room harness from the engine side and set it aside for easier work.
6. Disconnect all the body-side vacuum hoses and air hoses at engine side.
Engine room LH
7. Disconnect fuel hose, and plug it to prevent fuel from draining. Refer to EM-16, "
INTAKE MANIFOLD"
8. Disconnect heater hose, and install plug it to prevent engine coolant from draining.
9. Disconnect select cable from transaxle (A/T models).
10. Remove clutch operating cylinder from transaxle, and move it aside (M/T models).
11. Disconnect shift cable from transaxle (M/T models).
Engine room RH
12. Remove engine coolant reservoir tank.
13. Remove air conditioner compressor with piping connected from engine. Temporarily secure it on body
with a rope to avoid putting load on it.
Vehicle underbody
14. Remove exhaust front tube.
15. Remove propeller shaft.
16. Remove steering shaft from steering gear.
17. Disconnect power steering fluid cooler piping at a point between body and engine.
18. Remove ABS sensor from brake caliper.
19. Remove brake caliper with piping connected from steering knuckle. Temporarily secure it on body with a
rope to avoid load on it.
20. Remove LH/RH suspensions from steering knuckle under strut.
Removal
21. Install engine slingers into front left of cylinder head and rear right of cylinder head.
●Use alternator bracket mounting bolt holes for the front side.
22. Lift with hoist and secure the engine in position.Slinger bolts:
Front
: 51.0 - 64.7 N·m (5.2 - 6.6 kg-m, 38 - 47 ft-lb)
Rear
: 24.5 - 31.4 N·m (2.5 - 3.2 kg-m, 18 - 23 ft-lb)
SBIA0271E
