Page 2561 of 3833

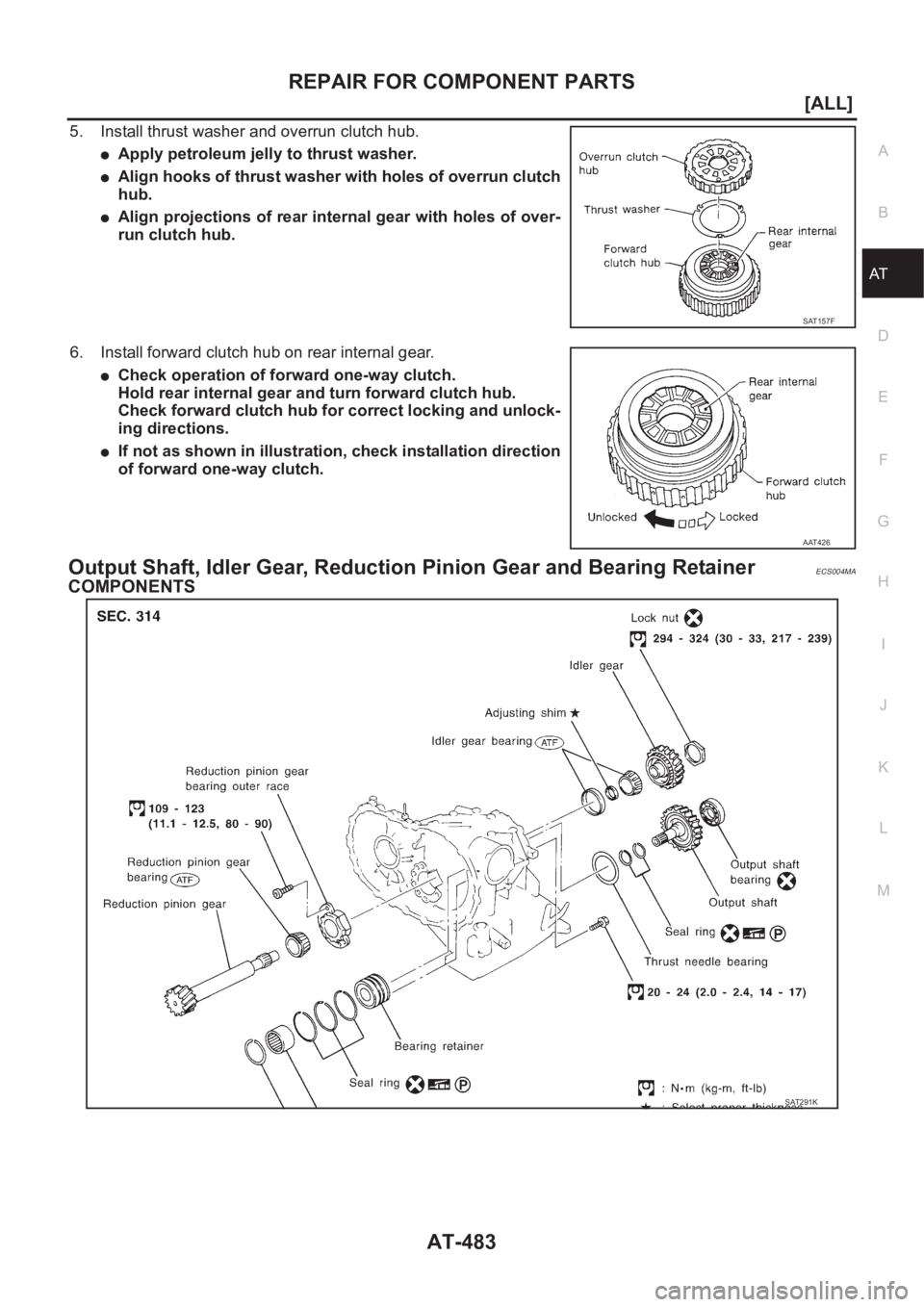

NISSAN X-TRAIL 2001 Service Repair Manual REPAIR FOR COMPONENT PARTS AT-483 [ALL] D E F G H I J K L MA B AT 5. Install thrust washer and overrun clutch hub. ●Apply petroleum jelly to thrust washer. ●Align hooks of thrust washer with holes

Page 2562 of 3833

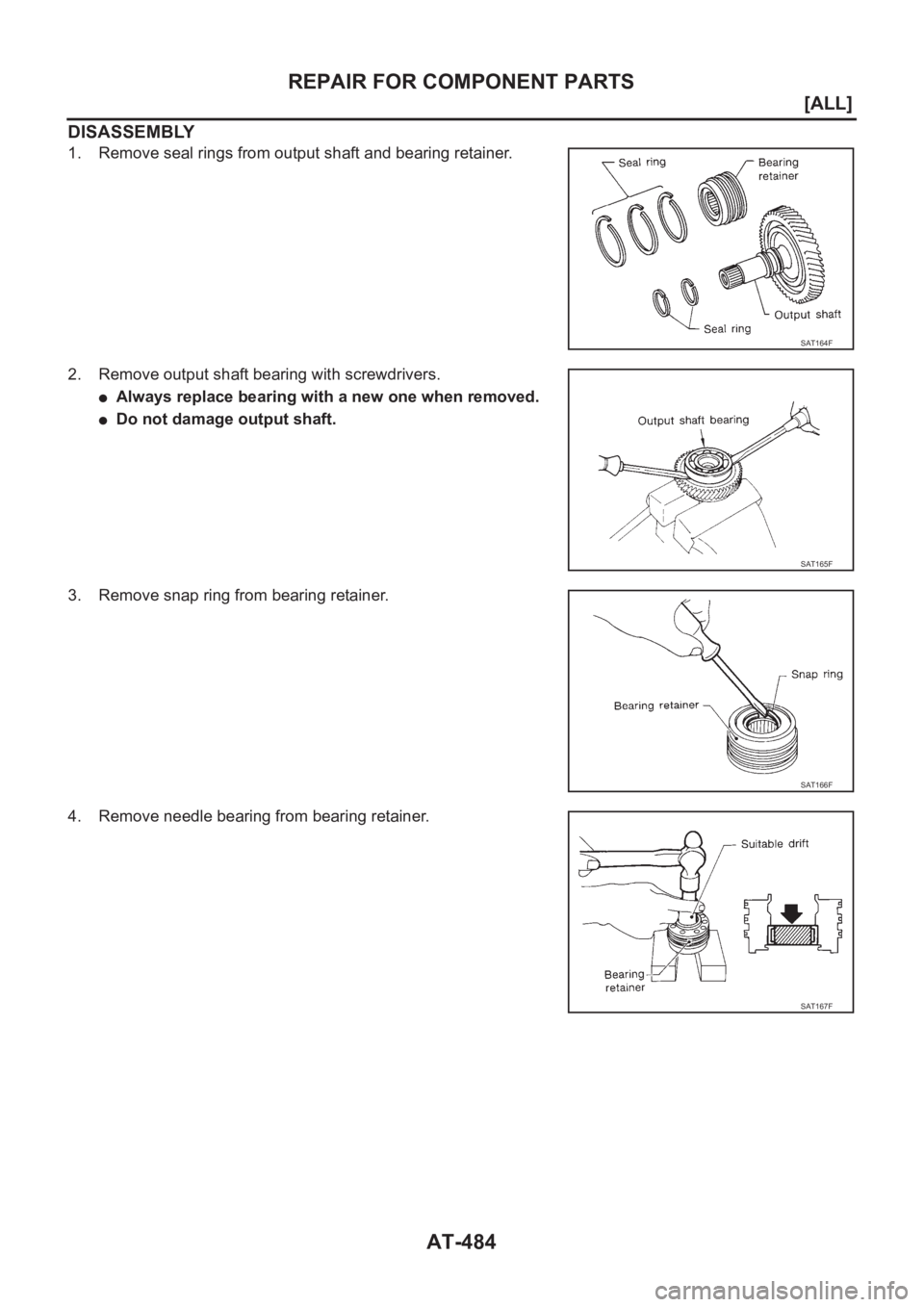

NISSAN X-TRAIL 2001 Service Repair Manual AT-484 [ALL] REPAIR FOR COMPONENT PARTS DISASSEMBLY 1. Remove seal rings from output shaft and bearing retainer. 2. Remove output shaft bearing with screwdrivers. ●Always replace bearing with a new

Page 2563 of 3833

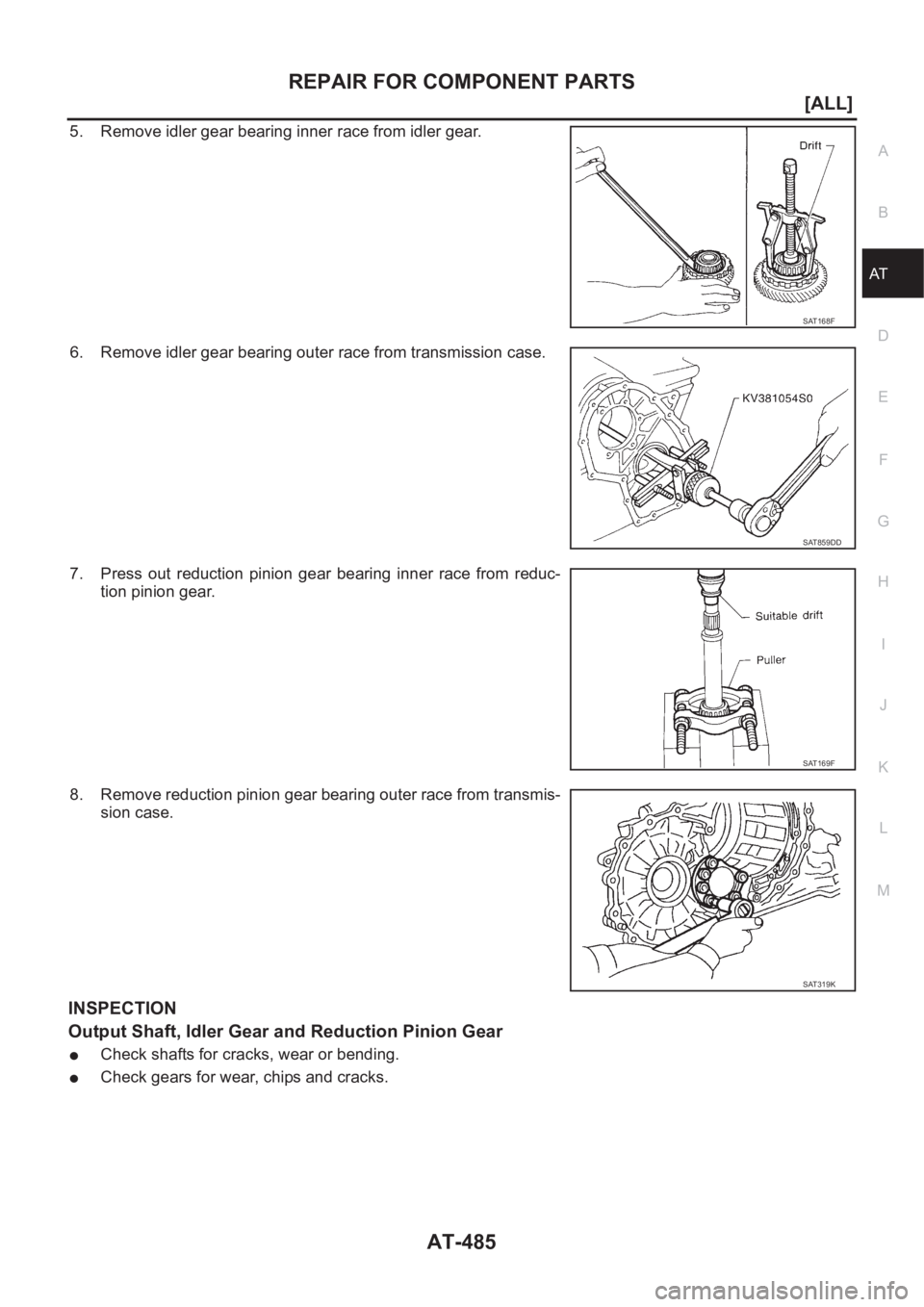

NISSAN X-TRAIL 2001 Service Repair Manual REPAIR FOR COMPONENT PARTS AT-485 [ALL] D E F G H I J K L MA B AT 5. Remove idler gear bearing inner race from idler gear. 6. Remove idler gear bearing outer race from transmission case. 7. Press out

Page 2564 of 3833

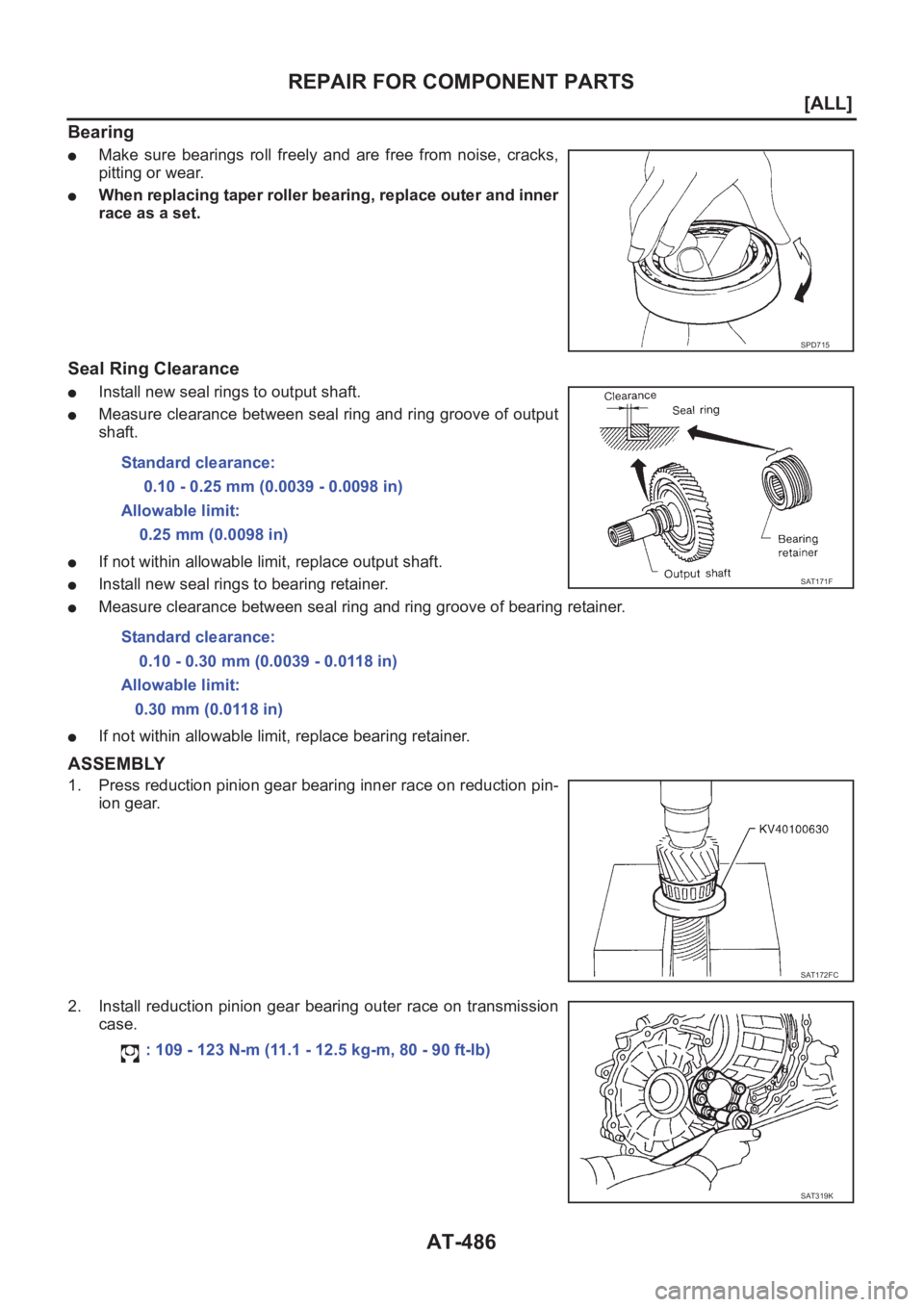

NISSAN X-TRAIL 2001 Service Repair Manual AT-486 [ALL] REPAIR FOR COMPONENT PARTS Bearing ●Make sure bearings roll freely and are free from noise, cracks, pitting or wear. ●When replacing taper roller bearing, replace outer and

Page 2565 of 3833

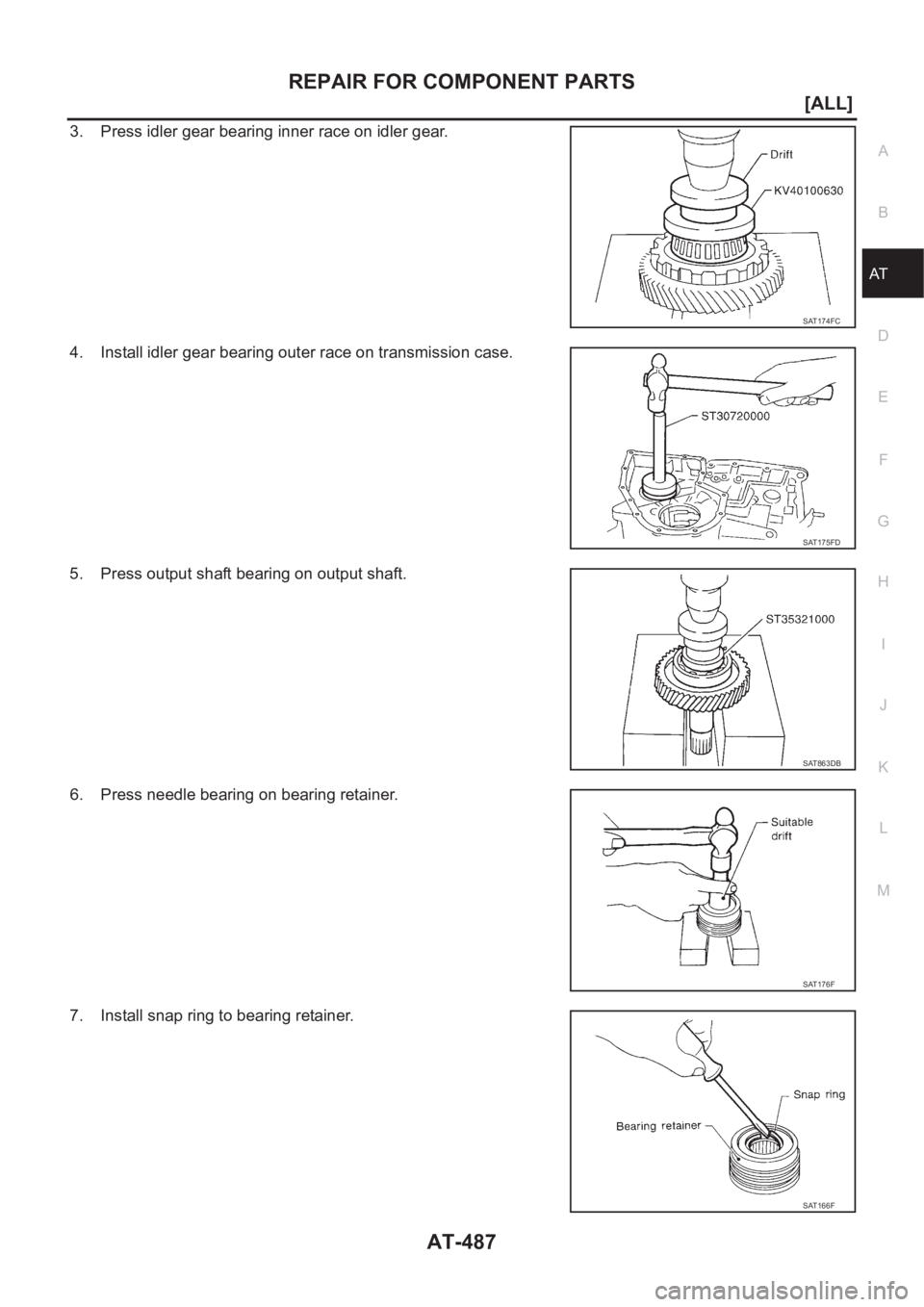

NISSAN X-TRAIL 2001 Service Repair Manual REPAIR FOR COMPONENT PARTS AT-487 [ALL] D E F G H I J K L MA B AT 3. Press idler gear bearing inner race on idler gear. 4. Install idler gear bearing outer race on transmission case. 5. Press output s

Page 2566 of 3833

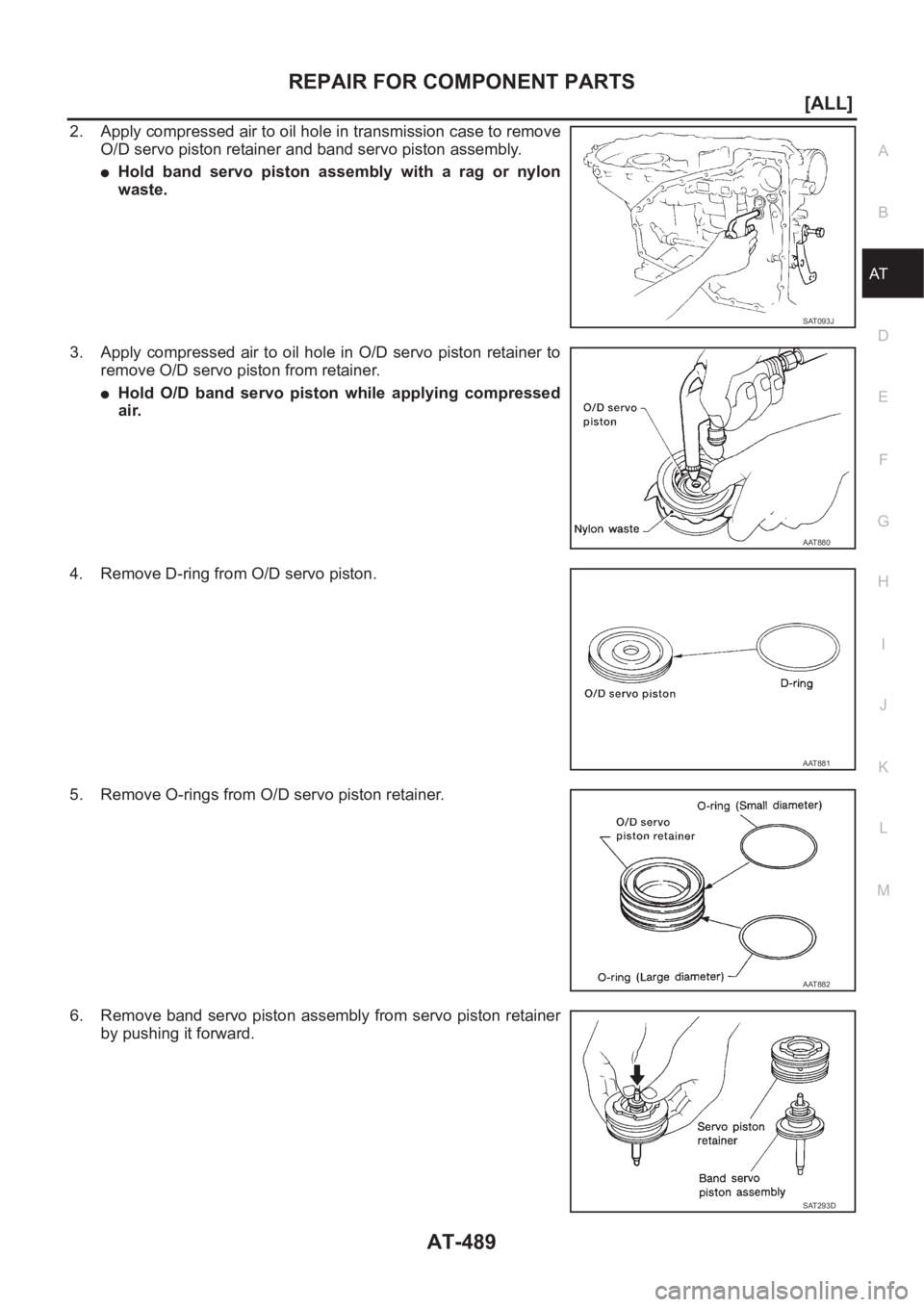

NISSAN X-TRAIL 2001 Service Repair Manual AT-488 [ALL] REPAIR FOR COMPONENT PARTS 8. After packing ring grooves with petroleum jelly, carefully install new seal rings on output shaft and bearing retainer. ●Roll paper around seal

Page 2567 of 3833

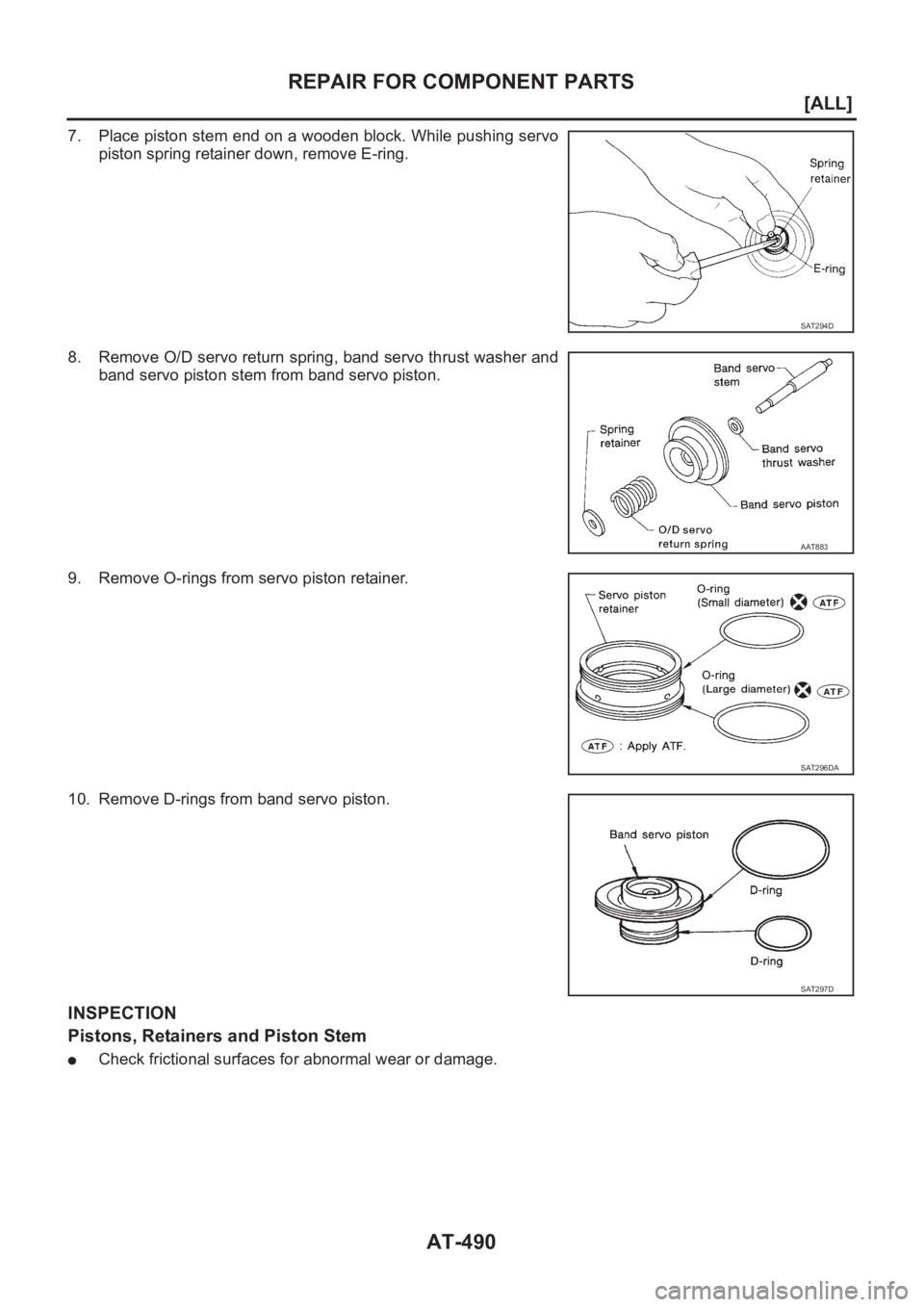

NISSAN X-TRAIL 2001 Service Repair Manual REPAIR FOR COMPONENT PARTS AT-489 [ALL] D E F G H I J K L MA B AT 2. Apply compressed air to oil hole in transmission case to remove O/D servo piston retainer and band servo piston assembly. ●Hold

Page 2568 of 3833

NISSAN X-TRAIL 2001 Service Repair Manual AT-490 [ALL] REPAIR FOR COMPONENT PARTS 7. Place piston stem end on a wooden block. While pushing servo piston spring retainer down, remove E-ring. 8. Remove O/D servo return spring, band servo thrust
