[QR]PRECAUTIONSPFP:00001
Precautions For Liquid GasketEBS00ODQ
REMOVAL OF LIQUID GASKET
●After removing the mounting bolts and nuts, separate the mati

PRECAUTIONS
LU-3
[QR]
C
D
E
F
G
H
I
J
K
L
MA
LU
[QR]PRECAUTIONSPFP:00001
Precautions For Liquid GasketEBS00ODQ
REMOVAL OF LIQUID GASKET
●After removing the mounting bolts and nuts, separate the mating
surface using a seal cutter and remove the old liquid gasket
sealing.
CAUTION:
Be careful not to damage the mating surfaces.
●In areas where the cutter is difficult to use, use a plastic hammer
to lightly tap the areas where the liquid gasket is applied.
CAUTION:
If for some unavoidable reason a tool such as a flat-blade
screwdriver is used, be careful not to damage the mating
surfaces.
LIQUID GASKET APPLICATION PROCEDURE
1. Using a scraper, remove the old liquid gasket adhering to the liq-
uid gasket application surface and the mating surface.
●Remove the liquid gasket completely from the groove of the
liquid gasket application surface, mounting bolts and bolt
holes.
2. Wipe the liquid gasket application surface and the mating sur-
face with white gasoline (lighting and heating use) to remove
adhering moisture, grease and foreign materials.
3. Attach the liquid gasket to the tube presser.
Use Genuine Liquid Gasket or equivalent.
4. Apply the liquid gasket without breaks to the specified location
with the specified dimensions.
●If there is a groove for the liquid gasket application, apply the
liquid gasket to the groove.
●As for the bolt holes, normally apply the liquid gasket inside
the holes. If specified, it should be applied outside the holes.
Make sure to read the instruction in this manual.
●Within five minutes of liquid gasket application, install the mat-
ing component.
●If the liquid gasket protrudes, wipe it off immediately.
●Do not retighten after the installation.
●After 30 minutes or more have passed from the installation, fill
the engine oil and engine coolant.
CAUTION:
If there are instructions in this manual, observe them.
PBIC0275E
PBIC0003E
EMA0622D
SEM159F

Page 284 of 3833

NISSAN X-TRAIL 2001 Service Repair Manual LU-4
[QR]
PREPARATION
PREPARATION
PFP:00002
Special Service ToolsEBS00KO0
Tool number
Tool nameDescription
ST25051001
Oil pressure gaugeMeasuring oil pressure
Maximum measuring range:
2,452 kPa (25 kg

Page 285 of 3833

NISSAN X-TRAIL 2001 Service Repair Manual LUBRICATION SYSTEM
LU-5
[QR]
C
D
E
F
G
H
I
J
K
L
MA
LU
LUBRICATION SYSTEMPFP:15010

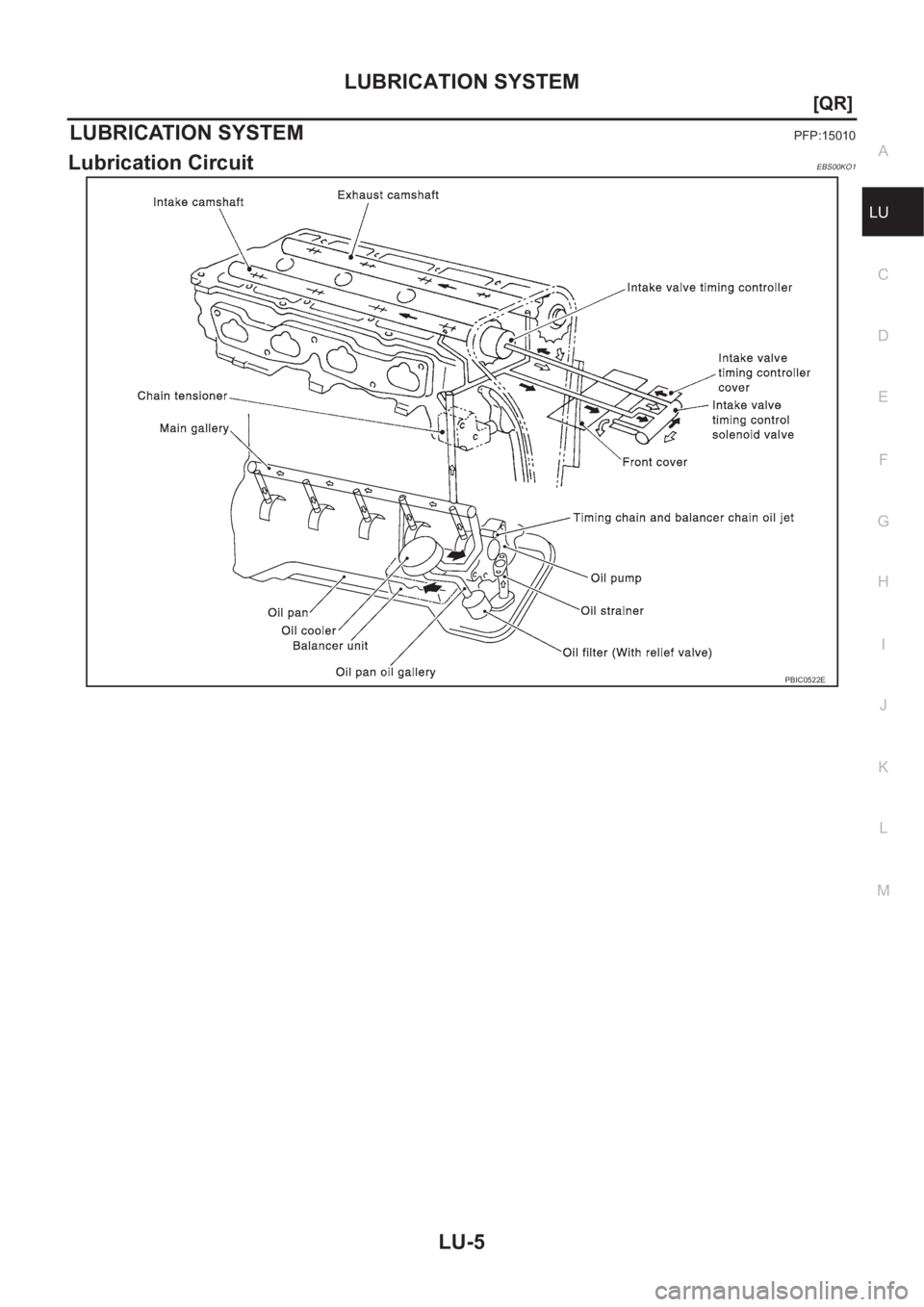

Lubrication CircuitEBS00KO1
PBIC0522E

Page 286 of 3833

NISSAN X-TRAIL 2001 Service Repair Manual LU-6
[QR]
LUBRICATION SYSTEM

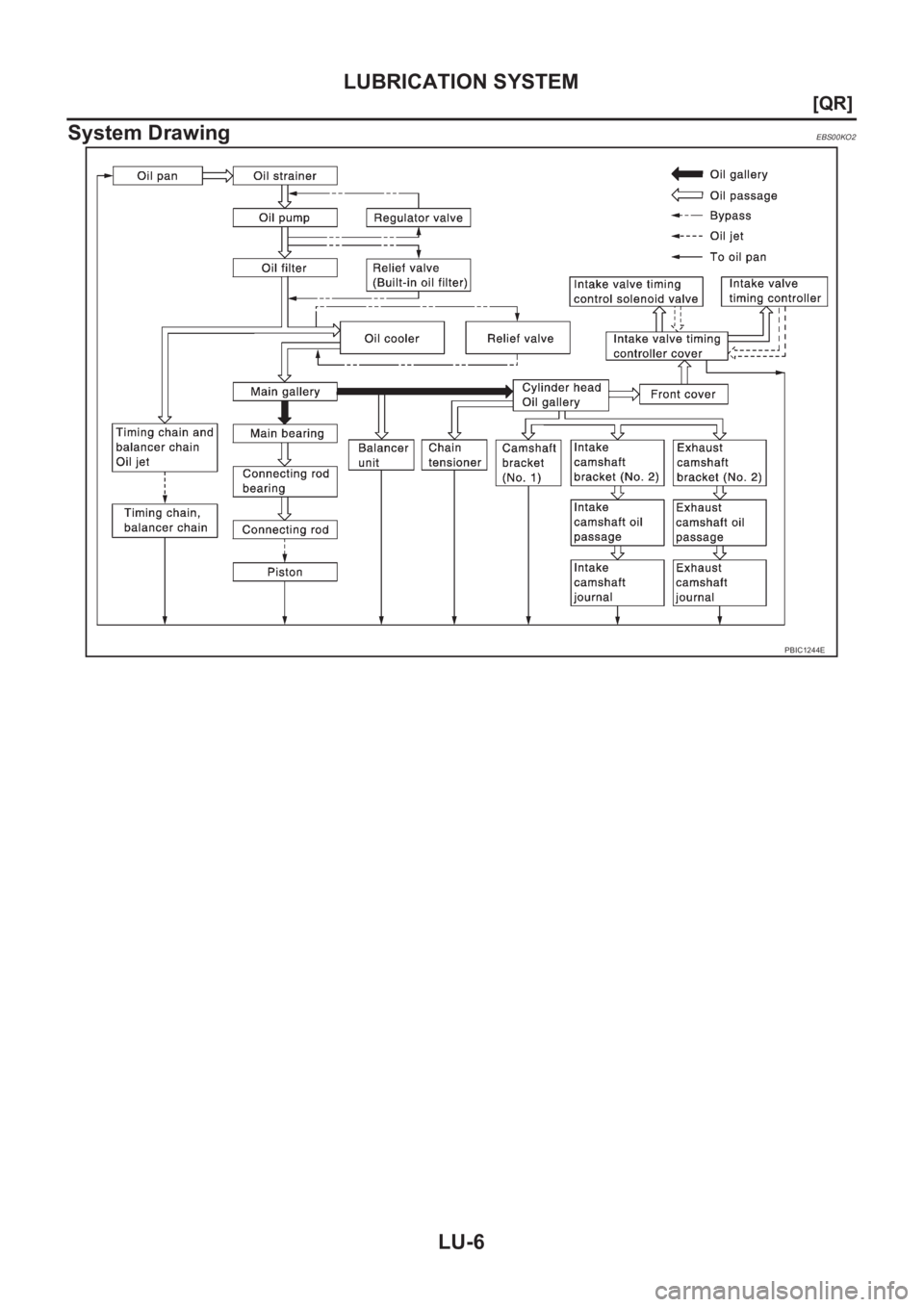

System Drawing
