Page 193 of 3833

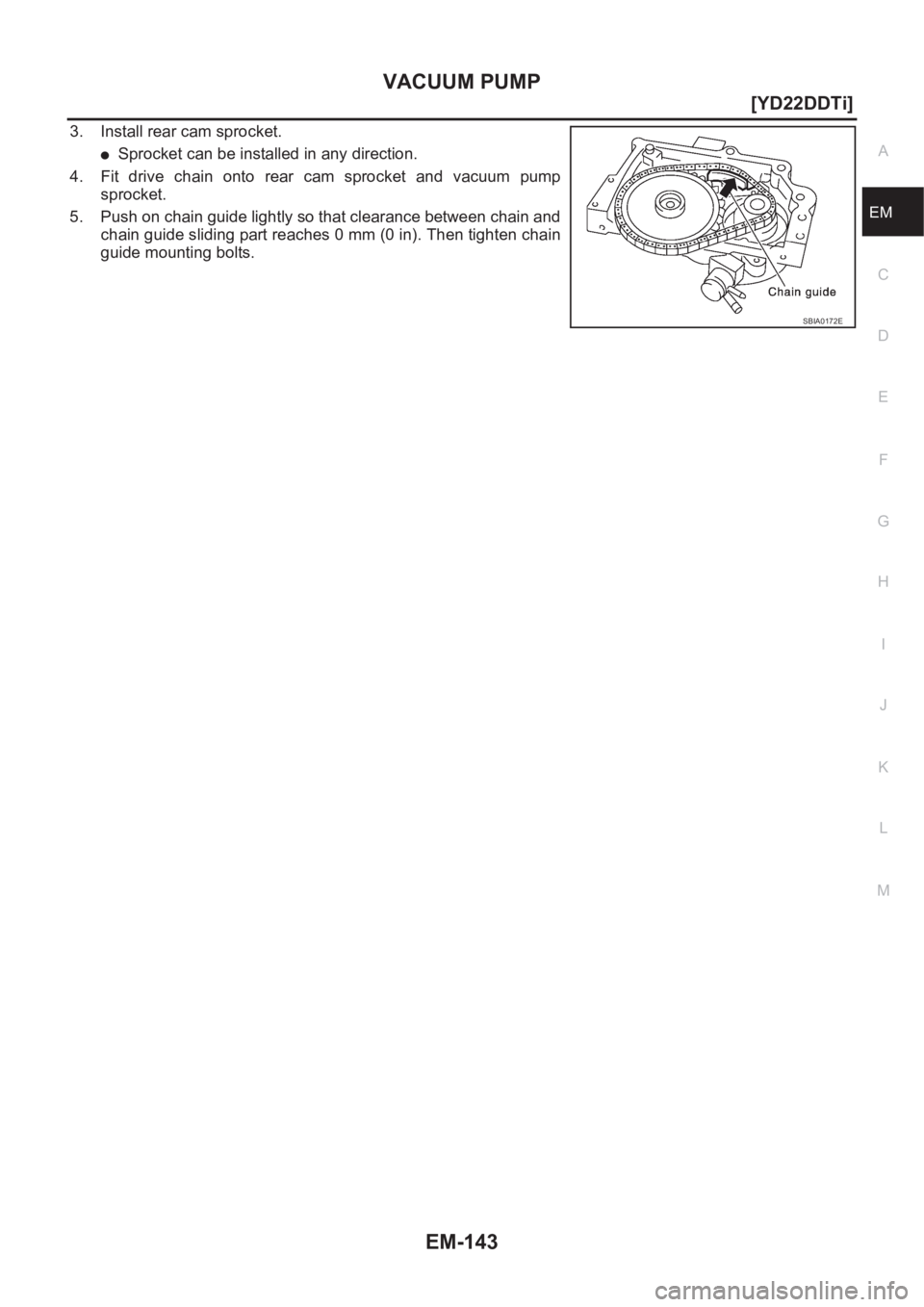

NISSAN X-TRAIL 2001 Service Repair Manual VACUUM PUMP EM-143 [YD22DDTi] C D E F G H I J K L MA EM 3. Install rear cam sprocket. ●Sprocket can be installed in any direction. 4. Fit drive chain onto rear cam sprocket and vacuum pump

Page 194 of 3833

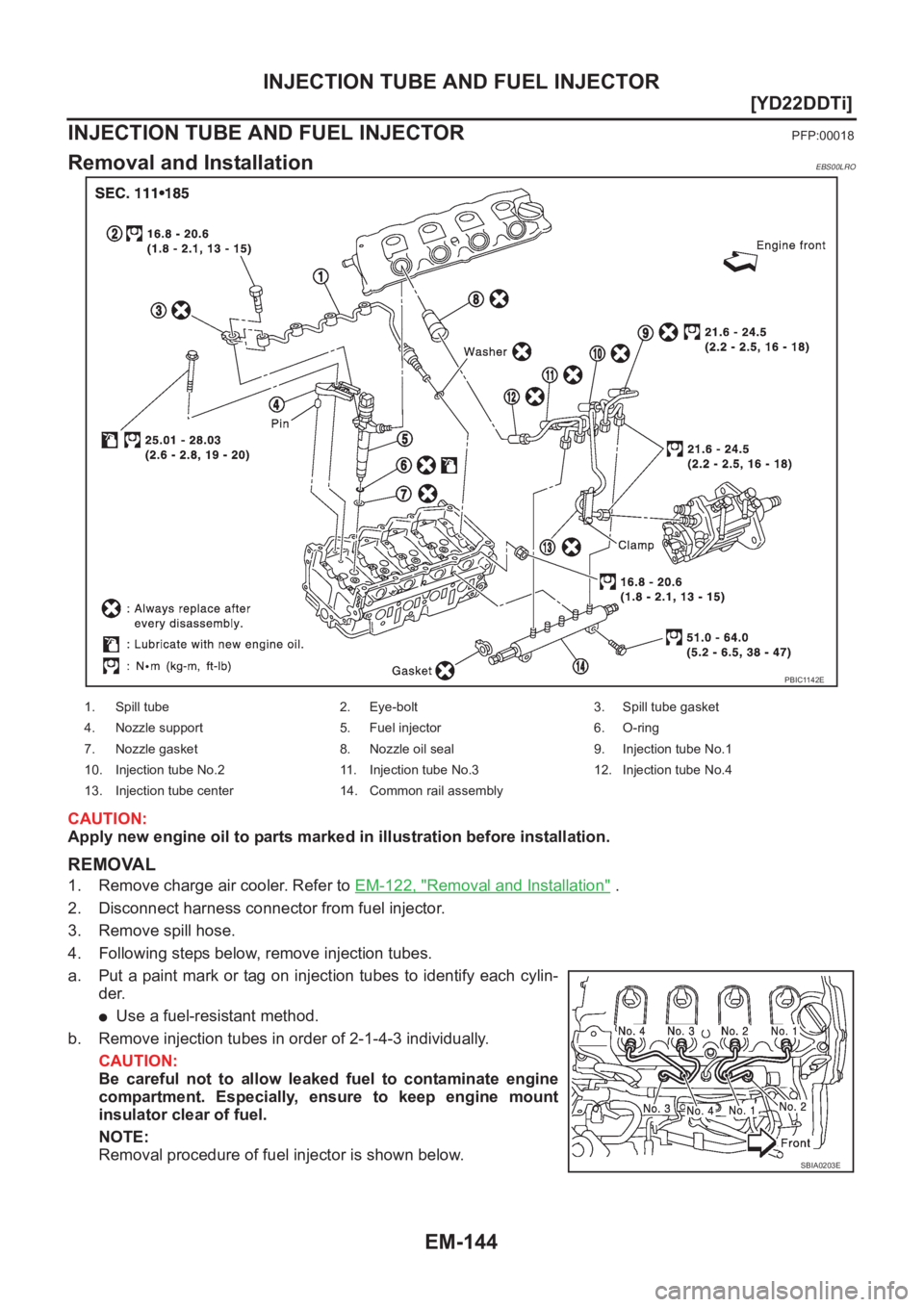

NISSAN X-TRAIL 2001 Service Repair Manual EM-144 [YD22DDTi] INJECTION TUBE AND FUEL INJECTOR INJECTION TUBE AND FUEL INJECTOR PFP:00018 Removal and InstallationEBS00LRO CAUTION: Apply new engine oil to parts marked in illustration before inst

Page 195 of 3833

NISSAN X-TRAIL 2001 Service Repair Manual INJECTION TUBE AND FUEL INJECTOR EM-145 [YD22DDTi] C D E F G H I J K L MA EM 5. Remove nozzle oil seal. ●Using a slotted screwdriver, pry flange to remove oil seal. NOTE: Nozzle oil seal seals betwe

Page 196 of 3833

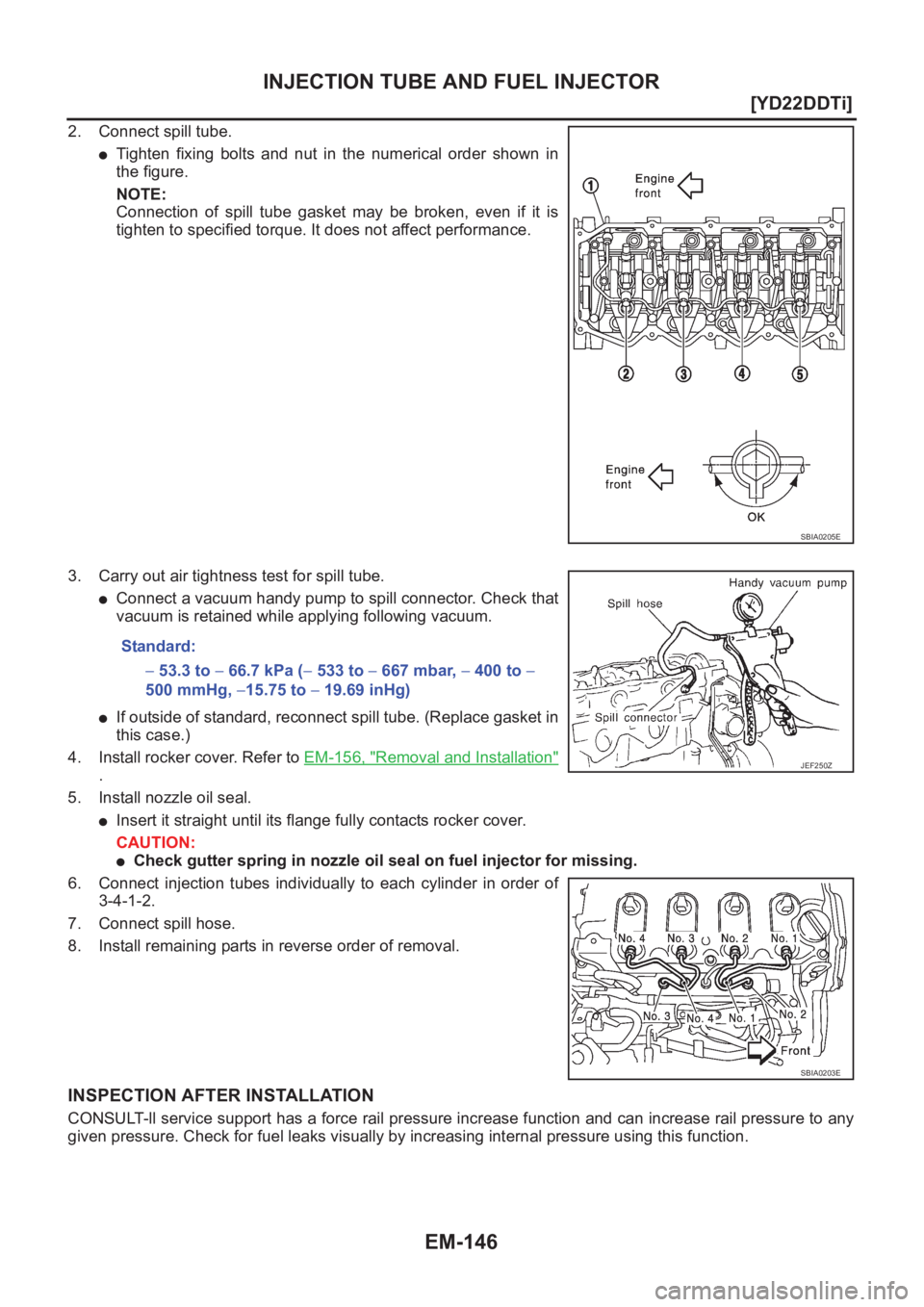

NISSAN X-TRAIL 2001 Service Repair Manual EM-146 [YD22DDTi] INJECTION TUBE AND FUEL INJECTOR 2. Connect spill tube. ●Tighten fixing bolts and nut in the numerical order shown in the figure. NOTE: Connection of spill tube gaske

Page 197 of 3833

NISSAN X-TRAIL 2001 Service Repair Manual FUEL SUPPLY PUMP EM-147 [YD22DDTi] C D E F G H I J K L MA EM FUEL SUPPLY PUMPPFP:00018 Removal and InstallationEBS00LRP CAUTION: ●Before removing and installing fuel supply pump, be sure to

Page 198 of 3833

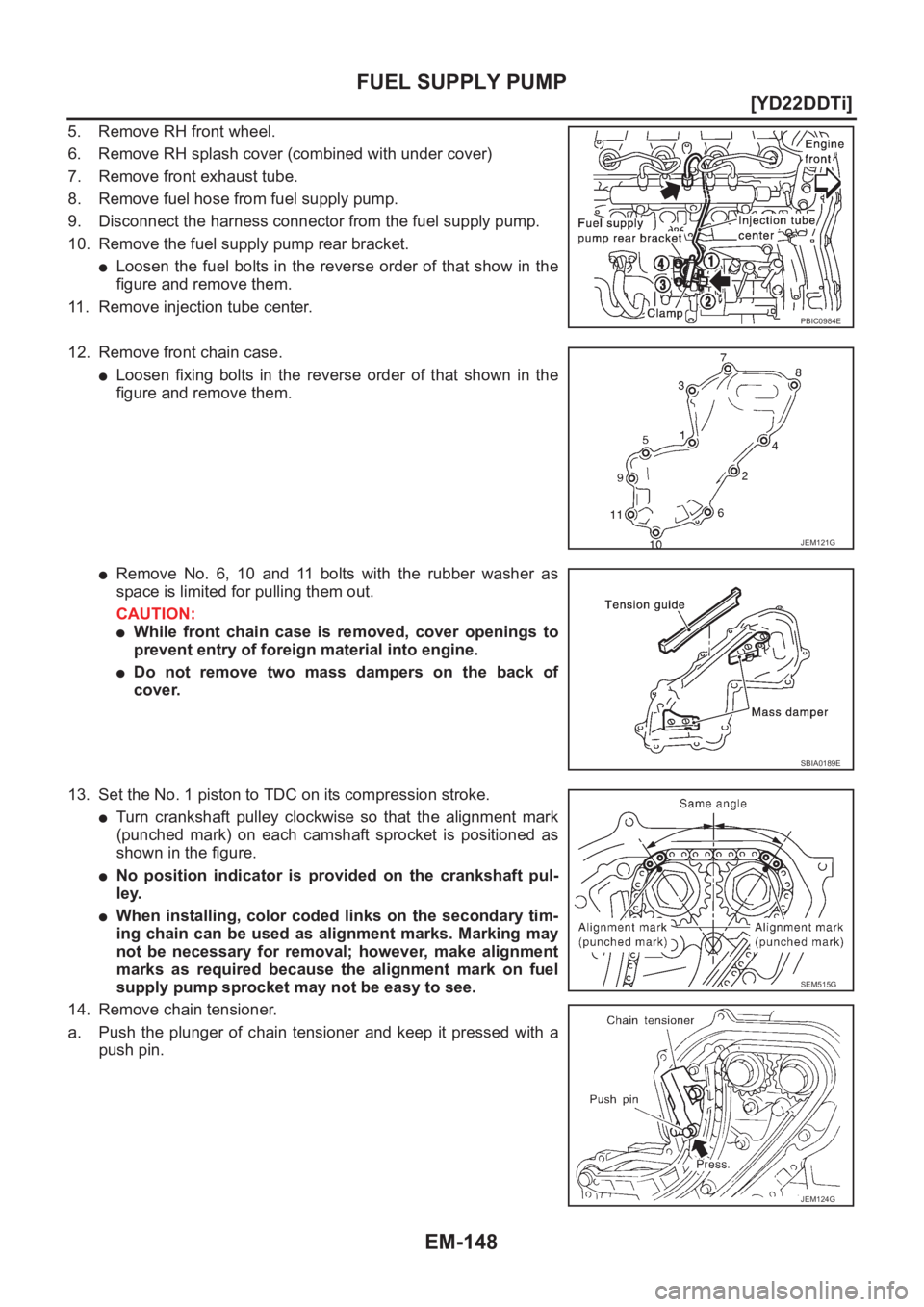

NISSAN X-TRAIL 2001 Service Repair Manual EM-148 [YD22DDTi] FUEL SUPPLY PUMP 5. Remove RH front wheel. 6. Remove RH splash cover (combined with under cover) 7. Remove front exhaust tube. 8. Remove fuel hose from fuel supply pump. 9. Disconnec

Page 199 of 3833

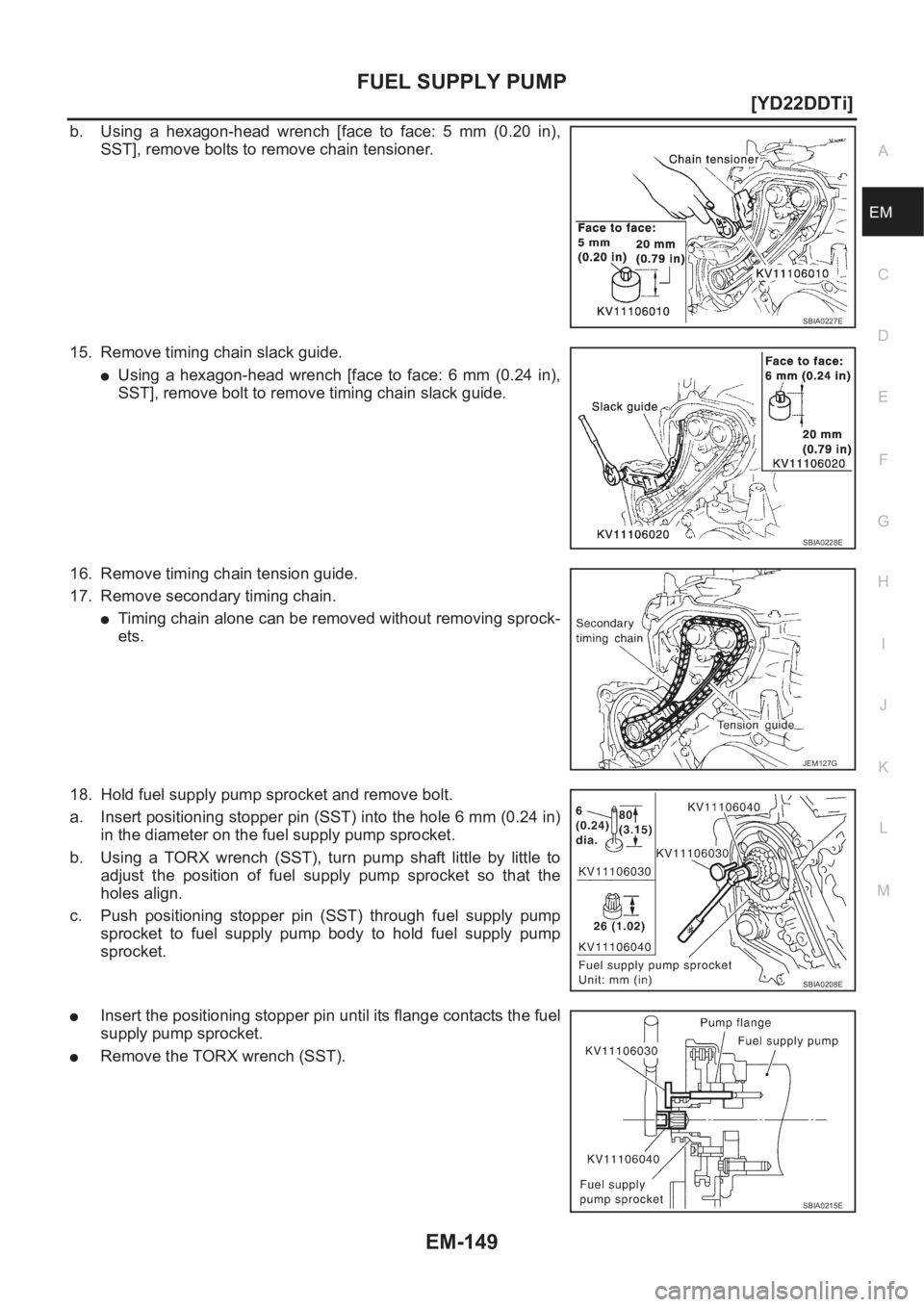

NISSAN X-TRAIL 2001 Service Repair Manual FUEL SUPPLY PUMP EM-149 [YD22DDTi] C D E F G H I J K L MA EM b. Using a hexagon-head wrench [face to face: 5 mm (0.20 in), SST], remove bolts to remove chain tensioner. 15. Remove timing cha

Page 200 of 3833

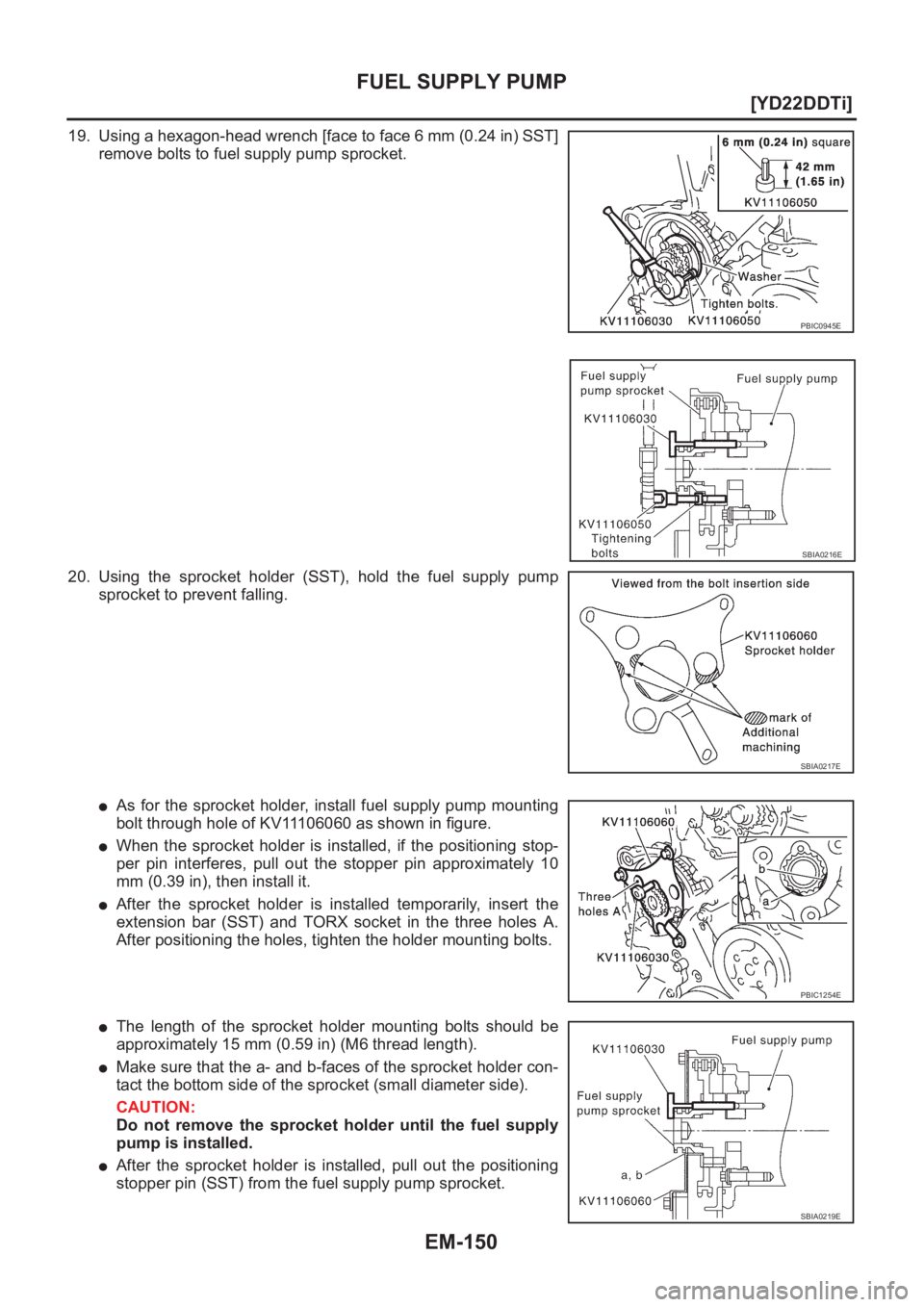

NISSAN X-TRAIL 2001 Service Repair Manual EM-150 [YD22DDTi] FUEL SUPPLY PUMP 19. Using a hexagon-head wrench [face to face 6 mm (0.24 in) SST] remove bolts to fuel supply pump sprocket. 20. Using the sprocket holder (SST), hold the fue
