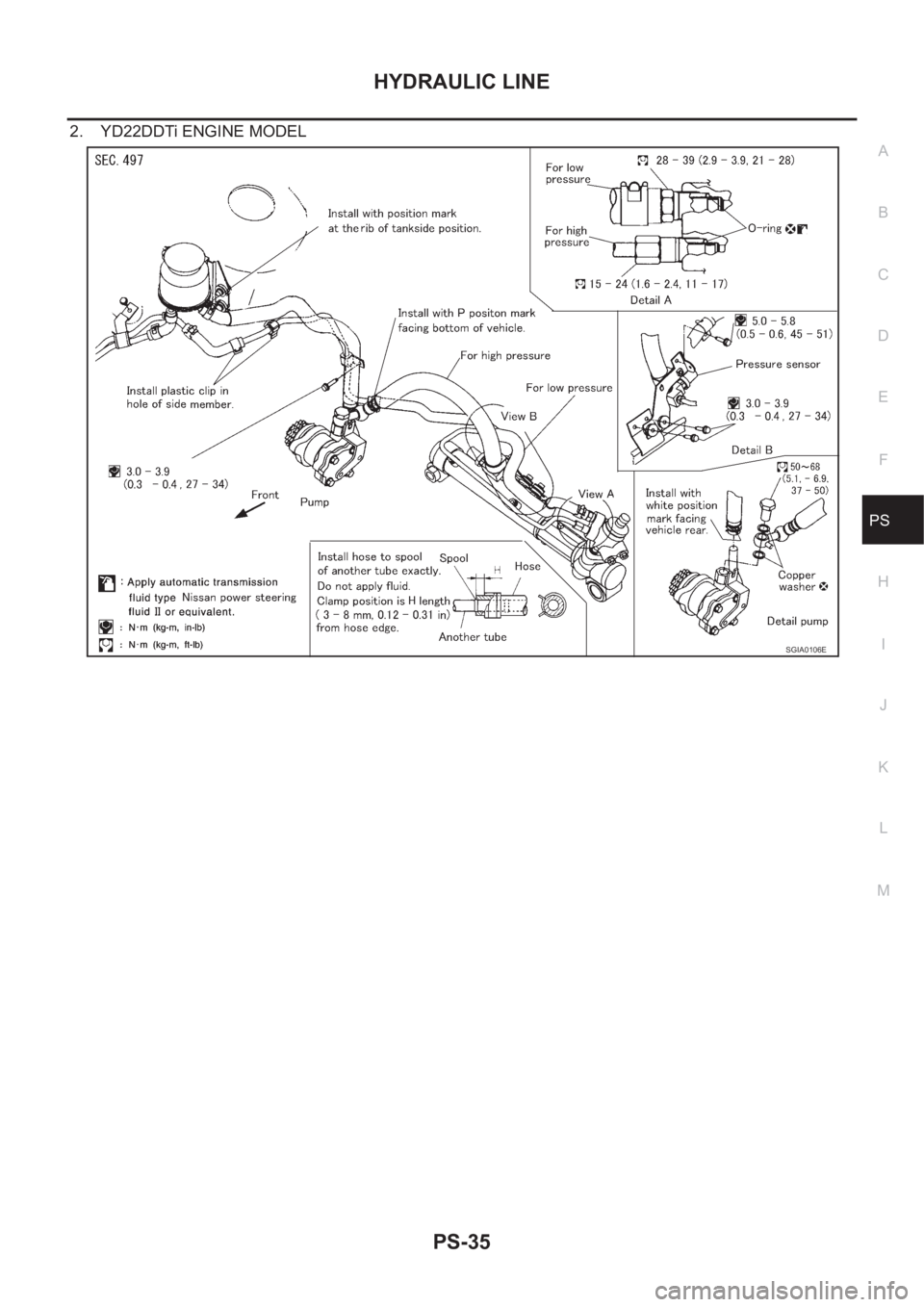

2. YD22DDTi ENGINE MODEL
SGIA0106E
Page 2946 of 3833

PS-36

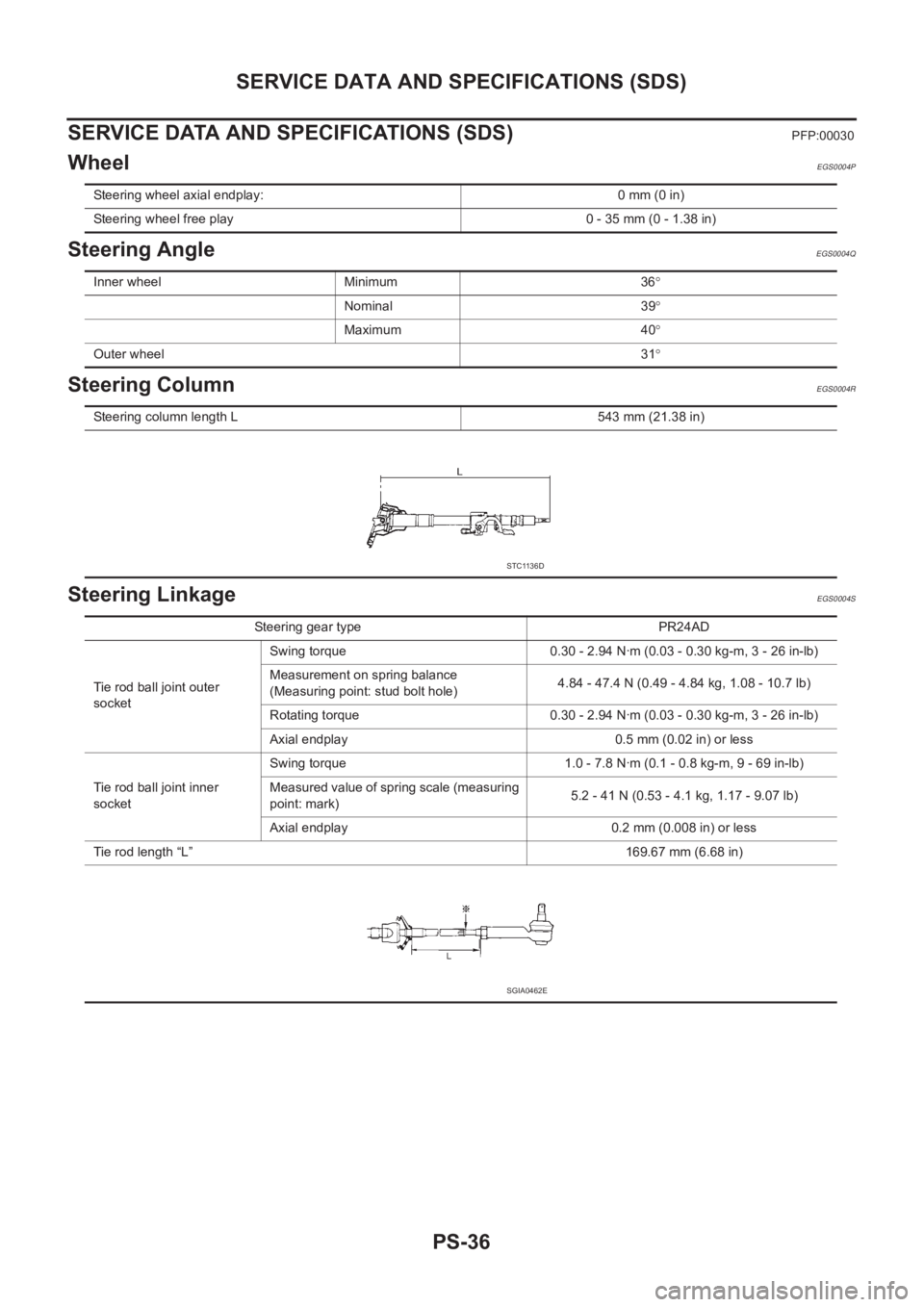

SERVICE DATA AND SPECIFICATIONS (SDS)
SERVICE DATA AND SPECIFICATIONS (SDS)
PFP:00030
WheelEGS0004P
Steering AngleEGS0004Q
Steering ColumnEGS0004R
Steering LinkageEGS0004S
Steering wheel axial endplay: 0 mm (0 in)
Steering wheel free play 0 - 35 mm (0 - 1.38 in)
Inner wheel Minimum 36°
Nominal 39°
Maximum 40°
Outer wheel31°
Steering column length L 543 mm (21.38 in)
STC1136D
Steering gear type PR24AD
Tie rod ball joint outer
socketSwing torque 0.30 - 2.94 N·m (0.03 - 0.30 kg-m, 3 - 26 in-lb)
Measurement on spring balance
(Measuring point: stud bolt hole)4.84 - 47.4 N (0.49 - 4.84 kg, 1.08 - 10.7 lb)
Rotating torque 0.30 - 2.94 N·m (0.03 - 0.30 kg-m, 3 - 26 in-lb)
Axial endplay 0.5 mm (0.02 in) or less
Tie rod ball joint inner
socketSwing torque 1.0 - 7.8 N·m (0.1 - 0.8 kg-m, 9 - 69 in-lb)
Measured value of spring scale (measuring
point: mark)5.2 - 41 N (0.53 - 4.1 kg, 1.17 - 9.07 lb)
Axial endplay 0.2 mm (0.008 in) or less
Tie rod length “L”169.67 mm (6.68 in)
SGIA0462E
Page 2947 of 3833

SERVICE DATA AND SPECIFICATIONS (SDS)
PS-37
C
D
E
F
H
I
J
K
L
MA
B
PS

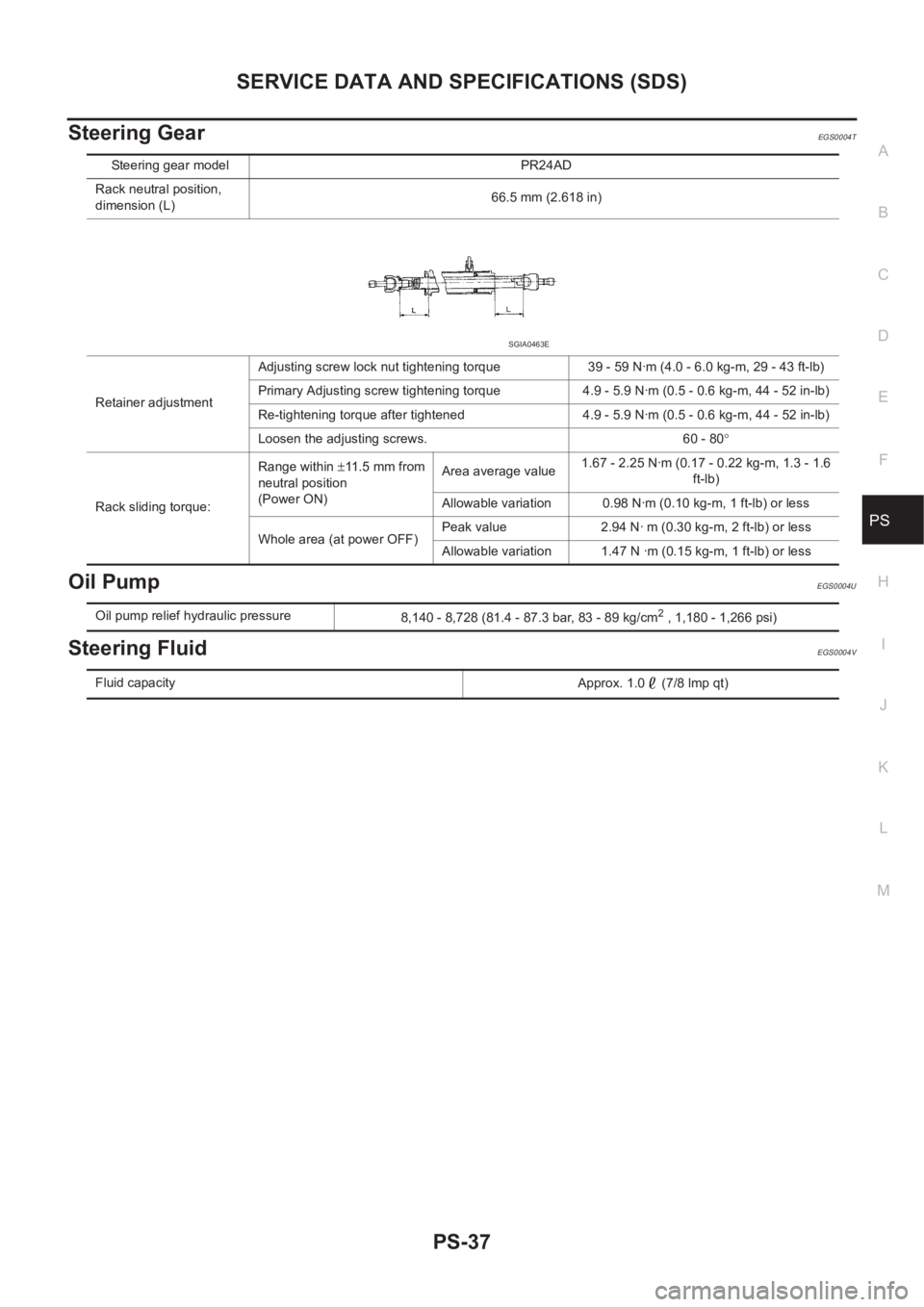

Steering GearEGS0004T
Oil PumpEGS0004U
Steering FluidEGS0004V
Steering gear model PR24AD
Rack neutral position,
dimension (L)66.5 mm (2.618 in)
Retainer adjustmentAdjusting screw lock nut tightening torque 39 - 59 N·m (4.0 - 6.0 kg-m, 29 - 43 ft-lb)
Primary Adjusting screw tightening torque 4.9 - 5.9 N·m (0.5 - 0.6 kg-m, 44 - 52 in-lb)
Re-tightening torque after tightened 4.9 - 5.9 N·m (0.5 - 0.6 kg-m, 44 - 52 in-lb)
Loosen the adjusting screws. 60 - 80°
Rack sliding torque:Range within ±11.5 mm from
neutral position
(Power ON)Area average value1.67 - 2.25 N·m (0.17 - 0.22 kg-m, 1.3 - 1.6
ft-lb)
Allowable variation 0.98 N·m (0.10 kg-m, 1 ft-lb) or less
Whole area (at power OFF)Peak value 2.94 N· m (0.30 kg-m, 2 ft-lb) or less
Allowable variation 1.47 N ·m (0.15 kg-m, 1 ft-lb) or less
SGIA0463E
Oil pump relief hydraulic pressure
8,140 - 8,728 (81.4 - 87.3 bar, 83 - 89 kg/cm2 , 1,180 - 1,266 psi)
Fluid capacity
Approx. 1.0 (7/8 lmp qt)
Page 2948 of 3833
PS-38
SERVICE DATA AND SPECIFICATIONS (SDS)
Page 2949 of 3833

FAX-1

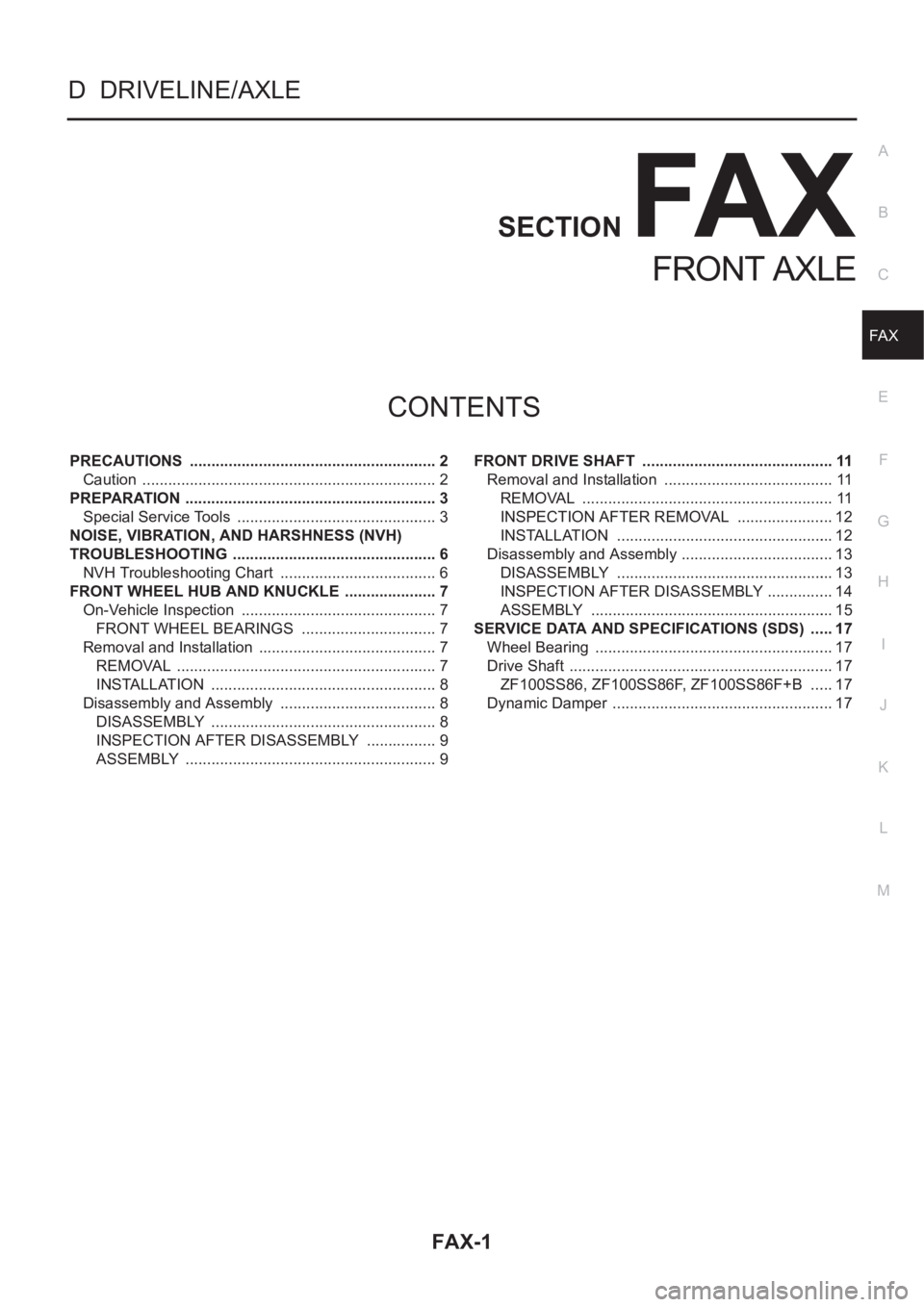

FRONT AXLE
D DRIVELINE/AXLE
CONTENTS
C
E
F
G
H
I
J
K
L
M
SECTION
A
B
FA X
FRONT AXLE
PRECAUTIONS .......................................................... 2
Caution ..................................................................... 2
PREPARATION ........................................................... 3
Special Service Tools ............................................... 3
NOISE, VIBRATION, AND HARSHNESS (NVH)
TROUBLESHOOTING ................................................ 6
NVH Troubleshooting Chart ..................................... 6
FRONT WHEEL HUB AND KNUCKLE ...................... 7
On-Vehicle Inspection .............................................. 7
FRONT WHEEL BEARINGS ................................ 7
Removal and Installation .......................................... 7
REMOVAL ............................................................. 7
INSTALLATION ..................................................... 8
Disassembly and Assembly ..................................... 8
DISASSEMBLY ..................................................... 8
INSPECTION AFTER DISASSEMBLY ................. 9
ASSEMBLY ........................................................... 9FRONT DRIVE SHAFT ............................................. 11
Removal and Installation ........................................ 11
REMOVAL ........................................................... 11
INSPECTION AFTER REMOVAL ....................... 12
INSTALLATION ................................................... 12
Disassembly and Assembly .................................... 13
DISASSEMBLY ................................................... 13
INSPECTION AFTER DISASSEMBLY ................ 14
ASSEMBLY ......................................................... 15
SERVICE DATA AND SPECIFICATIONS (SDS) ...... 17
Wheel Bearing ........................................................ 17
Drive Shaft .............................................................. 17
ZF100SS86, ZF100SS86F, ZF100SS86F+B ...... 17
Dynamic Damper ................................................. ... 17
Page 2950 of 3833

FAX-2
PRECAUTIONS
PRECAUTIONS
PFP:00001
CautionEDS0005P
●When installing rubber parts, final tightening must be carried out under unladen condition* with tires on
ground.
●Oil will shorten the life of rubber bushes. Be sure to wipe off any spilled oil.
*: Fuel, radiator coolant and engine oil full. Spare tire, jack, hand tools and mats in designated positions.
●After installing removed suspension parts, check wheel alignment and adjust if necessary.
Observe the following precautions when disassembling and servicing drive shaft.
●Perform work in a location which is as dust-free and dirt-free as possible.
●Before disassembling and servicing, clean the outside of parts.
●Disassembly and service location must be taken to prevent the entry of foreign objects.
●Disassembled parts must be carefully reassembled in the correct order. If work is interrupted, a clean
cover must be placed over parts.
●Paper shop cloths must be used. Fabric shop cloths must not be used because of the danger of lint adher-
ing to parts.
●Disassembled parts (except for rubber parts) should be cleaned with kerosene which shall be removed by
blowing with air or wiping with paper shop cloths.
Page 2951 of 3833
PREPARATION
FAX-3
C
E
F
G
H
I
J
K
L
MA
B
FA X
PREPARATIONPFP:00002
Special Service ToolsEDS0005Q
Tool number
Tool nameDescription
HT7252000
Ball joint removerRemoving tie-rod outer end and lower ball
joint
KV38107800
Protector
a: 29 mm (1.14 in) dia.
KV38105500
Protector
a: 40 mm (1.57 in) dia.Installing the drive shaft
ST17130000
Drift
a: 32 mm (1.26 in) dia.
b: 60 mm (1.57 in) dia.Disassembling support bearings
ST35271000
Drift
a: 72 mm (2.83 in) dia.
b: 63 mm (2.48 in) dia.Assembling support bearings
Installing wheel bearings
ST33252000
Drift
a: 82 mm (3.23 in) dia.
b: 60 mm (2.36 in) dia.Assembling support bearings
KV38100500
Drift
a: 80 mm (3.15 in) dia.
b: 60 mm (2.36 in) dia.Installing ABS sensor rotors
KV40101840
Collar
a: 67 mm (2.64 in) dia.
b: 85 mm (3.35 in) dia.Installing ABS sensor rotors
S-NT146
ZZA0835D
ZZA0836D
ZZA0837D
ZZA0838D
ZZA0701D
Z Z A 111 3 D
Page 2952 of 3833
FAX-4
PREPARATION

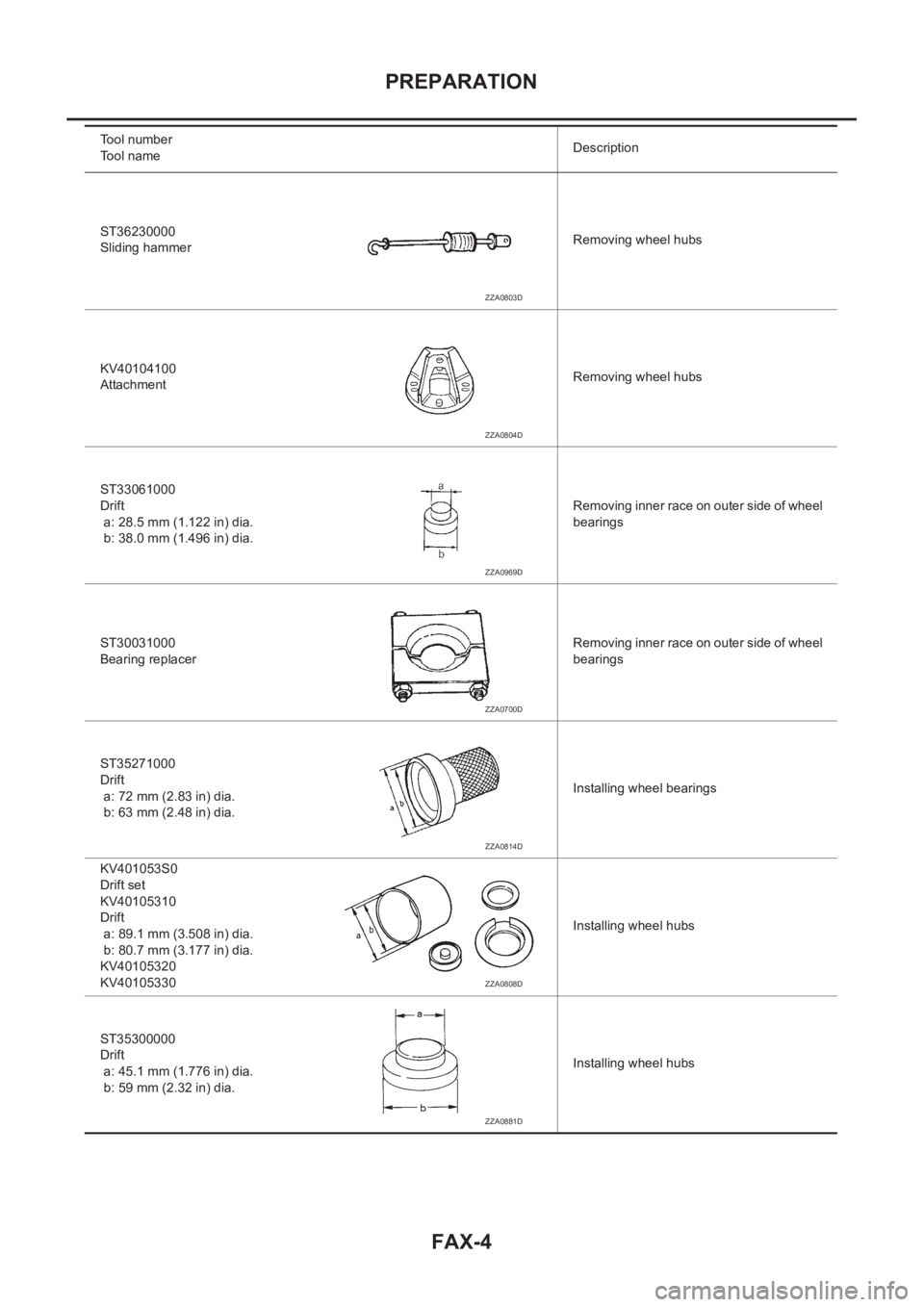

ST36230000
