NISSAN X-TRAIL 2001 Service Repair Manual TRANSAXLE ASSEMBLY
MT-49
D
E
F
G
H
I
J
K
L
MA
B
MT
2. Using depth micrometer and straight edge as shown in the fig-
ure, measure dimension "Q
2 " between clutch housing case end
face

TRANSAXLE ASSEMBLY
MT-49
D
E
F
G
H
I
J
K
L
MA
B
MT

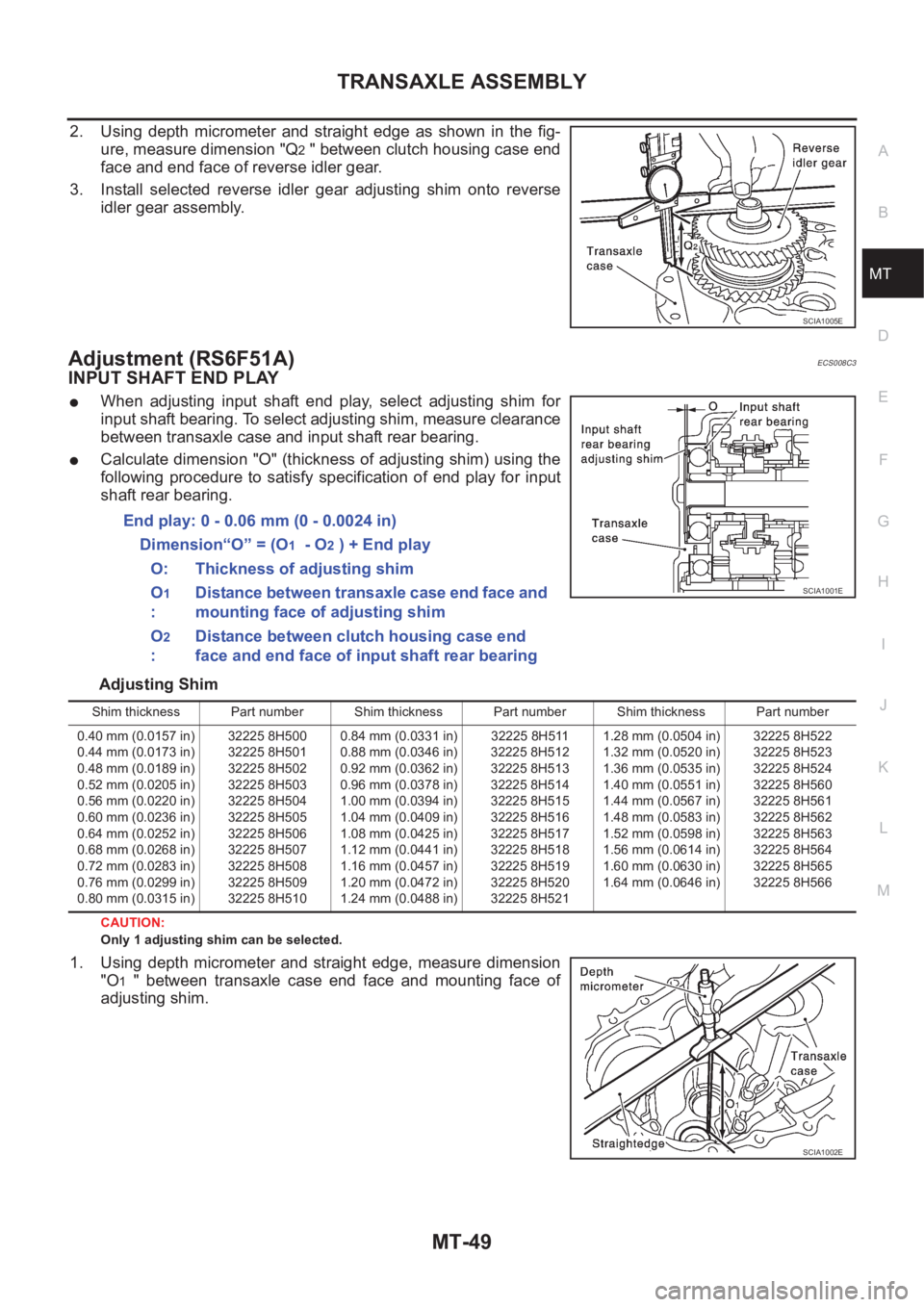

2. Using depth micrometer and straight edge as shown in the fig-
ure, measure dimension "Q
2 " between clutch housing case end
face and end face of reverse idler gear.
3. Install selected reverse idler gear adjusting shim onto reverse
idler gear assembly.
Adjustment (RS6F51A)ECS008C3
INPUT SHAFT END PLAY
●When adjusting input shaft end play, select adjusting shim for
input shaft bearing. To select adjusting shim, measure clearance
between transaxle case and input shaft rear bearing.
●Calculate dimension "O" (thickness of adjusting shim) using the
following procedure to satisfy specification of end play for input
shaft rear bearing.
Adjusting Shim
CAUTION:
Only 1 adjusting shim can be selected.
1. Using depth micrometer and straight edge, measure dimension
"O
1 " between transaxle case end face and mounting face of
adjusting shim.
SCIA1005E
End play: 0 - 0.06 mm (0 - 0.0024 in)
Dimension“O” = (O
1 - O2 ) + End play
O: Thickness of adjusting shim
O
1
:Distance between transaxle case end face and
mounting face of adjusting shim
O
2
:Distance between clutch housing case end
face and end face of input shaft rear bearing
SCIA1001E
Shim thickness Part number Shim thickness Part number Shim thickness Part number
0.40 mm (0.0157 in)
0.44 mm (0.0173 in)
0.48 mm (0.0189 in)
0.52 mm (0.0205 in)
0.56 mm (0.0220 in)
0.60 mm (0.0236 in)
0.64 mm (0.0252 in)
0.68 mm (0.0268 in)
0.72 mm (0.0283 in)
0.76 mm (0.0299 in)
0.80 mm (0.0315 in)32225 8H500
32225 8H501
32225 8H502
32225 8H503
32225 8H504
32225 8H505
32225 8H506
32225 8H507
32225 8H508
32225 8H509
32225 8H5100.84 mm (0.0331 in)
0.88 mm (0.0346 in)
0.92 mm (0.0362 in)
0.96 mm (0.0378 in)
1.00 mm (0.0394 in)
1.04 mm (0.0409 in)
1.08 mm (0.0425 in)
1.12 mm (0.0441 in)
1.16 mm (0.0457 in)
1.20 mm (0.0472 in)
1.24 mm (0.0488 in)32225 8H511
32225 8H512
32225 8H513
32225 8H514
32225 8H515
32225 8H516
32225 8H517
32225 8H518
32225 8H519
32225 8H520
32225 8H5211.28 mm (0.0504 in)
1.32 mm (0.0520 in)
1.36 mm (0.0535 in)
1.40 mm (0.0551 in)
1.44 mm (0.0567 in)
1.48 mm (0.0583 in)
1.52 mm (0.0598 in)
1.56 mm (0.0614 in)
1.60 mm (0.0630 in)
1.64 mm (0.0646 in)32225 8H522
32225 8H523
32225 8H524
32225 8H560
32225 8H561
32225 8H562
32225 8H563
32225 8H564
32225 8H565
32225 8H566
SCIA1002E

Page 2026 of 3833

NISSAN X-TRAIL 2001 Service Repair Manual MT-50
TRANSAXLE ASSEMBLY

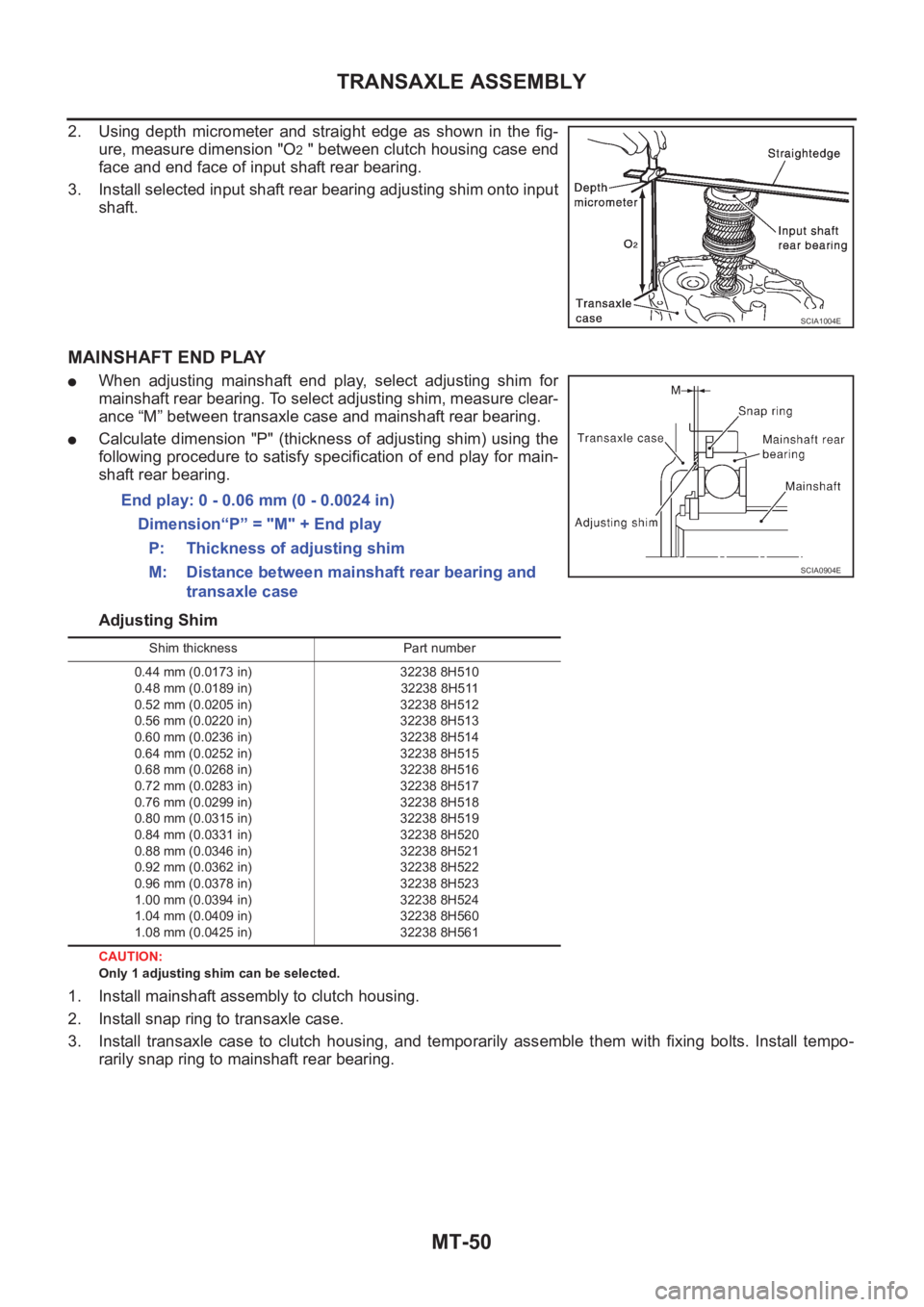

2. Using depth micrometer and straight edge as shown in the fig-
ure, measure dimension "O
2 " between clutch housing case end
face and end face of input sha

Page 2027 of 3833

NISSAN X-TRAIL 2001 Service Repair Manual TRANSAXLE ASSEMBLY
MT-51
D
E
F
G
H
I
J
K
L
MA
B
MT

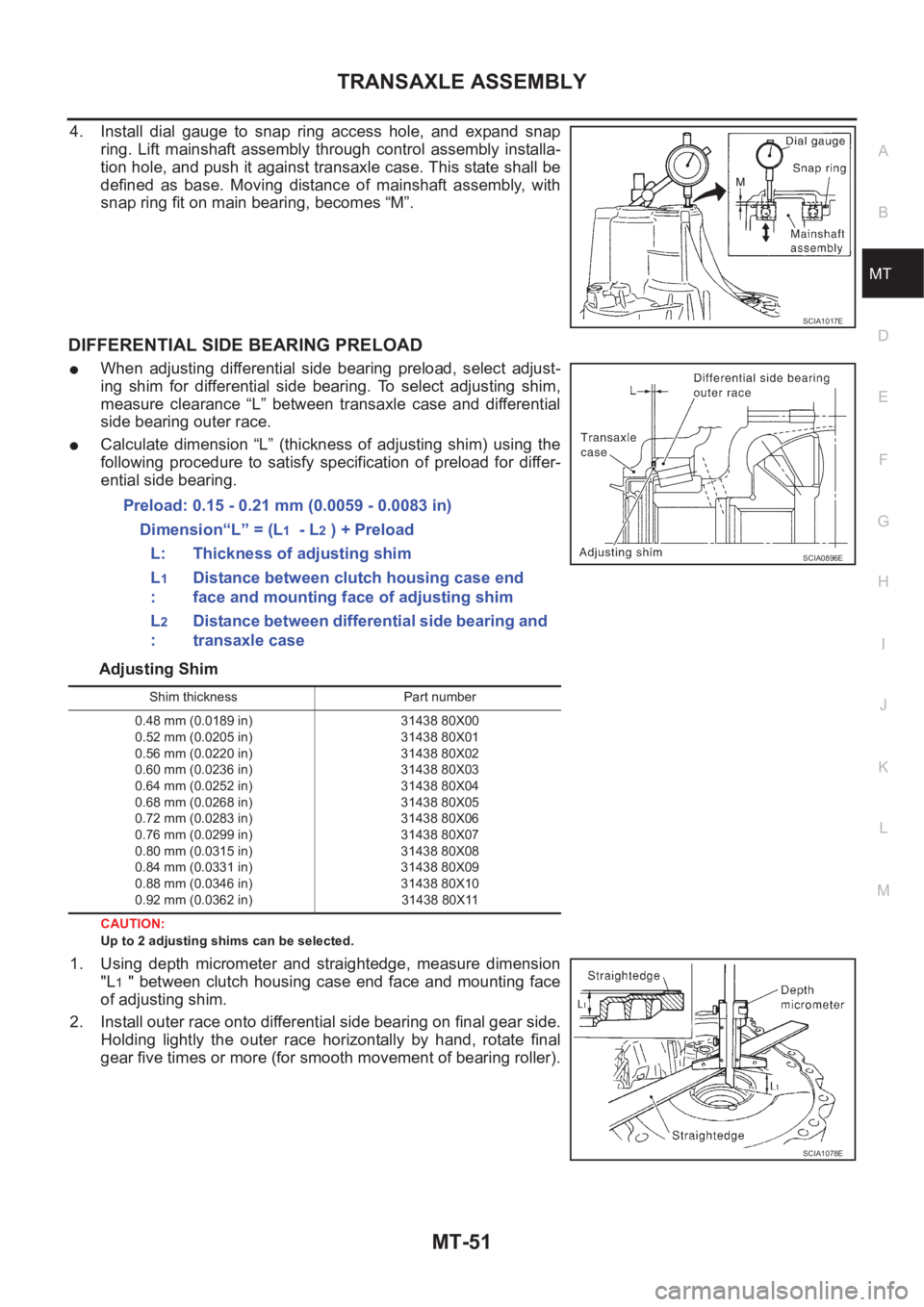

4. Install dial gauge to snap ring access hole, and expand snap
ring. Lift mainshaft assembly through control assembly installa-
tio

Page 2028 of 3833

NISSAN X-TRAIL 2001 Service Repair Manual MT-52
TRANSAXLE ASSEMBLY

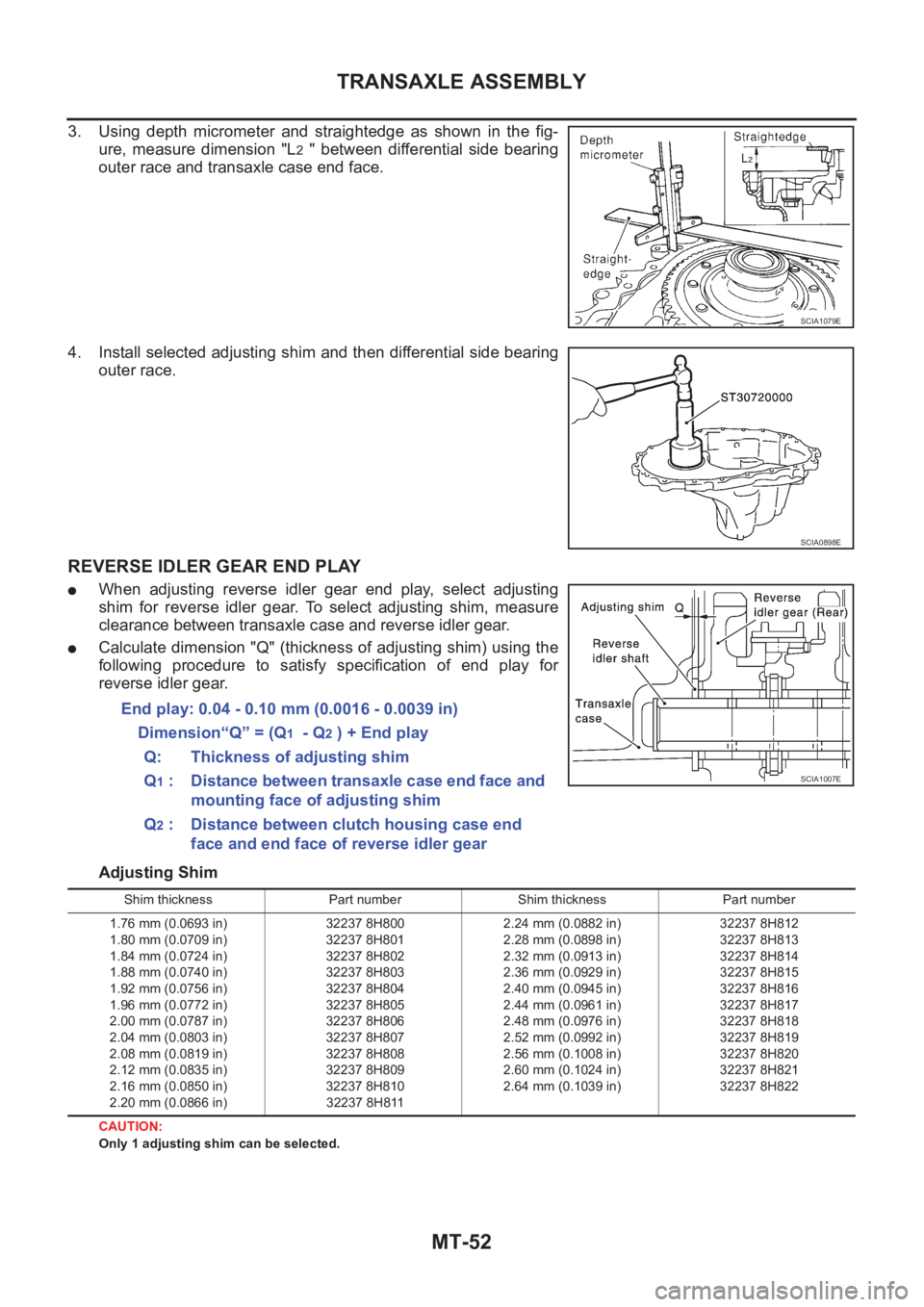

3. Using depth micrometer and straightedge as shown in the fig-
ure, measure dimension "L
2 " between differential side bearing
outer race and transax

Page 2029 of 3833

NISSAN X-TRAIL 2001 Service Repair Manual TRANSAXLE ASSEMBLY
MT-53
D
E
F
G
H
I
J
K
L
MA
B
MT

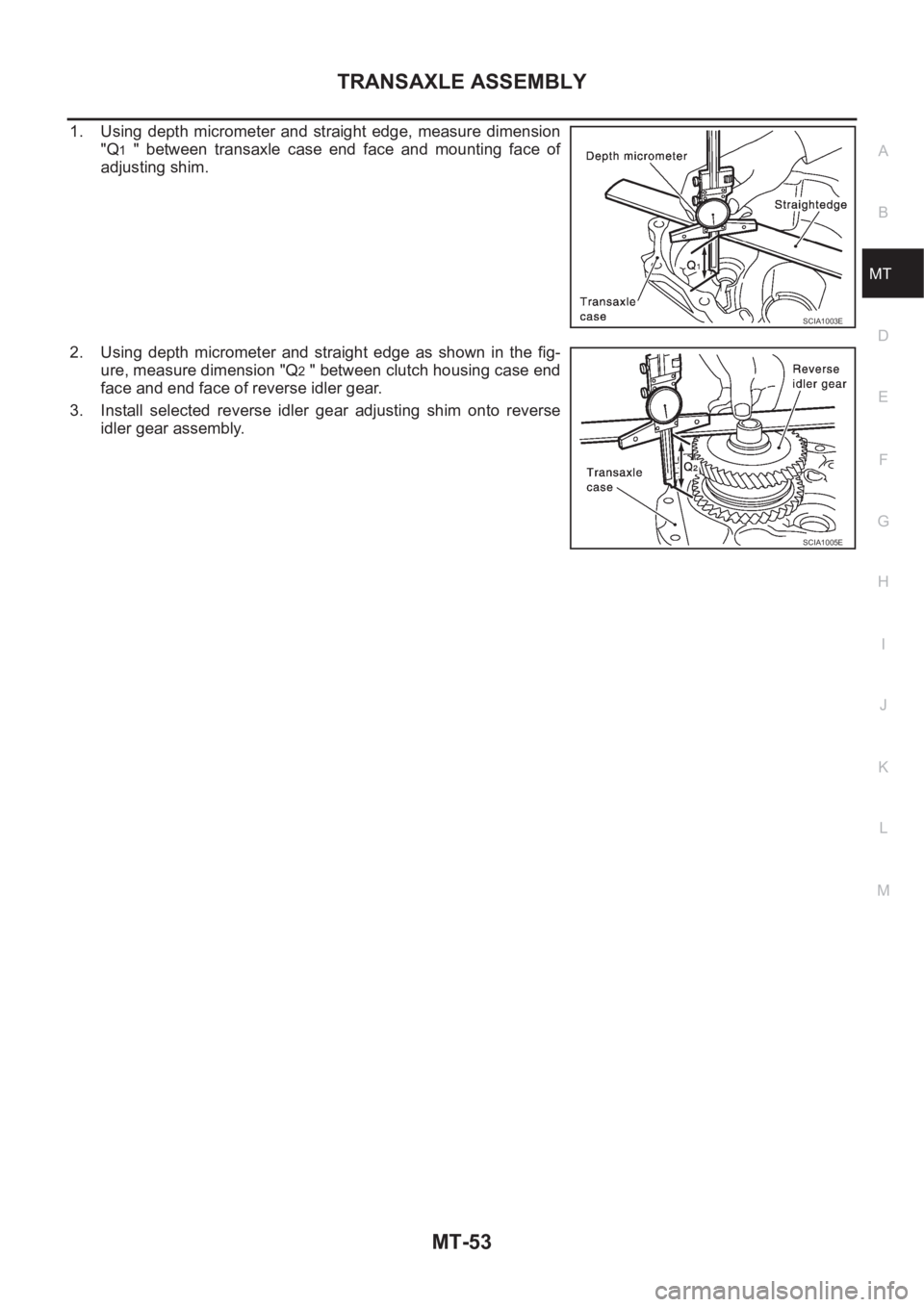

1. Using depth micrometer and straight edge, measure dimension
"Q
1 " between transaxle case end face and mounting face of
a

Page 2030 of 3833

NISSAN X-TRAIL 2001 Service Repair Manual MT-54

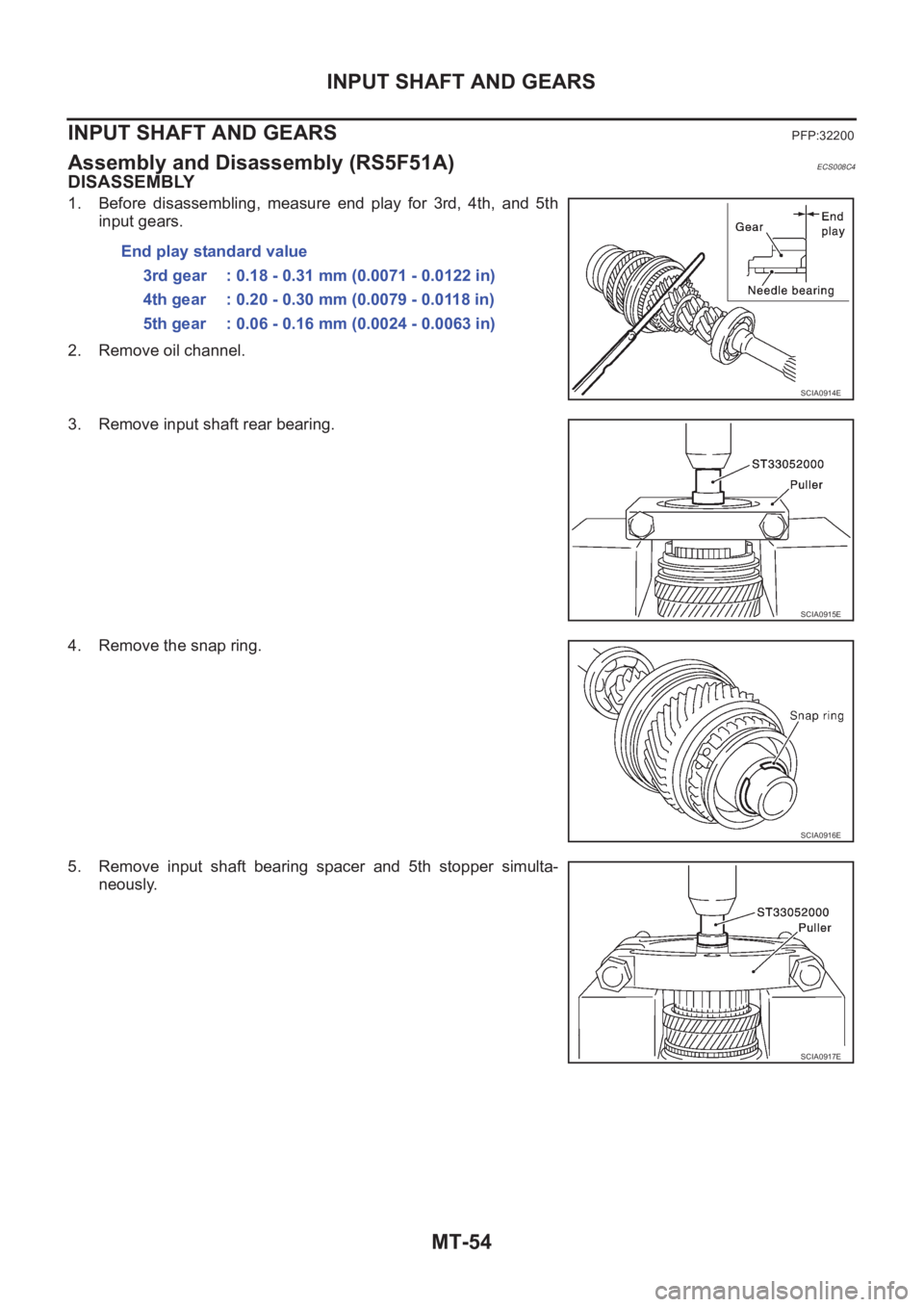

INPUT SHAFT AND GEARS
INPUT SHAFT AND GEARS
PFP:32200
Assembly and Disassembly (RS5F51A)ECS008C4
DISASSEMBLY
1. Before disassembling, measure end play for 3rd, 4th, and 5th
input gears.

Page 2031 of 3833

NISSAN X-TRAIL 2001 Service Repair Manual INPUT SHAFT AND GEARS
MT-55
D
E
F
G
H
I
J
K
L
MA
B
MT

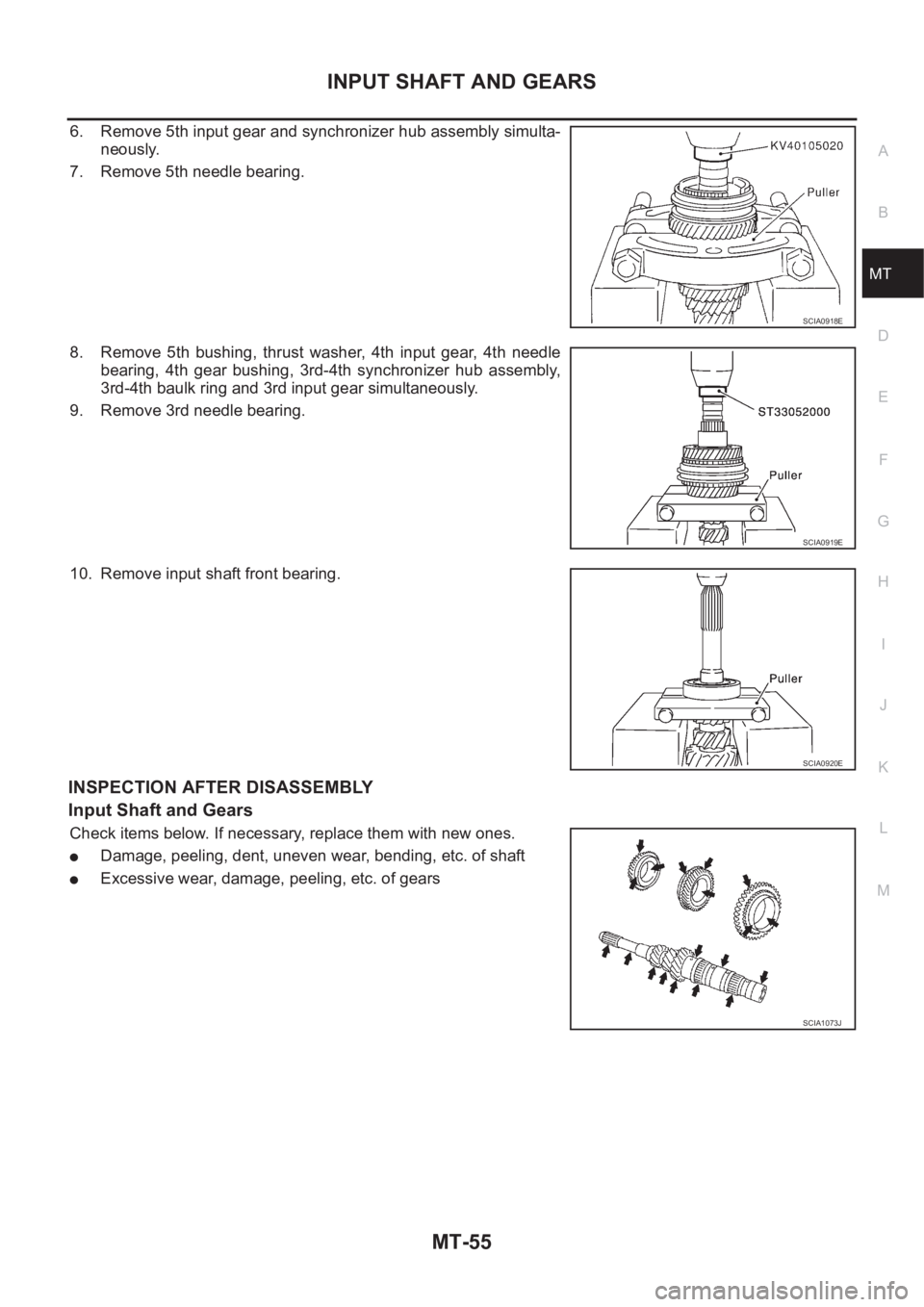

6. Remove 5th input gear and synchronizer hub assembly simulta-
neously.
7. Remove 5th needle bearing.
8. Remove 5th bushing, thrust washer, 4th i

Page 2032 of 3833

NISSAN X-TRAIL 2001 Service Repair Manual MT-56
INPUT SHAFT AND GEARS

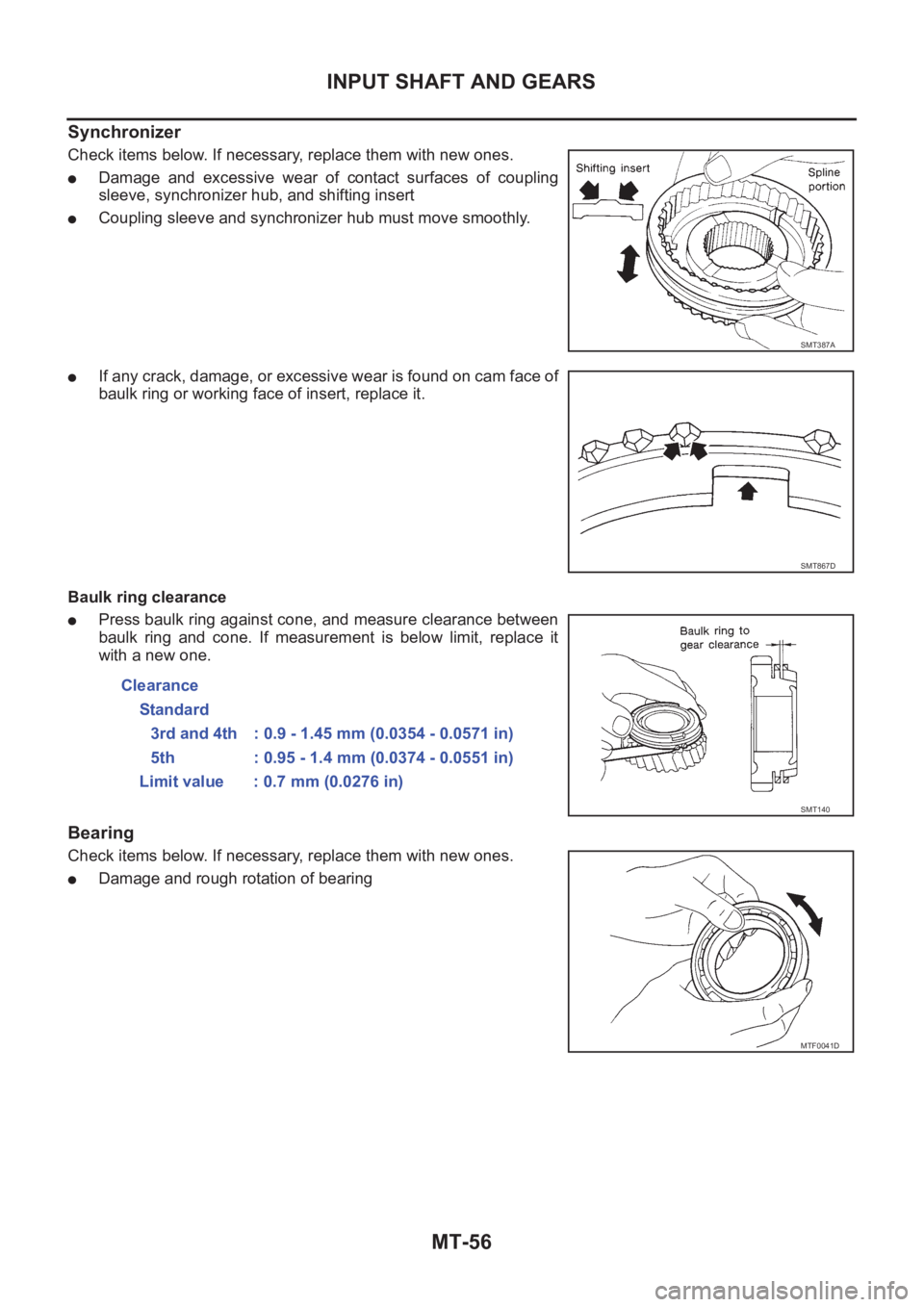

Synchronizer
Check items below. If necessary, replace them with new ones.
●Damage and excessive wear of contact surfaces of coupling
sleeve, synchronizer hub, and
