SECONDARY TIMING CHAIN
EM-167
[YD22DDTi]
C
D
E
F
G
H
I
J
K
L
MA
EM
SECONDARY TIMING CHAINPFP:13028
Removal and InstallationEBS00LRT
CAUTION:
●After removing timing chain, do not turn crankshaft and camshaft separately, or valves will strike
piston heads.
●When installing camshafts, chain tensioners, oil seals or other sliding parts, lubricate contacting
surfaces with new engine oil.
●Apply new engine oil to parts marked in illustration before installation.
REMOVAL
●For preparative work for removing/installing secondary timing chain to remove/install electronic fuel supply
pump. Refer to EM-147, "
FUEL SUPPLY PUMP" .
●To prepare for removing/installing secondary timing chain to remove/install camshaft. Refer to EM-158,
"Removal and Installation" .
1. Remove engine coolant reservoir tank.
2. Remove RH engine mount insulator and bracket. Refer to EM-193, "
Removal and Installation" .
3. Pull power steering reservoir tank out of brackets to move power steering piping.
CAUTION:
To avoid removing power steering reservoir tank out of brackets move it with power steering pip-
ing aside.
PBIC1238E
Page 218 of 3833
![NISSAN X-TRAIL 2001 Service Repair Manual EM-168
[YD22DDTi]
SECONDARY TIMING CHAIN
4. Remove front chain case.
●Loosen fixing bolts in the reverse order of that shown in the
figure and remove them.
●Remove No. 6, 10 and 11 bolt NISSAN X-TRAIL 2001 Service Repair Manual EM-168
[YD22DDTi]
SECONDARY TIMING CHAIN
4. Remove front chain case.
●Loosen fixing bolts in the reverse order of that shown in the
figure and remove them.
●Remove No. 6, 10 and 11 bolt](/manual-img/5/57405/w960_57405-217.png)
EM-168
[YD22DDTi]
SECONDARY TIMING CHAIN

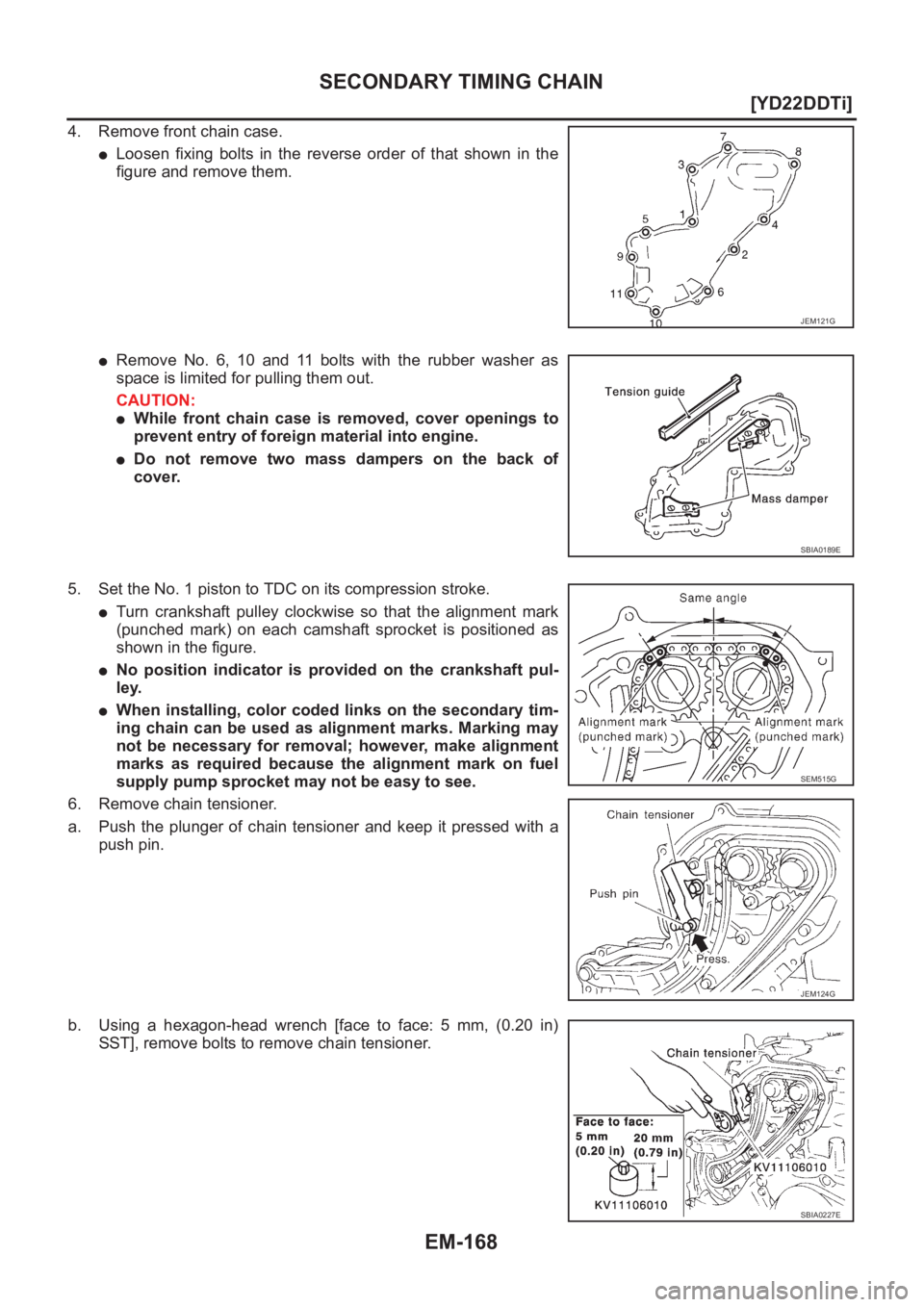

4. Remove front chain case.
●Loosen fixing bolts in the reverse order of that shown in the
figure and remove them.
●Remove No. 6, 10 and 11 bolts with the rubber washer as
space is limited for pulling them out.
CAUTION:
●While front chain case is removed, cover openings to
prevent entry of foreign material into engine.
●Do not remove two mass dampers on the back of
cover.
5. Set the No. 1 piston to TDC on its compression stroke.
●Turn crankshaft pulley clockwise so that the alignment mark
(punched mark) on each camshaft sprocket is positioned as
shown in the figure.
●No position indicator is provided on the crankshaft pul-
ley.
●When installing, color coded links on the secondary tim-
ing chain can be used as alignment marks. Marking may
not be necessary for removal; however, make alignment
marks as required because the alignment mark on fuel
supply pump sprocket may not be easy to see.
6. Remove chain tensioner.
a. Push the plunger of chain tensioner and keep it pressed with a
push pin.
b. Using a hexagon-head wrench [face to face: 5 mm, (0.20 in)
SST], remove bolts to remove chain tensioner.
JEM121G
SBIA0189E
SEM515G
JEM124G
SBIA0227E
Page 219 of 3833
SECONDARY TIMING CHAIN
EM-169
[YD22DDTi]
C
D
E
F
G
H
I
J
K
L
MA
EM

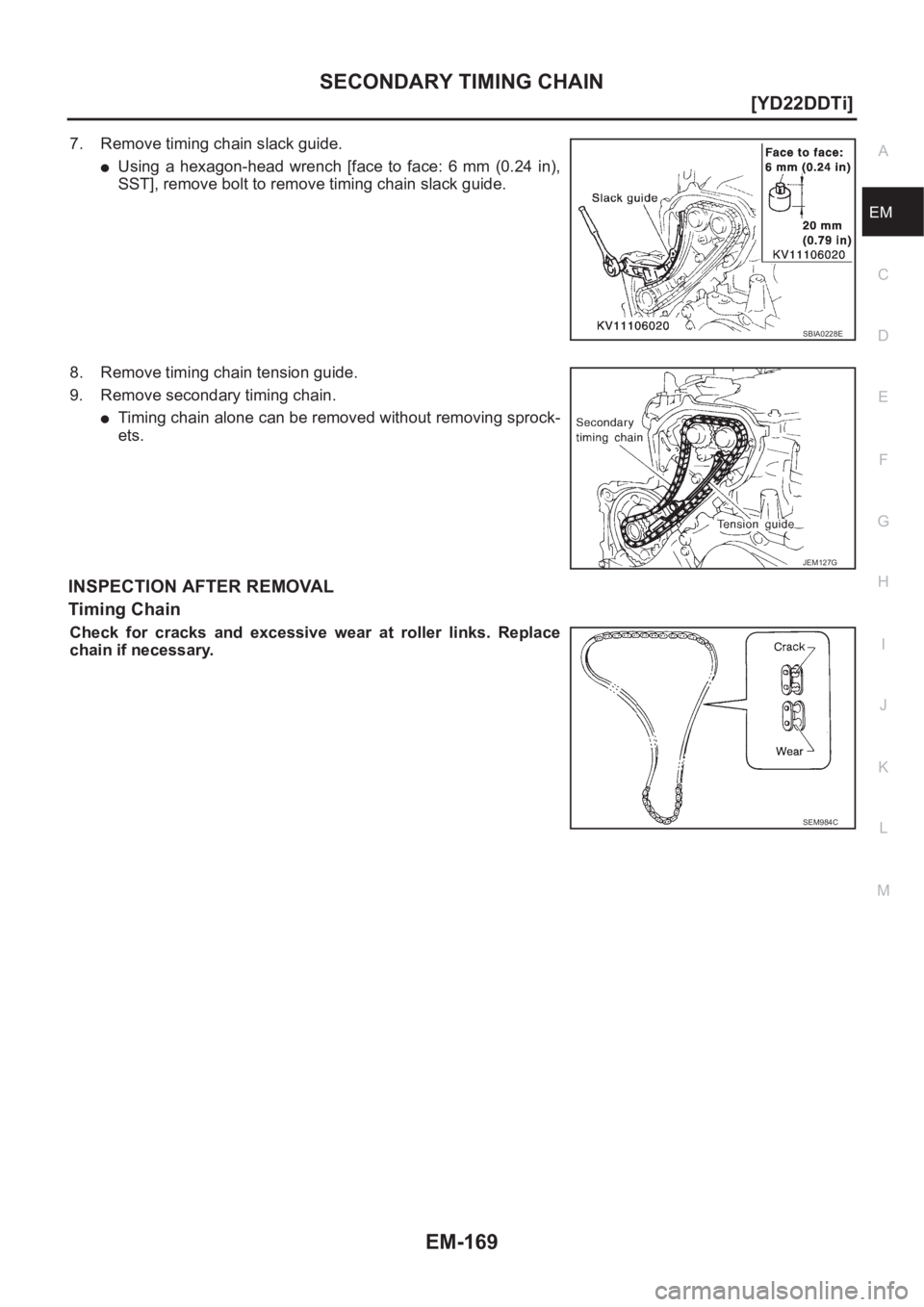

7. Remove timing chain slack guide.
●Using a hexagon-head wrench [face to face: 6 mm (0.24 in),
SST], remove bolt to remove timing chain slack guide.
8. Remove timing chain tension guide.
9. Remove secondary timing chain.
●Timing chain alone can be removed without removing sprock-
ets.
INSPECTION AFTER REMOVAL
Timing Chain
Check for cracks and excessive wear at roller links. Replace
chain if necessary.
SBIA0228E
JEM127G
SEM984C
Page 220 of 3833
EM-170
[YD22DDTi]
SECONDARY TIMING CHAIN
INSTALLATION

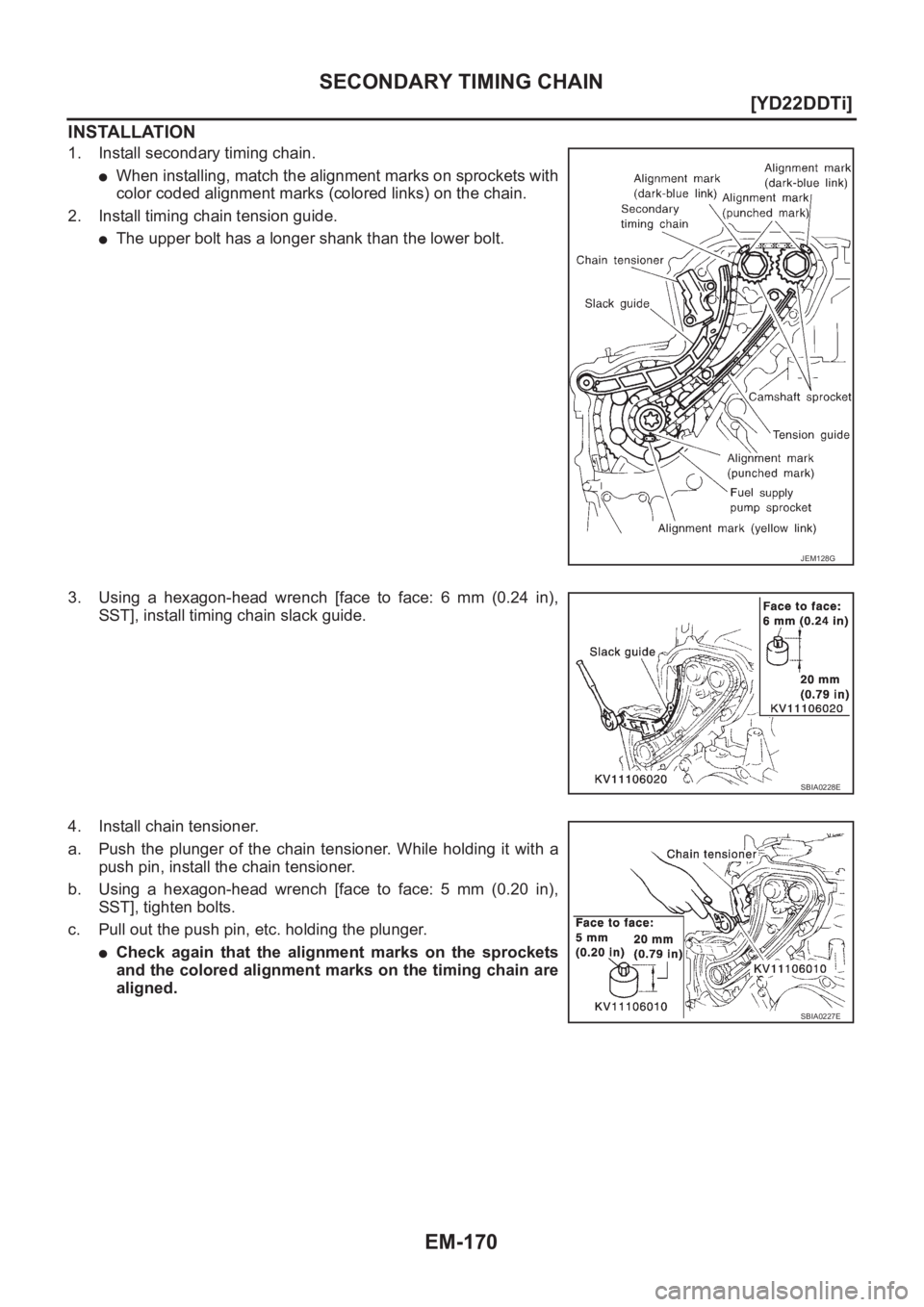

1. Install secondary timing chain.
●When installing, match the alignment marks on sprockets with
color coded alignment marks (colored links) on the chain.
2. Install timing chain tension guide.
●The upper bolt has a longer shank than the lower bolt.
3. Using a hexagon-head wrench [face to face: 6 mm (0.24 in),
SST], install timing chain slack guide.
4. Install chain tensioner.
a. Push the plunger of the chain tensioner. While holding it with a
push pin, install the chain tensioner.
b. Using a hexagon-head wrench [face to face: 5 mm (0.20 in),
SST], tighten bolts.
c. Pull out the push pin, etc. holding the plunger.
●Check again that the alignment marks on the sprockets
and the colored alignment marks on the timing chain are
aligned.
JEM128G
SBIA0228E
SBIA0227E
Page 221 of 3833
SECONDARY TIMING CHAIN
EM-171
[YD22DDTi]
C
D
E
F
G
H
I
J
K
L
MA
EM

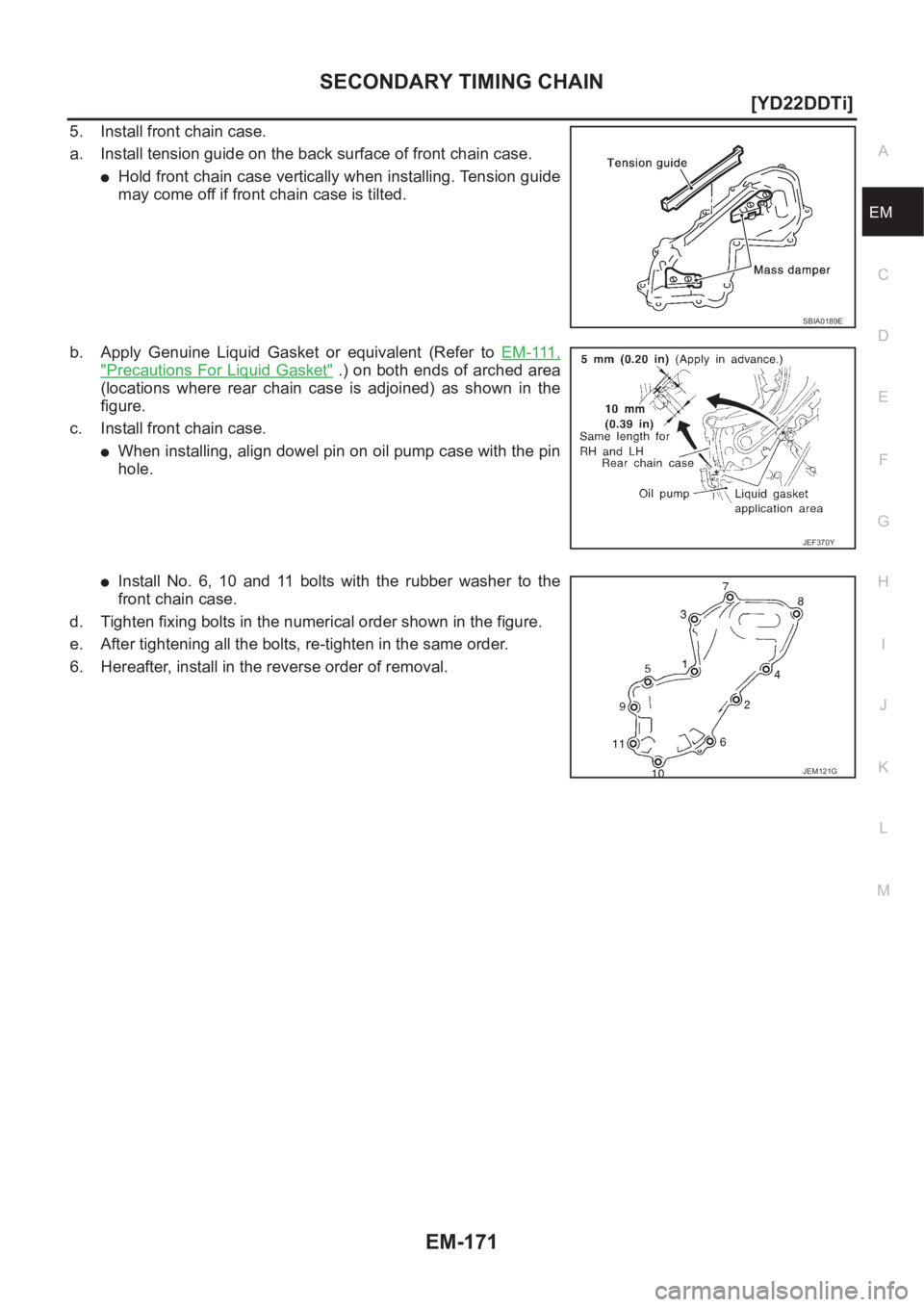

5. Install front chain case.
a. Install tension guide on the back surface of front chain case.
●Hold front chain case vertically when installing. Tension guide
may come off if front chain case is tilted.
b. Apply Genuine Liquid Gasket or equivalent (Refer to EM-111,
"Precautions For Liquid Gasket" .) on both ends of arched area
(locations where rear chain case is adjoined) as shown in the
figure.
c. Install front chain case.
●When installing, align dowel pin on oil pump case with the pin
hole.
●Install No. 6, 10 and 11 bolts with the rubber washer to the
front chain case.
d. Tighten fixing bolts in the numerical order shown in the figure.
e. After tightening all the bolts, re-tighten in the same order.
6. Hereafter, install in the reverse order of removal.
SBIA0189E
JEF370Y
JEM121G
Page 222 of 3833

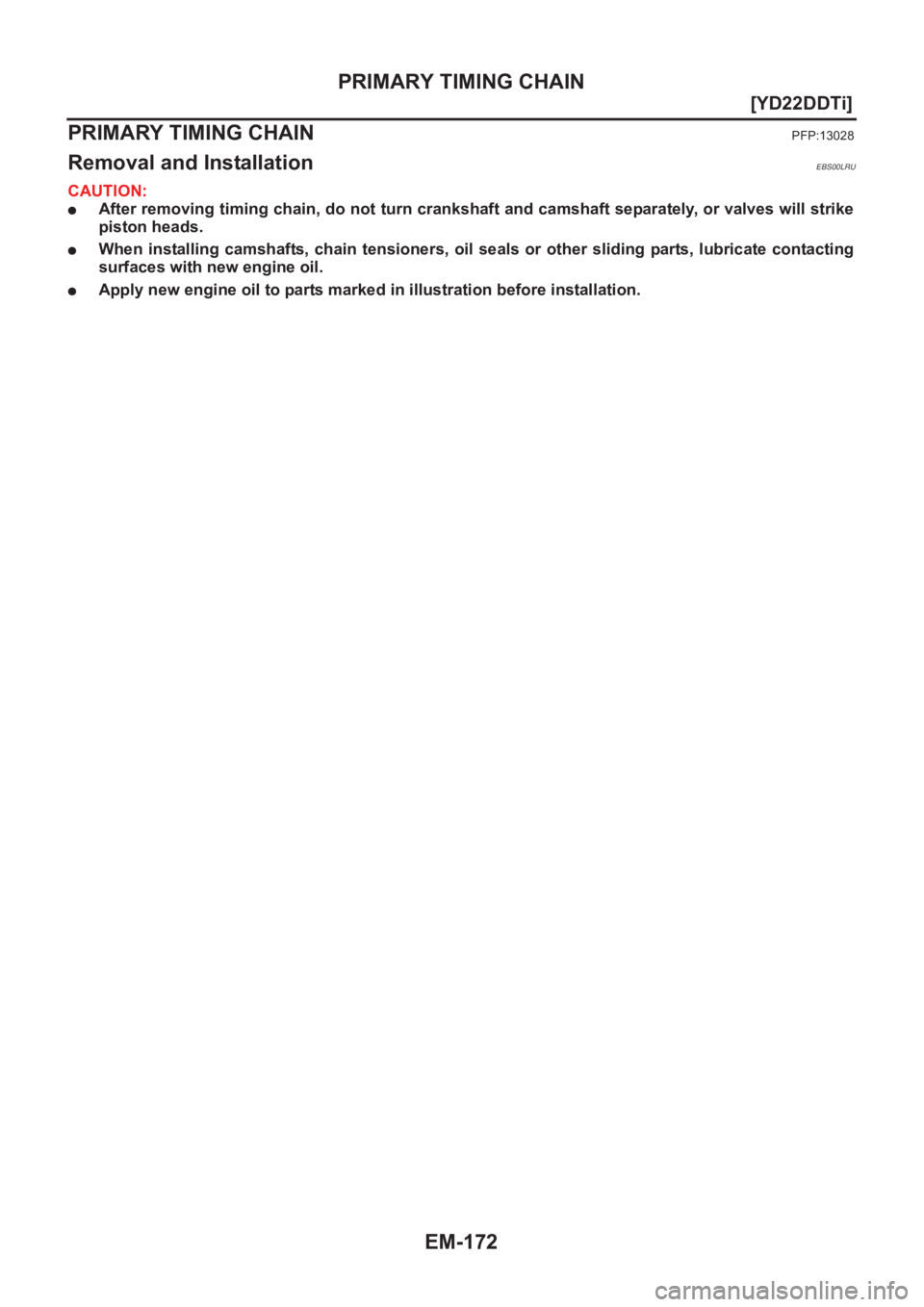

EM-172
[YD22DDTi]
PRIMARY TIMING CHAIN
PRIMARY TIMING CHAIN
PFP:13028
Removal and InstallationEBS00LRU
CAUTION:
●After removing timing chain, do not turn crankshaft and camshaft separately, or valves will strike
piston heads.
●When installing camshafts, chain tensioners, oil seals or other sliding parts, lubricate contacting
surfaces with new engine oil.
●Apply new engine oil to parts marked in illustration before installation.
Page 223 of 3833
PRIMARY TIMING CHAIN
EM-173
[YD22DDTi]
C
D
E
F
G
H
I
J
K
L
MA
EM
PBIC1230E

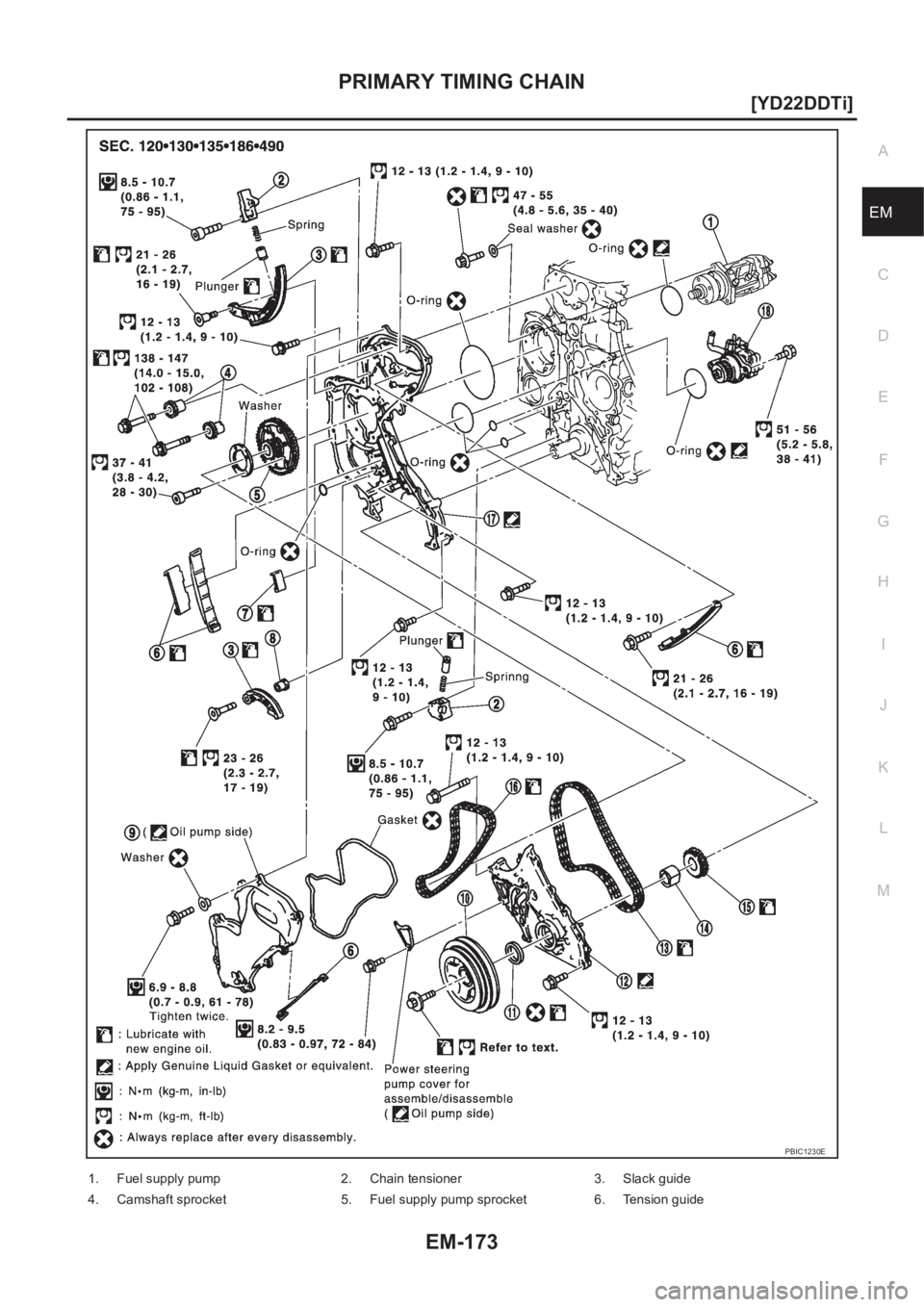

1. Fuel supply pump 2. Chain tensioner 3. Slack guide
4. Camshaft sprocket 5. Fuel supply pump sprocket 6. Tension guide
Page 224 of 3833
![NISSAN X-TRAIL 2001 Service Repair Manual EM-174
[YD22DDTi]
PRIMARY TIMING CHAIN
REMOVAL
1. Remove engine coolant reservoir tank.
2. Remove charge air cooler and bracket. Refer to EM-122, "
Removal and Installation" .
3. Remove air cl NISSAN X-TRAIL 2001 Service Repair Manual EM-174
[YD22DDTi]
PRIMARY TIMING CHAIN
REMOVAL
1. Remove engine coolant reservoir tank.
2. Remove charge air cooler and bracket. Refer to EM-122, "
Removal and Installation" .
3. Remove air cl](/manual-img/5/57405/w960_57405-223.png)
EM-174
[YD22DDTi]
PRIMARY TIMING CHAIN
REMOVAL
1. Remove engine coolant reservoir tank.
2. Remove charge air cooler and bracket. Refer to EM-122, "
Removal and Installation" .
3. Remove air cleaner and air duct. Refer to EM-120, "
Removal and Installation" .
4. Remove rocker cover. Refer to EM-156, "
Removal and Installation" .
5. Remove RH engine mount insulator and bracket. Refer to EM-193, "
Removal and Installation" .
6. Pull power steering reservoir tank out of brackets to move power steering piping.
CAUTION:
To avoid removing power steering reservoir tank out of brackets move it with power steering pip-
ing aside.
7. Remove oil pan. Refer to EM-133, "
Removal and Installation" .
8. Remove oil filter bracket. Refer to LU-22, "
OIL FILTER BRACKET" .
9. Remove injection tube and fuel injector. Refer to EM-144, "
Removal and Installation" .
10. Remove secondary timing chain and associated parts. Refer to EM-167, "
Removal and Installation" .
11. When removing rear chain case, remove camshaft sprockets. Refer to EM-158, "
Removal and Installa-
tion" .
12. Remove crankshaft pulley.
a. Hold crankshaft pulley with the pulley holder (SST).
b. Loosen crankshaft pulley fixing bolt and pull out the bolt approx-
imately 10 mm (0.39 in).
c. Using pulley puller (SST), remove crankshaft pulley.
●Use two M6 bolts with approx. 60 mm (2.36 in) shank length
for securing crankshaft pulley.
13. Remove oil pump housing.
●Loosen bolts in the reverse order of that shown in the figure
and remove them.
●Use seal cutter (SST) etc. for removal.
14. Remove front oil seal from oil pump housing.
●Punch out the seal off from the back surface of the oil pump
using a flat-bladed screwdriver.
●Be careful not to damage the oil pump housing.
7. Chain guide 8. Spacer 9. Front chain case
10. Crankshaft pulley 11. Front oil seal 12. Oil pump housing
13. Primary timing chain 14. Oil pump drive spacer 15. Crankshaft sprocket
16. Secondary timing chain 17. Rear chain case 18. Power steering pump
JEM131G
JEM132G
JEM133G
