NISSAN X-TRAIL 2001 Service Repair Manual ENGINE CONTROL SYSTEM
EC-1403
[YD]
C
D
E
F
G
H
I
J
K
L
MA
EC

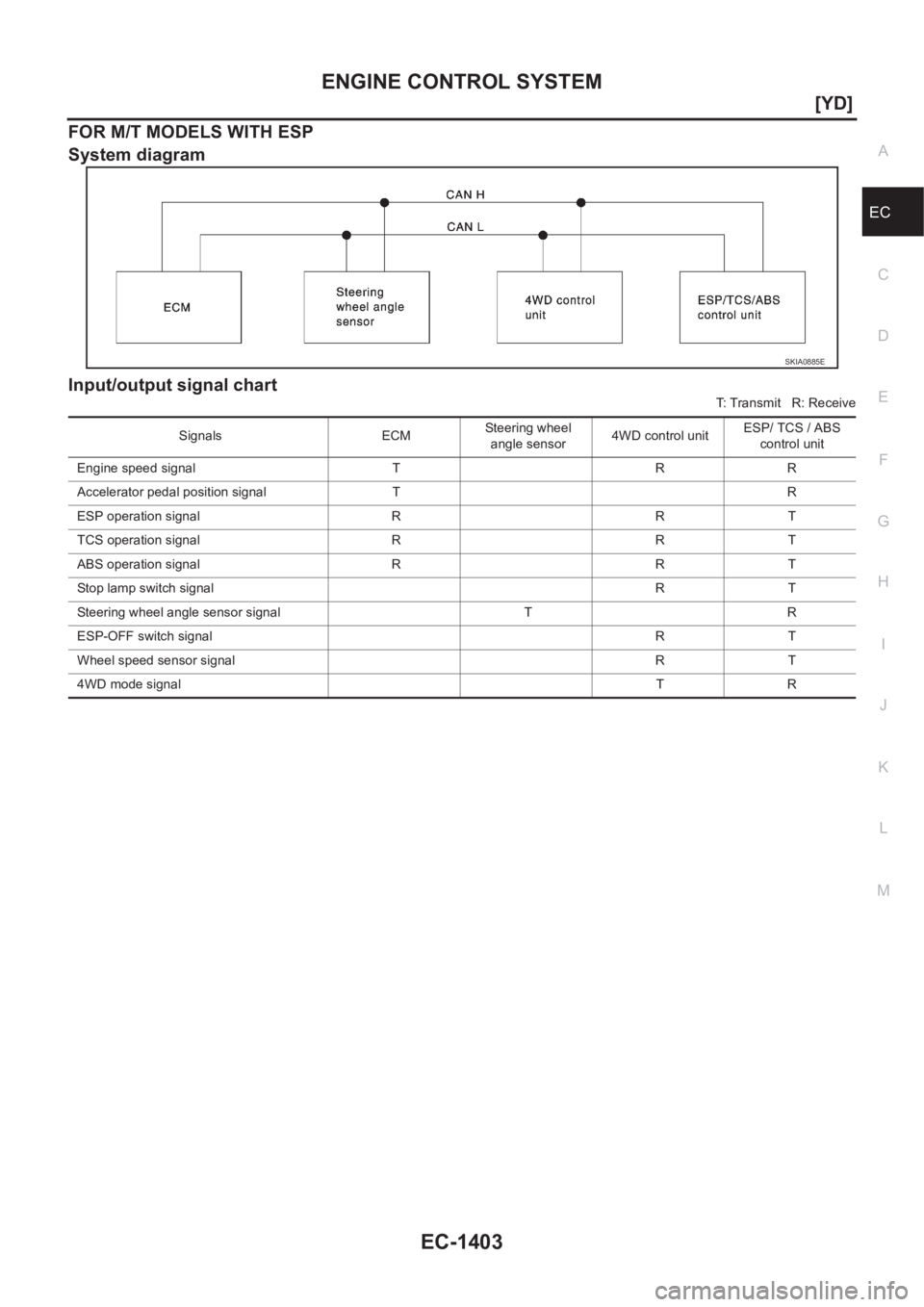

FOR M/T MODELS WITH ESP
System diagram
Input/output signal chart
T: Transmit R: Receive
SKIA0885E
Signals ECMSteering wheel
angle sensor

Page 1754 of 3833

NISSAN X-TRAIL 2001 Service Repair Manual EC-1404
[YD]
BASIC SERVICE PROCEDURE
BASIC SERVICE PROCEDURE
PFP:00018

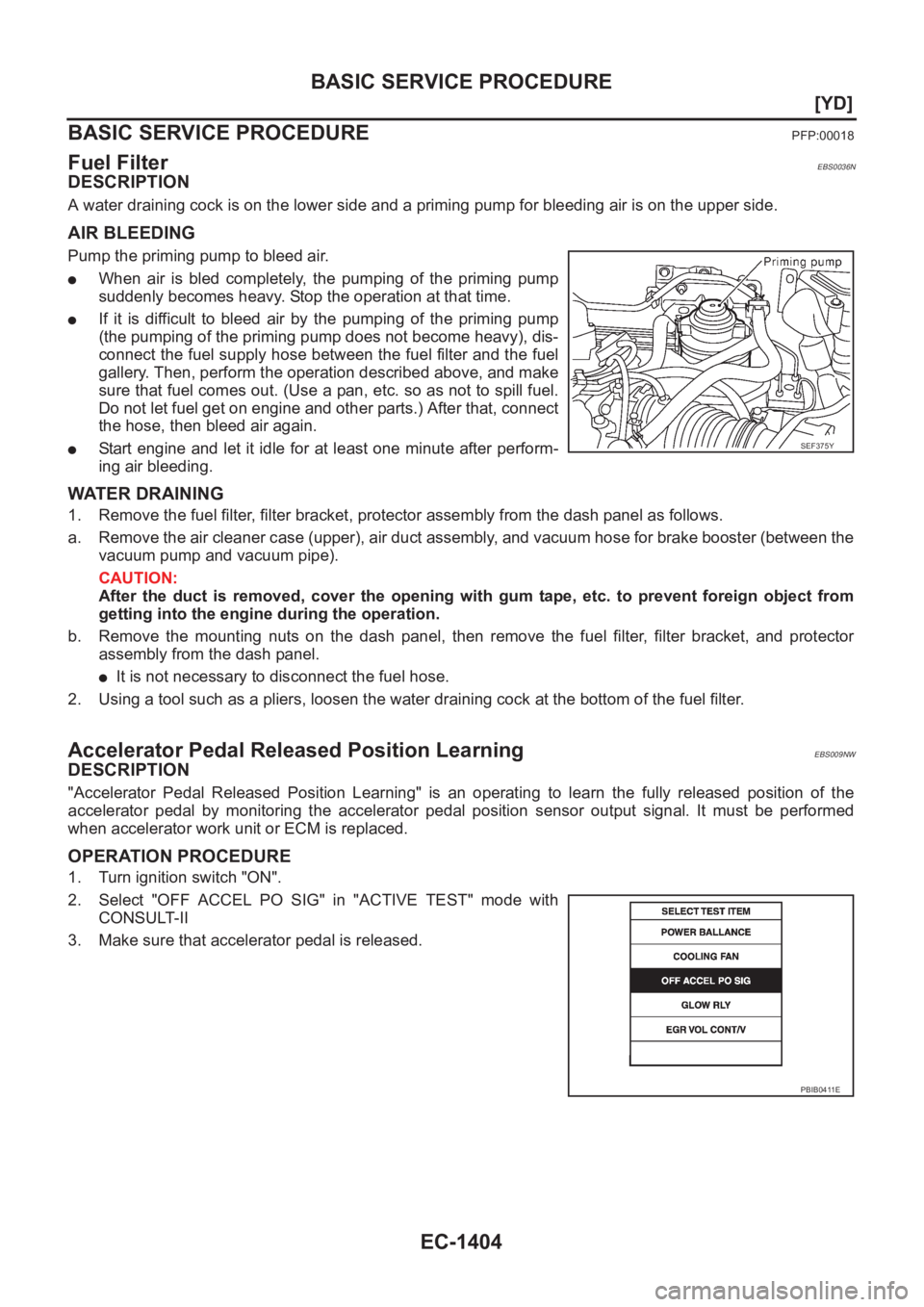

Fuel FilterEBS0036N
DESCRIPTION
A water draining cock is on the lower side and a priming pump for bleeding air is on the upper si

EC-1404
[YD]
BASIC SERVICE PROCEDURE
BASIC SERVICE PROCEDURE
PFP:00018
Fuel FilterEBS0036N
DESCRIPTION
A water draining cock is on the lower side and a priming pump for bleeding air is on the upper side.
AIR BLEEDING
Pump the priming pump to bleed air.
●When air is bled completely, the pumping of the priming pump
suddenly becomes heavy. Stop the operation at that time.
●If it is difficult to bleed air by the pumping of the priming pump
(the pumping of the priming pump does not become heavy), dis-
connect the fuel supply hose between the fuel filter and the fuel
gallery. Then, perform the operation described above, and make
sure that fuel comes out. (Use a pan, etc. so as not to spill fuel.
Do not let fuel get on engine and other parts.) After that, connect
the hose, then bleed air again.
●Start engine and let it idle for at least one minute after perform-
ing air bleeding.
WATER DRAINING
1. Remove the fuel filter, filter bracket, protector assembly from the dash panel as follows.
a. Remove the air cleaner case (upper), air duct assembly, and vacuum hose for brake booster (between the
vacuum pump and vacuum pipe).
CAUTION:
After the duct is removed, cover the opening with gum tape, etc. to prevent foreign object from
getting into the engine during the operation.
b. Remove the mounting nuts on the dash panel, then remove the fuel filter, filter bracket, and protector
assembly from the dash panel.
●It is not necessary to disconnect the fuel hose.
2. Using a tool such as a pliers, loosen the water draining cock at the bottom of the fuel filter.
Accelerator Pedal Released Position LearningEBS009NW
DESCRIPTION
"Accelerator Pedal Released Position Learning" is an operating to learn the fully released position of the
accelerator pedal by monitoring the accelerator pedal position sensor output signal. It must be performed
when accelerator work unit or ECM is replaced.
OPERATION PROCEDURE
1. Turn ignition switch "ON".
2. Select "OFF ACCEL PO SIG" in "ACTIVE TEST" mode with
CONSULT-II
3. Make sure that accelerator pedal is released.
SEF375Y
PBIB0411E

Page 1755 of 3833

NISSAN X-TRAIL 2001 Service Repair Manual BASIC SERVICE PROCEDURE
EC-1405
[YD]
C
D
E
F
G
H
I
J
K
L
MA
EC

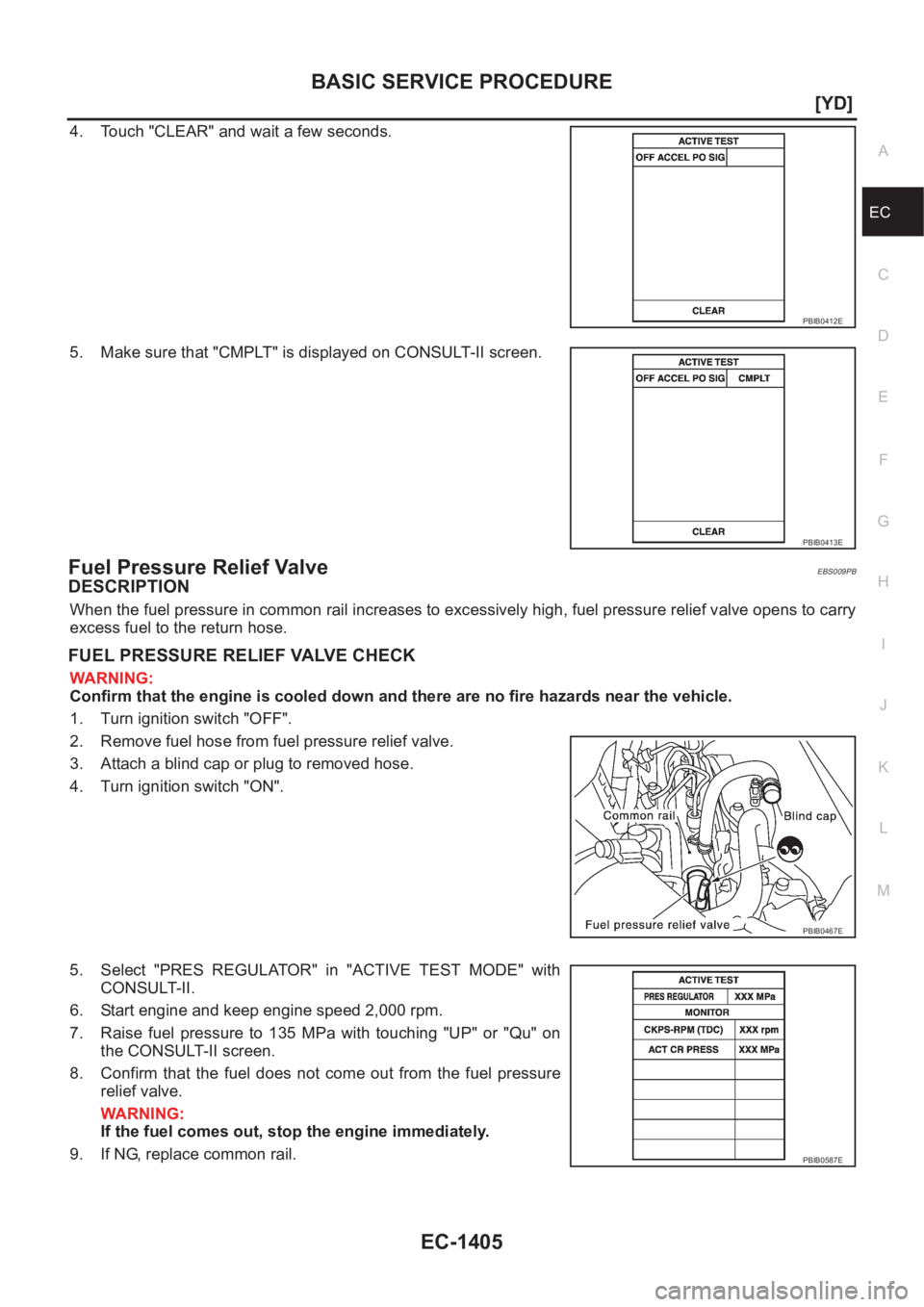

4. Touch "CLEAR" and wait a few seconds.
5. Make sure that "CMPLT" is displayed on CONSULT-II screen.
Fuel Pressure Relie

Page 1756 of 3833

NISSAN X-TRAIL 2001 Service Repair Manual EC-1406
[YD]

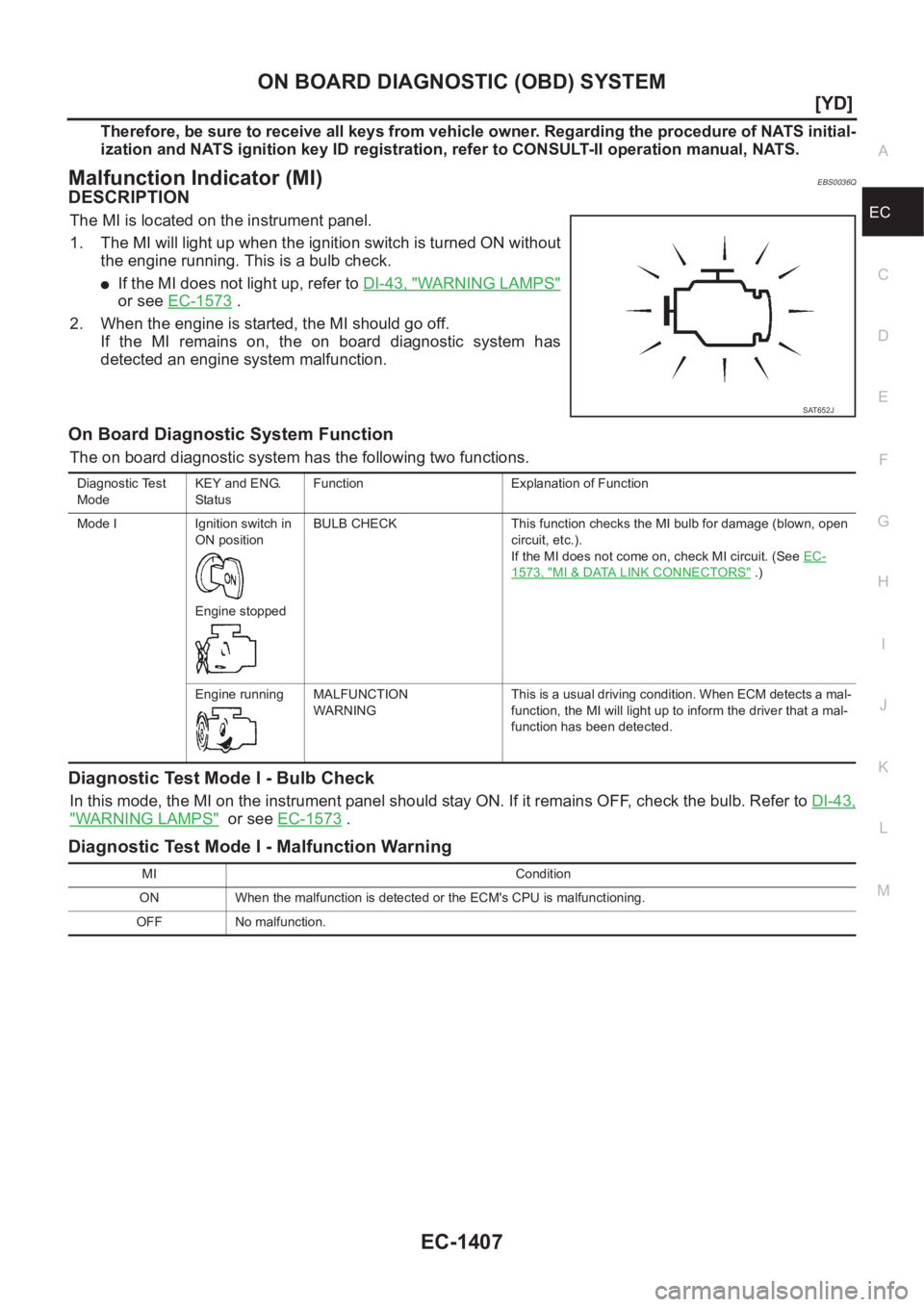

ON BOARD DIAGNOSTIC (OBD) SYSTEM
ON BOARD DIAGNOSTIC (OBD) SYSTEM
PFP:00028

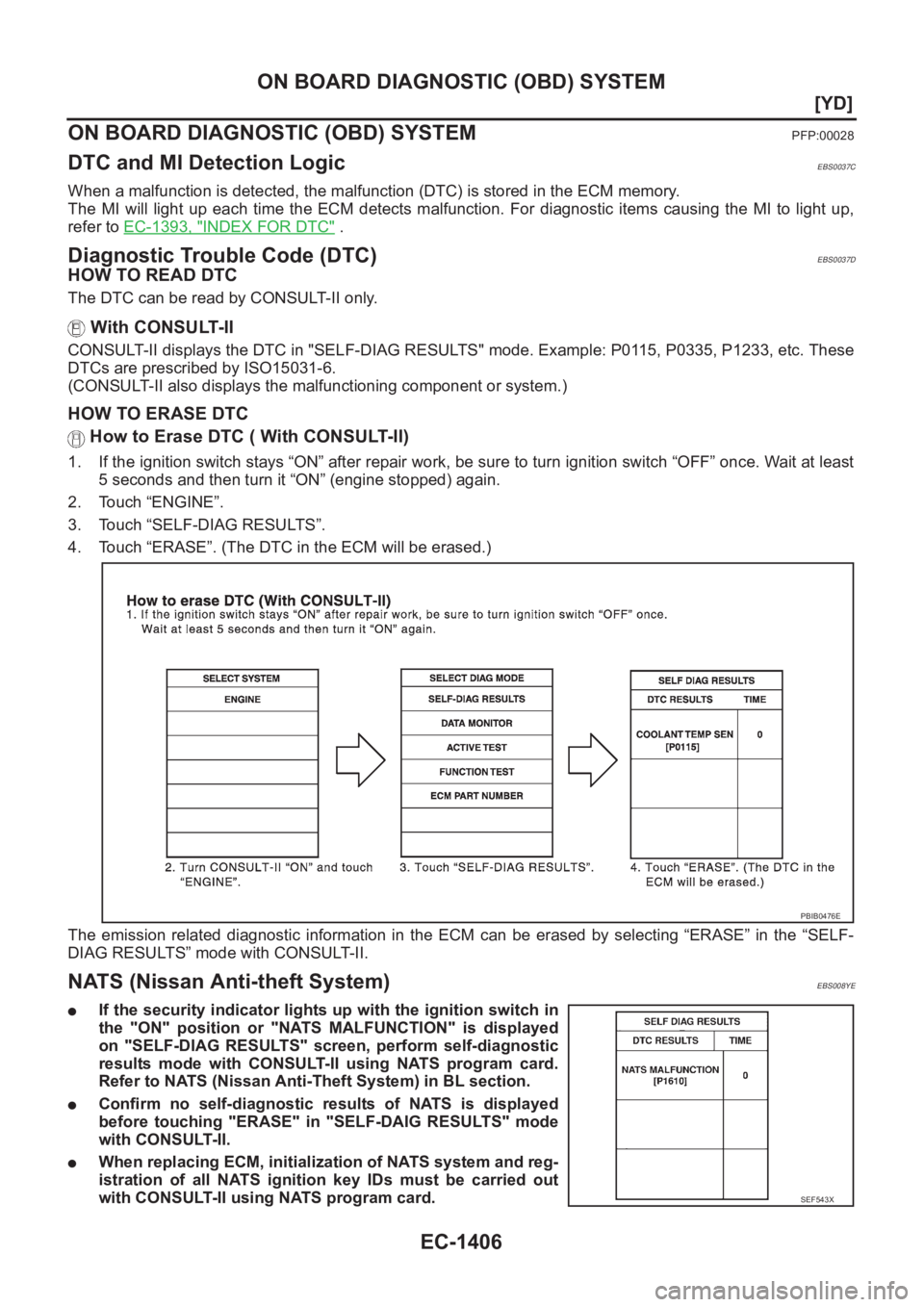

DTC and MI Detection LogicEBS0037C
When a malfunction is detected, the malfunction (DTC) is stored in the ECM m

Page 1757 of 3833

NISSAN X-TRAIL 2001 Service Repair Manual ON BOARD DIAGNOSTIC (OBD) SYSTEM
EC-1407
[YD]
C
D
E
F
G
H
I
J
K
L
MA
EC
Therefore, be sure to receive all keys from vehicle owner. Regarding the procedure of NATS initial-
ization and NATS ignition ke

Page 1758 of 3833

NISSAN X-TRAIL 2001 Service Repair Manual EC-1408
[YD]
ON BOARD DIAGNOSTIC (OBD) SYSTEM

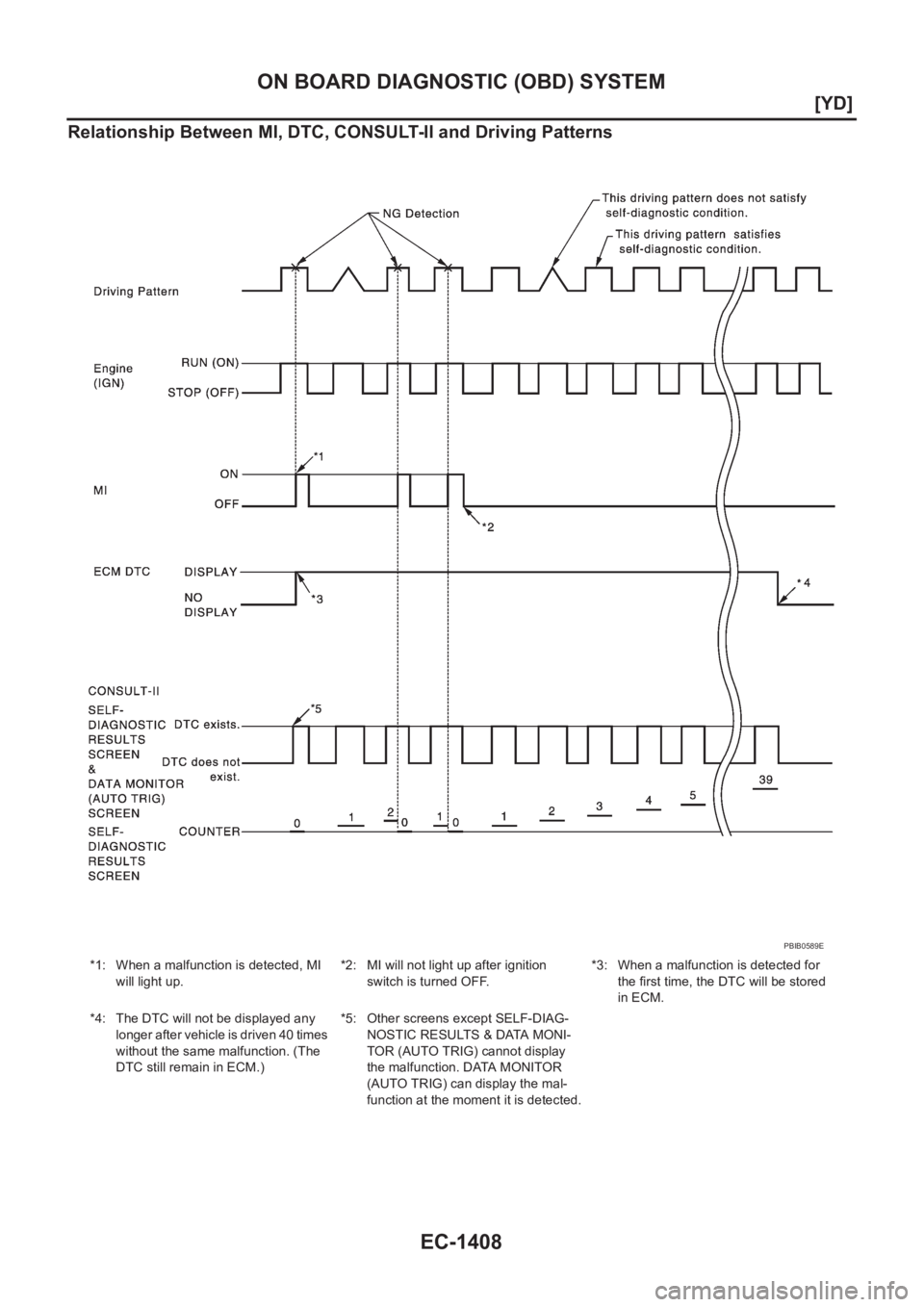

Relationship Between MI, DTC, CONSULT-II and Driving Patterns
*1: When a malfunction is detected, MI
will light up.*2: MI will not light up after ignitio

Page 1759 of 3833

NISSAN X-TRAIL 2001 Service Repair Manual TROUBLE DIAGNOSIS
EC-1409
[YD]
C
D
E
F
G
H
I
J
K
L
MA
EC
TROUBLE DIAGNOSISPFP:00004

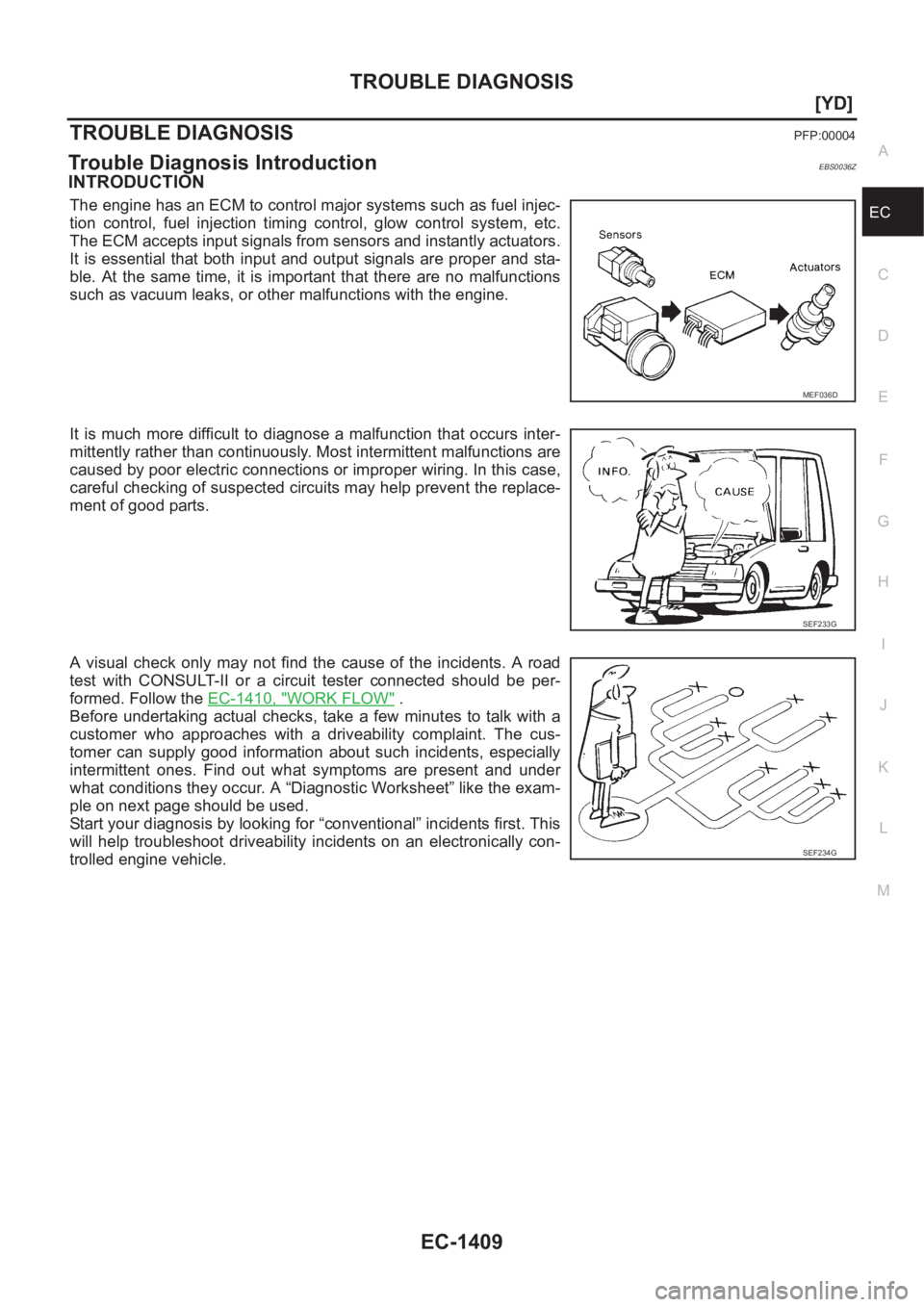

Trouble Diagnosis IntroductionEBS0036Z
INTRODUCTION
The engine has an ECM to control major systems such as fuel inje

Page 1760 of 3833

NISSAN X-TRAIL 2001 Service Repair Manual EC-1410
[YD]
TROUBLE DIAGNOSIS

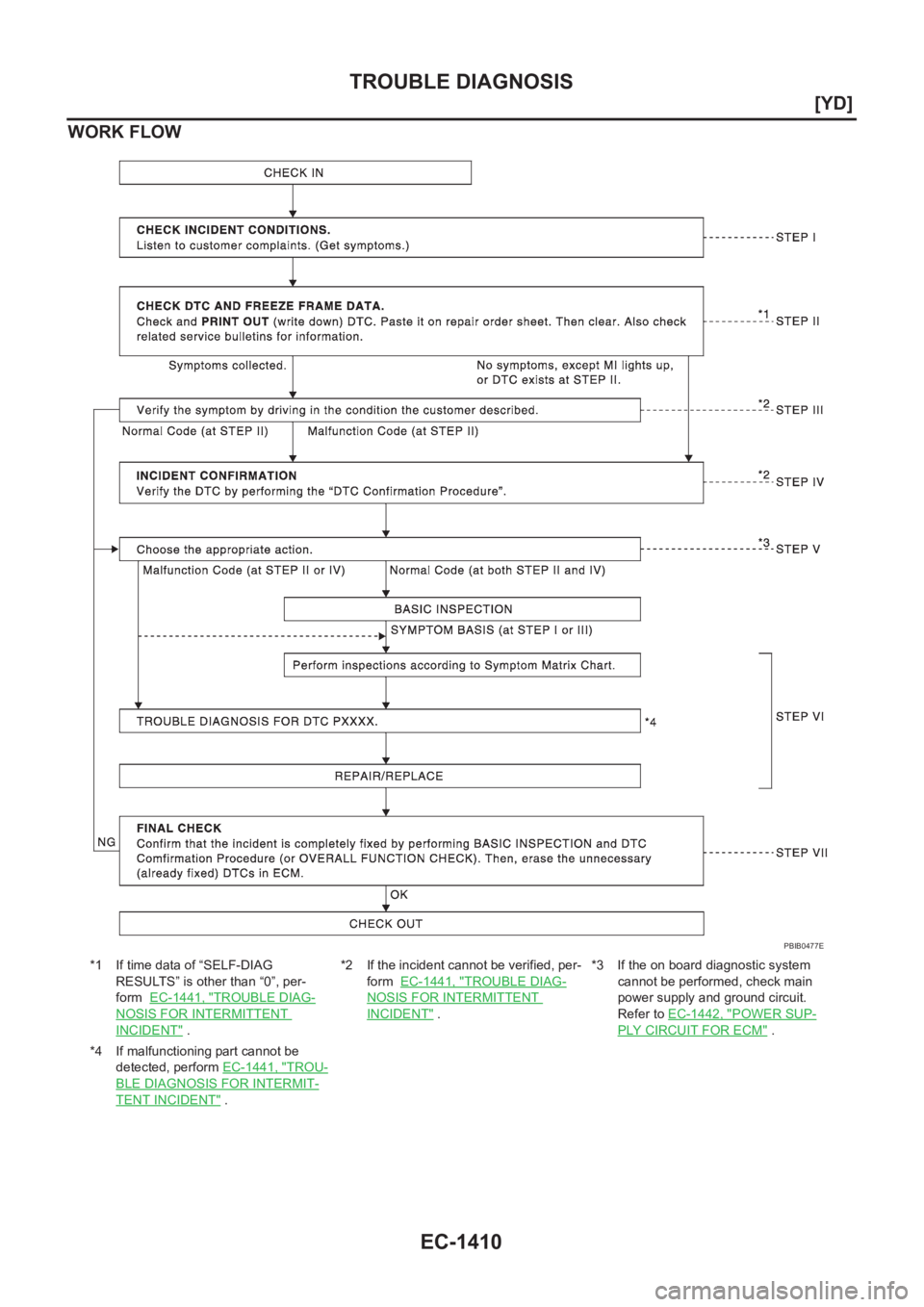

WORK FLOW
*1 If time data of “SELF-DIAG
RESULTS” is other than “0”, per-
form EC-1441, "
TROUBLE DIAG-
NOSIS FOR INTERMITTENT
INCIDENT" .*2 If the inc
