Page 3769 of 3833

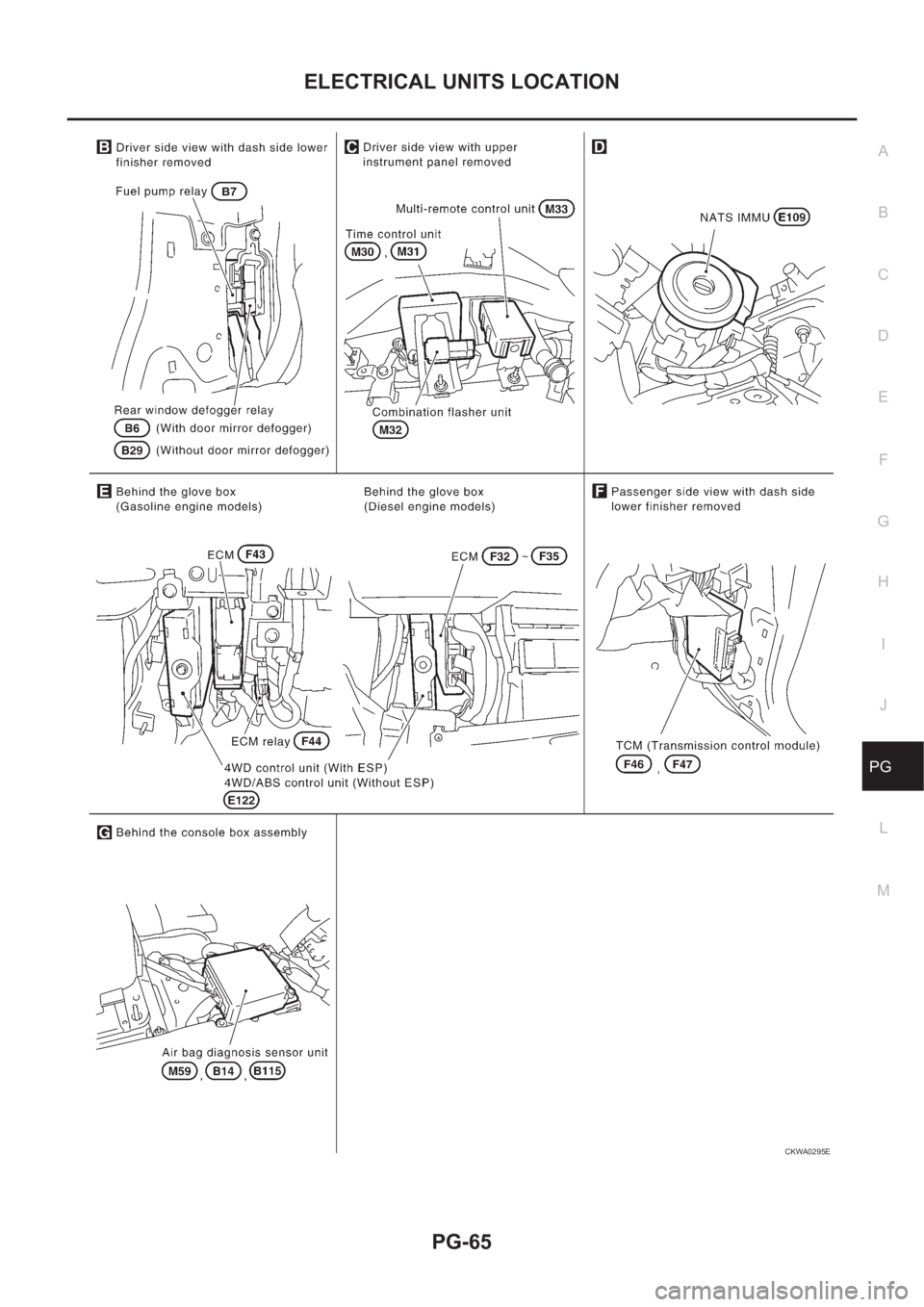

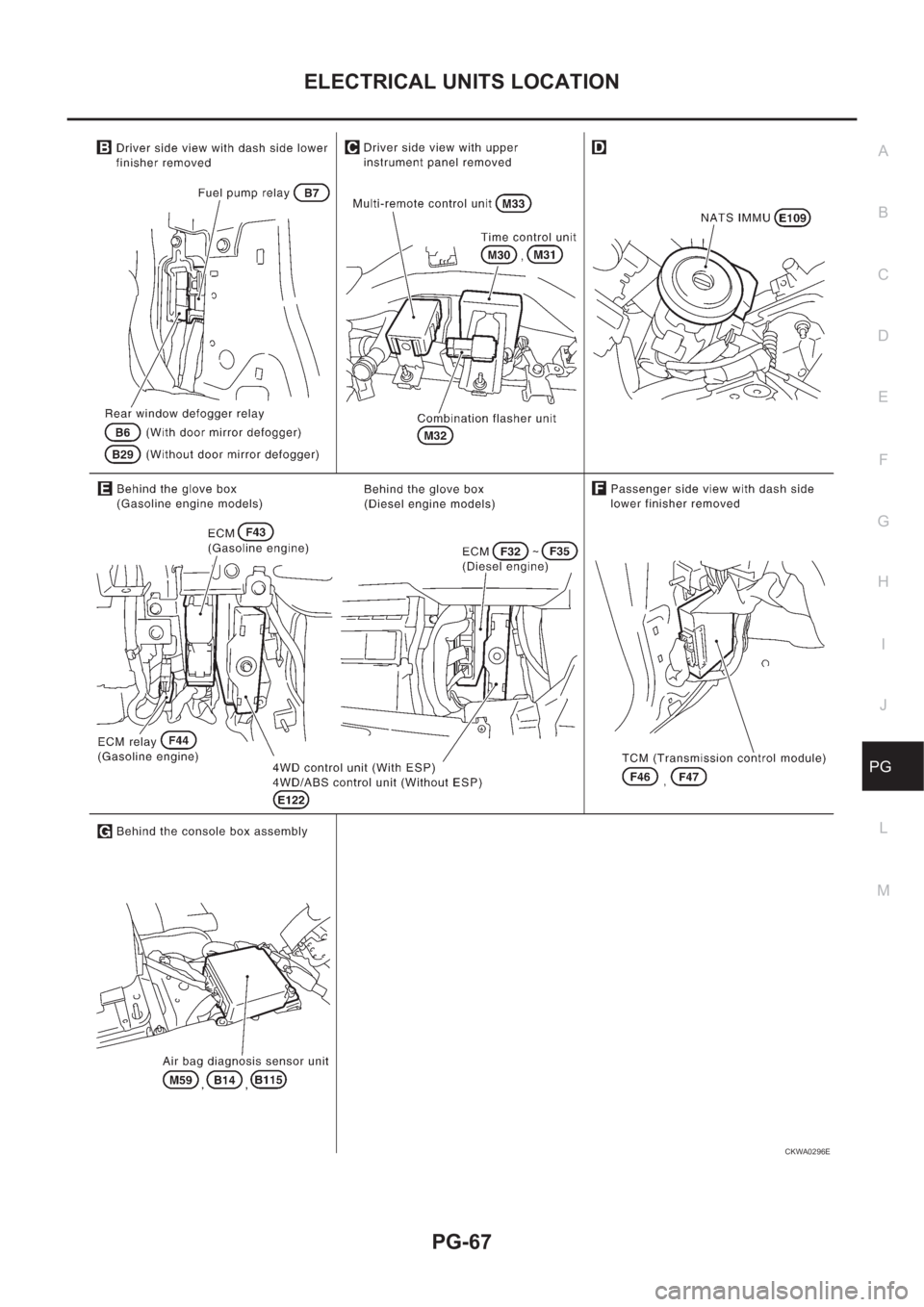

NISSAN X-TRAIL 2001 Service Repair Manual ELECTRICAL UNITS LOCATION PG-65 C D E F G H I J L MA B PG CKWA0295E

Page 3770 of 3833

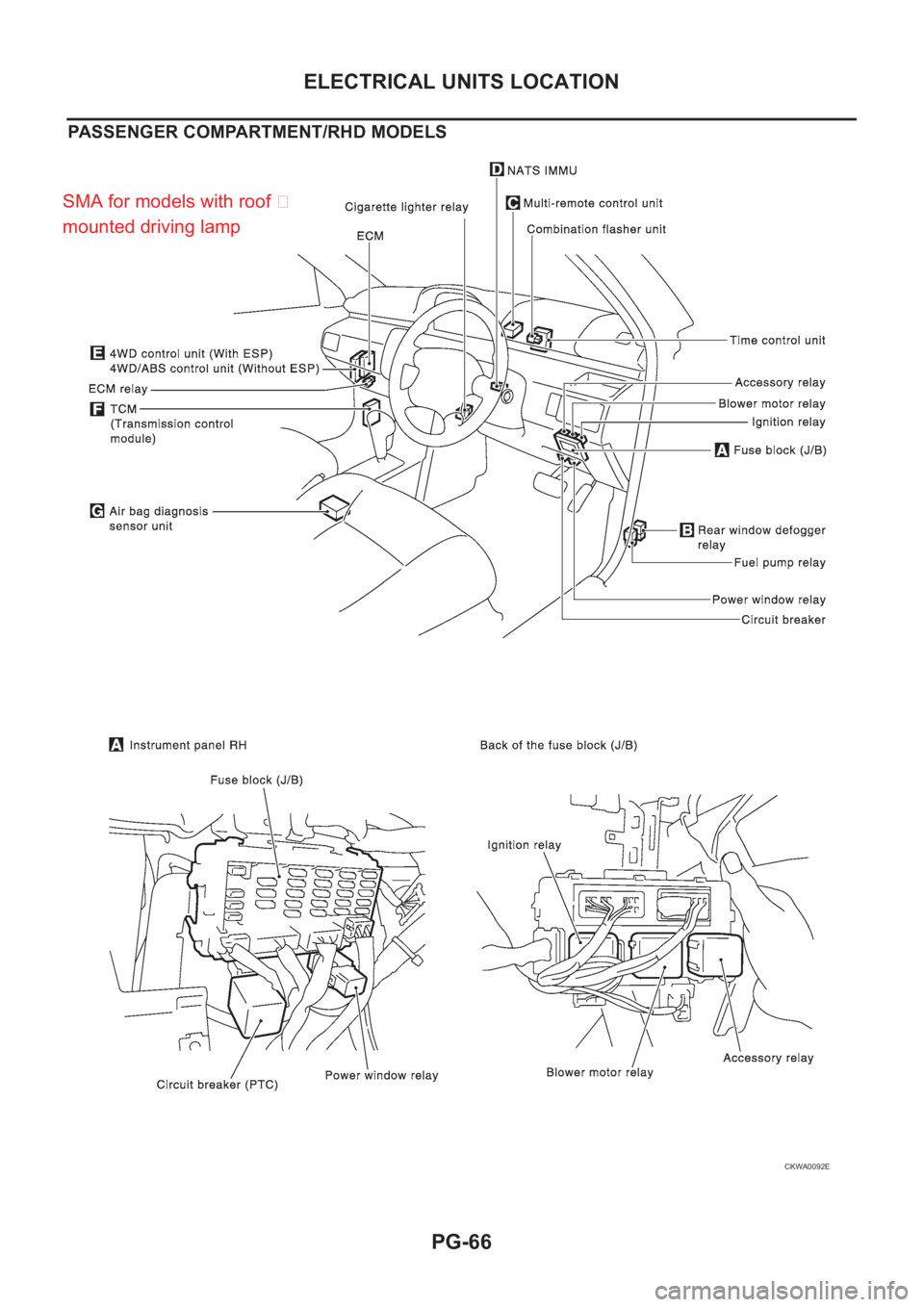

NISSAN X-TRAIL 2001 Service Repair Manual PG-66 ELECTRICAL UNITS LOCATION PASSENGER COMPARTMENT/RHD MODELS CKWA0092E SMA for models with roof  mounted driving lamp

Page 3771 of 3833

NISSAN X-TRAIL 2001 Service Repair Manual ELECTRICAL UNITS LOCATION PG-67 C D E F G H I J L MA B PG CKWA0296E

Page 3772 of 3833

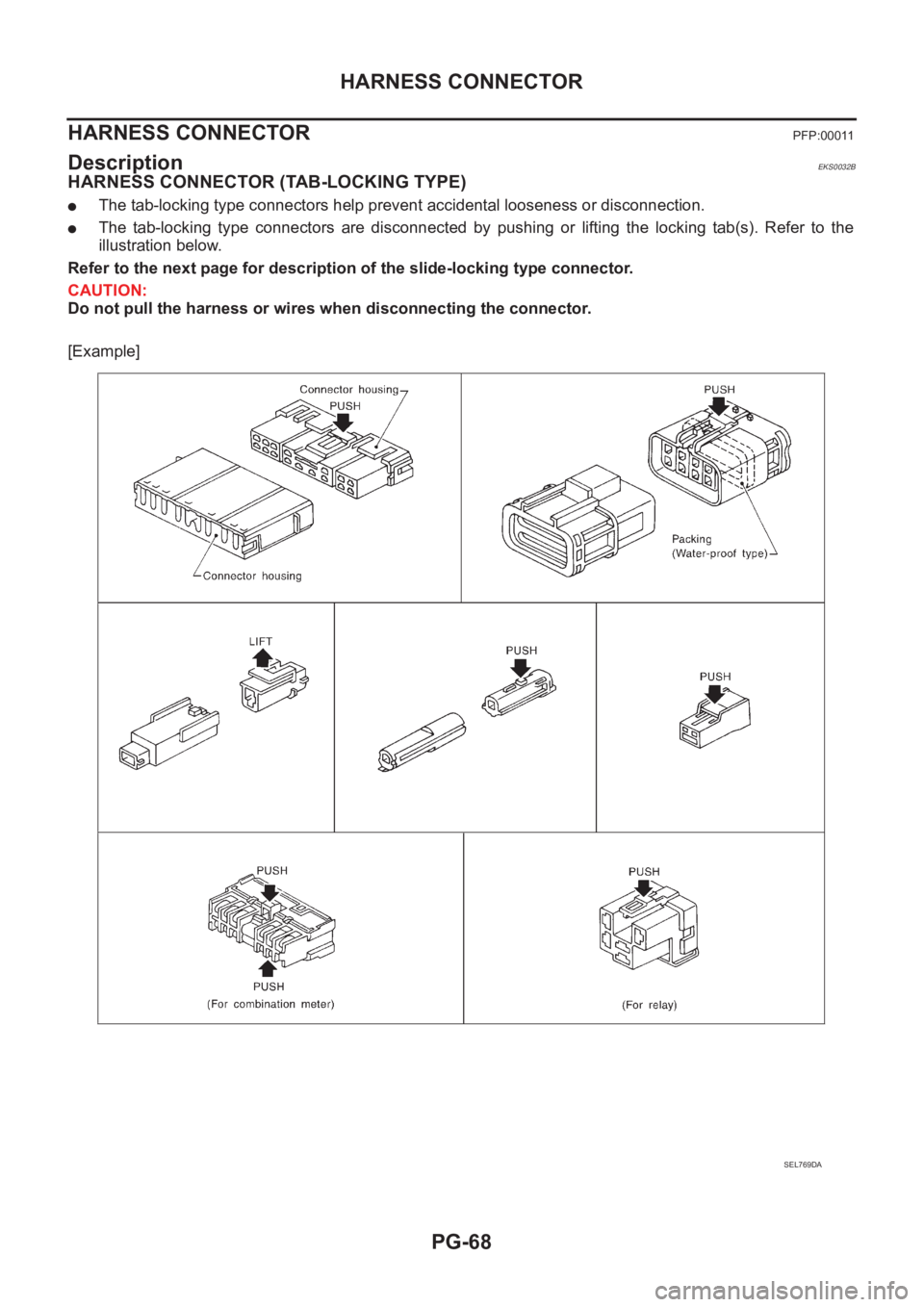

NISSAN X-TRAIL 2001 Service Repair Manual PG-68 HARNESS CONNECTOR HARNESS CONNECTOR PFP:00011 Description EKS0032B HARNESS CONNECTOR (TAB-LOCKING TYPE) ●The tab-locking type connectors help prevent accidental looseness or disconnection.

Page 3773 of 3833

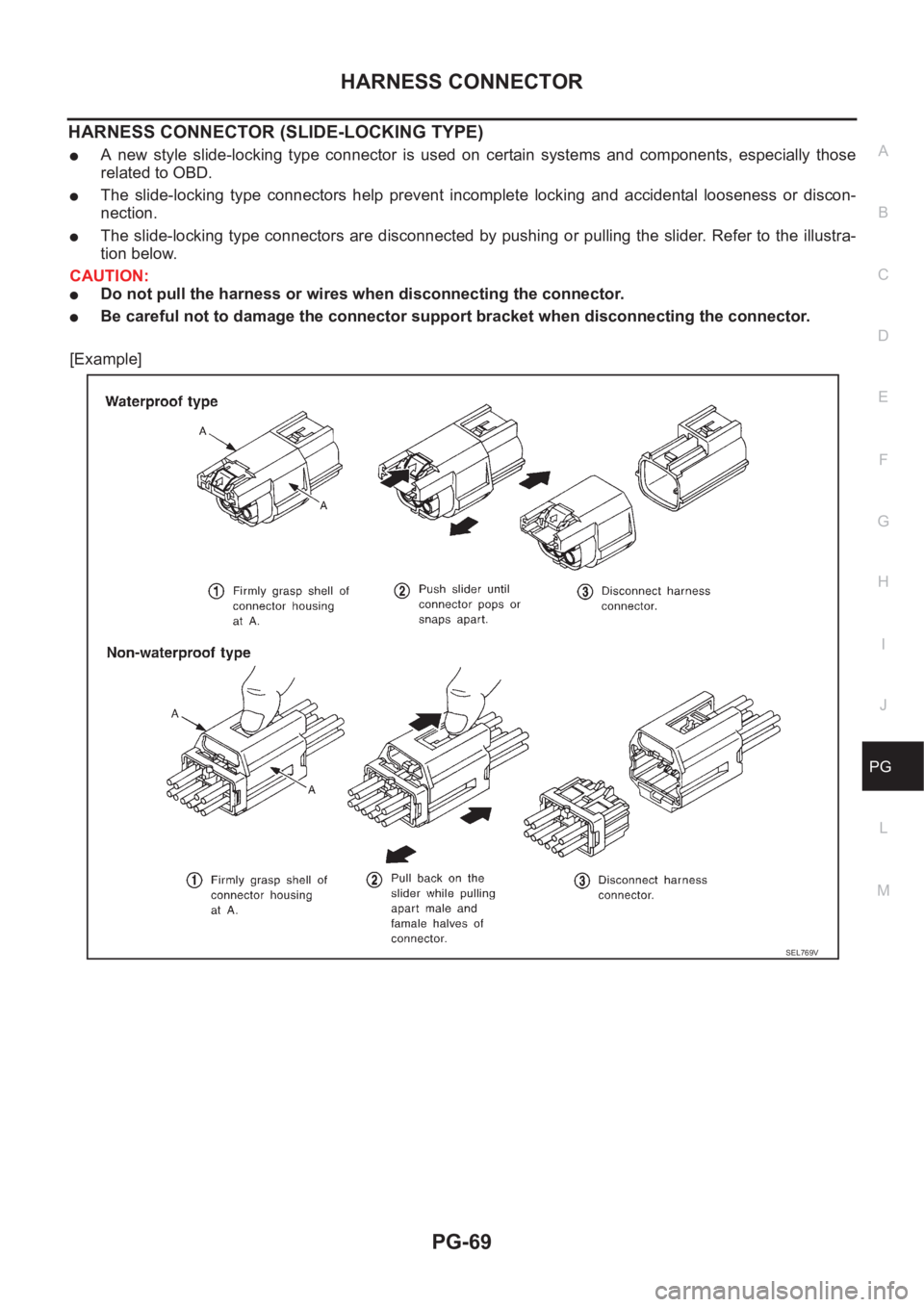

NISSAN X-TRAIL 2001 Service Repair Manual HARNESS CONNECTOR PG-69 C D E F G H I J L MA B PG HARNESS CONNECTOR (SLIDE-LOCKING TYPE) ●A new style slide-locking type connector is used on certain systems and components, especially

Page 3774 of 3833

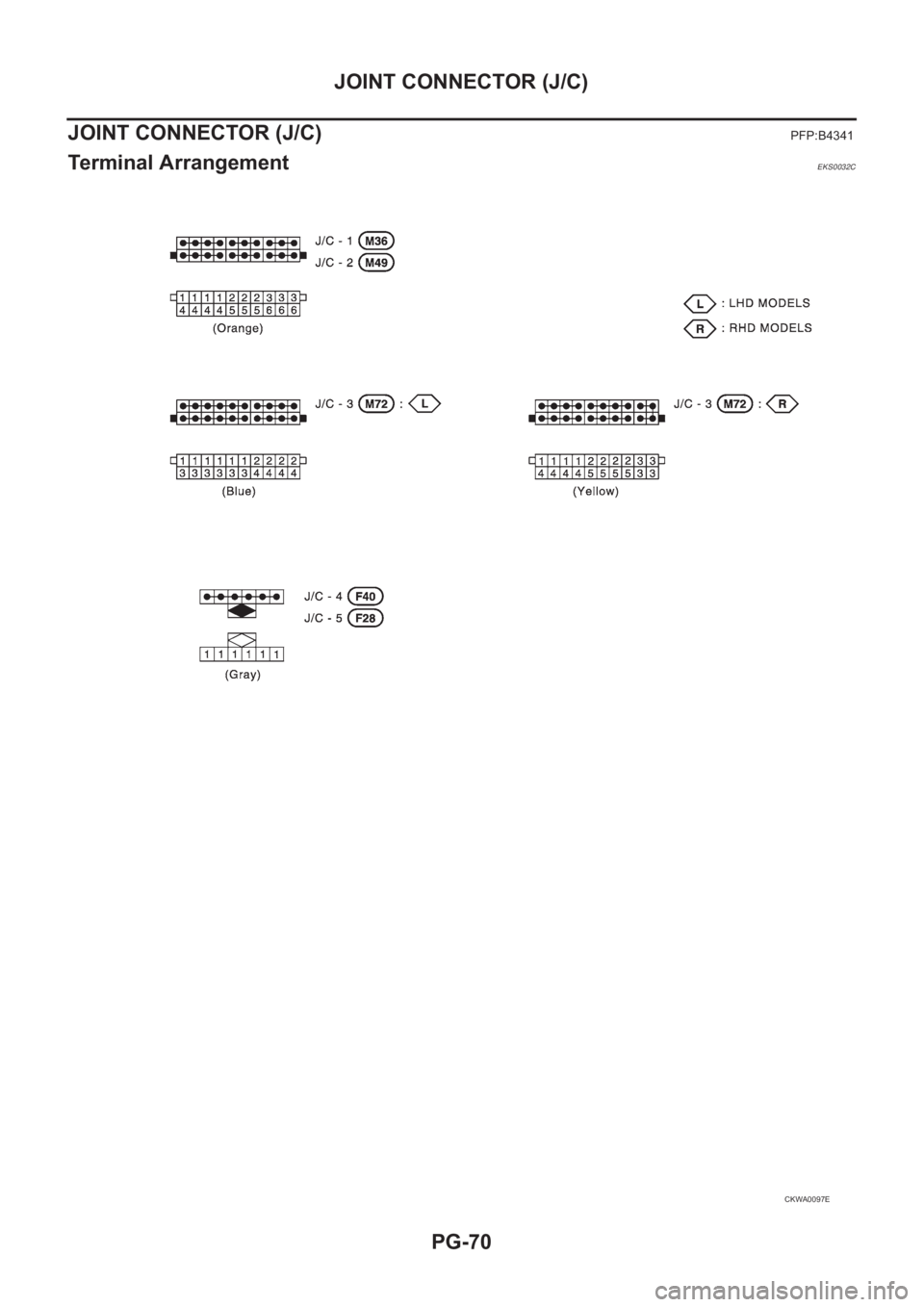

NISSAN X-TRAIL 2001 Service Repair Manual PG-70 JOINT CONNECTOR (J/C) JOINT CONNECTOR (J/C) PFP:B4341 Terminal ArrangementEKS0032C CKWA0097E

Page 3775 of 3833

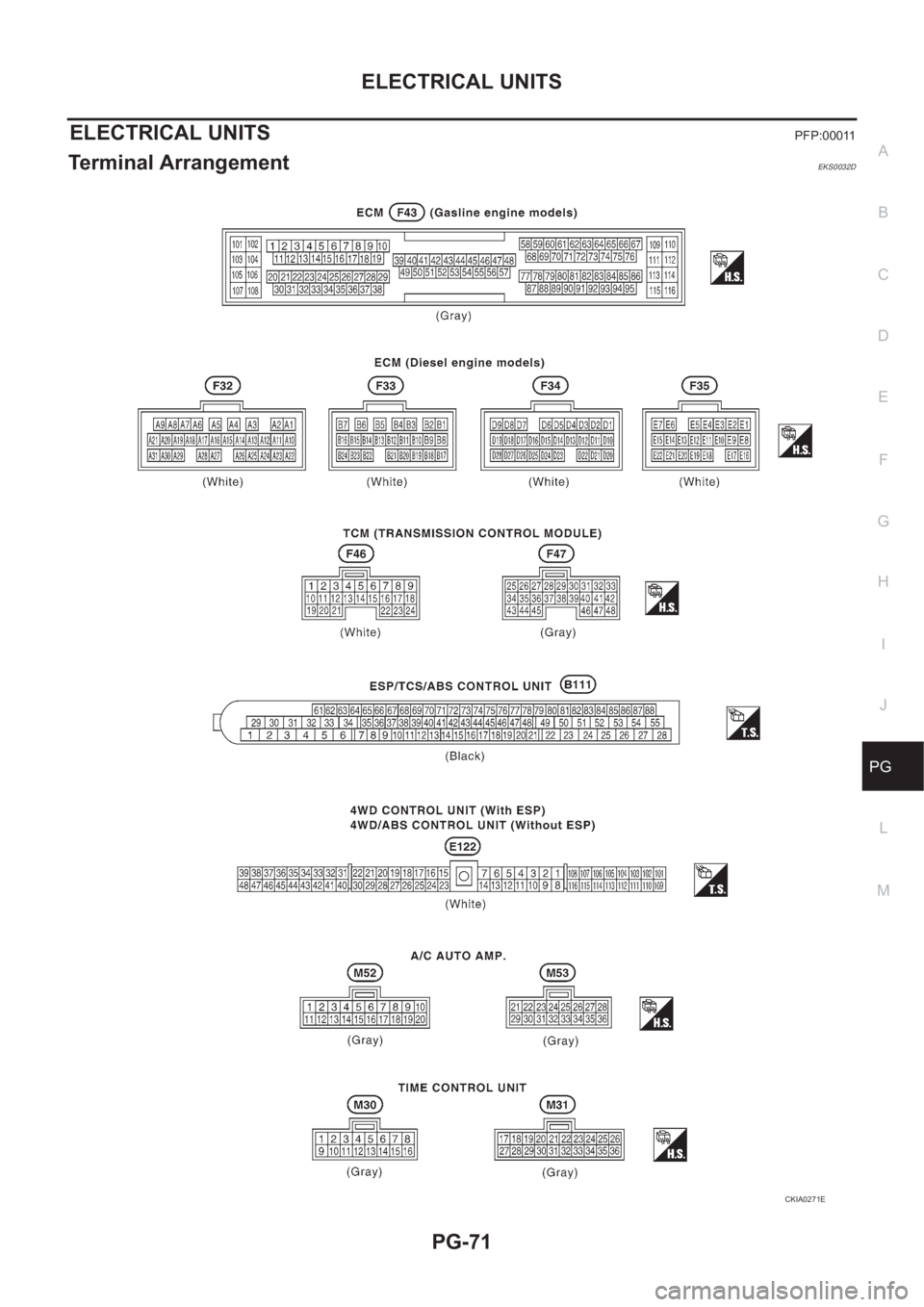

NISSAN X-TRAIL 2001 Service Repair Manual ELECTRICAL UNITS PG-71 C D E F G H I J L MA B PG ELECTRICAL UNITS PFP:00011 Terminal Arrangement EKS0032D CKIA0271E

Page 3776 of 3833

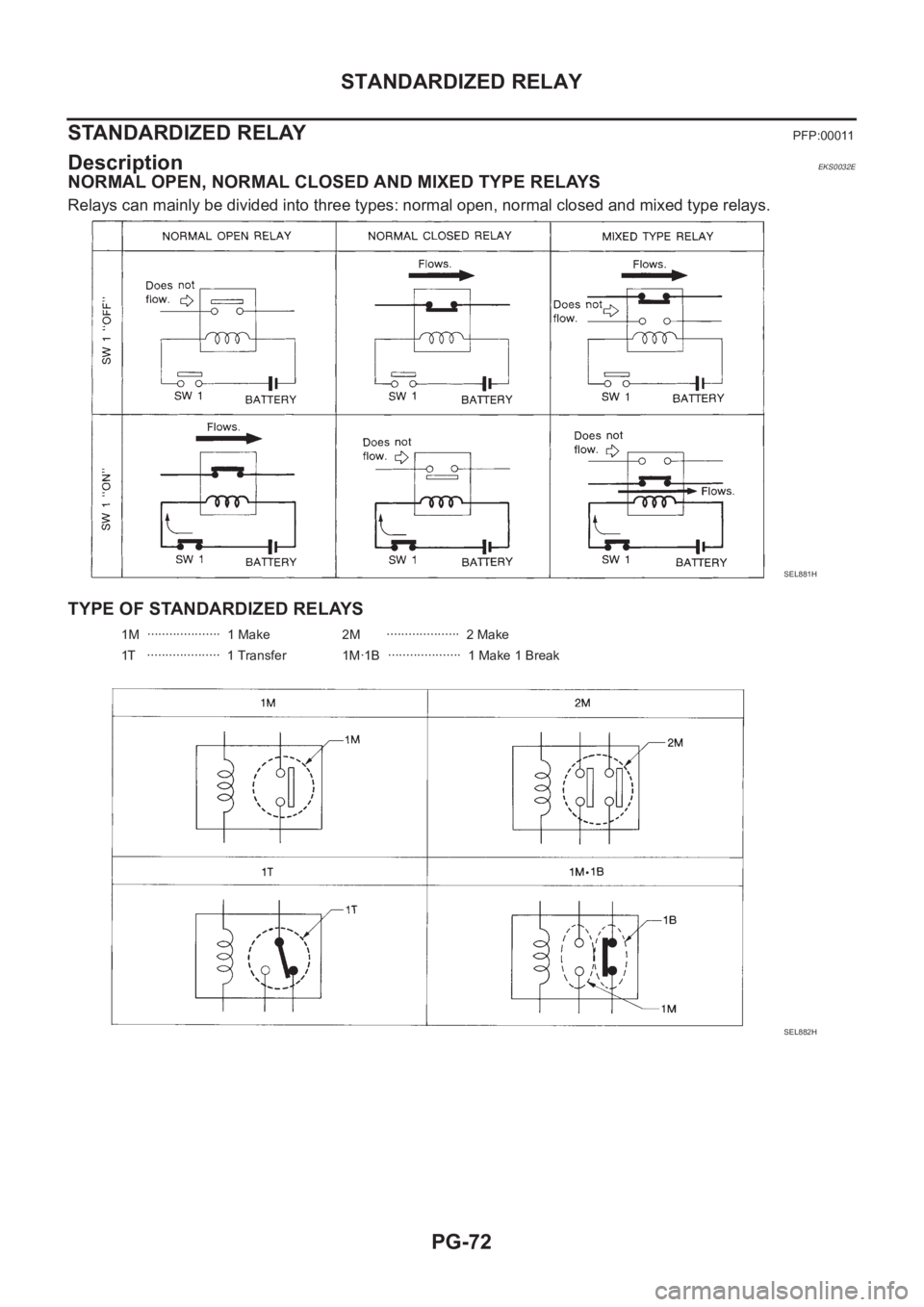

NISSAN X-TRAIL 2001 Service Repair Manual PG-72 STANDARDIZED RELAY STANDARDIZED RELAY PFP:00011 Description EKS0032E NORMAL OPEN, NORMAL CLOSED AND MIXED TYPE RELAYS Relays can mainly be divided into three types: normal open, normal closed a
