Page 1641 of 3833
DTC P1217 ENGINE OVER TEMPERATURE
EC-1291
[QR20(WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

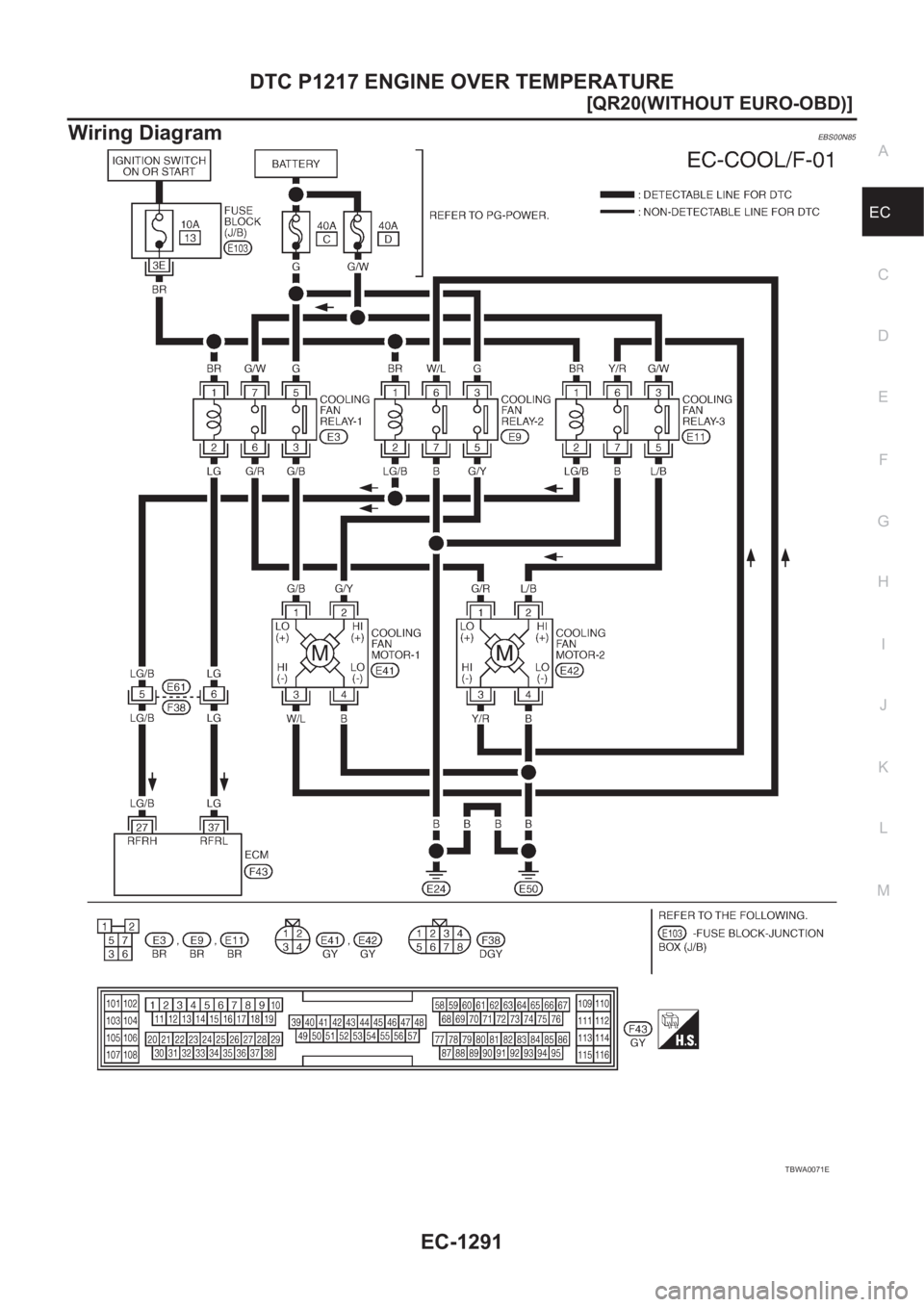

Wiring DiagramEBS00N85
TBWA0071E
Page 1642 of 3833
EC-1292
[QR20(WITHOUT EURO-OBD)]
DTC P1217 ENGINE OVER TEMPERATURE
Diagnostic Procedure
EBS00N86
1. INSPECTION START
Do you have CONSULT-II?
Ye s o r N o
Yes >> GO TO 2
No >> GO TO 4
2. CHECK COOLING FAN LOW SPEED OPERATION
With CONSULT-II
1. Disconnect cooling fan relays-2 and -3.
2. Turn ignition switch “ON”.
3. Perform “COOLING FAN” in “ACTIVE TEST” mode with CONSULT-II.
4. Make sure that cooling fans-1 and -2 operate at low speed.
OK or NG
OK >> GO TO 3.
NG >> Check cooling fan low speed control circuit. (Go to EC-332, "
PROCEDURE A" .)
PBIB0505E
SEF784Z
Page 1643 of 3833
DTC P1217 ENGINE OVER TEMPERATURE
EC-1293
[QR20(WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
3.CHECK COOLING FAN HIGH SPEED OPERATION
With CONSULT-II
1. Turn ignition switch “OFF”.
2. Reconnect cooling fan relays-2 and -3.
3. Turn ignition switch “ON”.
4. Perform “COOLING FAN” in “ACTIVE TEST” mode with CON-
SULT-II.
5. Make sure that cooling fans-1 and -2 operate at higher speed
than low speed.
OK or NG
OK >> GO TO 6.
NG >> Check cooling fan high speed control circuit. (Go to EC-
334, "PROCEDURE B" .)
4.CHECK COOLING FAN LOW SPEED OPERATION
Without CONSULT-II
1. Disconnect cooling fan relays-2 and -3.
2. Start engine and let it idle.
3. Set temperature lever at full cold position.
4. Turn air conditioner switch “ON”.
5. Turn blower fan switch “ON”.
6. Make sure that cooling fans-1 and -2 operate at low speed.
OK or NG
OK >> GO TO 5.
NG >> Check cooling fan low speed control circuit. (Go to EC-
332, "PROCEDURE A" .)
SEF785Z
PBIB0505E
SEC163BA
Page 1644 of 3833
![NISSAN X-TRAIL 2001 Service Repair Manual EC-1294
[QR20(WITHOUT EURO-OBD)]
DTC P1217 ENGINE OVER TEMPERATURE
5. CHECK COOLING FAN HIGH SPEED OPERATION
Without CONSULT-II
1. Turn ignition switch “OFF”.
2. Reconnect cooling fan relays-2 and NISSAN X-TRAIL 2001 Service Repair Manual EC-1294
[QR20(WITHOUT EURO-OBD)]
DTC P1217 ENGINE OVER TEMPERATURE
5. CHECK COOLING FAN HIGH SPEED OPERATION
Without CONSULT-II
1. Turn ignition switch “OFF”.
2. Reconnect cooling fan relays-2 and](/manual-img/5/57405/w960_57405-1643.png)
EC-1294
[QR20(WITHOUT EURO-OBD)]
DTC P1217 ENGINE OVER TEMPERATURE
5. CHECK COOLING FAN HIGH SPEED OPERATION
Without CONSULT-II
1. Turn ignition switch “OFF”.
2. Reconnect cooling fan relays-2 and -3.
3. Turn air conditioner switch and blower fan switch “OFF”.
4. Disconnect engine coolant temperature sensor harness connector.
5. Connect 150Ω resistor to engine coolant temperature sensor harness connector.
6. Restart engine and make sure that cooling fans-1 and -2 oper-
ate at higher speed than low speed.
OK or NG
OK >> GO TO 6.
NG >> Check cooling fan high speed control circuit. (Go to EC-
1298, "PROCEDURE B" .)
6. CHECK COOLING SYSTEM FOR LEAK
Apply pressure to the cooling system with a tester, and check if the
pressure drops.
CAUTION:
Higher than the specified pressure may cause radiator damage.
Pressure should not drop.
OK or NG
OK >> GO TO 7.
NG >> Check the following for leak
●Hose
●Radiator
●Water pump
Refer to CO-18, "
WATER PUMP" .
7. CHECK RADIATOR CAP
Apply pressure to cap with a tester.
OK or NG
OK >> GO TO 8.
NG >> Replace radiator cap.
MEC475B
Testing pressure: 157 kPa (1.57 bar, 1.6 kg/cm2 , 23 psi)
SLC754A
Radiator cap relief pressure: 59 - 98 kPa (0.59 - 0.98 bar,
0.6 - 1.0 kg/cm
2 , 9 - 14 psi)
SLC755A
Page 1645 of 3833
DTC P1217 ENGINE OVER TEMPERATURE
EC-1295
[QR20(WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
8.CHECK THERMOSTAT
1. Check valve seating condition at normal room temperatures.
It should seat tightly.
2. Check valve opening temperature and valve lift.
3. Check if valve is closed at 5°C (9°F) below valve opening tem-
perature.
For details, refer to CO-20, "
THERMOSTAT AND WATER CON-
TROL VALVE" .
OK or NG
OK >> GO TO 9.
NG >> Replace thermostat
9.CHECK ENGINE COOLANT TEMPERATURE SENSOR
Refer to EC-1213, "
Component Inspection" .
OK or NG
OK >> GO TO 10.
NG >> Replace engine coolant temperature sensor.
10.CHECK MAIN 12 CAUSES
If the cause cannot be isolated, go to EC-1299, "
Main 12 Causes of Overheating" .
>>INSPECTION END Valve opening temperature: 82°C (180°F) [standard]
Valve lift: More than 8 mm/95°C
(0.31 in/203°F)
SLC343
Page 1646 of 3833
![NISSAN X-TRAIL 2001 Service Repair Manual EC-1296
[QR20(WITHOUT EURO-OBD)]
DTC P1217 ENGINE OVER TEMPERATURE
PROCEDURE A
1. CHECK COOLING FUN POWER SUPPLY CIRCUIT
1. Turn ignition switch “OFF”.
2. Disconnect cooling fan relay-1.
3. Turn i NISSAN X-TRAIL 2001 Service Repair Manual EC-1296
[QR20(WITHOUT EURO-OBD)]
DTC P1217 ENGINE OVER TEMPERATURE
PROCEDURE A
1. CHECK COOLING FUN POWER SUPPLY CIRCUIT
1. Turn ignition switch “OFF”.
2. Disconnect cooling fan relay-1.
3. Turn i](/manual-img/5/57405/w960_57405-1645.png)
EC-1296
[QR20(WITHOUT EURO-OBD)]
DTC P1217 ENGINE OVER TEMPERATURE
PROCEDURE A
1. CHECK COOLING FUN POWER SUPPLY CIRCUIT
1. Turn ignition switch “OFF”.
2. Disconnect cooling fan relay-1.
3. Turn ignition switch “ON”.
4. Check voltage between cooling fan relay-1 terminals 1, 5, 7 and
ground with CONSULT-II or tester.
OK or NG
OK >> GO TO 3.
NG >> GO TO 2.
2. DETECT MALFUNCTIONING PART
Check the following.
●10A fuse
●Fuse block (J/B) connector E103
●40A fusible links
●Harness for open or short between cooling fan relay-1 and fuse
●Harness for open or short between cooling fan relay-1 and battery
>> Repair open circuit or short to ground or short to power in harness or connectors.
3. CHECK COOLING FAN GROUND CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch “OFF”.
2. Disconnect cooling fan motor-1 harness connector and cooling
fan motor-2 harness connector.
3. Check harness continuity between cooling fan relay-1 terminal 3
and cooling fan motor-1 terminal 1, cooling fan motor-1 terminal
4 and body ground.
Refer to wiring diagram.
4. Also check harness for short to ground and short to power.
5. Check harness continuity between cooling fan relay-1 terminal 6
and cooling fan motor-2 terminal 1, cooling fan motor-2 terminal
4 and body ground.
Refer to wiring diagram.
6. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 4.
NG >> Repair open circuit or short to ground or short to power in harness or connectors. Voltage: Battery voltage
PBIB0577E
Continuity should exist.
Continuity should exist.
PBIB0504E
Page 1647 of 3833
![NISSAN X-TRAIL 2001 Service Repair Manual DTC P1217 ENGINE OVER TEMPERATURE
EC-1297
[QR20(WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
4.CHECK COOLING FAN OUTPUT SIGNAL CIRCUIT FOR OPEN AND AHORT
1. Disconnect ECM harness connector.
2. Check NISSAN X-TRAIL 2001 Service Repair Manual DTC P1217 ENGINE OVER TEMPERATURE
EC-1297
[QR20(WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
4.CHECK COOLING FAN OUTPUT SIGNAL CIRCUIT FOR OPEN AND AHORT
1. Disconnect ECM harness connector.
2. Check](/manual-img/5/57405/w960_57405-1646.png)
DTC P1217 ENGINE OVER TEMPERATURE
EC-1297
[QR20(WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
4.CHECK COOLING FAN OUTPUT SIGNAL CIRCUIT FOR OPEN AND AHORT
1. Disconnect ECM harness connector.
2. Check harness continuity between ECM terminal 37 and cooling fan relay-1 terminal 2.
Refer to wiring diagram.
3. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 6.
NG >> GO TO 5.
5.DETECT MALFUNCTIONING PART
Check the following.
●Harness connectors E61, F38
●Harness for open or short between cooling fan relay-1 and ECM
>> Repair open circuit or short to ground or short to power in harness or connectors.
6.CHECK COOLING FAN RELAY-1
Refer to EC-1300, "
Component Inspection" .
OK or NG
OK >> GO TO 7.
NG >> Replace cooling fan relay.
7.CHECK COOLING FAN MOTORS-1 AND -2
Refer to EC-1300, "
Component Inspection" .
OK or NG
OK >> GO TO 8.
NG >> Replace cooling fan motors.
8.CHECK INTERMITTENT INCIDENT
Perform EC-1192, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
>>INSPECTION END Continuity should exist.
Page 1648 of 3833
![NISSAN X-TRAIL 2001 Service Repair Manual EC-1298
[QR20(WITHOUT EURO-OBD)]
DTC P1217 ENGINE OVER TEMPERATURE
PROCEDURE B
1. CHECK COOLING FUN POWER SUPPLY CIRCUIT
1. Turn ignition switch “OFF”.
2. Disconnect cooling fan relays-2 and -3.
3 NISSAN X-TRAIL 2001 Service Repair Manual EC-1298
[QR20(WITHOUT EURO-OBD)]
DTC P1217 ENGINE OVER TEMPERATURE
PROCEDURE B
1. CHECK COOLING FUN POWER SUPPLY CIRCUIT
1. Turn ignition switch “OFF”.
2. Disconnect cooling fan relays-2 and -3.
3](/manual-img/5/57405/w960_57405-1647.png)
EC-1298
[QR20(WITHOUT EURO-OBD)]
DTC P1217 ENGINE OVER TEMPERATURE
PROCEDURE B
1. CHECK COOLING FUN POWER SUPPLY CIRCUIT
1. Turn ignition switch “OFF”.
2. Disconnect cooling fan relays-2 and -3.
3. Turn ignition switch “ON”.
4. Check voltage between cooling fan relays-2 and -3 terminals 1,
3 and ground with CONSULT-II or tester.
OK or NG
OK >> GO TO 3.
NG >> GO TO 2.
2. DETECT MALFUNCTIONING PART
Check the following.
●10A fuse
●40A fusible links
●Harness for open or short between cooling fan relays-2 and -3 and fuse
●Harness for open or short between cooling fan relays-2 and -3 and fusible links
>> Repair harness or connectors.
3. CHECK COOLING FAN GROUND CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch “OFF”.
2. Disconnect cooling fan motor-1 harness connector and cooling fan motor-2 harness connector.
3. Check harness continuity between the following;
cooling fan relay-2 terminal 5 and cooling fan motor-1 terminal 2,
cooling fan relay-2 terminal 6 and cooling fan motor-1 terminal 3,
cooling fan relay-2 terminal 7 and body ground.
Refer to wiring diagram.
4. Also check harness for short to ground and short to power.
5. Check harness continuity between the following;
cooling fan relay-3 terminal 5 and cooling fan motor-2 terminal 2,
cooling fan relay-3 terminal 6 and cooling fan motor-2 terminal 3,
cooling fan relay-3 terminal 7 and body ground.
Refer to wiring diagram.
6. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 4.
NG >> Repair open circuit or short to ground or short to power in harness or connectors. Voltage: Battery voltage
PBIB0251E
Continuity should exist.
Continuity should exist.
