NISSAN X-TRAIL 2001 Service Repair Manual DTC P1510 ACCELERATOR PEDAL RELEASED POSITION SWITCH
EC-1531
[YD]
C
D
E
F
G
H
I
J
K
L
MA
EC
DTC P1510 ACCELERATOR PEDAL RELEASED POSITION SWITCHPFP:18002
DescriptionEBS0096V
The accelerator work un

DTC P1510 ACCELERATOR PEDAL RELEASED POSITION SWITCH
EC-1531
[YD]
C
D
E
F
G
H
I
J
K
L
MA
EC
DTC P1510 ACCELERATOR PEDAL RELEASED POSITION SWITCHPFP:18002
DescriptionEBS0096V
The accelerator work unit is installed on the upper end of the accelerator pedal assembly. The accelerator
pedal position sensor 1, 2 and accelerator pedal released position switch are built into the accelerator work
unit. The sensor detects the accelerator pedal position and sends a signal to the ECM. The ECM uses the sig-
nal to determine the amount of fuel to be injected.
The accelerator pedal released position switch detects accelerator pedal released position signal and sends
this signal to the ECM. The ECM will then determine engine idle conditions. This signal is also used for diag-
nosing the accelerator pedal position sensor.
CONSULT-II Reference Value in Data Monitor ModeEBS0096W
Specification data are reference values.
*: Accelerator pedal position sensor 2 signal is converted by ECM internally. Thus, it differ from ECM terminals voltage.
ECM Terminals and Reference ValueEBS0096X
Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
PBIB0463E
MONITOR ITEM CONDITION SPECIFICATION
ACCEL POS SEN
●Ignition switch: ON
(Engine stopped)Accelerator pedal: fully released 0.8 - 1.3V
Accelerator pedal: fully depressed More than 3.5V
ACCEL SEN 2*
●Ignition switch: ON
(Engine stopped)Accelerator pedal: fully released 0.3 - 1.8V
Accelerator pedal: fully depressed More than 3.0V
OFF ACCEL SW
●Ignition switch: ON
(Engine stopped)Accelerator pedal: fully released ON
Accelerator pedal: slightly
depressed OFF
TERMI-
NAL
NO.WIRE
COLORITEM CONDITIONDATA
(DC Voltage and Pulse Signal)
A21 BAccelerator pedal
released position switch
ground[Ignition switch “ON”]Approximately 0V
A22 LGAccelerator pedal position
sensor 1 ground[Ignition switch “ON”]Approximately 0V

Page 1882 of 3833

NISSAN X-TRAIL 2001 Service Repair Manual EC-1532
[YD]
DTC P1510 ACCELERATOR PEDAL RELEASED POSITION SWITCH
On Board Diagnosis Logic
EBS0096Y
DTC Confirmation ProcedureEBS0096Z
WITH CONSULT-II
1. Turn ignition switch “ON”.
2. Select “D

Page 1883 of 3833

NISSAN X-TRAIL 2001 Service Repair Manual DTC P1510 ACCELERATOR PEDAL RELEASED POSITION SWITCH
EC-1533
[YD]
C
D
E
F
G
H
I
J
K
L
MA
EC

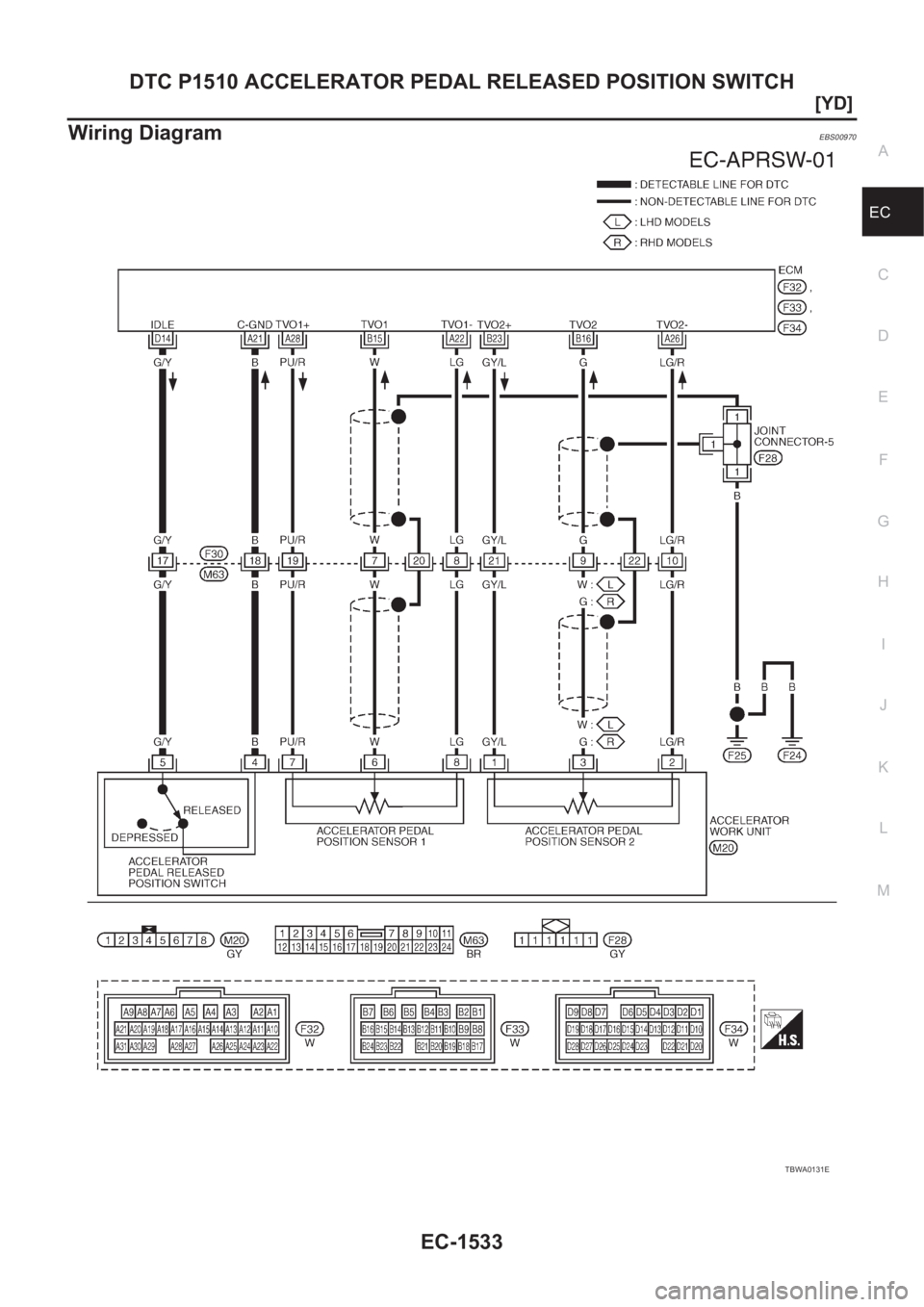

Wiring DiagramEBS00970
TBWA0131E

Page 1884 of 3833

NISSAN X-TRAIL 2001 Service Repair Manual EC-1534
[YD]
DTC P1510 ACCELERATOR PEDAL RELEASED POSITION SWITCH
Diagnostic Procedure
EBS00971
1. CHECK ACCELERATOR PEDAL RELEASED POSITION SWITCH POWER SUPPLY CIRCUIT
1. Turn ignition switch “OFF�

Page 1885 of 3833

NISSAN X-TRAIL 2001 Service Repair Manual DTC P1510 ACCELERATOR PEDAL RELEASED POSITION SWITCH
EC-1535
[YD]
C
D
E
F
G
H
I
J
K
L
MA
EC

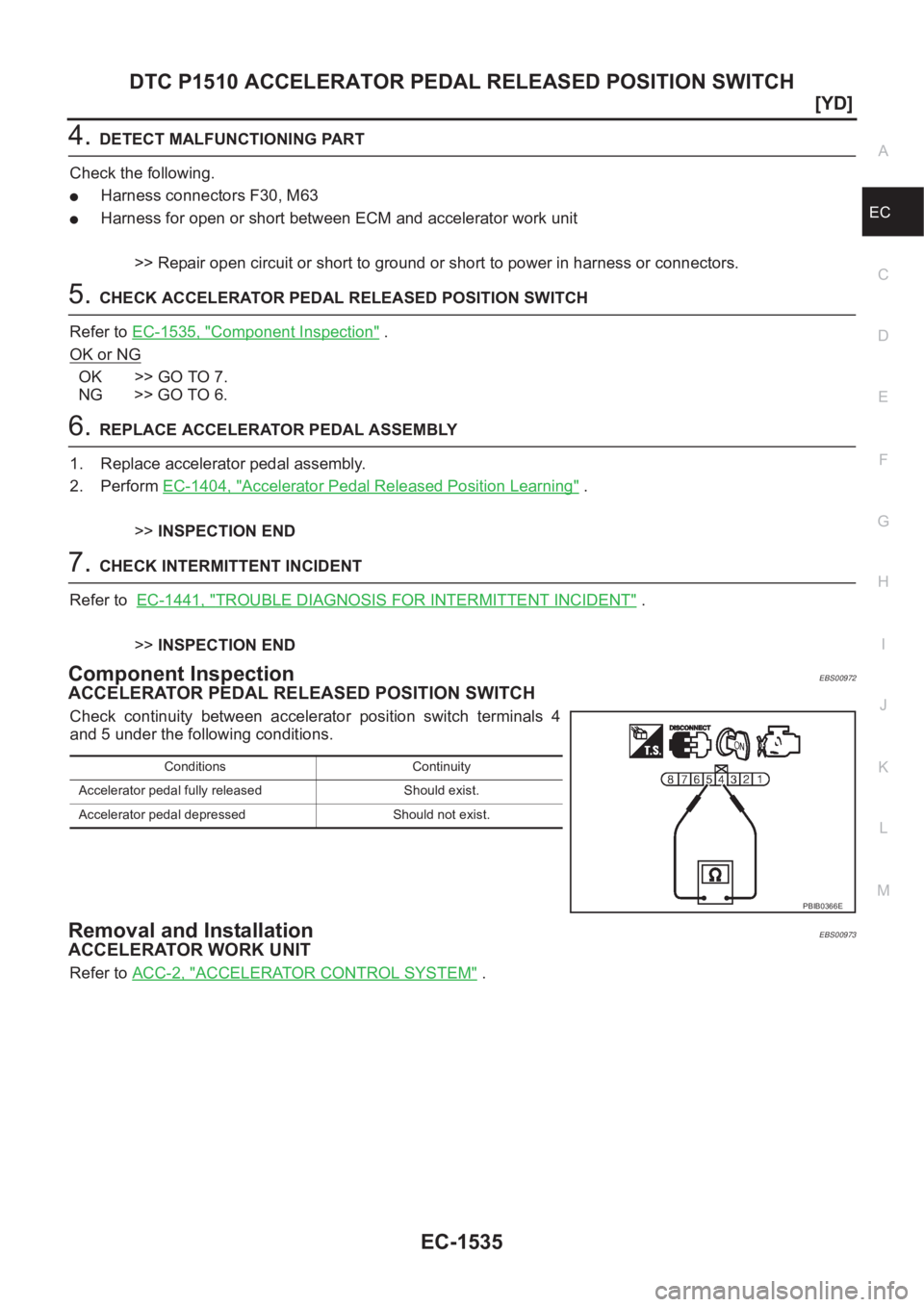

4.DETECT MALFUNCTIONING PART
Check the following.
●Harness connectors F30, M63
●Harness for open or shor

Page 1886 of 3833

NISSAN X-TRAIL 2001 Service Repair Manual EC-1536
[YD]
DTC P1606 ECM
DTC P1606 ECM
PFP:23710
DescriptionEBS008YY
The ECM consists of a microcomputer and connectors for signal
input and output and for power supply. The ECM controls th

Page 1887 of 3833

NISSAN X-TRAIL 2001 Service Repair Manual DTC P1606 ECM
EC-1537
[YD]
C
D
E
F
G
H
I
J
K
L
MA
EC

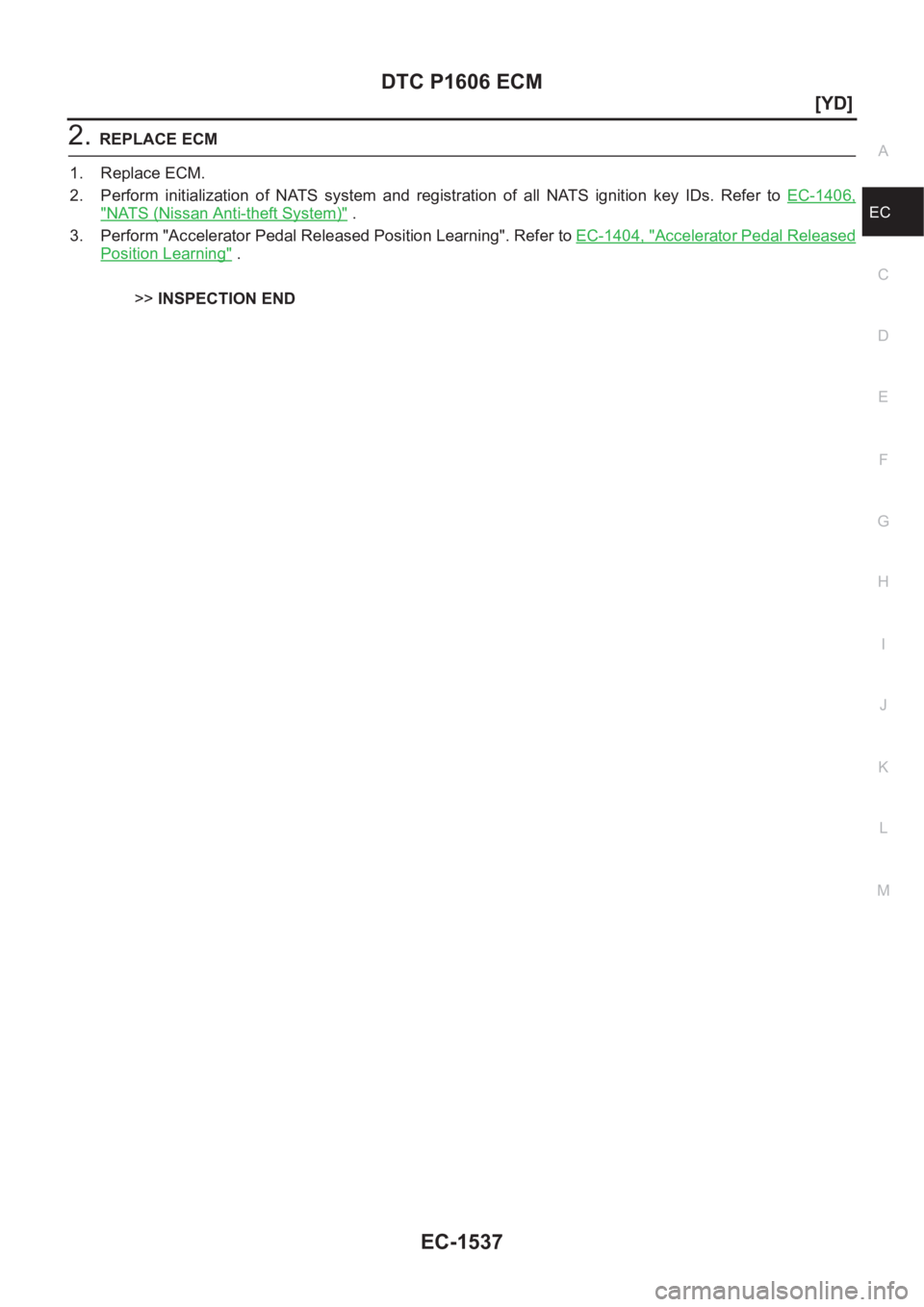

2.REPLACE ECM
1. Replace ECM.
2. Perform initialization of NATS system and registration of all NATS ignition key IDs. Refer to EC-140

Page 1888 of 3833

NISSAN X-TRAIL 2001 Service Repair Manual EC-1538
[YD]
DTC P1621 ECM RELAY
DTC P1621 ECM RELAY
PFP:25230

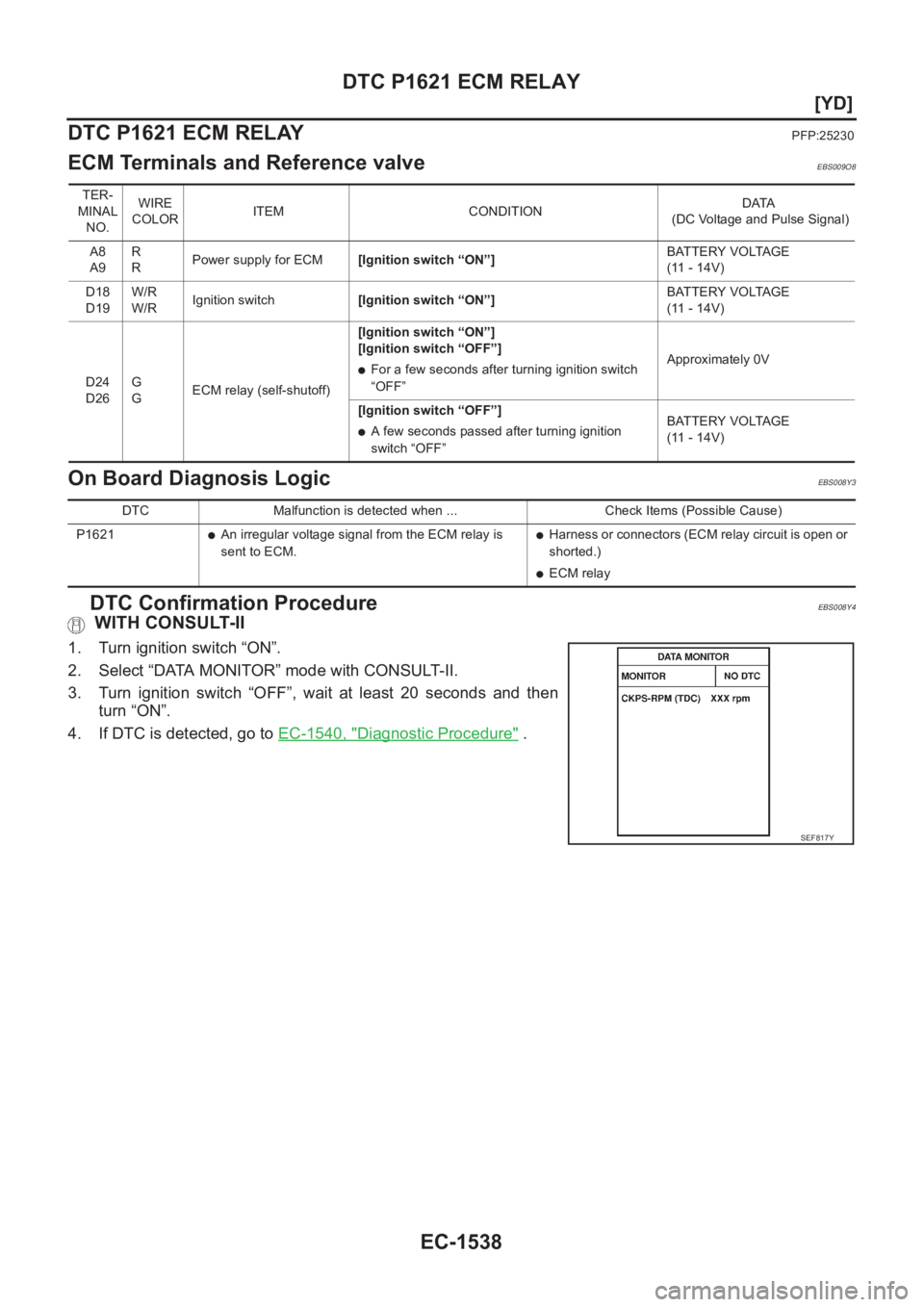

ECM Terminals and Reference valveEBS009O8
On Board Diagnosis LogicEBS008Y3
DTC Confirmation ProcedureEBS008Y4
WITH CONSULT-II
1. Turn ig
