TROUBLE DIAGNOSES FOR SYMPTOMS
AT-347
[EXC.F/EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT
4.CHECK OVERDRIVE CONTROL SWITCH CIRCUIT (WITHOUT CONSULT-II)
Without CONSULT-II
1. Turn ignition switch to “ON” position.
(Do not start engine.)
2. Check voltage between TCM terminal 22 and ground when overdrive control switch is “ON” and “OFF”.
OK or NG
OK >> GO TO 6.
NG >> Check the following items:
●Overdrive control switch (Refer to “Component Inspection”, AT- 3 4 9 , "COMPONENT INSPEC-
TION" .)
●Harness for short or open between TCM and overdrive control switch
●Harness of ground circuit for overdrive control switch for short or open Vo l t a g e :
Switch position “ON”: Battery voltage
Switch position “OFF”: 1V or less
SCIA0778E
Page 2426 of 3833
![NISSAN X-TRAIL 2001 Service Repair Manual AT-348
[EXC.F/EURO-OBD]
TROUBLE DIAGNOSES FOR SYMPTOMS
5. CHECK CLOSED THROTTLE POSITION AND WIDE OPEN THROTTLE POSITION SIGNAL CIRCUIT
(WITH CONSULT-II)
With CONSULT-II
1. Turn ignition switch to NISSAN X-TRAIL 2001 Service Repair Manual AT-348
[EXC.F/EURO-OBD]
TROUBLE DIAGNOSES FOR SYMPTOMS
5. CHECK CLOSED THROTTLE POSITION AND WIDE OPEN THROTTLE POSITION SIGNAL CIRCUIT
(WITH CONSULT-II)
With CONSULT-II
1. Turn ignition switch to](/manual-img/5/57405/w960_57405-2425.png)
AT-348
[EXC.F/EURO-OBD]
TROUBLE DIAGNOSES FOR SYMPTOMS
5. CHECK CLOSED THROTTLE POSITION AND WIDE OPEN THROTTLE POSITION SIGNAL CIRCUIT
(WITH CONSULT-II)
With CONSULT-II
1. Turn ignition switch to “ON” position.
(Do not start engine.)
2. Select “TCM INPUT SIGNALS” in “DATA MONITOR” mode for A/T with CONSULT-II.
3. Read out “CLOSED THL/SW” and “W/O THRL-SW” depressing and releasing accelerator pedal.
Check the signal of throttle position signal is indicated properly.
OK or NG
OK >> GO TO 7.
NG >> Check the following items. If any items are damaged, repair or replace damaged parts.
●Accelerator pedal position sensor — Refer to AT- 3 6 2 , "ACCELE RATOR PEDAL POSITION
(APP) SENSOR" .
●Harness for short or open between accelerator pedal position sensor and ECM
6. CHECK CLOSED THROTTLE POSITION AND WIDE OPEN THROTTLE POSITION SIGNAL CIRCUIT
(WITHOUT CONSULT-II)
Without CONSULT-II
Check the following items:
●Accelerator pedal position sensor — Refer to AT- 3 6 2 , "ACCELE RATOR PEDAL POSITION (APP) SEN-
SOR" .
●Harness for short or open between accelerator pedal position sensor and ECM
OK or NG
OK >> GO TO 7.
NG >> Repair or replace damaged parts.
7. CHECK DTC
Perform “SELF-DIAGNOSTIC PROCEDURE (WITHOUT CONSULT-II)”. Refer to AT- 2 5 3 , "
SELF-DIAGNOS-
TIC PROCEDURE (WITHOUT CONSULT-II)" .
OK or NG
OK >>INSPECTION END
NG >>
●Perform TCM input/output signal inspection.
●If NG, recheck TCM pin terminals for damage or loose connection with harness connector.
Accelerator pedal
conditionData monitor
CLOSED THL/SW W/O THRL-SW
Released ON OFF
Fully depressed OFF ON
SAT646J
Page 2427 of 3833
TROUBLE DIAGNOSES FOR SYMPTOMS
AT-349
[EXC.F/EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT

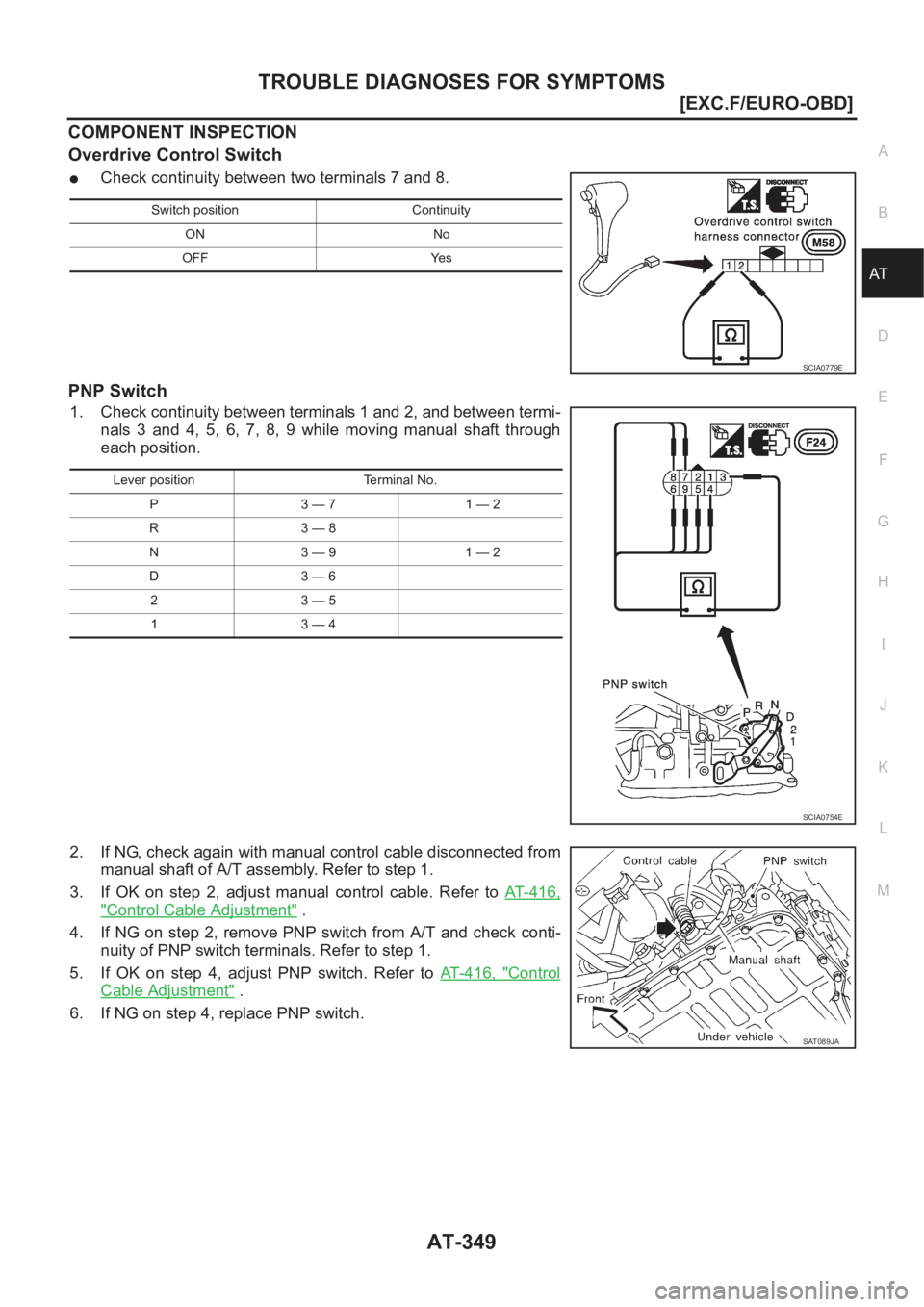

COMPONENT INSPECTION
Overdrive Control Switch
●Check continuity between two terminals 7 and 8.
PNP Switch
1. Check continuity between terminals 1 and 2, and between termi-
nals 3 and 4, 5, 6, 7, 8, 9 while moving manual shaft through
each position.
2. If NG, check again with manual control cable disconnected from
manual shaft of A/T assembly. Refer to step 1.
3. If OK on step 2, adjust manual control cable. Refer to AT- 4 1 6 ,
"Control Cable Adjustment" .
4. If NG on step 2, remove PNP switch from A/T and check conti-
nuity of PNP switch terminals. Refer to step 1.
5. If OK on step 4, adjust PNP switch. Refer to AT- 4 1 6 , "
Control
Cable Adjustment" .
6. If NG on step 4, replace PNP switch.
Switch position Continuity
ON No
OFF Yes
SCIA0779E
Lever position Terminal No.
P 3 — 7 1 — 2
R 3 — 8
N 3 — 9 1 — 2
D 3 — 6
2 3 — 5
1 3 — 4
SCIA0754E
SAT089JA
Page 2428 of 3833
AT-350
[ALL]
MAIN POWER SUPPLY AND GROUND CIRCUIT
[ALL]MAIN POWER SUPPLY AND GROUND CIRCUITPFP:00100

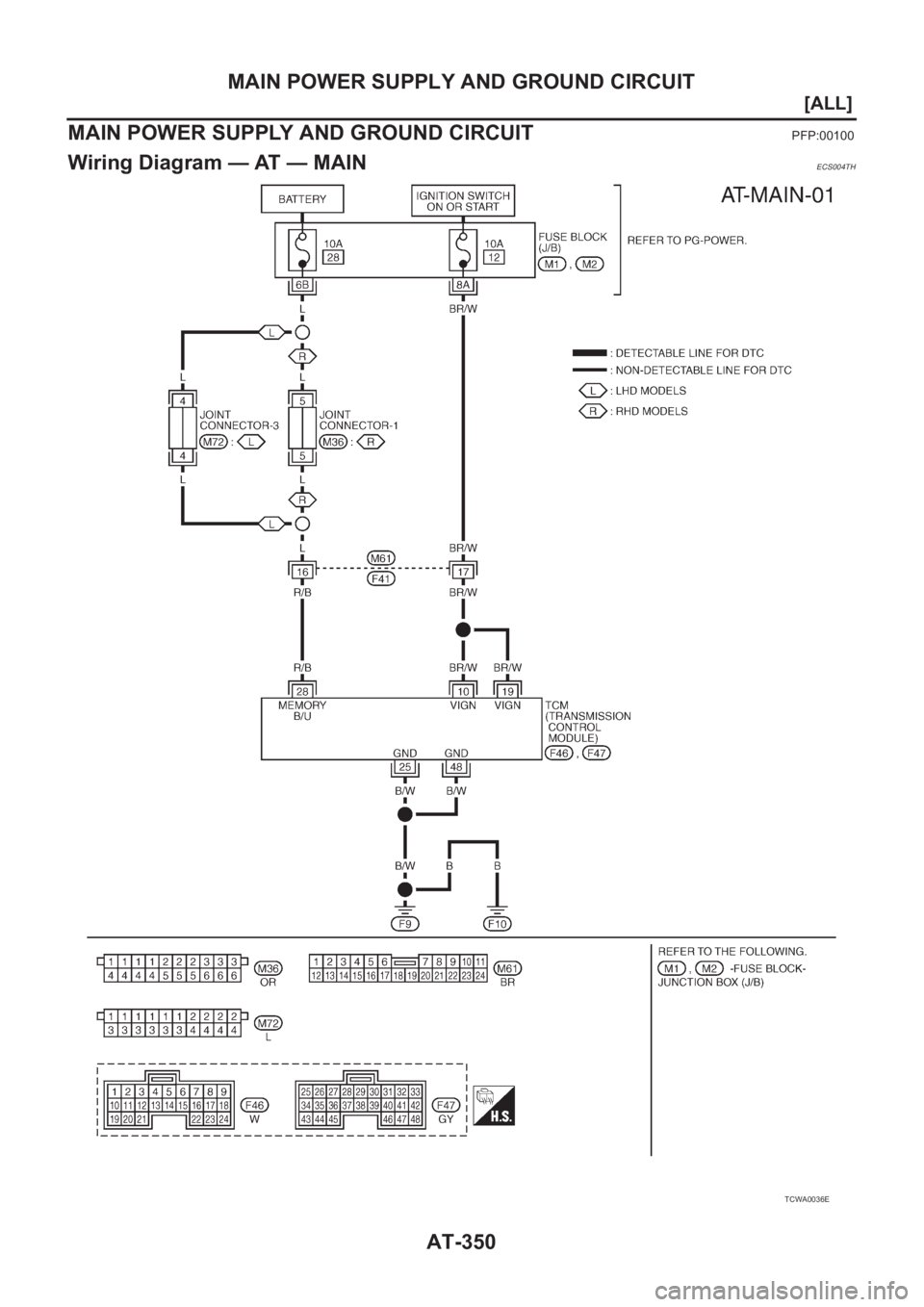

Wiring Diagram — AT — MAINECS004TH
TCWA0036E
Page 2429 of 3833
MAIN POWER SUPPLY AND GROUND CIRCUIT
AT-351
[ALL]
D
E
F
G
H
I
J
K
L
MA
B
AT
TCM TERMINALS AND REFERENCE VALUE
Remarks: Specification data are reference values.
Diagnostic ProcedureECS004TI
1.CHECK TCM POWER SOURCE STEP 1
1. Turn ignition switch to ON position.
(Do not start engine.)
2. Check voltage between TCM terminals 10, 19, 28 and ground.
OK or NG
OK >> GO TO 2
NG >> GO TO 3
2.CHECK TCM POWER SOURCE STEP 2
1. Turn ignition switch to OFF position.
2. Check voltage between TCM terminal 28 and ground.
OK or NG
OK >> GO TO 4
NG >> GO TO 3
Te r m i -
nal No.Wire color Item ConditionJudgement stan-
dard
(Approx.)
10 BR/W Power source
or When turning ignition switch to “ON”. Battery voltage
When turning ignition switch to
“OFF”.0V
19 BR/W Power source Same as No. 10
25 B/W Ground — — —
28 R/BPower source
(Memory back-up)
or When turning ignition switch to
“OFF”.Battery voltage
When turning ignition switch to “ON”. Battery voltage
48 B/W Ground — — —
SCIA0713E
SCIA0714E
Page 2430 of 3833
AT-352
[ALL]
MAIN POWER SUPPLY AND GROUND CIRCUIT

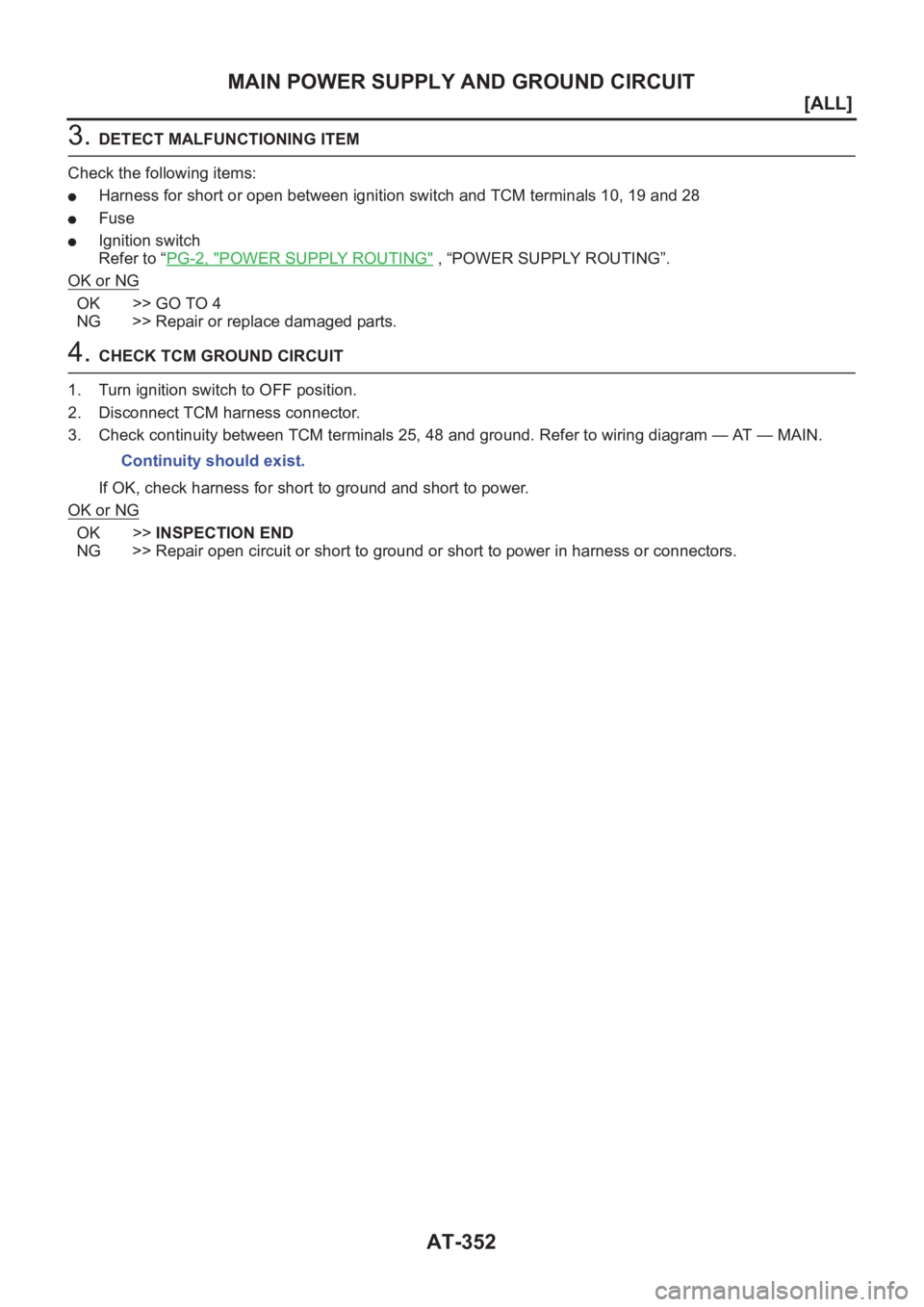

3. DETECT MALFUNCTIONING ITEM
