TROUBLE DIAGNOSIS
EC-827
[QR20(WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
ENGINE CONTROL COMPONENT PARTS/CONTROL SYSTEMS APPLICATION
X: Applicable
*1: This item includes 1st trip DTCs.
*2: This mode includes 1st trip freeze frame data or freeze frame data. The items appear on CONSULT-II screen in freeze frame data
mode only if a 1st trip DTC or DTC is detected. For details, refer to EC-780
.
CONSULT-II INSPECTION PROCEDURE
1. Turn ignition switch OFF.
ItemDIAGNOSTIC TEST MODE
WORK
SUP-
PORTSELF-DIAGNOSTIC
RESULTS
DATA
MONI-
TORDATA
MONI-
TOR
(SPEC)ACTIVE
TESTDTC & SRT
CONFIRMATION
DTC*1FREEZE
FRAME
DATA*2SRT
STATUSDTC
WORK
SUP-
PORT
ENGINE CONTROL COMPONENT PARTS
INPUT
Crankshaft position sensor (POS)××××
Camshaft position sensor (PHASE)×
Mass air flow sensor×××
Engine coolant temperature sensor×××××
Heated oxygen sensor 1×××××
Heated oxygen sensor 2×××××
Wheel sensor××××
Accelerator pedal position sensor×××
Throttle position sensor×××
Intake air temperature sensor×××
Knock sensor×
Refrigerant pressure sensor××
Ignition switch (start signal)××
Closed throttle position switch
(accelerator pedal position sensor
signal)××
Air conditioner switch××
Park/neutral position (PNP) switch×××
Stop lamp switch×××
Power steering pressure sensor×××
Battery voltage××
Load signal××
ENGINE CONTROL COMPONENT PARTS
OUTPUT
Injectors×× ×
Power transistor (Ignition timing)×× ×
Throttle control motor relay×××
EVAP canister purge volume con-
trol solenoid valve××××
Air conditioner relay××
Fuel pump relay××××
Cooling fan relay××××
Heated oxygen sensor 1 heater××××
Heated oxygen sensor 2 heater××××
Intake valve timing control solenoid
valve××××
Calculated load value×××
Page 1178 of 3833
EC-828
[QR20(WITH EURO-OBD)]
TROUBLE DIAGNOSIS

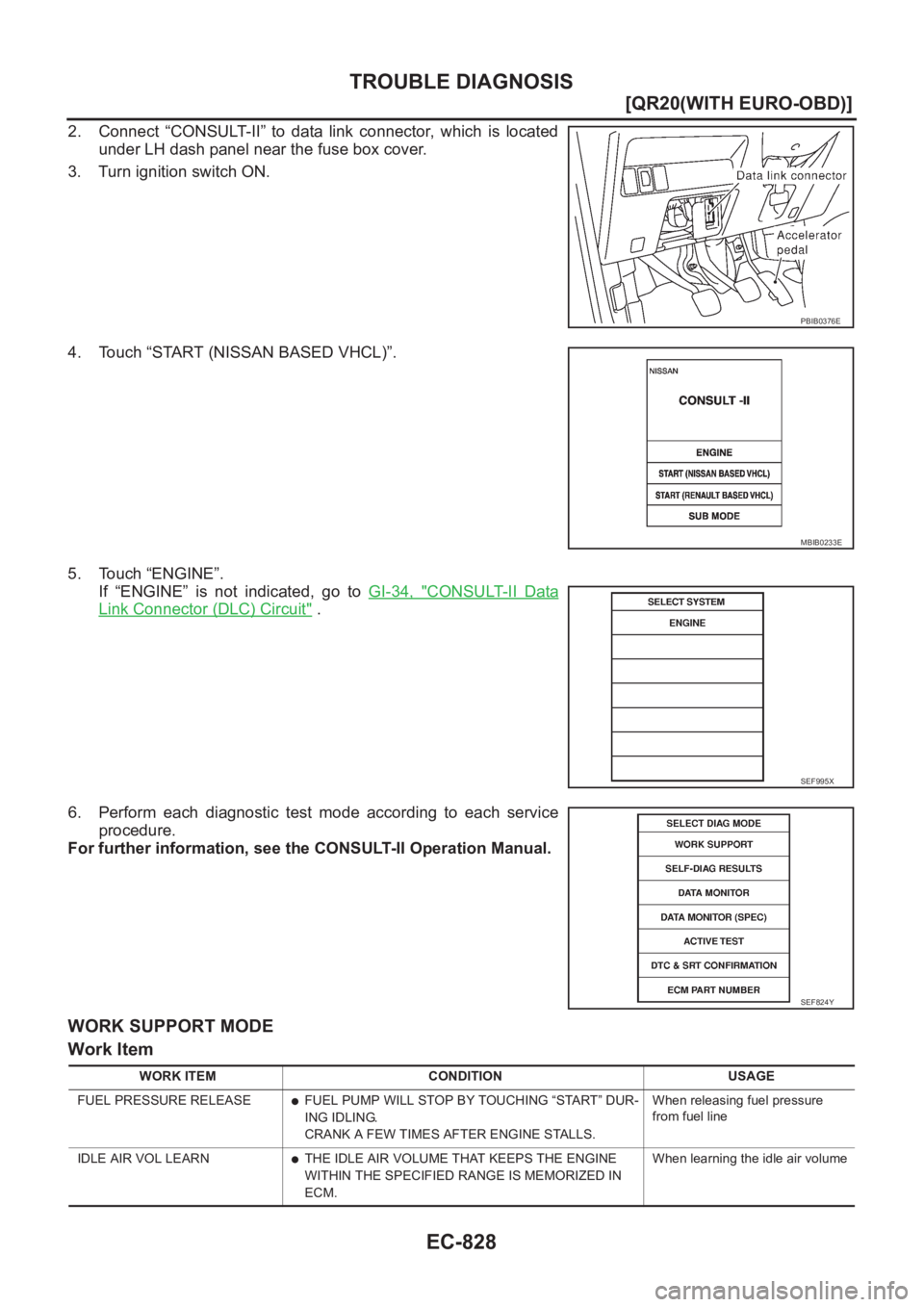

2. Connect “CONSULT-II” to data link connector, which is located
under LH dash panel near the fuse box cover.
3. Turn ignition switch ON.
4. Touch “START (NISSAN BASED VHCL)”.
5. Touch “ENGINE”.
If “ENGINE” is not indicated, go to GI-34, "
CONSULT-II Data
Link Connector (DLC) Circuit" .
6. Perform each diagnostic test mode according to each service
procedure.
For further information, see the CONSULT-II Operation Manual.
WORK SUPPORT MODE
Work Item
PBIB0376E
MBIB0233E
SEF995X
SEF824Y
WORK ITEM CONDITION USAGE
FUEL PRESSURE RELEASE
●FUEL PUMP WILL STOP BY TOUCHING “START” DUR-
ING IDLING.
CRANK A FEW TIMES AFTER ENGINE STALLS.When releasing fuel pressure
from fuel line
IDLE AIR VOL LEARN
●THE IDLE AIR VOLUME THAT KEEPS THE ENGINE
WITHIN THE SPECIFIED RANGE IS MEMORIZED IN
ECM.When learning the idle air volume
Page 1179 of 3833
![NISSAN X-TRAIL 2001 Service Repair Manual TROUBLE DIAGNOSIS
EC-829
[QR20(WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
*: This function is not necessary in the usual service procedure.
SELF-DIAG RESULTS MODE
Self Diagnostic Item
Regarding items o NISSAN X-TRAIL 2001 Service Repair Manual TROUBLE DIAGNOSIS
EC-829
[QR20(WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
*: This function is not necessary in the usual service procedure.
SELF-DIAG RESULTS MODE
Self Diagnostic Item
Regarding items o](/manual-img/5/57405/w960_57405-1178.png)
TROUBLE DIAGNOSIS
EC-829
[QR20(WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
*: This function is not necessary in the usual service procedure.
SELF-DIAG RESULTS MODE
Self Diagnostic Item
Regarding items of “DTC and 1st trip DTC”, refer to EC-753, "INDEX FOR DTC" .)
Freeze Frame Data and 1st Trip Freeze Frame Data
*1: The items are the same as those of 1st trip freeze frame data. SELF-LEARNING CONT
●THE COEFFICIENT OF SELF-LEARNING CONTROL
MIXTURE RATIO RETURNS TO THE ORIGINAL COEF-
FICIENT.When releasing fuel pressure
from fuel line
TARGET IDLE RPM ADJ*
●IDLE CONDITION When setting target idle speed
TARGET IGNITION TIMING ADJ*
●IDLE CONDITION When adjusting target ignition tim-
ing WORK ITEM CONDITION USAGE
Freeze frame data
item*1Description
DIAG TROUBLE
CODE
[PXXXX]
●The engine control component part/control system has a trouble code, it is displayed as “PXXXX”. (Refer
to EC-753, "
INDEX FOR DTC" .)
FUEL SYS-B1
●“Fuel injection system status” at the moment a malfunction is detected is displayed.
●One mode in the following is displayed.
“MODE 2”: Open loop due to detected system malfunction
“MODE 3”: Open loop due to driving conditions (power enrichment, deceleration enrichment)
“MODE 4”: Closed loop - using oxygen sensor(s) as feedback for fuel control
“MODE 5”: Open loop - has not yet satisfied condition to go to closed loop
CAL/LD VALUE [%]
●The calculated load value at the moment a malfunction is detected is displayed.
COOLANT TEMP [°C]
or [°F]
●The engine coolant temperature at the moment a malfunction is detected is displayed.
S-FUEL TRIM-B1 [%]
●“Short-term fuel trim” at the moment a malfunction is detected is displayed.
●The short-term fuel trim indicates dynamic or instantaneous feedback compensation to the base fuel
schedule.
L-FUEL TRIM-B1 [%]
●“Long-term fuel trim” at the moment a malfunction is detected is displayed.
●The long-term fuel trim indicates much more gradual feedback compensation to the base fuel schedule
than short-term fuel trim.
ENGINE SPEED
[rpm]
●The engine speed at the moment a malfunction is detected is displayed.
VHCL SPEED [km/h]
or [mph]
●The vehicle speed at the moment a malfunction is detected is displayed.
B/FUEL SCHDL
[msec]
●The base fuel schedule at the moment a malfunction is detected is displayed.
INT/A TEMP SE [°C]
or [°F]
●The intake air temperature at the moment a malfunction is detected is displayed.
Page 1180 of 3833
![NISSAN X-TRAIL 2001 Service Repair Manual EC-830
[QR20(WITH EURO-OBD)]
TROUBLE DIAGNOSIS
DATA MONITOR MODE
Monitored Item
×: Applicable
Monitored item
[Unit]ECM
INPUT
SIG-
NALSMAIN
SIG-
NALSCAN
DIAG
SUP-
PORT
MNTRDescription Remarks
EN NISSAN X-TRAIL 2001 Service Repair Manual EC-830
[QR20(WITH EURO-OBD)]
TROUBLE DIAGNOSIS
DATA MONITOR MODE
Monitored Item
×: Applicable
Monitored item
[Unit]ECM
INPUT
SIG-
NALSMAIN
SIG-
NALSCAN
DIAG
SUP-
PORT
MNTRDescription Remarks
EN](/manual-img/5/57405/w960_57405-1179.png)
EC-830
[QR20(WITH EURO-OBD)]
TROUBLE DIAGNOSIS

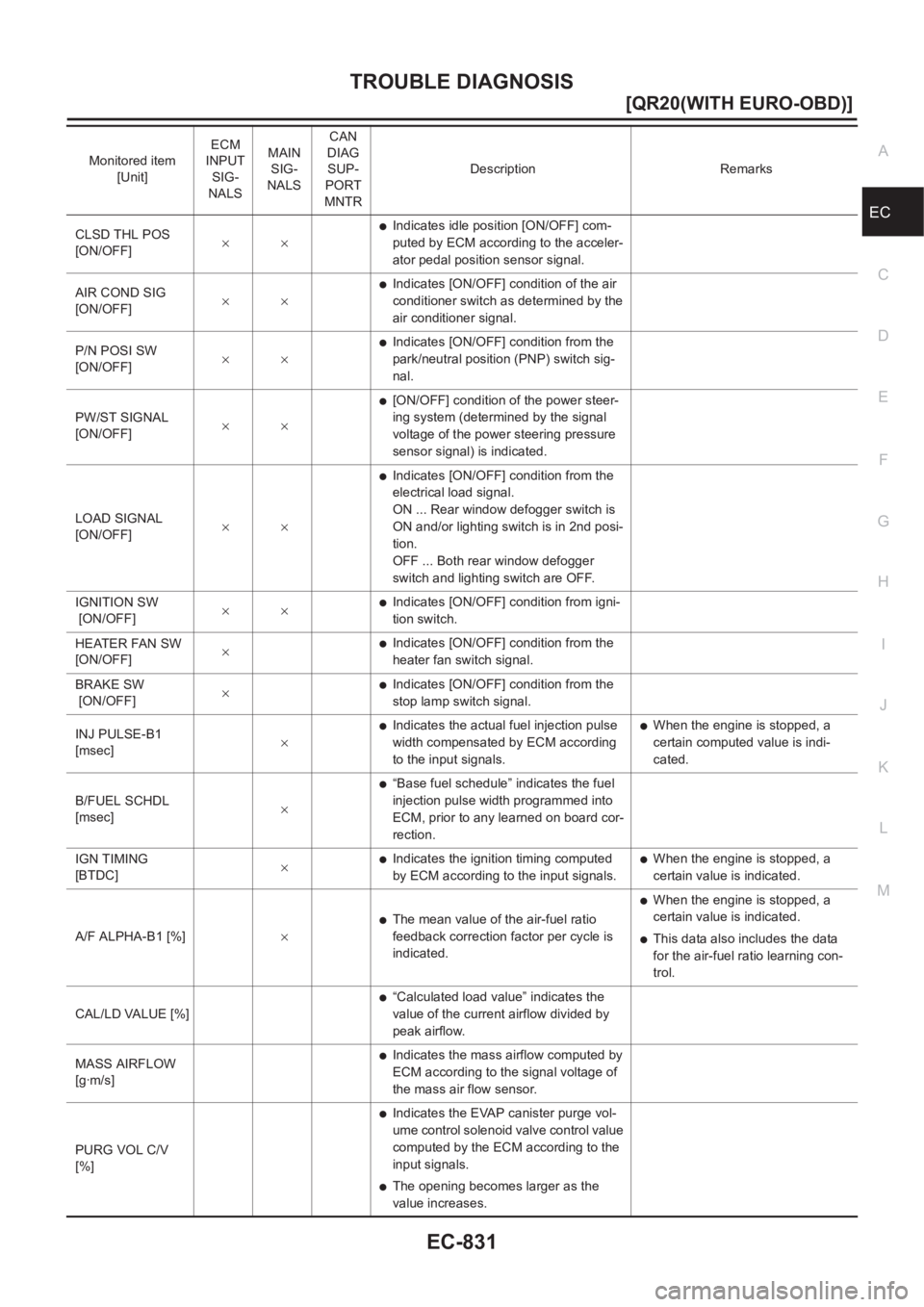

DATA MONITOR MODE
Monitored Item
×: Applicable
Monitored item
[Unit]ECM
INPUT
SIG-
NALSMAIN
SIG-
NALSCAN
DIAG
SUP-
PORT
MNTRDescription Remarks
ENG SPEED [rpm]××
●Indicates the engine speed computed
from the signals of the crankshaft posi-
tion sensor (POS) and camshaft posi-
tion sensor (PHASE).●Accuracy becomes poor if engine
speed drops below the idle rpm.
●If the signal is interrupted while the
engine is running, an abnormal
value may be indicated.
MAS A/F SE-B1 [V]××
●The signal voltage of the mass air flow
sensor is displayed.●When the engine is stopped, a
certain value is indicated.
COOLAN TEMP/S
[°C] or [°F]××
●The engine coolant temperature (deter-
mined by the signal voltage of the
engine coolant temperature sensor) is
displayed.
●When the engine coolant tempera-
ture sensor is open or short-cir-
cuited, ECM enters fail-safe mode.
The engine coolant temperature
determined by the ECM is dis-
played.
HO2S1 (B1) [V]××
●The signal voltage of the heated oxygen
sensor 1 is displayed.
HO2S2 (B1) [V]××
●The signal voltage of the heated oxygen
sensor 2 is displayed.
HO2S1 MNTR (B1)
[RICH/LEAN]××
●Display of heated oxygen sensor 1 sig-
nal during air-fuel ratio feedback control:
RICH ... means the mixture became
“rich”, and control is being affected
toward a leaner mixture.
LEAN ... means the mixture became
“lean”, and control is being affected
toward a rich mixture.●After turning ON the ignition
switch, “RICH” is displayed until
air-fuel mixture ratio feedback
control begins.
●When the air-fuel ratio feedback is
clamped, the value just before the
clamping is displayed continu-
ously.
HO2S2 MNTR (B1)
[RICH/LEAN]×
●Display of heated oxygen sensor 2 sig-
nal:
RICH ... means the amount of oxygen
after three way catalyst is relatively
small.
LEAN ... means the amount of oxygen
after three way catalyst is relatively
large.
●When the engine is stopped, a
certain value is indicated.
VHCL SPEED SE
[km/h] or [mph]××
●The vehicle speed computed from the
vehicle speed signal is displayed.
BATTERY VOLT
[V]××
●The power supply voltage of ECM is dis-
played.
ACCEL SEN 1 [V]××
●The accelerator pedal position sensor
signal voltage is displayed.
ACCEL SEN 2 [V]×
THRTL SEN 1 [V]××
●The throttle position sensor signal volt-
age is displayed.
THRTL SEN 2 [V]×
INT/A TEMP SE
[°C] or [°F]××
●The intake air temperature (determined
by the signal voltage of the intake air
temperature sensor) is indicated.
START SIGNAL
[ON/OFF]××
●Indicates [ON/OFF] condition from the
starter signal.●After starting the engine, [OFF] is
displayed regardless of the starter
signal.
Page 1181 of 3833
![NISSAN X-TRAIL 2001 Service Repair Manual TROUBLE DIAGNOSIS
EC-831
[QR20(WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
CLSD THL POS
[ON/OFF]××●Indicates idle position [ON/OFF] com-
puted by ECM according to the acceler-
ator pedal position s NISSAN X-TRAIL 2001 Service Repair Manual TROUBLE DIAGNOSIS
EC-831
[QR20(WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
CLSD THL POS
[ON/OFF]××●Indicates idle position [ON/OFF] com-
puted by ECM according to the acceler-
ator pedal position s](/manual-img/5/57405/w960_57405-1180.png)
TROUBLE DIAGNOSIS
EC-831
[QR20(WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
CLSD THL POS
[ON/OFF]××●Indicates idle position [ON/OFF] com-
puted by ECM according to the acceler-
ator pedal position sensor signal.
AIR COND SIG
[ON/OFF]××
●Indicates [ON/OFF] condition of the air
conditioner switch as determined by the
air conditioner signal.
P/N POSI SW
[ON/OFF]××
●Indicates [ON/OFF] condition from the
park/neutral position (PNP) switch sig-
nal.
PW/ST SIGNAL
[ON/OFF]××
●[ON/OFF] condition of the power steer-
ing system (determined by the signal
voltage of the power steering pressure
sensor signal) is indicated.
LOAD SIGNAL
[ON/OFF]××
●Indicates [ON/OFF] condition from the
electrical load signal.
ON ... Rear window defogger switch is
ON and/or lighting switch is in 2nd posi-
tion.
OFF ... Both rear window defogger
switch and lighting switch are OFF.
IGNITION SW
[ON/OFF]××
●Indicates [ON/OFF] condition from igni-
tion switch.
HEATER FAN SW
[ON/OFF]×
●Indicates [ON/OFF] condition from the
heater fan switch signal.
BRAKE SW
[ON/OFF]×
●Indicates [ON/OFF] condition from the
stop lamp switch signal.
INJ PULSE-B1
[msec]×
●Indicates the actual fuel injection pulse
width compensated by ECM according
to the input signals.●When the engine is stopped, a
certain computed value is indi-
cated.
B/FUEL SCHDL
[msec]×
●“Base fuel schedule” indicates the fuel
injection pulse width programmed into
ECM, prior to any learned on board cor-
rection.
IGN TIMING
[BTDC]×
●Indicates the ignition timing computed
by ECM according to the input signals.●When the engine is stopped, a
certain value is indicated.
A/F ALPHA-B1 [%]×
●The mean value of the air-fuel ratio
feedback correction factor per cycle is
indicated.
●When the engine is stopped, a
certain value is indicated.
●This data also includes the data
for the air-fuel ratio learning con-
trol.
CAL/LD VALUE [%]
●“Calculated load value” indicates the
value of the current airflow divided by
peak airflow.
MASS AIRFLOW
[g·m/s]
●Indicates the mass airflow computed by
ECM according to the signal voltage of
the mass air flow sensor.
PURG VOL C/V
[%]
●Indicates the EVAP canister purge vol-
ume control solenoid valve control value
computed by the ECM according to the
input signals.
●The opening becomes larger as the
value increases. Monitored item
[Unit]ECM
INPUT
SIG-
NALSMAIN
SIG-
NALSCAN
DIAG
SUP-
PORT
MNTRDescription Remarks
Page 1182 of 3833
![NISSAN X-TRAIL 2001 Service Repair Manual EC-832
[QR20(WITH EURO-OBD)]
TROUBLE DIAGNOSIS
INT/V TIM (B1)
[°CA]●Indicates [°CA] of intake camshaft
advanced angle.
INT/V SOL (B1) [%]
●The control condition of the intake valve
timing co NISSAN X-TRAIL 2001 Service Repair Manual EC-832
[QR20(WITH EURO-OBD)]
TROUBLE DIAGNOSIS
INT/V TIM (B1)
[°CA]●Indicates [°CA] of intake camshaft
advanced angle.
INT/V SOL (B1) [%]
●The control condition of the intake valve
timing co](/manual-img/5/57405/w960_57405-1181.png)
EC-832
[QR20(WITH EURO-OBD)]
TROUBLE DIAGNOSIS
INT/V TIM (B1)
[°CA]●Indicates [°CA] of intake camshaft
advanced angle.
INT/V SOL (B1) [%]
●The control condition of the intake valve
timing control solenoid valve (deter-
mined by ECM according to the input
signals) is indicated.
ON ... intake valve timing control is oper-
ating.
OFF ... Intake valve timing control is not
operating.
AIR COND RLY
[ON/OFF]×
●The air conditioner relay control condi-
tion (determined by ECM according to
the input signals) is indicated.
FUEL PUMP RLY
[ON/OFF]×
●Indicates the fuel pump relay control
condition determined by ECM according
to the input signals.
THRTL RELAY
[ON/OFF]
●Indicates the throttle control motor relay
control condition determined by the
ECM according to the input signals.
COOLING FAN
[HI/LOW/OFF]
●Indicates the condition of the cooling fan
(determined by ECM according to the
input signals).
HI ... High speed operation
LOW ... Low speed operation
OFF ... Stop
HO2S1 HTR (B1)
[ON/OFF]
●Indicates [ON/OFF] condition of heated
oxygen sensor 1 heater determined by
ECM according to the input signals.
HO2S2 HTR (B1)
[ON/OFF]
●Indicates [ON/OFF] condition of heated
oxygen sensor 2 heater determined by
ECM according to the input signals.
IDL A/V LEARN
[YET/CMPLT]
●Display the condition of idle air volume
learning
YET ... Idle air volume learning has not
been performed yet.
CMPLT ... Idle air volume learning has
already been performed successfully.
TRVL AFTER MIL
[km] or [mile]
●Distance traveled while MI is activated.
AC PRESS SEN
[V]
●The signal voltage from the refrigerant
pressure sensor is displayed.
Voltage [V]
●Voltage, frequency, duty cycle or pulse
width measured by the probe.
●Only “#” is displayed if item is
unable to be measured.
●Figures with “#”s are temporary
ones. They are the same figures
as an actual piece of data which
was just previously measured. Frequency
[msec], [Hz] or [%]
DUTY-HI
DUTY-LOW
PLS WIDTH-HI
PLS WIDTH-LOWMonitored item
[Unit]ECM
INPUT
SIG-
NALSMAIN
SIG-
NALSCAN
DIAG
SUP-
PORT
MNTRDescription Remarks
Page 1183 of 3833
![NISSAN X-TRAIL 2001 Service Repair Manual TROUBLE DIAGNOSIS
EC-833
[QR20(WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
NOTE:
●Any monitored item that does not match the vehicle being diagnosed is deleted from the display automatically.
DATA MON NISSAN X-TRAIL 2001 Service Repair Manual TROUBLE DIAGNOSIS
EC-833
[QR20(WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
NOTE:
●Any monitored item that does not match the vehicle being diagnosed is deleted from the display automatically.
DATA MON](/manual-img/5/57405/w960_57405-1182.png)
TROUBLE DIAGNOSIS
EC-833
[QR20(WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
NOTE:
●Any monitored item that does not match the vehicle being diagnosed is deleted from the display automatically.
DATA MONITOR (SPEC) MODE
Monitored Item
NOTE:
●Any monitored item that does not match the vehicle being diagnosed is deleted from the display automatically.
ACTIVE TEST MODE
Test Item
CAN COMM
[OK/NG]×
●Indicates the communication condition
of CAN communication line.●These items are not displayed in
“SELECTION FROM MENU”
mode. CAN CIRC 1
[OK/UNKWN]×
CAN CIRC 2
[OK/UNKWN]×
CAN CIRC 3
[OK/UNKWN]×
CAN CIRC 4
[OK/UNKWN]×
CAN CIRC 5
[OK/UNKWN]× Monitored item
[Unit]ECM
INPUT
SIG-
NALSMAIN
SIG-
NALSCAN
DIAG
SUP-
PORT
MNTRDescription Remarks
Monitored item [Unit]ECM
input
signalsMain
signalsDescription Remarks
ENG SPEED [rpm]×
●Indicates the engine speed computed
from the signasl of the crankshaft posi-
tion sensor (POS) and camshaft position
sensor (PHASE).
MAS A/F SE-B1 [V]××
●The signal voltage of the mass air flow
sensor specification is displayed.●When engine is running specification
range is indicated.
B/FUEL SCHDL
[msec]
●“Base fuel schedule” indicates the fuel
injection pulse width programmed into
ECM, prior to any learned on board cor-
rection.
●When engine is running specification
range is indicated.
A/F ALPHA-B1 [%]×
●The mean value of the air-fuel ratio feed-
back correction factor per cycle is indi-
cated.●When engine is running specification
range is indicated.
●This data also includes the data for the
air-fuel ratio learning control.
TEST ITEM CONDITION JUDGEMENT CHECK ITEM (REMEDY)
FUEL INJEC-
TION
●Engine: Return to the original
trouble condition
●Change the amount of fuel injec-
tion using CONSULT-II.If trouble symptom disappears, see
CHECK ITEM.
●Harness and connectors
●Fuel injectors
●Heated oxygen sensor 1
IGNITION TIM-
ING
●Engine: Return to the original
trouble condition
●Timing light: Set
●Retard the ignition timing using
CONSULT-II.If trouble symptom disappears, see
CHECK ITEM.
●Perform “Idle Air Volume Learn-
ing”.
Page 1184 of 3833
![NISSAN X-TRAIL 2001 Service Repair Manual EC-834
[QR20(WITH EURO-OBD)]
TROUBLE DIAGNOSIS
DTC & SRT CONFIRMATION MODE
SRT STATUS Mode
For details, refer to EC-781, "SYSTEM READINESS TEST (SRT) CODE" .
SRT Work Support Mode
This mode en NISSAN X-TRAIL 2001 Service Repair Manual EC-834
[QR20(WITH EURO-OBD)]
TROUBLE DIAGNOSIS
DTC & SRT CONFIRMATION MODE
SRT STATUS Mode
For details, refer to EC-781, "SYSTEM READINESS TEST (SRT) CODE" .
SRT Work Support Mode
This mode en](/manual-img/5/57405/w960_57405-1183.png)

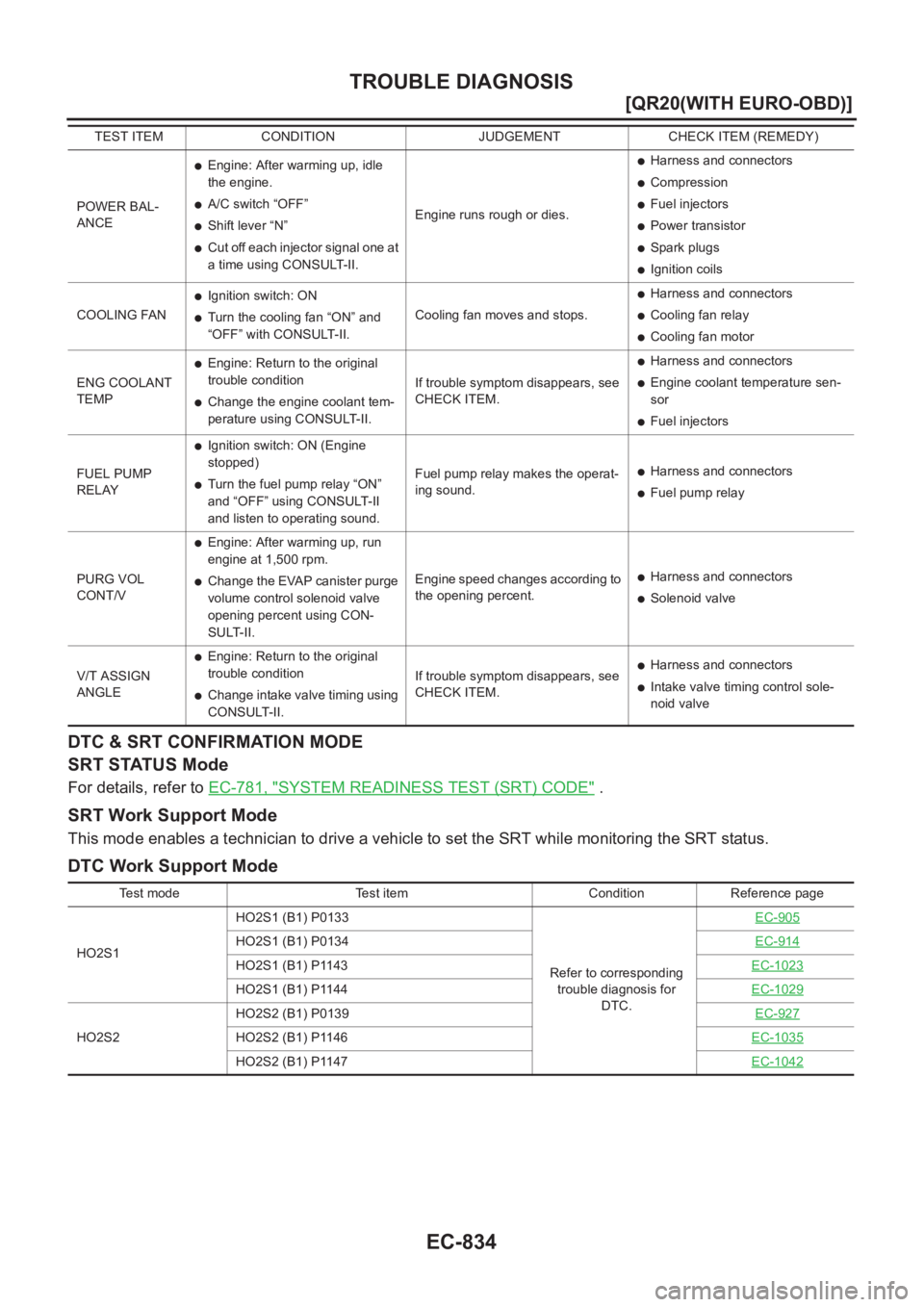

EC-834
[QR20(WITH EURO-OBD)]
TROUBLE DIAGNOSIS
DTC & SRT CONFIRMATION MODE
SRT STATUS Mode
For details, refer to EC-781, "SYSTEM READINESS TEST (SRT) CODE" .
SRT Work Support Mode
This mode enables a technician to drive a vehicle to set the SRT while monitoring the SRT status.
DTC Work Support Mode
POWER BAL-
ANCE
●Engine: After warming up, idle
the engine.
●A/C switch “OFF”
●Shift lever “N”
●Cut off each injector signal one at
a time using CONSULT-II.Engine runs rough or dies.
●Harness and connectors
●Compression
●Fuel injectors
●Power transistor
●Spark plugs
●Ignition coils
COOLING FAN
●Ignition switch: ON
●Turn the cooling fan “ON” and
“OFF” with CONSULT-II.Cooling fan moves and stops.
●Harness and connectors
●Cooling fan relay
●Cooling fan motor
ENG COOLANT
TEMP
●Engine: Return to the original
trouble condition
●Change the engine coolant tem-
perature using CONSULT-II.If trouble symptom disappears, see
CHECK ITEM.
●Harness and connectors
●Engine coolant temperature sen-
sor
●Fuel injectors
FUEL PUMP
RELAY
●Ignition switch: ON (Engine
stopped)
●Turn the fuel pump relay “ON”
and “OFF” using CONSULT-II
and listen to operating sound.Fuel pump relay makes the operat-
ing sound.●Harness and connectors
●Fuel pump relay
PURG VOL
CONT/V
●Engine: After warming up, run
engine at 1,500 rpm.
●Change the EVAP canister purge
volume control solenoid valve
opening percent using CON-
SULT-II.E ngi ne s p eed c hange s ac c o rd in g to
the opening percent.●Harness and connectors
●Solenoid valve
V/T ASSIGN
ANGLE
●Engine: Return to the original
trouble condition
●Change intake valve timing using
CONSULT-II.If trouble symptom disappears, see
CHECK ITEM.
●Harness and connectors
●Intake valve timing control sole-
noid valve TEST ITEM CONDITION JUDGEMENT CHECK ITEM (REMEDY)
Test mode Test item Condition Reference page
HO2S1HO2S1 (B1) P0133
Refer to corresponding
trouble diagnosis for
DTC.EC-905
HO2S1 (B1) P0134EC-914
HO2S1 (B1) P1143EC-1023
HO2S1 (B1) P1144EC-1029
HO2S2HO2S2 (B1) P0139EC-927HO2S2 (B1) P1146EC-1035
HO2S2 (B1) P1147EC-1042
